SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Plastic
Plastic Type: PC
RC Parts & Accs: Batteries - LiPo
Size: 10*10*10
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Battery
Quantity: 1 pcs
Technical parameters: KV1100
Four-wheel Drive Attributes: Motors
Wheelbase: Screws

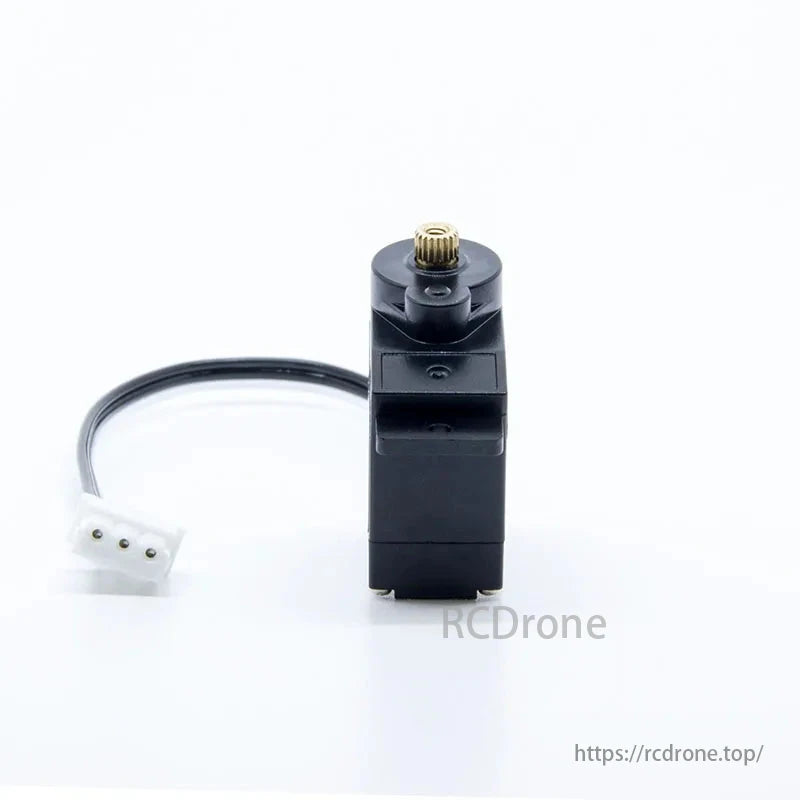

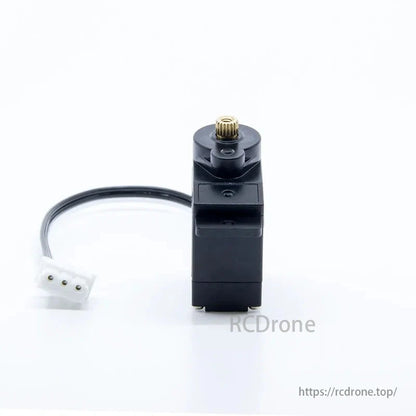

Model Number: SC-0090-C013
Size: 23.2 X 12.1 X 25.25mm
Weight: 13.2± 1g
Gear type: Copper+Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 20T/OD3.95mm
No Load Speed: 0.1sec/60° (100RPM)@6V
Operating Voltage Range: 4.8-6V
Peak stall torque: 2.3kg.cm@6V
Rated torque: 0.75kg.cm@6V
Protocol Type: Half Duplex Asynchronous Serial Communication
|
(Item)
|
(Specification)
|
(Specification)
|
|
Operating Voltage
|
4.8V
|
6V
|
|
No Load Speed
|
0.125sec/60°(80RPM)
|
0.1sec/60°
(100RPM)
|
|
Running Current ( no load)
|
120mA
|
150mA
|
|
Stall Torque (at locked)
|
1.89kg.cm
|
2.3kg.cm
|
|
26.3oz.in
|
31.99oz.in
|
|
Stall Current (at locked)
|
0.8A
|
1.0A
|
|
Idle Current (at stopped)
|
6mA
|
6mA
|
|
Input Voltage
|
4V-7.4V
|
|
Rated Torgue
|
0.65kg.cm
|
0.75kg.cm
|
|
Rated Current
|
300mA
|
400mA
|
|
Terminal resistance
|
0.6Ω
|
Size: 23.2X12.1X25.25mm
Limit Angle: No limit
Case material: PC plastic
Gear material: Metal Gear
Bearing type: No
Angle Sansor: TypeCarbon-Film Potentiometer: Angle330°
Life100000: Cycles Min
Connector and Cable: TypeJR
Material: PVC
Length25CM
Pin Definition "1Signal
2Vcc
3GND
The Weight: 13.5± 1g
Horn Type: 20T/3.95mm
Gear Ratio: 1/416
Back Lash: ≦2.0°
The rocker phantom: 0°
The rocker screw: M2.0X4
Motor: Core Motor
|
Size
|
23.2mmX12.1mmX25.25mm
|
|
Limit Angle
|
No limit
|
|
Case material
|
PC
|
|
Gear material
|
Copper+Steel
|
|
Bearing type
|
NO
|
|
Angle Sansor
|
Type
|
Carbon-Film Potentiometer
|
|
Angle
|
330°
|
|
Life
|
100000Cycles Min
|
|
Connector and Cable
|
Type
|
5264-3P
|
|
Material
|
PP
|
|
Length
|
15CM
|
|
Pin Definition
|
1
|
GND
|
|
2
|
Vcc
|
|
3
|
Signal/TTL
|
|
The Weight
|
13.2± 1g
|
|
Horn Type
|
20T/OD3.95mm
|
|
Gear Ratio
|
1/416
|
|
Back Lash
|
≦0.5°
|
|
The rocker phantom
|
0°
|
|
The rocker screw
|
M2.0X4
|
