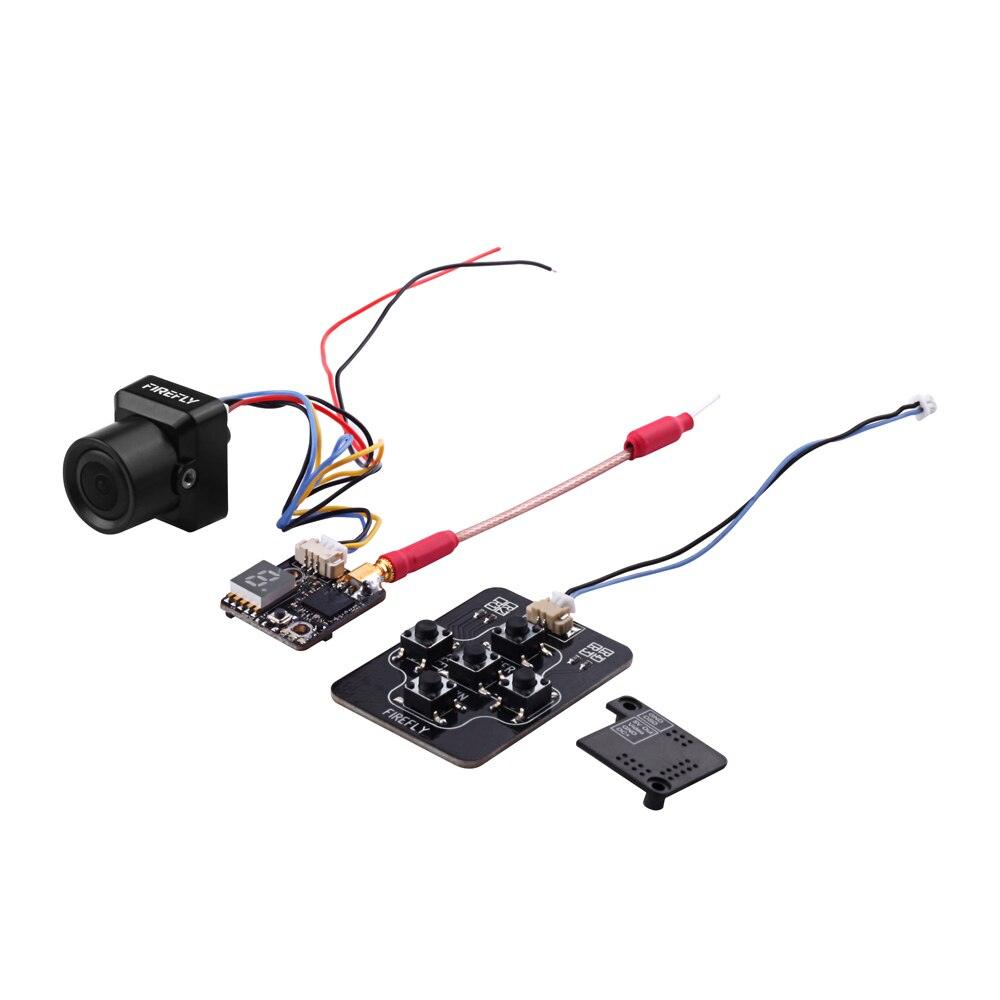

2023 New Firefly Fortress Micro FPV Camera (All-in-one) 5.8G 0-200mw Transmitter VTX AIO For RC Models

2023 New Firefly Fortress Micro FPV Camera (All-in-one) 5.8G 0-200mw Transmitter VTX AIO For RC Models

RCDrone

Regular price $36.85 USD
Regular price $55.27 USD Sale price $36.85 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

149 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Firefly Fortress Micro FPV Camera SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Tires

Tool Supplies: Battery

Technical parameters: KV1100

Size: As show

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y,12+y

RC Parts & Accs: Transmitters

Origin: Mainland China

Model Number: Hawkeye Firefly Fortress

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore




2023 New Firefly Fortress Micro FPV Camera (All-in-one) 5.8G 0-200mw Transmitter VTX AIO For RC Models


Description:

Brand Name: FEIYING
Series Name: Firefly
Item Name: Fortress
Version: Ver 2.2
Color: Black

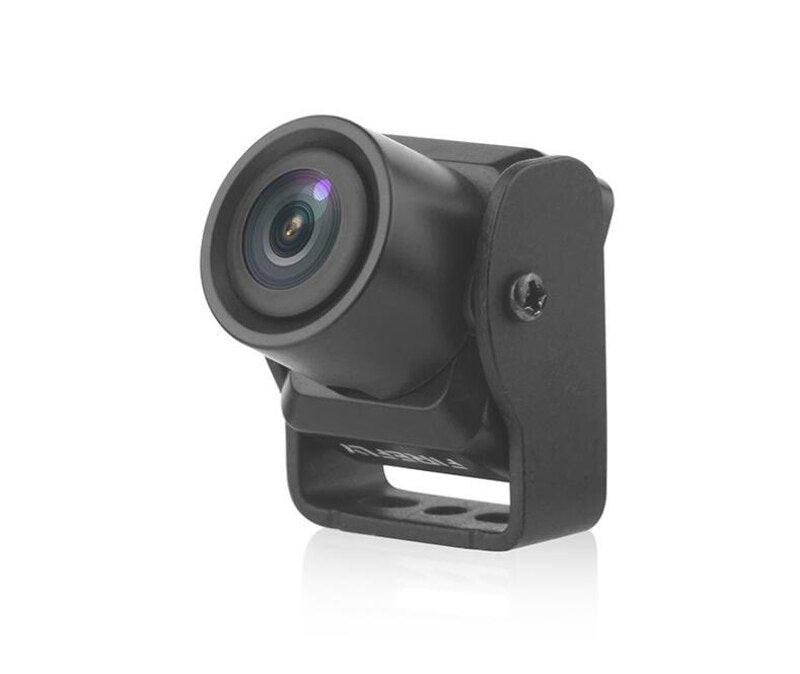

Specifications:

Image Sensor 1/3 inch CMOS
Horizontal Resolution 960 H TVL
TV System NTSC/PAL
Image 4:3 / 16:9
Min. Illumination 0.1Lux(Color);
0.001Lux(B&W)
Lens M8, 2.1mm
S/N Ratio > 60dB
Video Output CVBS
Voltage Output 5V - 300mA
Power Input 5-36V (No transmitter added)
6-36V (transmitter added)
3.5-4.3V (Change to 1S Battery input)
Working Voltage 1S, 2S-6S LiPo
Working Temperature -20° ~ +60°
Net Weight 8g
Dimension 19x22x22mm
Language English / Chinese

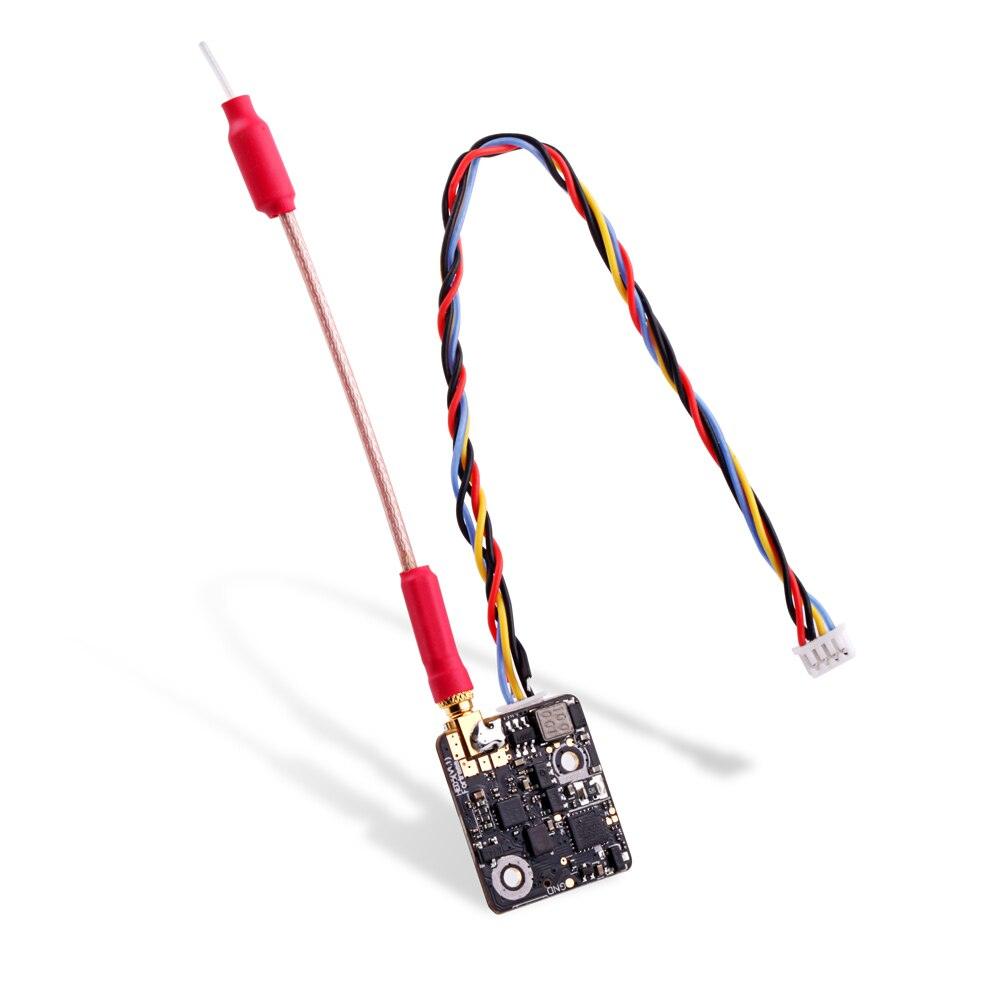

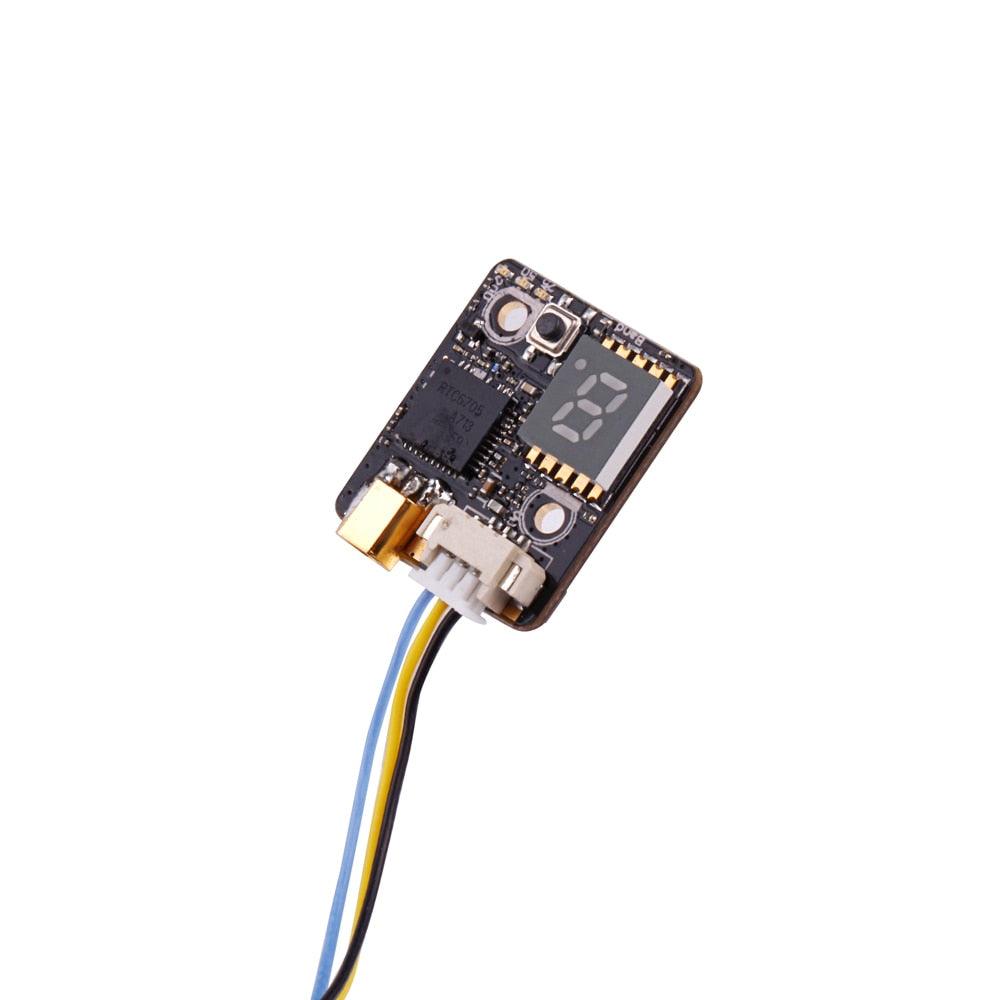

  Transmitter Spec:

Supply Power 3.3-5.5V
Input Impedance 75Ω
Tx Power 0,25,50,200MW
Frequency 5.8GHZ
Channel 48/72CH
Antenna connector MMCX
Size 18*20mm
Weight 2g

  Transmitter Channel Button:
Press Once:
Channel switch from 1 to 8.
Press 2 seconds: Channel group switch from A to F, or H.
Press 10 seconds: Change power: 0mw,25mw,50mw,200mw.


Band Resistor(0Ω):
Soldered: 48 channels (Default)
Removed: 72 channels

48 Channels(default,MHz):

A B C D E F
1 5645 5740 5725 5733 5658 5362
2 5665 5760 5745 5752 5695 5399
3 5865 5780 5765 5771 5732 5436
4 5705 5800 5785 5790 5769 5473
5 5885 5820 5805 5809 5806 5510
6 5905 5840 5825 5828 5843 5547
7 5925 5860 5845 5847 5880 5584
8 5945 5880 5865 5866 5917 5621

  72 Channels (Band Resistor Removed, MHz):
1 2 3 4 5 6 7 8
A 5865 5845 5825 5805 5785 5765 5745 5725
B 5733 5752 5771 5790 5809 5828 5847 5866
E 5705 5685 5665 5645 5885 5905 5925 5945
F 5740 5760 5780 5800 5820 5840 5860 5880
r 5658 5695 5732 5769 5806 5843 5880 5917
u 5325 55348 55366 5384 5402 5420 5438 5456
o 5474 5492 5510 5528 5546 5564 5582 5600
L 5333 5373 5413 55453 5493 5533 5573 5613
H 5653 5693 5733 5773 5813 5853 5893 5933


Features:
Small size and lightweight.
2.1mm M8 960H TVL FPV lens.
Support 1S,2S-6S battery.
AIO available, with well protected shell.
Support 6 Adjustable setting modes.

Mode Setting:
Press and hold Left key to switch: Cloudy,Indoor,Lightrax,Twilight,Personal,Sunny.
You could adjust the settings in each mode.

Power Setting & Low Power Alarm Setting:
Press and hold Right key to adjust the power value; Press Left button to set the alarm power.
You could adjust the power by pressing up/down button.









Power Setting & Low Power Alarm Setting: Press and hold Right key to adjust the power value

2023 New Firefly Fortress Micro FPV Camera (All-in-one



You could adjust the settings in each mode





press 2 seconds: Channel group switch from A to F, or H . Press 10 seconds

Power Setting & Low Power Alarm Setting: Press and hold Right key to adjust the power value
