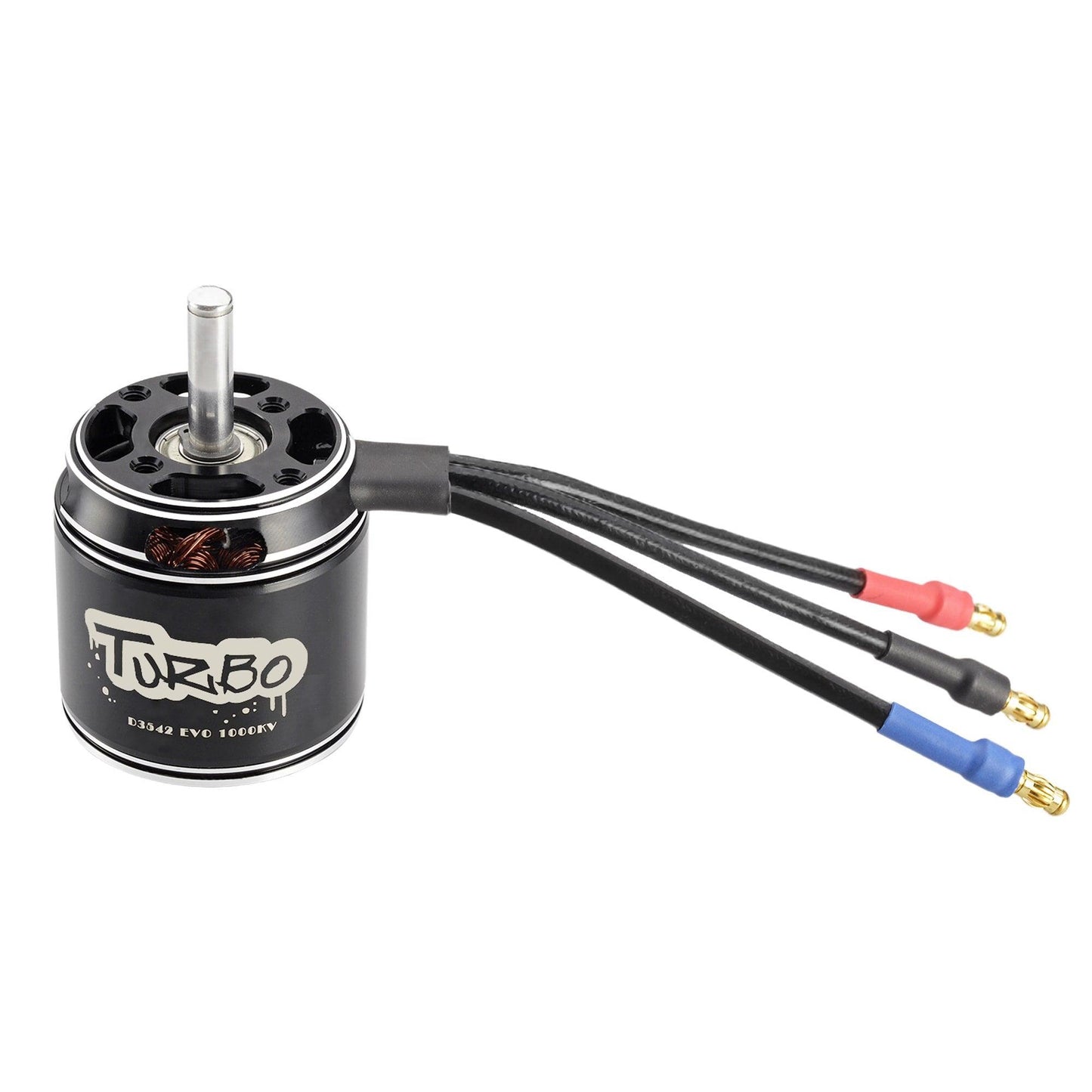

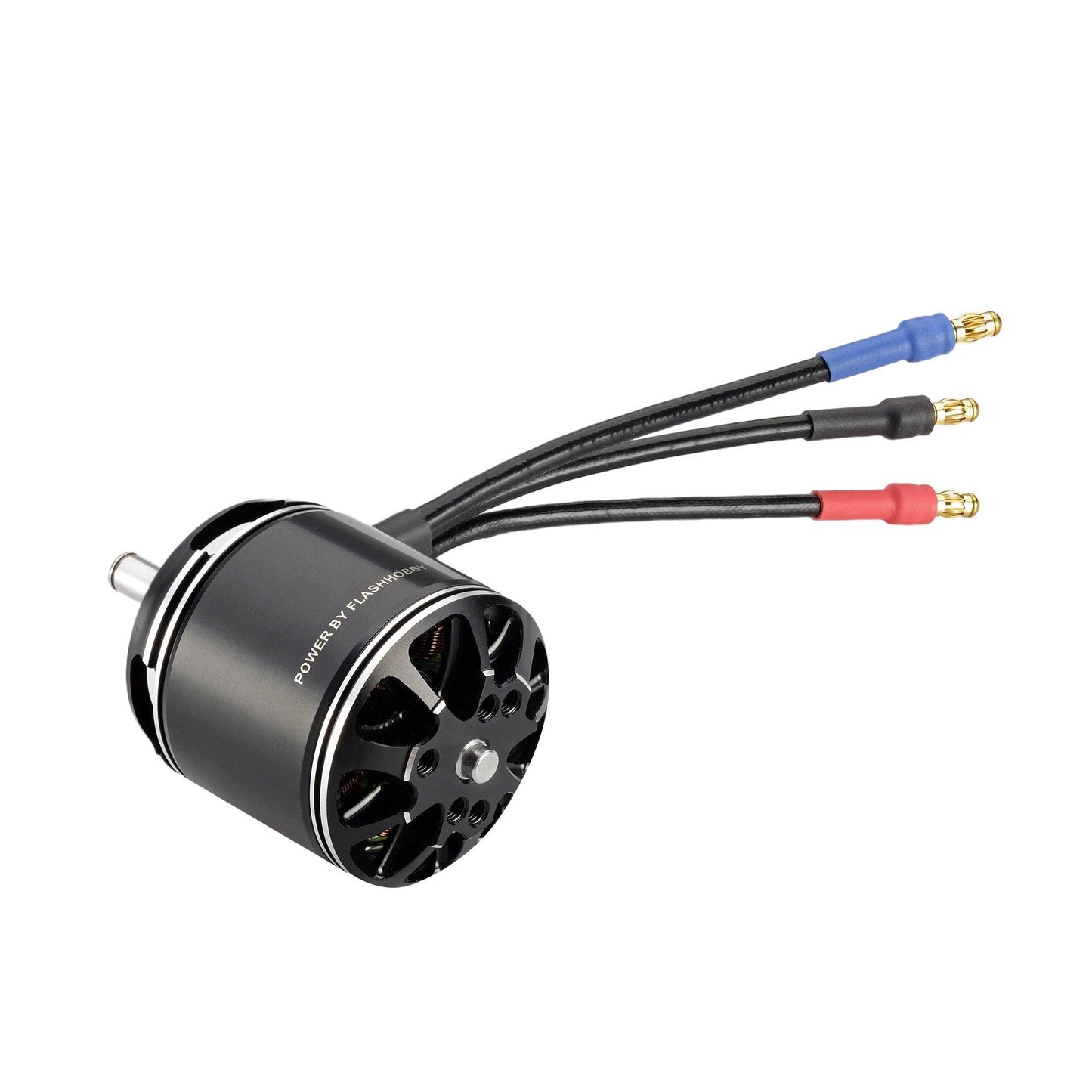

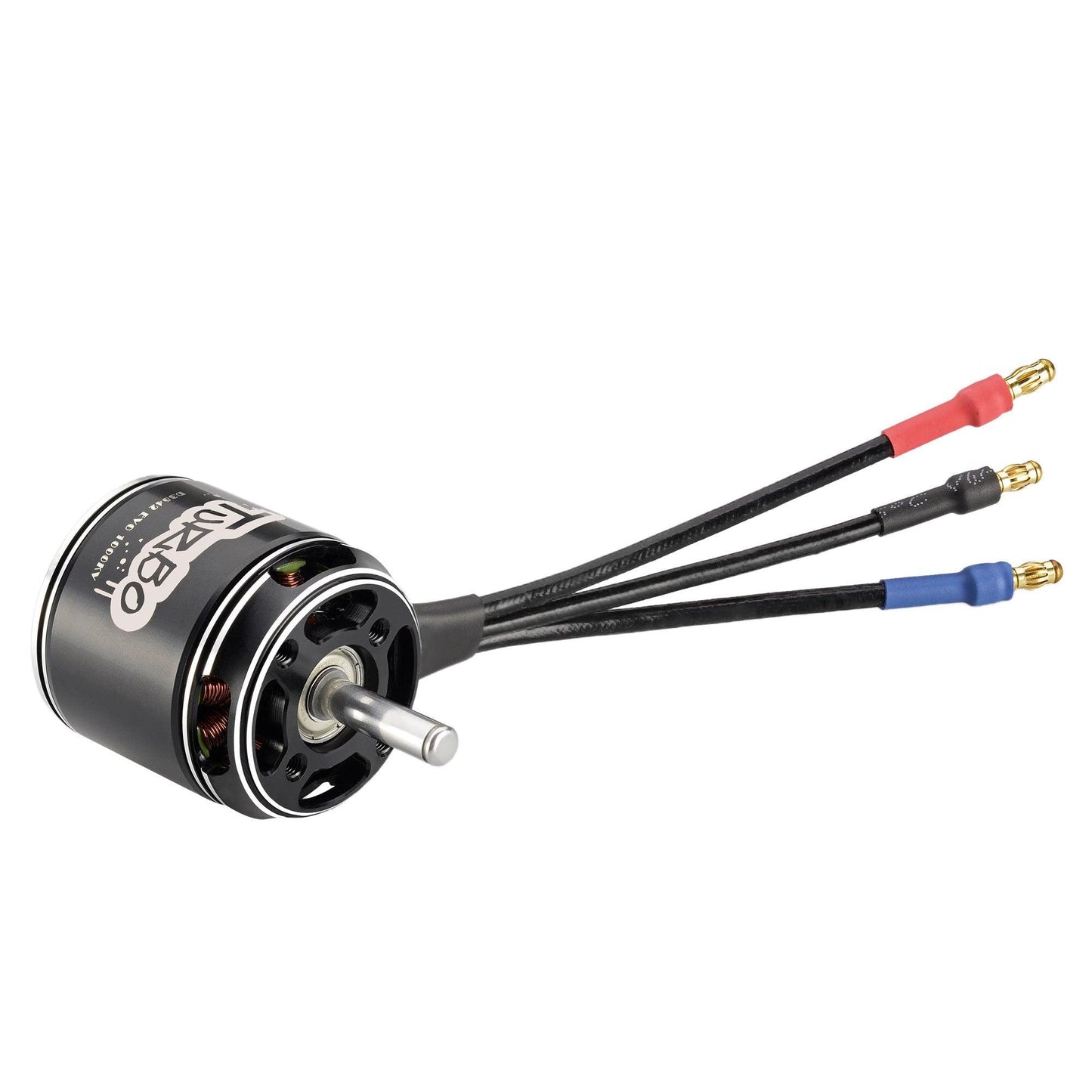

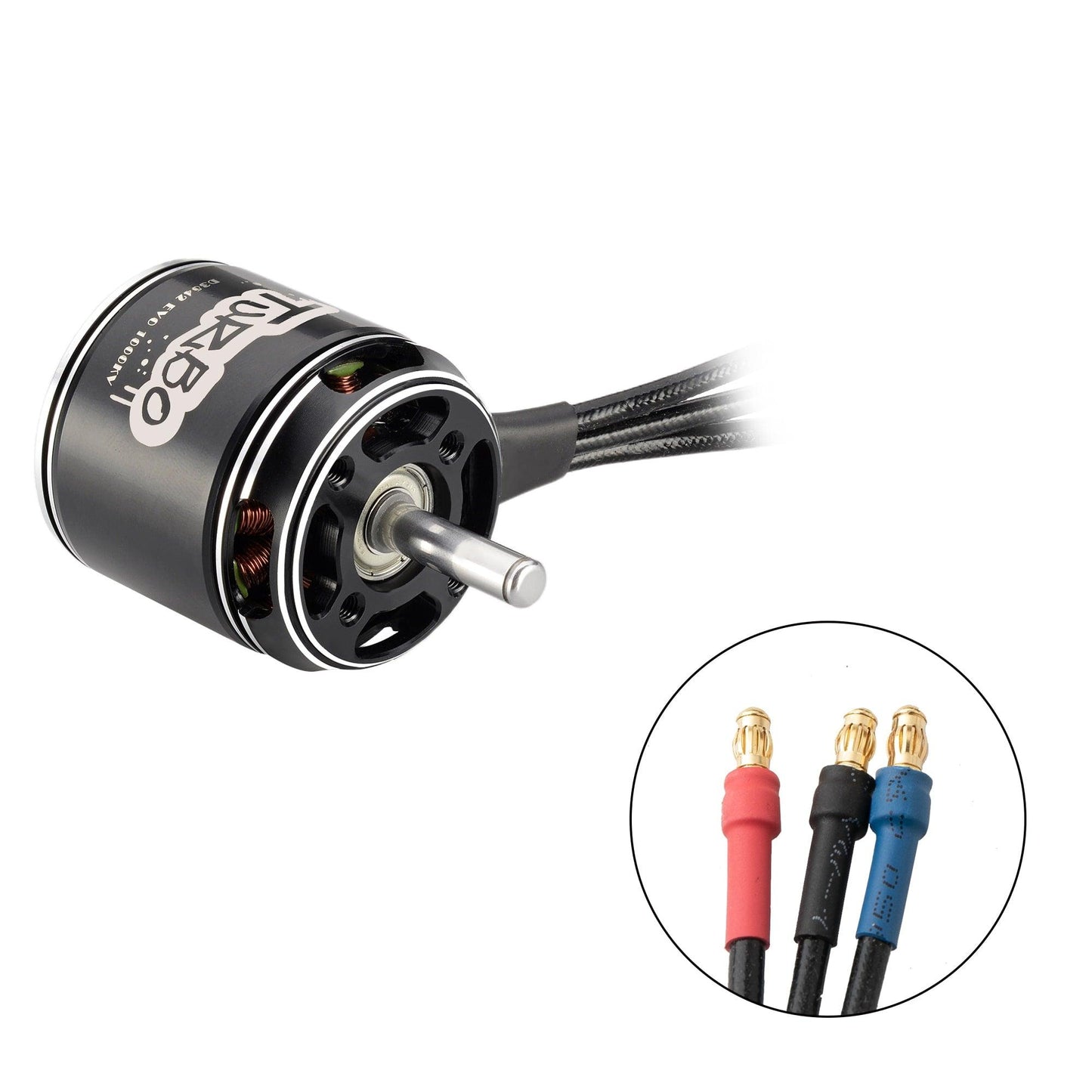

FLASHHOBBY D3542EVO 3542 2820 1000KV 1250KV 1450KV FPV RC Brushless Motor SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Grinded

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: D3542

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Features:

48H Level Magnet

Precision Balanced Rotor Test

14P12N High Torque Motor Design

CNC 6061-T6 Aluminum Bell

High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

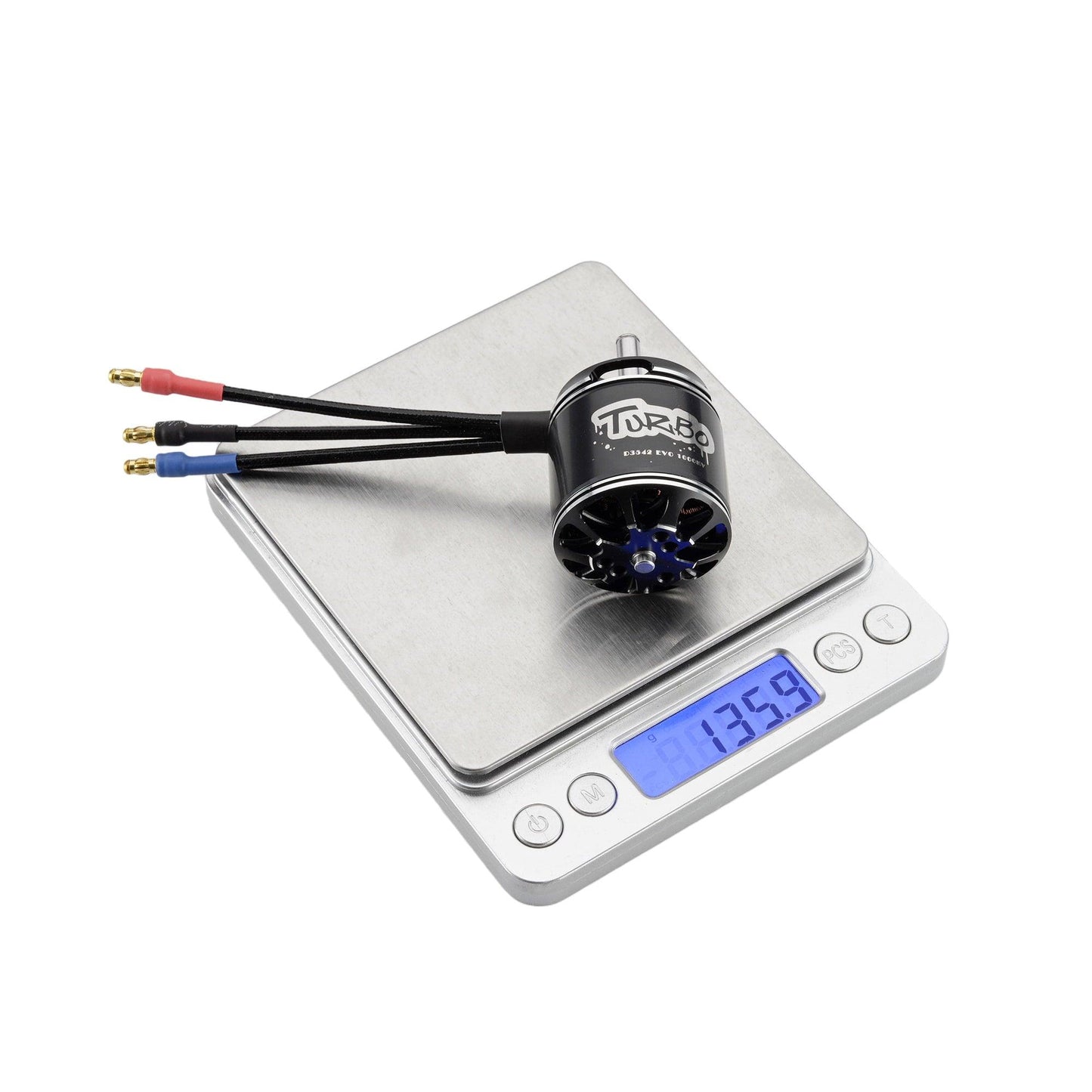

Weight: 136g(Including wires)

Motor Size: 35.3 x42mm

Shaft Size: 5.0*61.5mm

Motor Mount: 19*25mm(M3*4)

Configuration: 12N14P

KV Value: 1000KV, 1250KV,1400KV or customed KV

Working Temperature Range:-0℃~+80℃

Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US

Motor Type: Outrunner Brushless Motor,Three-phase Motor

KV: 1000KV

Max watts: 585.2W

Max Current: 50.28A

No Load current: 2.05A/10V

Resistance: 34.4mΩ

Battery: 3-4S Lipo

Suggested Prop: 13 inch prop

KV: 1250KV

Max watts: 961.7W

Max Current: 62.94A

No Load current: 2.66A/10V

Resistance: 24.0mΩ

Battery: 3-4S Lipo

Suggested Prop: 10 inch prop

KV: 1400KV

Max watts: 613.4W

Max Current: 53.02A

No Load current: 3.34A/10V

Resistance: 19.0mΩ

Battery: 3-4S Lipo

Suggested Prop: 10 inch prop
