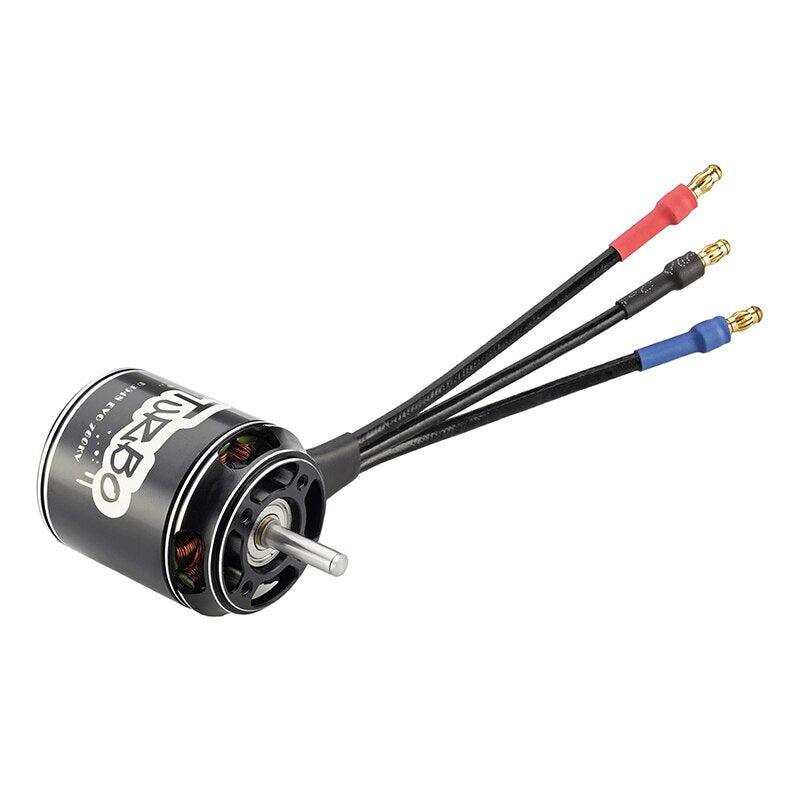

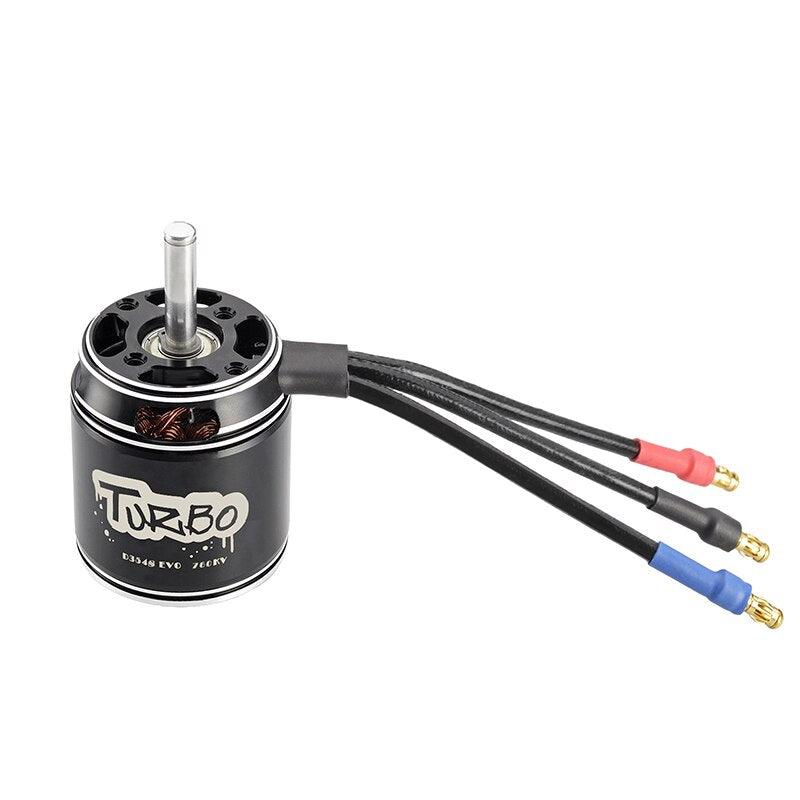

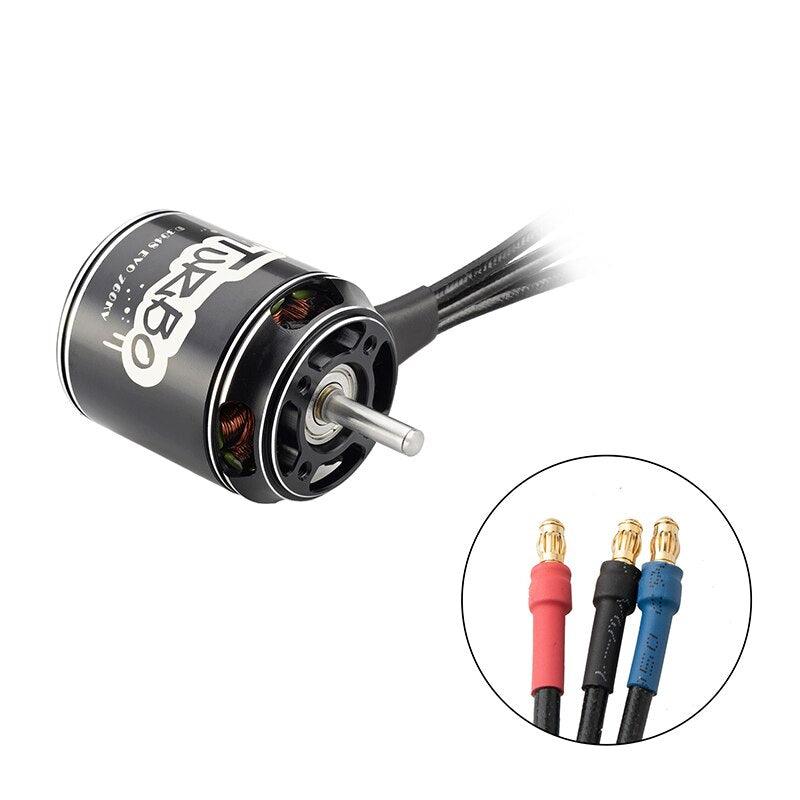

FLASHHOBBY D3548EVO 3548 (2826) 760KV 900kv 1150KV RC Brushless Motor SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Grinded

Technical parameters: Value 3

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: D3548

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Features:

48H Level Magnet

Precision Balanced Rotor Test

14P12N High Torque Motor Design

CNC 6061-T6 Aluminum Bell

High RPM Imported(NSK/NMB) Bearing

High Temperature Resistant Copper Wire Winding

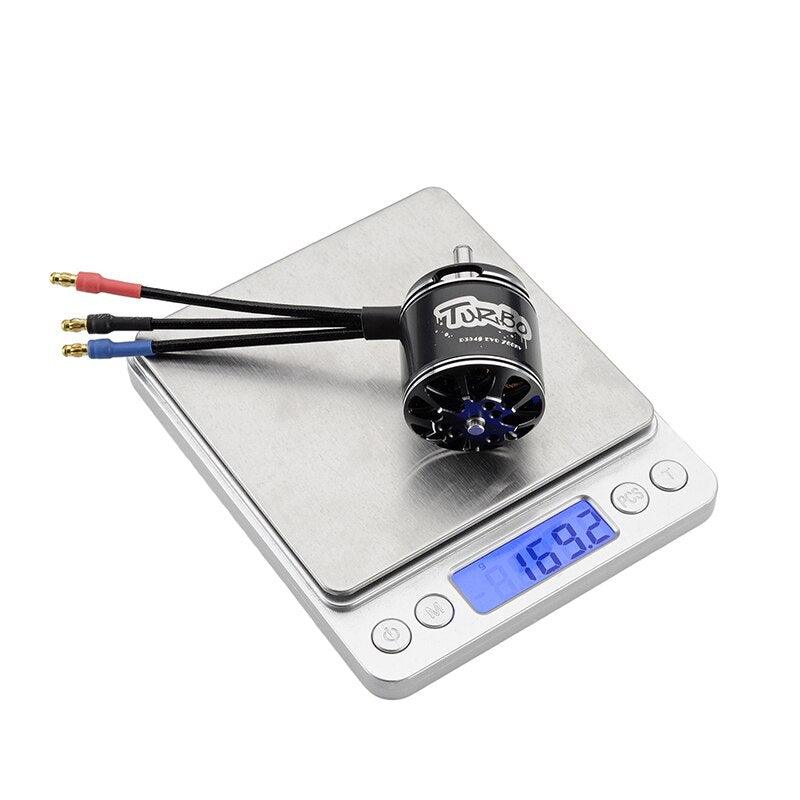

Weight: 170g(Including wires)

Motor Size: 35.3 x48mm

Shaft Size: 5.0*65.5mm

Motor Mount: 19*25mm(M3*4)

Configuration: 12N14P

KV Value: 760KV, 900KV,1150KV or customed KV

Working Temperature Range:-0℃~+80℃

Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US

Motor Type: Outrunner Brushless Motor,Three-phase Motor

KV: 760KV

Max watts: 353.6W

Max Current: 29.44A

No Load current: 1.54A/10V

Resistance: 34.4mΩ

Battery: 3-4S Lipo

Suggested Prop: 13 inch prop

KV: 900KV

Max watts: 1324.1W

Max Current: 55.8A

No Load current: 2.66A/10V

Resistance: 24.0mΩ

Battery: 3-6S Lipo

Suggested Prop: 9 inch prop

KV: 1150KV

Max watts: 623.8W

Max Current: 54.62A

No Load current: 3.34A/10V

Resistance: 19.0mΩ

Battery: 3-4S Lipo

Suggested Prop: 9 inch prop
