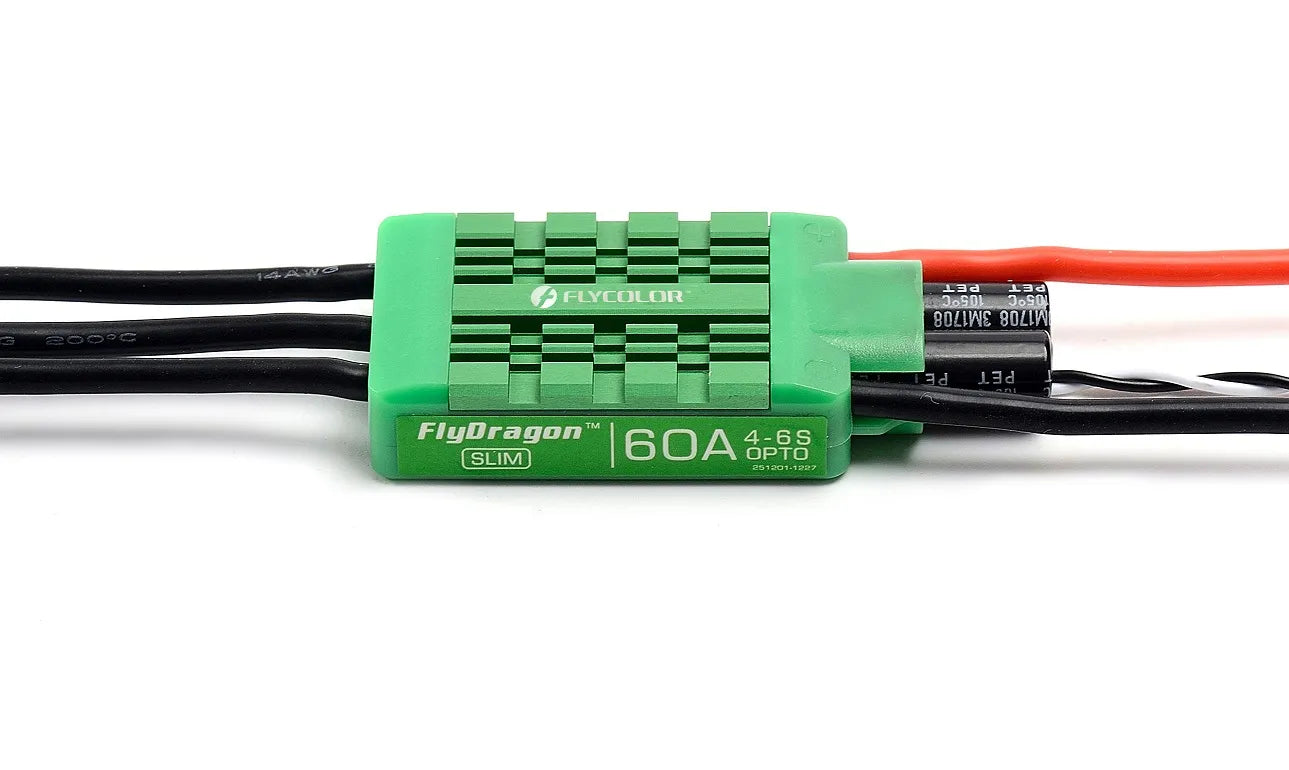

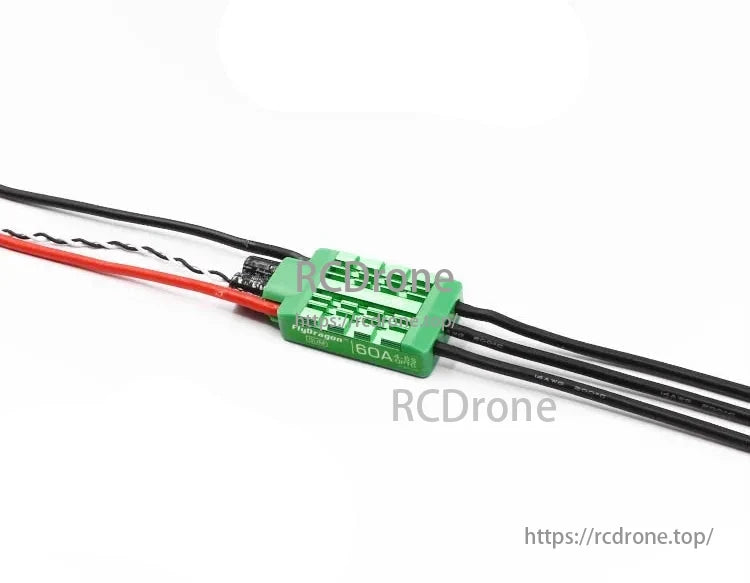

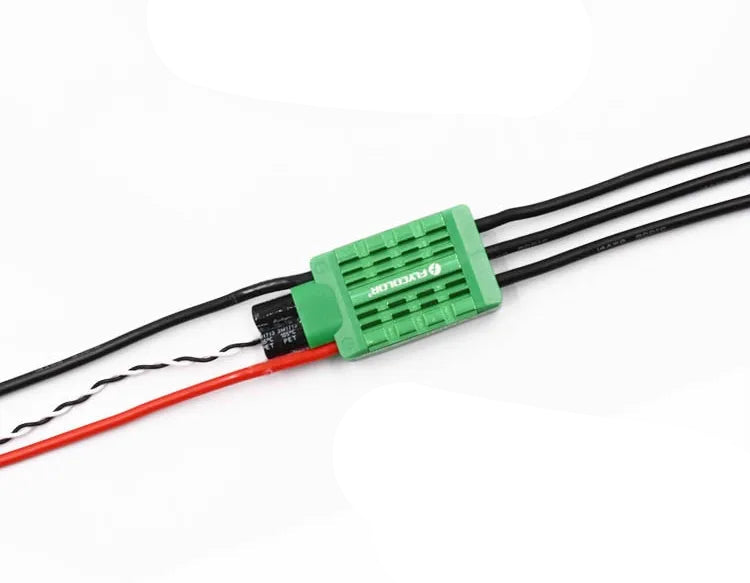

Flycolor FlyDragon Slim 60A ESC for Multirotor Agriculture Drone – 4-6S, 48MHz MCU, ASCF, Waterproof

Overview

The Flycolor FlyDragon Slim 60A ESC is a high-performance electronic speed controller designed specifically for multirotor agricultural drones. Featuring a 4–6S LiPo input, 60A continuous current, and 80A 10-second burst current, this ESC delivers stable and powerful performance. Its ultra-slim 64.6×29.5×11.7mm form factor and 56g lightweight design make it ideal for UAVs requiring both compactness and efficiency. The ESC is equipped with a 48MHz high-speed MCU, Nano waterproof coating, and Active Switch Continued Flow (ASCF) technology to improve thermal management and system efficiency.

Key Features

• 48MHz High-Performance MCU: Enables faster response and better communication with flight controllers.

• ASCF Technology: Enhances efficiency and significantly reduces heat during operation.

• Nano Waterproof Coating: Provides splashproof and corrosion-resistant protection for reliable outdoor operation.

• Motor Reverse Switch: Located at the bottom, allows easy reversal of motor direction without re-soldering.

• Self-Adaptive Firmware: Supports 4 timing options, optimized for disc motors with strong compatibility.

• Throttle Signal Support: Accepts up to 500Hz refresh rate; compatible with various flight control systems.

• LiPo Support: Compatible with single-cell voltage up to 4.35V, suitable for high-voltage cells.

• No BEC Design: Ensures simpler circuitry and improved reliability in power-sensitive drone builds.

Specifications

Applications

• Agricultural UAVs: Compact and reliable for high-load spraying drones.

• Multirotor Drones: High-efficiency ESC for quads, hexacopters, and octocopters.

• Water-Resistant Drone Builds: Ideal for wet environments or low-altitude field spraying operations.

Details

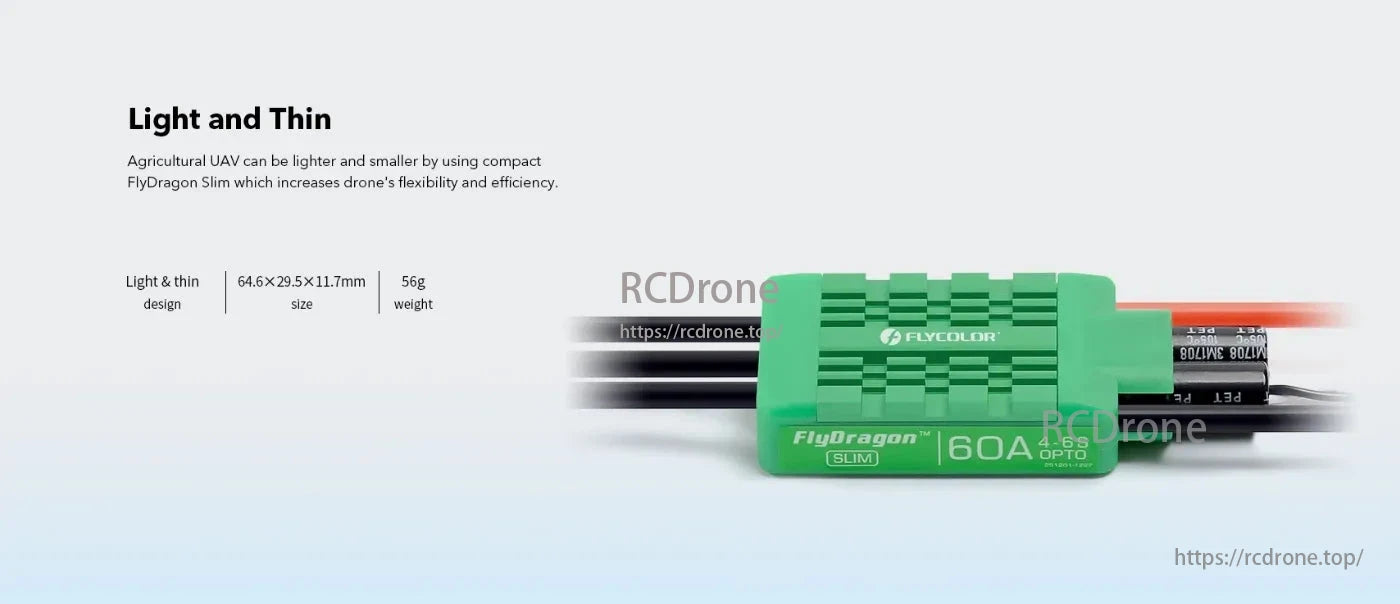

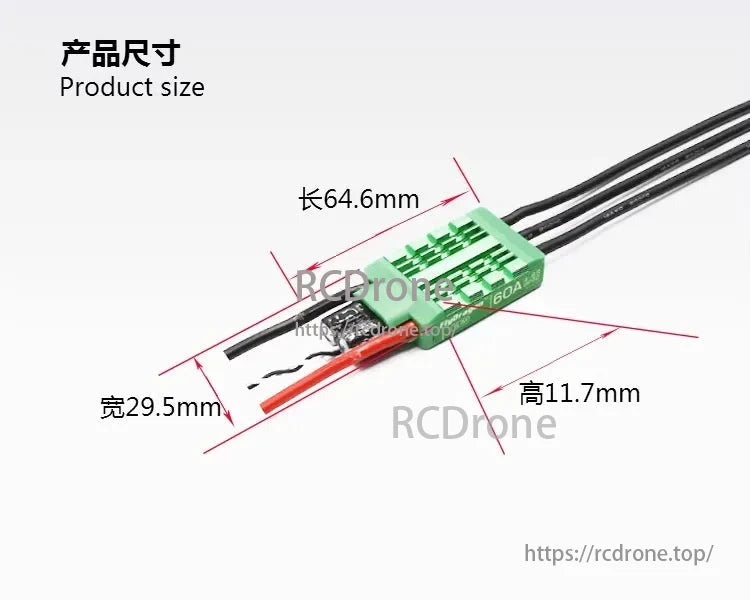

FlyColor FlyDragon 60A ESC: Light and thin design, 64.6×29.5×11.7mm size, 56g weight. Enhances agricultural UAV flexibility and efficiency with compact build.

Flydragon 60A ESC includes motor reverse switch and high-efficient ASCF program, reducing heat and improving efficiency for multirotors.

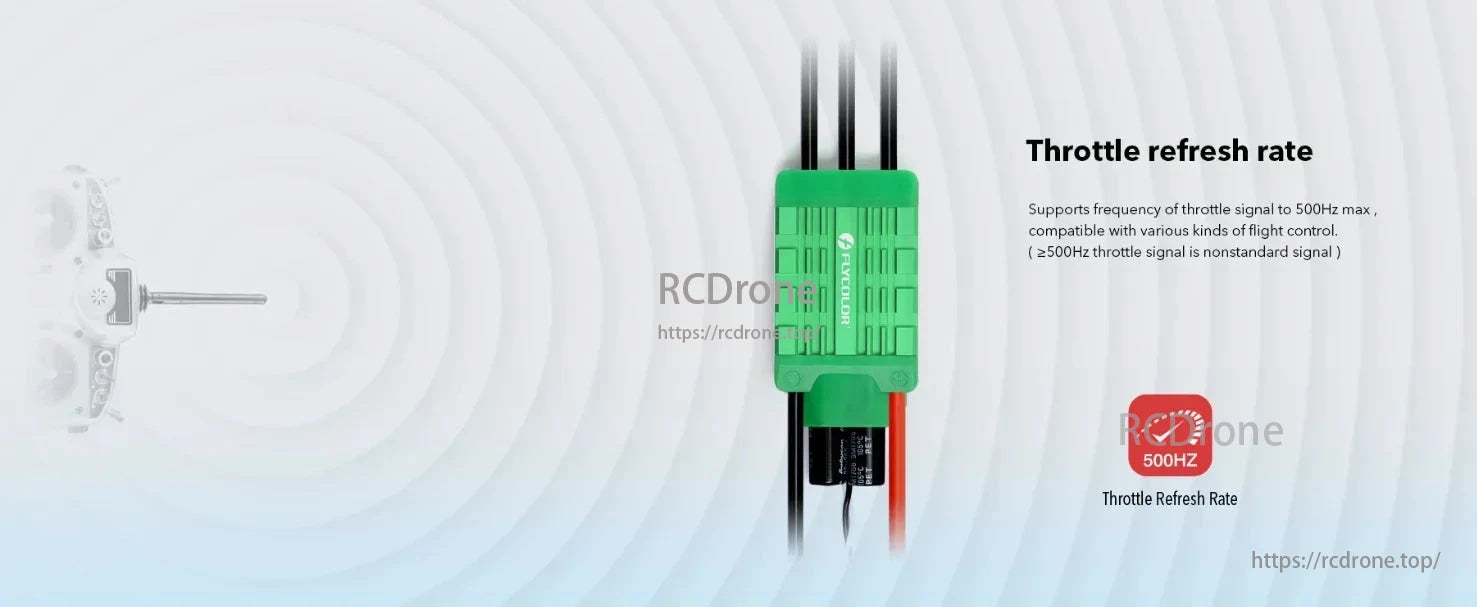

Flydragon 60A ESC supports 500Hz throttle refresh rate, compatible with various flight controls.

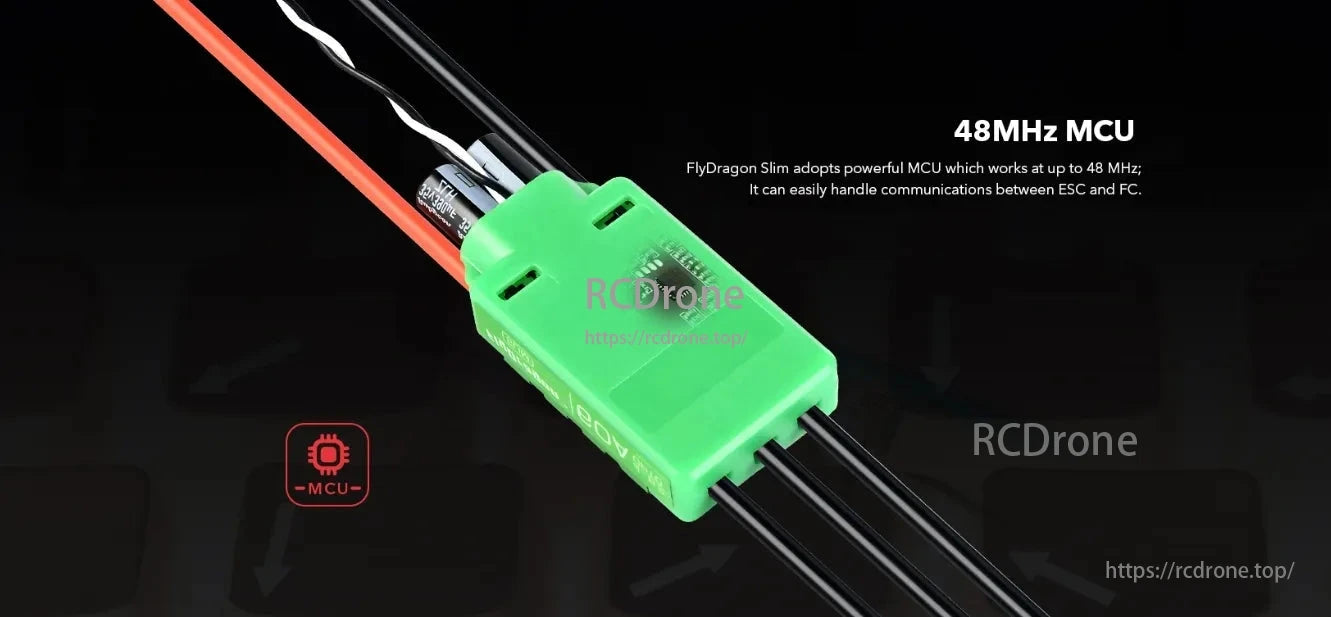

FlyDragon 60A ESC with 48MHz MCU for efficient ESC and FC communication.

FlyDragon 60A ESC: Light and thin design, 64.6×29.5×11.7mm size, 56g weight. Enhances agricultural UAV flexibility and efficiency with compact build.
