FlyFishRC M10 Mini GPS Module SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 14+y

Origin: Mainland China

Material: Metal

Brand Name: FlyFishRC

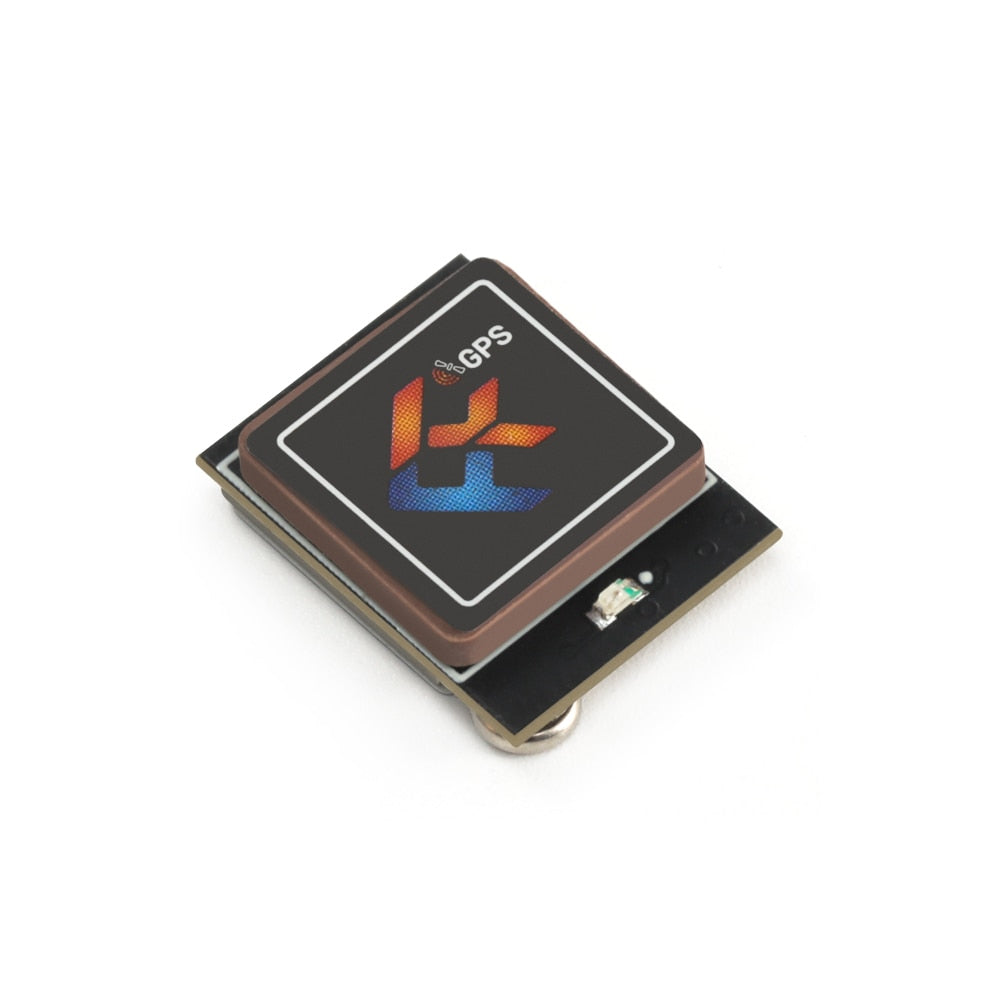

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use. It features an 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity. The UBLOX 10th generation chip allows for skipping minor changes in altitude, improving stability.

Spec：
GPS Module Protocol: Ublox/NMEA
Speed Accuracy: 0.05m/s
Cold Start: 30 s
Hot Start: 1-3 s
Tracking Sensitivity: -167dBm
Input Voltage: 3.3~5.5V (typical value 5V)
Maximum Altitude: 50000m
Maximum Speed: 500m/s
Maximum Acceleration: ≤4G
Baud Rate: 4800-115200bps (recommended 115200bps)

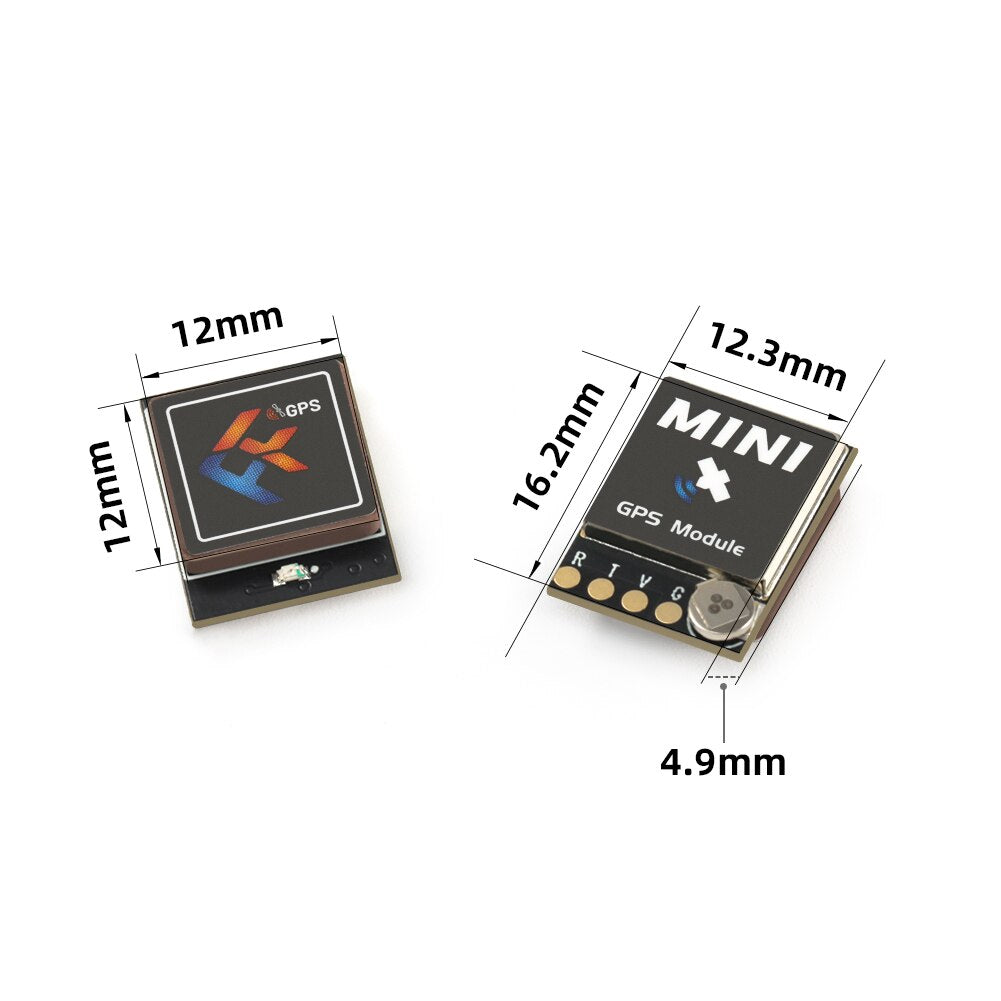

GPS Module Size: L16.2x W12.3x H4.9mm
GPS Ceramic Size: 12*12mm

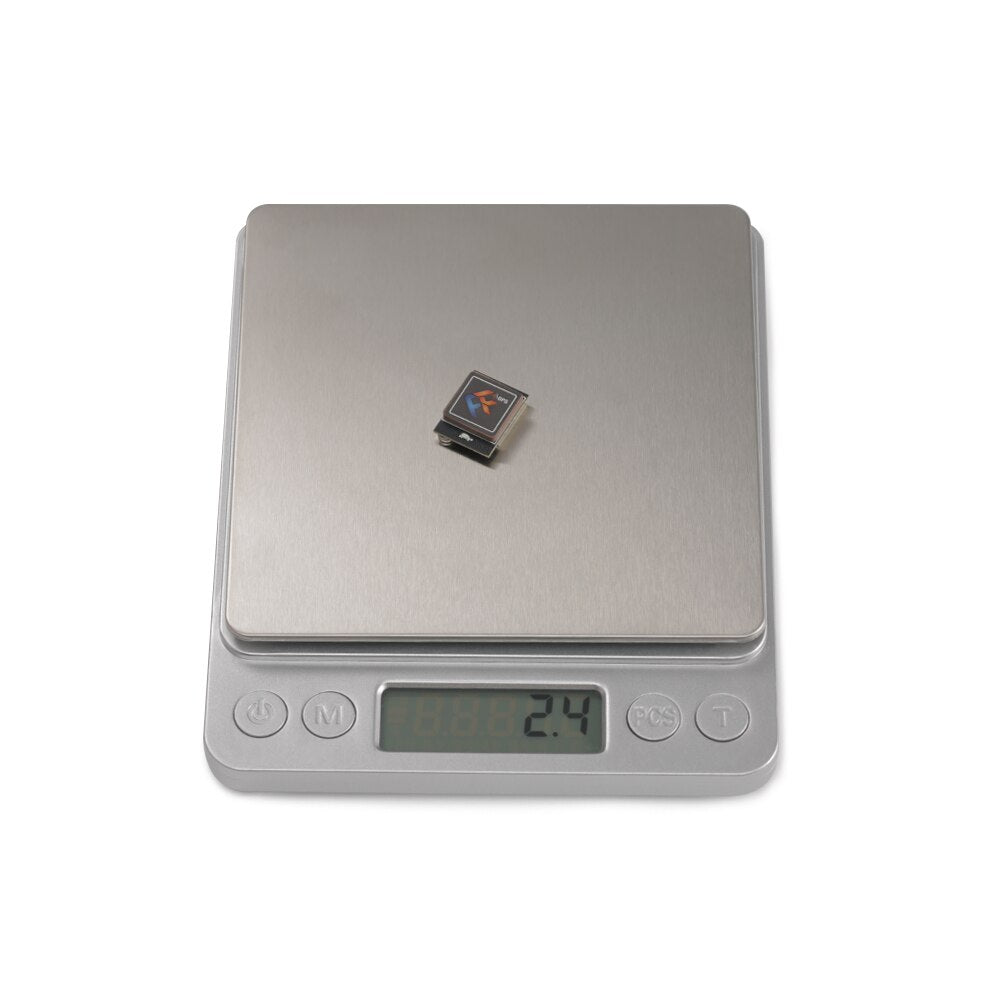

Weight: 2.4g (±0.5g)

Pin Definition:
VCC: System main power supply, voltage is 5V, current is about 40mA during operation
GND: Ground
RXD: Data input
TXD: Data output

Includes:
1x FlyFishRC M10 Mini GPS Module
4x #30 Silicone Cable
1x GPS Manual

Manual Detail Click

GPS Antenna M1O Mini GPS Module Small size Fast positionina Dual mode Weiaht:2.40 High precision positioning ublox 10 generation chip Stable positioning speed Indicator Light Description @GPs Positionina Power indicator indicator Indicato Light PPS(RED) POWER(RED), Normal Light Off Always Positioning Success lashing ways On FC Product Show 8 GPS GPs 4.9mm 12.3mm 0 MINI 1 GPS Module 12mm 12.2mm
