Item Name
|
Specification
|
FLYHAL FX1
|
Brand: FLYHAL
Item Name: FX1
Wheelbase: 295mm
Quadcopter Expand Size: 395*395*87mm
Quadcopter Folded Size: 295*80*87mm
Quadcopter Weight: 612g (Including Battery)
Max. Speed: 3m/s
Max. Descent Speed: 2m/s
Max. Flying Speed: 40km/h
Max. Flying Time: 28mins
Max. Limit Height: 120m
Wind resistance level: <4 level
Max Flight Distance: Over 600m
Hovering Accuracy Range:
Vertical ±0.3m,Horizontal ±0.3m (Indoor routine environment, within 3
meters height)
Vertical ±0.5m,Horizontal ±1.5m(Outdoor 3 meters above normal environment)

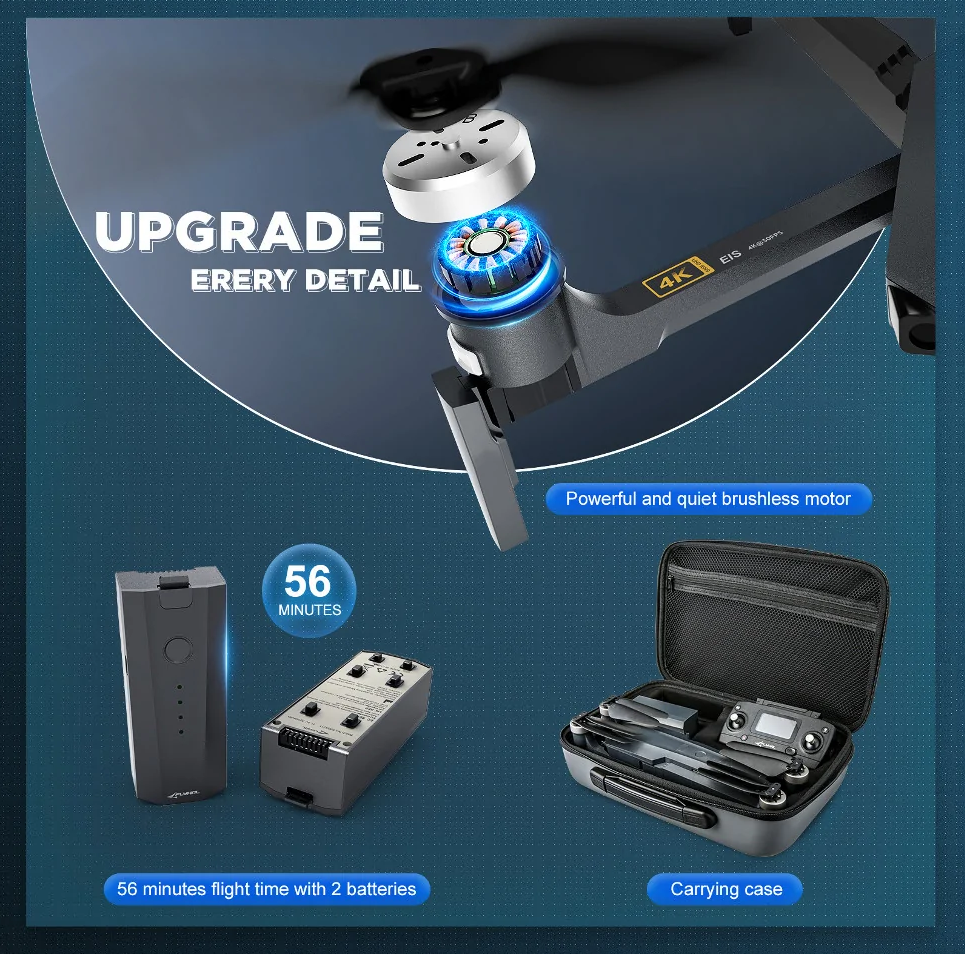

Motor: 2204 1000KV Brushless Motor
ESC: 12A Brushless
EIRP: 20dbm
Built-in Positioning Sensor: GPS/Optical Flow/Barometer
|

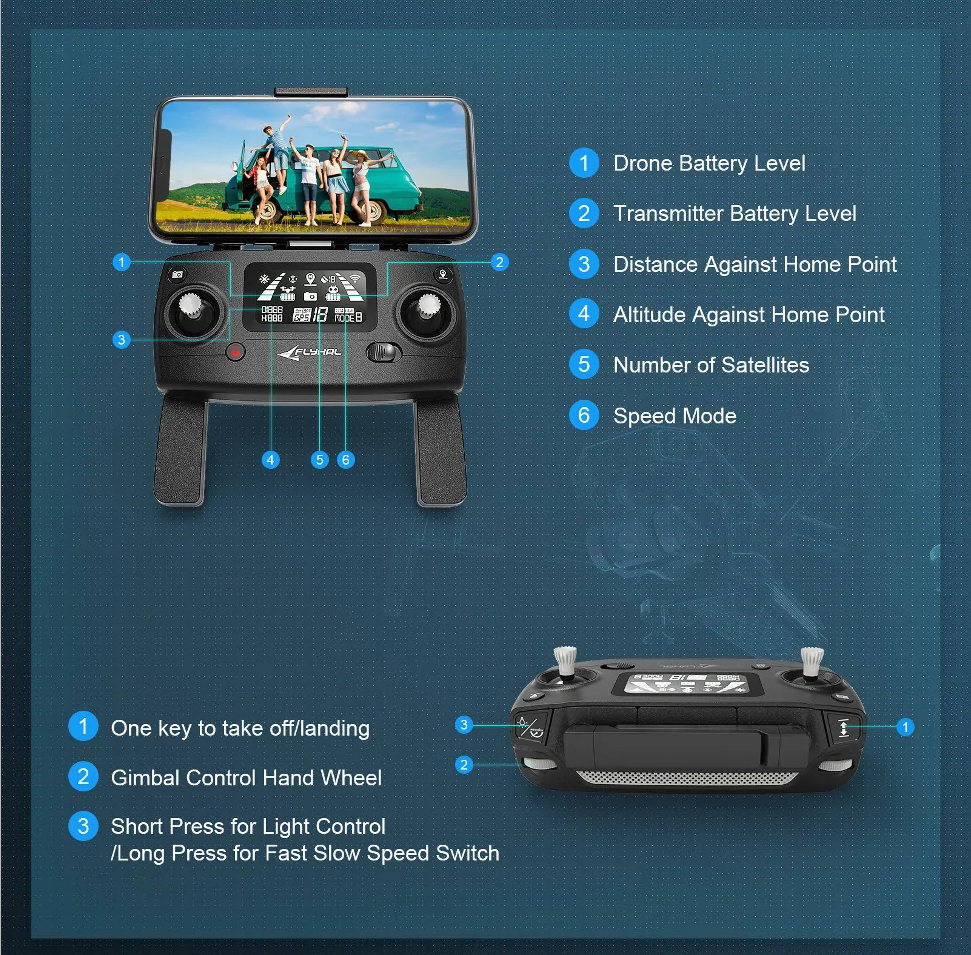

Remote Controller
|
Operating Frequency: 2.4G
Maximum Remote Control Distance: Above 800m
Transmitter Battery: 2*AA
Using Time: About 12h
|
Camera&Gimbal
|
Item Name: 4K 5G Wifi Camera
Effective Pixels: 4K
Maximum Transmission Frame Rate: 720P@30FPS
Video Transmission System: 5G WIFI(802.11.ac)
Image Transmission Range: 450m
Lens Angle: 120°
Aperture: f/2.0
Focal Length: 2.96mm
Sensor: 1/3 inch CMOS
Local Video Frame Rate: 3840x2160@30fps 1080P@60fps
File system: FAT32
Shutter speed: 1/30s-1/10000s
ISO range:100 - 3200 for Video/Photo

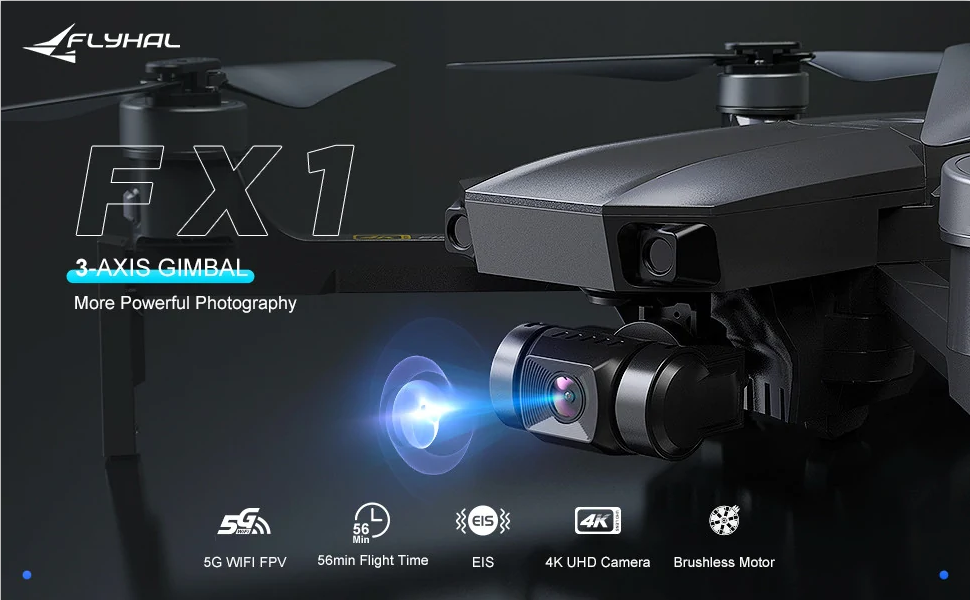

Gimbal: 3-Axis Coreless
Pitch Adjustment Range: 0° to -90°
Roll Servo Range: -30° to 30°
Heading Servo Range: -30° to 30°
Max Photo Resolution: 3840x2160
Max Video Resolution: 33840x2160
Supported SD Cards: Micro SD Card Class 10 And Above (Not included)
Max. Expansion: 128GB
|
Battery
|
Item Name: 11.4V 3200mAh Lipo Battery
Capacity: 3200mAh
Voltage: 11.4V
Battery Weight: 204g
Operating temperature: 5℃ to 40℃
Charging Time:
About 5.5h (Single Battery)(5V 2A)
About 1h(Above 45W PD Charger)
Input: 5V 2-2.1A or 12V 3A(PD)
Charging Type: USB toType-c Charging Cable/PD Charging Cable
|
Weight & Dimensions |
Package Size: 33.4*10.5*23.2cm
Package Weight:1.65kg
|
Features:

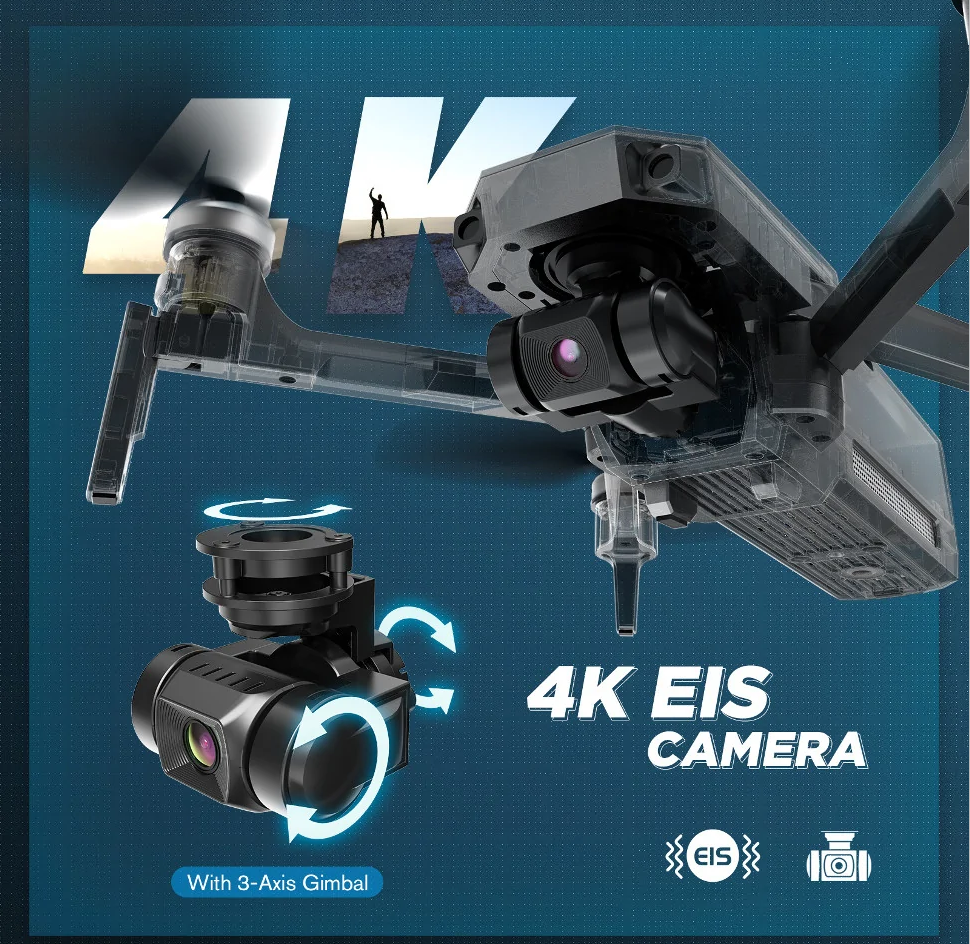

- 3-Axis Coreless Gimbal 4K EIS Camera
- Multiple sensors ensure stable positioning in various environments:
stable hovering indoors and outdoors without being affected by the environment(GPS/Optical Flow/Barometer)
- Module-designed Type-C charging lipo battery, 28mins flight time
- Supporting PD fast-charging, 1 hour to fully charge the battery
- Smart remote controller alarm function
- Follow me/ Point of interest/TapFly/Optical Flow Positioning
Functions:
Up/down, Forward/backward, Turn left/right, Sideward flight, One key taking-off/landing, 5G WiFi image transmission

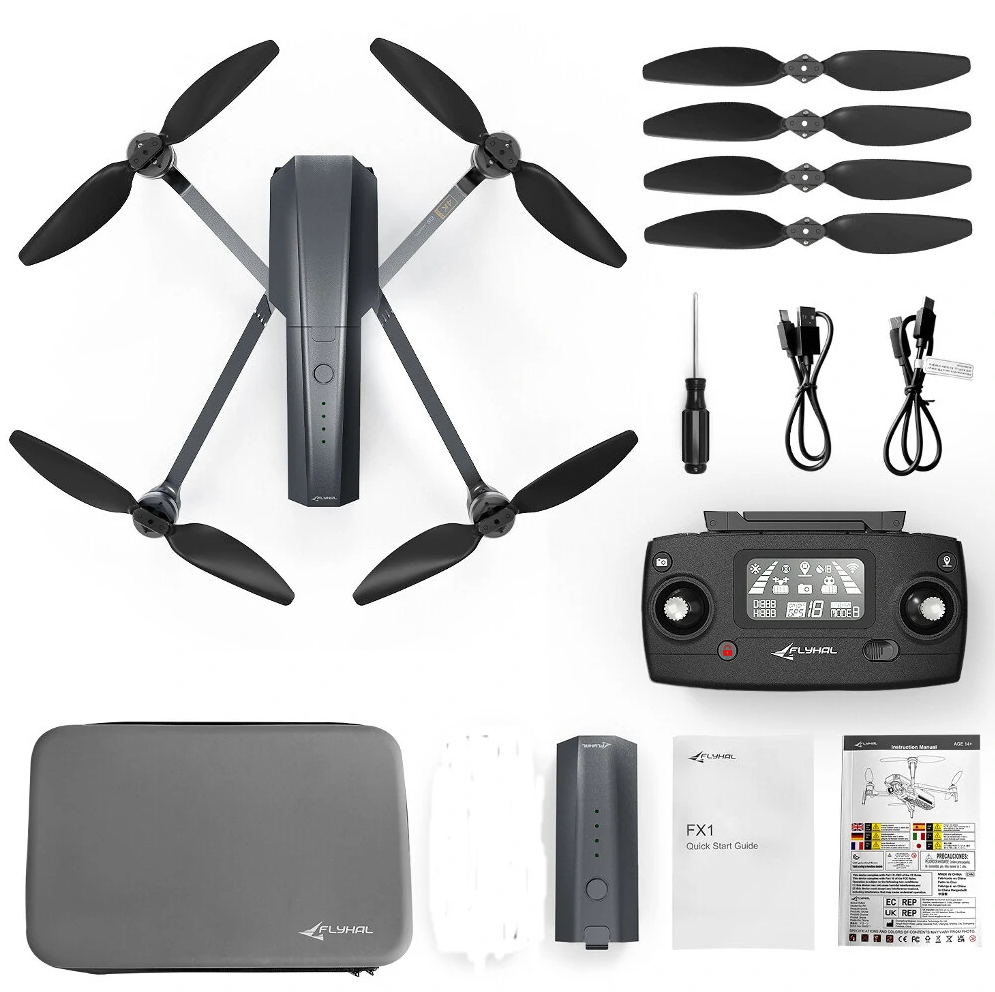

Package Included:
1 x Quadcopter(with camera)
1 x Remote Cotroller
4 x Propeller
1 x 11.4V 3200mAh Lipo Battery(the quantity can be chosen)
1 x PD Charging Cable
1 x USB Charging Cable
1 x Screwdriver
1 x Manual
1 x Storage Bag

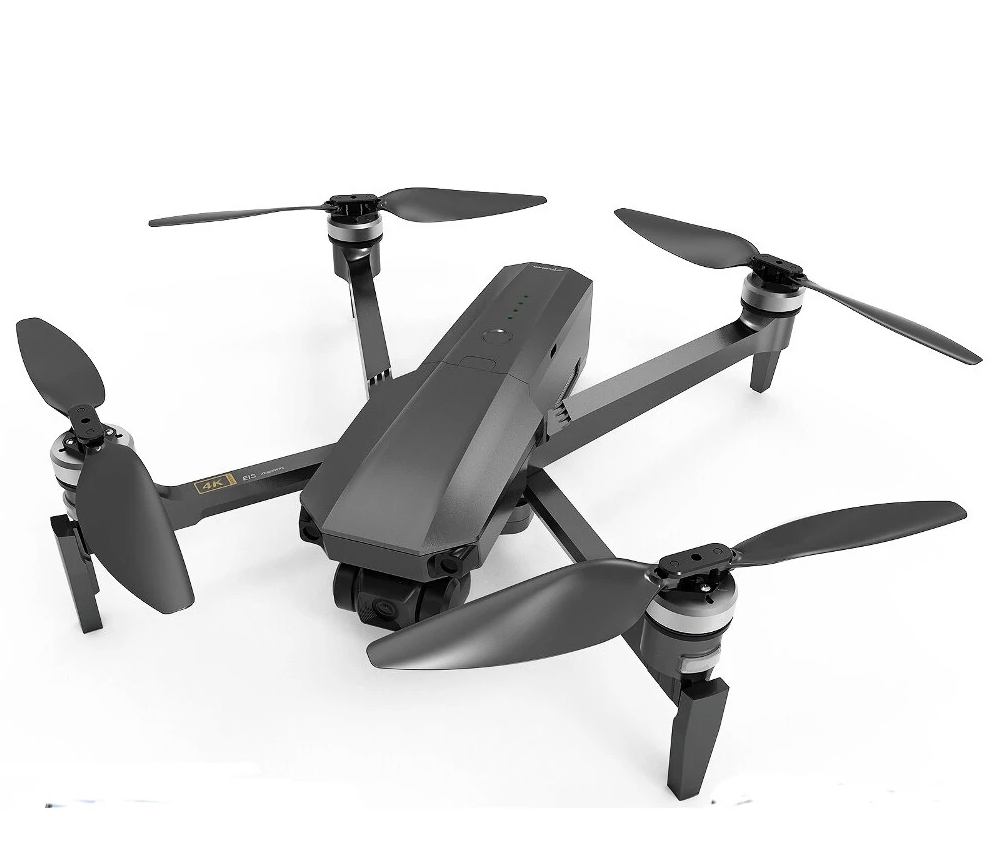

FLYHAL FX1 GPS RC DRONE :
