FLYSKY FS-R7V R7V SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y,14+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Origin: Mainland China

Model Number: FS-R7V

Material: Plastic

For Vehicle Type: Cars

Brand Name: FLY SKY

FS-RZV based on ANT protocol is a receiver which provides seven channels and bidirectional transmission . it features an extemal single antenna with built-in gyroscope and compact design .

FS-RZV FL P@ Rtv H Kf IHundred per cent 10 built-in gyroscope outputs of PWM or PPM/i-BUS/S.BUS signal 1tr 1 BwD por oih V W# F PU mbn 4in- Ppmh 77"e bduette (FLYSKY 1410"

FS-R7V based on ANT protocol is a receiver which provides seven channels and bidirectional transmission . it features an external single antenna with built-in gyroscope and compact design .

This product is 100% compatible with FLYSKY's FS-R7V transmitter, FCC ID: Za2UMAZPOO. The receiver measures 23.3mm in length and has an output current of up to 9V at 35mA.

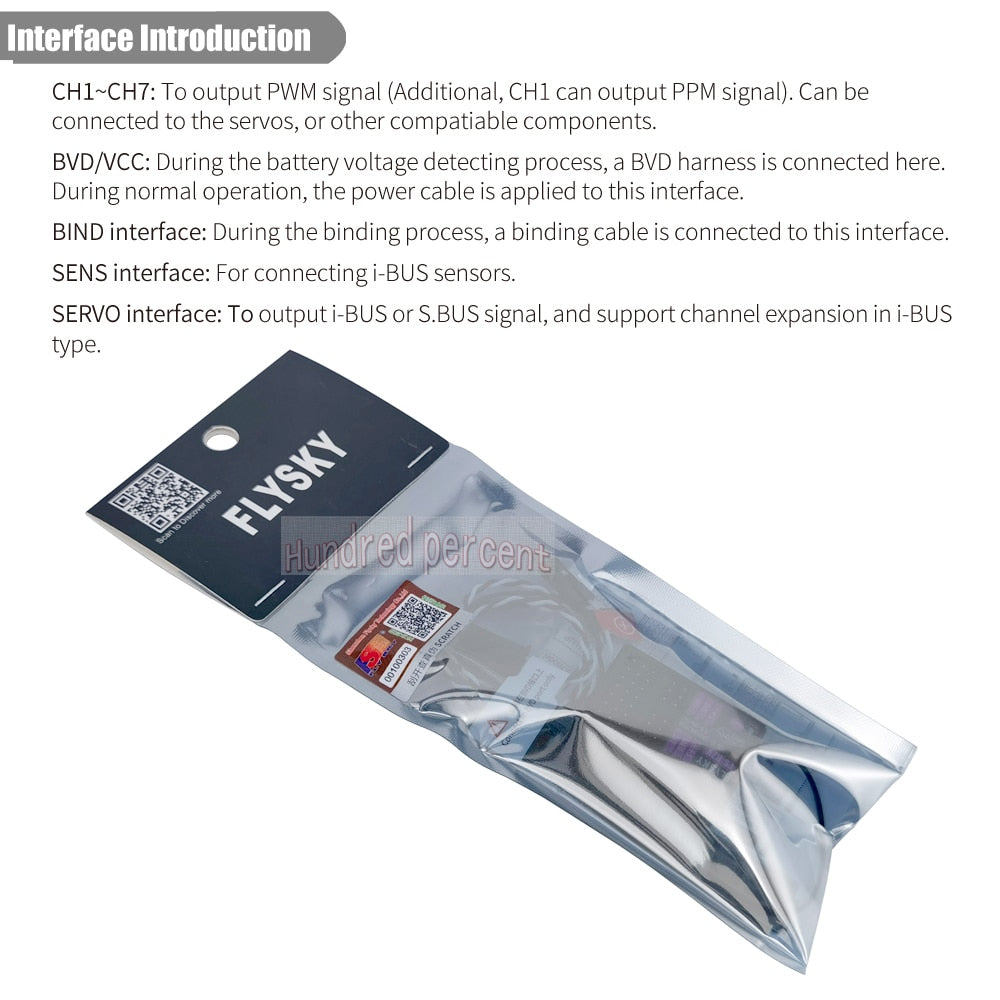

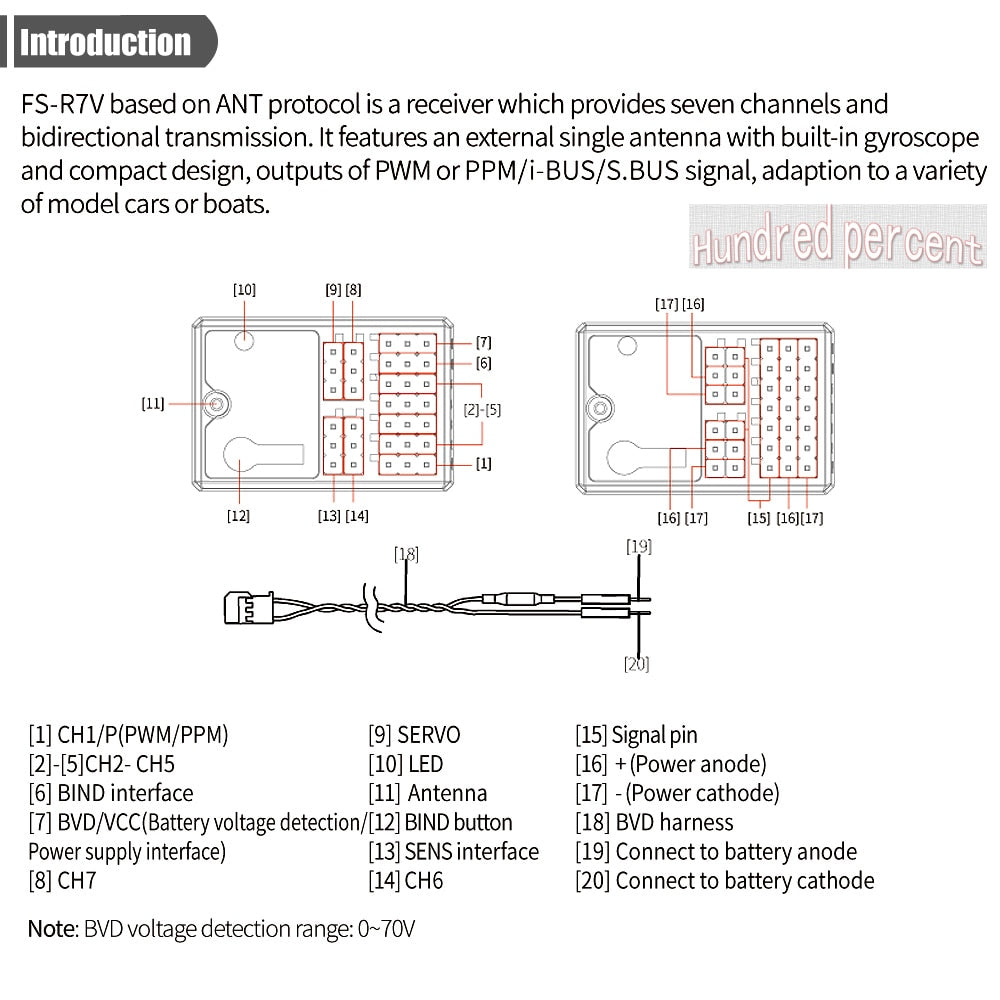

Channels 1-7: Can be connected to servos or other compatible components. Power Harness: This harness applies during the battery voltage detecting process, providing power to the receiver.

The FS-R7V is a bi-directional receiver offering 7 channels using the ANT communication protocol.

built-in

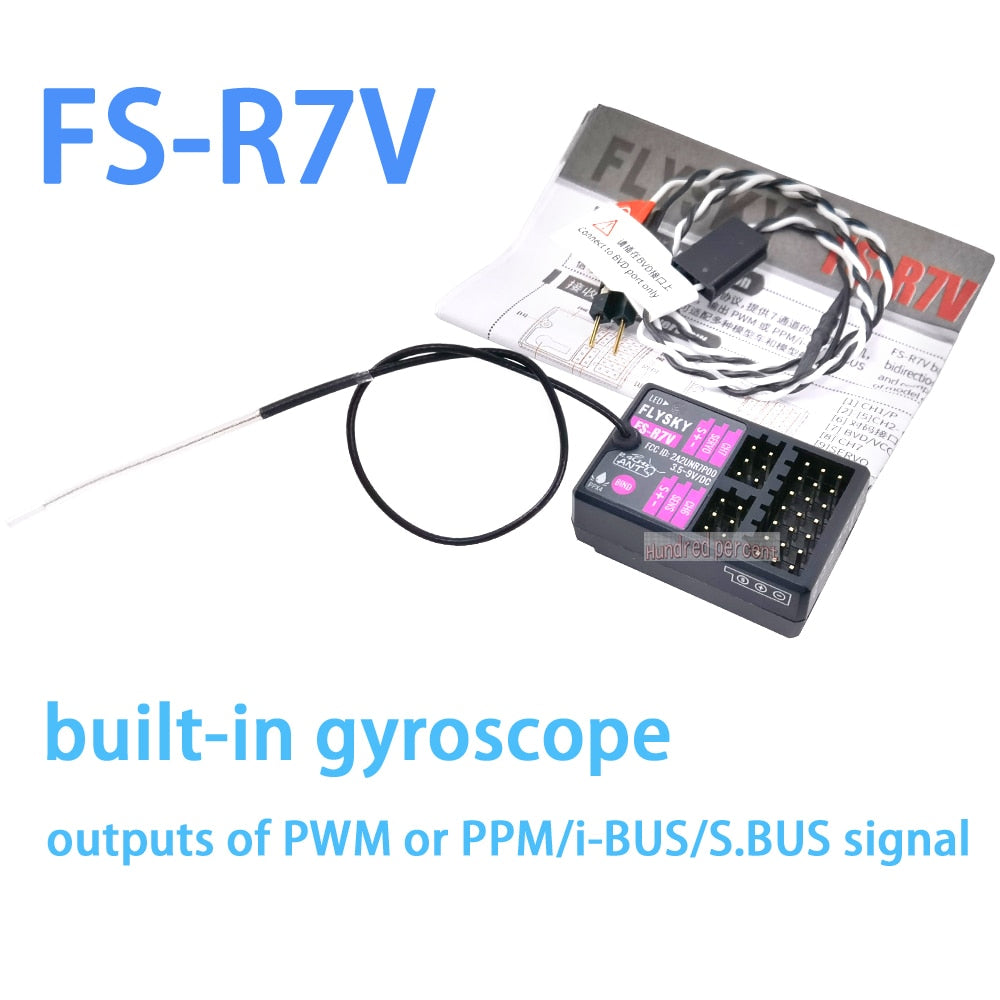

High performance gyroscope, external single antenna, PWM or PPM/i-BUS/S.BUS signal output.

Small and compact design, can be used with various model cars and boats.

Product Model: FS-R7V

●Transmitter: FS-G7P (ANT protocol supported gun control transmitter)

●Model: Car. Boat● Number of PWM channels: 7

●Radio frequency: 2.4GHz ISM

●Transmission power: <20dBm

●Antenna Type: Single Antenna

●Forced control distance: ≥300m (open and interference-free ground distance)

Wireless standard: ANT (Automatic Frequency Hopping Digital System)

Channel resolution: 4096 level

●Data output: PWM/PPM/-BUS/S.BUS

●Input power: 3.5- 9V/DC

●On-line update: supported

Temperature range: -10°C - +60°C

●Humidity range: 20%- 95%

●Waterproof rating: PPX4

●Exterior dimensions: 35.0mm*23.3mm*13.3mm

●Weight: 8.0g

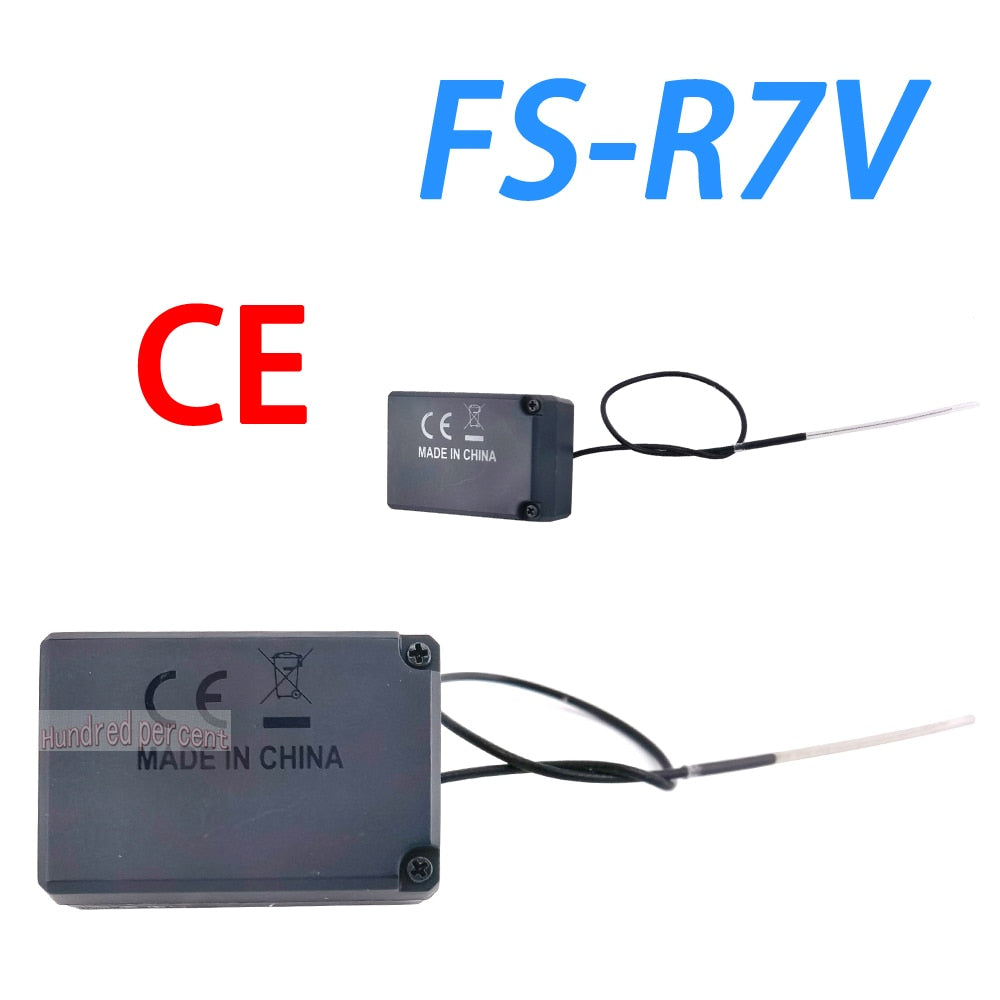

Certification: CE, FCC ID: 2A2UNR7P00
