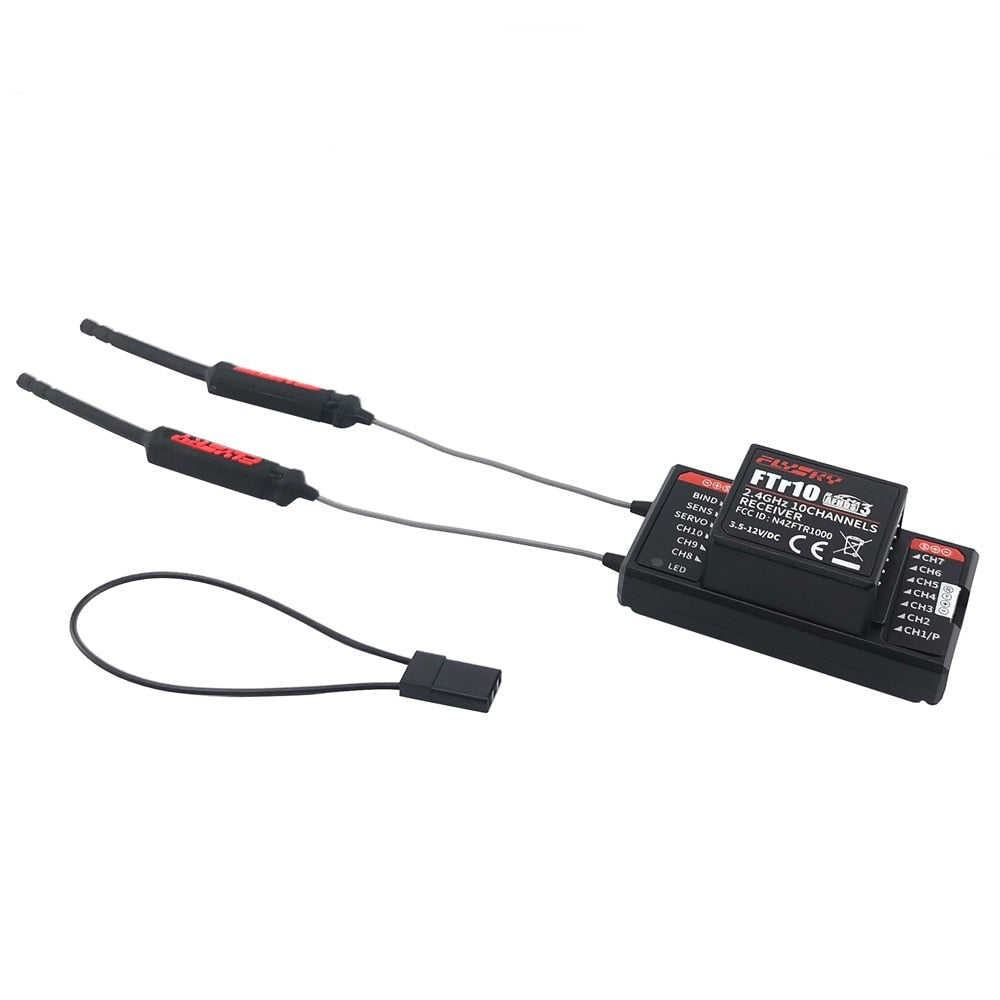

FlySky FTr10 2.4G 10CH Two-Way Dual Antenna PPM/IBUS PL18 AFHDS3 Mini Receiver

The receiver with 10 channel, 2.4G wireless frequency, adopt AFHDS 3 (third-generation automatic frequency hopping digital system), dual-antenna bidirectional transmission, its unique design can save installation space, and can output standard PPM signals and i-BUS signals. Suitable for model: Airplane, glider, helicopter, multi-axis aircraft, suitable for Flysky PL18 transmitter, easy install, and use.
【Receiver】 Flysky FTr10 2.4G 10CH receiver, adopt AFHDS 3 (third-generation automatic frequency hopping digital system), dual-antenna bidirectional transmission, its unique design can save installation space, and can output standard PPM signals and i-BUS signals.
【Specifications】Antenna type: double copper tube antenna (103mm * 2); Power: 3.5-12V; RSSI: Supported; Data interface: PWM / PPM / i.bus / s.bus / UART; Online Update: Support.
【2.4G mode】 Automatic frequency second-generation digital system.
【Suitable Transmitter and Models】Suitable for model: Airplane, glider, helicopter, multi-axis aircraft, suitable for: Flysky PL18 transmitter, easy install and use.

Specifications:
Item: Receiver
Product model: FTr10
Main color: Black
Wireless frequency: 2.4G
PWM channel: 10
Wireless protocol: AFHDS 3
Remote control distance: 10KM (open and no interference limit distance)
Antenna type: double copper tube antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data interface: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Support
Transmission power: ＜20dBm(EU)
Dispaly: LED indicator
Size: 5*2.8*2cm
Suitable for model: Airplane, glider, helicopter, multi-axis aircraft
Suitable for: Flysky PL18 transmitter
