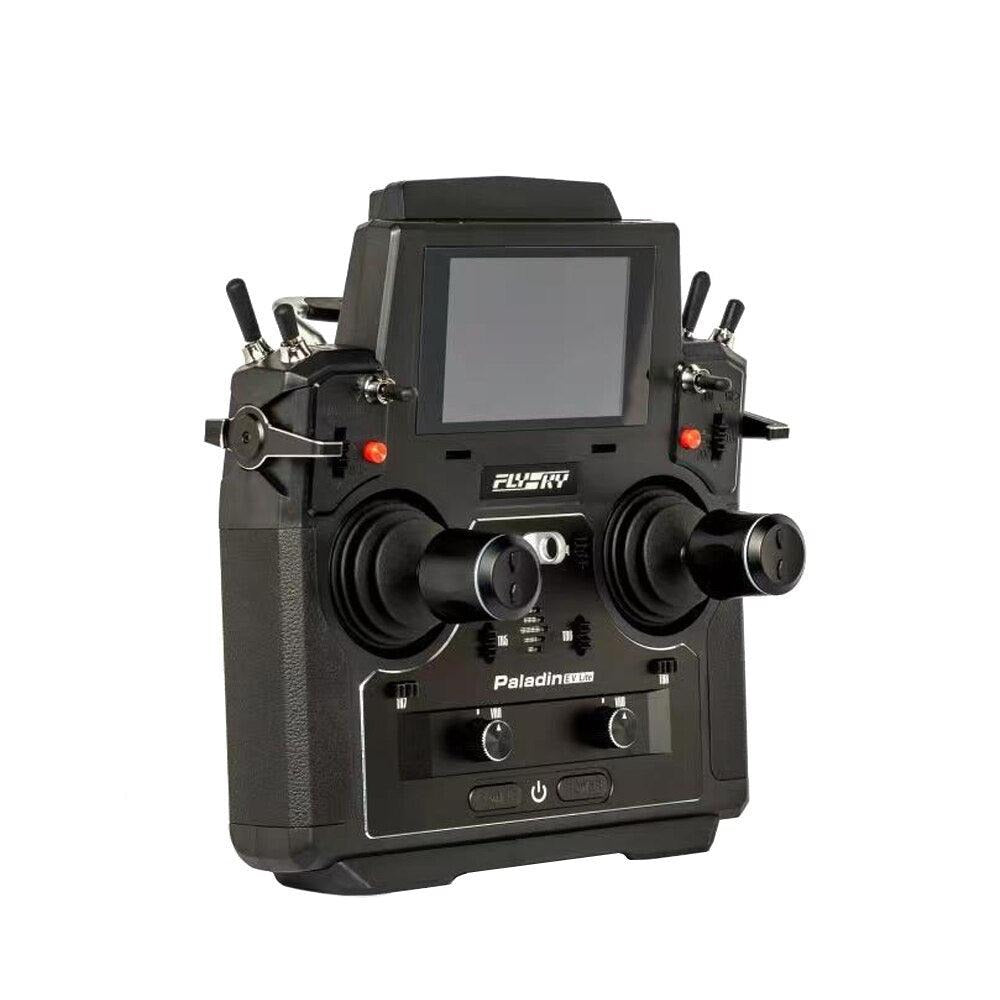

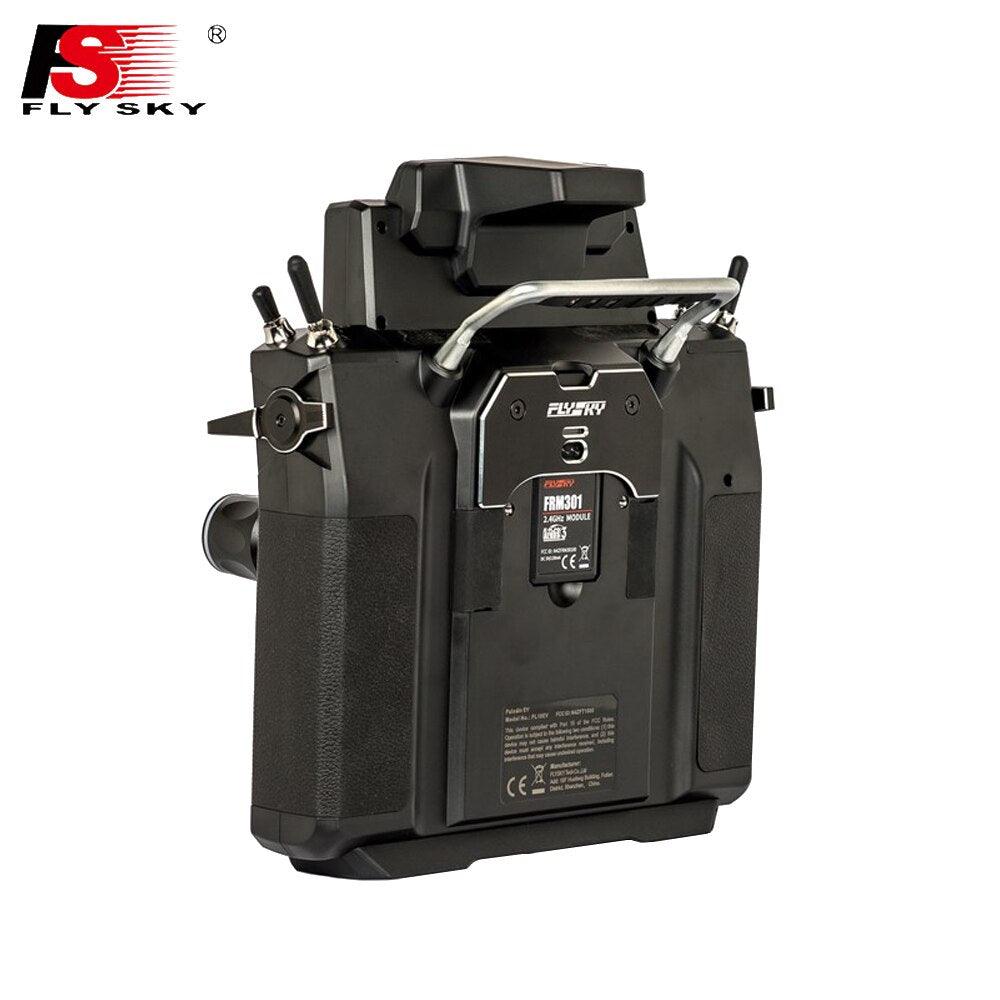

Flysky FS-PL18 EV 2.4G 18CH Radio Transmitter w/ FS-FGr12B RC Receiver HVGA 3.5 Inch TFT Touch Screen

Specification:
Brand: FlySky;
Product Model: PL18EV;
Product Name: Paladin EV;
Channels: 18;
Adaptable receivers: all AFHDS 3 receivers Model;
Type: engineering vehicles, simulation ship etc;
RF: 2.4GHz;
RF Power: <20 dBm;
2.4GHz Protocol: AFHDS 3;
Distance: >300m (open without interference ground);
Channel Resolution: 4096;
Battery: 1S(3.7V)*4300mAh(built-in);
Charging Interface: Micro USB/wireless charging;
Charging Time: 4h@5V*2A / 7h@5V*2A (wireless charging);
Life time: >5.5h (standard accessories);
Low Voltage Warning:<3.65V;
Antenna Type: Dual antenna;
Display: HVGA 3.5 TFT, 320*480;
Language: Chinese and English;
Simulator: USB Simulator;
Data Interface: USB、Non-standard interface（USART）、PHJACK（PPM）;
Temperature Range: -10℃—+60℃;
Humidity Range: 20%-95%;
Online Update: Yes;
Color: black;
Online Update: Yes;
Color: black;

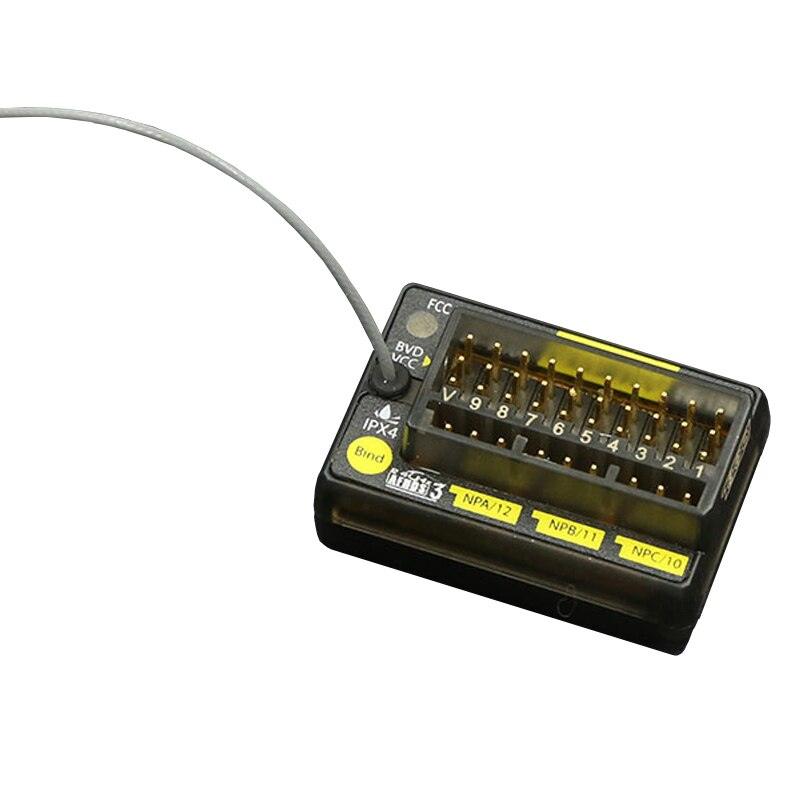

Model Type: FGr12B;
PWM Channels: 12;
RF: 2.4GHz ISM;
2.4GHz Protocol: AFHDS 3;
Distance: >500m (open without interference ground);
Antenna Type: Single antenna;
Power: 3.5V-9V;
RSSI: Yes;
Data Interface: i-BUS/S.BUS/PPM/PWM;
Temperature Range: -10℃-+60℃;
Humidity Range: 20%-95%;
Online Update: Yes;
Size: 37mm*25mm*17.5mm;
Weight: 11.2g;
Certification: CE, FCC ID:N4ZFGR12B;

Features:
-PL18EV is an 18-channel transmitter dedicated to engineering vehicles, equipped with 2.4GHz AFHDS 3 (third-generation automatic frequency hopping digital system). The standard conguration is an FGr12B receiver!
-AFHDS3 (third-generation automatic frequency hopping digital system) is a newly developed digital wireless system. It is compatible with single antenna bidirectional real-time data packet transmission and data stream transmission. With the advantages that come with the WS2A wireless system and the new 2.4GHz chip, the system can dynamically set: number of channels, channel resolution, range, anti-interference requirements and latency to meet the needs of Different User;

-Hardware highlights: Rocker type: 5D Hall waterproof rocker+2 levers;
-The third rocker: one on the left and one longitudinal centering lever;
-Other controls: 6 gear switches (the length of the gear is not the same as the reset, accessories can be modified)+3 knob keys+2 self-locking buttons+8 fine-tuning buttons (two-way buttons);
-Display screen: 3.5-inch TFT color screen, LCD white backlight, capacitive touch screen;
-Vibration/sound alarm: adjustable vibration intensity+different alarm sounds and real voice ic alarm and prompt sound;
-Other accessories: The flagship version comes standard with a bracket with hand rest+shoulder strap;
-Charging: Support Mirco USB and QI wireless charging;
-Battery: Built-in 4300mAh high-capacity lithium battery;

Software highlights:
-Number of channels: 18 ratio channels;
-Dual model control: support;
-Data backup and setting sharing and storage capacity: Fusi remote control butler realizes model data backup and sharing. The remote control can store 20 sets of models;
-Upgrade: USB connected to the computer through the Fusi remote control butler, software network upgrade;
-Additional functions: Timer, Simulator;
-Custom function+control All channels can be customized function+custom allocation control and fine-tuning;
-Unique model function: double ratio curve+delay function+20 groups of customizable mixing control+track mixing control function;

Note:
1. Please understand the product might have some colour difference due to different monitors and scenes.
2. Please allow slight deviation for the measurement data
Dual model control: support

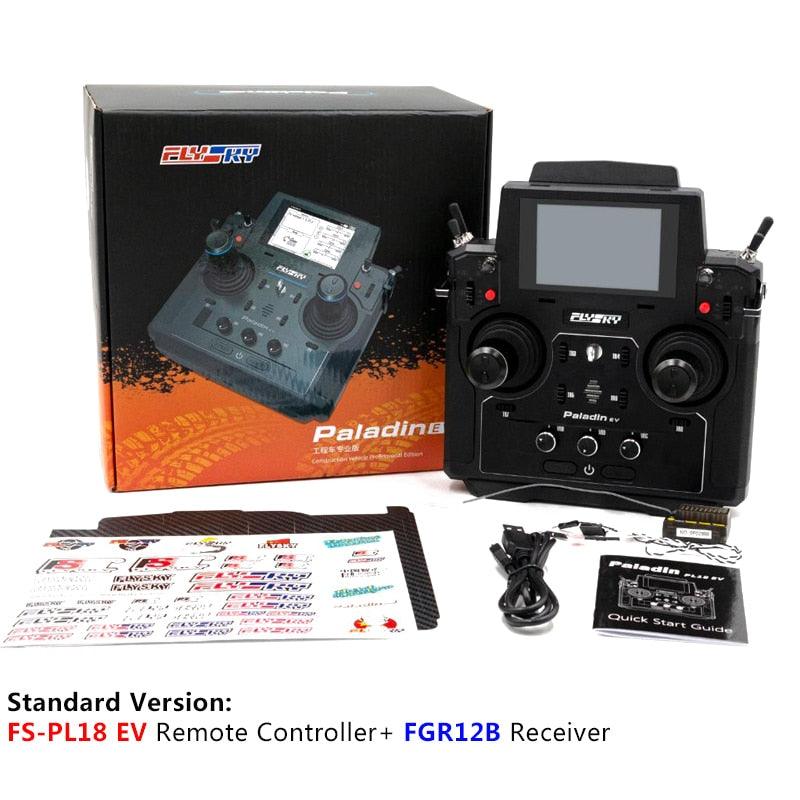

-Standard Version:
1x PL18EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue
1x FGR12B receiver
1x Quick Operation Guide
1x Micro USB cable
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 2 (with other designs)
1x PL18 body sticker

-Ultimate Edition:
1x PL18EV transmitter with 301 high frequency + high frequency fixing plate + thin hand glue + large hand glue
1x FGR12B+FGr8B receiver + cable
1x wireless charging dock
1x Quick Operation Guide
1x Micro USB cable
3x Toggle switch rubber cover
1x tray (with hand rest)
1x Tray strap
1x LOGO sticker 1 (pure logo)
1x LOGO sticker 2 (with other designs)
1x PL18 body sticker

Experience unparalleled flying pleasure with the Paladin EV! This advanced transmitter features a multi-dimensional joystick that provides greater control over your flight experience. Additionally, it comes equipped with a built-in capacity battery that supports wireless charging for added convenience.
