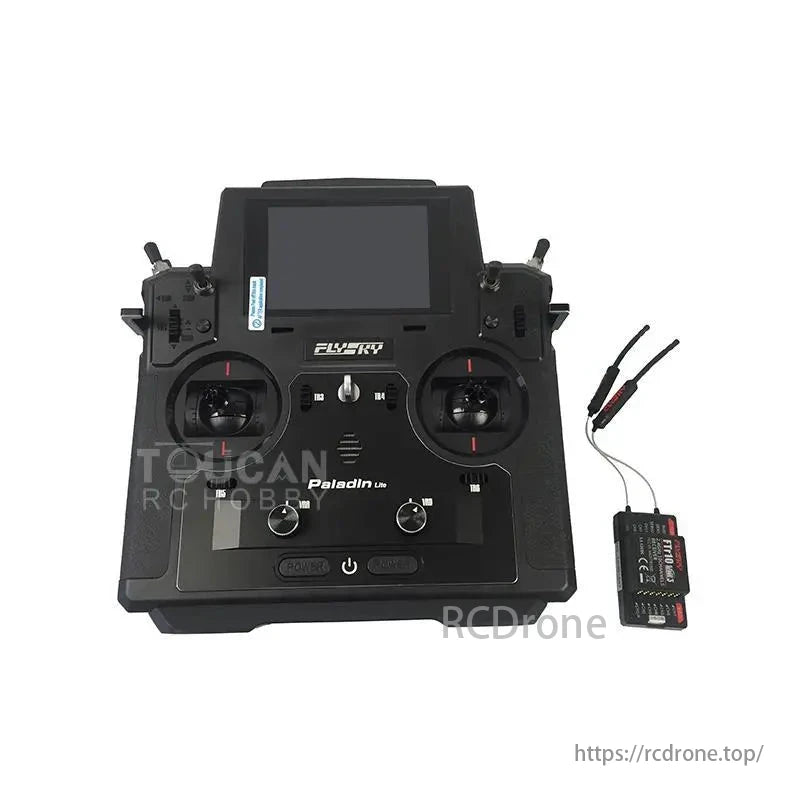

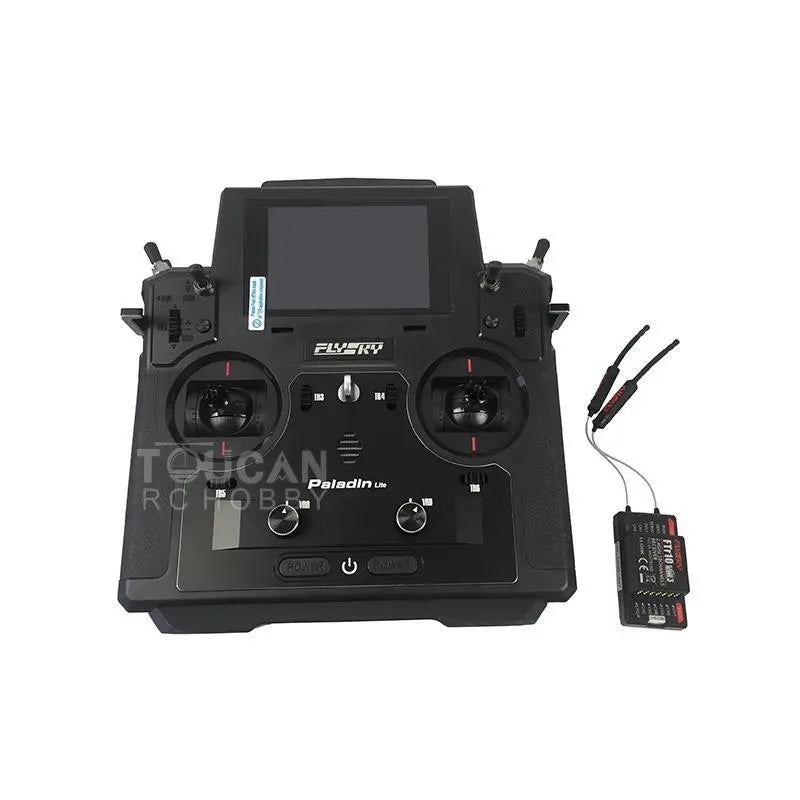

Flysky Paladin PL18 Lite Transmitter Radio System With Flysky FTr10 Receiver

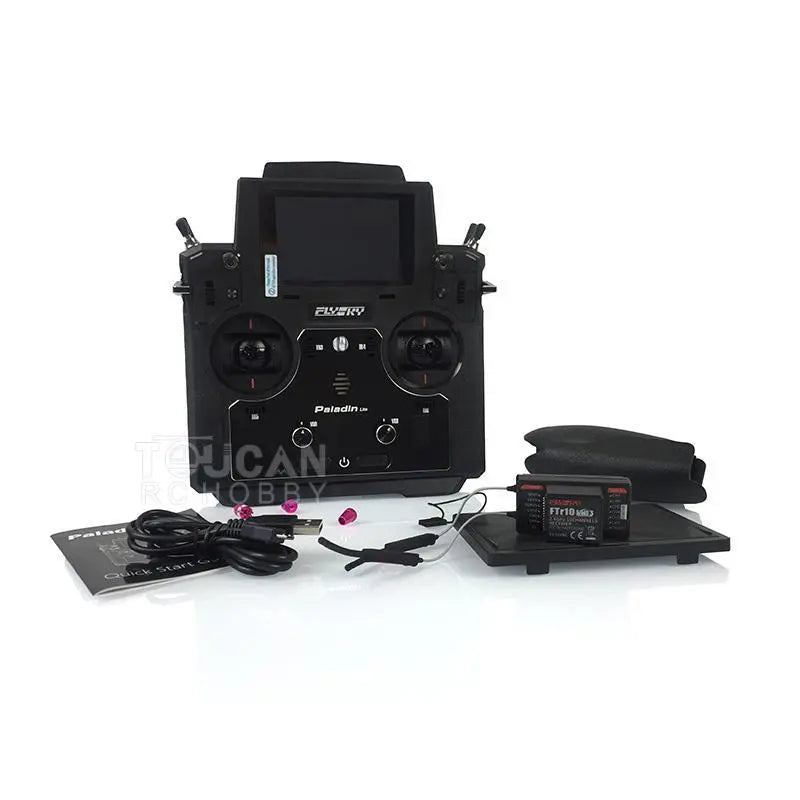

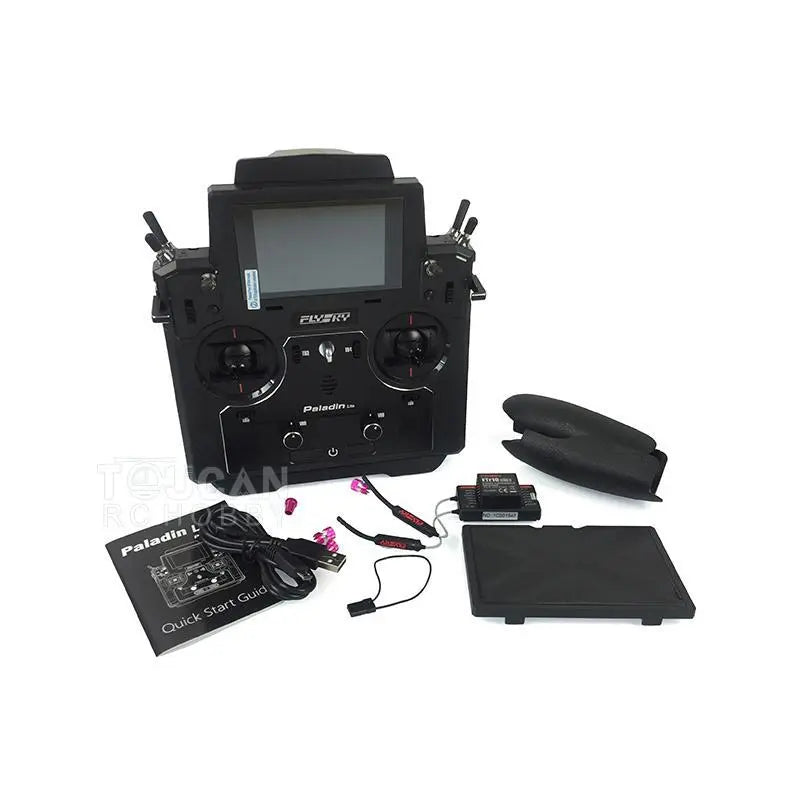

This Package includes:

1 x Flysky PL18 Lite Transmitter

1 x Flysky FTr10 Receiver

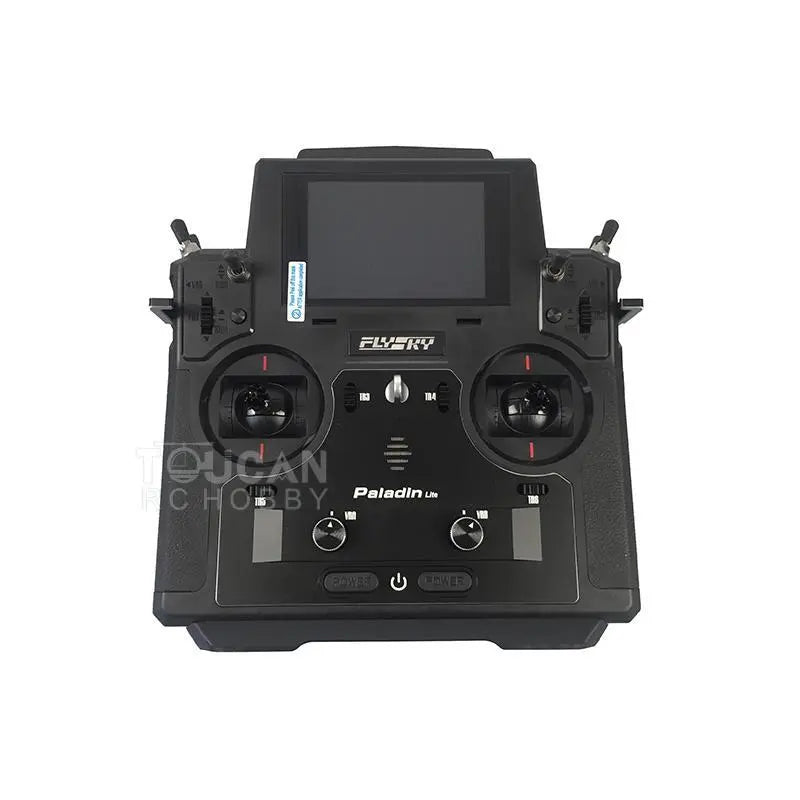

Flysky Paladin PL18 Lite Transmitter Specification

Product Model: PL18 Lite

Product Name: Paladin Lite

Channels: 18

Model Type: fixed wing, helicopter, crossing machine, multi-axis, engineering vehicle

RF: 2.4G

RF Power: < 20 dBm

2.4GHz Protocol: AFHDS3

Distance: >3KM

Channel Resolution: 4096

Battery : 1S (3.7V) * 4300mAh (built-in)

Charging Interface : Micro USB

Charging Time: 6h@5V

Life time: > 8h

Low Voltage Warning: <3.7V

Antenna Type : Dual antenna

Display: HVGA 3.5" TFT, 320*480

Language: Chinese and English

Simulator: USB Simulator

Data Interface: USB, Non-standard interface (USART), PHJACK (PPM)

Temperature Range: -10 ° C - + 60 ° C

Humidity Range: 20%-95%

Online Update: support

Transmitter Color: black

Dimensions (length x width x height): 214*86.5*192 mm

Body weight : 946g

Certification CE, FCC ID: N4ZFT1800, RCM

FTr10 Specifications:

Specs FTR10:

PWM channels: 10

RF: 2.4GHz

Protocol: AFHDS 3

Distance: >3500m

Antenna type: 103mm x 2

Power input: 3.5v-18V

RSSI: Yes

Data port: i-BUS/S-BUS/PPM/PWM/UART

Temperature: -15℃—+60℃

Humidity: 20%-95%

Update online: Yes

Size: 52x28x22mm

Weight: 22g

Certificate: CE，FCC ID: N4ZFTR1000
