Foxeer 5.8G Reaper Extreme V2 2.5W 72CH VTX - 5.8GHZ 25mW/200mW/500mW/1.5W/2.5W Build-in Mic Long Range FPV Video Transmitter

Foxeer 5.8G Reaper Extreme V2 2.5W 72CH VTX - 5.8GHZ 25mW/200mW/500mW/1.5W/2.5W Build-in Mic Long Range FPV Video Transmitter

Foxeer

$85.00 USD
$85.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

144 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details



Name Reaper Extreme V2
Input Voltage 9~36V
Output Voltage 5V
Channels 72CH
Power 25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly
Pit Double click to enter
Weight 13g
Mounting Hole 20*20mm M2 2.8mm depth
Size 36*27.5*8mm
Consumption 1.2A/9V
Package Includes 1 x VTx; 1 x silicon cable;


Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Band H 5653 5693 5733 5773 5813 5853 5893 5933
Band L 5333 5373 5413 5453 5493 5533 5573 5613
Band U 5325 5348 5366 5384 5402 5420 5438 5456
Band O 5474 5492 5510 5528 5546 5564 5582 5600


Unlock the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.


PIT Mode On/Off

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.


Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.

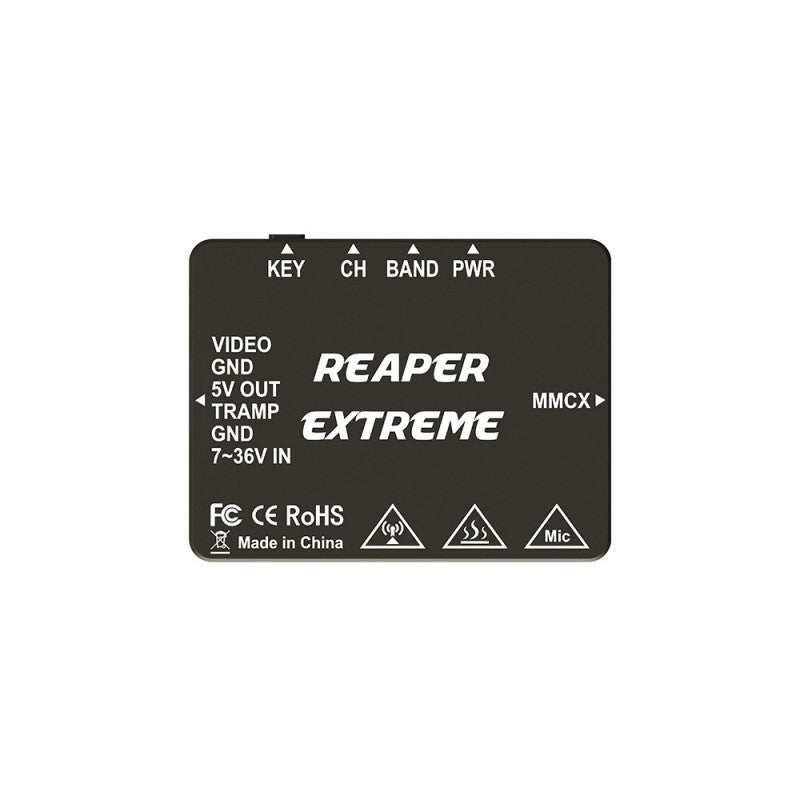

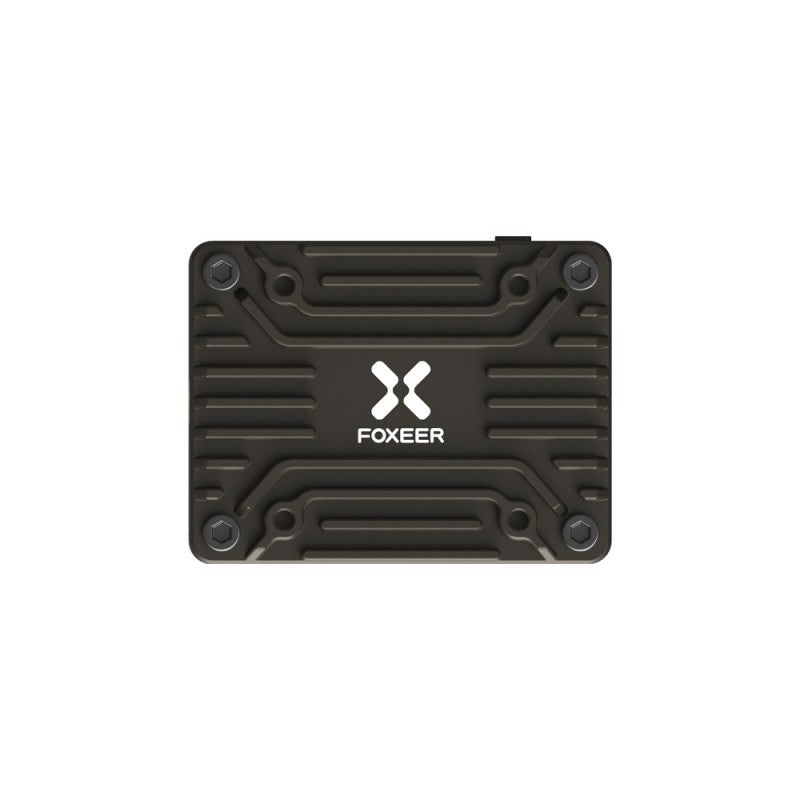

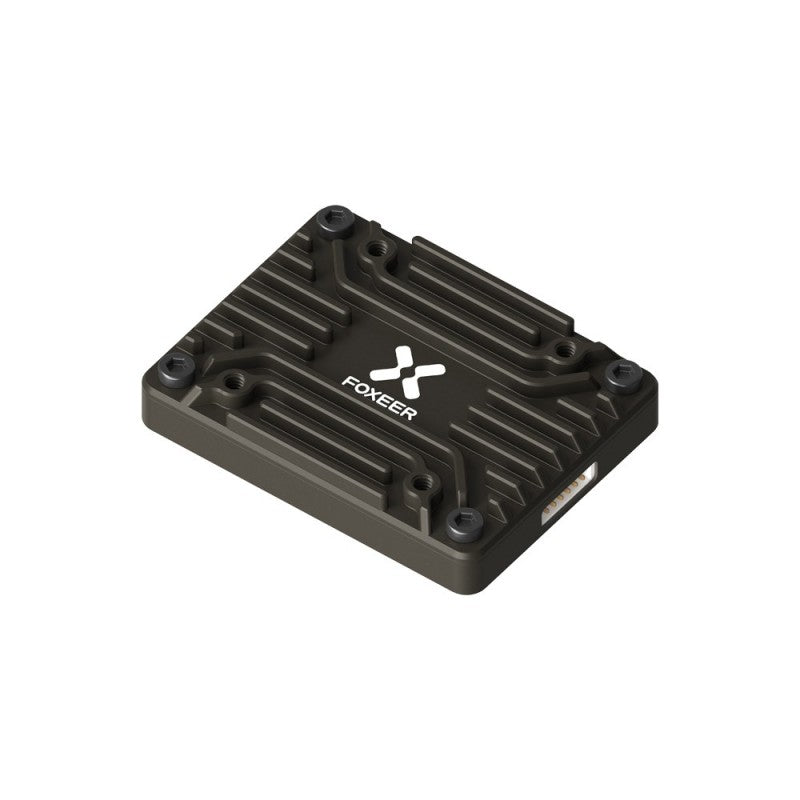

Foxeer 5.8G Reaper Extreme V2 2.5W 72CH VTX, REAPER EXTREME VTX FOXEER 5.86 /72

FOXEER 5.86 /72CH 2.5W KEY CH BAND PWR VIDEO GND REAPER SV OUT MMCX> TRAMP GND EXTREME 736V IN Fe c€ RoHS X Made in China Mic 1 Le ce KoHe 2.5W High Power 1 Build-in Mic X CNC Heat Dissipation Shll Great filtering circuit, Strong Anti-interference Ability 20.Omm M2IT2.5mm 8 FOXER 27 36 FO
