The Foxeer Datura 2105.5 FPV Motor is an advanced and durable motor option ideal for FPV enthusiasts, offering both 1650KV and 2950KV models to accommodate various performance needs.
Key Features:
- Ultra-light Semi-hollow Titanium Shaft: The motor is built with a semi-hollow titanium shaft that reduces the weight without sacrificing the motor's strength, ensuring optimal durability for high-performance applications.
- Military Grade High Temperature Winding: With a 260°C radiation-resistant stator, made of single crystal oxygen-free copper, the motor delivers high efficiency and reliability in demanding conditions.
- N52H High-Quality Magnet: This high-performance magnet provides excellent power and surging energy, giving the motor a boost in responsiveness.
- Excellent Shock Absorption: Equipped with an aluminum sheet and rubber ring, the motor offers impressive shock absorption for smoother flight performance.
Technical Specifications:
Specification | 1650KV | 2950KV |
---|---|---|
Configuration | 12N14P | 12N14P |
Stator Diameter | 21mm | 21mm |
Stator Length | 5.5mm | 5.5mm |
Shaft Diameter | 3mm (M3/M5 out) | 3mm (M3/M5 out) |
Motor Dimensions (Dia.*Len) | Φ25.53*26.4mm | Φ25.53*26.4mm |
Weight | 21g (with 3cm wire) | 21g (with 3cm wire) |
Idle Current (10V@10V) | 0.6A | 1.5A |
Number of Cells (Lipo) | 4-6S | 3-4S |
Max Continuous Power (3S) | 413W | 620W |
Internal Resistance | 190mΩ | 60mΩ |
Max Current (3S) | 18.6A | 37.9A |
Max Efficiency Current (3S) | (2-4A)>84% | (2-4A)>84% |
This motor is designed to deliver superior performance for FPV racing and freestyle flights, providing excellent power, durability, and thermal resistance. Whether you opt for the 1650KV version for smoother performance or the high-speed 2950KV variant, the Datura 2105.5 ensures high-quality operation across different flying conditions.

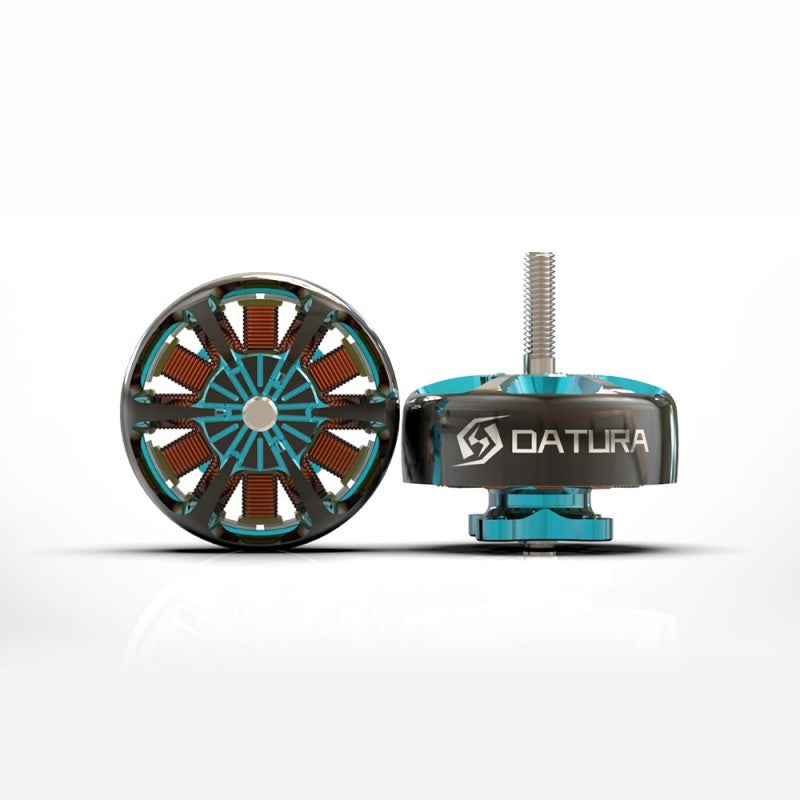

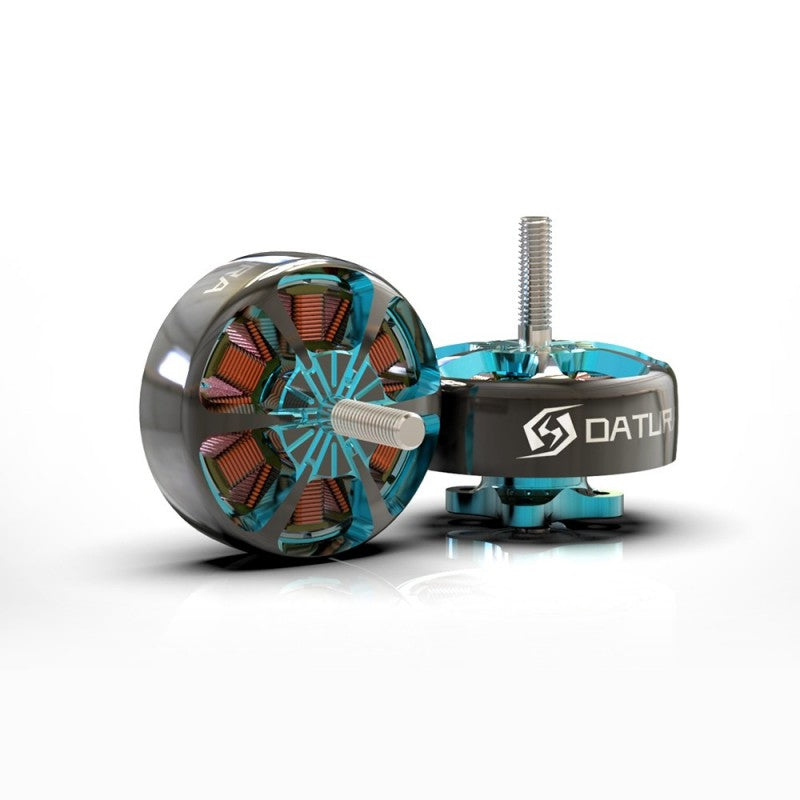

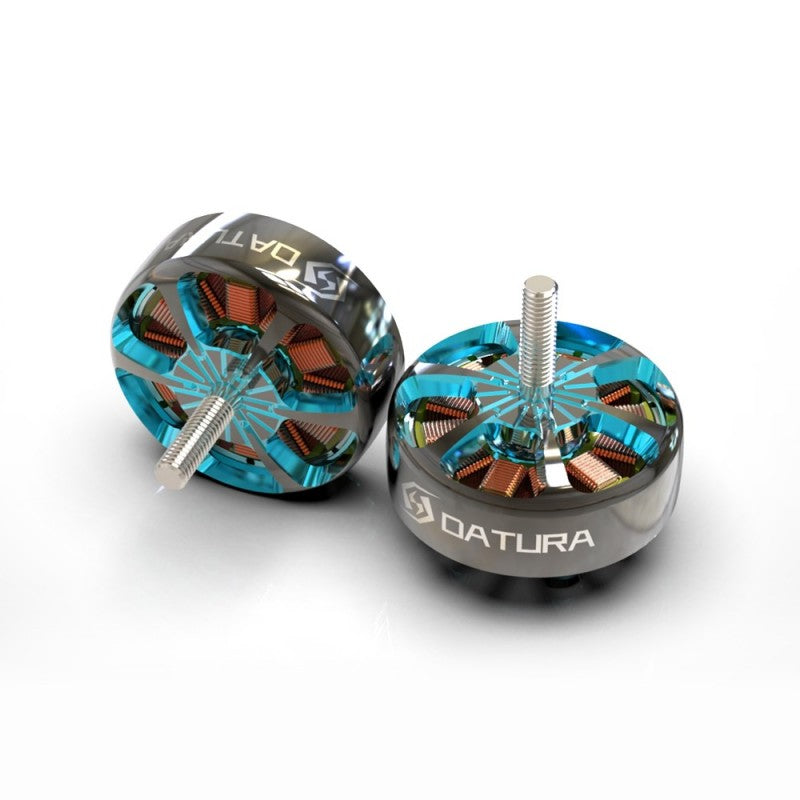

Foxeer Datura 2105.5 Motor, available in 1650KV and 2950KV options, features a M3/M5 prop shaft and a customized aluminum sheath.
Foxeer Datura 2105.5 motor features aluminum sheet and rubber ring for excellent shock absorption, N5ZH high-quality magnet, and surging power. Military-grade components include radiation-resistant wire and high-temperature winding. Single-crystal oxygen-free copper ensures high efficiency.
