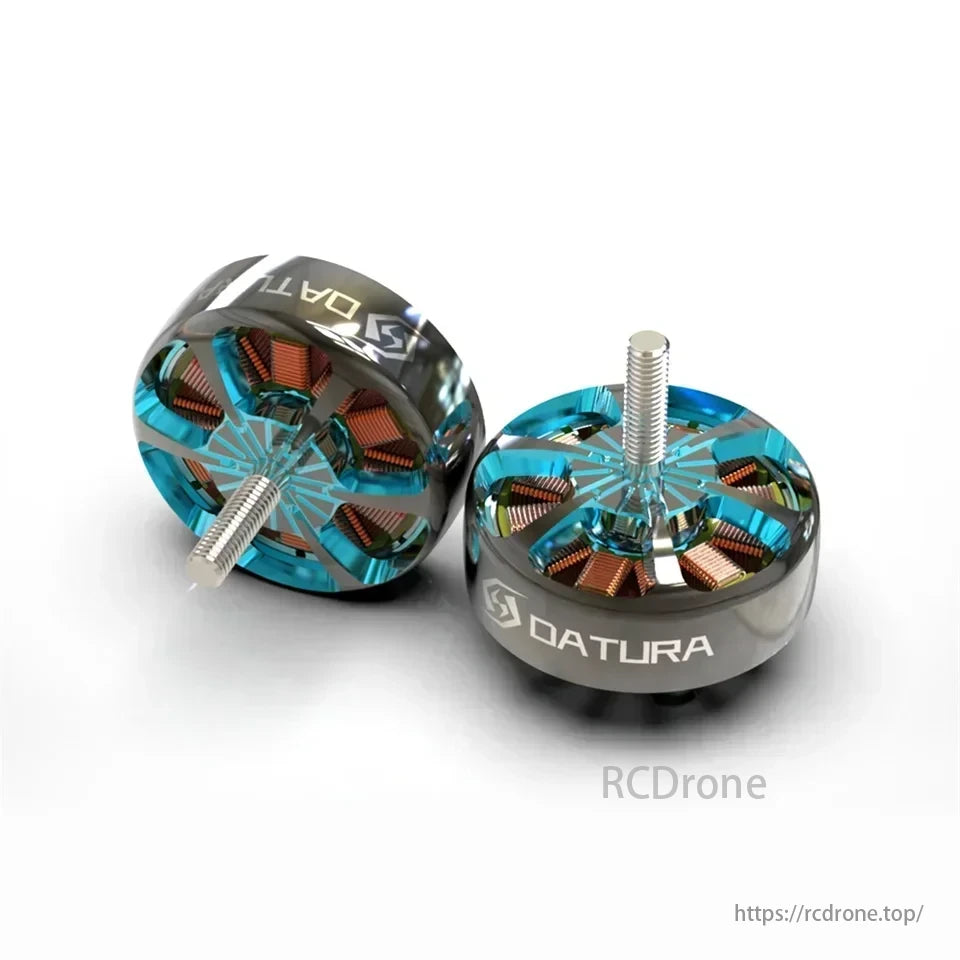

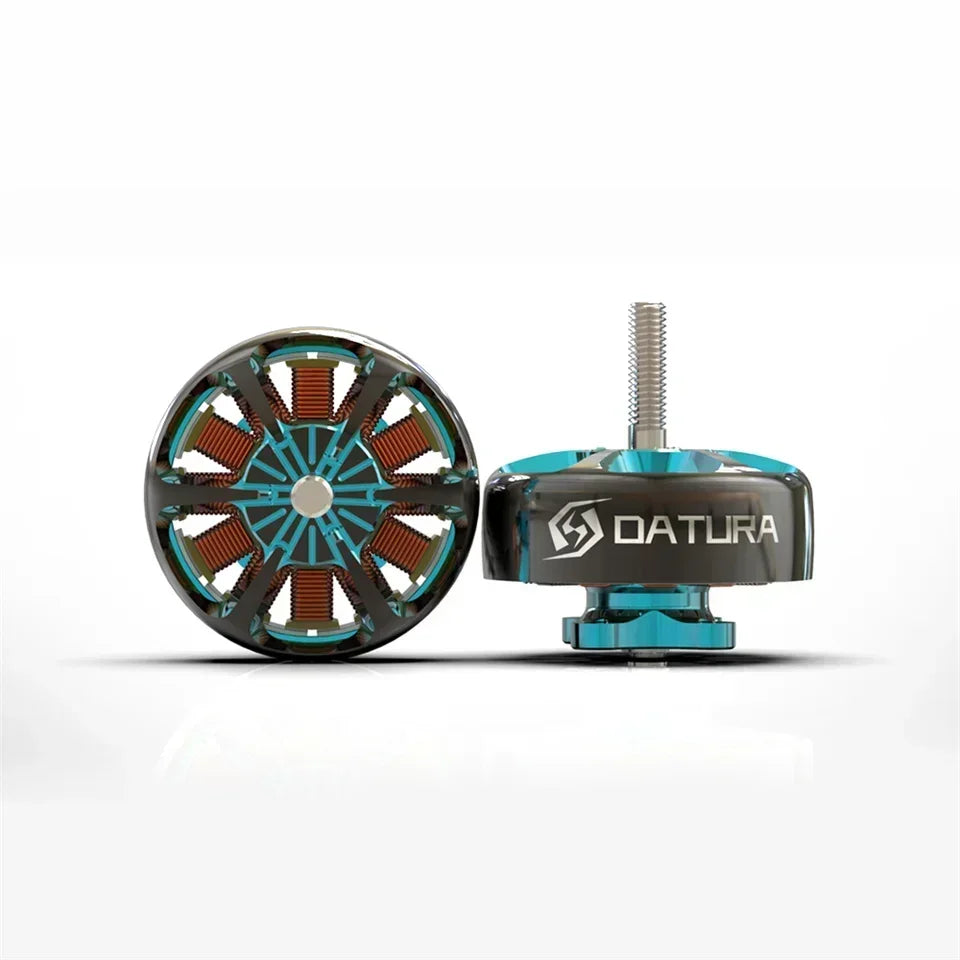

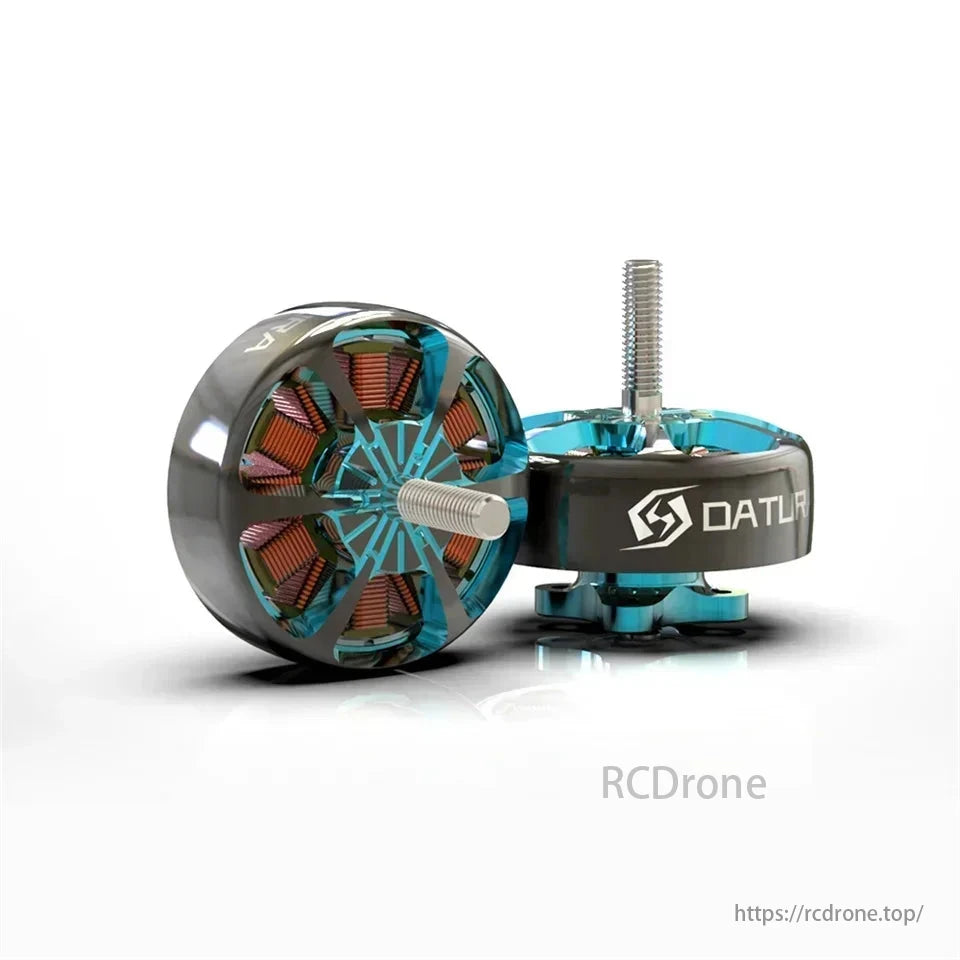

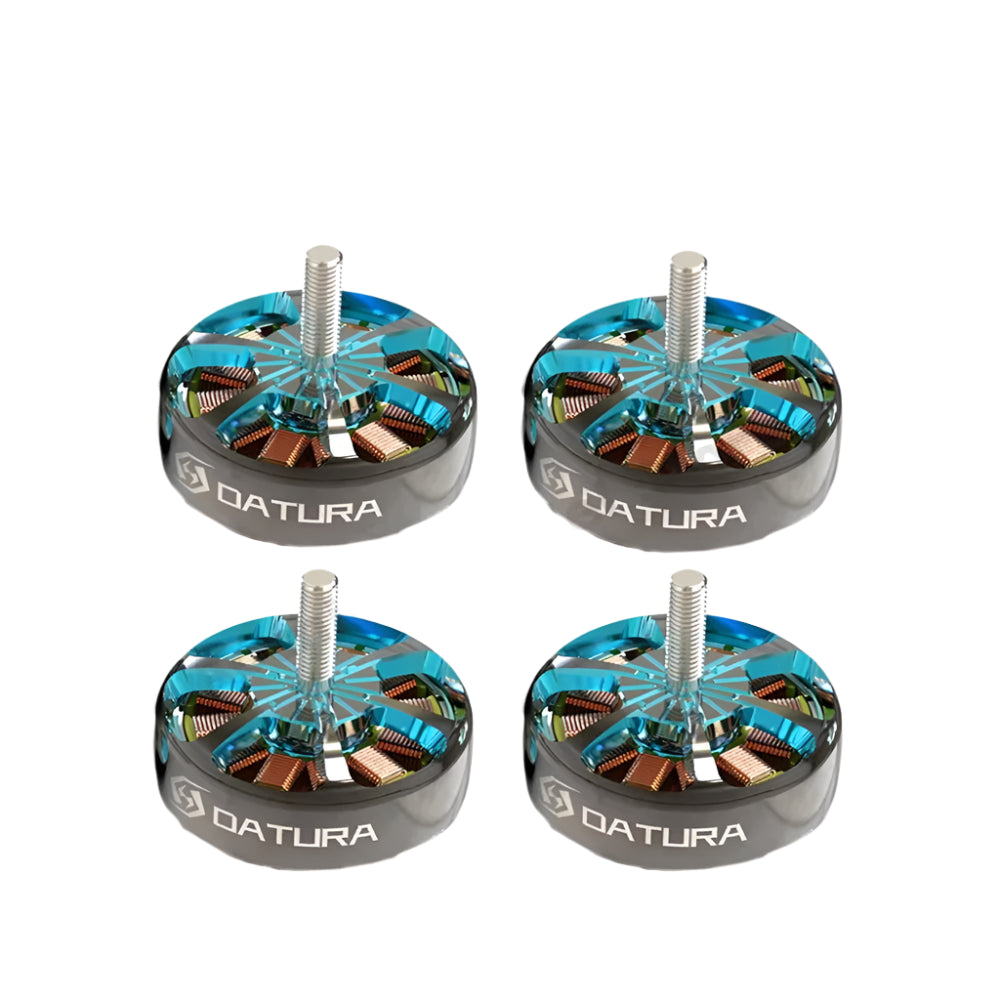

Foxeer Datura 2105.5 1650KV 2950KV 4S-6S Brushless Motor with M3/M5 Prop Shaft for 5-Inch FPV Freestyle Racing Drones

The Foxeer Datura 2105.5 Brushless Motor is built to deliver exceptional performance for 5-inch FPV freestyle and racing drones. Available in two KV variants—1650KV for 4-6S and 2950KV for 3-4S setups—it strikes the perfect balance between explosive power and precise control.

Designed for professional drone pilots, the Datura series motors feature a 12N14P configuration, durable M3/M5 propeller shaft compatibility, and are built using N52H high-grade magnets to maximize thrust output and responsiveness.

Crafted with a military-grade 260°C high-temperature copper winding, customized aluminum sheathed shaft, and rubber-dampened bearing housing, the motor achieves exceptional heat resistance and shock absorption for extended durability and reliability in high-speed flights.

Key Features:

• KV Options: 1650KV (4–6S), 2950KV (3–4S)

• Stator Size: 21mm diameter × 5.5mm length

• Motor Dimension: Φ25.53 × 26.4mm

• Shaft Diameter: 3mm (internal) / M3/M5 (external)

• Weight: 21g (with 3cm wire)

• Max Continuous Power: 1650KV: 413W / 2950KV: 620W

• Max Current: 1650KV: 18.6A / 2950KV: 37.9A

• Efficiency: >84% at 2–4A

• Magnets: N52H high-strength arc magnets

• Prop Shaft: Compatible with both M3 and M5 props

• Build Quality: Integrated rubber shock absorption, high-grade copper windings, and aluminum bearing sheath

Propeller Test Performance:

Applications:

Ideal for 5-inch FPV racing drones, cinematic builds, and freestyle quads that demand high torque and reliable thermal stability in both indoor and outdoor environments.

Recommended Use:

• 1650KV: Perfect for long-range and efficient freestyle on 6S with props like GF D76*5 or GF5125

• 2950KV: Optimal for aggressive 3S/4S builds with higher thrust demands, using props like GF D76 or HQ T5*3R

Packaging Includes:

• 1 × Foxeer Datura 2105.5 Motor (1650KV or 2950KV)

• 4 × M2 Mounting Screws

• 1 × M3 or M5 Prop Nut (varies by configuration)

• 1 × Protective Sticker Set

Foxeer Datura 2105.5 Motor, 1650KV/2950KV, M3/M5 Prop Shaft, Customized Aluminium Sheath.

Aluminum sheet, rubber ring for shock absorption. N52H magnet boosts power. Military-grade 260°C winding ensures high efficiency.

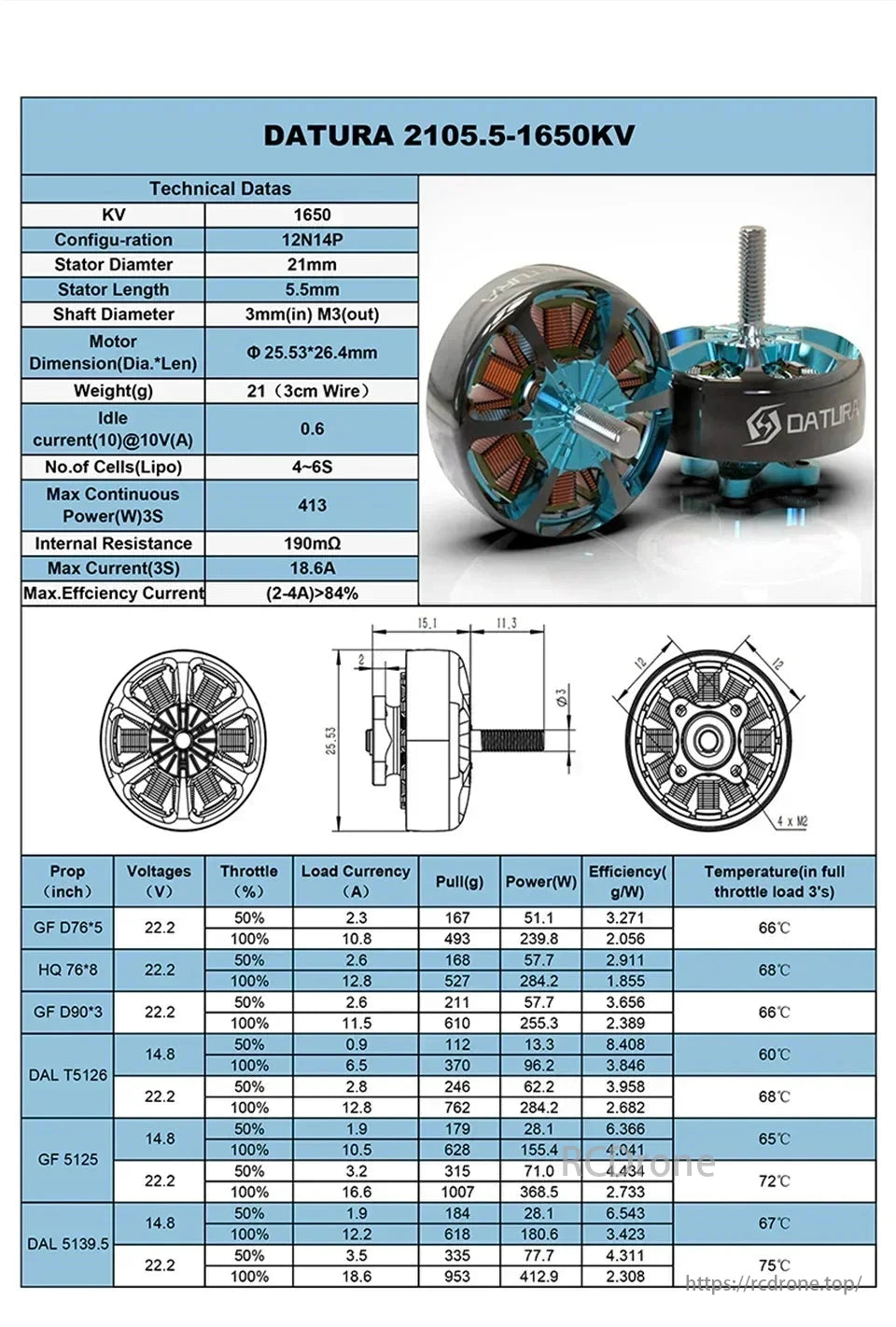

Foxeer Datura 2105.5-1650KV motor specs: 12N14P, 21mm stator, 5.5mm length, 3mm shaft. Weighs 21g, 4-6S Lipo, 413W max power, 190mΩ resistance, 18.6A max current, >84% efficiency at 2-4A. Detailed performance data for various props included.

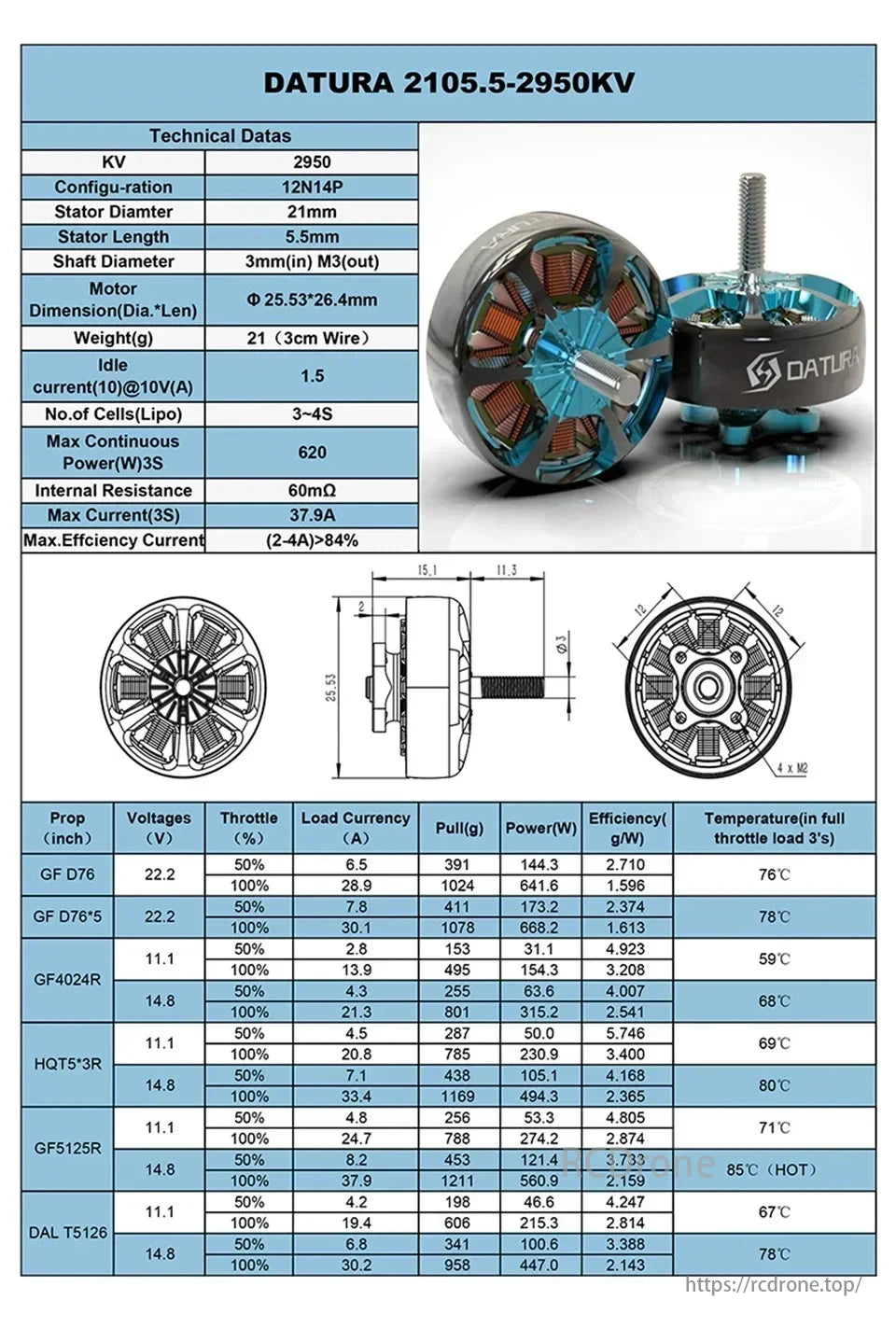

Foxeer Datura 2105.5-2950KV motor specs: 21mm diameter, 5.5mm length, 2950KV, 620W max power, 37.9A max current. Efficiency over 84% at 2-4A. Detailed performance data for various props and voltages included.
