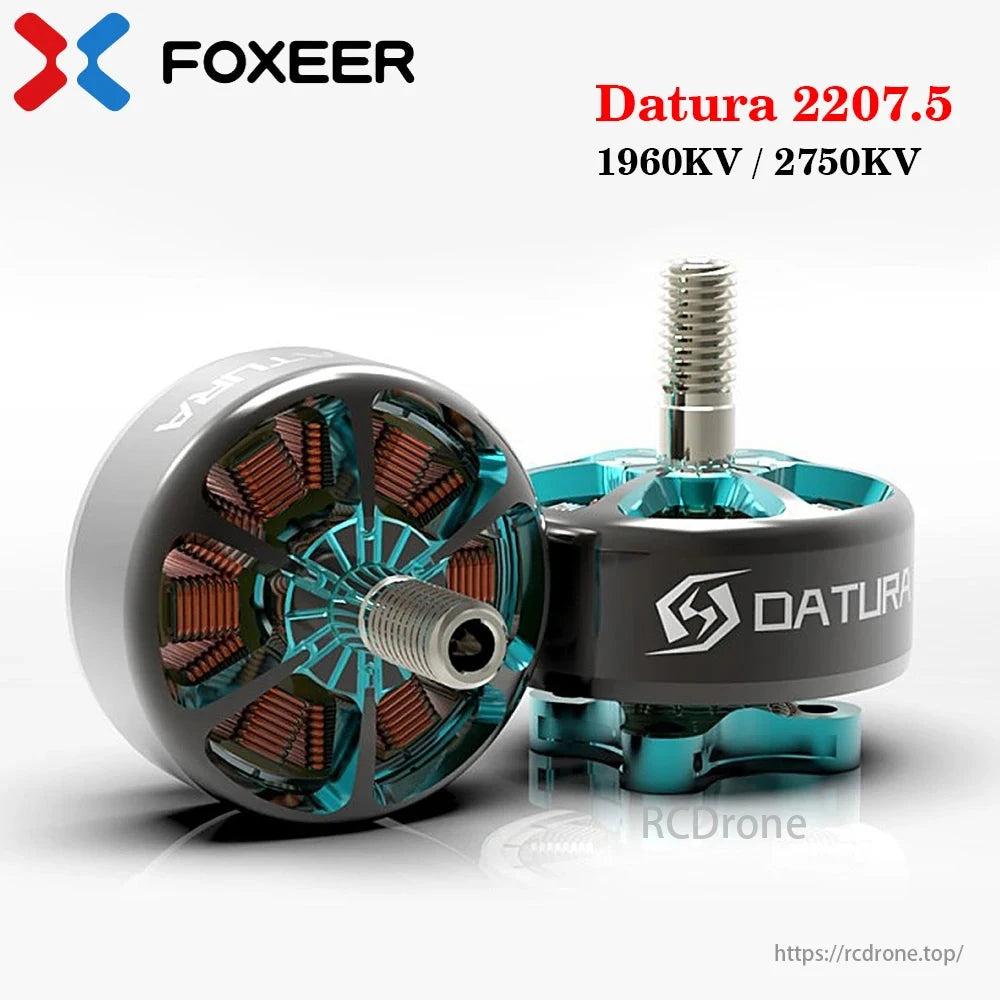

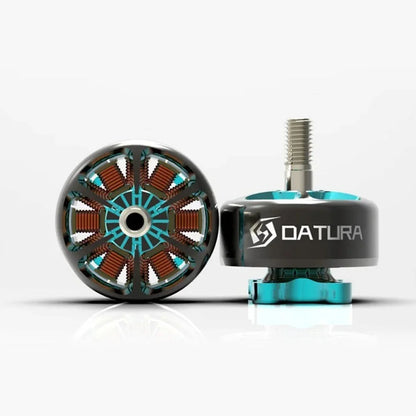

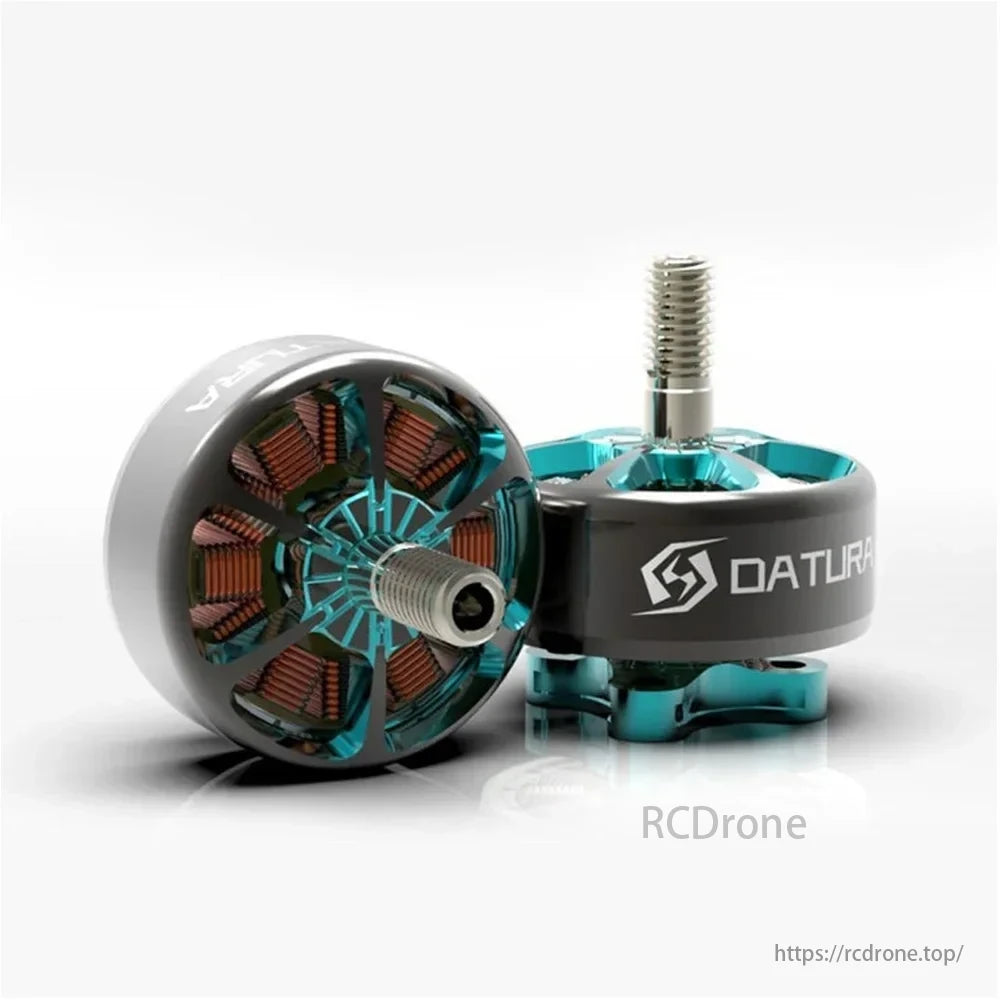

FOXEER DATURA 2207.5 1960KV / 2750KV 4-6S Brushless Motor for 5-6 Inch FPV Racing Freestyle Drones

The FOXEER DATURA 2207.5 Brushless Motor is built for high-performance FPV racing and freestyle drones, offering excellent durability, power, and efficiency. With two KV options—1960KV and 2750KV—this motor is designed to cater to both high-thrust and high-speed applications, compatible with 4-6S LiPo batteries and optimized for 5-6 inch propellers.

Key Features

• Ultra-light Hollow Shaft: Constructed from aerospace-grade aluminum alloy, the 4mm semi-hollow shaft provides a perfect balance of strength and weight reduction.

• High-Temperature Stator Winding: Military-grade 260°C radiation-resistant copper windings ensure durability and peak performance under continuous full throttle.

• Premium Build Quality: Equipped with N52H arc magnets and rubber-dampened aluminum bell, delivering smooth response and excellent shock absorption.

• High Efficiency & Cooling: The open-bottom structure aids in ventilation, reducing overheating during aggressive flying.

Specifications

Performance Highlights

• On DAL F6 props, the 1960KV motor pushes up to 2001g thrust @ 51.1A, while the 2750KV version reaches 1713g thrust @ 56.4A.

• Maintains >84% efficiency at medium throttle (5–9A for 1960KV, 3–6A for 2750KV).

• Operating temperatures stay in check under full throttle, with 2750KV peaking at 85°C, thanks to high-efficiency cooling structure.

Package Includes

• 1x DATURA 2207.5 Brushless Motor (1960KV or 2750KV)

• 1x M5 Locknut

• 4x Mounting Screws

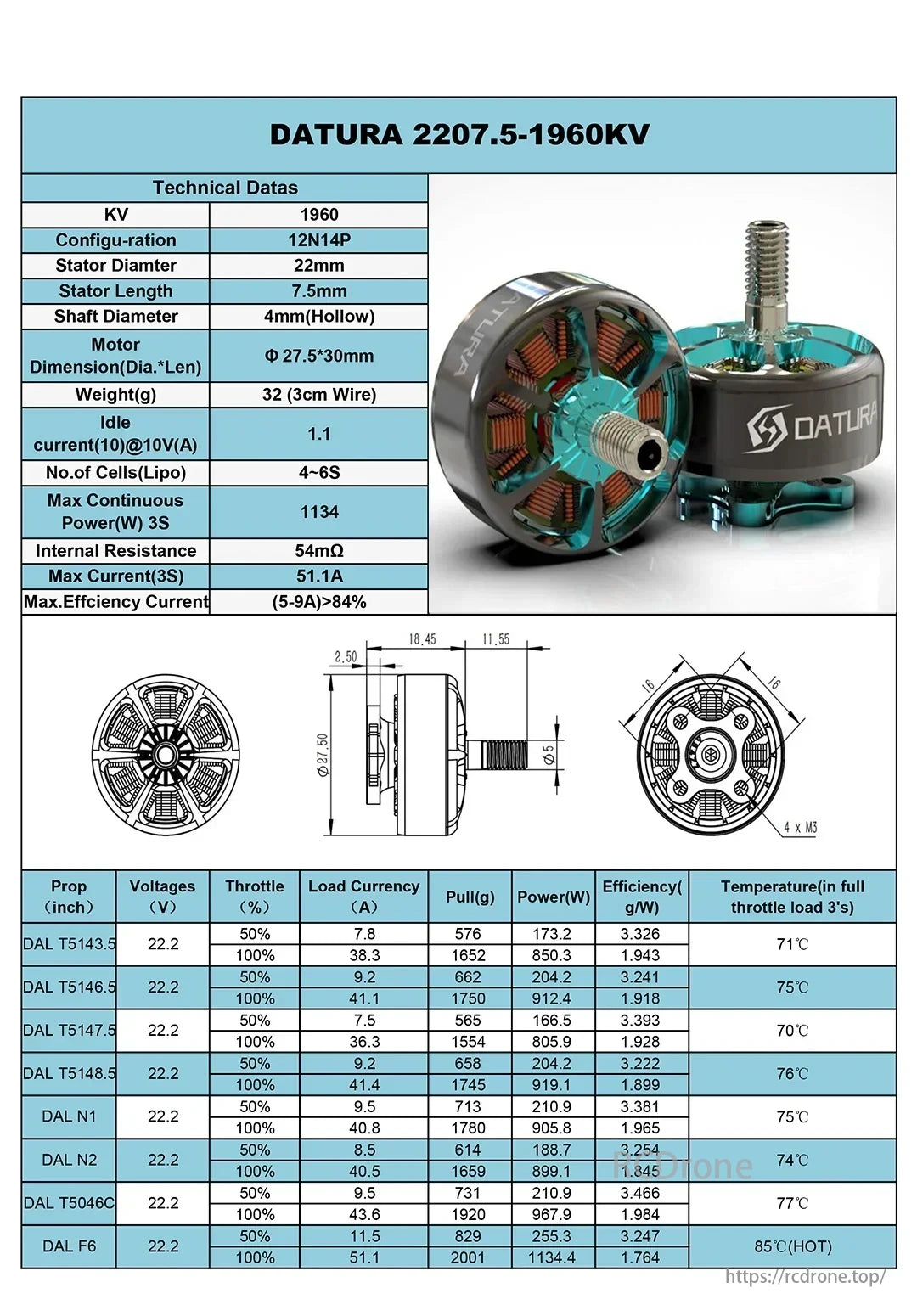

Foxxeer Datura 2207.5-1960KV motor: 1960KV, 12N14P, 22mm stator, 32g, 4-6S Lipo, 1134W max power, 51.1A max current, 84% efficiency (5-9A), with prop and voltage performance details.

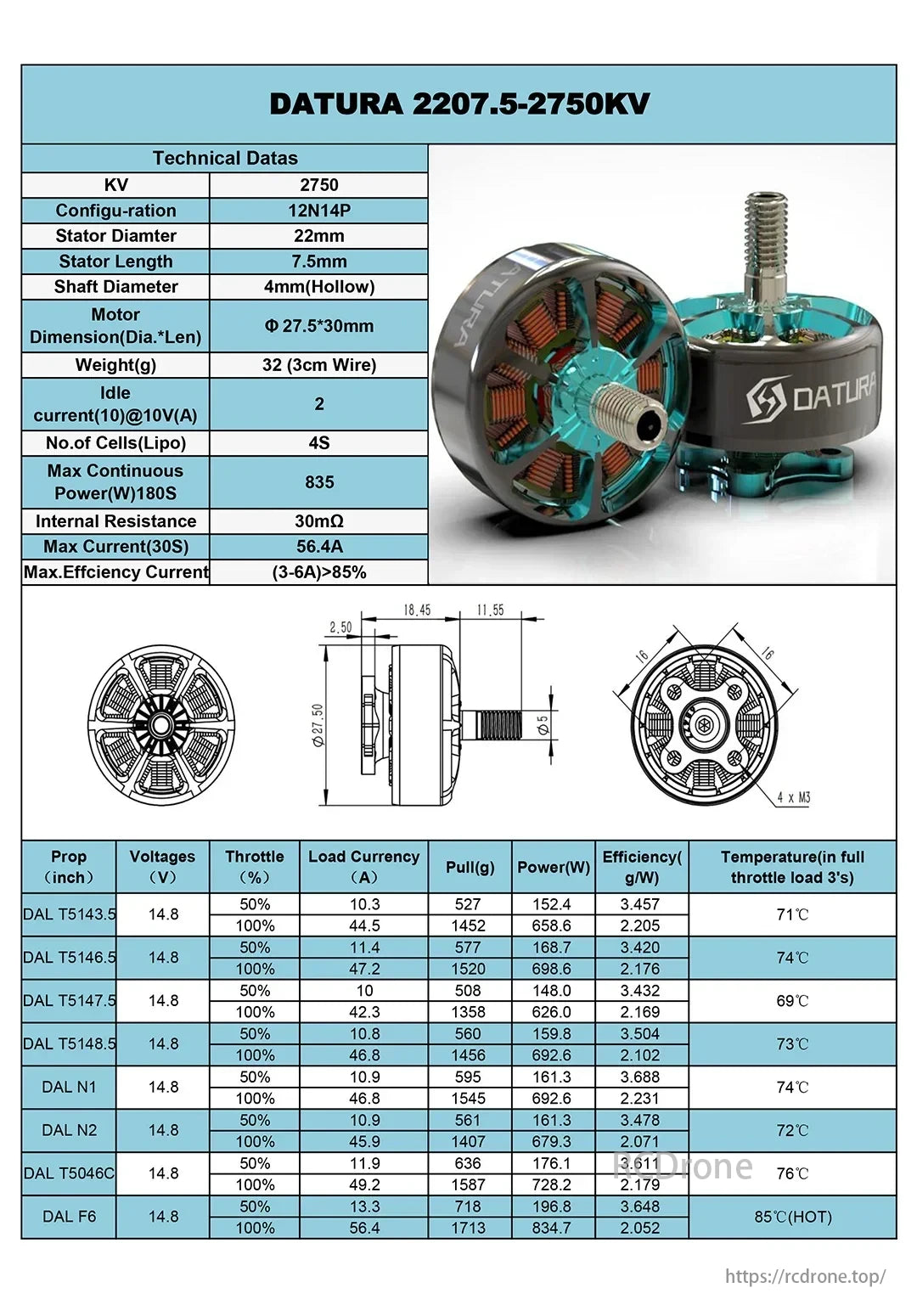

Foxxeer Datura 2207.5-2750KV motor specs: 2750KV, 22mm stator diameter, 32g weight, 835W max power, 56.4A max current, 30mΩ resistance. Efficiency over 85% at 3-6A. Tested with various props at 14.8V.

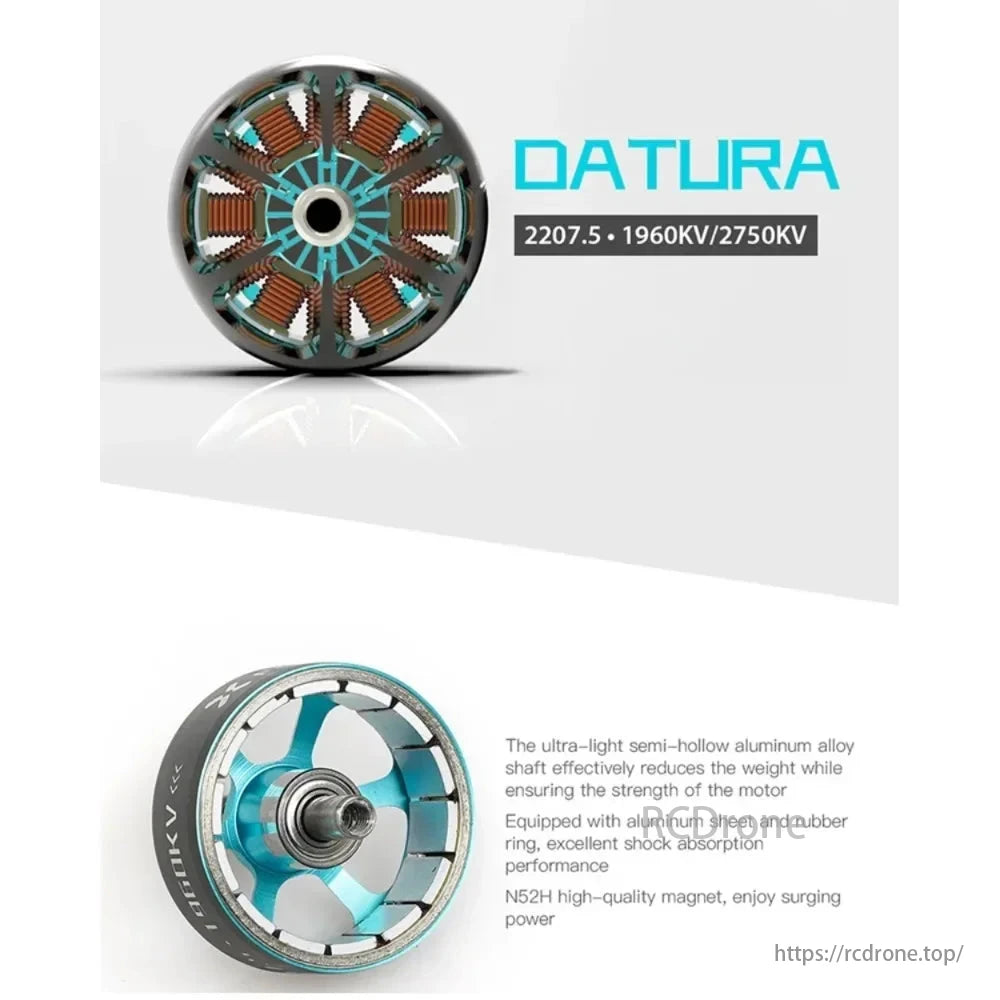

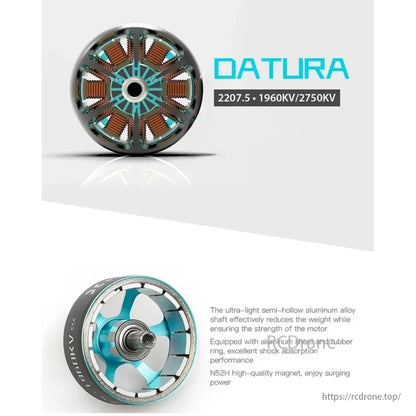

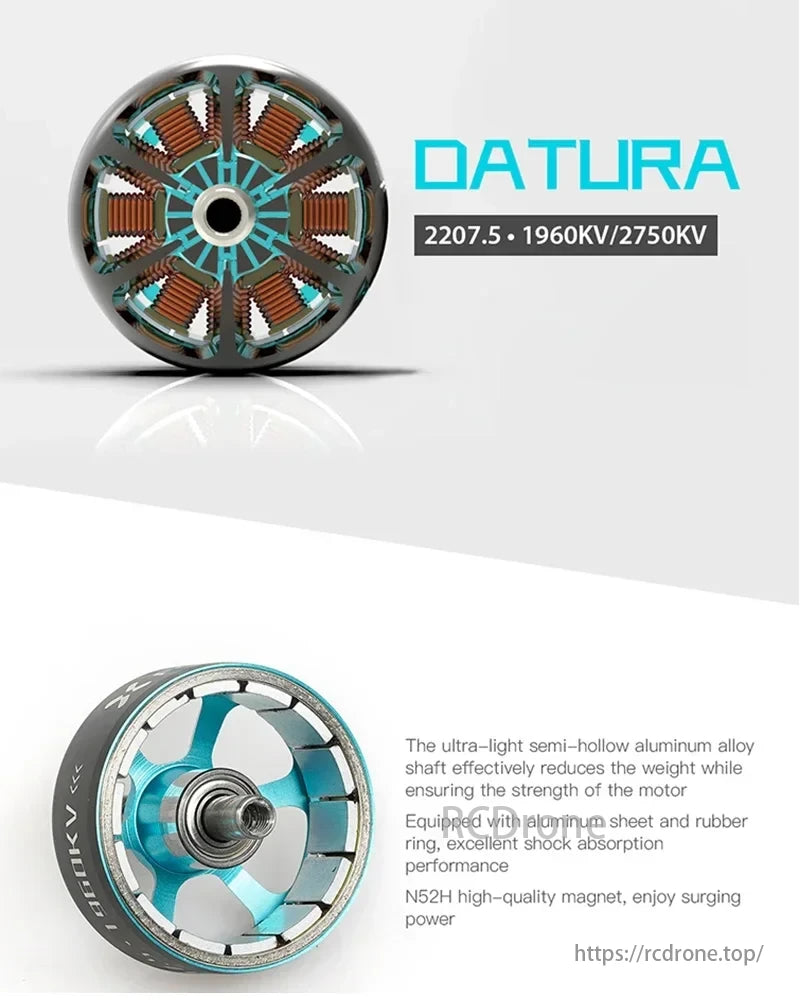

Foxxeer Datura Motor 2207.5-1960KV/2750KV. Ultra-light semi-hollow aluminum alloy shaft reduces weight, ensures strength. N52H magnet for surging power.

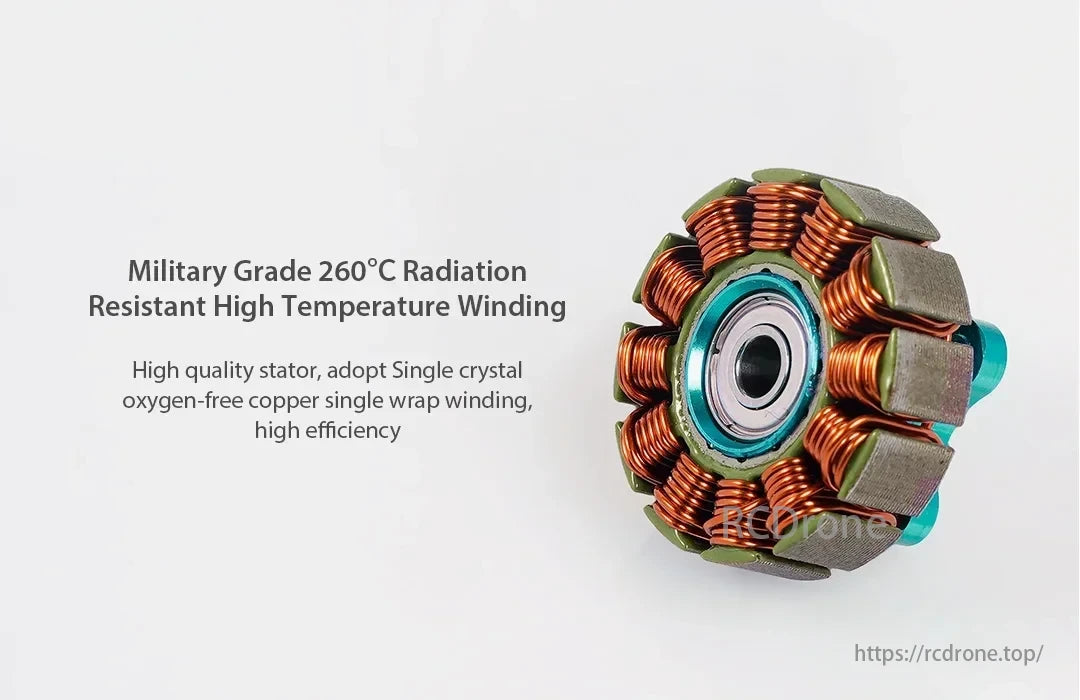

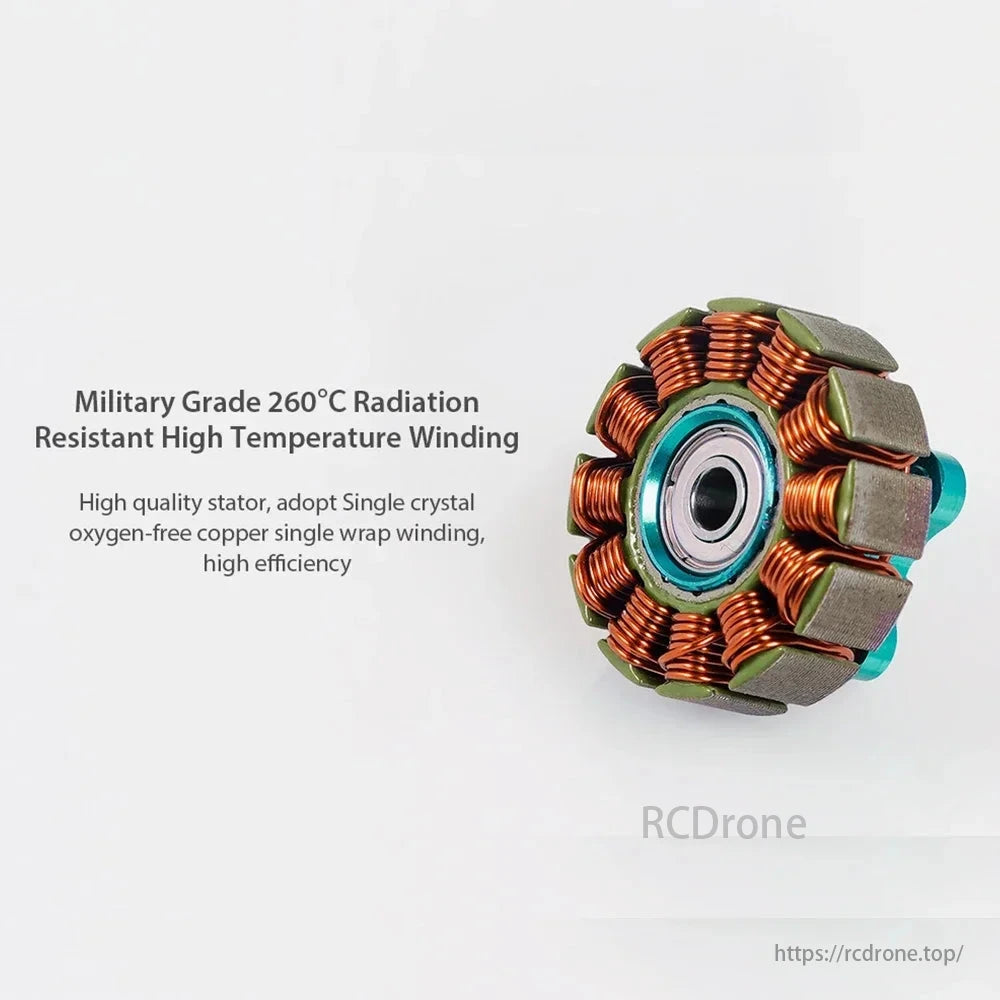

Military-grade, radiation-resistant, high-temperature winding for efficient stator performance.
