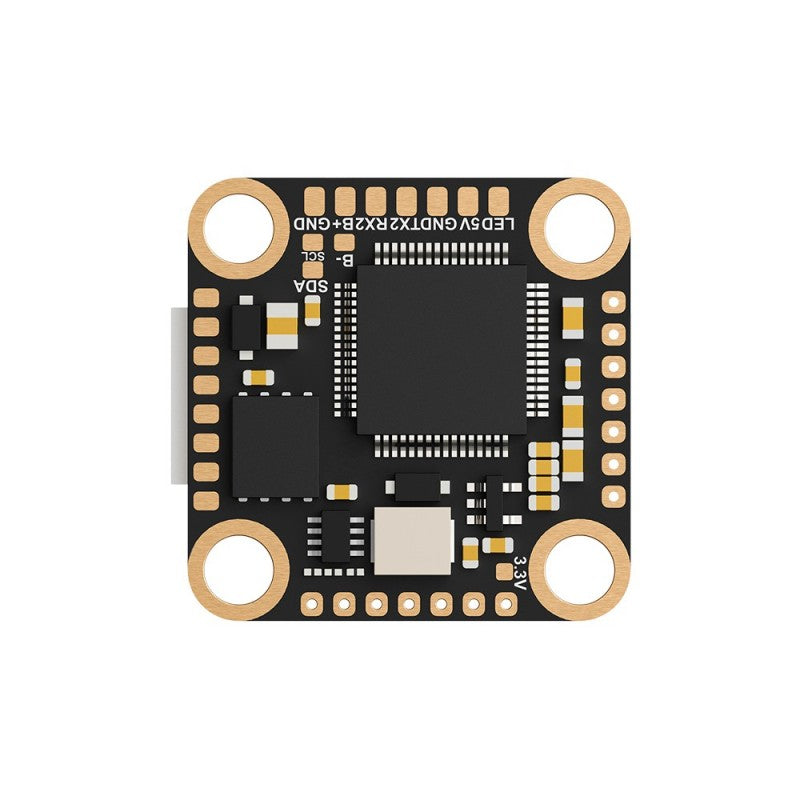

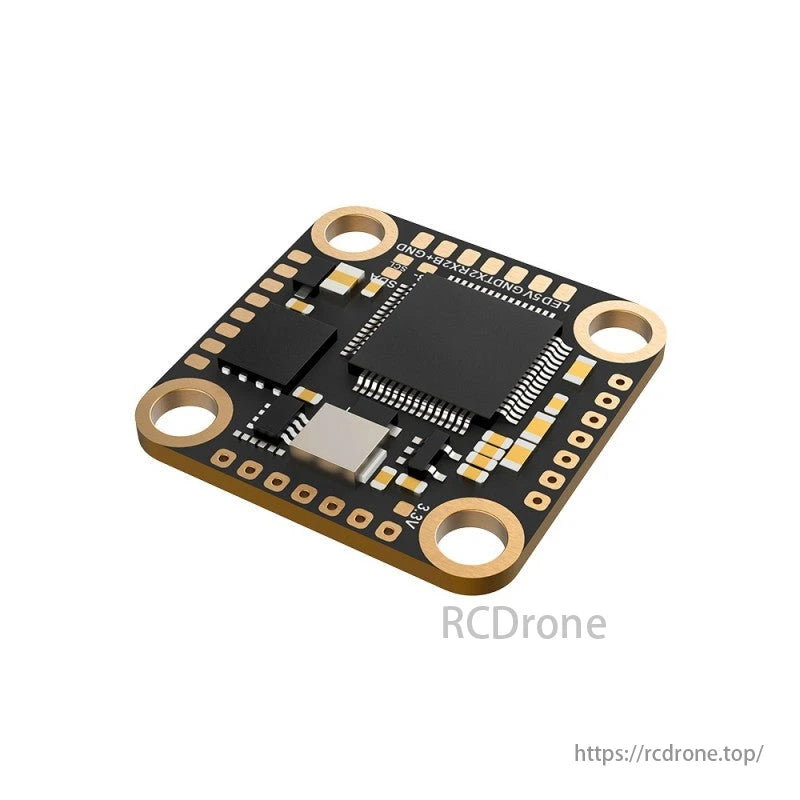

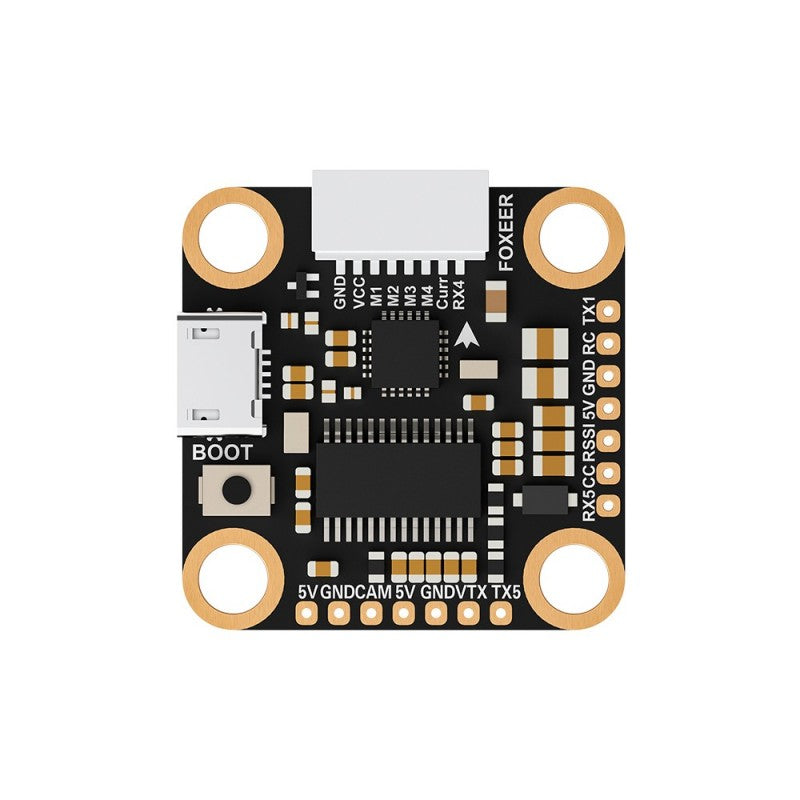

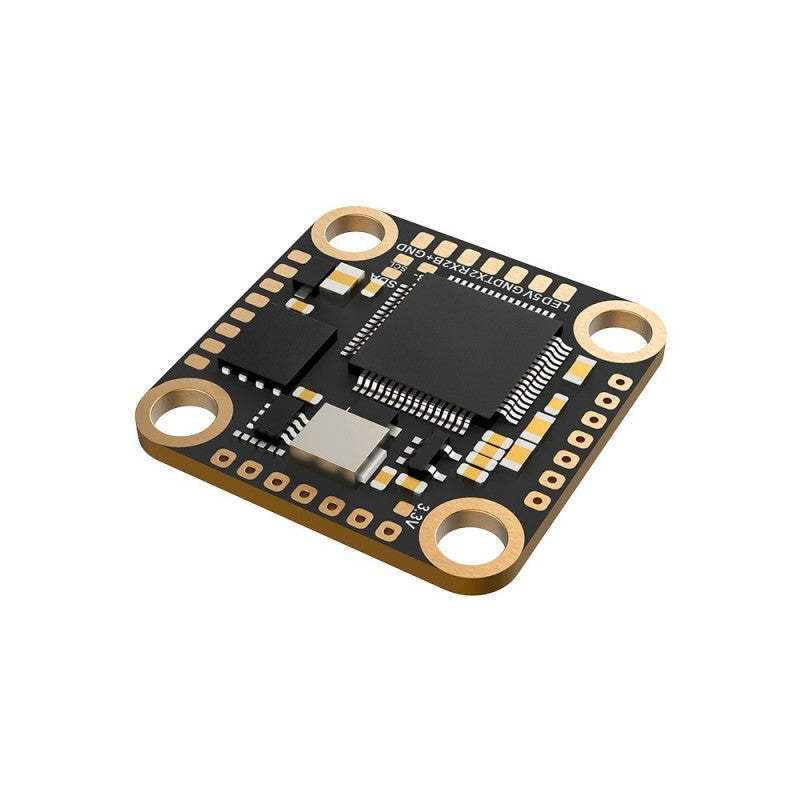

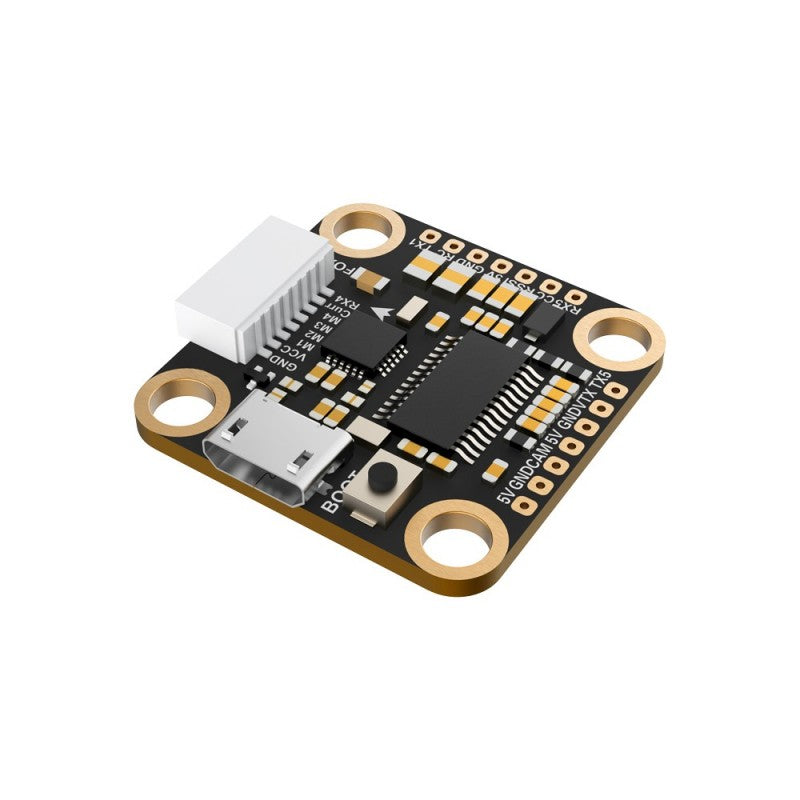

Foxeer F722 V4 Mini MPU6000 Flight Controller

Foxeer F722 V4 Mini MPU6000 Overview

The Foxeer F722 V4 Mini MPU6000 Flight Controller is a compact yet powerful flight controller, designed for high-performance drones where space and weight are critical. Featuring the STM32F722RET6 CPU and MPU6000 gyro, this flight controller delivers precise and responsive control for smooth flying, even in demanding environments. Supporting 2-6S LiPo batteries (6.5V~30V), it is ideal for smaller, more agile drones without compromising performance.

Features:

• High-Performance Control: Powered by the STM32F722RET6 CPU and MPU6000 gyro, offering reliable and stable flight control for dynamic flying.
• Compact Power Supply: Supports 2-6S LiPo batteries with a voltage range of 6.5V to 30V, making it perfect for lightweight builds without sacrificing power.
• Efficient BEC Output: Provides a DC5V/3A output, delivering stable power to peripherals like cameras and transmitters.
• Real-Time Data Monitoring: Integrated with BF OSD (Betaflight On-Screen Display), allowing pilots to monitor key flight data in real-time for enhanced control.
• Connectivity Options: Equipped with 4 UART ports and RX4 ESC telemetry for seamless integration with various components like ESC, smart audio, and buzzer.
• Lightweight and Durable: Weighing only 4g with a 26x26mm compact form factor, it’s designed to fit into smaller drone frames, reducing overall weight.
• Advanced Firmware: Supports FOXEERF722V4 (BetaFlight) firmware, allowing for customizable flight setups tailored to different flying styles.
• Operational Flexibility: Built to perform in temperatures ranging from -20°C to +55°C and humidity levels from 20-95%, ensuring reliable performance in various environments.

Foxeer F722 V4 Mini MPU6000 Specifications

Package Includes:

• 1x Foxeer F722 V4 Mini Flight Controller
• 4x Rubber columns for mounting

The Foxeer F722 V4 Mini MPU6000 FC is the perfect choice for pilots looking for a lightweight and compact solution without compromising on performance. Whether you're building a small racing drone or a freestyle quad, this flight controller offers the stability, connectivity, and power management needed to keep you in control during every flight.

Foxeer F722 V4 Mini MPU-6000 Flight Controller Excellent layout Lipo battery support with UARTs and DCSV/3A great filtering CPU STM32FZ22RET6 Micro USB interface MPU-6000 gyro Fireware included Power supply 2S Lipo 6.5V~30V Size 26x26mm BEC output DCSV/3A Mount hole size 4mm OSD iAhT black box 16M Flash memory Operating temperature -20°C to +55°C Operating humidity 20%~95% ESC telemetry range Temperature -20°C to +70°C Humidity 20%~95% Buzzer included Includes 1*FC 4*rubber columns Smartaudio enabled
