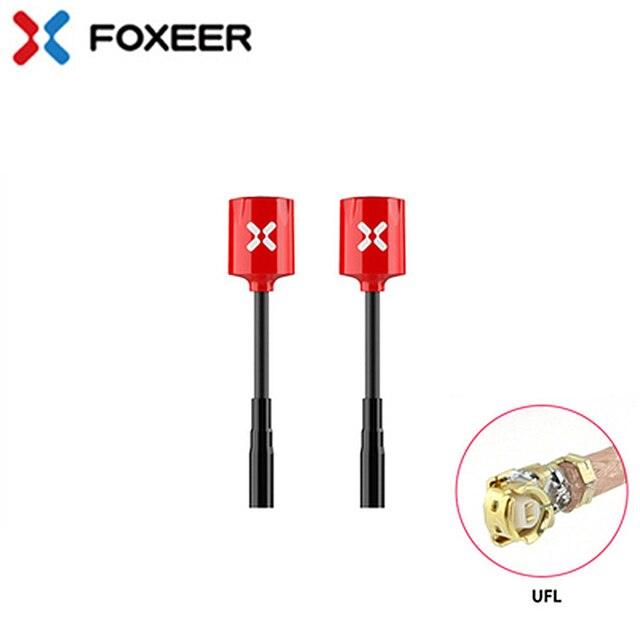

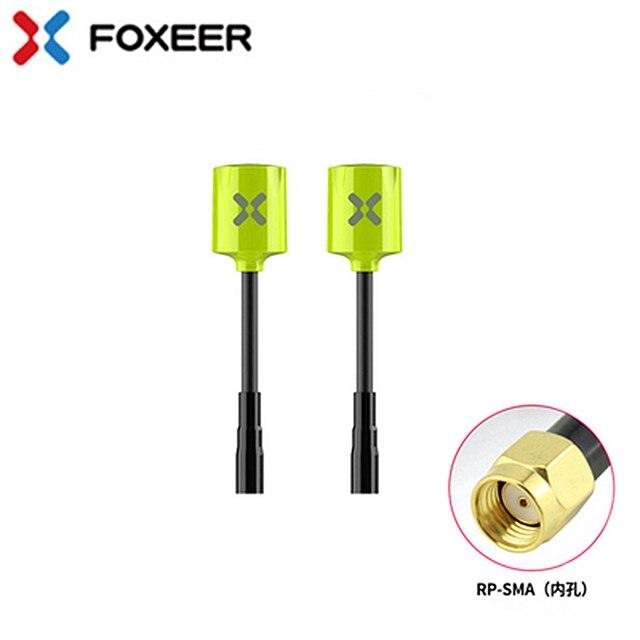

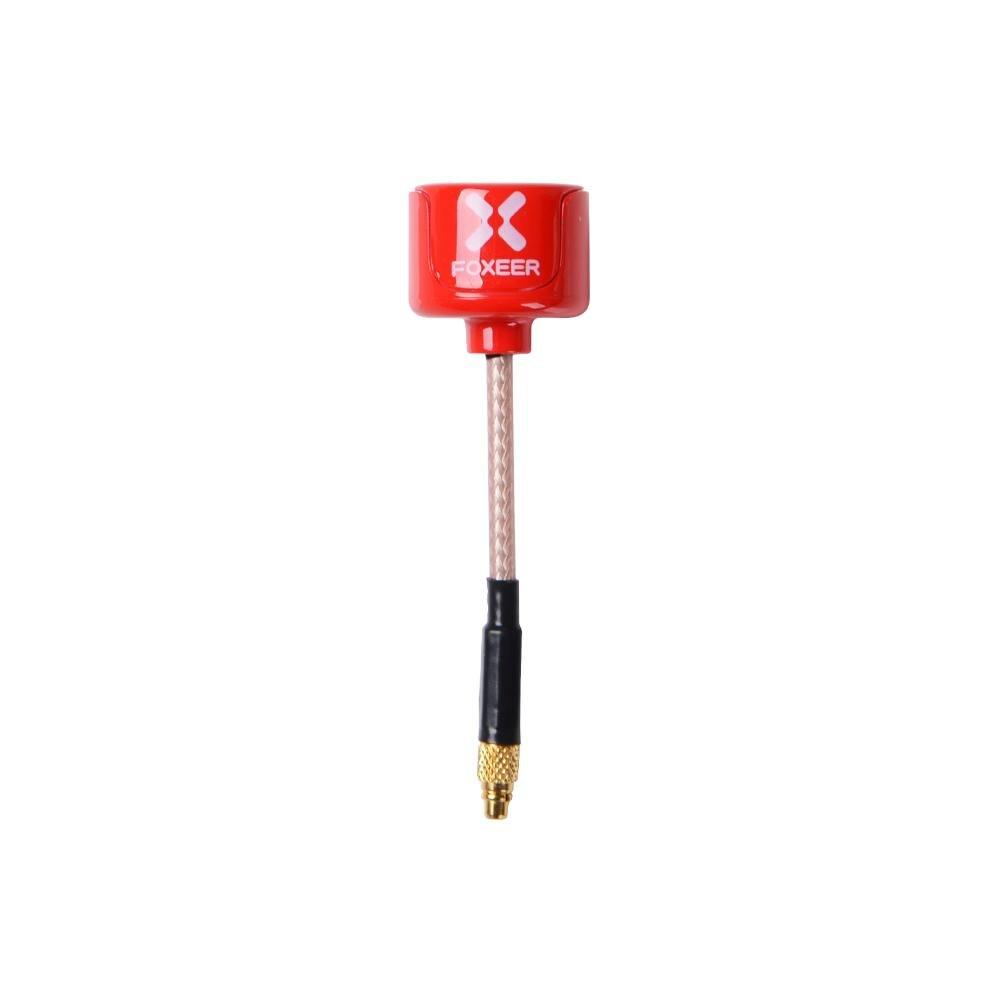

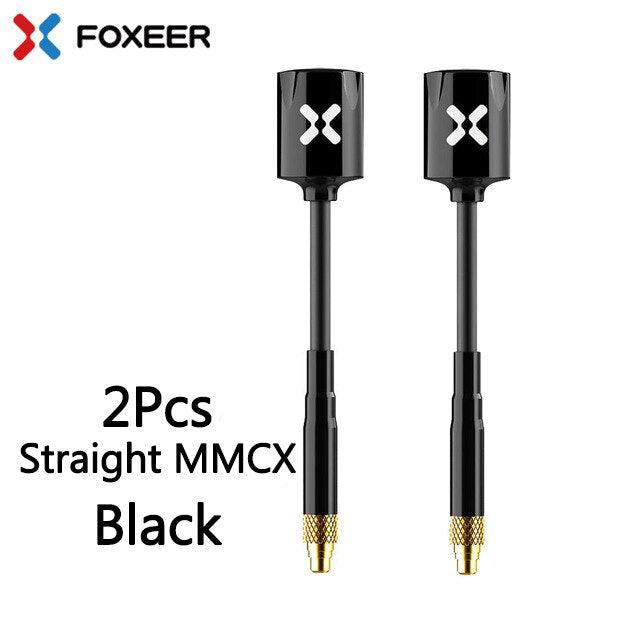

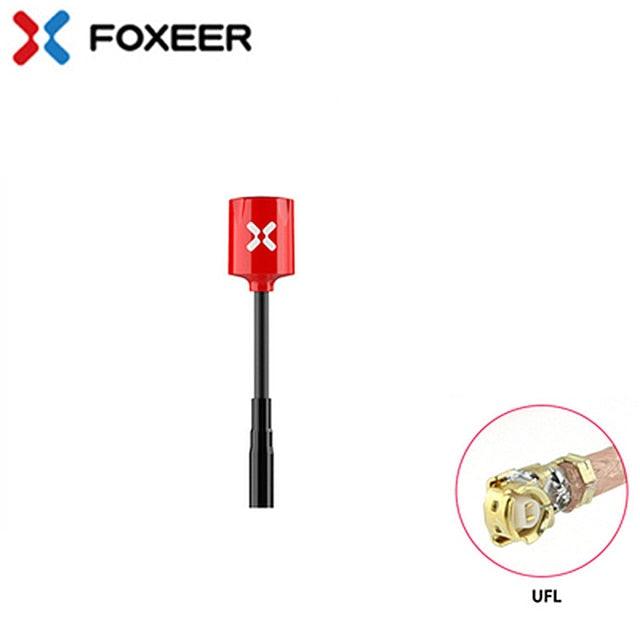

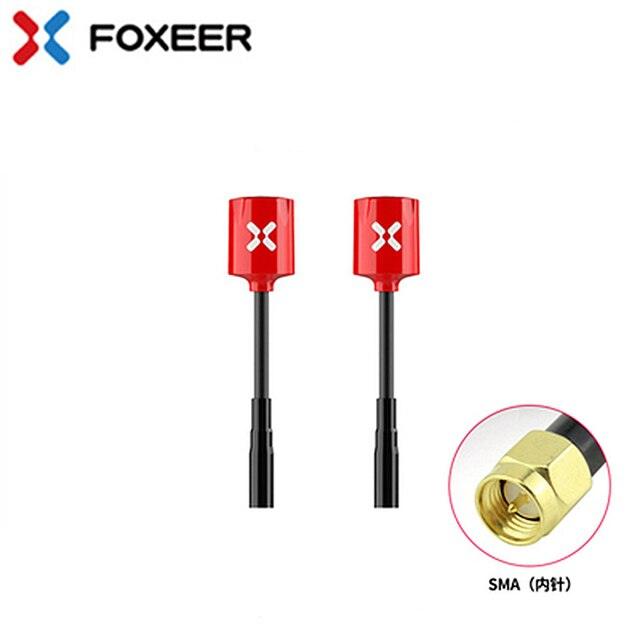

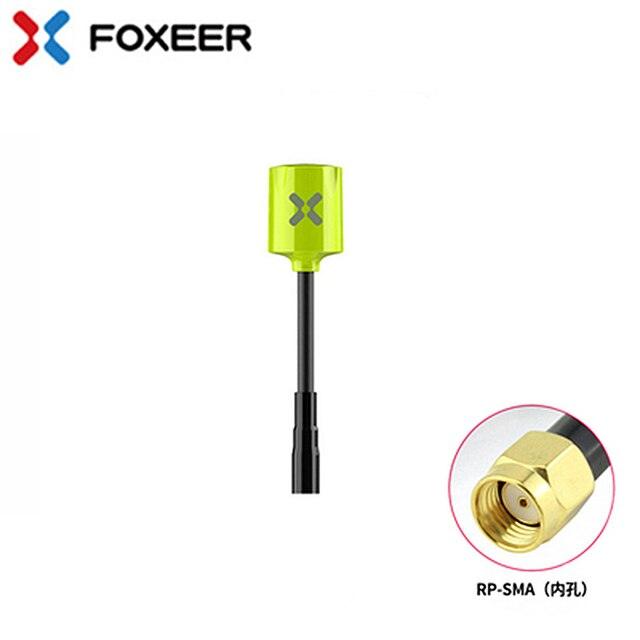

Foxeer Lollipop 3 Micro Lollipop V4 Omni 5.8G 2.5dBi Antenna RHCP MMCX Right Angle Straight RHCP UFL Super Mini For RC FPV Drone

Foxeer Lollipop 3 Micro Lollipop V4 Omni 5.8G 2.5dBi Antenna RHCP MMCX Right Angle Straight RHCP UFL Super Mini For RC FPV Drone

RCDrone

Regular price $21.23 USD
Regular price $36.09 USD Sale price $21.23 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

60 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Foxeer Lollipop 3 Micro Lollipop V4 SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: antenna

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Foxeer V3

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

Foxeer Lollipop 3 V3 5.8G RHCP FPV An

Description:
Brand name: Foxeer
Item number: Micro Lollipop
Center frequency: 5.8 GHz
Gain: 2.5 Dbi
Axial ratio: Close to 1
Bandwidth: 5.5-6 GHz
Radiation efficiency: 98%
V.SWR: 1.07 in center frequency

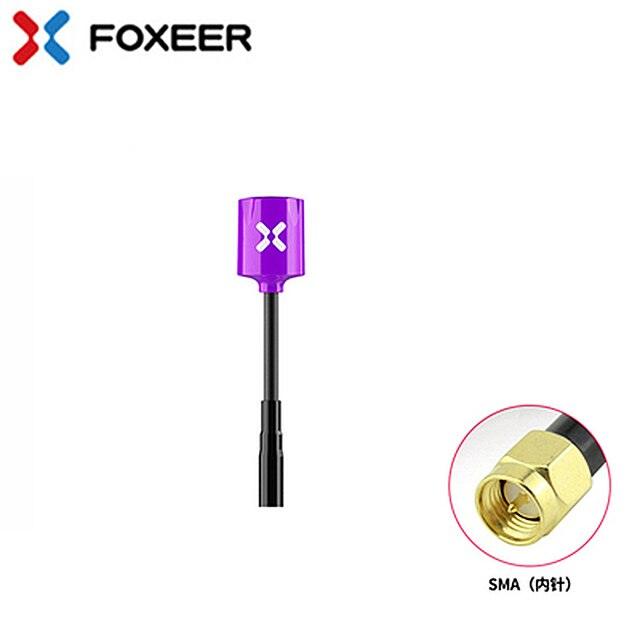

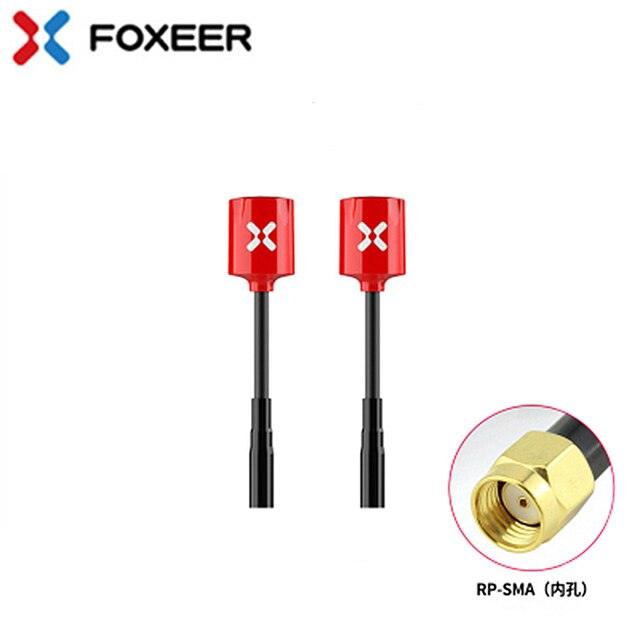

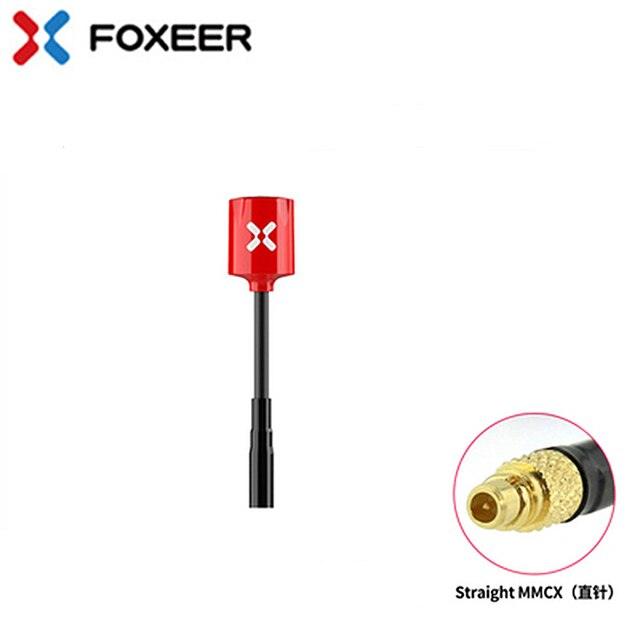

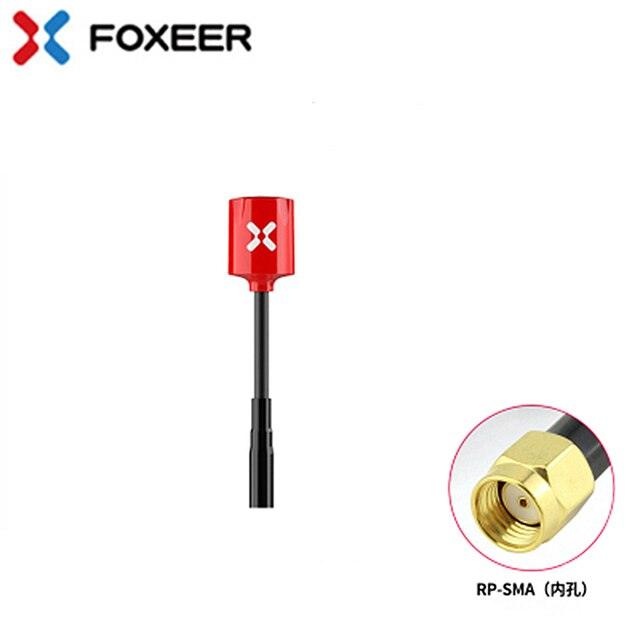

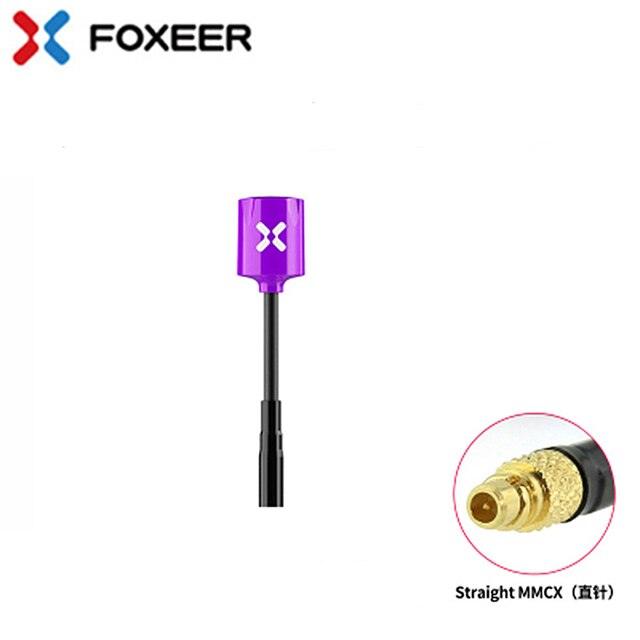

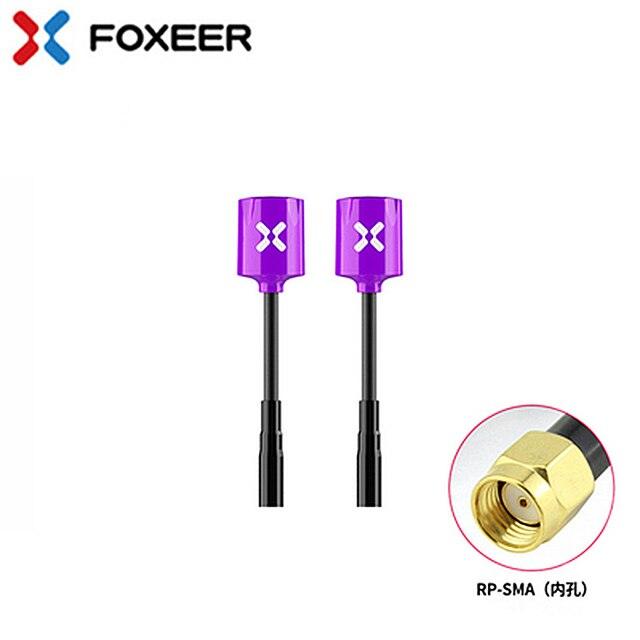

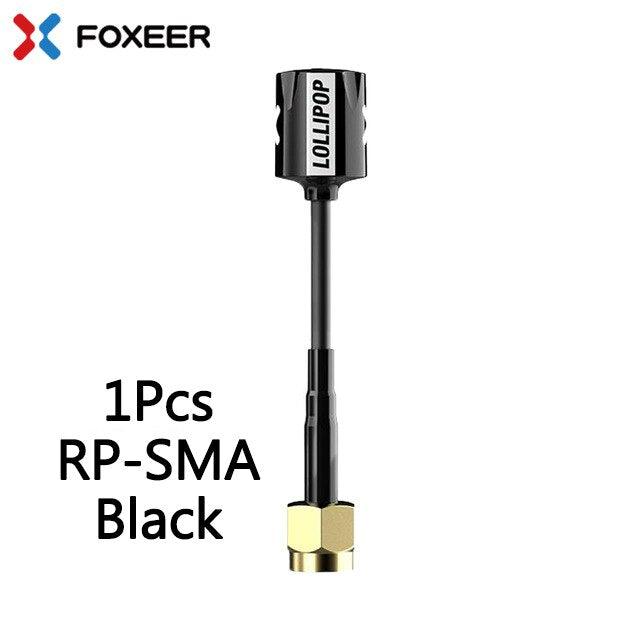

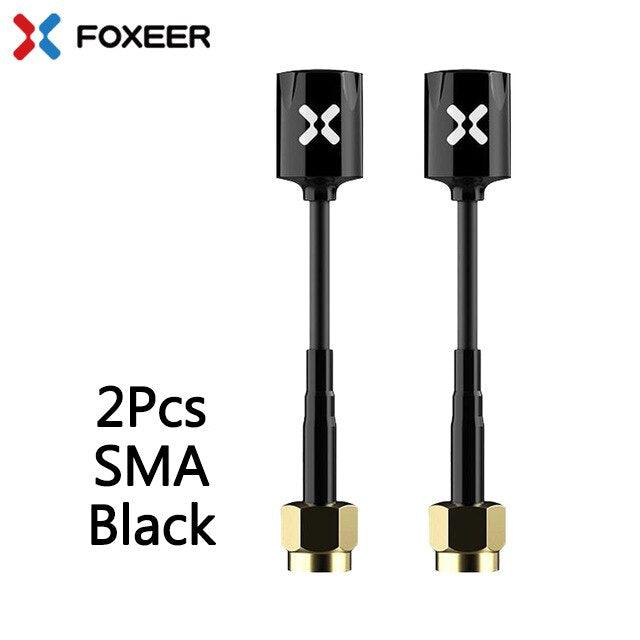

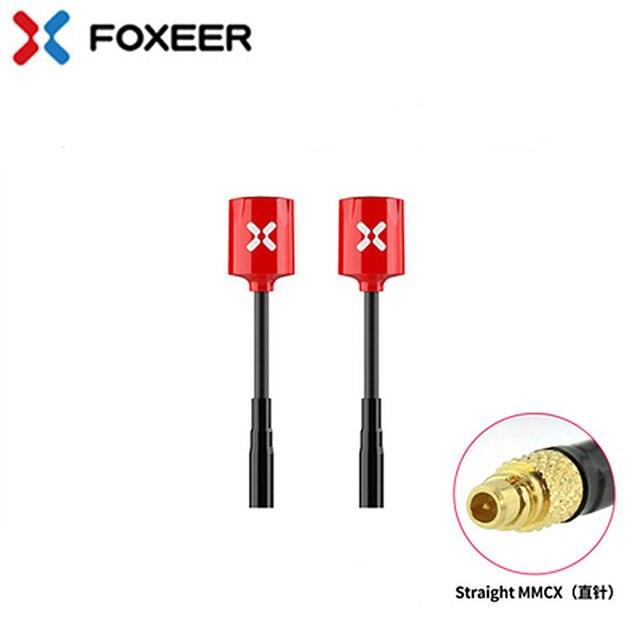

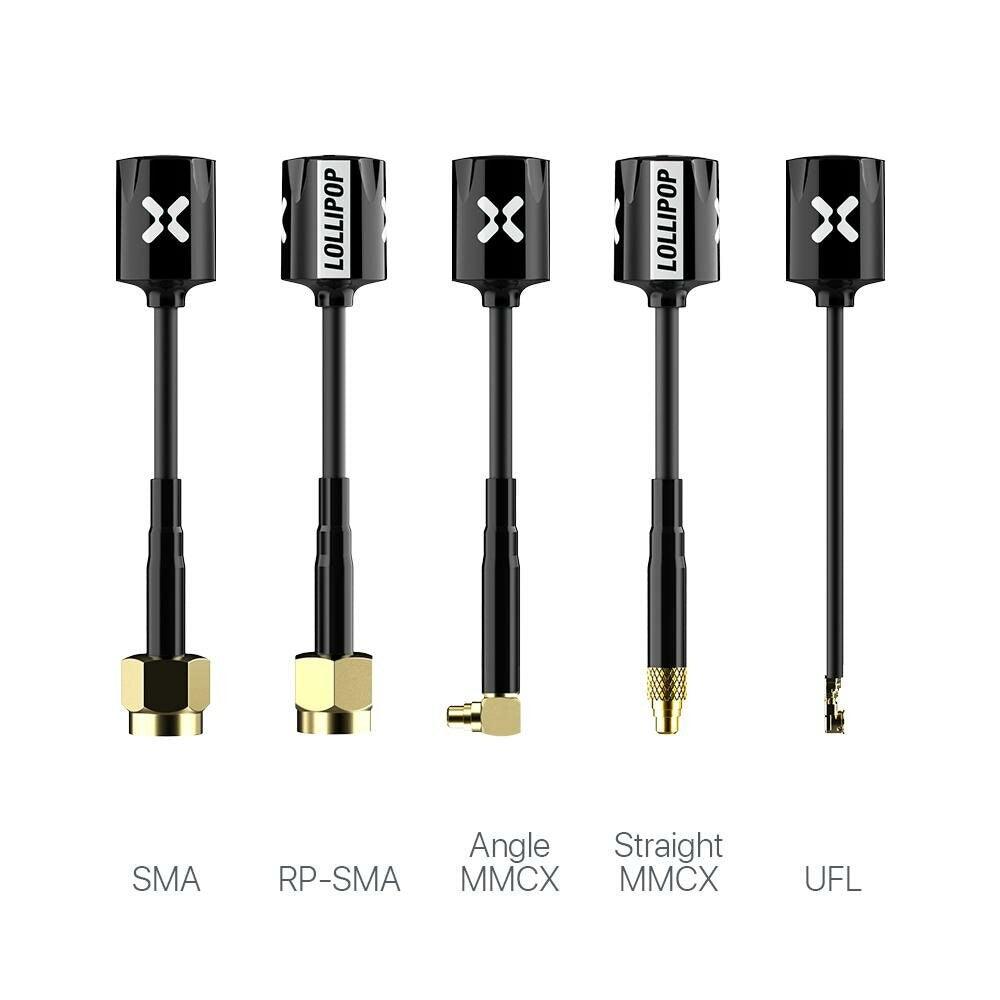

Connector: SMA/RP-SMA/Angle MMCX/Straight MMCX/U.FL
Weight: SMA & RP-SMA 4.7g/Angle MMCX 3.2g/Straight MMCX 3.1g/U.FL 1.6g (Optional)
Dimension(mm): Ф11*65
Cable length(mm): 51
Polarization: RHCP
Shell material: PC + ABS
Color: Purple,Black,Green, Red (Optional)
Cable: RG178,SFX086
Package includes: 2pcs/pack


Features:
* Body adopt imported PC+ABS material, can withstand high strength impact.
* IRoot reinfircement design 360° protection.
*Flexible cable,easy to bent and install.
*Customed MMCX angle connector,compatible with DJI AIR Unit.


Note: 1PCS selection of friends,Because the factory packaging is 2PCS, the antenna you receive may not have foxeer box. If it is acceptable then you can choose to buy it.thanks


Package Included:
1PCS or 2PCS
Foxeer Lolliop V3 or MICRO 5.G Antenna (according to buyer's choice)

Send according to your choice


Package Included:
1PCS or 2PCS Foxeer Antenna (according to buyer's choice)

Note: 1PCS selection of friends,Because the factory packaging is 2PCS, the antenna you receive may not have foxeer box. If it is acceptable then you can choose to buy it.thanks

Micro Lollipop Smaller, Lighter but Stronger Mep ep WE Lo

Foxeer's Micro Lollipop V4 Omni antenna boasts a smaller, lighter design without compromising strength, featuring a durable structure and innovative fashion design.

Red Fluorescent Purple Black Green Different Colors Match Different Drones Angle Straight SMA

This Foxeer Lollipop 3 Micro Lollipop V4 Omni antenna features different color options, including red, purple, black, and green, to match various drone designs. The SMA/RP-SMA connector ensures a secure fit for right-angle applications, with dimensions of 65mm and a weight of 4.7g.

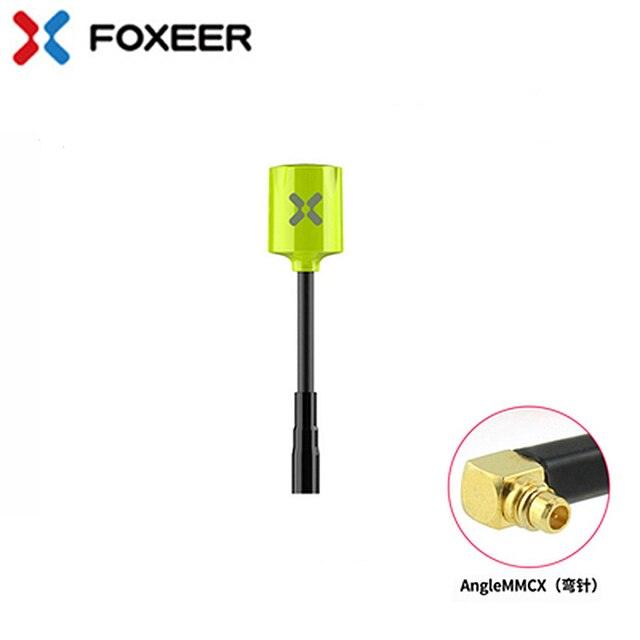

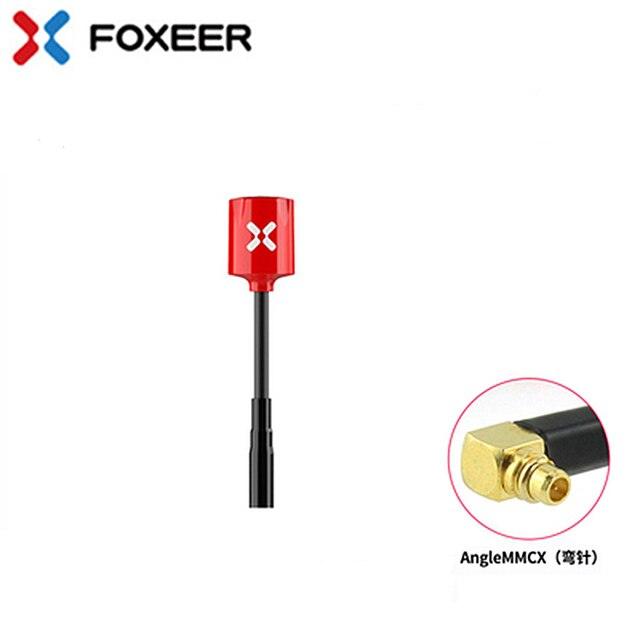

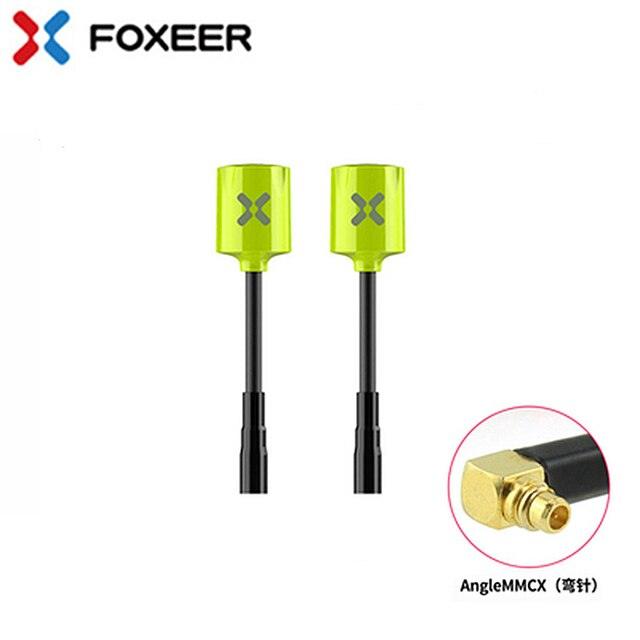

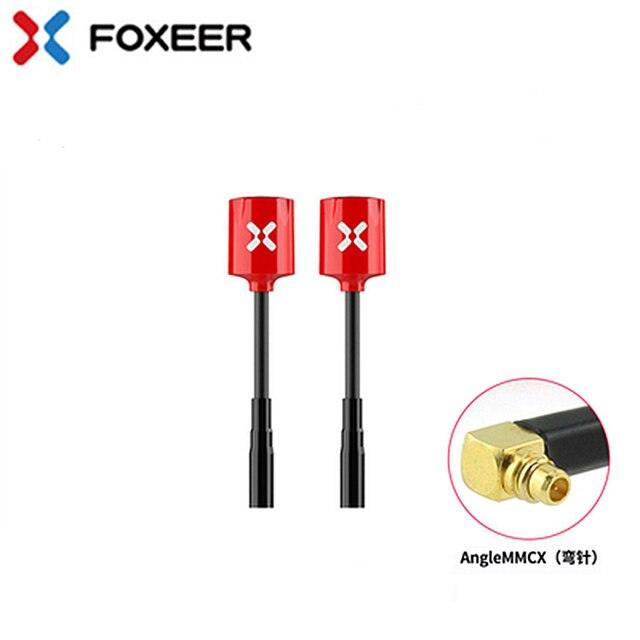

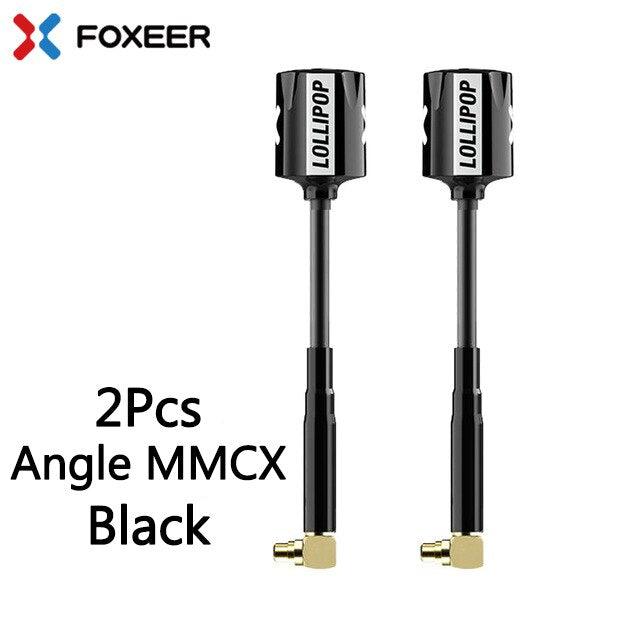

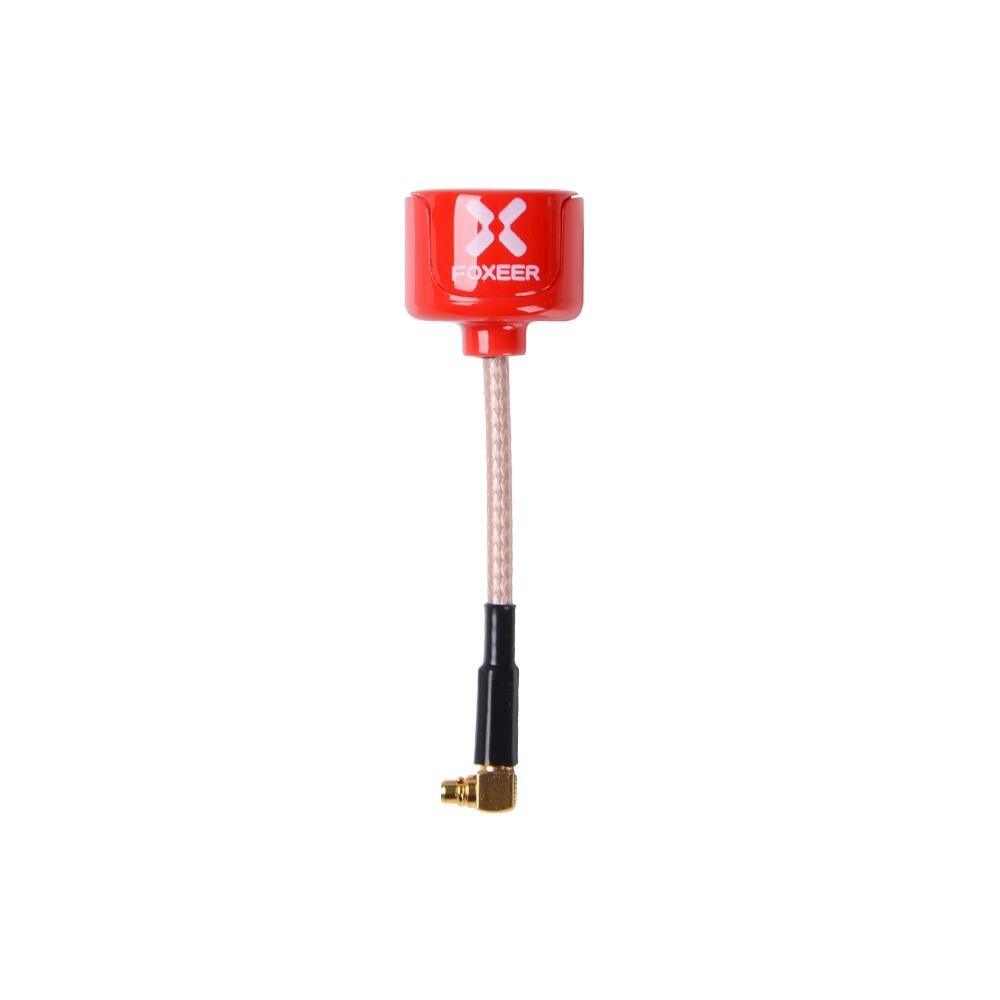

Customized MMCX Angle connector, Compatible with Root reinforcement design DJI Air Unit .

This Foxeer Lollipop 3 Micro Lollipop V4 Omni antenna features a customized MMCX angle connector, specifically designed for compatibility with DJI Air Unit's root reinforcement design. The high-strength cable is flexible and easy to bend, making installation straightforward.

VSWR Diagram Active ChyTrace Response Stimulus Mkr

The Foxeer Micro Lollipop antenna has a VSWR of 10.00 log mag at 500 MHz, with a center frequency of 5.7 GHz and a gain of 2.5 dB. The antenna features an axial ratio close to bandwidth, with a group delay of 8.000 and a phase of 7.000. Additionally, the Smith chart shows a polar plot with a magnitude of 4.000 and a real part of 3.000.



Specification:
Brand: Foxeer
Item name: Foxeer Lollipop 3 V3  5.8G RHCP FPV Antenna
Gain: 2.5DBi
Shell Material:imported PC+ABS
Center frequency:5.8GHz
Polarization: RHCP
Color:Black,Red,Purple,Green
Bandwidth:500 MHz(5.5 - 6.0 GHz)
Matching:VSWR<1.2(at center frequency)
Axial Ration:<3db
Center Frequency:5750MHz
Radiation efficiency:98%
Connector: RP-SMA / SMA/UFL/straight MMCX/ angle MMCX

Length:
straightMMCX / AngleMMCX:60mm
SMA, RPSMA:60mm

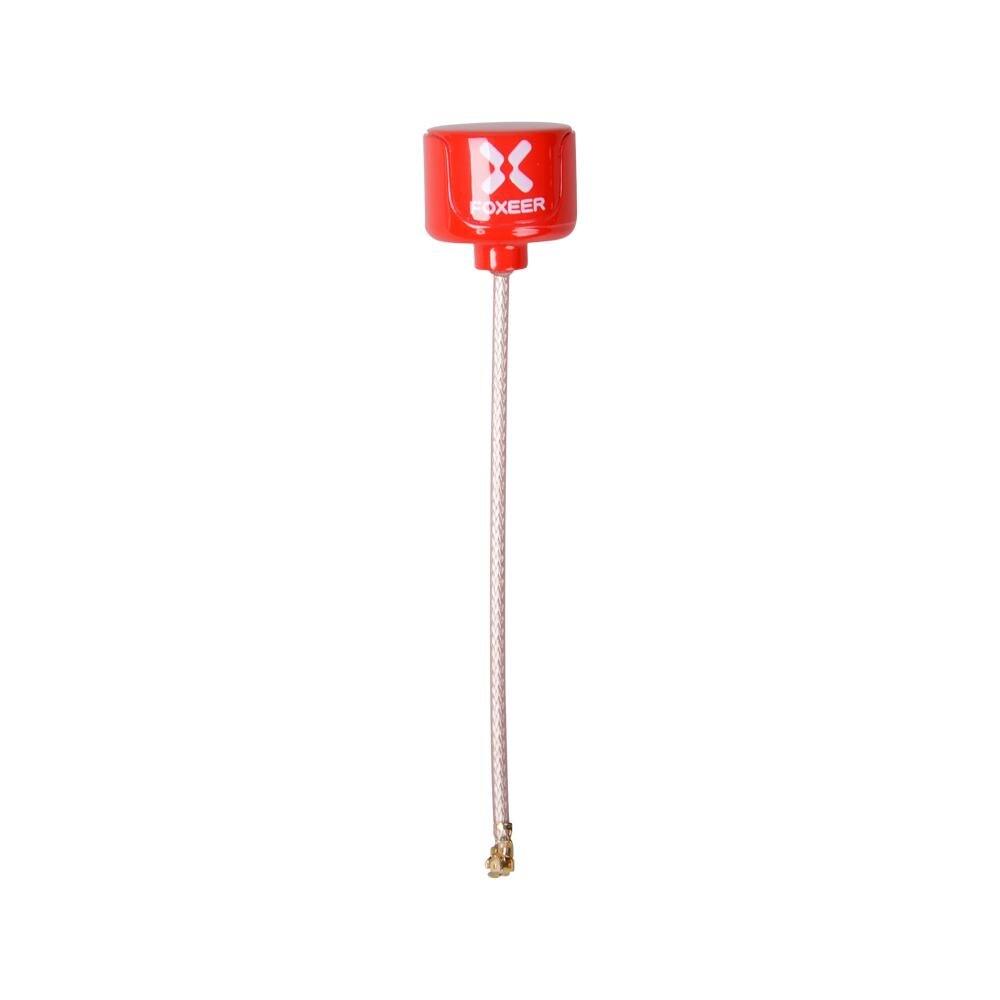

UFL :85.5mm

Weight:
straightMMCX :3.7g
AngleMMCX:3.7g
SMA, RPSMA:7.3g
UFL :2.6g

LOLLIPOP 0 UPGRADED DURABLE STRUCTURE Lol
FOXEER adopts imported PC+ABS material, can withstand high strength impact

Foxeer's innovative design incorporates high-quality PC+ABS materials, ensuring the antenna can withstand strong impacts. Additionally, Foxeer's Lollipop series features low feeder loss, making installation easy and convenient, with the ability to bend the antenna at any angle without compromising its performance.

FOXEER adopts imported PC+ABS material, can withstand high strength impact
Angle MMCX StraightMMCX UFL 17.13mm 85.5mm 60mm 1

The Foxeer Lollipop 3 Micro Lollipop V4 Omni antenna features an MMCX connector with a straight angle design, measuring 17.13mm in length and 85.5mm in total length. The antenna's dimensions include a diameter of 60mm and a tiny overall size, making it lightweight and easy to handle.

FOXEER LOLLIPOP 3 Shell material Imported PC ABS Weight 7.3g

The Foxeer Lollipop 3 antenna features an imported PC+ABS shell material, weighing in at 7.3g for the MMCX (Angle or Straight) connectors and 2.6g for the UFL connector. The antenna's dimensions are as follows: Angle MMCX and Straight MMCX both measure 60mm in length, while the UFL connector measures 85.5mm. Other key specifications include a center frequency of 5.8 GHz with a gain of 2.5 dBi and bandwidth of 500 MHz (covering 5.5-6.0 GHz), an axial ratio of 3 dB at the center frequency of 5750 MHz.

db(GainLHCP Setud1 ast-cap

Note: The gain of this antenna is approximately 10 dB at the center frequency (RHCP). Frequency range: 9 GHz. Polarization: RHCP. Dimensions: 125mm in length, with a diameter of 4120mm and a height of 120mm. Operating temperature: -150°C to 150°C. Channel bandwidth: 180 MHz. Calibration format: AESPONSE BCALE MEAS FORMAT. Display average calculation: 5.75 GHz. Measurement format: Mad Maaker DISPLAY AvG Cal. Frequency response: EUTAT MUKER MafrCA ZmRIY FCTN STimulus INSTAUE MENU ST.





Micro Lollipop Smaller, Lighter but Stronger Fashion Desgin Durable Structure

Red Fluorescent Purple Black Green Different Colors Match Different Drones Angle Straight SMA

Red Fluorescent Purple Black Green Different Colors Match Different Drones Angle Straight SMA RP-SMA MMCX MMCx UFL: 65mm 1.6g .

Customized MMCX Angle connector, compatible with DJI Air Unit . can withs

Customized MMCX Angle connector, compatible with DJI Air Unit . can withst and high strength: Flexible cable; easy to bent and install .

VSWR Diagram Active ChyTrace Response Stimulus Mkr

VSWR Diagram Active ChyTrace Response Stimulus Mkr Anatysis 5 Instr State ' 511 SWR 1.000/ Ref .00O Format 11.00 SWR 5OooOOo' GHz 30 -Qoooooo GHz 10.00 Log Mag 9.000 Phase 8.0u0 Group Delay 000 Smith 6.000 Polar 5.000 Lin Mag 4.000 SWR 3000 Real 2.0o0 Imaginary 1.000 Statt S00 MHz I
