Foxeer Reaper 80A F4 128K BL32 4-8S Single ESC

Foxeer Reaper 80A ESC Overview

The Foxeer Reaper 80A F4 128K BL32 4-8S Single ESC is a high-performance electronic speed controller designed to handle the power demands of modern FPV drones. With the ability to support continuous current up to 80A and burst current up to 145A, this ESC is perfect for high-thrust drones and high-intensity maneuvers. Built with BLHeli32 firmware, it offers smooth motor control and flexible input signal support, including DShot, MultiShot, and OneShot protocols. This ESC is designed for 4-8S LiPo setups, providing peak power up to 4kW.

Features:

• High Power Handling: Capable of handling 80A continuous current and 145A burst current, making it ideal for high-powered drone builds.
• Peak Power Rating: With a maximum power rating of 4kW, it delivers impressive performance even in demanding flight scenarios.
• Long Continuous Operation: Can sustain 80A for up to 65 seconds, providing consistent power during extended high-thrust operations.
• Advanced Firmware: Runs on BLHeli32, allowing precise control, smooth motor performance, and advanced programming options.
• Wide Voltage Range: Supports 4-8S LiPo (DC 14V~36V), offering flexibility for a wide range of drone setups.
• Telemetry Supported: Allows real-time data monitoring to enhance performance and diagnostics during flight.
• Multiple Signal Support: Compatible with DShot 150/300/600/1200, MultiShot, and OneShot, ensuring seamless integration with a variety of flight controllers.

Specifications

Package Includes:

• 1x Foxeer Reaper 80A F4 128K BL32 4-8S Single ESC

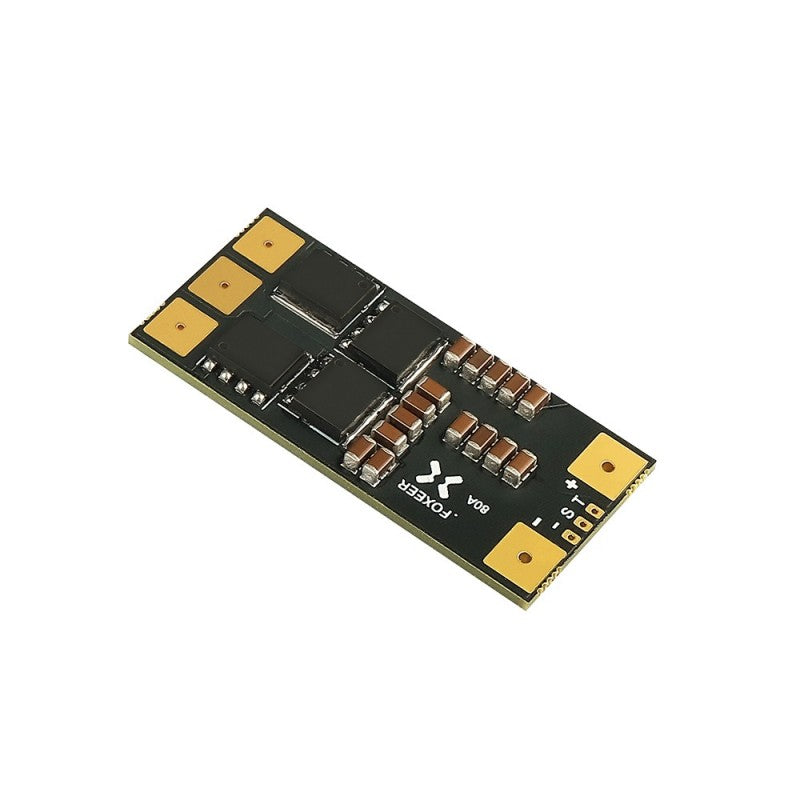

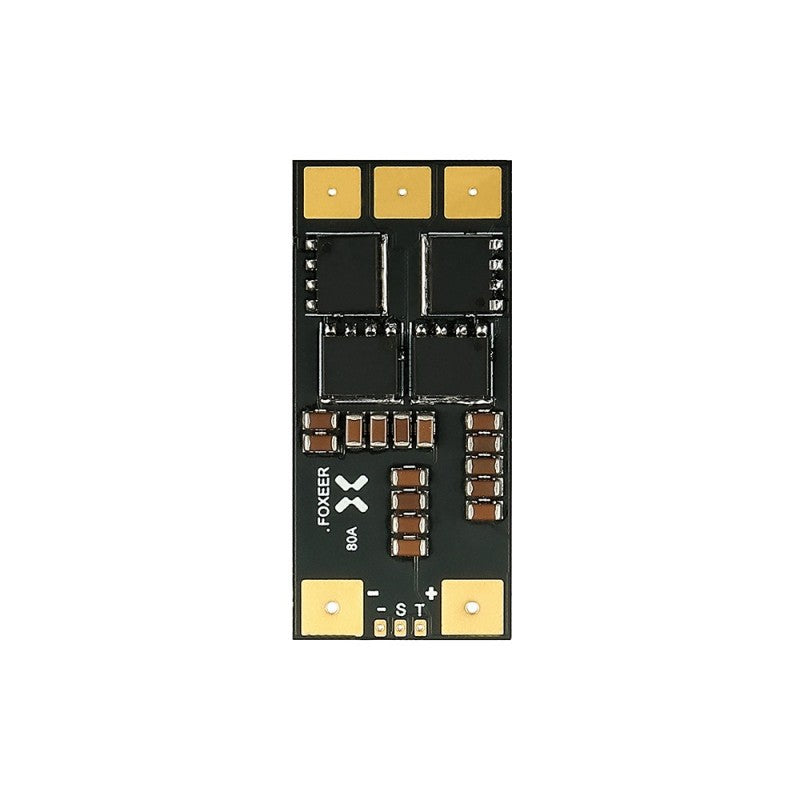

The Foxeer Reaper 80A F4 128K BL32 is a high-performance single ESC designed for 4-8S brushless motors. It features an F4 chip and six high-quality mosfets, ensuring reliable performance. The 8-layer PCB reduces resistance and ensures efficient heat dissipation.
