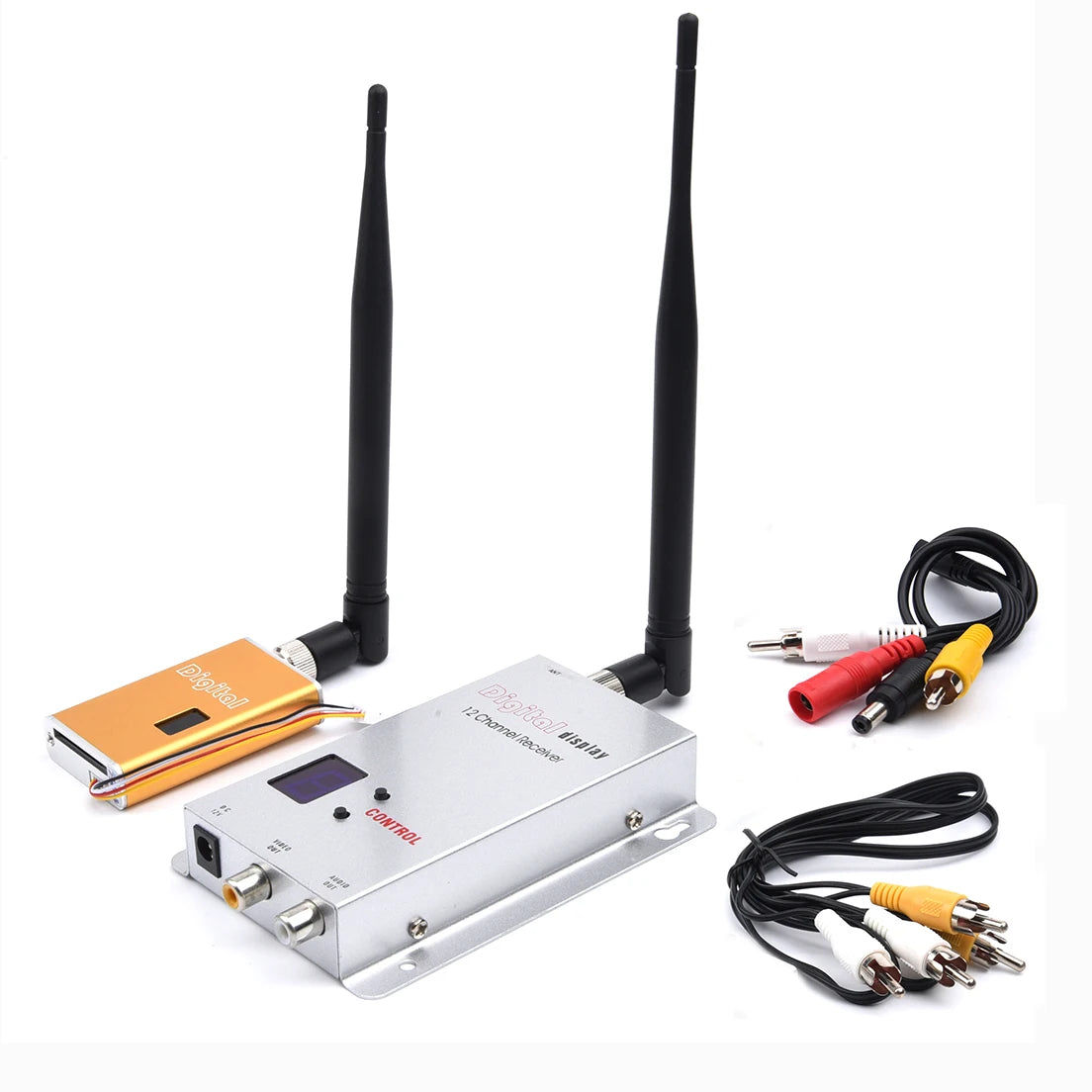

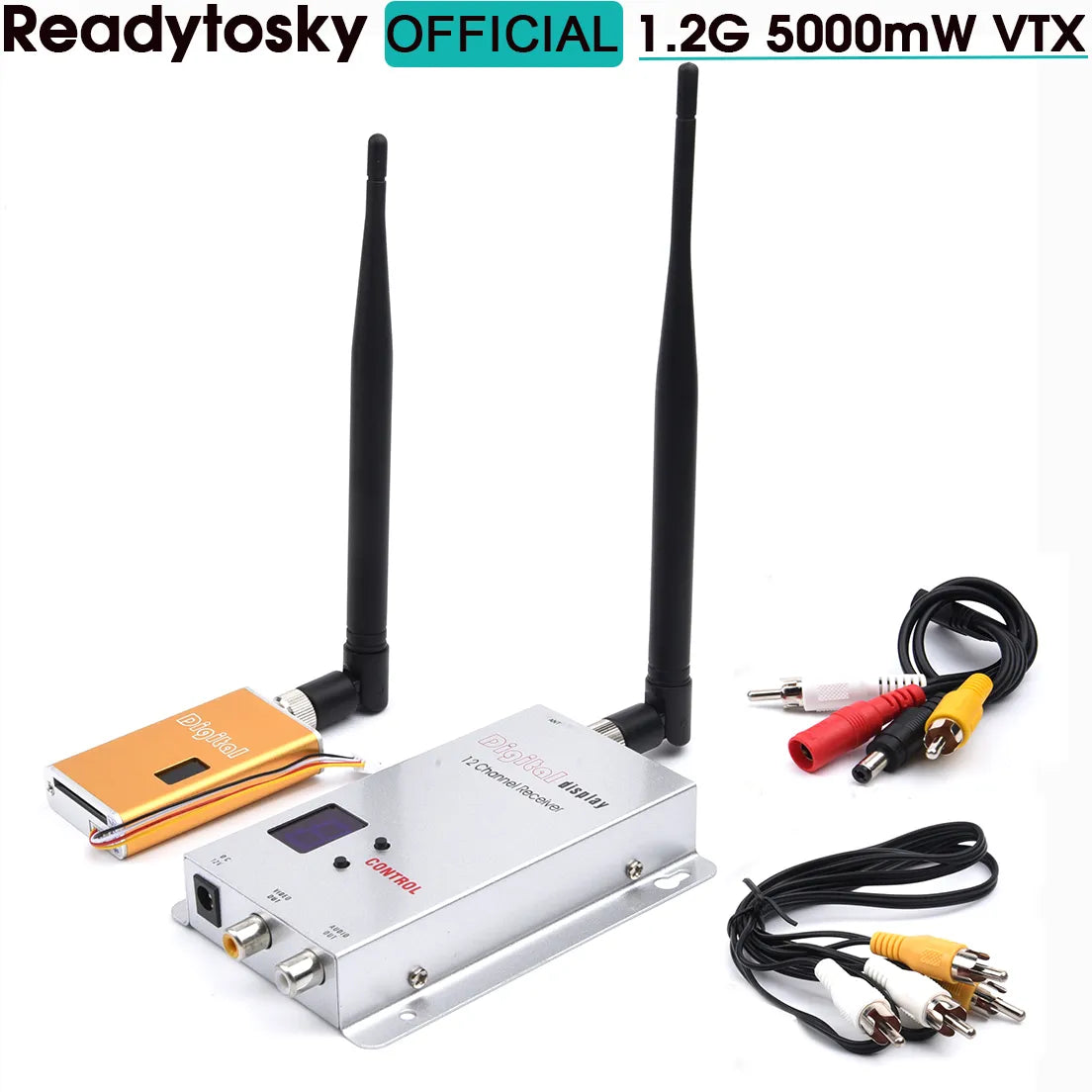

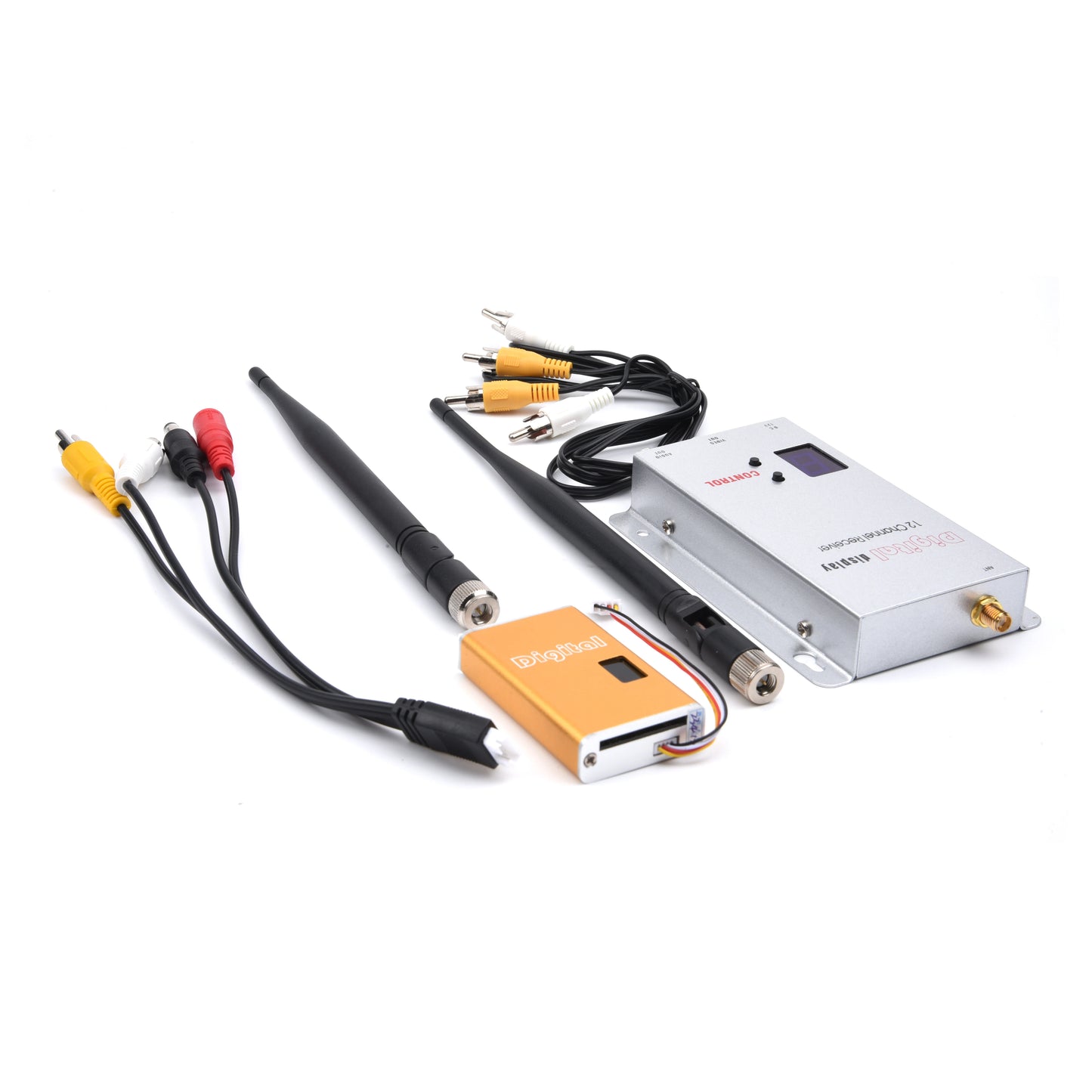

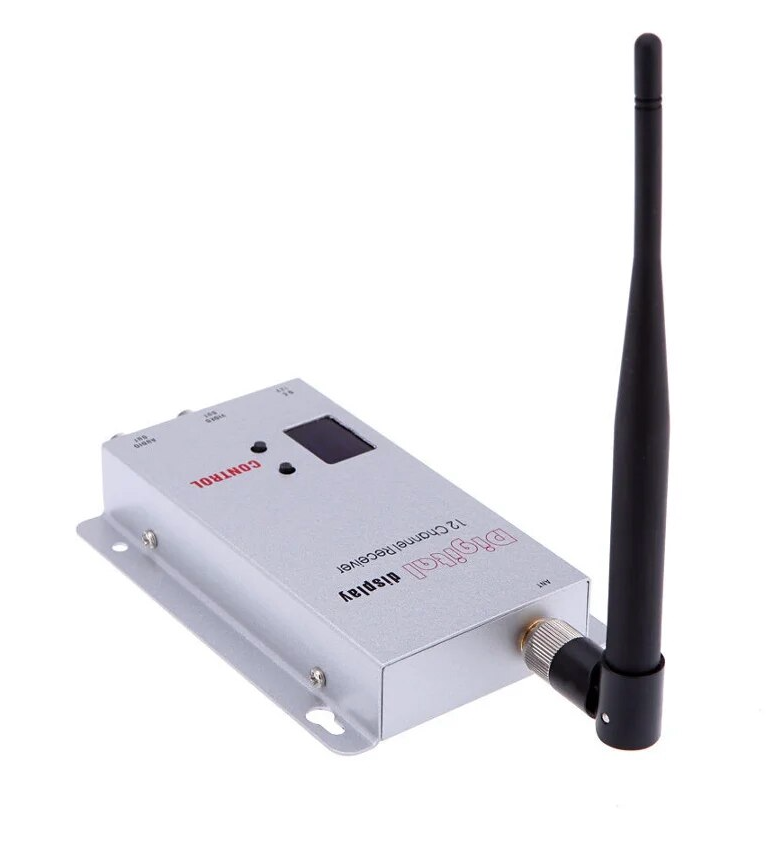

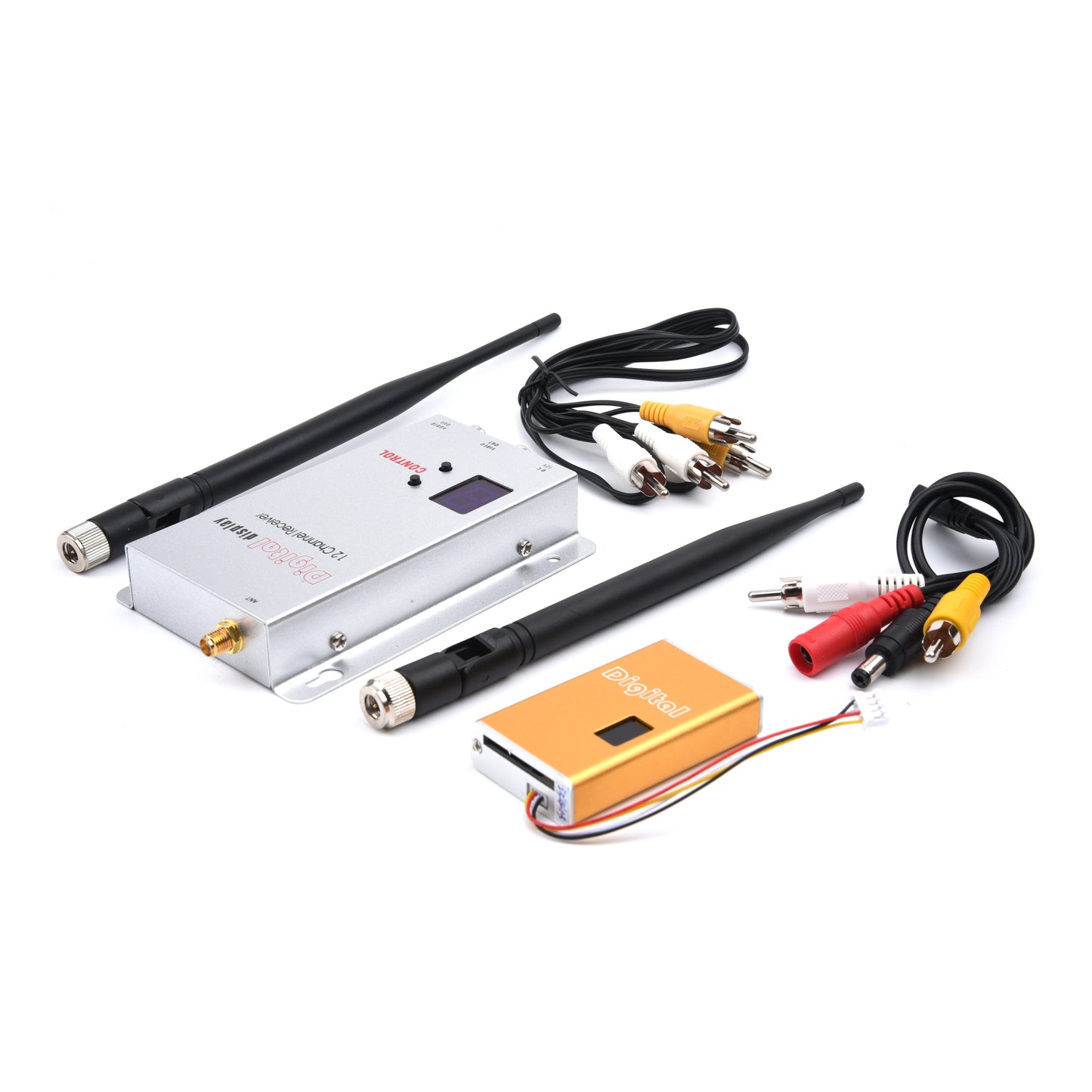

5000mW 5W Miniature FPV Video Sender 1.2G 1200Mhz Audio Video Wireless Transmitter and Receiver LOS Long Distance

Description:

KP-MINIA7 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It\'s not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

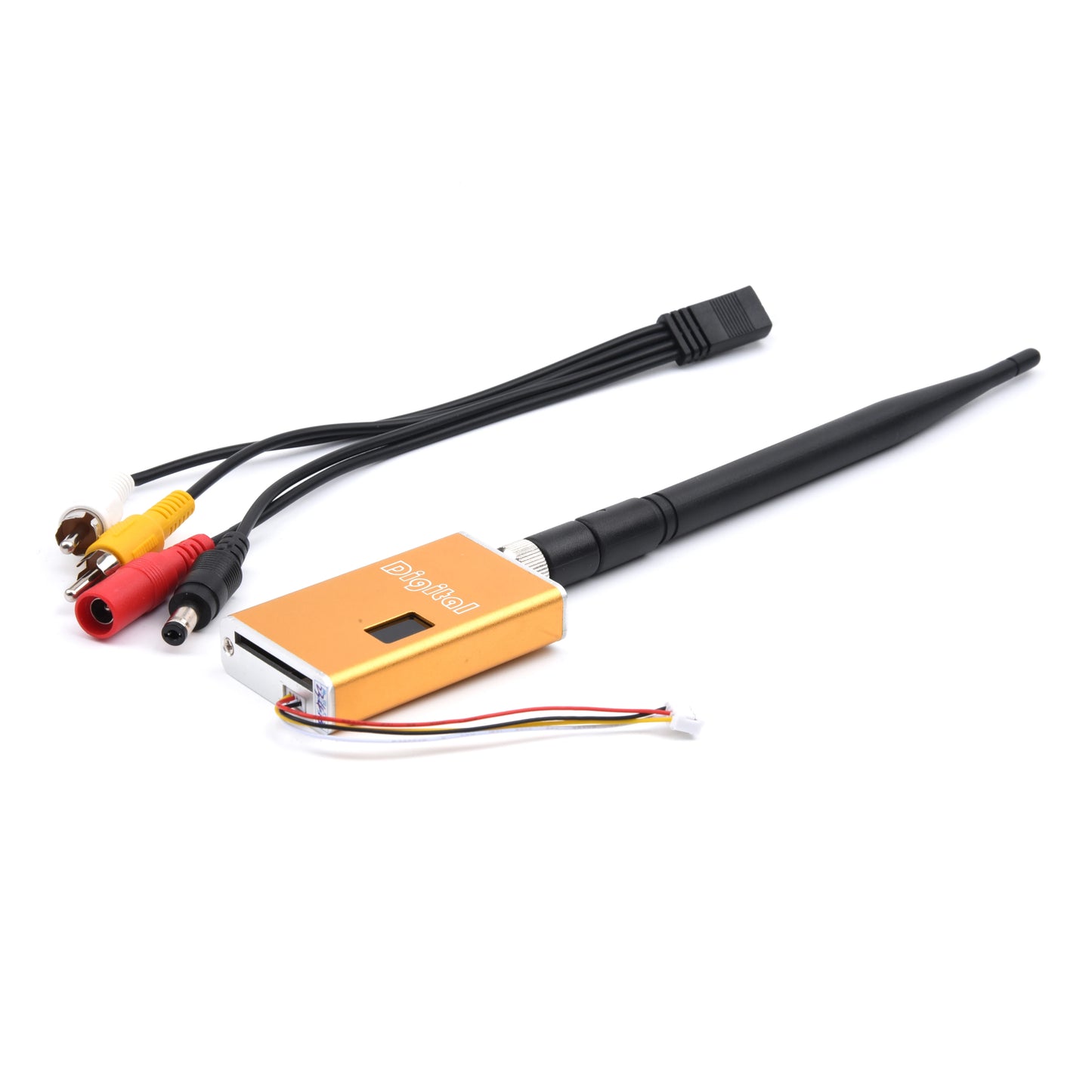

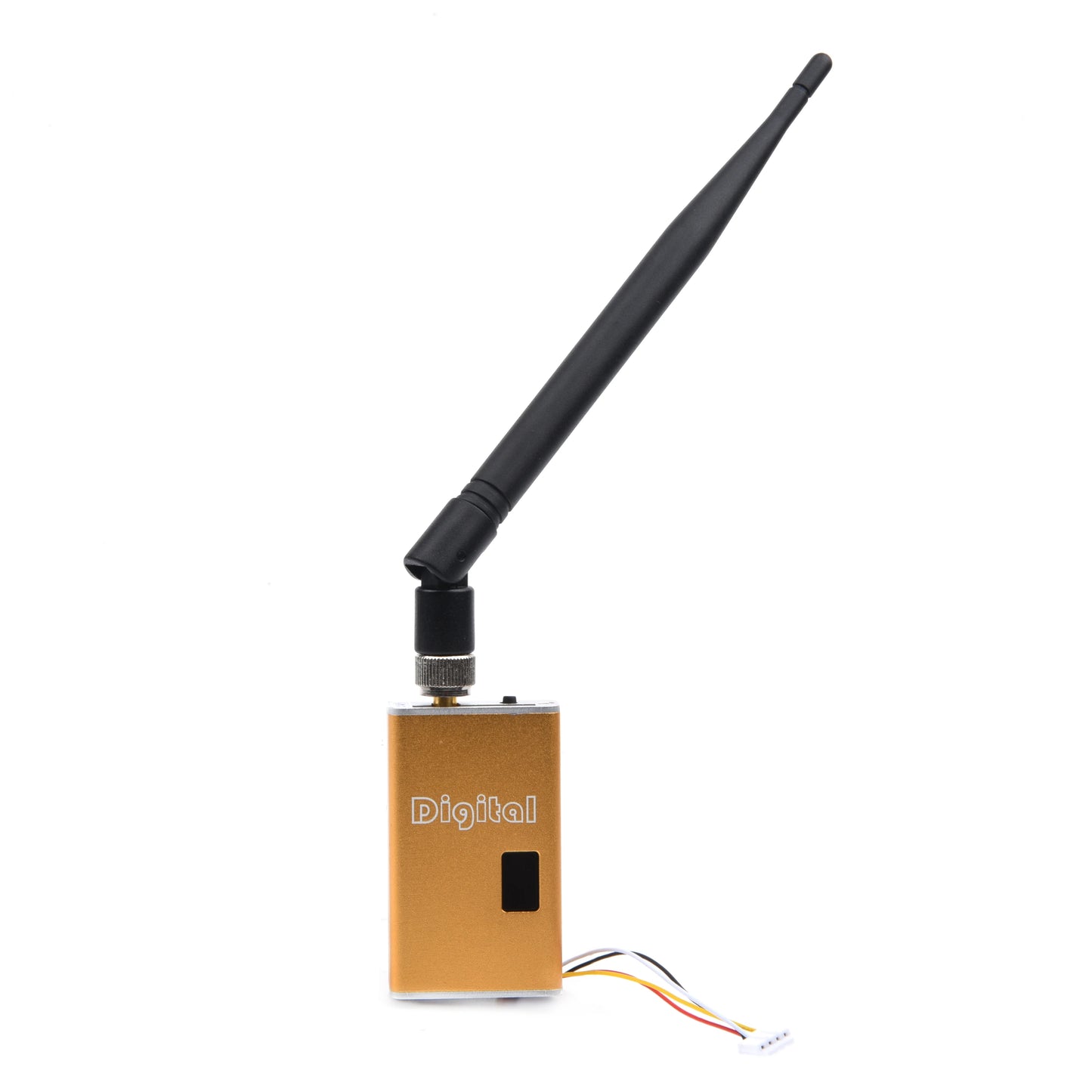

Transmitter parameter:

Output: 5000mw

Current Consumption: 1.5A

Frequency: 1080,1120,1160,1200,1240,1280

Channel: 6CH

Output impedance:50 Ohm

Audio input impedance:1k Ohm

Audio input amplitude:1.2Vp-p

Video input impedance:75 Ohm

Video input amplitude:1.2Vp-p

Voltage: DC 12V(at 36dbm)

Working current:700mA

The lowest Voltage: DC 5V(at 31dbm)

Weight:100g

Size:74*56*36mm
