FPV 1.2g 1.2ghz 800mw Digital wireless AV Video/Audio Diagram Transmitter and Receiver combo for Rc ZMR250 QAV280 QAV250 Drone

1.2G 800mW Transmitter SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Origin: Mainland China

Model Number: 1.2g800mw

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

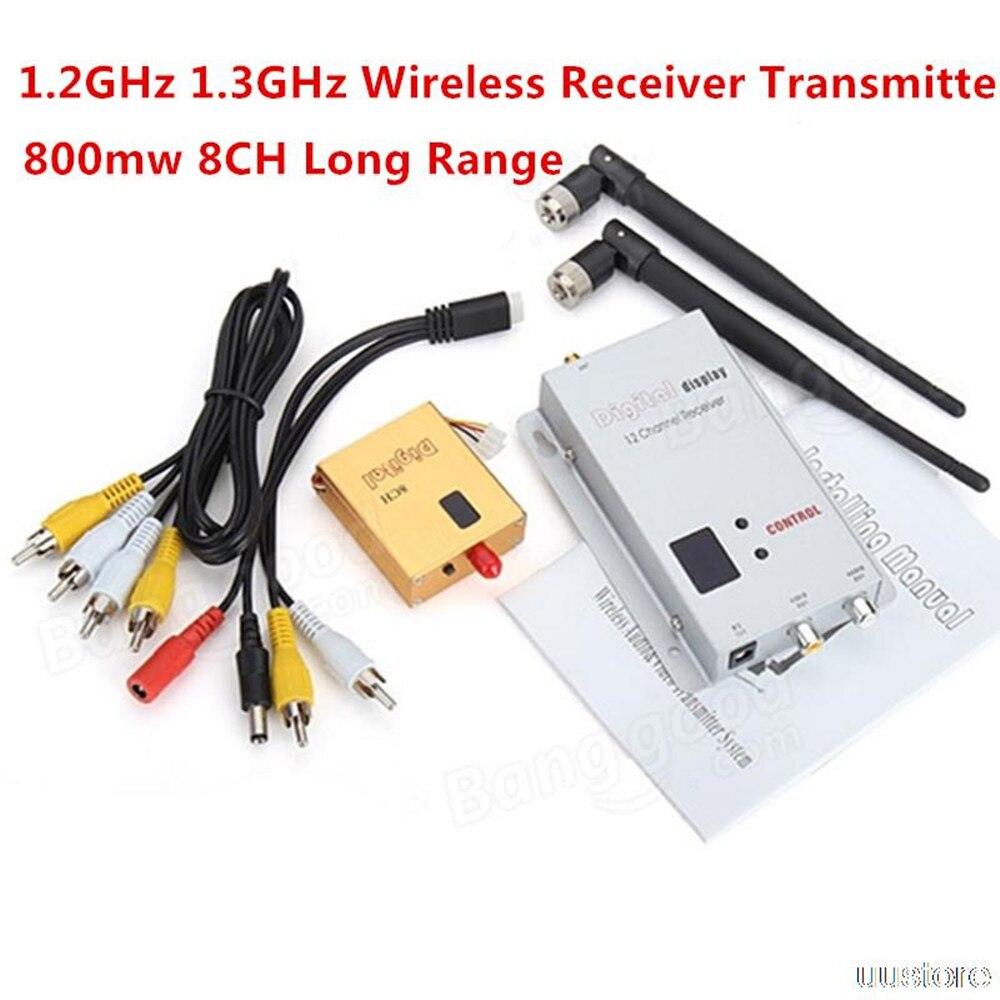

FPV 1.2g/1.3g 1.2ghz/1.3ghz 800mw Digital Video/Audio Diagram Transmitter and Receiver combo  for Rc Aircaft Multicopter



(U could choose 1.2g 800mw transmitter /1.2G 800mw receiver/1.2g transmitter &receiver,the package is according what u choose)

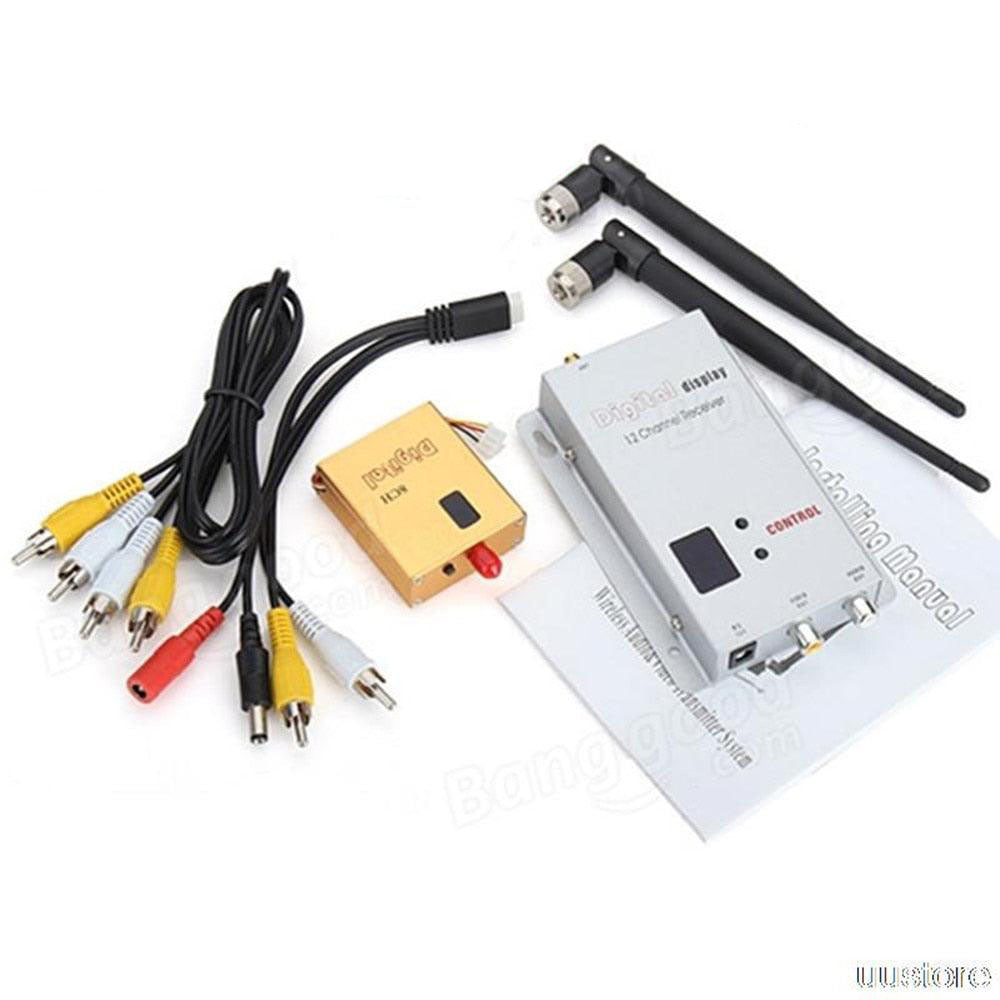

1 x 1.2GHz 800mw  Transmitter

1 x 1.2GHz  Receiver

1 x T* power cable and AV cable set

1 x R* power cable and AV cable set

2 x 2dBi 1.2GHz omni-direction antenna

1 x User Manual

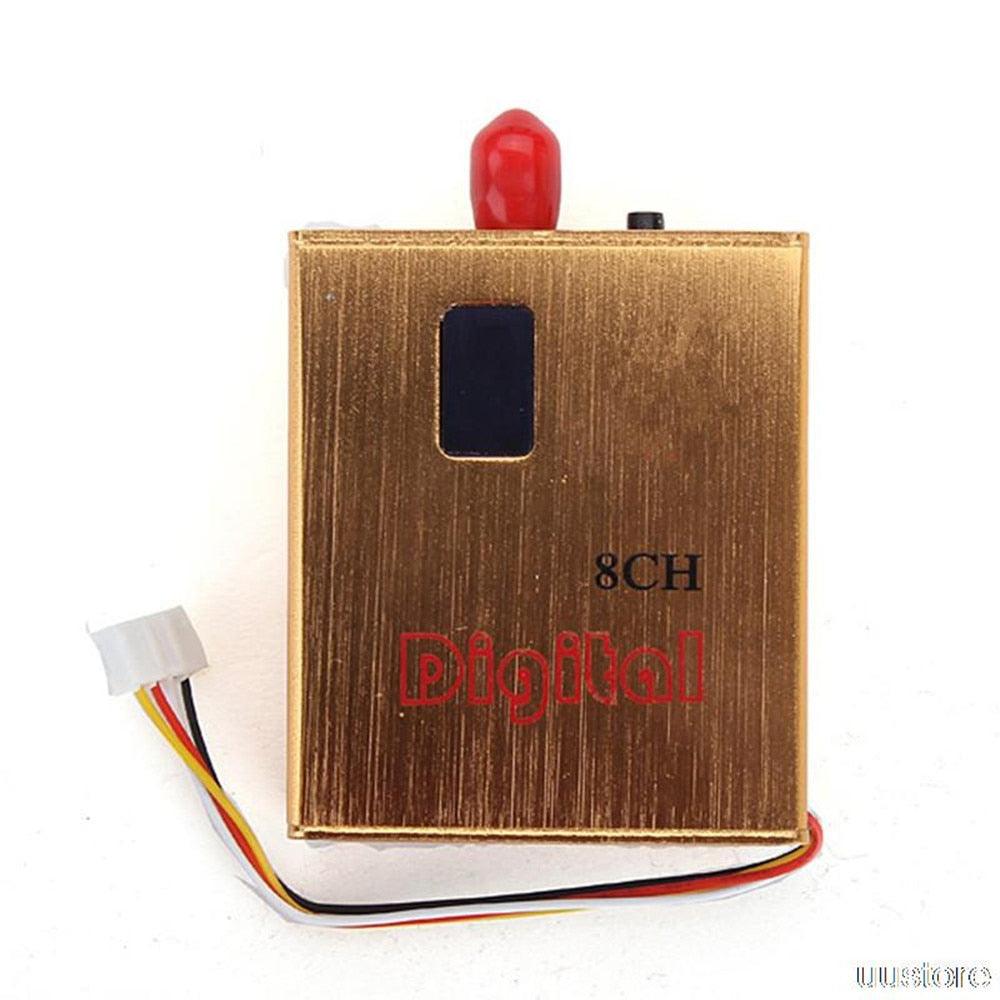

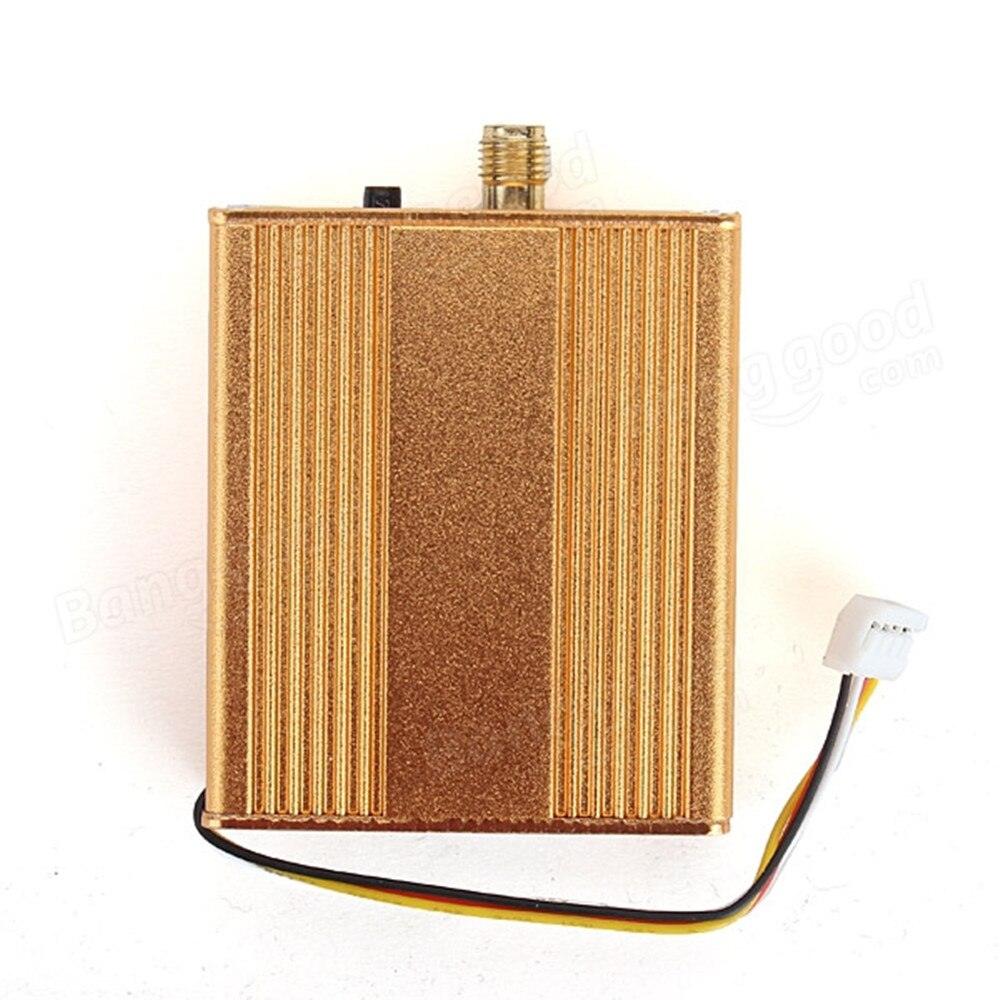

Transmitter Parameter:

Weight:78g

Dimension:53*45*19mm

Working Voltage:DC12V

Working Current:300mA

Working Frequency:1.2G-1.3G

Working Channels:8CH

Frequency:4：1080，5：1120，6：1160，7：1200，8：1240，9：1280，H：1320，C：1360

Working Power:800mW

Transmitting Range:800m~1000m (in Open Fields)

Transmitter accessories:transmitter,antenna,Tx cable.(We don't offer adapter for this model,please use DC12V 1A  adapter.)

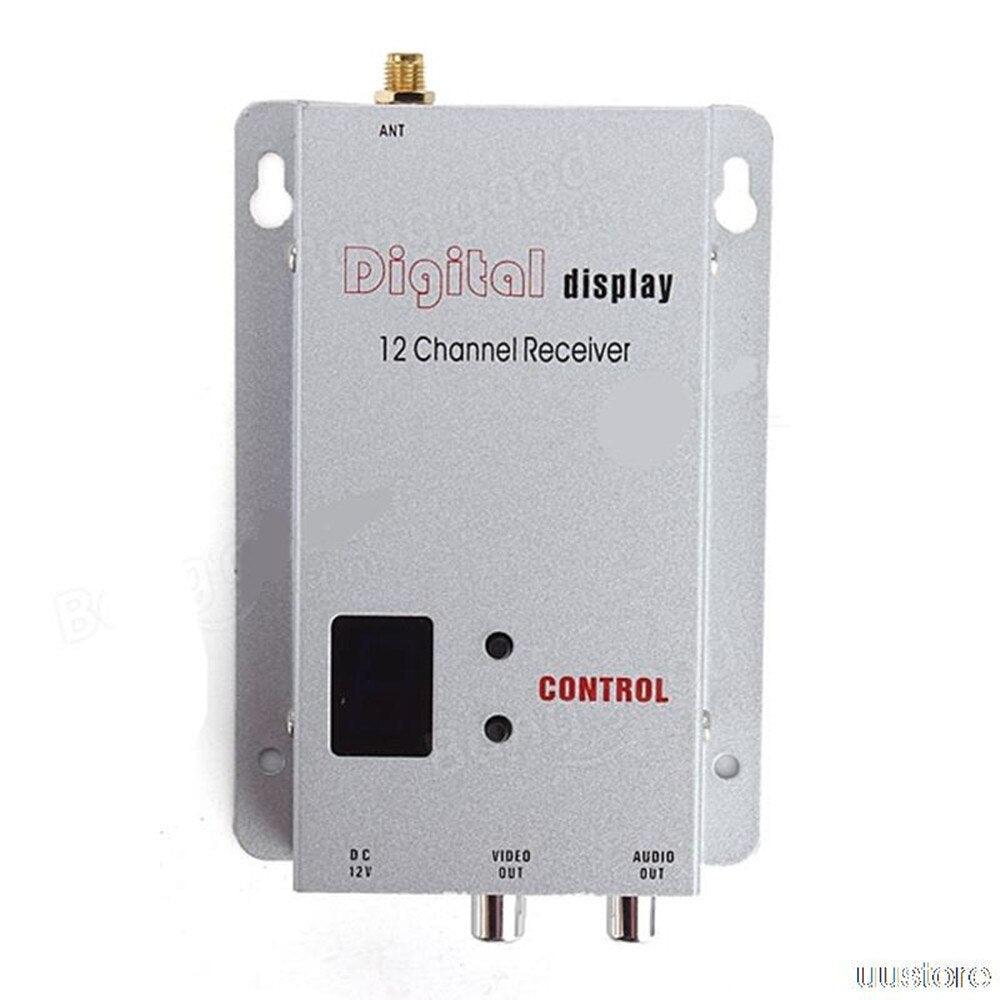

Receiver Parameter:

Weight:115g

Dimension:115*80*21mm

Working Voltage:DC12V

Working Current:260mA

Working Frequency:0.9G-1.3G

Working Channels:12CH

Receiving frequency:1.2GHz - HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320 HC12:1360(MHz)

Receiver Accessories:Receiver,antenna,AV cable.(We don't offer adatper for receiver,please use DC 12V 1A adapter.)The whole set is about 485g.
