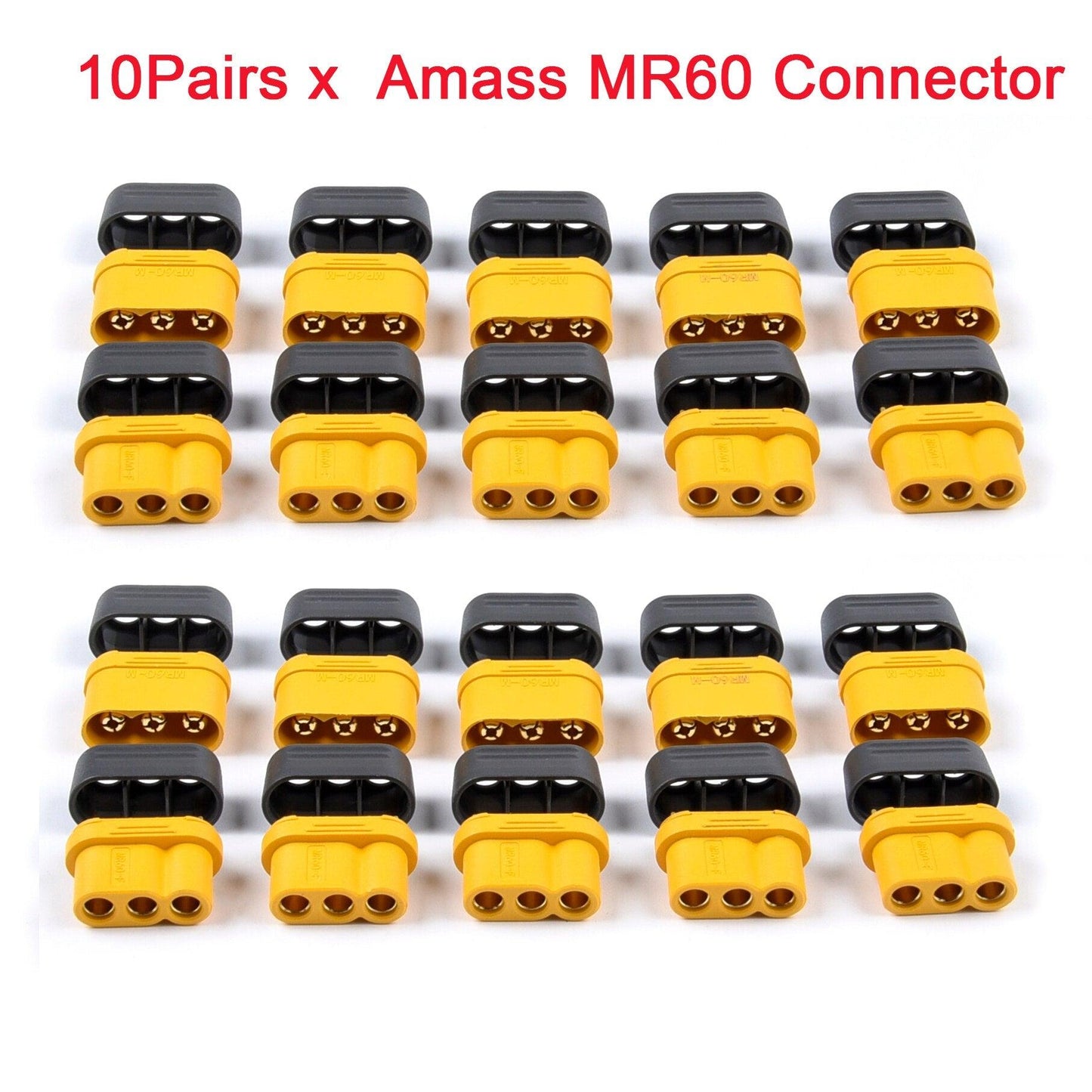

FPV Drone Connector Plug - 5 / 10 Pairs High Quality XT30 XT30U MR30 XT60 XT60H MR60 XT60PW XT90 XT90S Connector Plug for Battery Quadcopter Multicopter

FPV Drone Connector Plug - 5 / 10 Pairs High Quality XT30 XT30U MR30 XT60 XT60H MR60 XT60PW XT90 XT90S Connector Plug for Battery Quadcopter Multicopter

RCDrone

Regular price $17.04 USD
Regular price $27.27 USD Sale price $17.04 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

228 orders in last 30 days

Color

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: XT30 XT60 XT90 Connector

Tool Supplies: Cutting

Technical parameters: Value 3

Remote Control Peripherals/Devices: Battery

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Connector

Origin: Mainland China

Model Number: XT30 XT30U XT60 XT60H XT90 XT90s EC2 EC3 EC5 T Plug

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

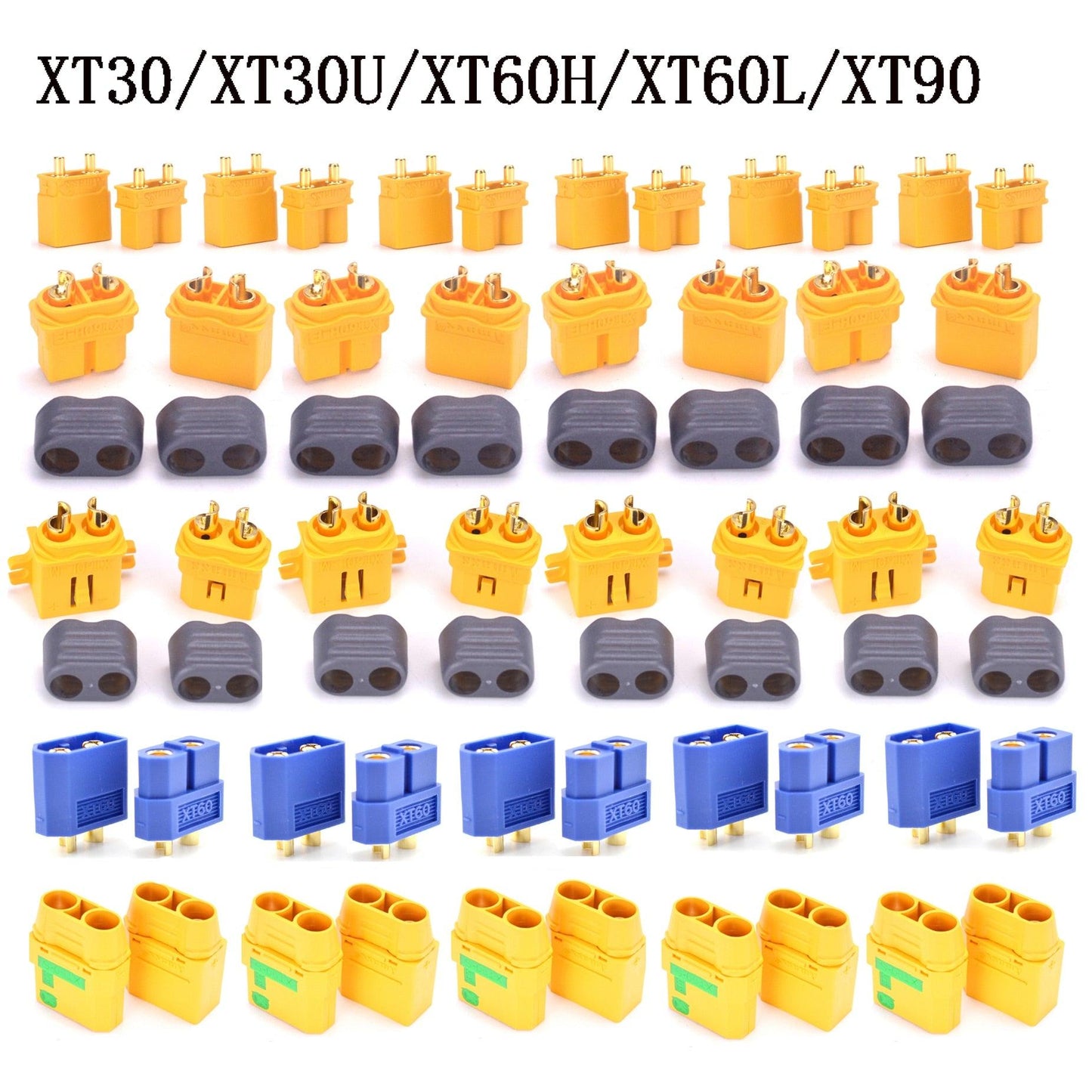

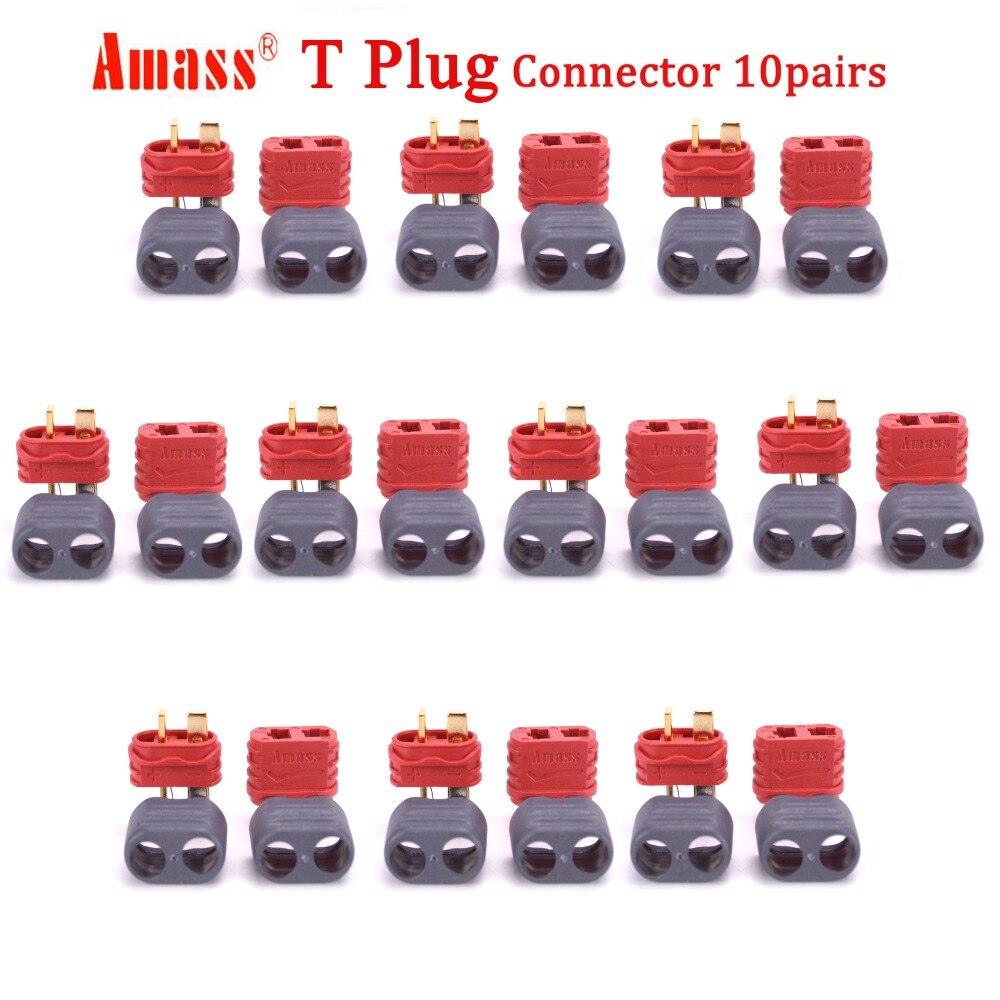

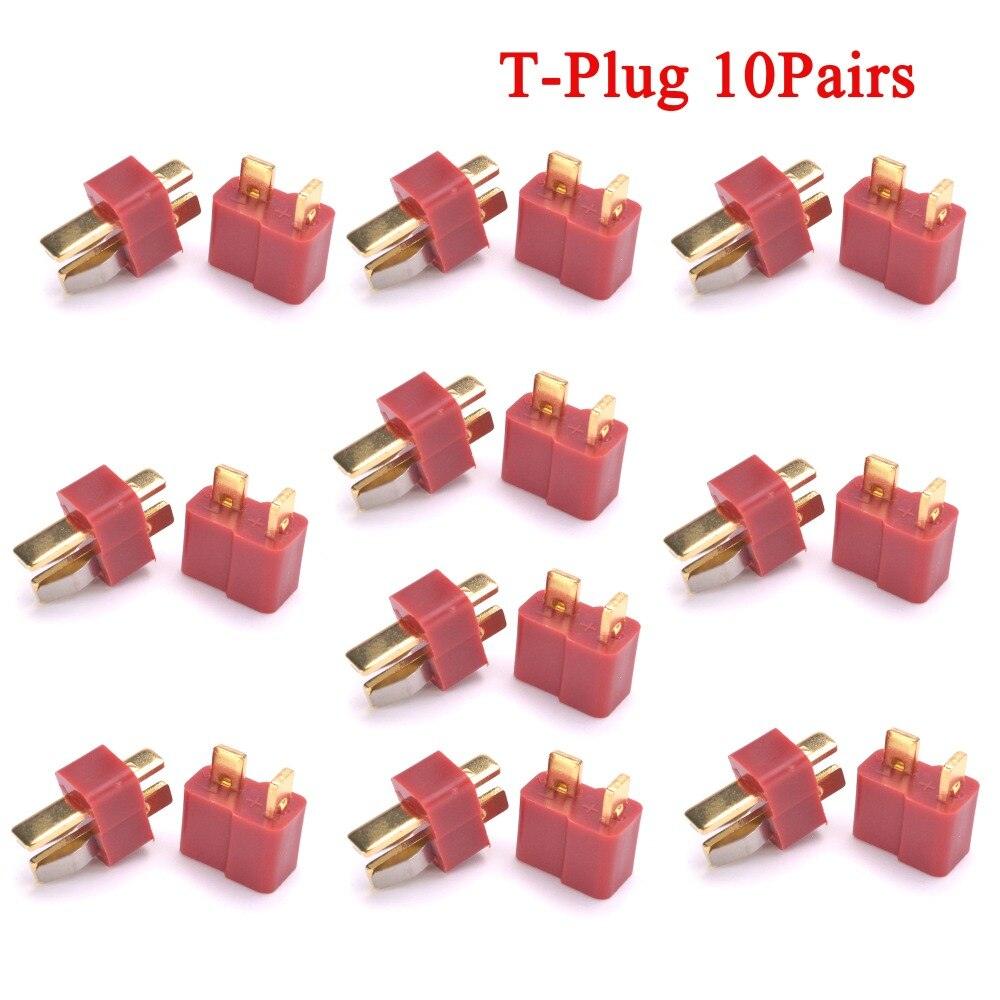

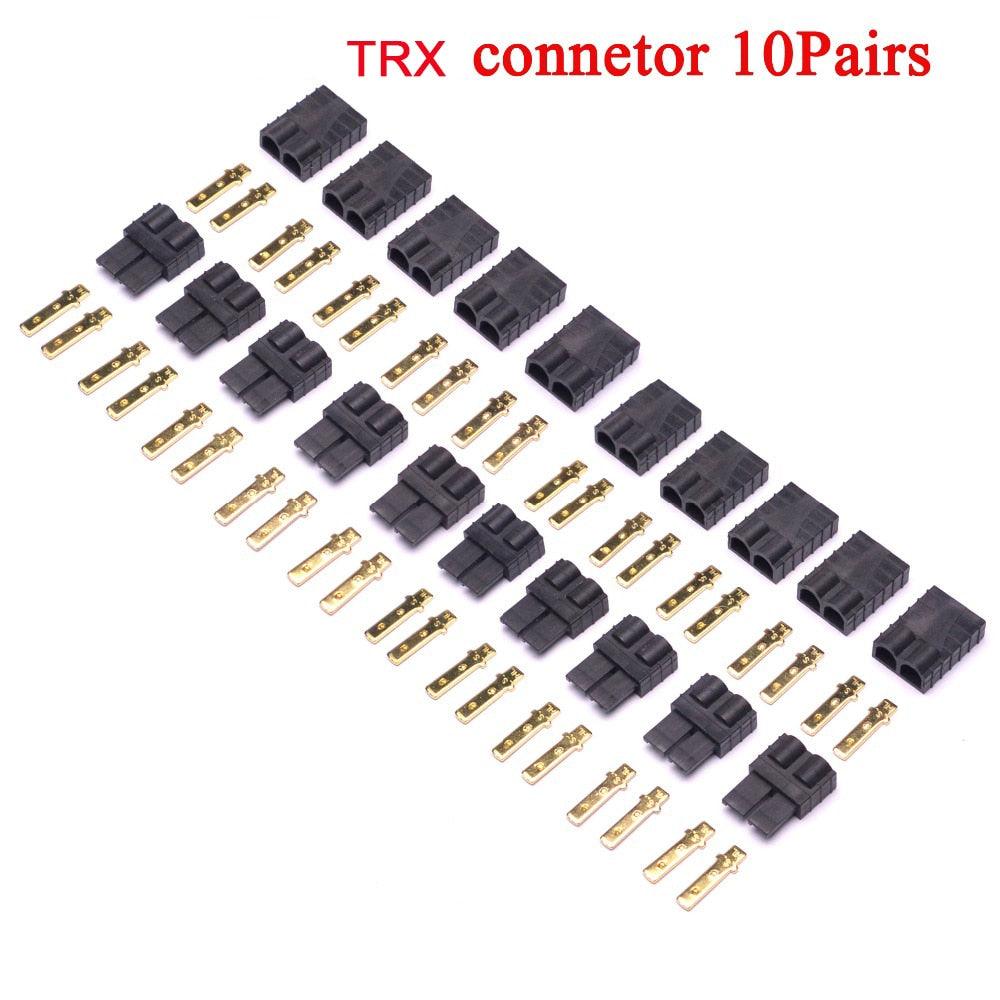

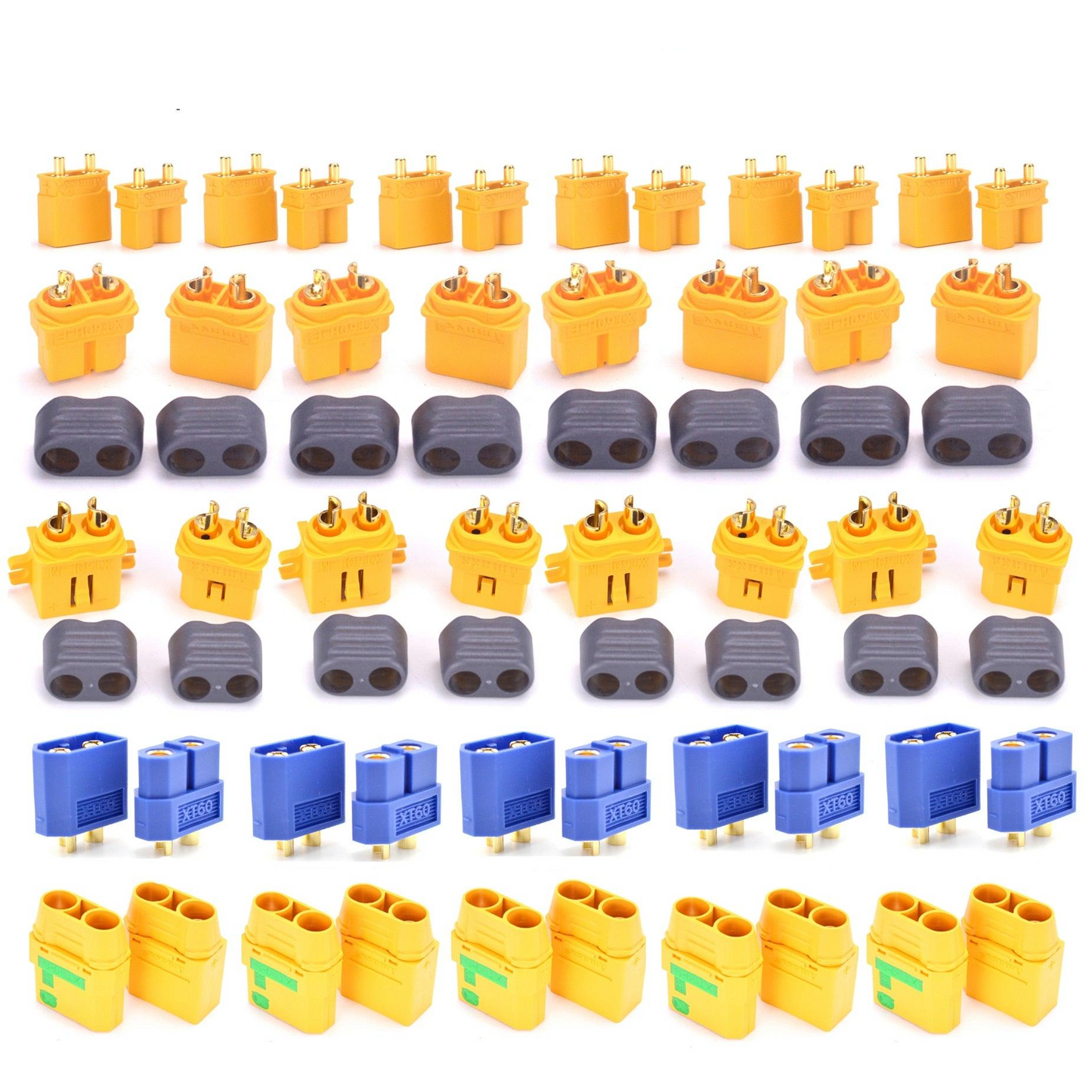

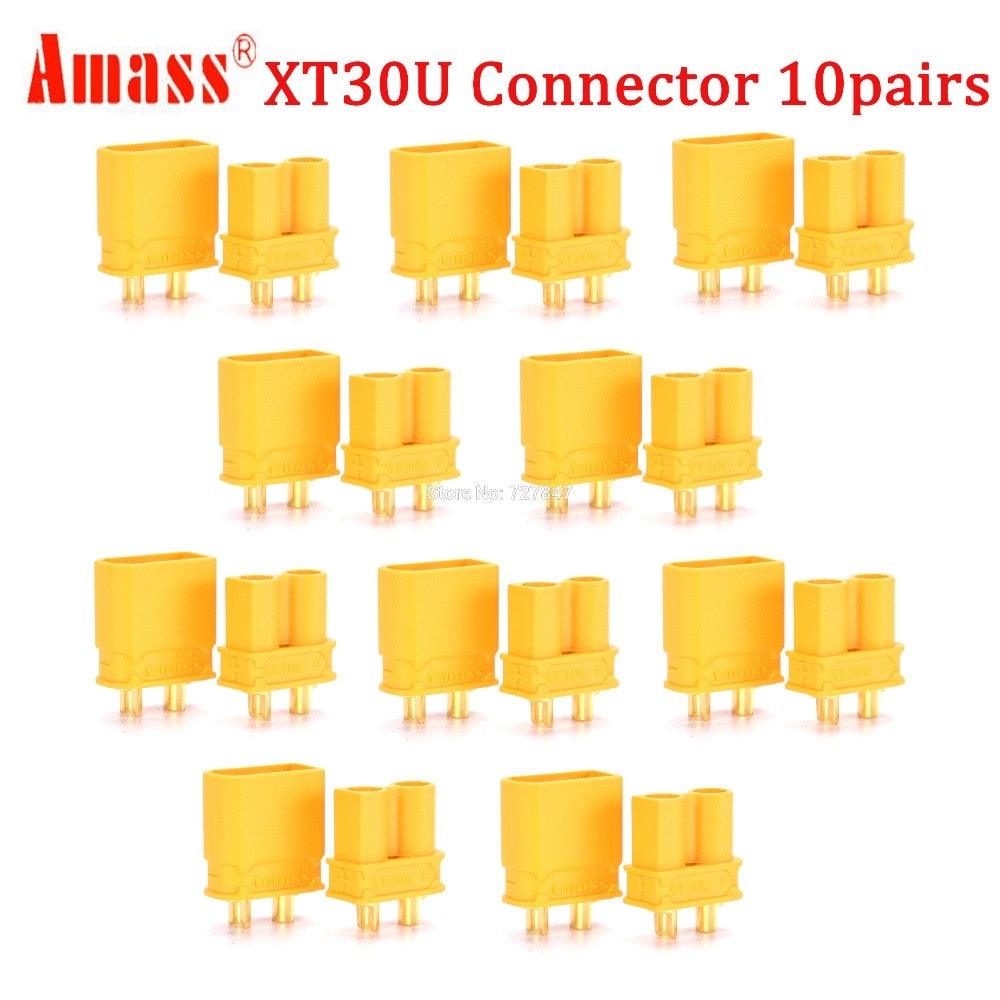

10pairs x XT30 XT30U / XT60 XT60H XT60PW/  XT90 XT90S / EC2 EC3 EC5 / Traxxas / T-plug Connectors Male/Female for Lipo Battery Amass XT30 XT30U

Connector


100% brand new and high quality.

Hook up brushless motor to electronic speed control.

Low resistance, and gives the best electric flow.

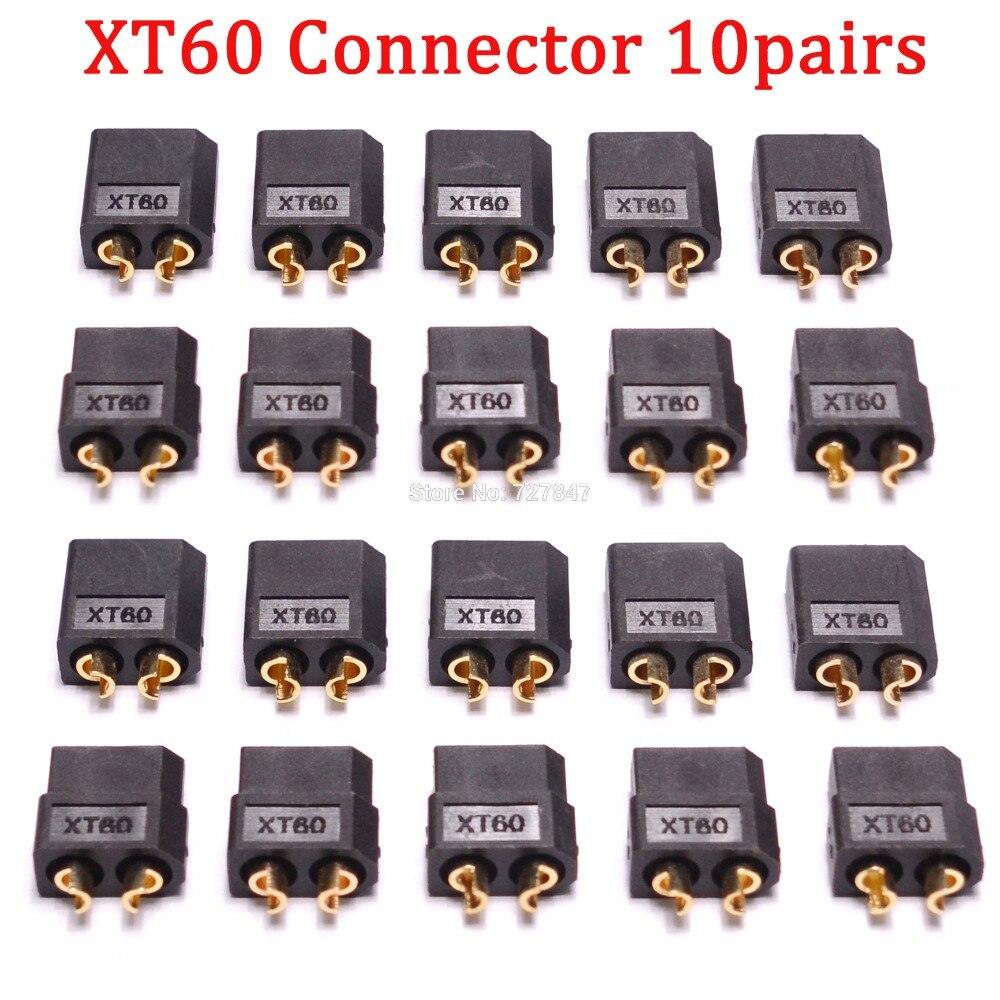

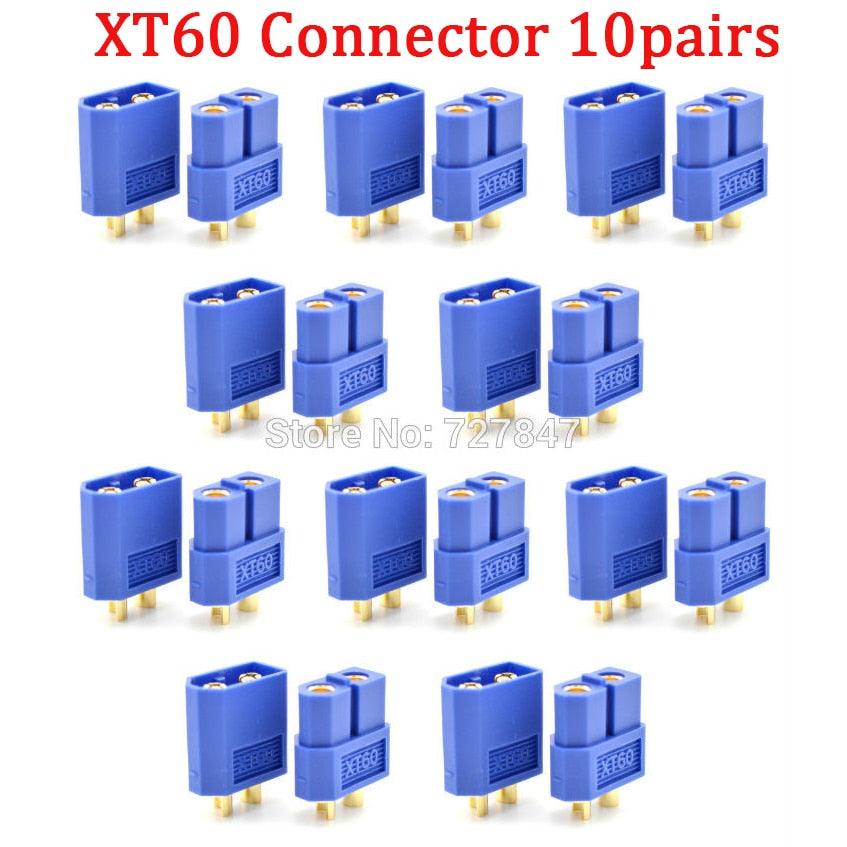

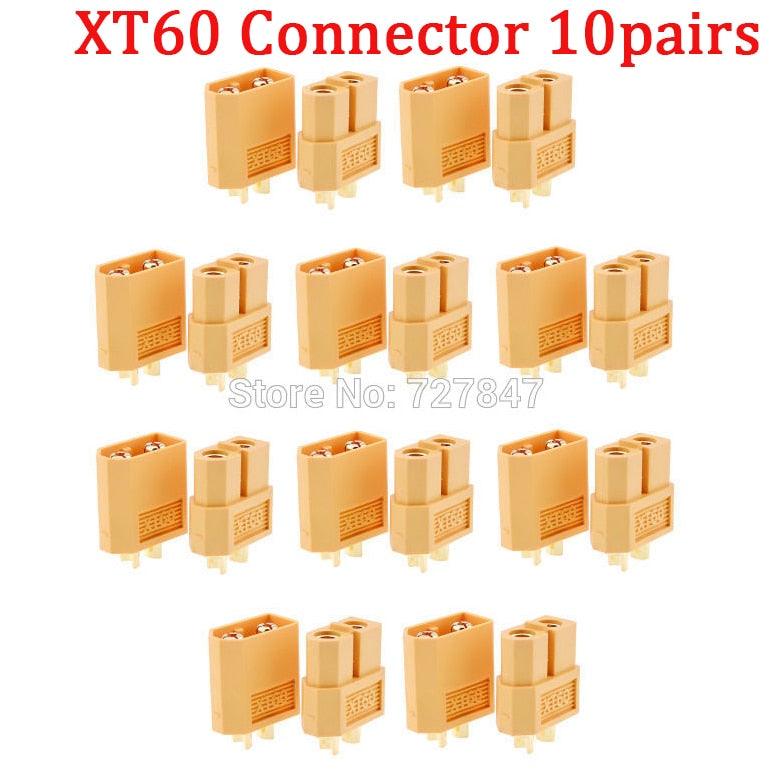

XT60 connector:
100% brand new and high quality.
Hook up brushless motor to electronic speed control.
Low resistance, and gives the best electric flow.
Female Internal Diameter: About 3.5mm / 0.14"
Female Connector Length: About 12mm / 0.47"
Male Internal Diameter: About 4mm / 0.16"
Male Connector Length: About 12mm / 0.47"
XT60H Connector:
Brand Name: Amass
Item Name: XT60+
Body Material: Gold-plated copper
Internal Material: Nylon/PA
Internal Resistance: 0.8mΩ
Max. RC/MC: 60A/100A
Weight: 7.72g/pcs
Pulling Force/600: 3kg
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 12AWG
Recommend Soldering Spec.: 480°C/4S
Quantity: 10pairs
Brand: Amass

Item No: XT60PW
Body Material: Gold-plated copper
Internal Material: PA
Internal Resistance: 0.50Ω
Max. RC/MC: 30A/60A
Rated voltage: DC500V
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: PCB

Features:
A new generation of model plug patent product, female end for battery and male end for charger.
The design of jacket rear concave can make the shrink tube inserted more deeply to protect joints from water vapo r against and easy to solder.
Precision molds processing, connect closely without any gaps, well leakproofness.
Clear "+"-" sign
New style housing and groove slot design looks more beautiful make the connection stronger and avoid any mistake.
Non-slip insulator, easy to connect.

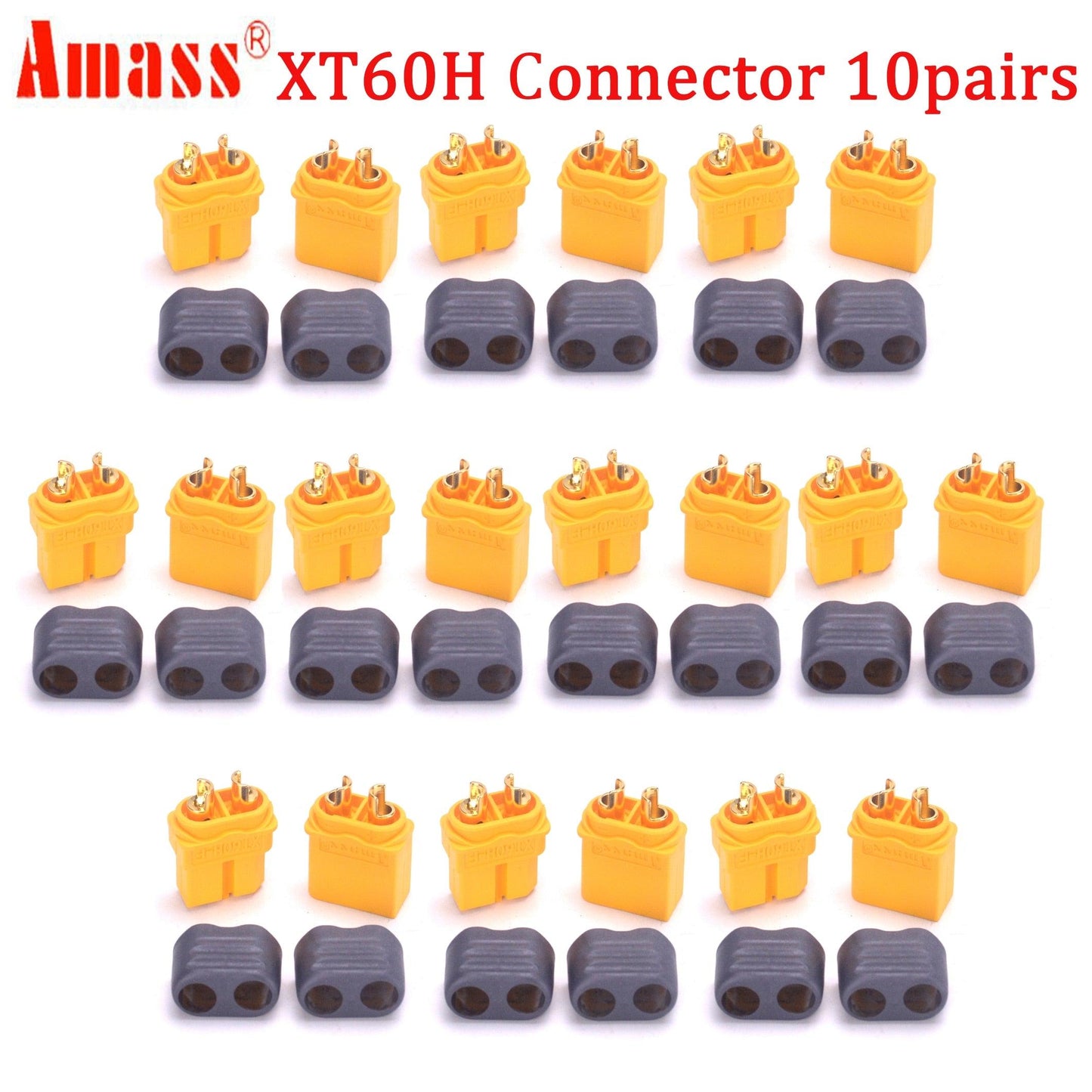

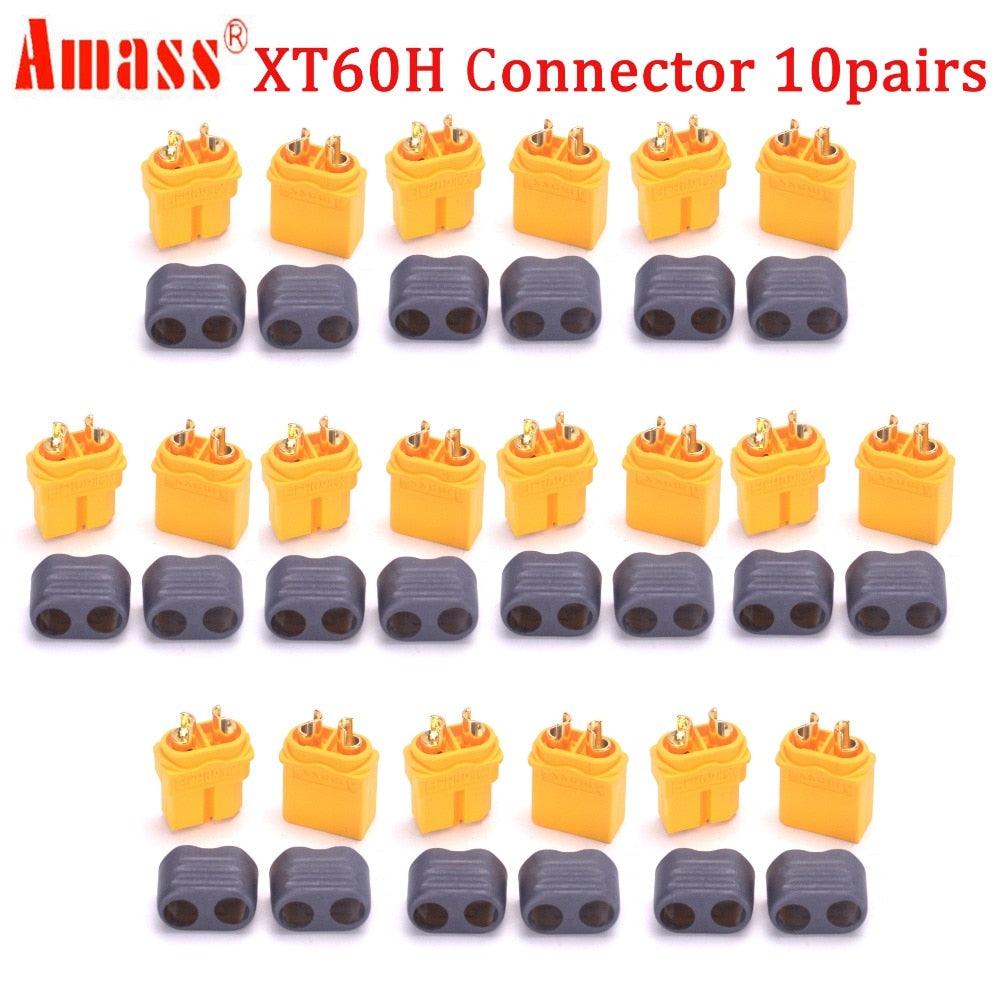

Amass XT60H connector:

Brand Name: Amass
Item Name: XT60+
Body Material: Gold-plated copper
Internal Material: Nylon/PA
Internal Resistance: 0.8mΩ
Max. RC/MC: 60A/100A
Weight: 7.72g/pcs
Pulling Force/600: 3kg
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 12AWG
Recommend Soldering Spec.: 480°C/4S

Amass XT60L Connectors plugs With Sheath Housing Male & Female spare parts for DIY Models XT60-L
Body material and surface coating:Brass and gold plated
Insulation Material:PA
Internal Resistance:0.8mΩ
Max RC/MC:60A/100A
Temperature Resistance:-20oC~120oC
Insertion Force/500:3KG
Weight/pair:7.85g per pair
Recommend Use:1000 times

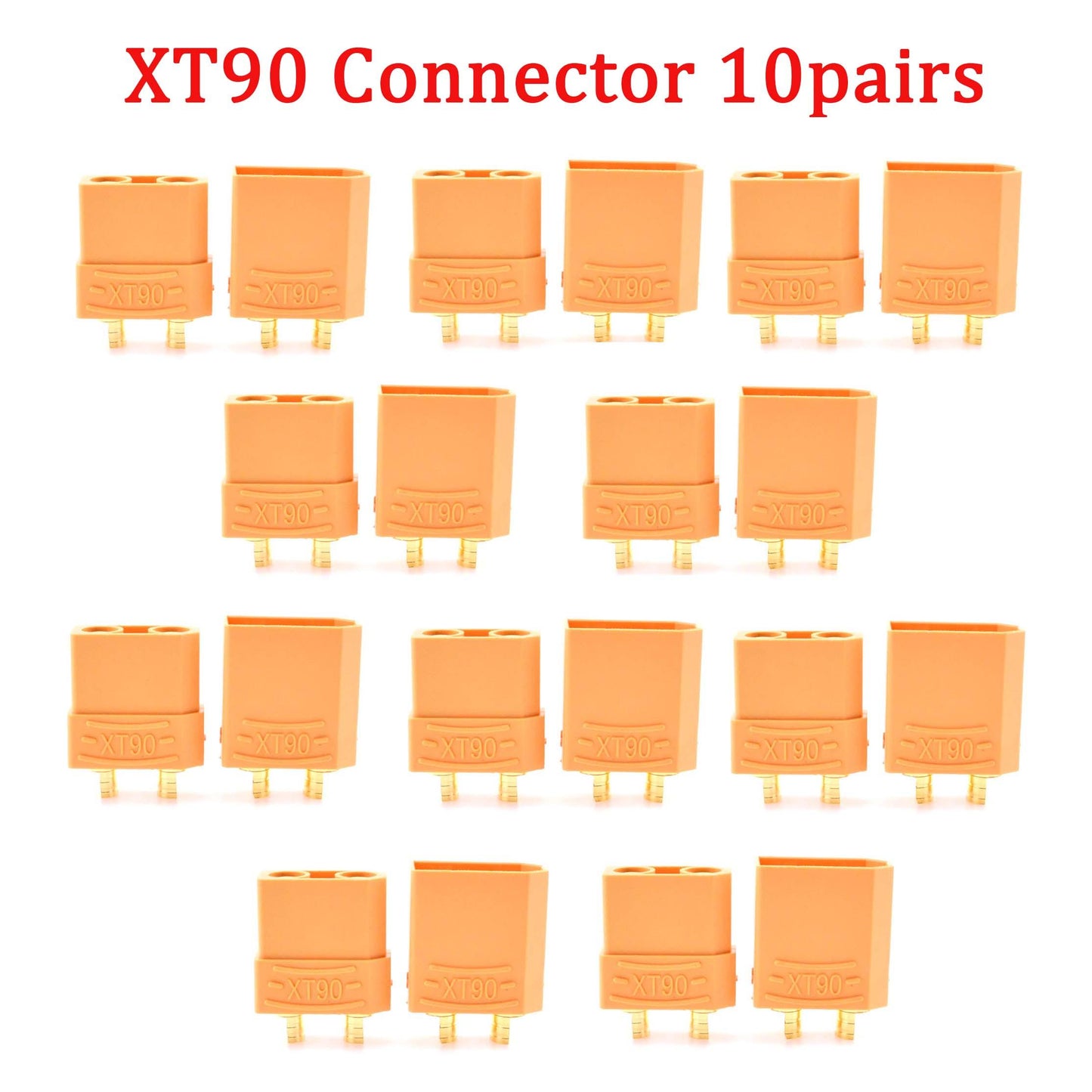

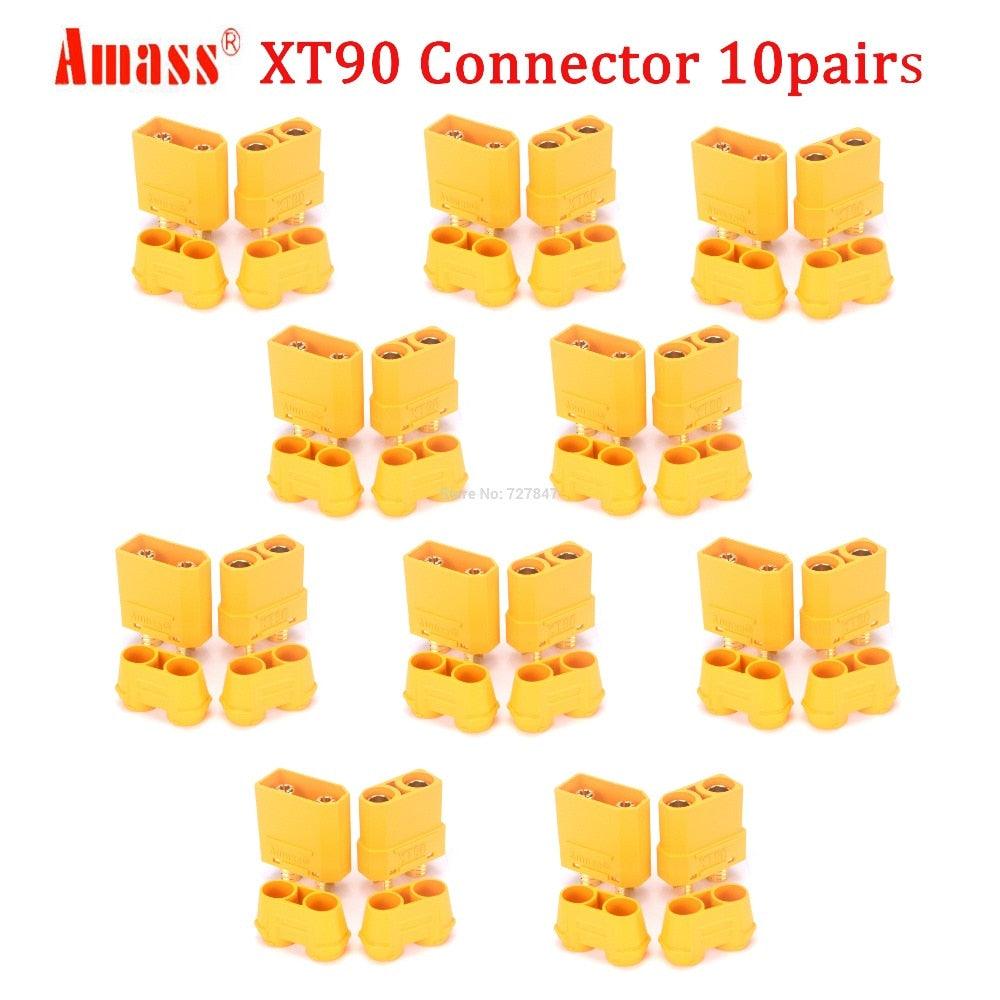

XT90 Connector:
Protected to avoid shorting and reverse polarity
Half open end, easier for welding.
Suit for 90-120A current application.
Metal connector size: 4.5mm

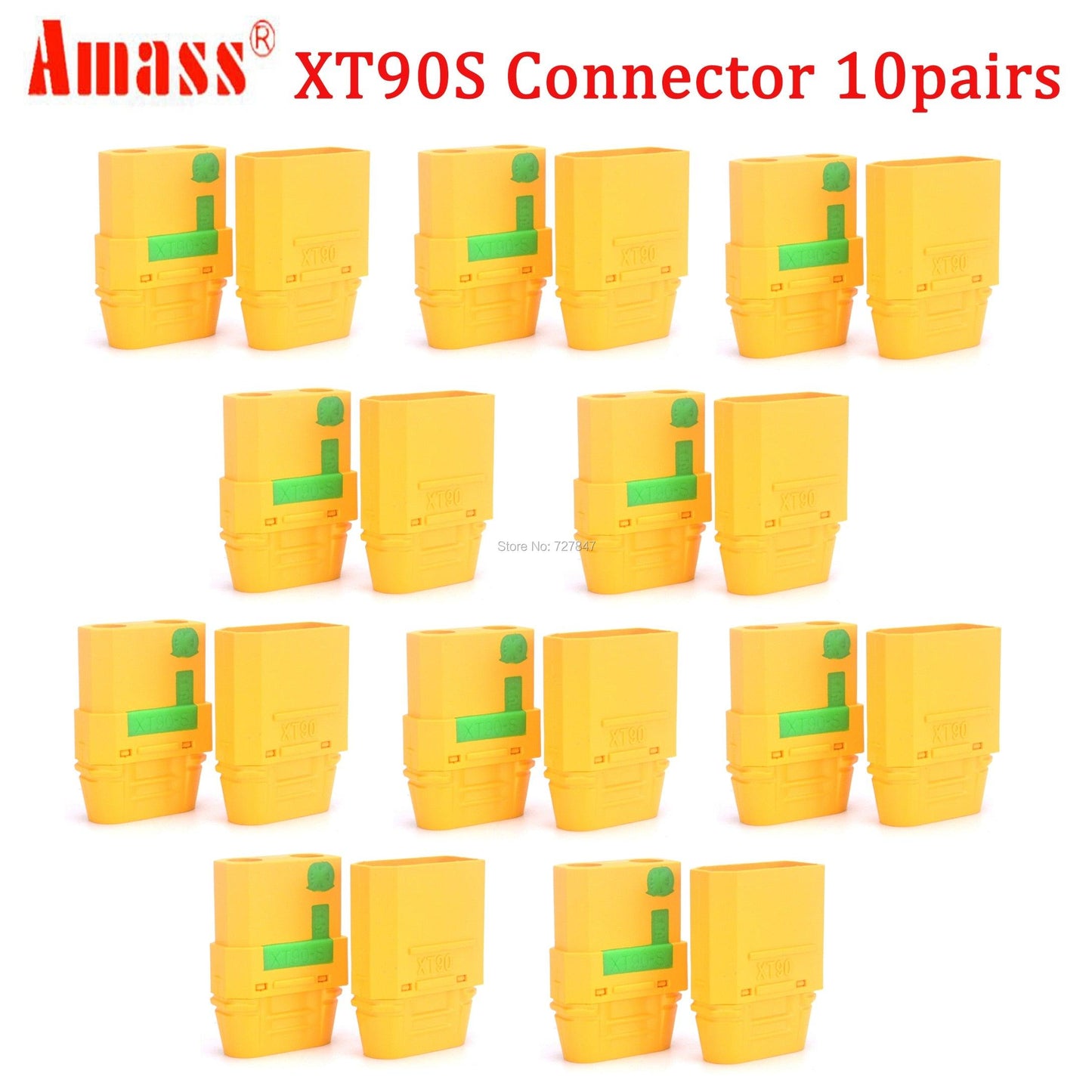

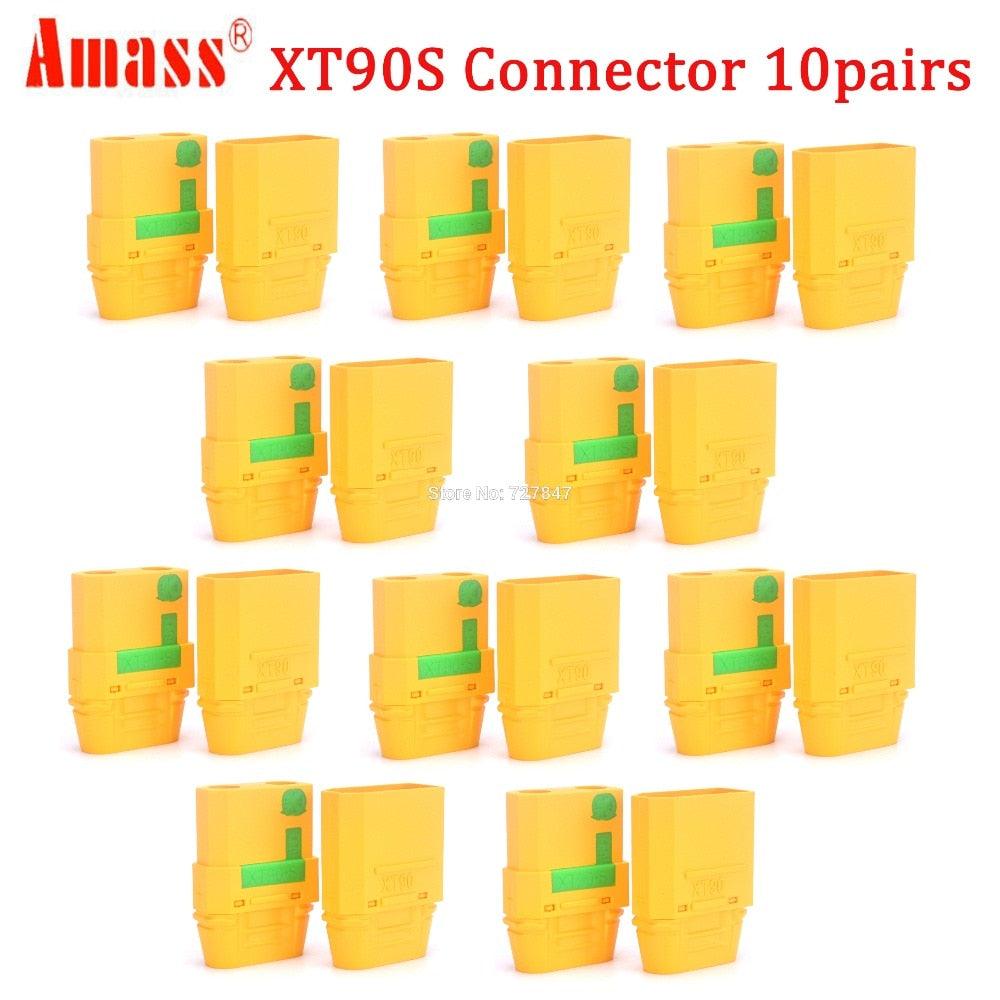

This is AMASS  XT90-S connector,designed and produced by AMASS,beware any imitation,if using imitations,your equipment may be destroyed!
Almost all FPV are using 6S even more Li-po battery for Power System.the most annoying problems is the Sparking during the connect,the sparking will damage the connector! this XT90-S connector from Amass will resolve the problem for you!
Features:
100% Original Amass
AMASS Patented Anti-Spark Design!
Reusable Conector end design for times insert and take off from the Enclosure.
New style design with the shining and safety construction.
Non-slip insulator, easy to connect.
Clear "+" and "-" mark, avoid the mistake.
Accurate size, perfect connection prevent any inside pollution.
Advanced caseting technology,and integrated with banana plugs fully and closely.
The groove slot design make the connection stronger and avoid any mistake when you use it.
2U thickness gold plating, we use the large flow-line design banana plug which have a larger contact area, although 3.5mm banana plugs, but can be sustained a constant current 90A,120A current peak.
Material of Housing: Heat-resistant nylon material(high temperature resistance to 240°C)
Material of connector : 2U thickness Gold hplated copper
Stable current: 90A /Max. 120A
Temperature resistant:-30°C ~ 240°C
Compatible with AMASS XT90 connector
Product id: XT90-S
