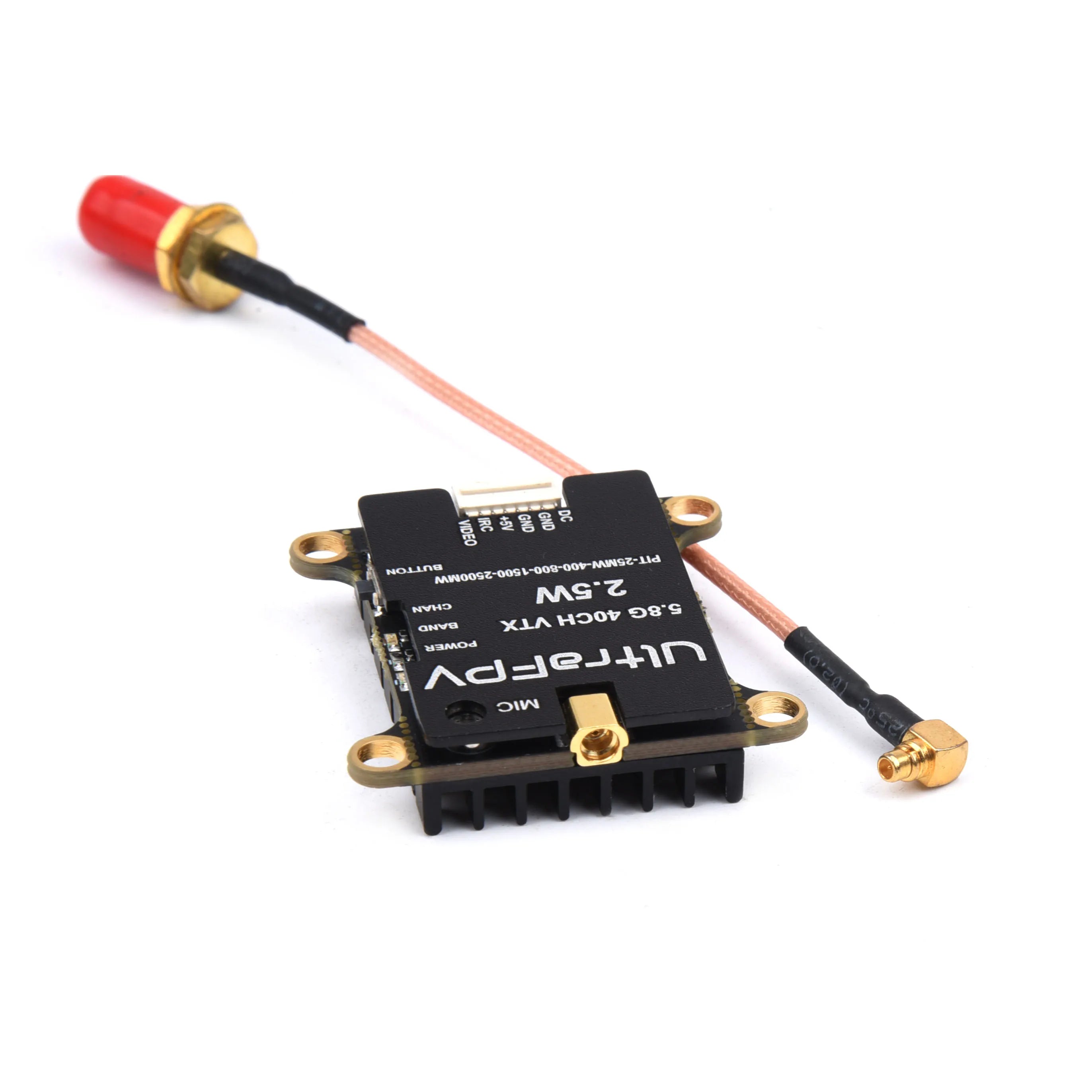

FPV VTX2W5 5.8GHZ 2.5W VTX  SPECIFICATIONS

Brand Name: Readytosky

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Transmitters

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Grinded

Technical parameters: Value 3

Four-wheel Drive Attributes: Motors

readytosky is a professional FPV RC Module accessories company . if you want to know more about trade for wholesale and bulk purchase, please contact us freely .

25/400/800/1.5W/2.5W/0MW six power adjustable, 40 frequency points



Default output: 5733MHZ(5.733GHZ)/2.5W



Support manual power and frequency adjustment, support IRC protocol OSD tuning reference



Built-in microphone for real-time sound transmission



The map transmitter has a built-in temperature detection module, at the 2.5W level if the temperature is too high for a long time, it will automatically reduce the output power.

When the temperature drops, it will increase to the maximum power output again.



When the temperature drops, the maximum power output is increased to the maximum power output. The surface temperature of the maximum power is around 115-120 degrees when the unit is left stationary for a long time.



Power supply 7-26V (2-6S)



Current: 16V supply, 2.5W output current 650MA



Frequency range: 5645-5945MHZ (5.645-5.945GHZ)



Hole pitch 30.5*30.5MM, diameter M3



Overall Dimension 36*36*9.5MM





Weight: 19g with cable and antenna

1PC X 2.5W VTX

GND Oov Masc 14a GND Jsv IRC VIDEO Msz Oostoor" 089 XINHzov Mnoosz Nd-eJln Morna Anh3 Oiva Josei Jamoa Oiwo

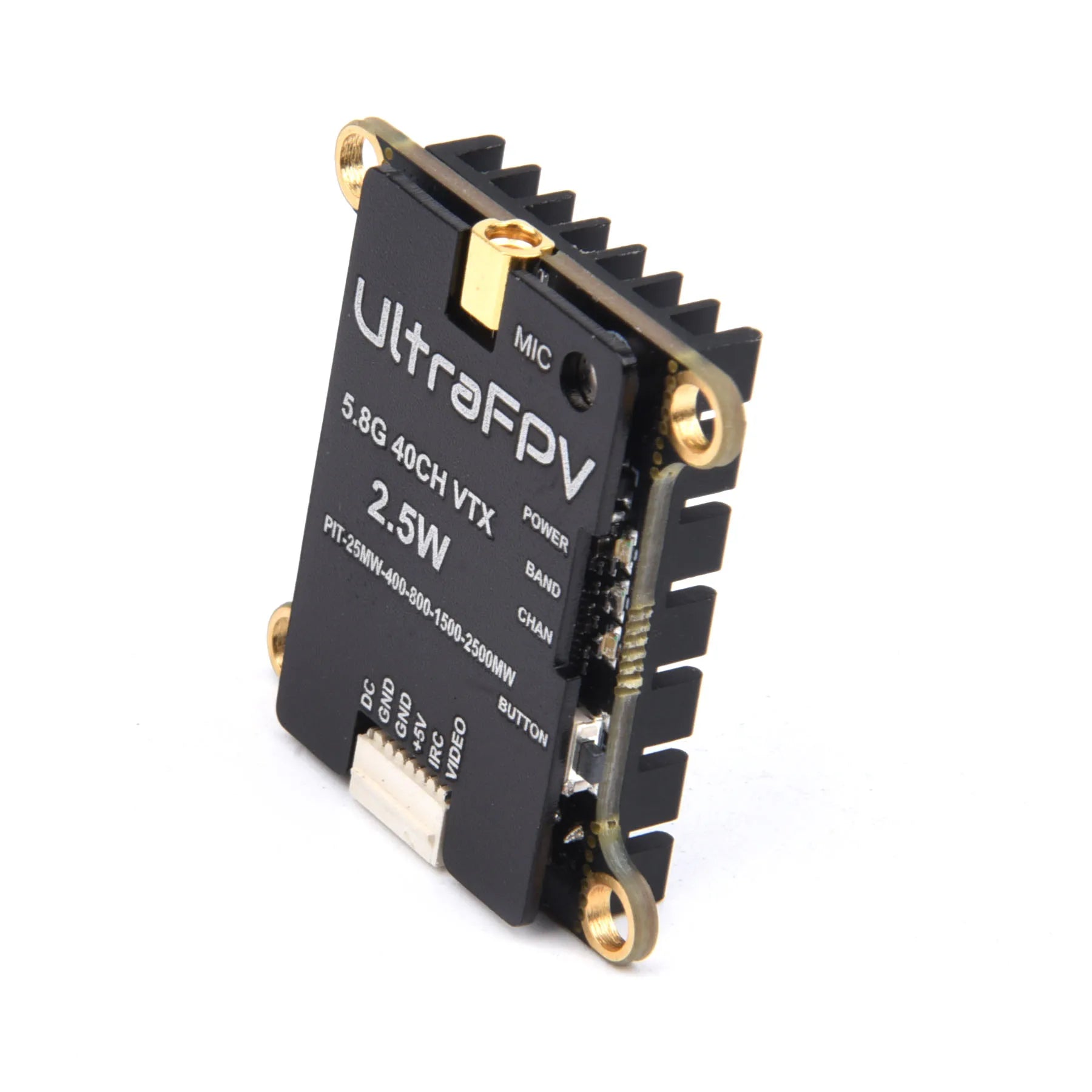

8 8 UltraFpv MIC 5.8G 4oCh 2.5w VTX PoweR Pit-25MW-400-800.500 25oomw BAND Chan 8 8 Button 8
