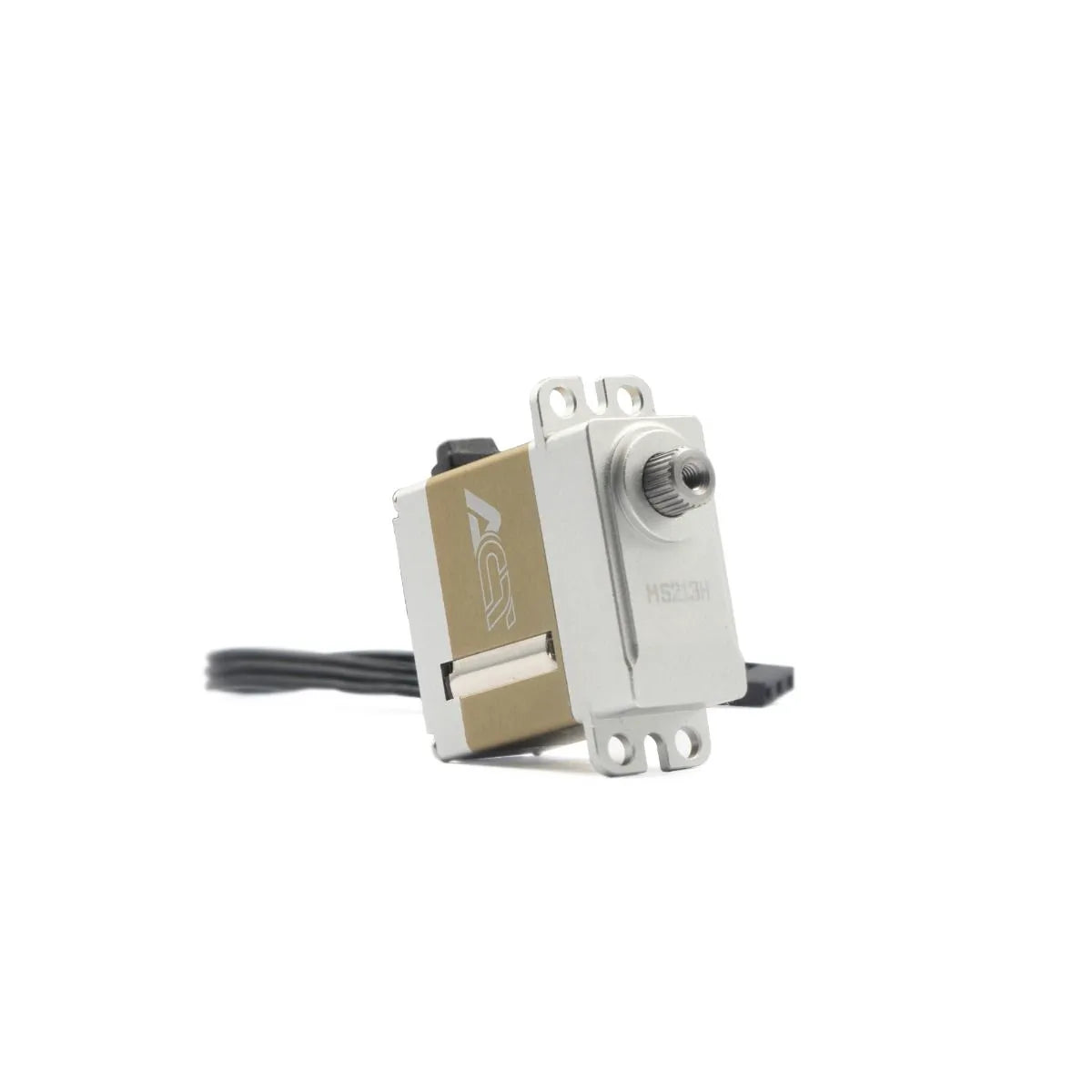

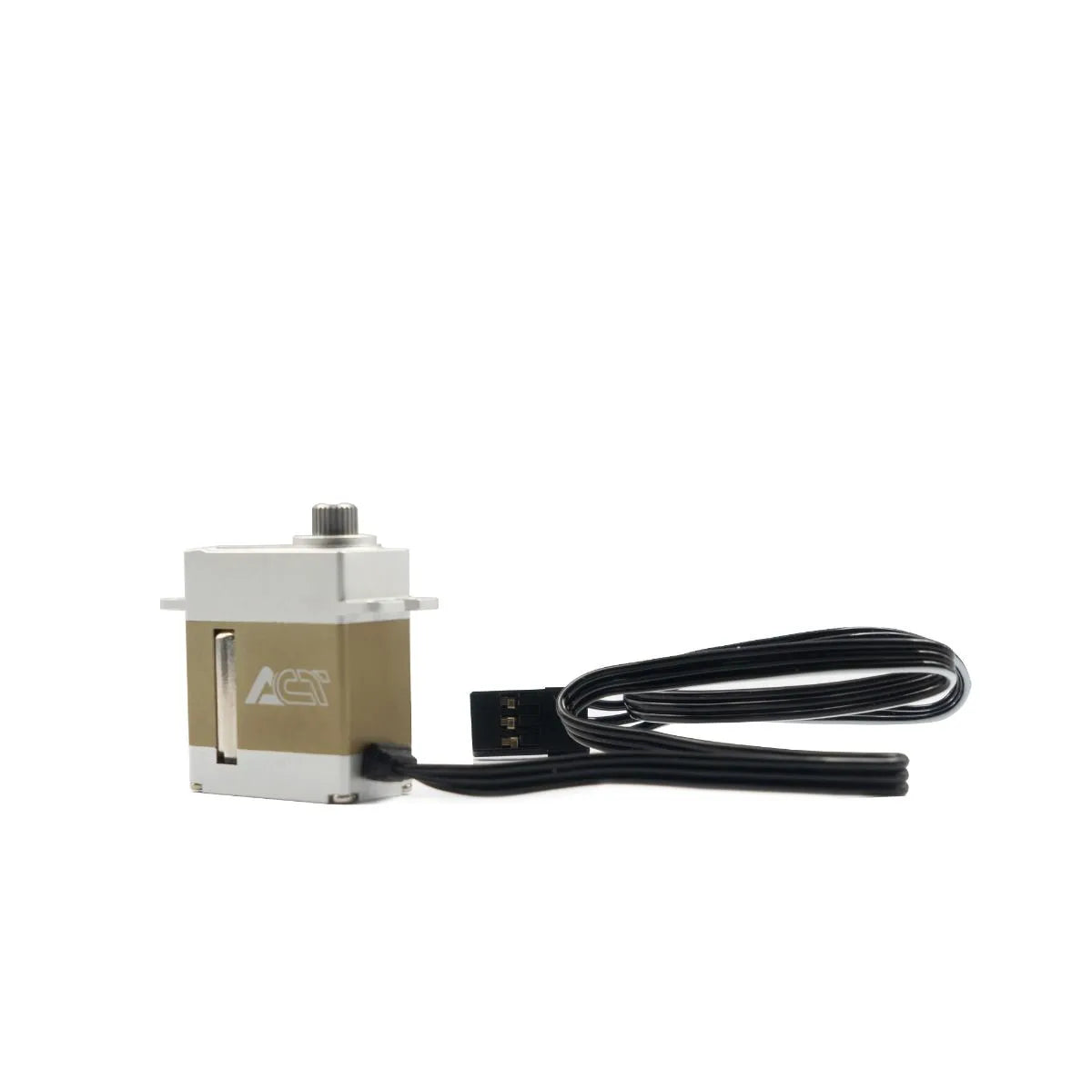

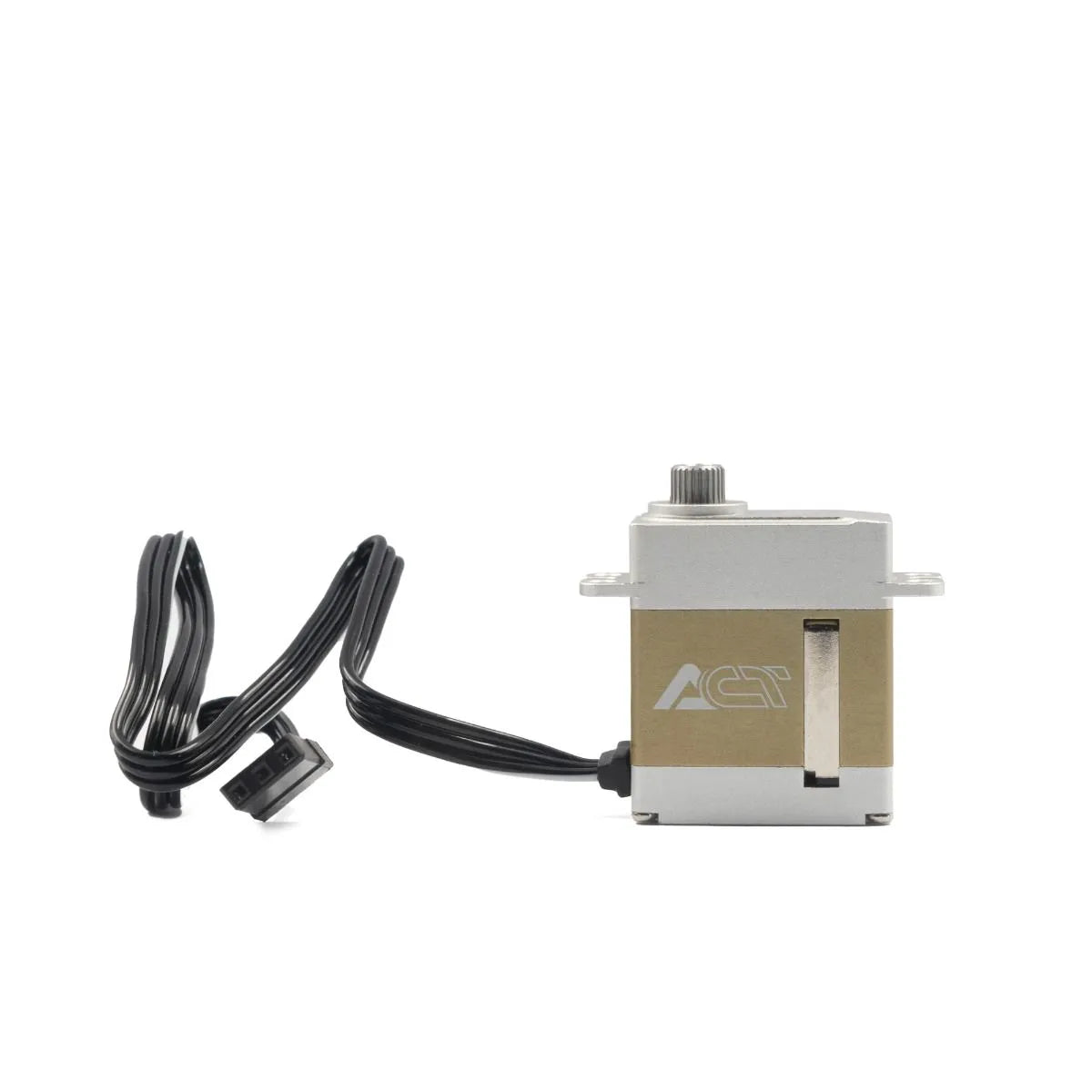

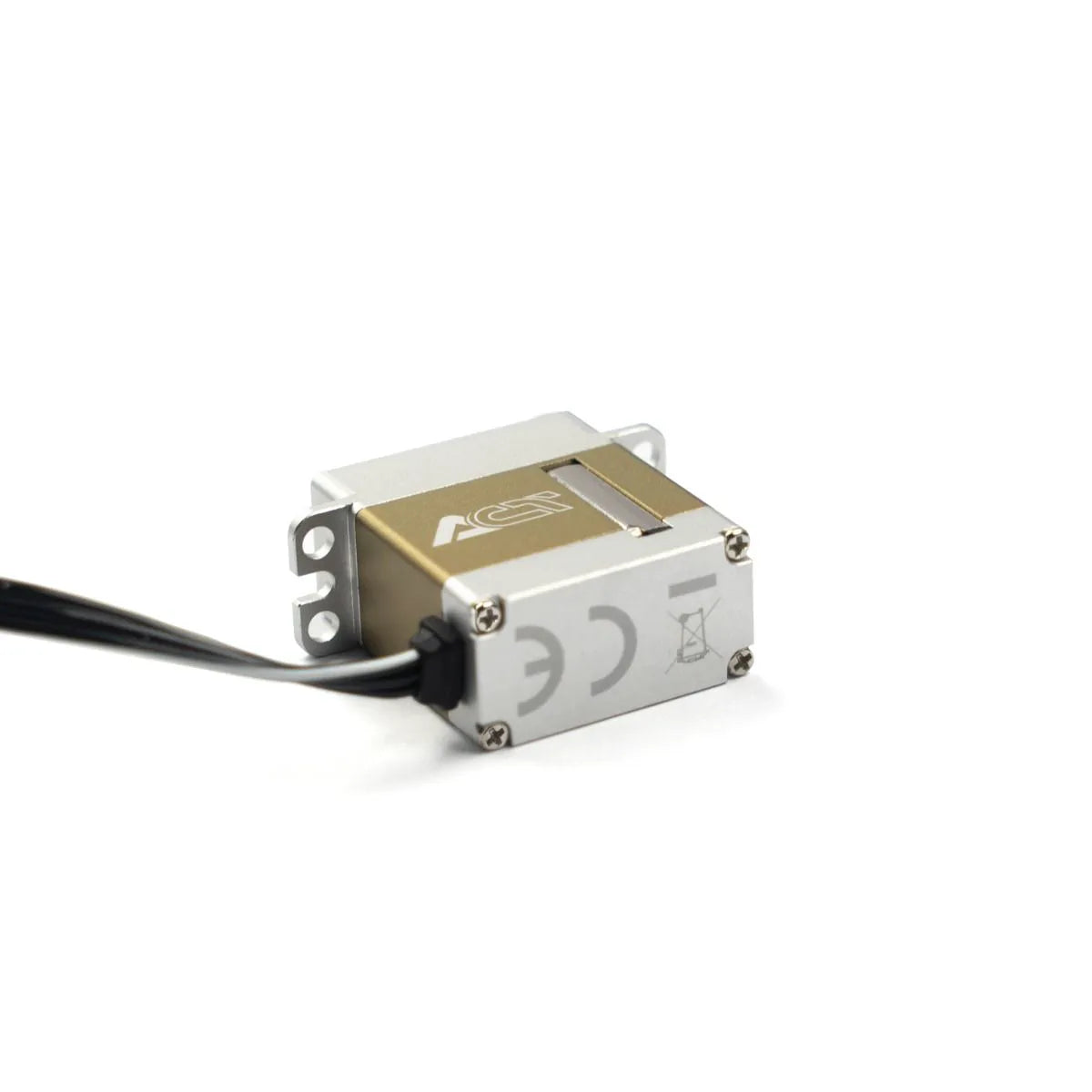

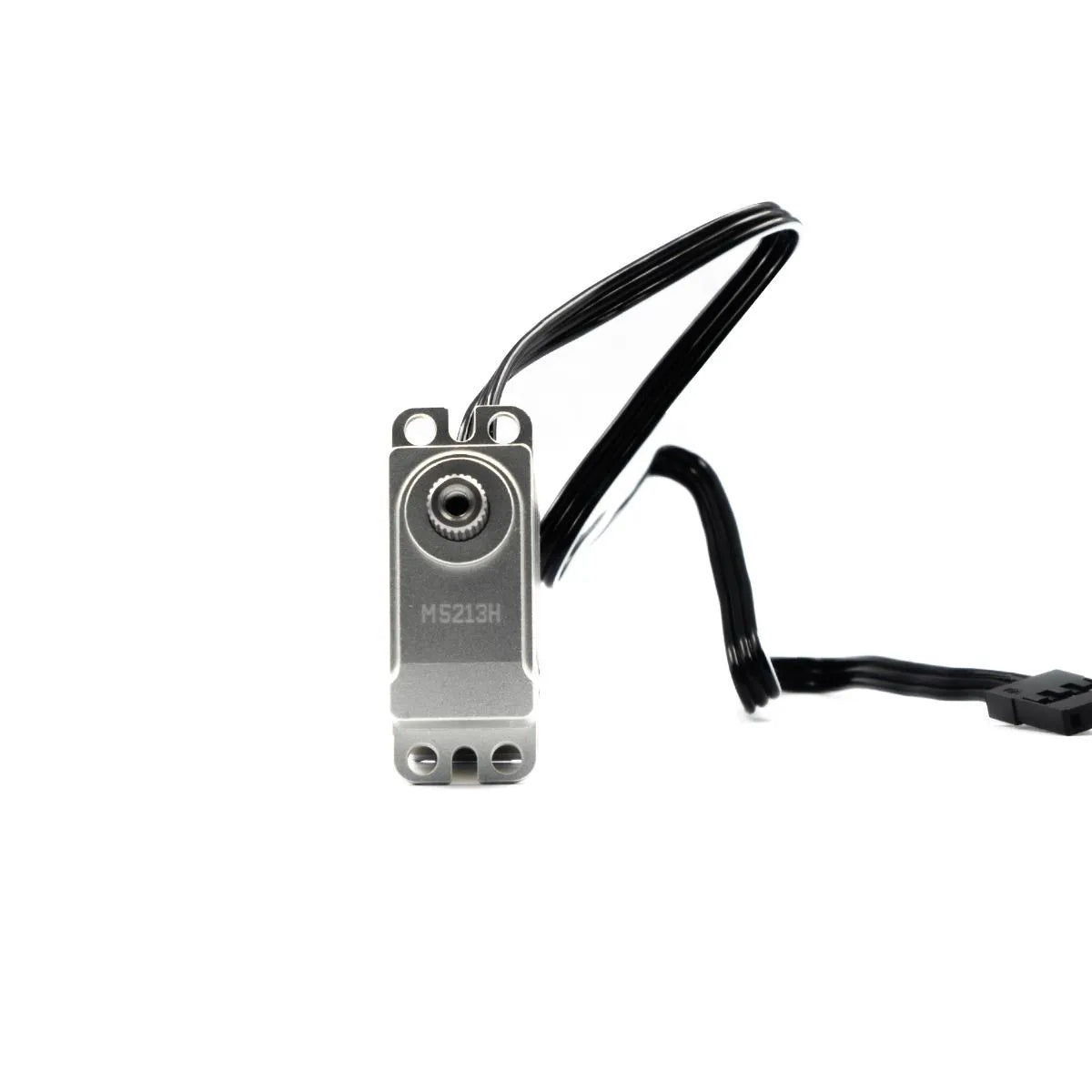

FrSky Act 5200 Series Servos, M5213H

The Act series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.

The Act series servos are available in a range of models to support different Torque and Speeds depending on your needs. These servos are ideally matched to models especially where power, reliability, and precision are required.

Features

  • High durability with metal gear and all-aluminum CNC machined protective case
  • 8.4V high voltage capable operation with high speed and big torque performance
  • Built-in dual precision balls bearing with potentiometer sensor

Specifications

Act Coreless 5200 Series High-Voltage Servos
DIMENSION 23×12×27.5mm (L×W×H)
WEIGHT 21g
HORN SPLINE Φ5 25T
STALL CURRENT 1.9A@6.0V / 2.2A@7.4V / 2.5A@8.4V
OPERATING VOLTAGE RANGE 5.0~8.4V
REFLASH RATE 1520us/333Hz
PERFORMANCE TORQUE|SPEED @6.0V TORQUE|SPEED @7.4V TORQUE|SPEED @8.4V
M5213H 7.4 kgf.cm
103 Oz-in		 0.11 sec/60° 9.5 kgf.cm
132 Oz-in		 0.08 sec/60° 10.5 kgf.cm
146 Oz-in		 0.07 sec/60°
