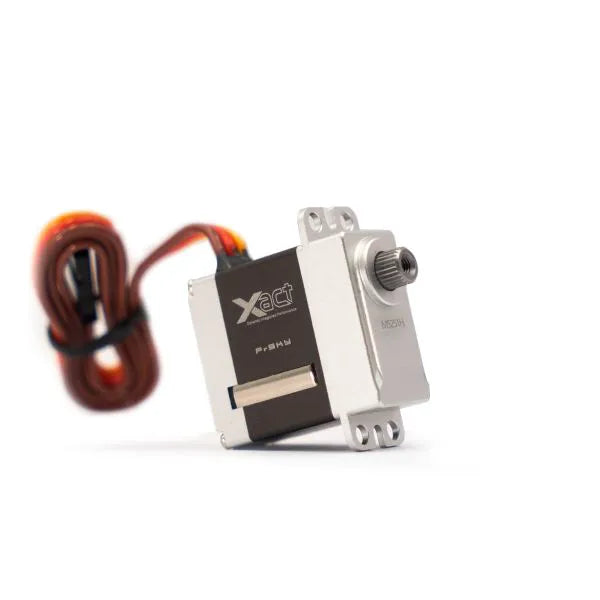

FrSky Coreless Xact 5200 Series Servos Micro HV 8.4V Capable M5251H/ M5252H/M5253H

FrSky Coreless Xact 5200 Series Servos Micro HV 8.4V Capable M5251H/ M5252H/M5253H

FrSky

Regular price $57.00 USD
Regular price Sale price $57.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

199 orders in last 30 days

Style

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. The Xact series servos are available in multiple form factors and configurations to fit many different model types especially where power, reliability, and precision are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.

FEATURES:

Supports F.Port 2.0 (FBUS), SBUS and PWM protocol

High durability with metal gear and all-aluminum CNC machined protective case

8.4V high voltage capable operation with good speed performance

Built-in dual precision balls bearing with hall sensor

Supports over-current and over-hot monitor and alarm

Updatable firmware ensures the performance superior

SPECIFICATIONS:

Xact Coreless 5200 Series High-Voltage Servos
DIMENSION 23*12*29mm (L*W*H)
WEIGHT 23g
HORN SPLINE Φ5 25T
STALL CURRENT HV5201  : 1.21A@6.0v / 1.42A@7.0v / 1.7A@8.4v
HV5202  : 1.29A@6.0v / 1.50A@7.0v / 1.8A@8.4v
HV5203  : 1.36A@6.0v / 1.58A@7.0v / 1.9A@8.4v
M5200H : 1.70A@6.0v / 1.90A@7.4v / 2.0A@8.4v
OPERATING VOLTAGE RANGE 4.8-8.4V
REFLASH RATE 1520us/333Hz | 760us/700Hz
PERFORMANCE TORQUE|SPEED @6.0V TORQUE|SPEED @7.0V TORQUE|SPEED @8.4V

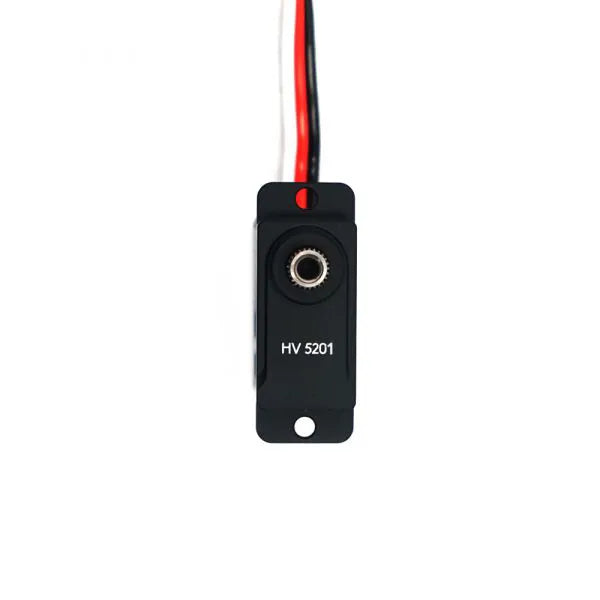

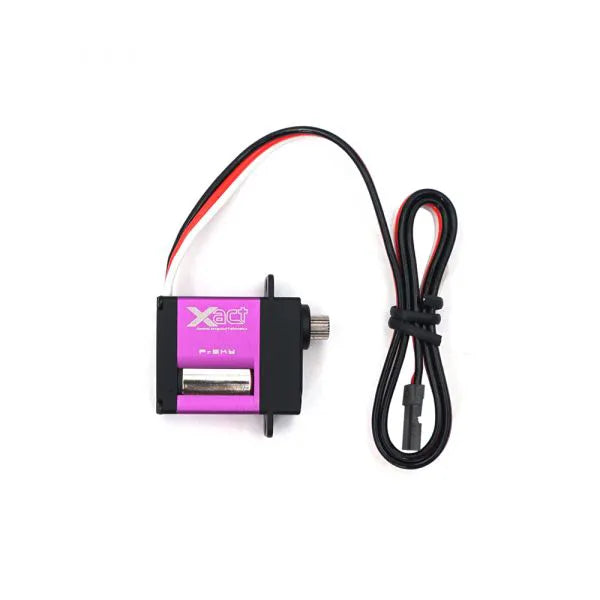

HV5201 3.0 kgf.cm
41.7 Oz-in
0.06 sec/60° 3.5 kgf.cm
48.6 Oz-in
0.05 sec/60° 4.2 kgf.cm
58.3 Oz-in
0.04 sec/60°
HV5202 3.5 kgf.cm
48.6 Oz-in
0.08 sec/60° 4.0 kgf.cm
55.5 Oz-in
0.07 sec/60° 4.8 kgf.cm
66.7 Oz-in
0.06 sec/60°
HV5203 5.9 kgf.cm
81.9 Oz-in
0.11 sec/60° 6.8 kgf.cm
94.4 Oz-in
0.09 sec/60° 8.2 kgf.cm
113.9 Oz-in
0.08 sec/60°
PERFORMANCE TORQUE|SPEED @6.0V TORQUE|SPEED @7.4V TORQUE|SPEED @8.4V

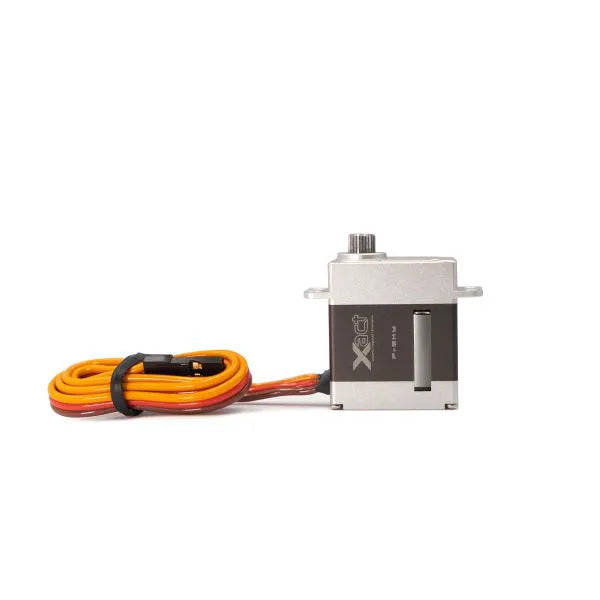

M5251H 2.6 kgf.cm
36.1 Oz-in
0.05 sec/60° 3.3 kgf.cm
45.8 Oz-in
0.04 sec/60° 3.7 kgf.cm
51.4 Oz-in
0.03 sec/60°
M5252H 3.8 kgf.cm
52.8 Oz-in
0.06 sec/60° 4.7 kgf.cm
65.2 Oz-in
0.05 sec/60° 5.3 kgf.cm
73.6 Oz-in
0.04 sec/60°
M5253H 7.3 kgf.cm
101.3 Oz-in
0.10 sec/60° 9.0 kgf.cm
124.9 Oz-in
0.08 sec/60° 10.2 kgf.cm
141.5 Oz-in
0.07 sec/60°
