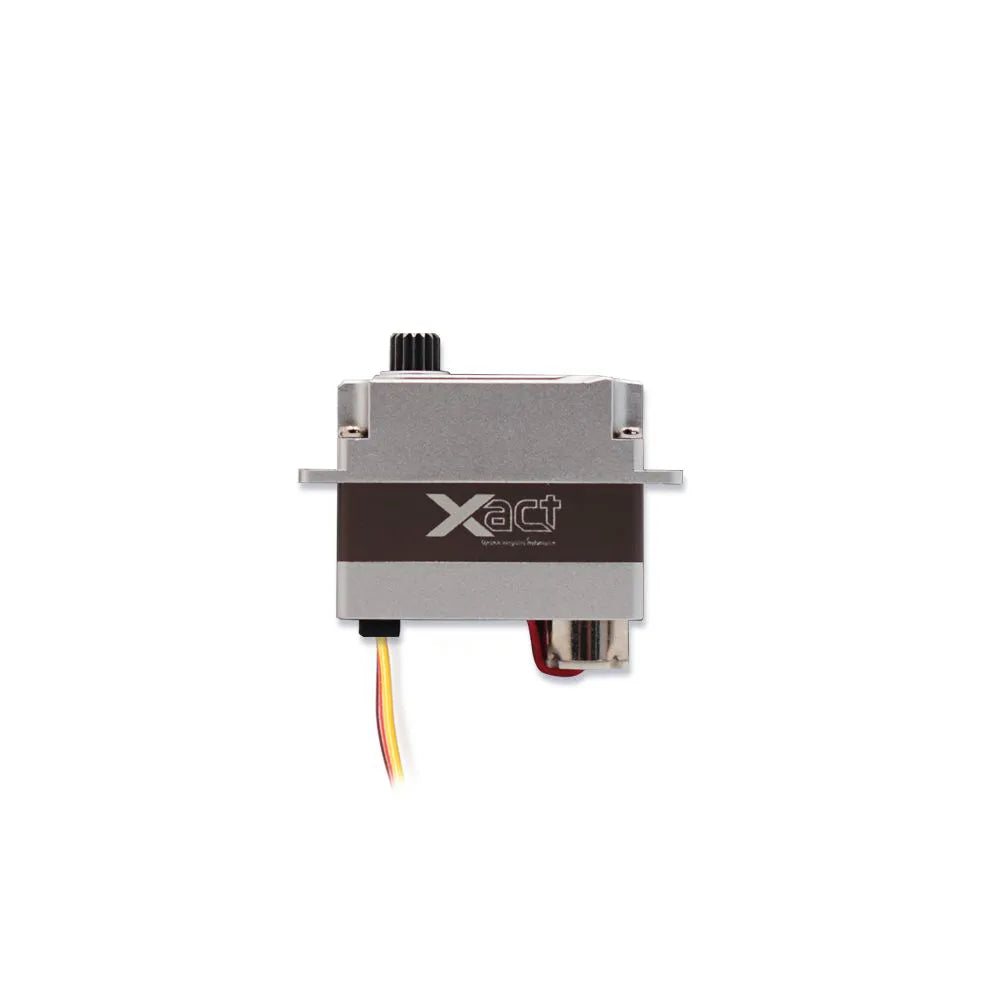

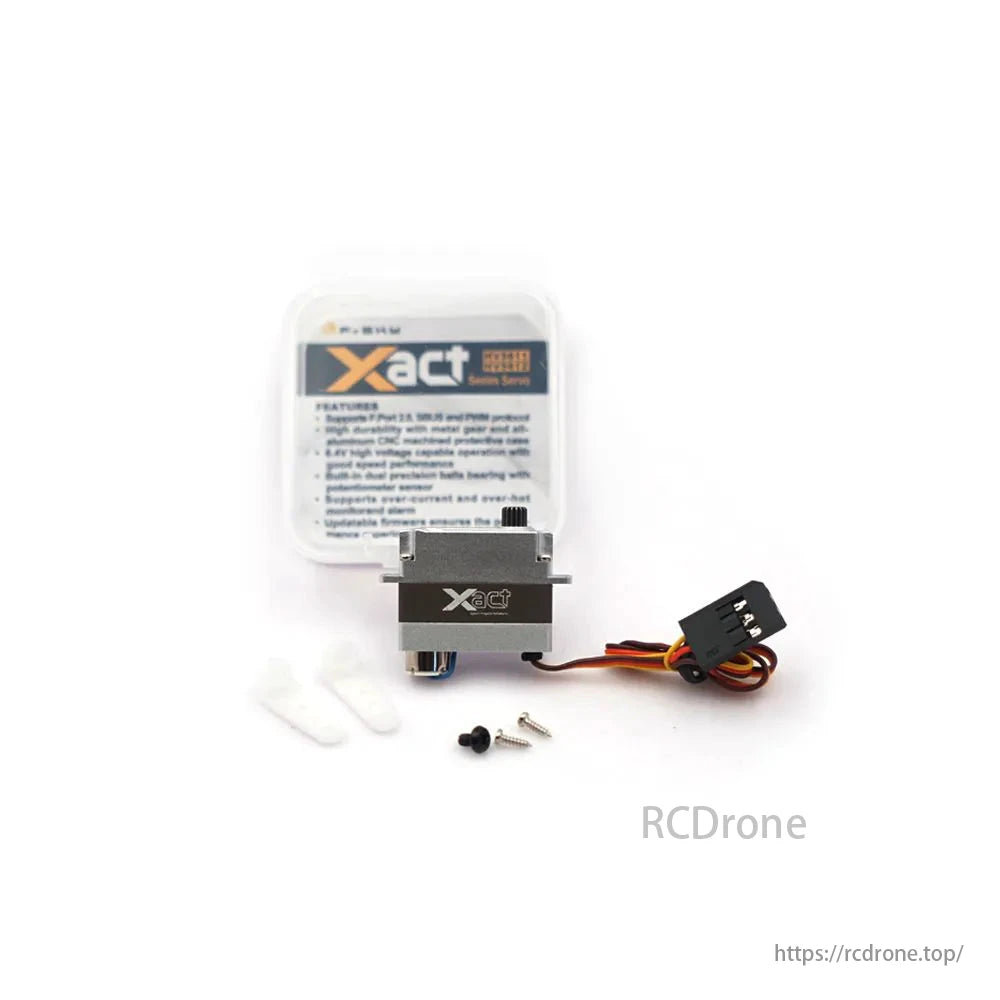

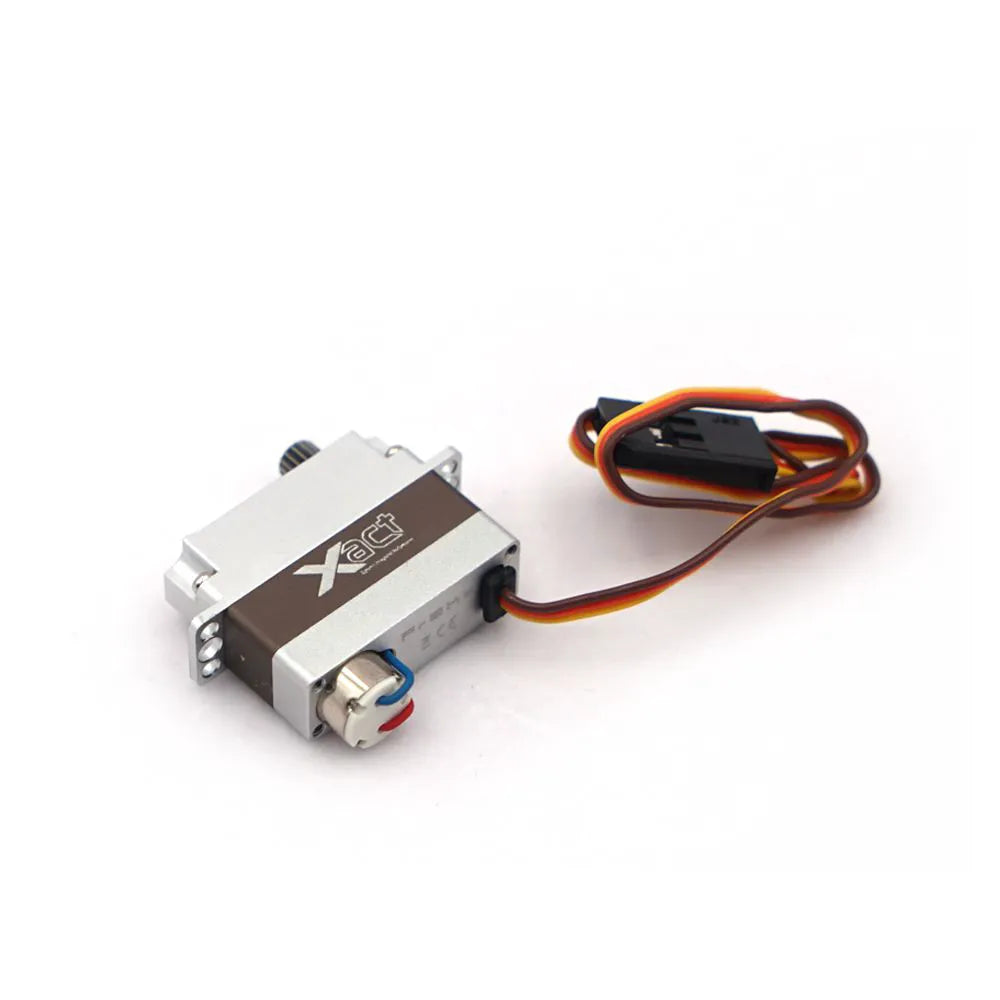

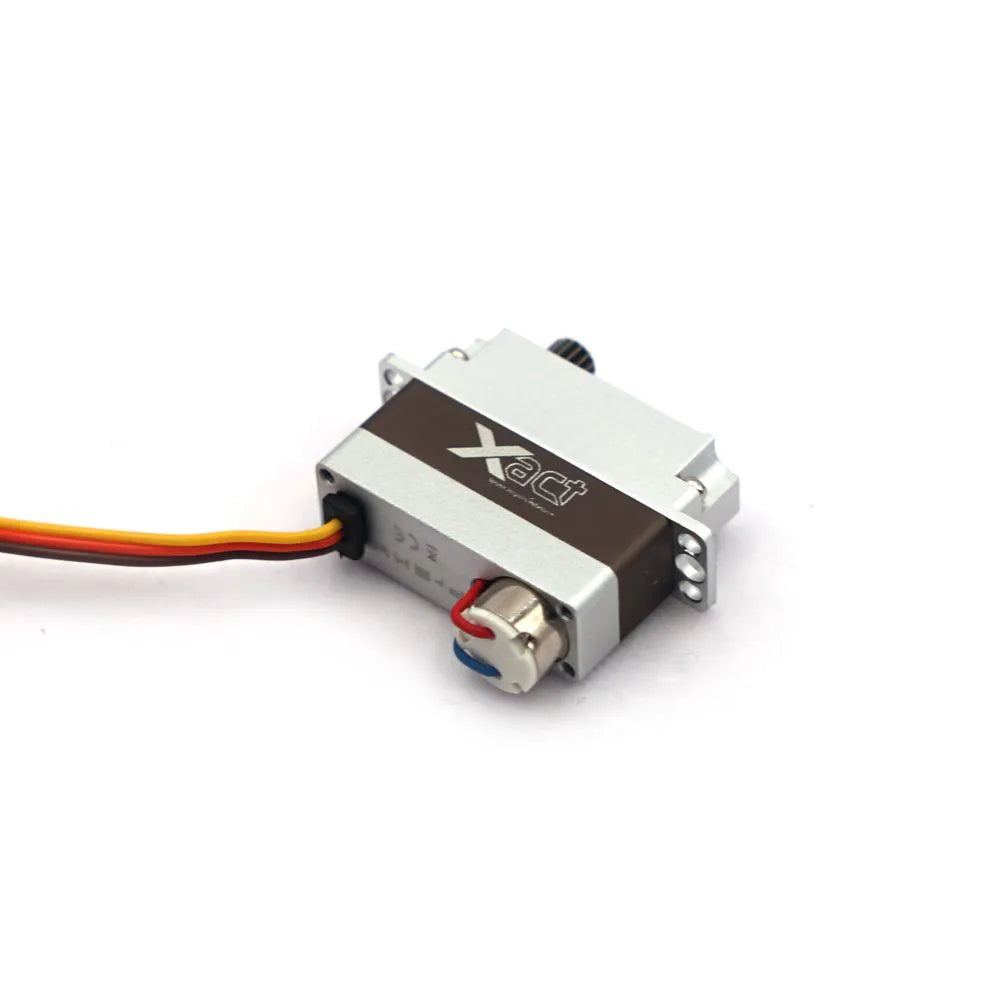

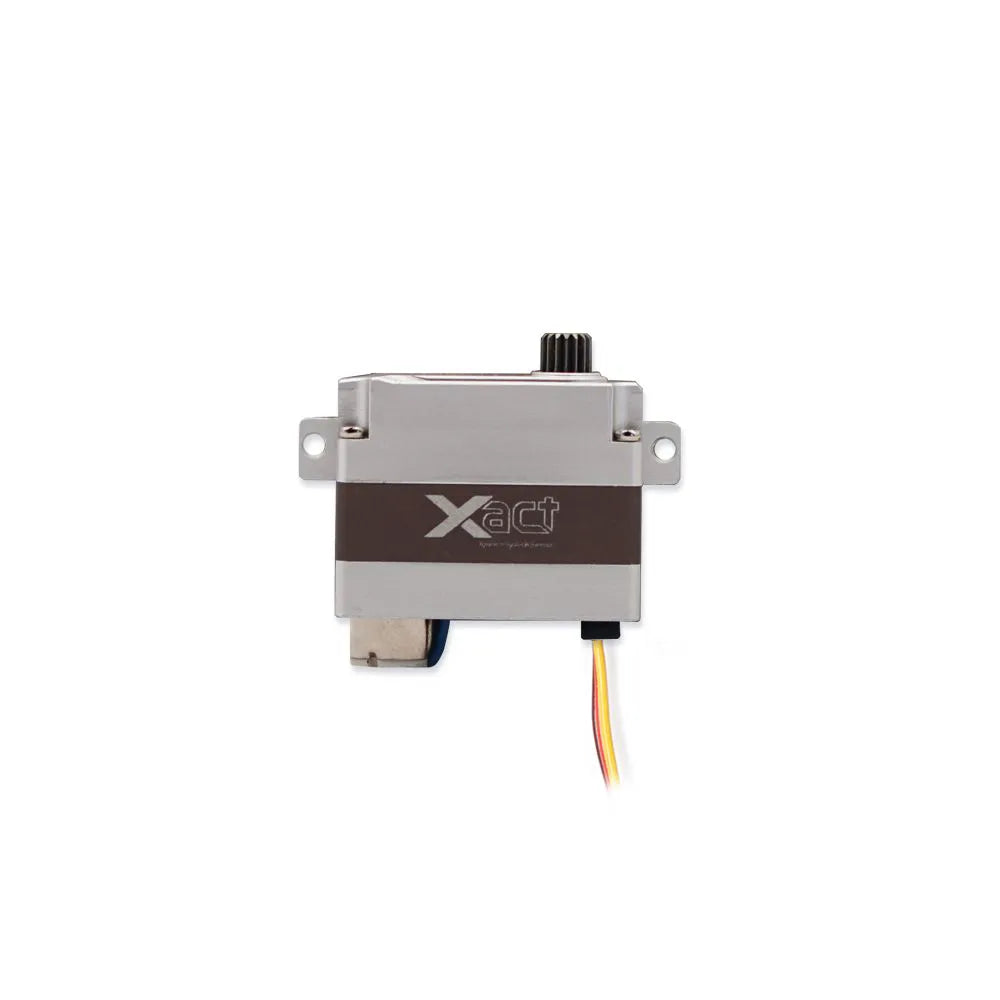

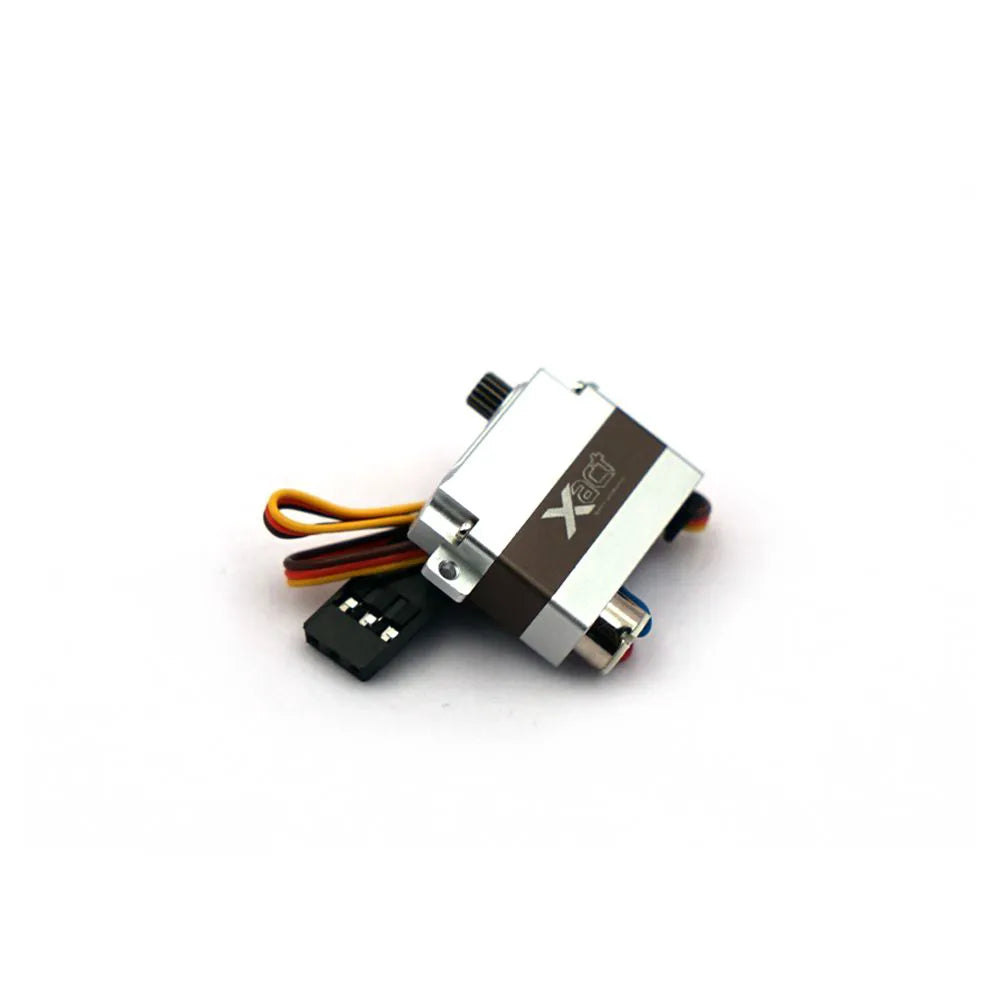

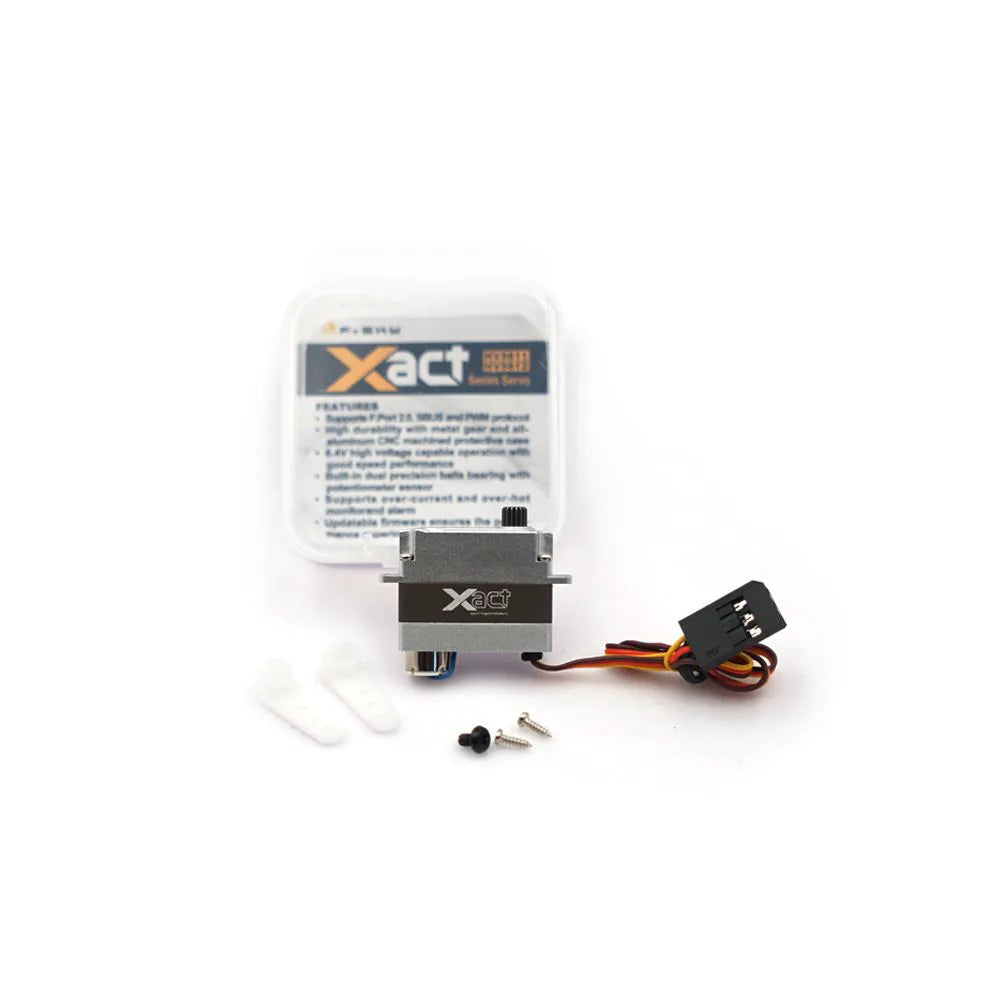

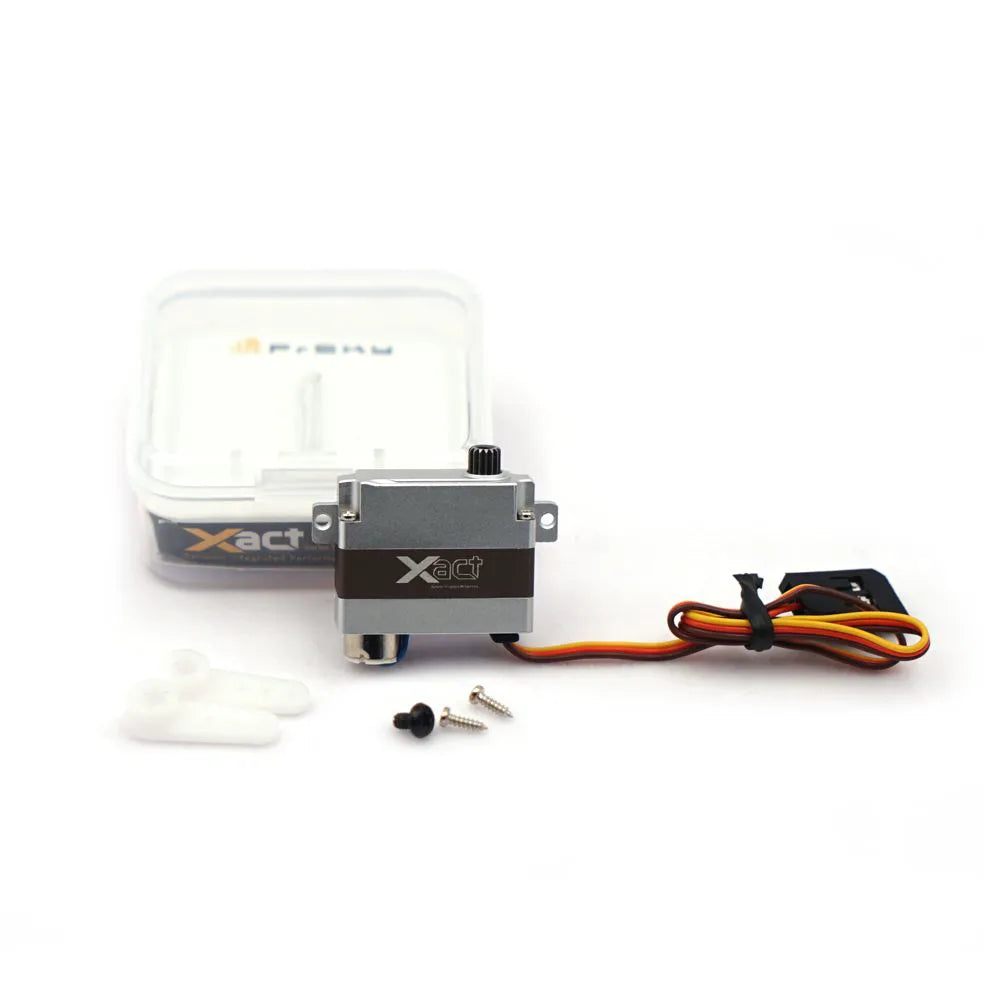

FrSky Coreless Xact 5600 Series Servos - WING 3.7V 4.2V 8.4V 2.10 kgf.cm - 4.8kgf.cm Capable Servos Xact HV5611/HV5612/W5651H/W5652H

FrSky Coreless Xact 5600 Series Servos - WING 3.7V 4.2V 8.4V 2.10 kgf.cm - 4.8kgf.cm Capable Servos Xact HV5611/HV5612/W5651H/W5652H

FrSky

Regular price $59.00 USD
Regular price Sale price $59.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

166 orders in last 30 days

Style

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

The Xact series coreless servos utilize a fully CNC machined aluminum protective case and benefit from metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance. The Xact series servos are available in multiple form factors and configurations to fit many different model types especially where power, reliability, and precision are required.

These high-quality servos support the FBUS protocol, which allows telemetry data (like real-time current, voltage, temperature, etc.) of Xact servos to be transmitted back to the radio by connecting either FBUS capable receiver or flight controller. The Xact servos offer configurable servo travel (90° / 120° / 180°). Servo travel along with other options are now available to be set via the ETHOS Xact configuration tool or the Freelink app.

FEATURES

  • Supports F.Port 2.0, SBUS, and PWM protocol
  • High durability with metal gear and all-aluminum CNC machined protective case
  • 3.7V to 8.4V wide voltage capable operation with good speed performance
  • Built-in dual precision balls bearing with hall sensor (W5652H) / potentiometer sensor (HV5612)
  • Supports over-current and over-hot monitor and alarm
  • Updatable firmware ensures the performance superior
  • Compatible with specific IDS (Integrated Drive System) kit (Optional)

SPECIFICATIONS

Xact Coreless 5600 Series High-Voltage Servos
DIMENSION 19*8*23mm (L*W*H)
WEIGHT W5651H : 10g
W5652H : 10g
HV5611 : 9.5g
HV5612 : 9.5g
HORN SPLINE Φ4 15T
OPERATING VOLTAGE RANGE 3.7-8.4V
REFLASH RATE 1520us/333Hz | 760us/700Hz
PERFORMANCE TORQUE|SPEED @3.7V TORQUE|SPEED @4.2V TORQUE|SPEED @8.4V

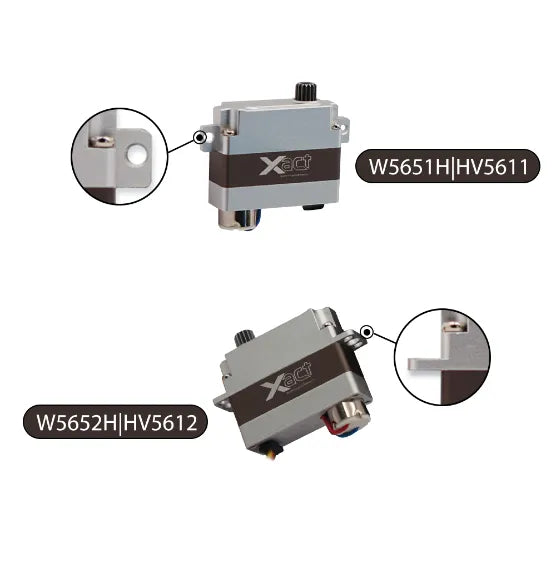

W5651H
HV5611
W5652H
HV5612
2.10 kgf.cm
29.1 Oz-in
0.11 sec/60° 2.40 kgf.cm
33.3 Oz-in
0.10 sec/60° 4.80 kgf.cm
66.6 Oz-in
0.05 sec/60°
