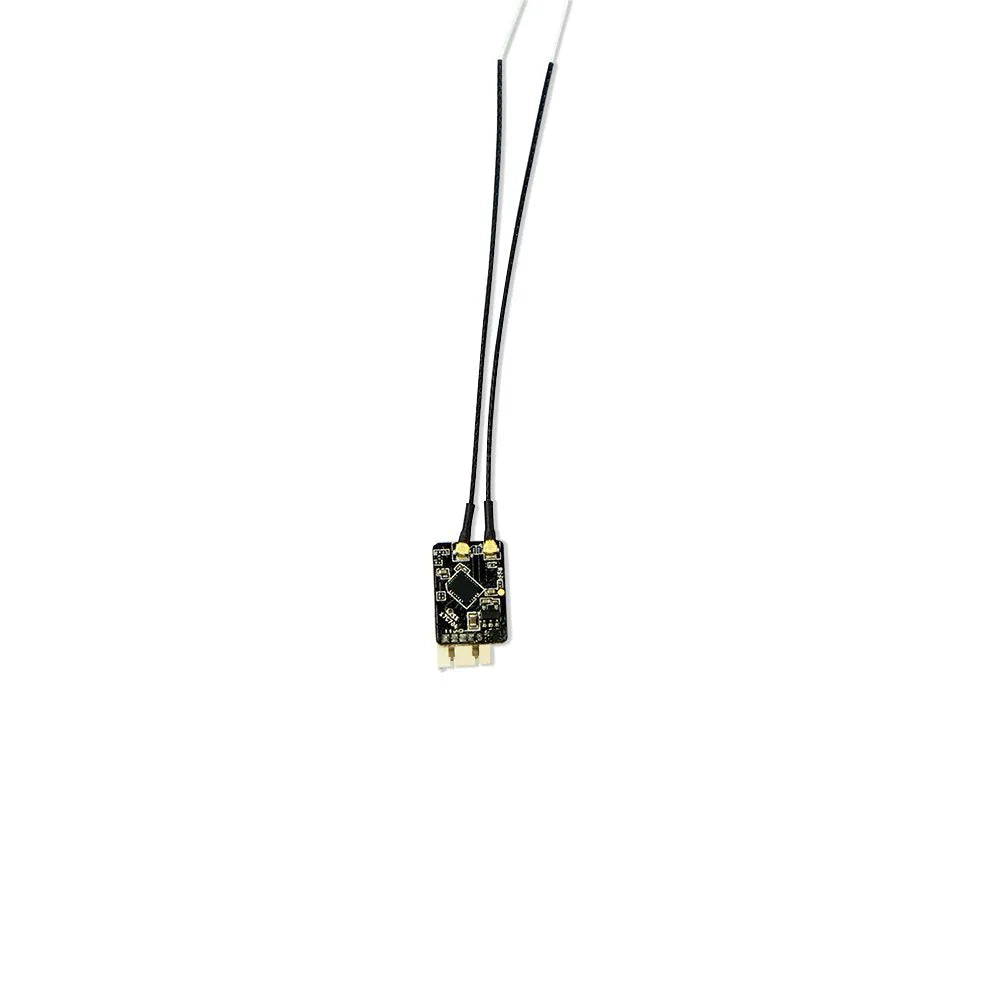

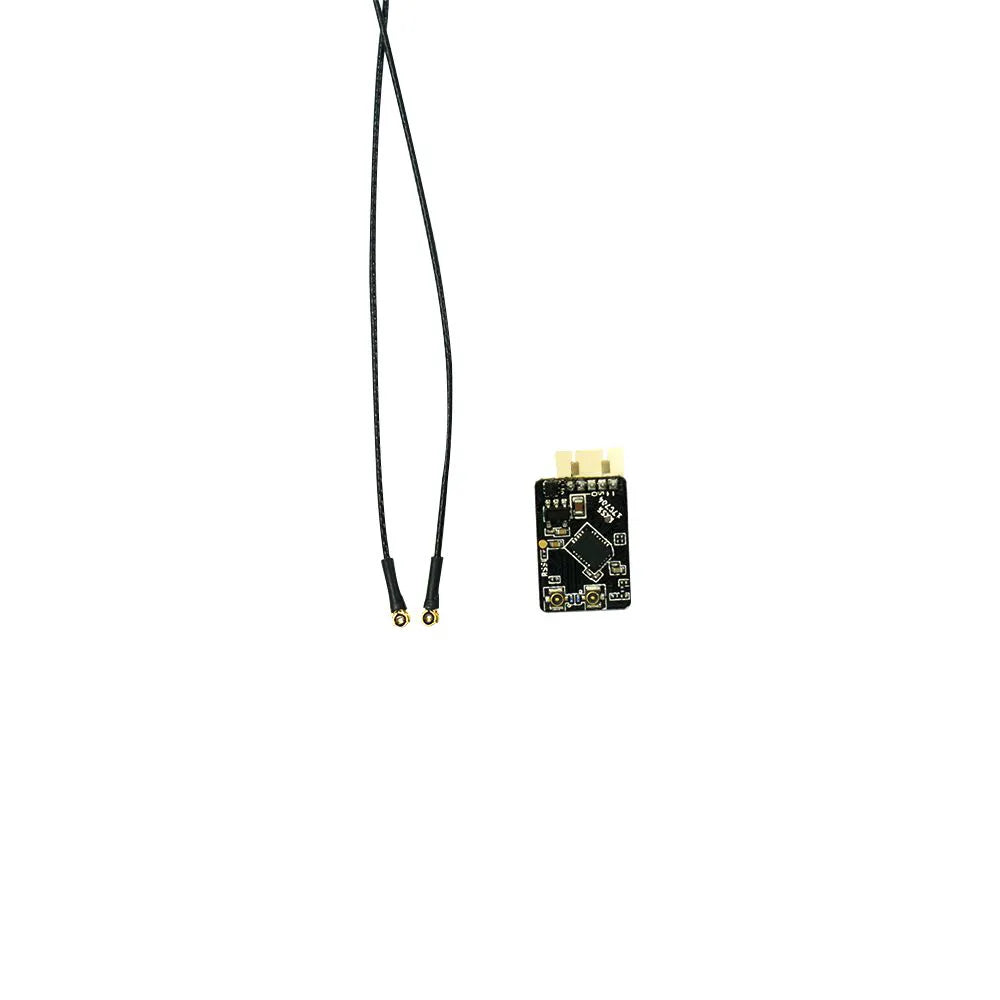

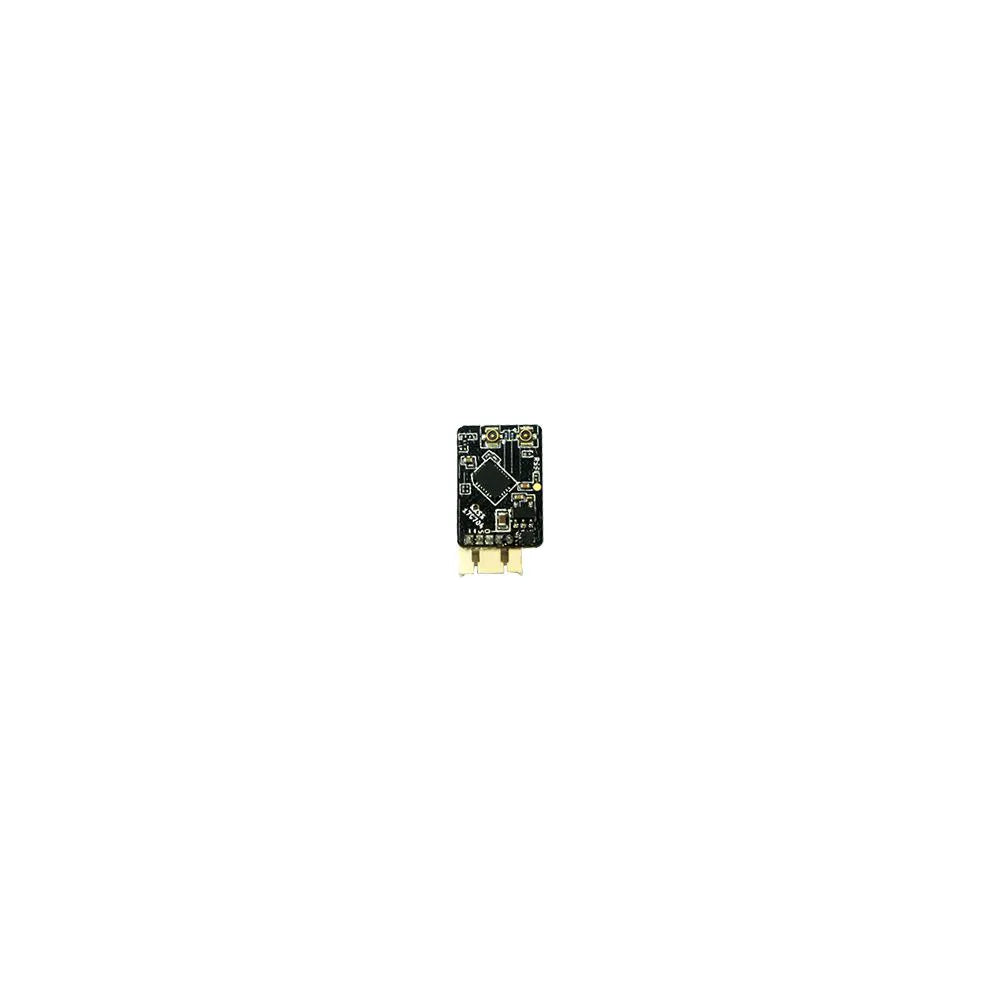

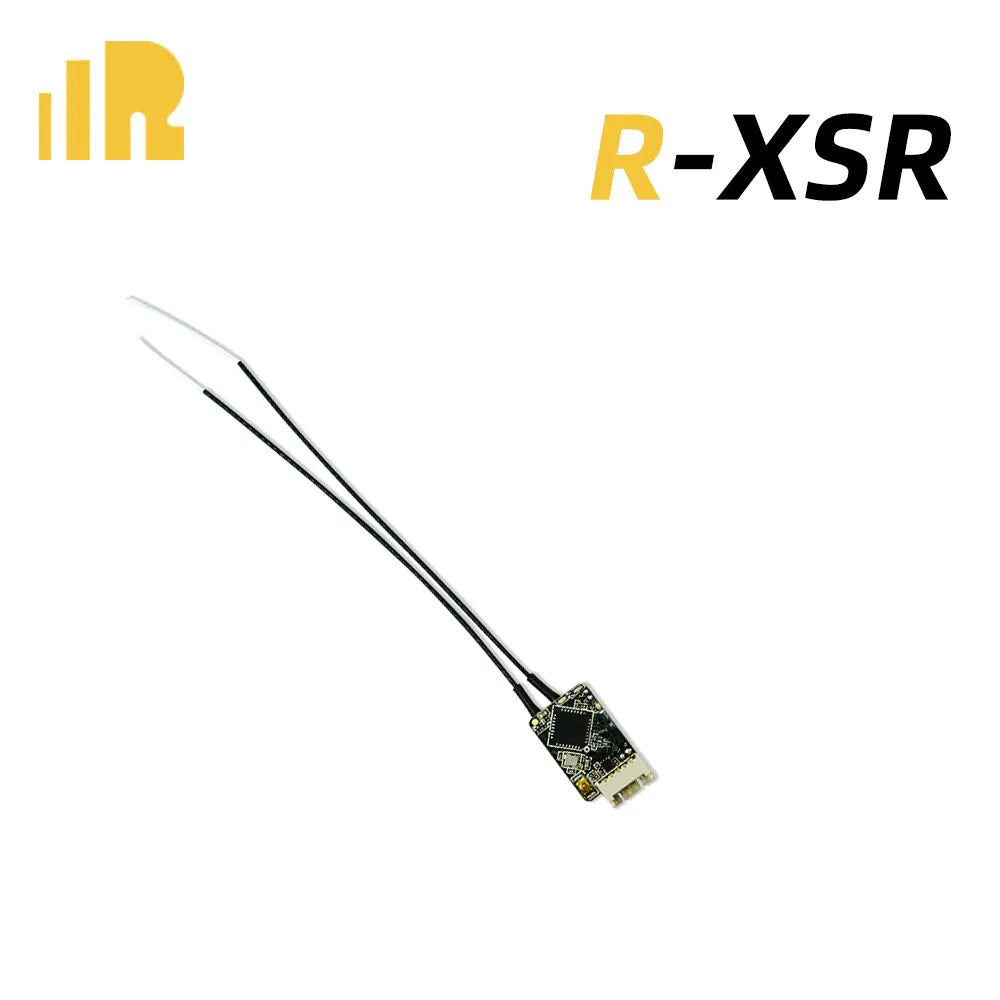

FrSky ultra mini receiver R-XSR is the evolution of FrSky full range XSR receiver. The R-XSR is a standalone receiver with all the functions of XSR, in addition, it's almost 1/3 size and 1/3 weight of XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver ensures the security, and the IPEX connector makes it more convenient to replace antennas.
Specifications
- Dimension:16*11*5.4mm(L*W*H)
- Weight:1.5g
- Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
- Operating Voltage Range:3.0V~10V
- Operating Current:70mA@5V
- Firmware Upgradable
- Compatibility: FrSky X Series modules and radios in D16 mode
Feature:
- Ultra mini size and light weight
- Support telemetry and Smart Port enabled
- Full range
- Switchable SBUS/ CPPM signal output
- Supports redundancy function

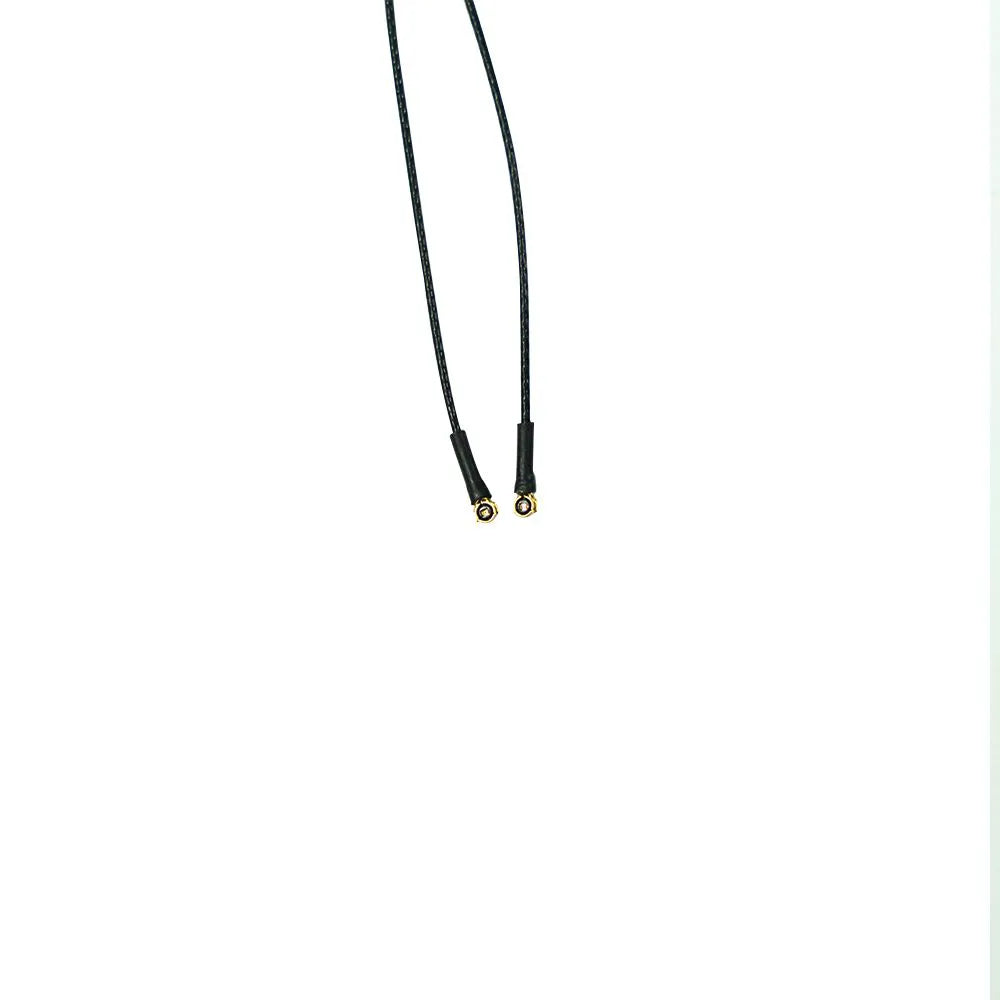

- IPEX connector, replaceable antennas
