FrSky Scout VS600 Mini VTX - 5.8Ghz 26CH pit mode / 25mw Switchable FPV Video Transmitter

FrSky Scout VS600 Mini VTX - 5.8Ghz 26CH pit mode / 25mw Switchable FPV Video Transmitter

FrSky

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

60 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

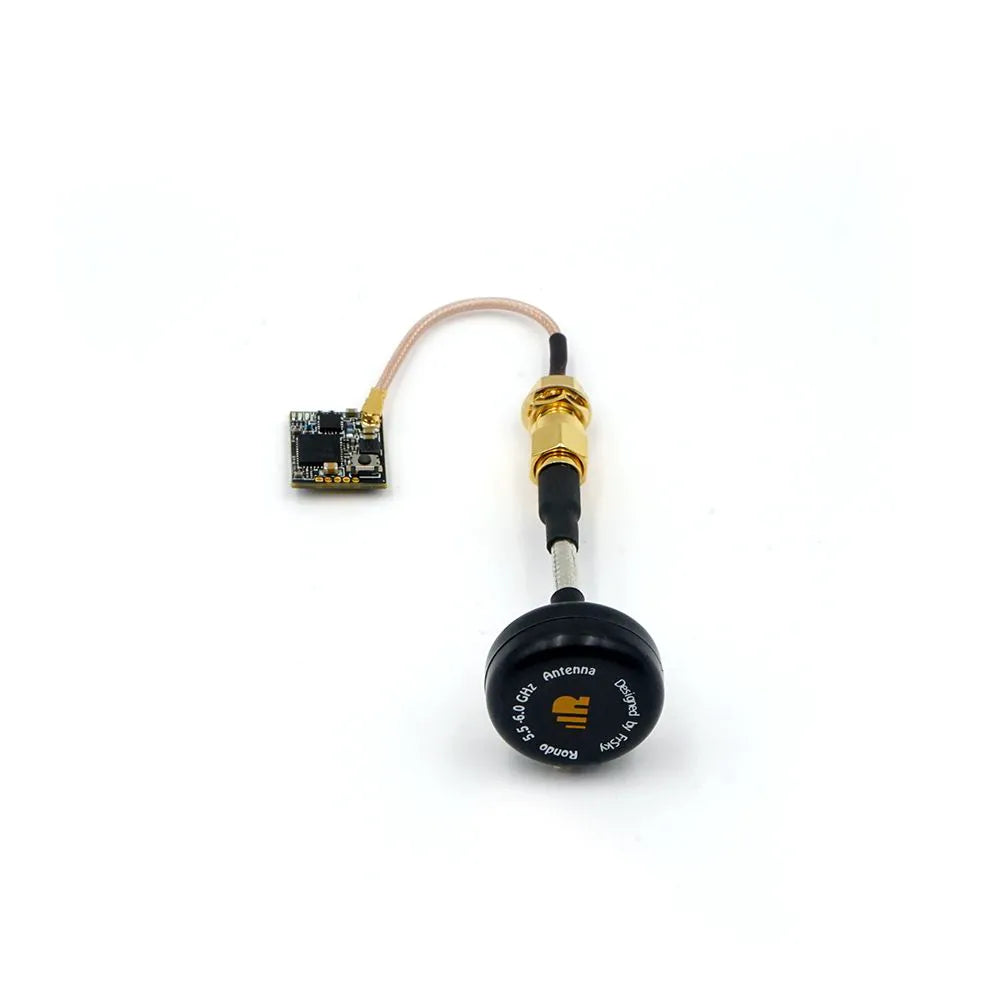

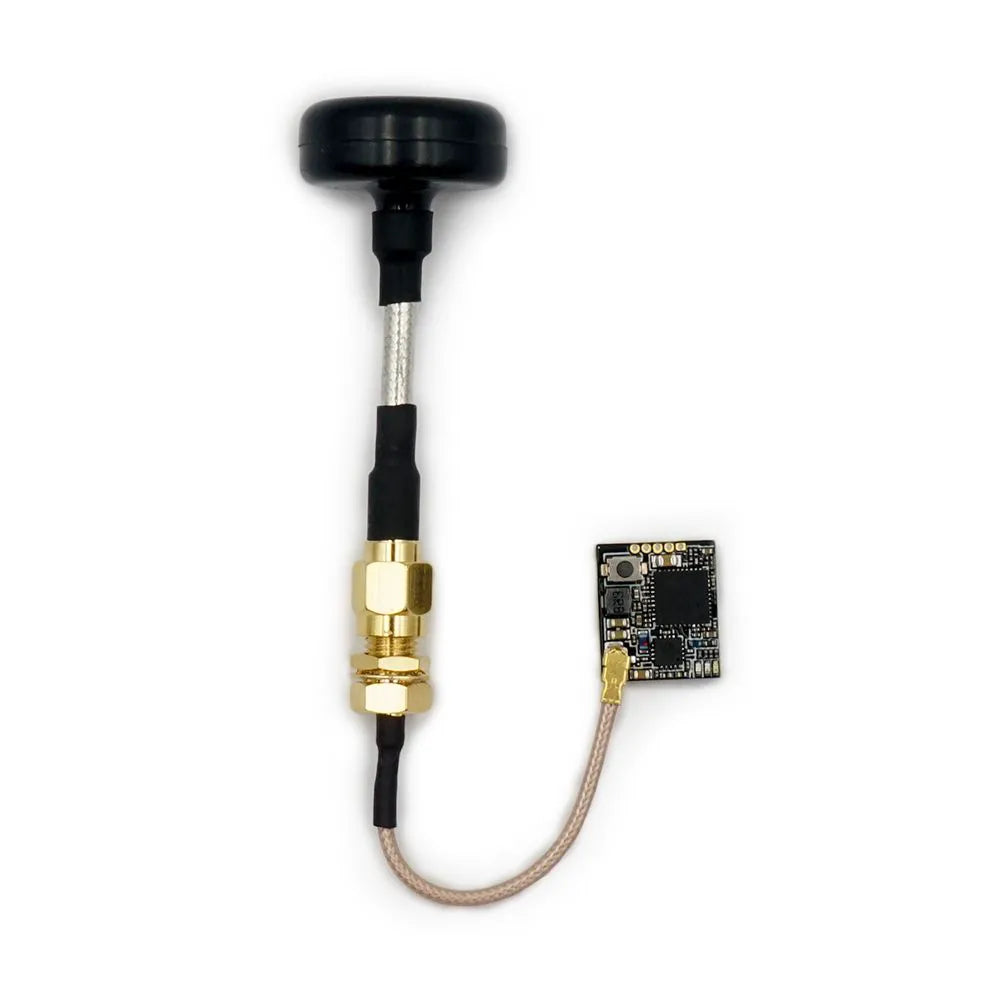

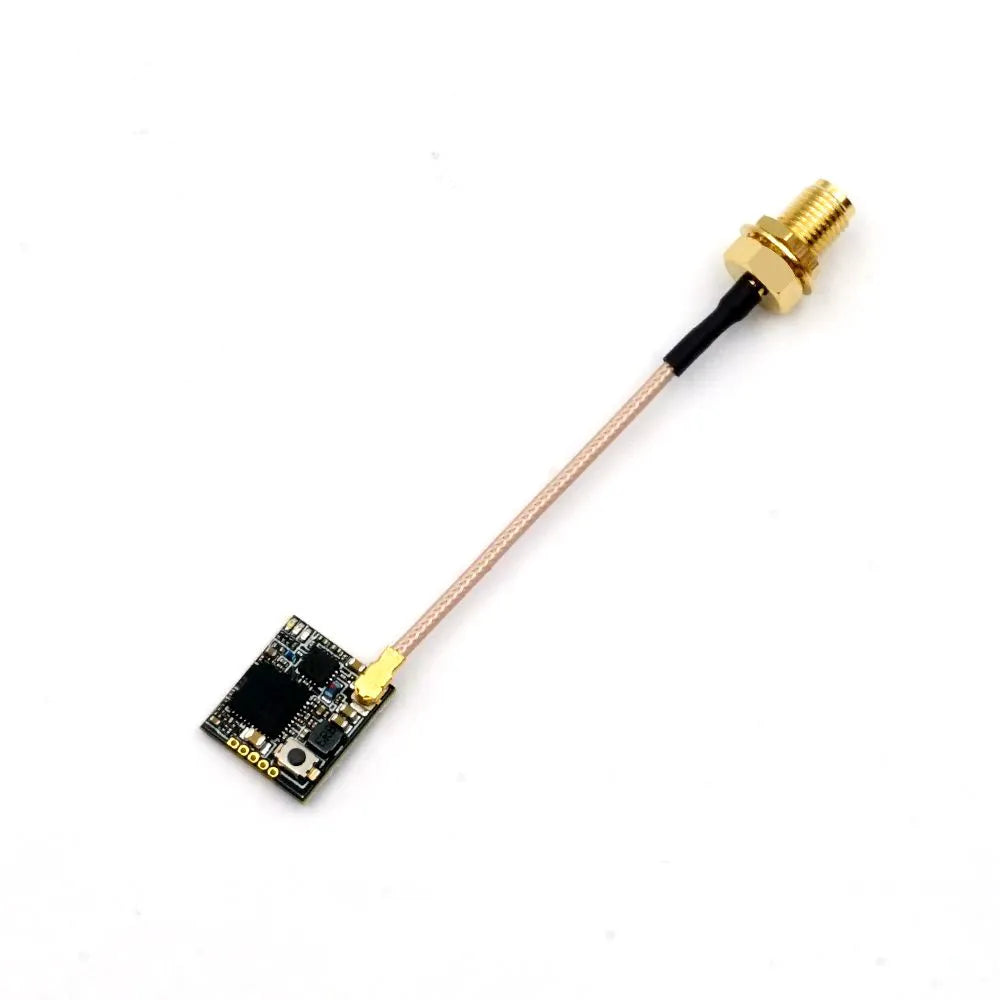

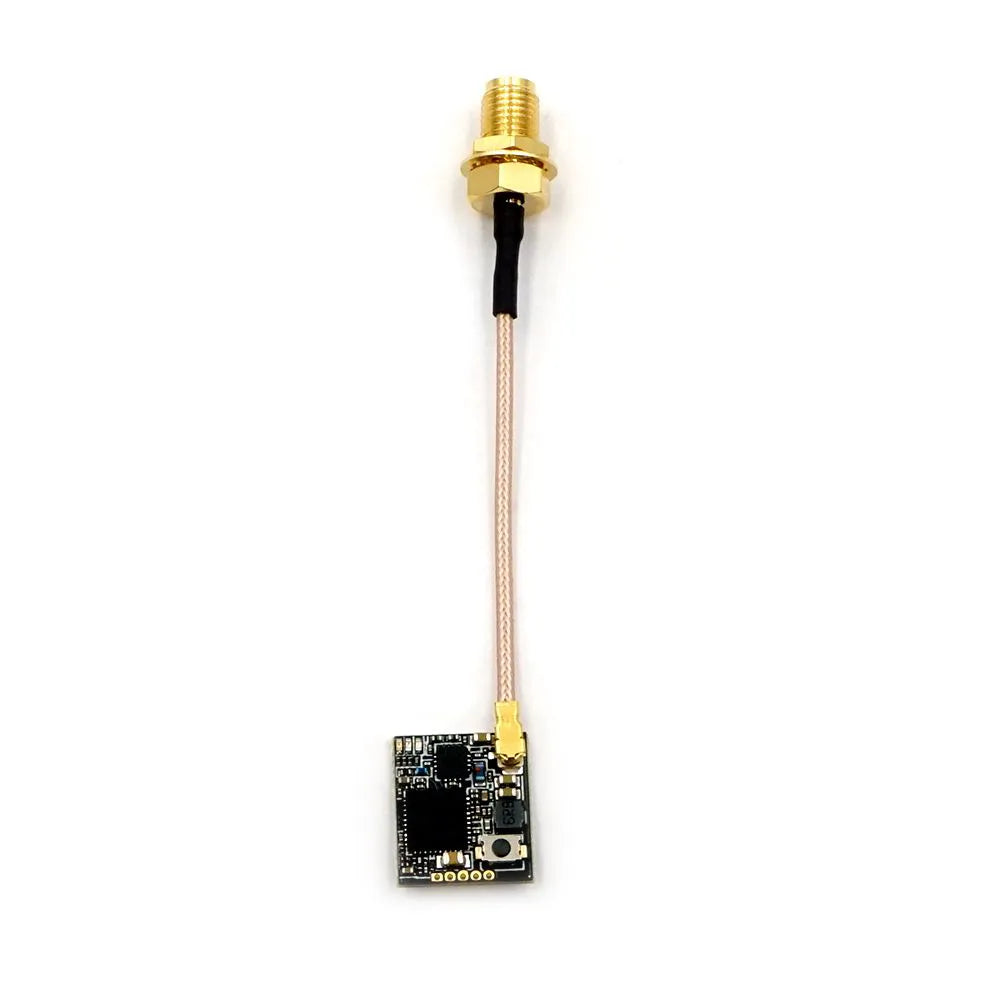

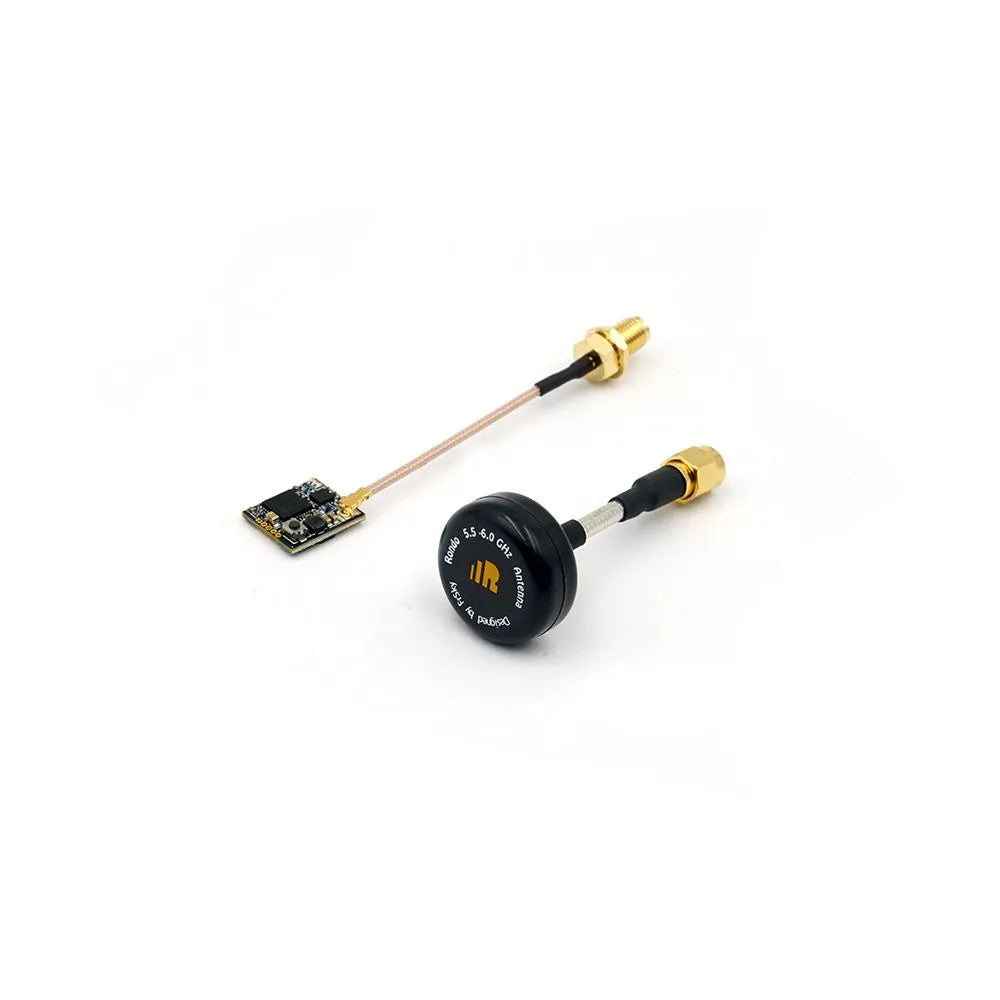

FrSky Scout VS600 Mini VTX

The FrSky Scout VS600 Mini is the miniature version of VS600 VTX. It has a simple and clean design, equipped with adjustable power output and switchable frequency bands and channels. Paired with an FrSky radio transmitter, the parameters can be adjusted conveniently through the gTrans.lua script.

SPECIFICATIONS

  • Dimension (L*W*H): 15.5*13.5*4mm
  • Weight: 1.2g
  • Available Channel: 26CH
  • Operating Voltage: 5V
  • Transmission Frequency: 5.8 GHz
  • Transmission Power: < 0.01mW (Pit mode) /25mW

FEATURES

  • S.Port enabled and supports telemetry data transmission
  • Suports inverted S.Port
  • Adjustable RF power
  • Configurable parameters by gTrans.lua / Button/ FreeLink (PC) / FreeLink App (With AirLink S)



MANUAL
Details File Size Download
UpdateTime  :  2021-12-07
Version  :  211207
600KB DOWNLOAD
FCC/CE Version
UpdateTime  :  2021-03-16
Version  :  210316
1.39MB DOWNLOAD
FLEX Version
UpdateTime  :  2021-03-16
Version  :  210316
1.6MB DOWNLOAD
FIRMWARE
UpdateTime  Version Notes File Size Download
 2020-06-09   190801  Please refer to the manual of this version.
Note: this version is compatible with FCC/CE certificate.
 32KB DOWNLOAD
 2020-06-09  FLEX-190801  Please refer to the manual of this version.
Note: this version is not compatible with FCC/CE certificate, please ensure compliance with local laws and regulations before use.
32KB DOWNLOAD
LUA SCRIPT
UpdateTime Version Notes File Size Download
2020-01-06 v2.4 VS600 Lua script files for all radios running openTx .    3 KB DOWNLOAD
2018-08-21 v2.3 Lua script files for radios (Taranis X-Lite /Q X7/Q X7S/X9DP/X9E/Horus X10/X12s) running openTx .    8 KB DOWNLOAD
FrSky FreeLink APP (PC)

Details Note File Size Download
Compatiblity  :  STK  /  S.Port AirLink / S.Port AirLink S
UpdateTime  :  2022-02-15
Version  :  3.5
  Update for Xact servos . 4.74 MB DOWNLOAD
