FrSky TD SR10 Receiver - 2.4Ghz & 900Mhz Tandem Dual Band Receiver Configurable 10 Channel Ports

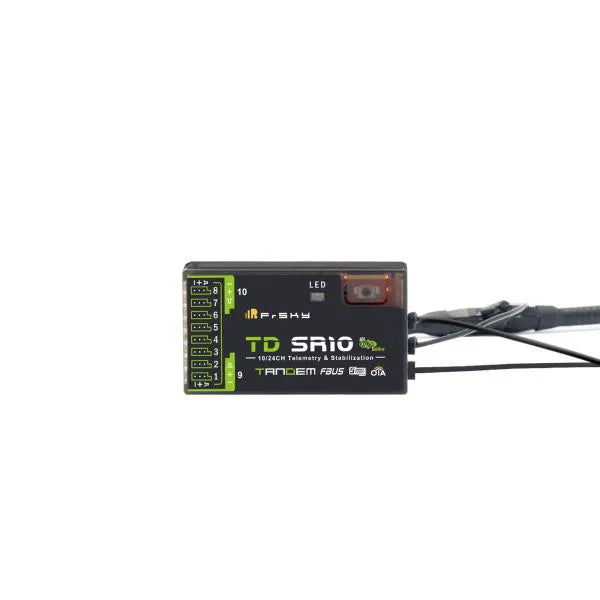

FrSky TD SR10 Receiver

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.

The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module.

The configurable 10 channel ports are a big feature of TD SR10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup.

ADV Stabilizer
The TD SR10 offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized channels and flexibility.

The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.

In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, developer access, etc.

The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV feature is an additional benefit compared to using a regular S series stabilization receiver.

Features

• Simultaneous working dual-band TD mode
• Triple antenna design for multi-directional coverage
• Built-in Advanced Stabilization Functions
• Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
• Black Box function
• Built-in voltage sensor
• 4ms Race Mode with Telemetry
• Long control range (Range varies based on the RF Power settings.)
• Over-The-Air (OTA) FW update
• Supply current range（every single port）
  – Instantaneous current: 5A
  – Continuous current: 3A
• 10 Configurable Channel Ports
  – CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
  – CP2-10: PWM / SBUS Out / FBUS / S.Port

Specifications

• Frequency: 2.4GHz & 900MHz
• Dimension: 46.5×26.3×14.7mm (L×W×H)
• Weight: 16.6g
• Operating Voltage: 3.5-10v DC
• Operating Current: ≤180mA@5V
• Compatibility: Tandem series transmitter & TD protocol capable RF module
• Voltage Measurement Range via AIN2 (External device): 0-35V (Battery Voltage Divider Ratio: 1:10)
• Triple 2.4G/900M Antenna
  – 2×External 2.4G antenna (IPEX1)
  – 1×External 900M antenna (IPEX1)

Package Include

• FrSky TD SR10*1
