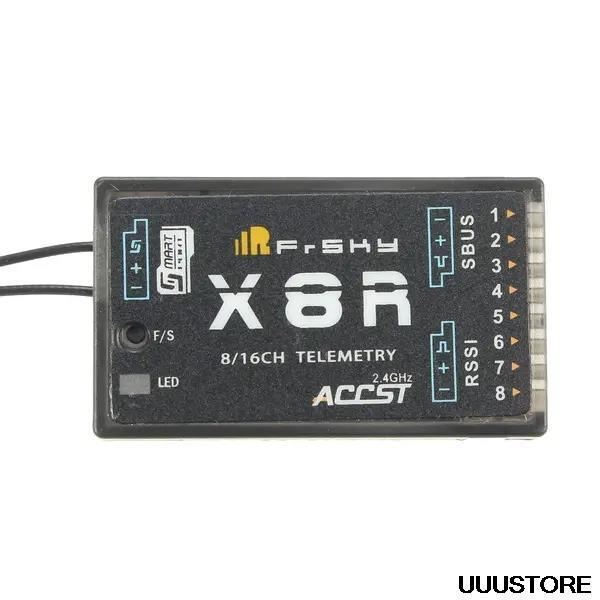

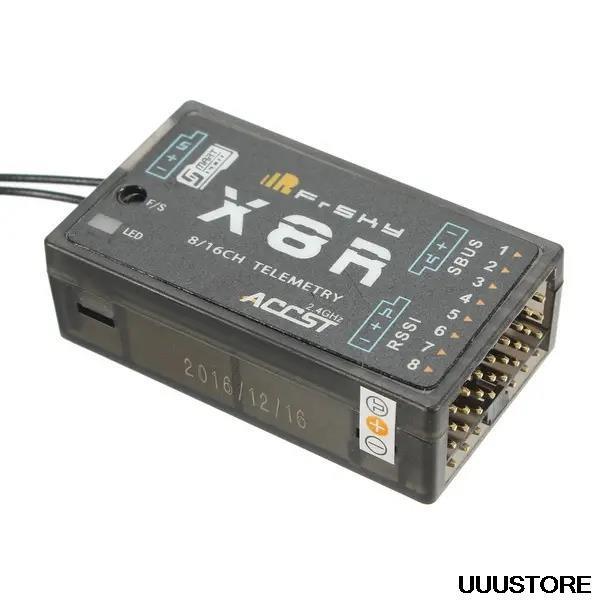

FrSky X8R Receiver - 8/16CH Telemetry For RC Quadcopter Multicopter Compatible with X7 X9D X12S transmitter

FrSky X8R 8/16CH Full Duplex Telemetry With New Antenna

Description:
Brand:  FrSky
Item Name: FrSky X8R Telemetry Receiver
Dimension: 46.5 x 27 x 14.4mm (1.83" x 1.06" x .56")
Weight: 16.8g (.59 oz)
Operating Voltage Range: 4V-10.0V
Operating Current: 100mA@5V
Operating Range: >1.5km (Full Range)
RSSI output: analog voltage output (0~3.3V)
Firmware Upgradeable (have USA firmware)
Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port,or combine two X8R to become a 16 channels receiver)

Features:

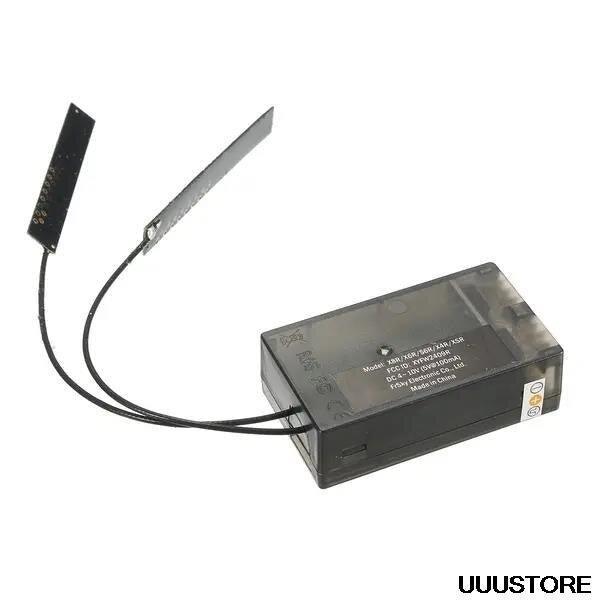

Upgraded antenna
Highly secure and robust link for long distances
No crystals or channels needed
No interferance from motors, ignitions or metal to metal friction.
No need to change any settings on your radio.
Smart Port enabled, realizing two-way full duplex transmission.

Compatibility:
All 16 channels requires the FrSky Taranis, or the XJT module.
For 8 channels in D8 Mode you can use the FrSky Taranis or XJT, DJT, DFT, DHT and DHT-U modules.

How to work:
The X8R receiver communicates and binds with an X8 module via the 2.4ghz spectrum, giving the user unprecedented performance and glitch free reliability never seen before in R/C FM/AM based systems.

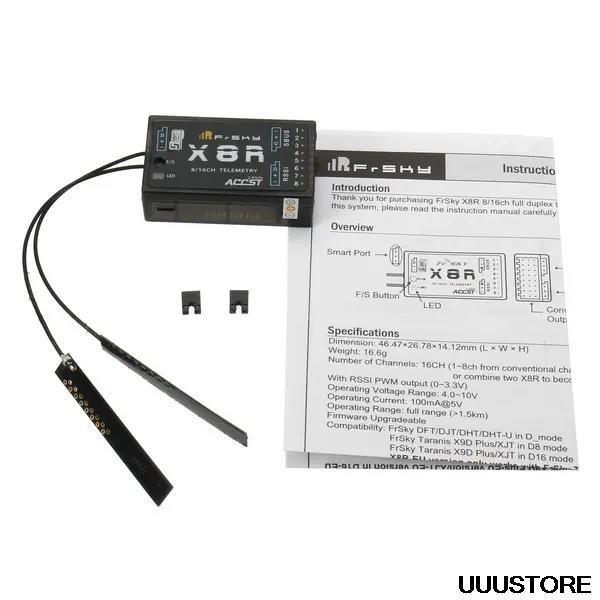

Package Included:
FrSky X8R receiver（Optional number）

XGr Oiechi IRF-ERZ Instructio AcLST Iutroduciinn Ducha ng F Bkv XHR Brtech full duplox 1 3aeti MInt inrucior IMTnaani cnrelul Ovemview Senan Pot X67 FX Budeal LED Dutp Specifications Malee 46e "326.78-14 12mm (L * W* A) Channola: I6CH

X8r RSSI Ouput Fls Button LED Convendonal Channci Outputs CHchB UUUSTORE (CHICK1G)
