Futaba 12K 2.4GHz T-FHSS 14-Channel Radio System (Air Version) with R3008SB Receiver | S.Bus2 & Telemetry Support

The Futaba 12K 14-Channel T-FHSS Radio System delivers a perfect balance of precision, functionality, and expandability for airplane pilots, while also supporting helicopters, gliders, and multirotors. Featuring T-FHSS and S-FHSS compatibility, S.Bus2 support, telemetry capabilities, and robust programming options, the 12K is ideal for both sport and advanced RC pilots.

Paired with the R3008SB receiver, this system offers dual antenna diversity, S.Bus/S.Bus2 ports, and high-voltage operation, making it an excellent solution for modern aircraft with complex electronic setups.

✅ Transmitter Features

• Channels: 14 total (12 proportional + 2 switch)

• Protocols: T-FHSS and S-FHSS compatible

• Switches: 6 x 3-position, 2 x 2-position, 2 sliders, 2 rotary dials, 4 digital trims, 2 push buttons

• Inputs: Headphone jack, trainer port, S.Bus plug-in

• S.Bus2 Support: Allows multiple servos, gyros, and telemetry sensors with fewer cables

• Display: Large backlit LCD screen with adjustable contrast and dial/push-button navigation

• Model Memory: Expandable 30-model memory with 10-character naming

• Battery: Included 6V 1800mAh NiMH battery and charger

• Memory Card Slot: microSD/SDHC support (SD: 32MB–2GB, SDHC: 4GB–32GB, not included)

• Additional Features:

  • Vibration alerts for alarms and timers

  • Stick calibration, adjustable stick length and tension

  • Servo test and position display

  • Logic switch programming, servo speed adjustment

  • Dual rates, expo, flight condition settings

  • 5 programmable mixes, fuel mixing, trim mixing

✈️ Programming Features by Aircraft Type

Airplane Mode

• 6 wing types, 3 tail wing types

• 5 flight modes

• Pitch/throttle curve, delay settings

• Advanced mixing: aileron to camber/brake/rudder, camber mix, V-tail, Ailevator, winglet

• Butterfly function, airbrake, snap roll

• Multi-engine and motor speed control

• Gyro mix, elevator-to-camber, camber flap-to-elevator

Helicopter Mode

• 6 swashplate types

• Pitch curve, throttle curve, swash ring

• Hover trim, throttle hold, gyro/gov mixing

• Pitch to needle/rudder (revo mixing)

• Timer and throttle percentage timers

Glider Mode

• 6 wing types, 3 tail wing types

• Glider-specific mixing and control options

Multirotor Mode

• Flight mode settings, gyro sensitivity

• Throttle curve, throttle delay

• Throttle stick position warning

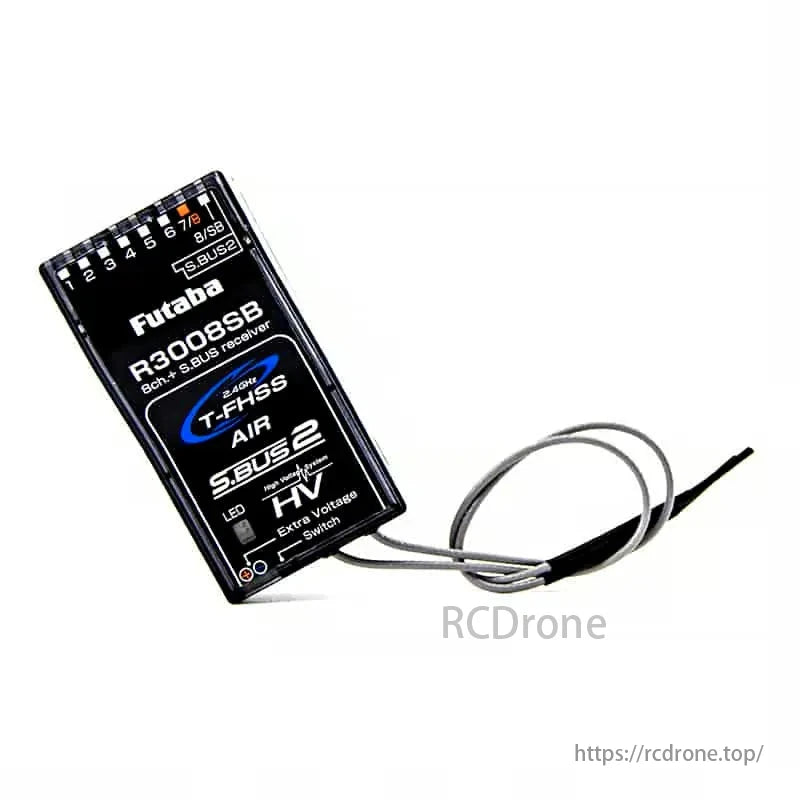

📡 R3008SB Receiver Features

• Protocol: T-FHSS

• Diversity: Dual antenna system

• Ports: S.Bus, S.Bus2, 8 PWM outputs

• Telemetry: Compatible with Futaba telemetry sensors (via S.Bus2)

• Voltage Input Range: 4.8V – 7.4V

• External Voltage Port: 0 – 70V DC telemetry support

• Dimensions: 24.9 x 47.3 x 14.3 mm (0.98 x 1.86 x 0.56 in)

• Weight: 10.1g (0.36 oz)

• Fail-Safe: Battery voltage fail-safe protection

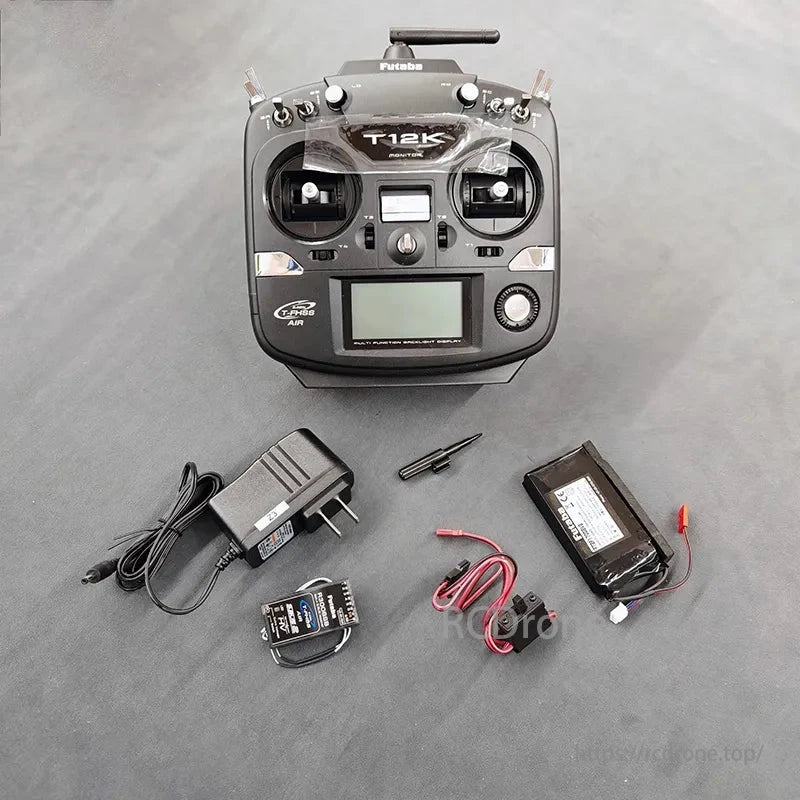

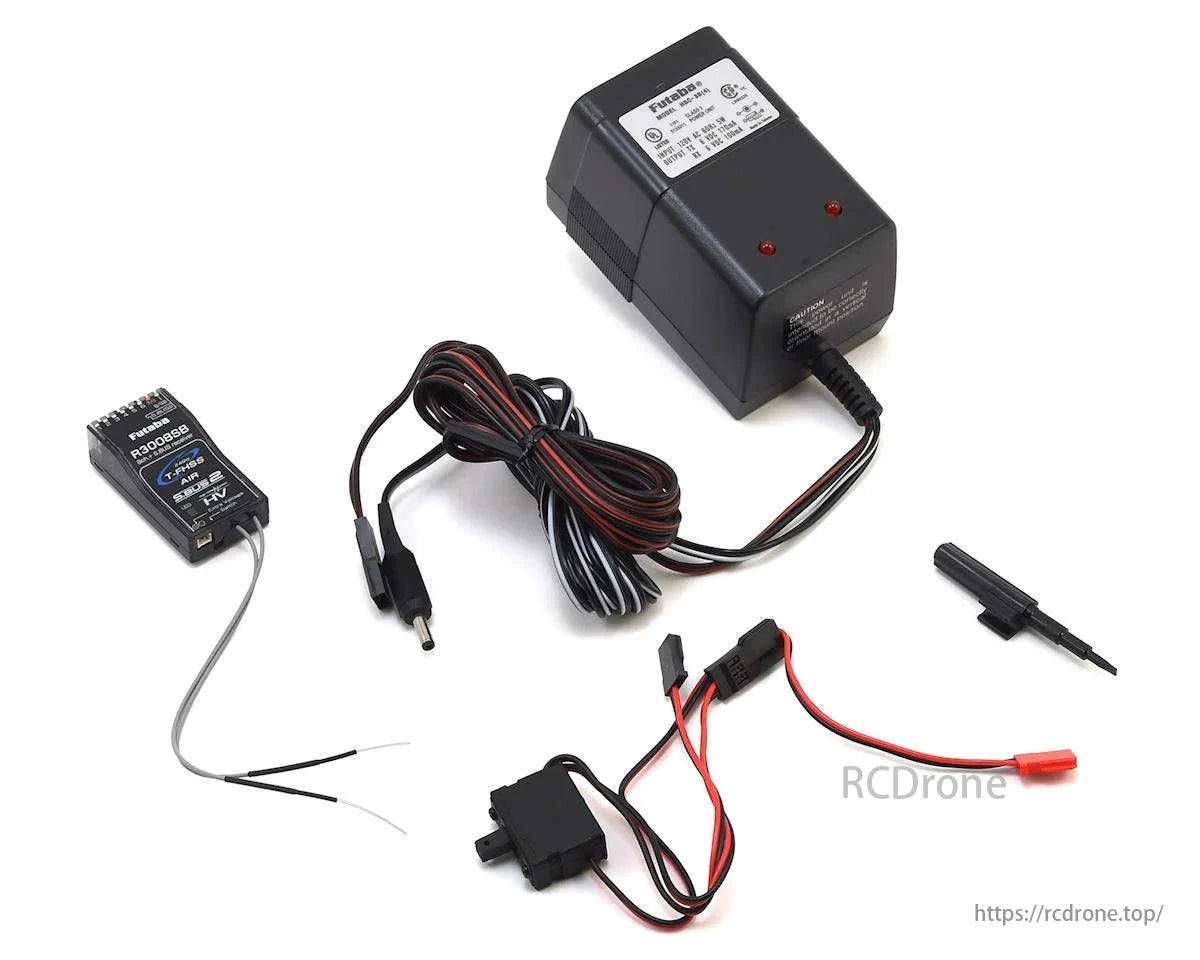

🔧 What's Included

• Futaba 12K T-FHSS Transmitter (Airplane version)

• R3008SB T-FHSS S.Bus2 Receiver

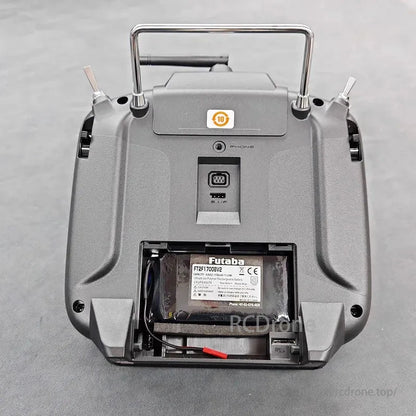

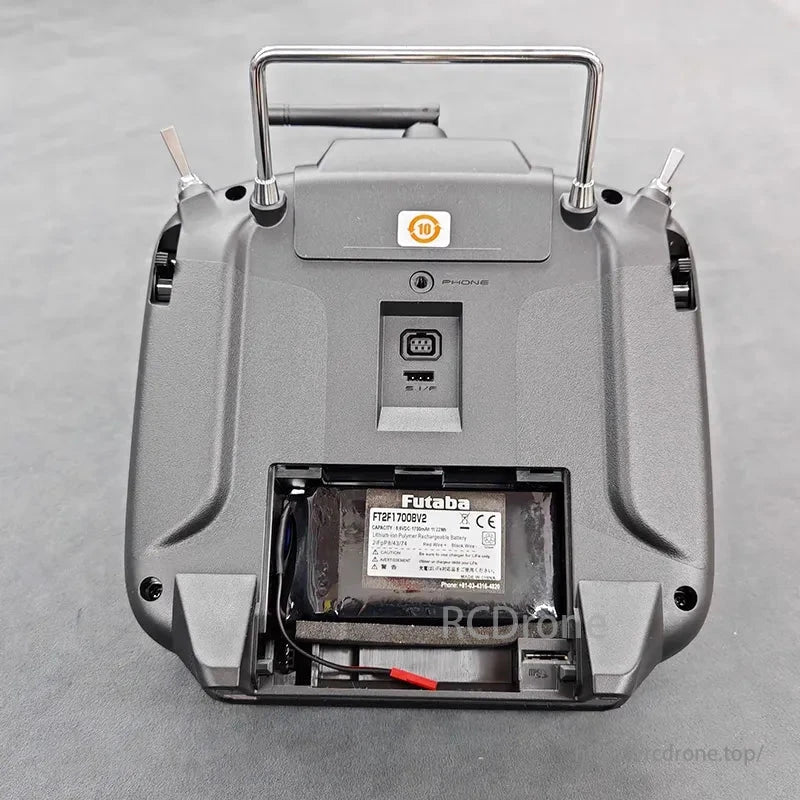

• 6V 1800mAh NiMH Transmitter Battery

• Wall Charger

• User Manual

Whether you're piloting an airplane, helicopter, glider, or FPV multirotor, the Futaba 12K T-FHSS 14-Channel System provides the features, reliability, and flexibility demanded by discerning RC enthusiasts. Its robust telemetry support, intuitive programming, and included R3008SB receiver make it a future-ready choice for high-performance radio control.

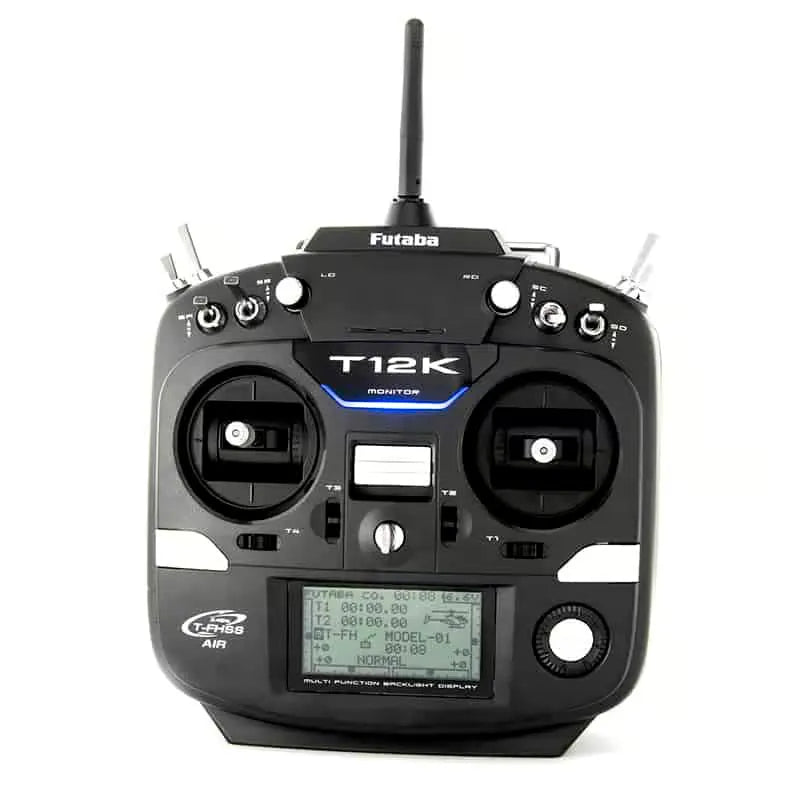

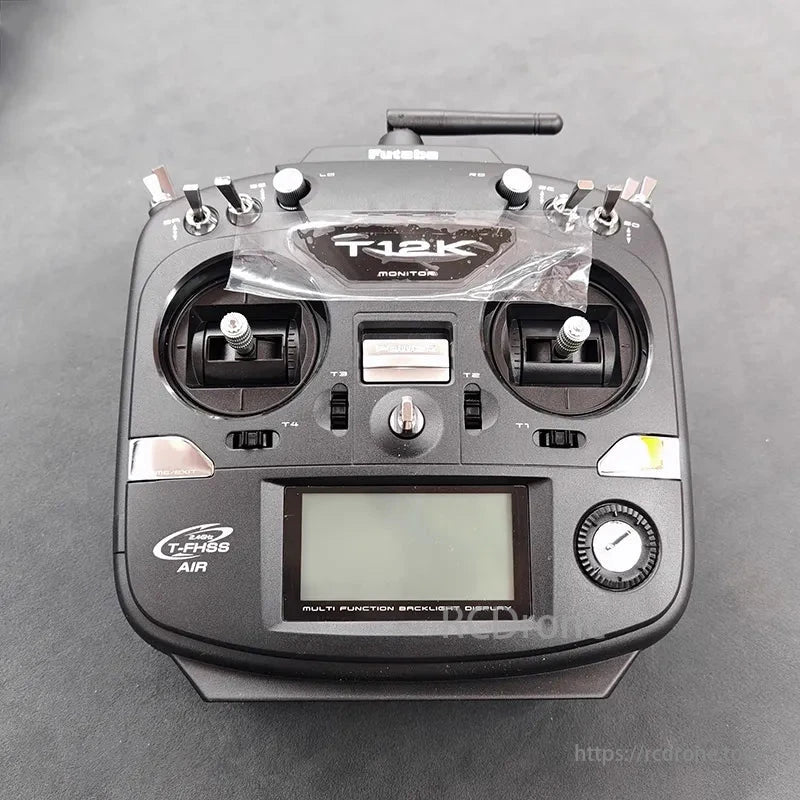

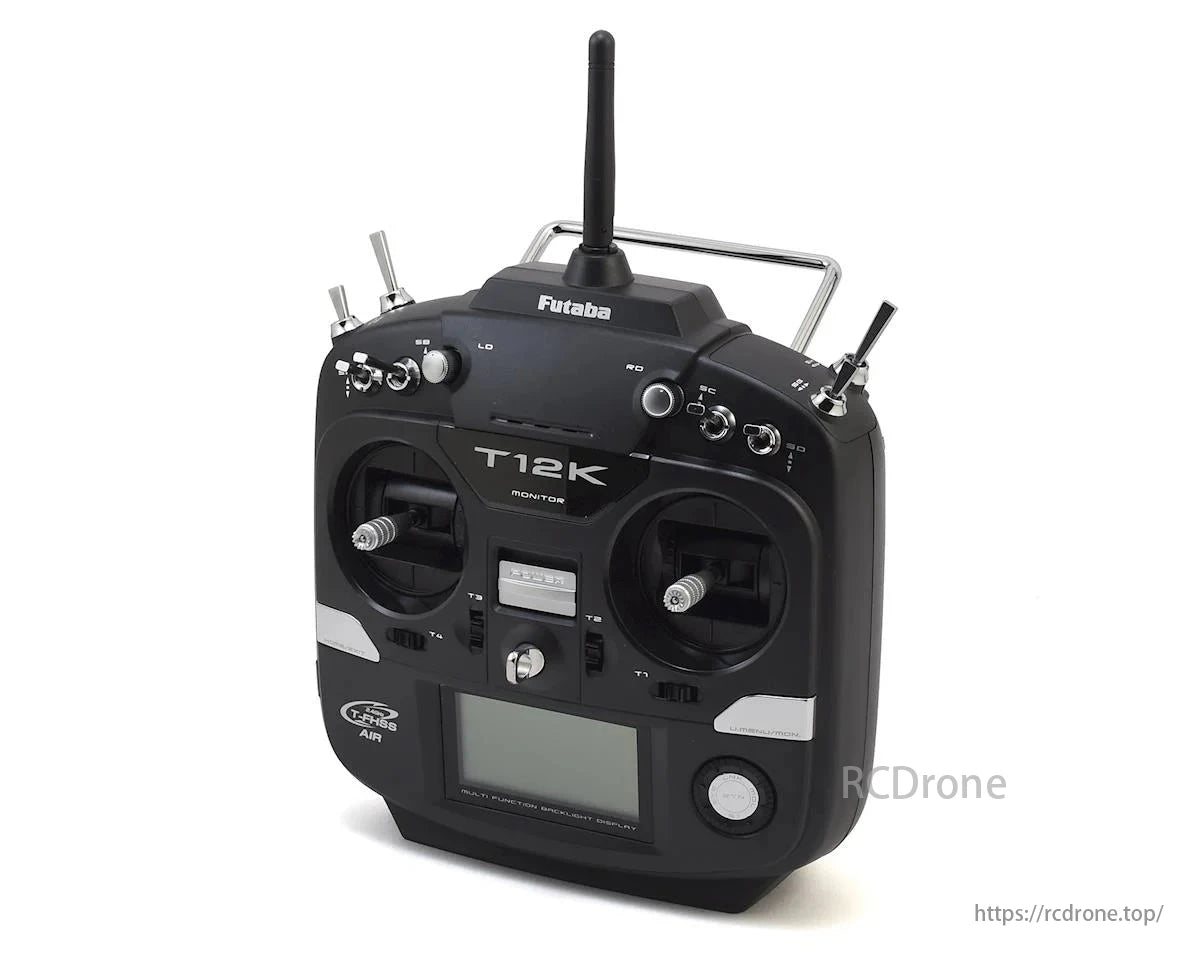

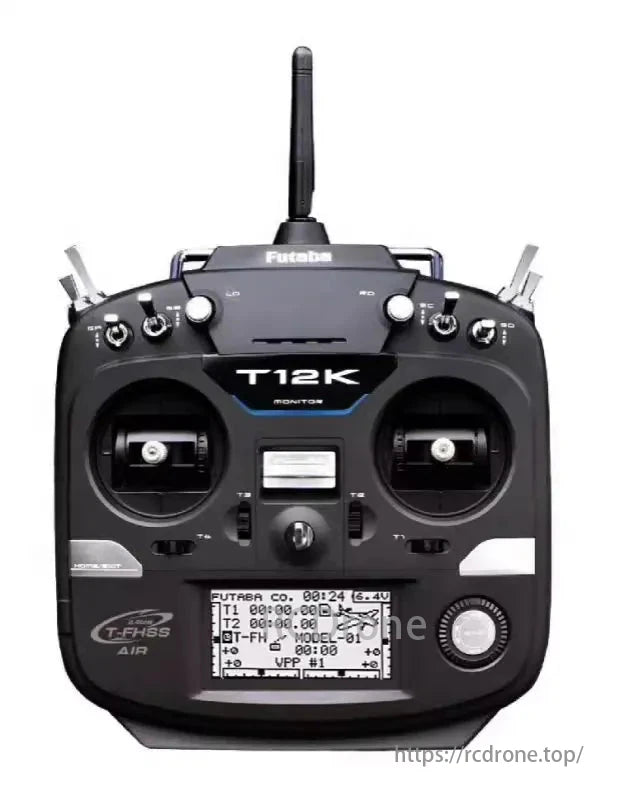

Futaba 12K Radio System with dual joysticks, buttons, and a multi-function backlight display for precise control.
