Futaba BLS-HC600 15.2kg 0.07s 760μs Brushless S.Bus2 Helicopter Servo (HV, 77g)
Futaba BLS-HC600 15.2kg 0.07s 760μs Brushless S.Bus2 Helicopter Servo (HV, 77g)
Futaba
Couldn't load pickup availability
Overview

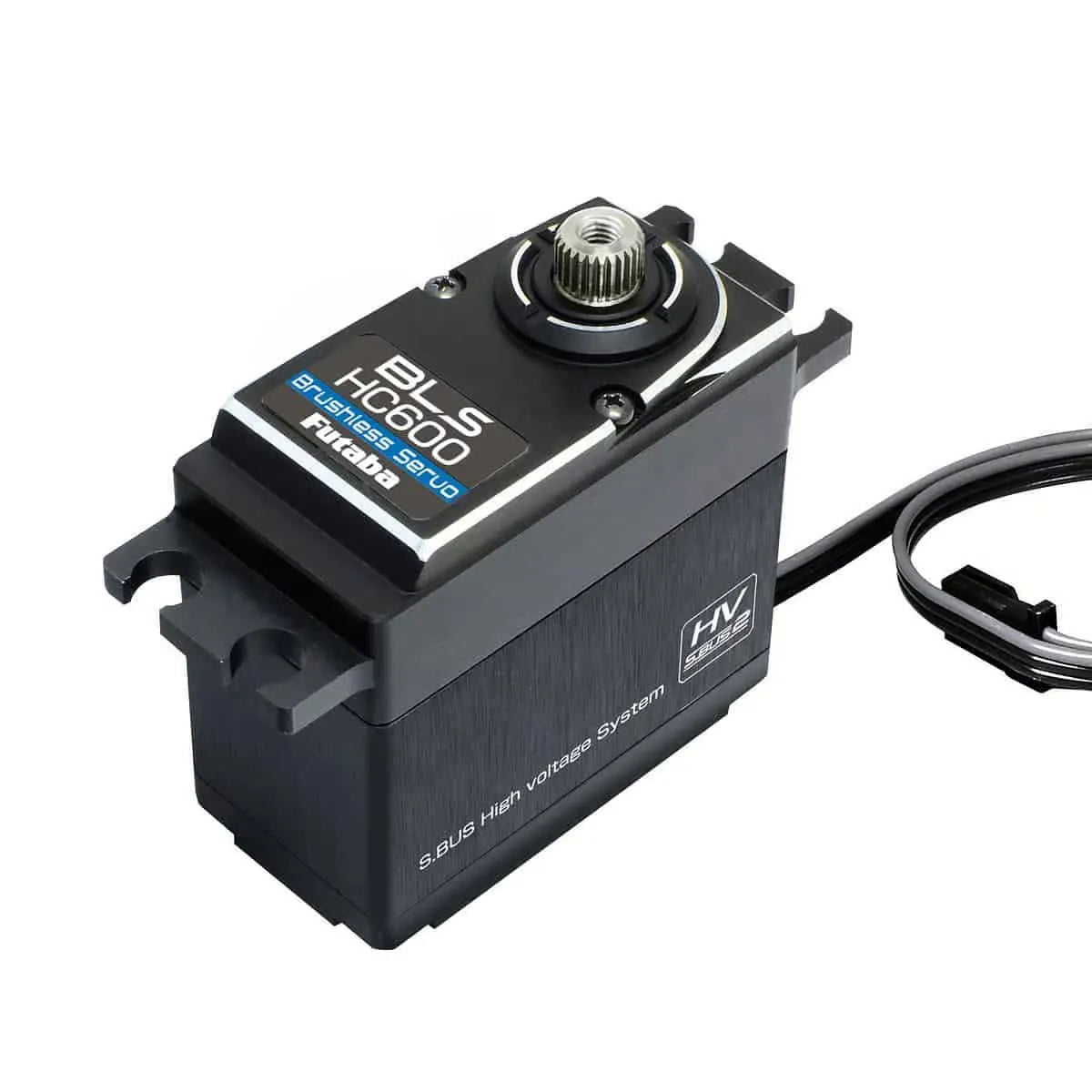

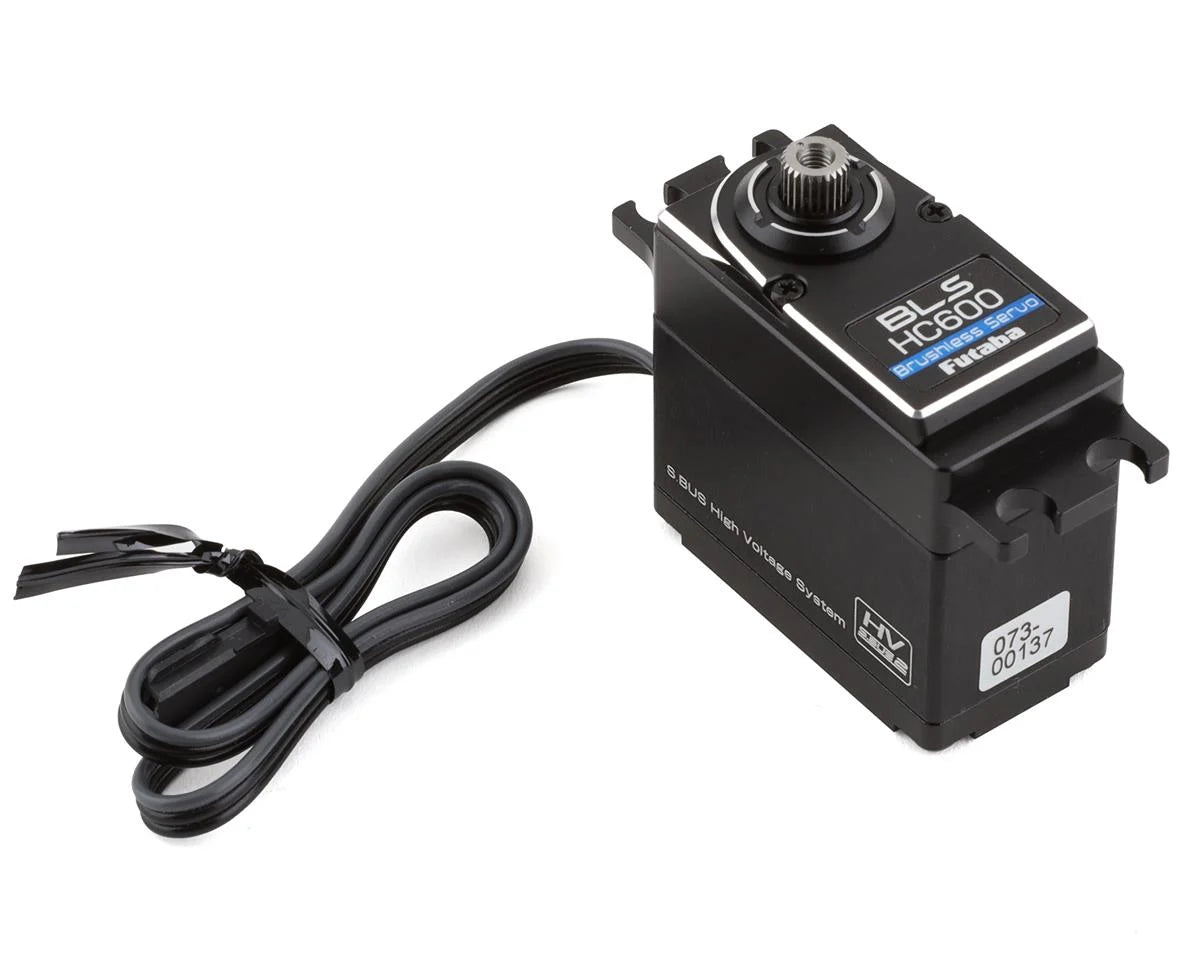

The Futaba BLS-HC600 is a high-voltage 760μs cyclic brushless servo designed specifically for precision RC helicopter applications. It delivers a fast 0.07 sec/60° speed and 15.2 kgf·cm torque at 7.4V, offering the speed and power required for demanding flybarless setups. Built with S.Bus2 digital control, a brushless motor, and a durable aluminum case, this servo ensures accurate and consistent cyclic control.
⚠️ This servo supports 760μs pulse width only. Do not use with systems configured for 1520μs. Not compatible with dry batteries.
Key Features
-
Optimized for helicopter cyclic control (760μs only)
-
High torque: 15.2 kgf·cm @ 7.4V
-
Fast response: 0.07 sec/60° @ 7.4V
-
Brushless motor: Longer life, smoother operation
-
S.Bus2 compatible for advanced setup and telemetry
-
Full aluminum case for heat dissipation and rigidity
-
High-voltage ready: 6.0V – 7.4V rated, up to 8.4V operating
Technical Specifications
| Specification | Value |
|---|---|
| Speed (6.6V) | 0.08 sec/60° |
| Speed (7.4V) | 0.07 sec/60° |
| Torque (6.6V) | 13.6 kgf·cm / 188.9 ozf·in |
| Torque (7.4V) | 15.2 kgf·cm / 211.1 ozf·in |
| Dimensions | 40.5 × 21.0 × 38.4 mm |
| Weight | 77 g / 2.72 oz |
| Rated Voltage | DC 6.0V – 7.4V |
| Operating Voltage | DC 4.0V – 8.4V |
| Pulse Width | 760μs only |
| Motor Type | Brushless |
| Compatibility | S.Bus2 |
