Futaba BLS571SV Low Profile S.Bus2 High Voltage Surface Servo 11kg Torque 0.08s Speed
Futaba BLS571SV Low Profile S.Bus2 High Voltage Surface Servo 11kg Torque 0.08s Speed
Futaba
Couldn't load pickup availability
Overview

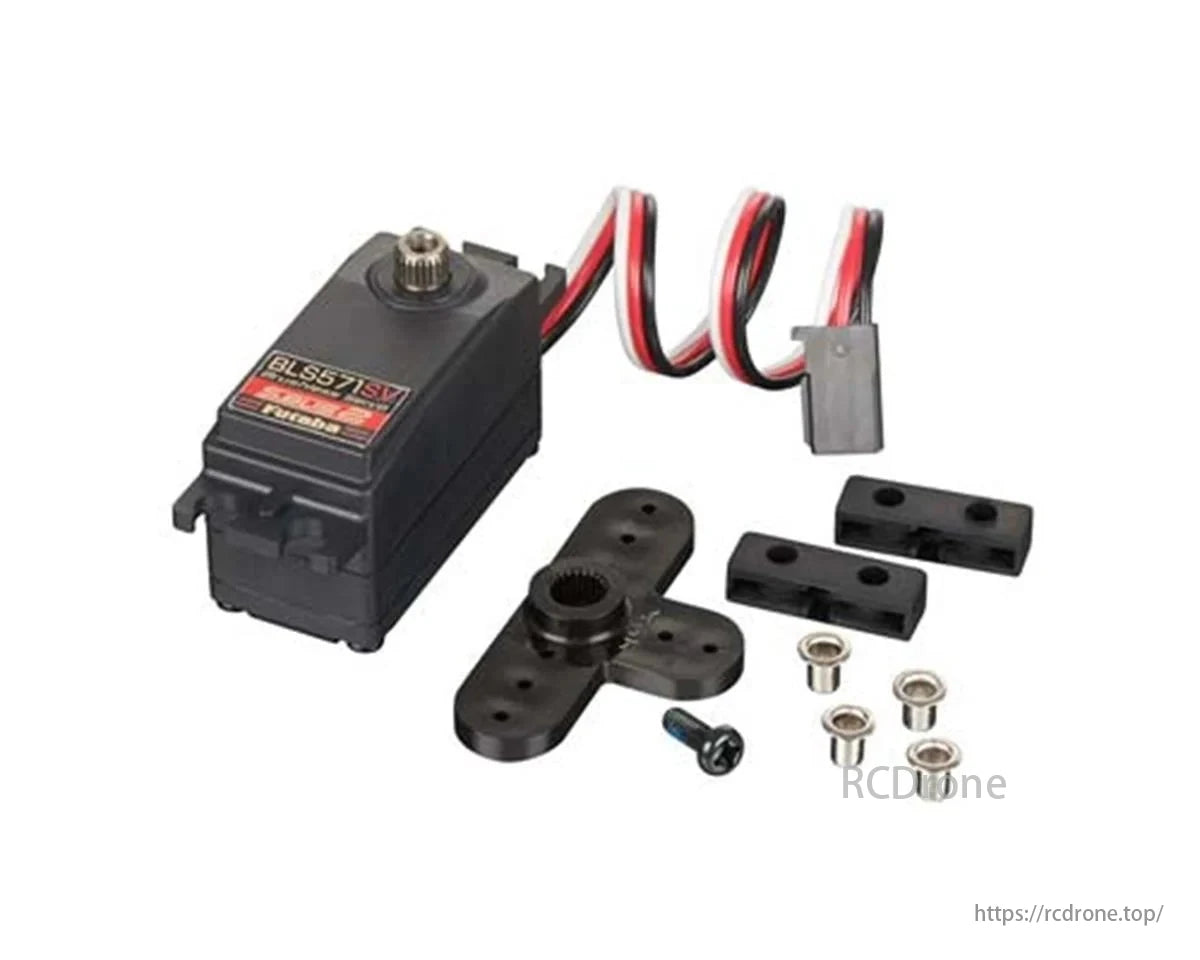

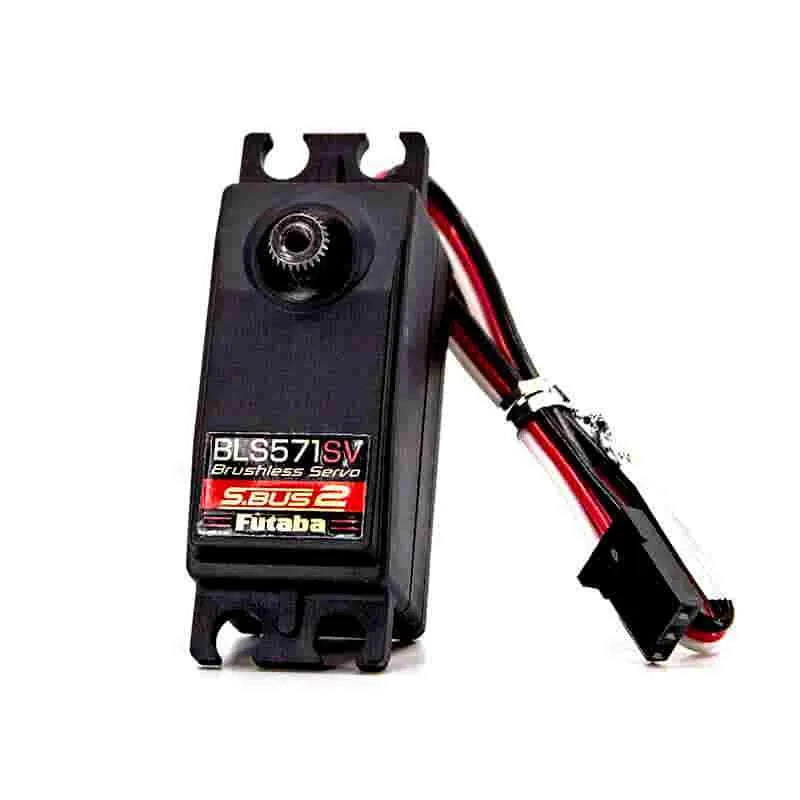

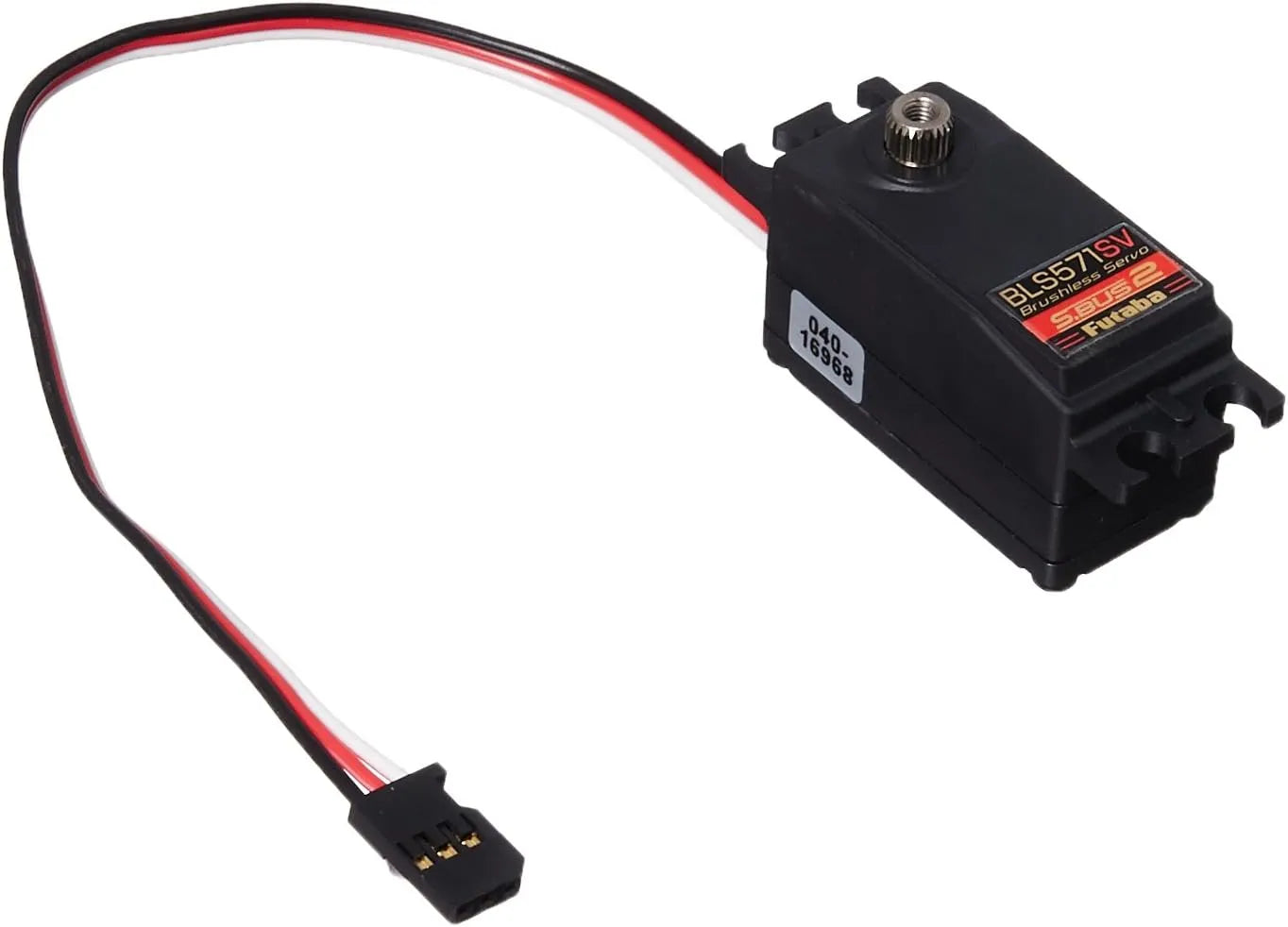

The Futaba BLS571SV is a high-voltage, low-profile surface servo built for competitive RC car racing where space, weight, and speed are critical. With a brushless motor, S.Bus2 programmability, and compact dimensions, this servo delivers fast response and reliable torque, making it ideal for 1/10 touring cars and other performance-focused builds.
Key Features
-
Low Profile Design – Compact size at just 25.4mm height, ideal for tight chassis spaces.
-
Brushless Motor – Provides long life, low heat, and high efficiency.
-
S.Bus2 Programmable – Supports digital tuning for precision control.
-
Fast Response – 0.08 sec/60° at 7.4V for crisp and accurate steering.
-
High Torque – Delivers up to 11 kgf·cm (152.8 ozf·in) at 7.4V.
-
Wide Voltage Range – Rated for 6.0–7.4V, operates from 4.0–8.4V.
Specifications
| Parameter | Value |
|---|---|
| Brand | Futaba |
| Model | BLS571SV |
| SKU | 01102261-3 |
| Motor Type | Brushless Servo |
| Servo Type | Low Profile Surface Servo |
| Speed @ 6.0V | 0.10 sec/60° |
| Speed @ 7.4V | 0.08 sec/60° |
| Torque @ 6.0V | 9.4 kgf·cm / 130.6 ozf·in |
| Torque @ 7.4V | 11.0 kgf·cm / 152.8 ozf·in |
| Dimensions (L×W×H) | 40.5 × 20 × 25.4 mm (1.59 × 0.79 × 1.00 in) |
| Weight | 41 g (1.45 oz) |
| Rated Voltage | DC 6.0V – 7.4V |
| Operating Voltage | DC 4.0V – 8.4V |
| Battery Note | Not compatible with dry batteries |
