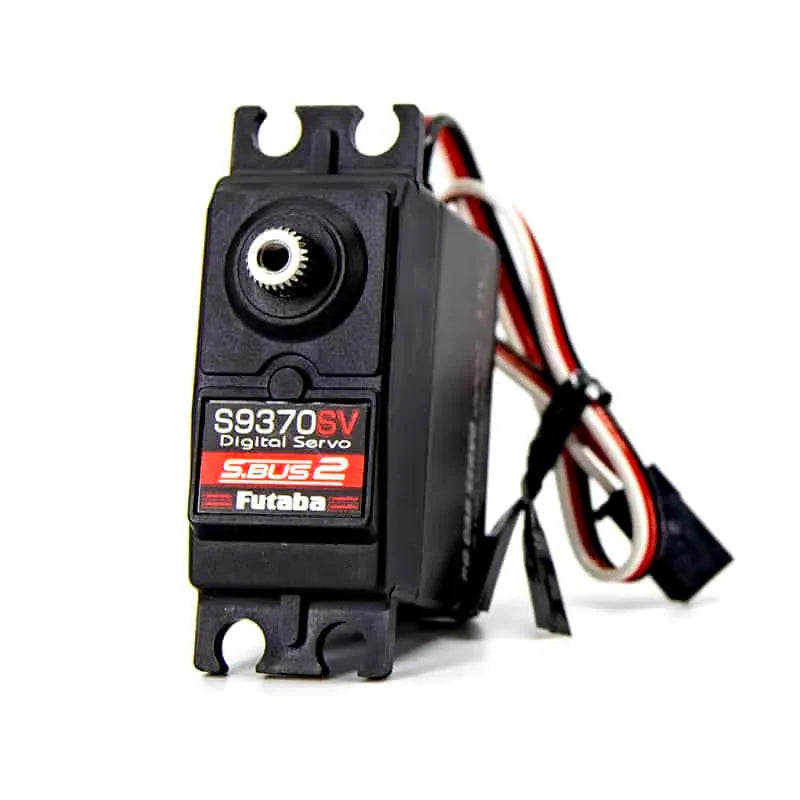

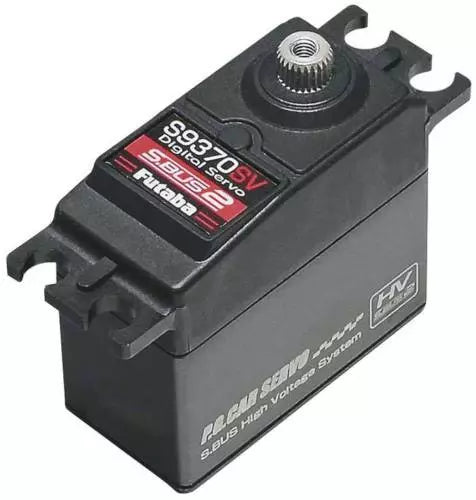

Futaba S9370SV High-Voltage Servo | Coreless Motor, S.Bus2, Titanium Gears for RC Car & Boat

The Futaba S9370SV S.Bus2 High-Voltage Surface Servo offers exceptional precision and reliability for RC car and boat applications. Featuring a powerful coreless motor, hybrid titanium-metal gears, dual ball bearings, and water-resistant construction, it's ideal for high-performance racing or demanding recreational use.

Product Specifications:

• Speed:

  • 0.13 sec/60° at 6.0V

  • 0.11 sec/60° at 7.4V

• Torque:

  • 13.8 kgf·cm (191.7 ozf·in) at 6.0V

  • 16.8 kgf·cm (233.4 ozf·in) at 7.4V

• Dimensions: 40 mm x 20 mm x 36.8 mm (1.57 in x 0.79 in x 1.45 in)

• Weight: 61 g (2.15 oz)

• Rated Voltage: DC 6.0V-7.4V

• Operating Voltage: DC 4.0V-8.4V

• Motor Type: Coreless Servo

• Gear Type: Hybrid (Titanium/Metal)

• Bearing: Dual Ball Bearings

• Water Resistance: Yes

• Compatibility: S.Bus, S.Bus2

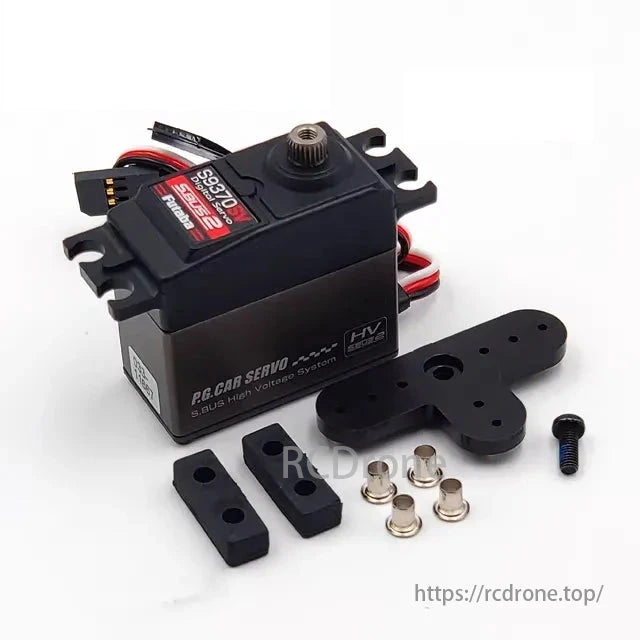

What's Included:

• Futaba S9370SV HV SB2 Servo

• 1.8" (44 mm) 3-Point Servo Horn

• Two Rubber Grommets

• Four Eyelets

• Servo Horn Screw (3x8 mm)

• Instruction Manual

Details

Product:#aaetiar. Dimensions:41314x7314. Speed:59670Sv. Features:ZF1 (1/10), HPS-CT700 (0-J0). Power:53005, 53470SV. Weight:704 (1/8). Group:BLS37ISV. Model:S9370sv. Other specs:59372Sv, 1/8, #0.
