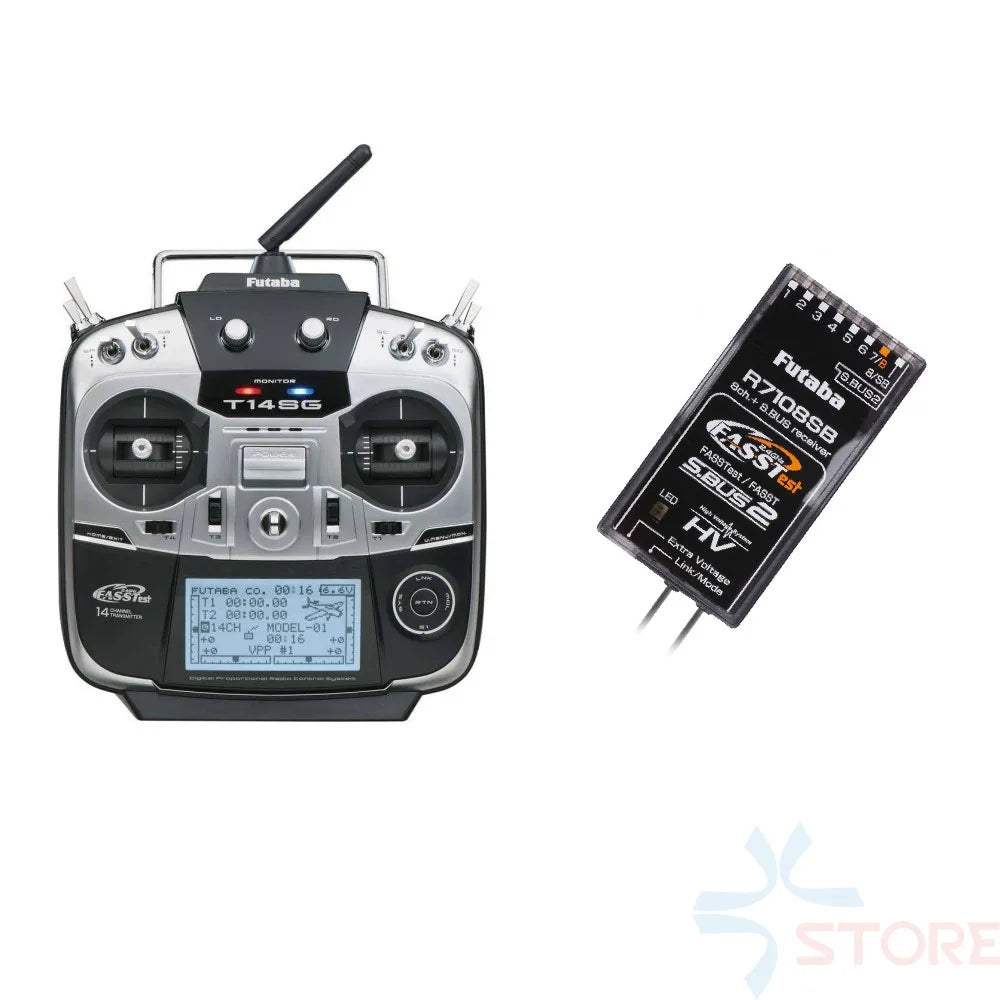

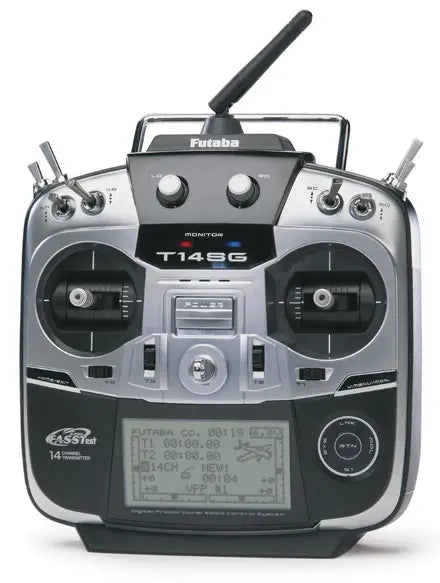

Futaba T14SG Transmitter - 2.4GHz 14ch FASSTest Radio System Remote Controller For Alrplane

Overview

Experience next-level RC performance with the Futaba T14SG – a 14-Channel Digital Proportional RC System operating on 2.4GHz FASSTest technology. Engineered for airplane and helicopter pilots, this transmitter delivers bidirectional telemetry, S.Bus2 compatibility, and a range of pre-set model types for versatile control. Weighing just 1,814 g (64 oz) and measuring 17 × 10 × 5 in, the T14SG features a large backlit LCD, an intuitive Touch Sensor interface, and programmable mixes. It’s the perfect choice for demanding hobbyists seeking Futaba’s signature reliability and expandability.

Note: A 6.0 V/1,800 mAh NiMH battery is not included due to shipping regulations.

Key Features

• FASSTest System

  • Utilizes Futaba’s advanced 2.4GHz technology for real-time telemetry feedback.
  • Offers up to 14 channels (12 linear + 2 switch channels).

• S.Bus2 Compatibility

  • Simplifies wiring for multiple servos, gyros, and telemetry sensors.
  • Ideal for complex airplane and helicopter setups.

• Versatile Model Programming

  • Six swashplate types for helicopters.
  • Six main wing types and three tail wing types for airplanes/gliders.
  • Factory-set mixing functions for quick and easy model configuration.

• Intuitive Interface

  • Large graphic LCD with Touch Sensor control.
  • Two Edit Buttons for rapid navigation and quick return to the Home screen.

• Ergonomic & Adjustable Sticks

  • Customize stick length, tension, and feel to suit your preferences.
  • Rubber grips reduce fatigue during extended flights.

• SD Card Support (SD Card Not Included)

  • Save and transfer model data (SD: 32MB–2GB; SDHC: 4GB–32GB).
  • Update firmware to access new features and improvements.

• Vibration Alerts

  • Stay informed with haptic feedback for critical alarms and telemetry notices.

Specifications

• Model: Futaba T14SG (2-Stick, 14-Channel FASSTest System)
• Frequency: 2.4GHz band
• System Protocols: FASSTest (14CH/12CH), FASST MULT/7CH, S-FHSS
• Power Supply: 6.0 V, 1,800 mAh NiMH battery (not included)
• Dimensions: 17 × 10 × 5 in
• Weight: 1,814 g (64 oz)
• Product: Transmitter
• Hobby Version: Air, Heli
• Hobby: Airplane, Helicopter

Futaba T14SG Details

Futaba T14SG Transmitter - EUTABA Co. Model T1486 with 2.4GHz Frequency, 16 Channels, and FASST (Full-Auto Slope Switch Technology) for high-speed response and reliability.

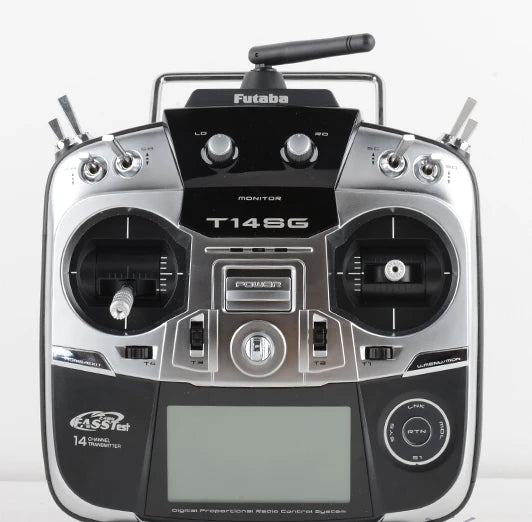

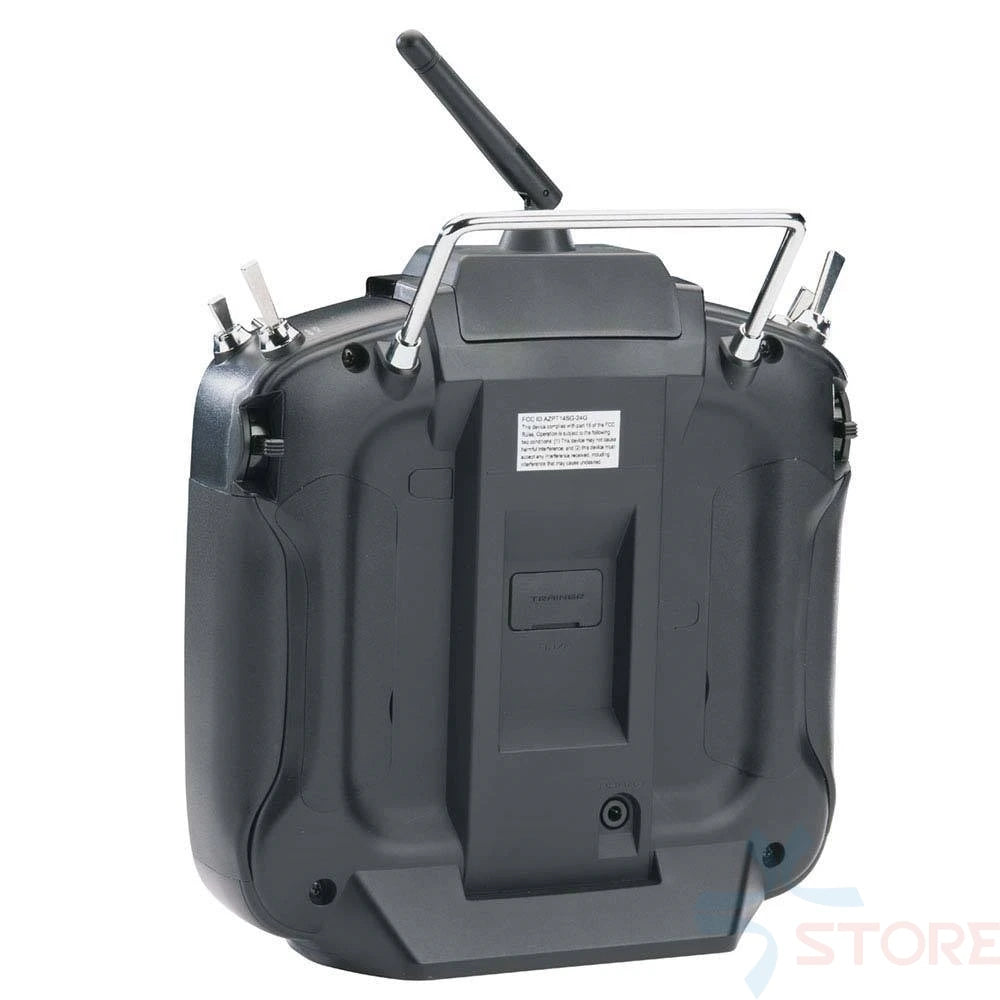

Futaba T14SG transmitter features adjustable gimbals, XIDE switch, and battery compartment with SD card slot for control.

FUTABA Co. 14SG Transmitter Telemetry Screen: Battery Temperature, I/O Gear, Servo Speed, and more. Home Screen with user-configurable menus for system settings, telemetry functions, and fine tuning options.

About the Futaba T14SG: Airplane Features include helicopter features, with proportional and differential ailerons. Channels are supported for different wing types, swash plate types, and tail types. It is compatible with FASSTest and FASST FHSS protocols, featuring telemetry and sensors. The transmitter also includes flap setting, pitch/throttle curves (5-point), and protocols for different rudder types.

Futaba T14SG transmitter features Iralner system, Camber M1x1nz, Servo adjust, Elevator camber Mx1nz, programmable mixes, V-tail, Ailvator, winglet, Totor mixing, Butterfly mixing, internal &ammer for Bus Gert 05, User Metln Serv (neutral and moving tests), count up/countdown timers, Integral timer, Quick model select, Stock System, Hodel timer.

Futaba T14SG transmitter offers 4-channel proportional control with reliable and robust radio system performance guaranteed.
