EMax GB4114 Brushless Motor (Solid Shaft Output) - Ø46mm, Ø19.0±0.1mm, 4-M3, JR 300mm Lead
EMax GB4114 Brushless Motor (Solid Shaft Output) - Ø46mm, Ø19.0±0.1mm, 4-M3, JR 300mm Lead
Emax
Regular price
$31.80 USD
Regular price
Sale price
$31.80 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

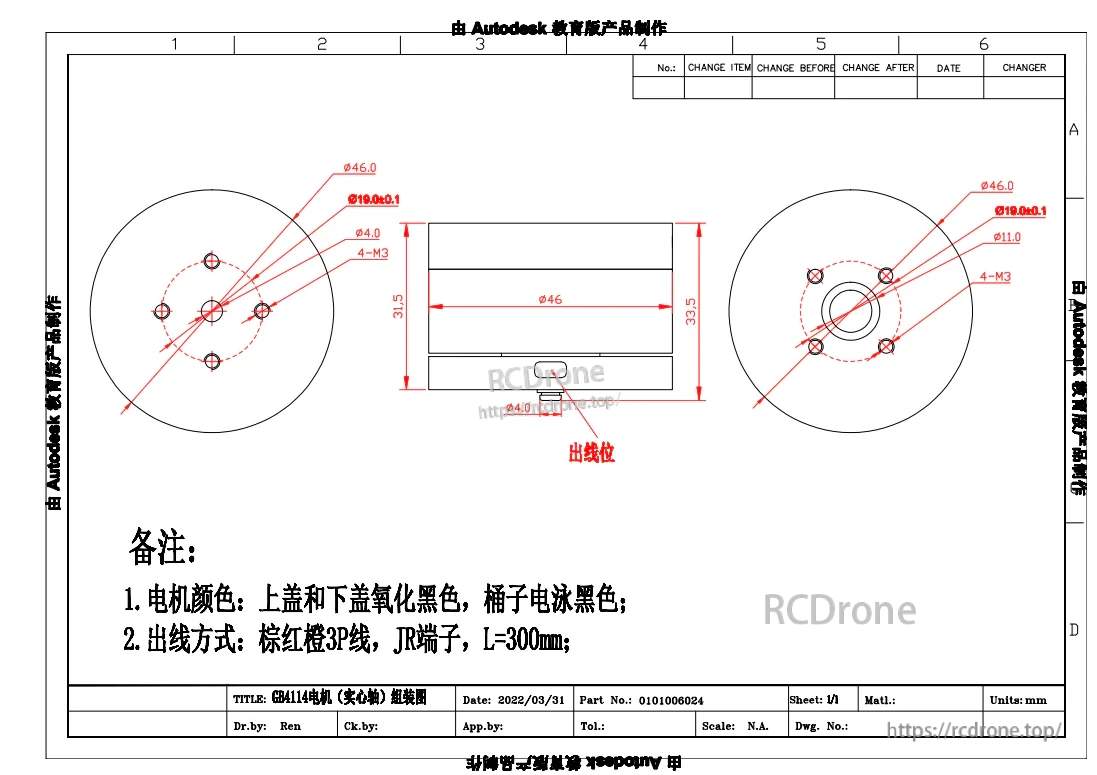

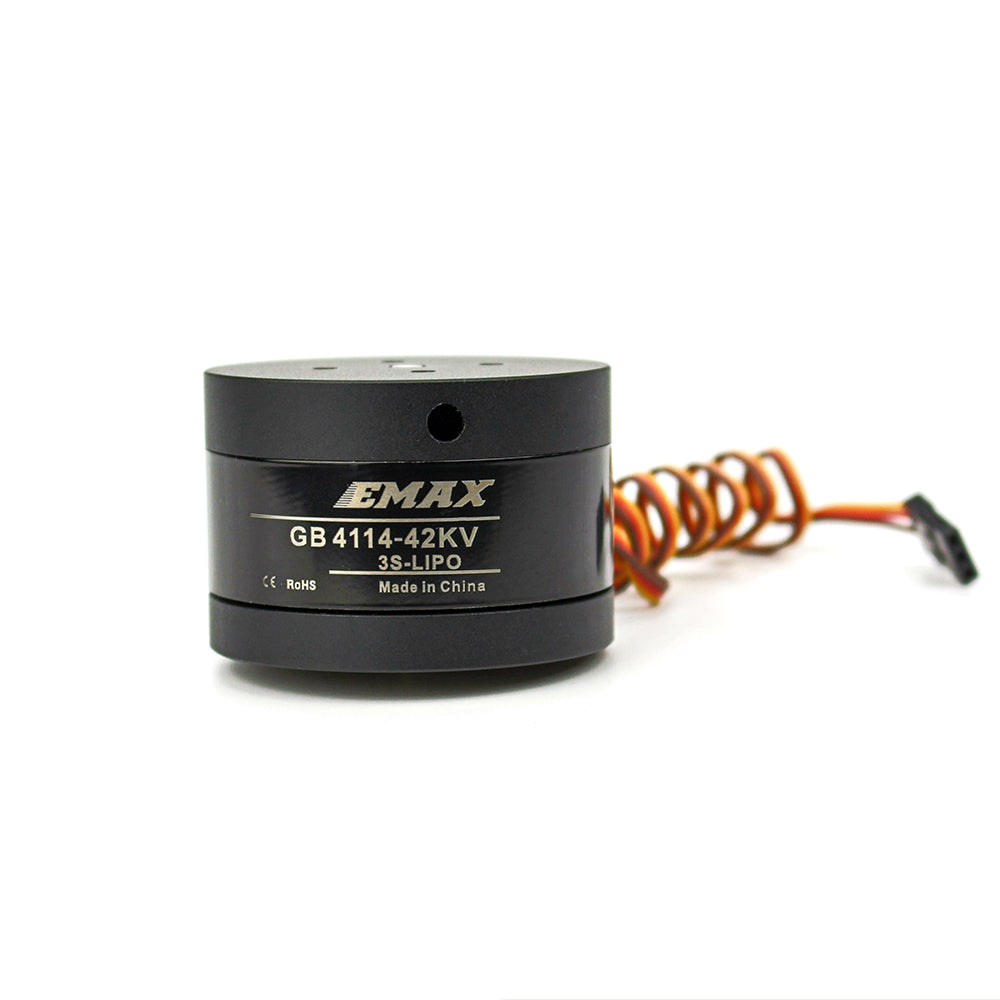

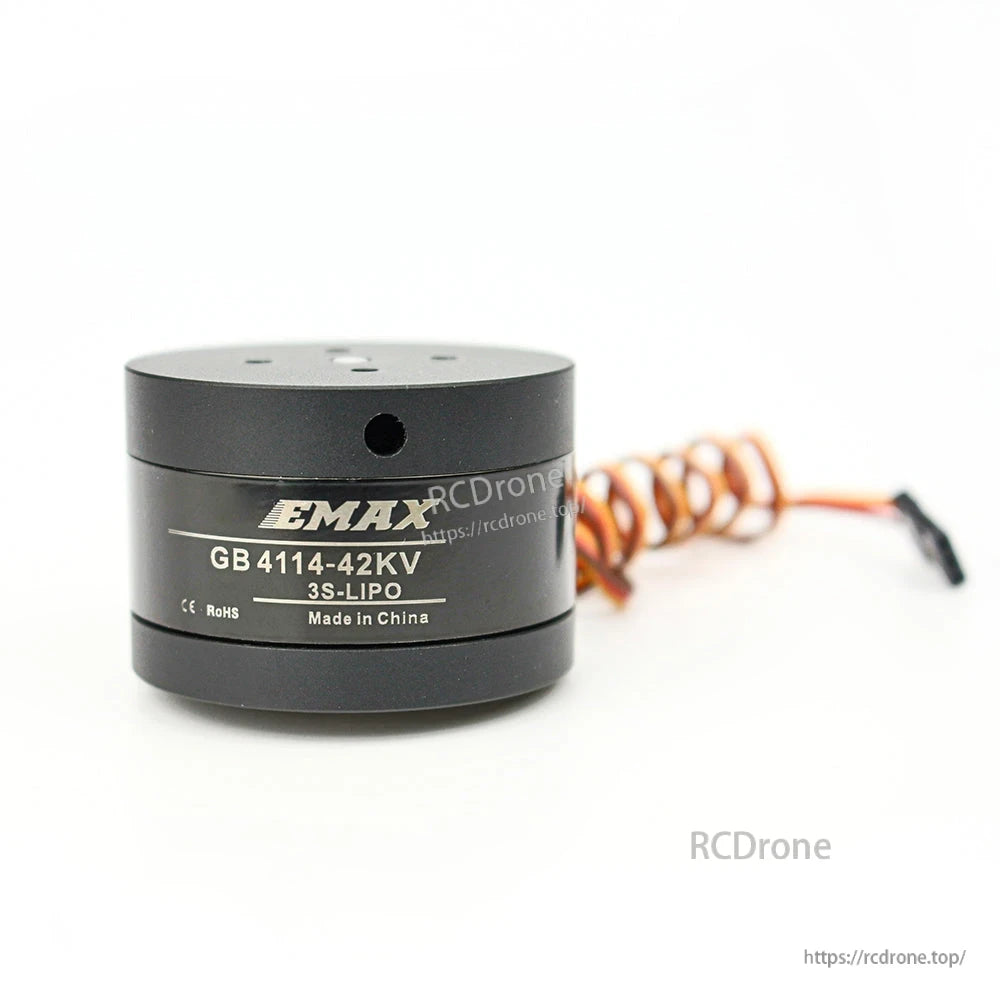

The EMax GB4114 is a brushless motor with solid shaft output, supplied with a dimensional drawing for mounting and integration. Dimensions and wiring details below follow the provided GB4114 (solid shaft) assembly drawing (units: mm).
Key Features

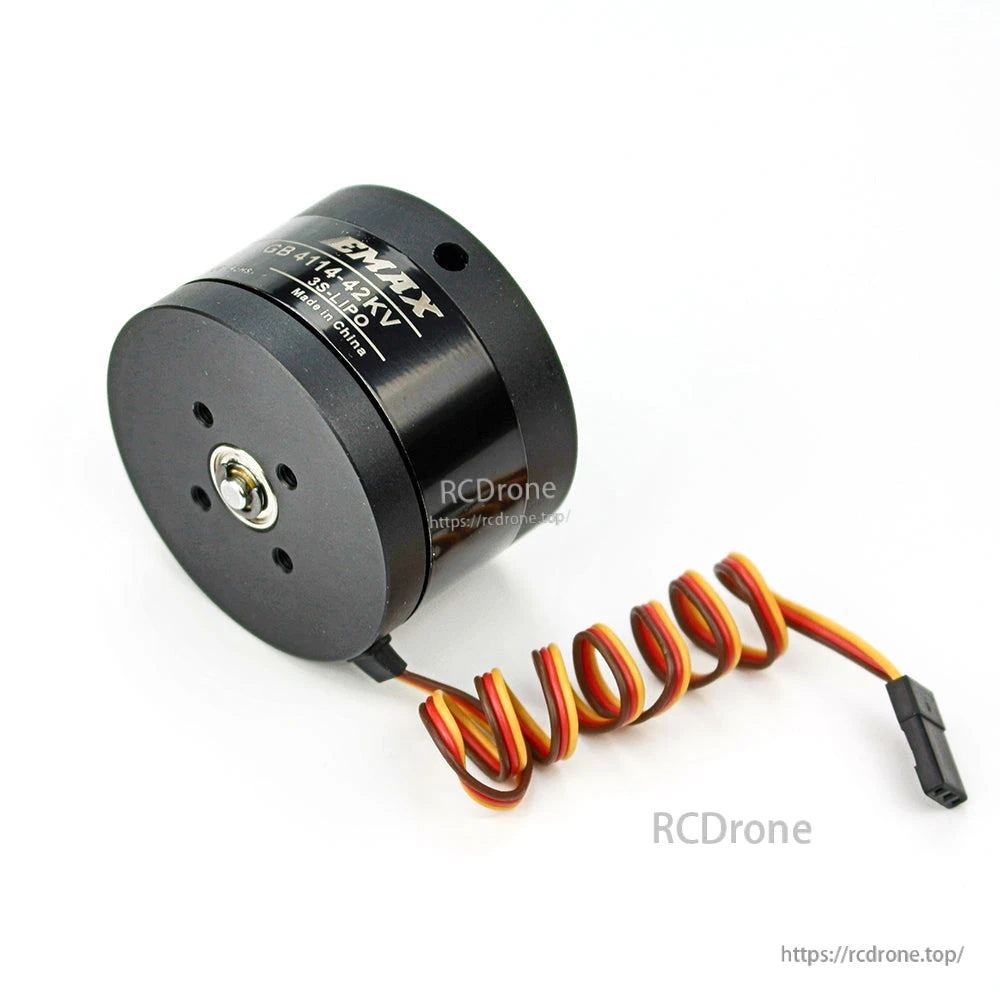

- Solid shaft output (GB4114 solid shaft version)

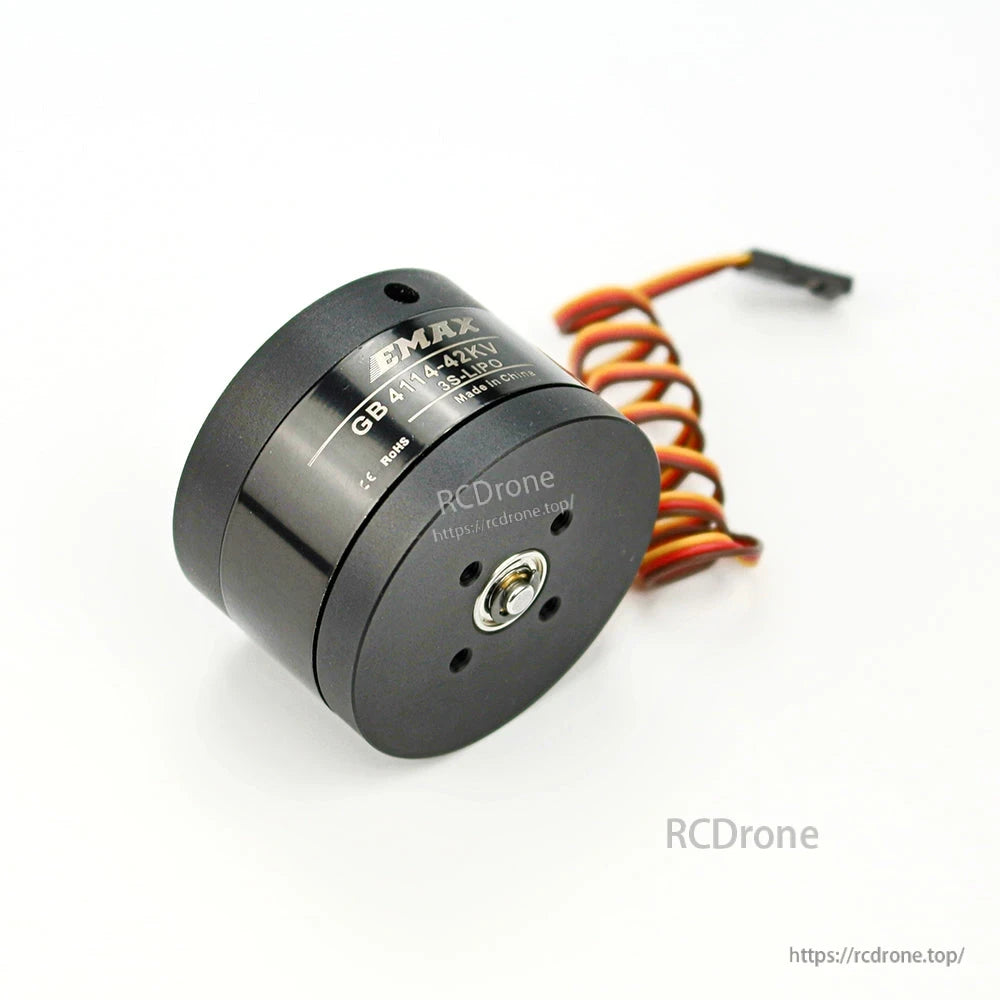

- 4-hole mounting pattern labeled “4-M3”

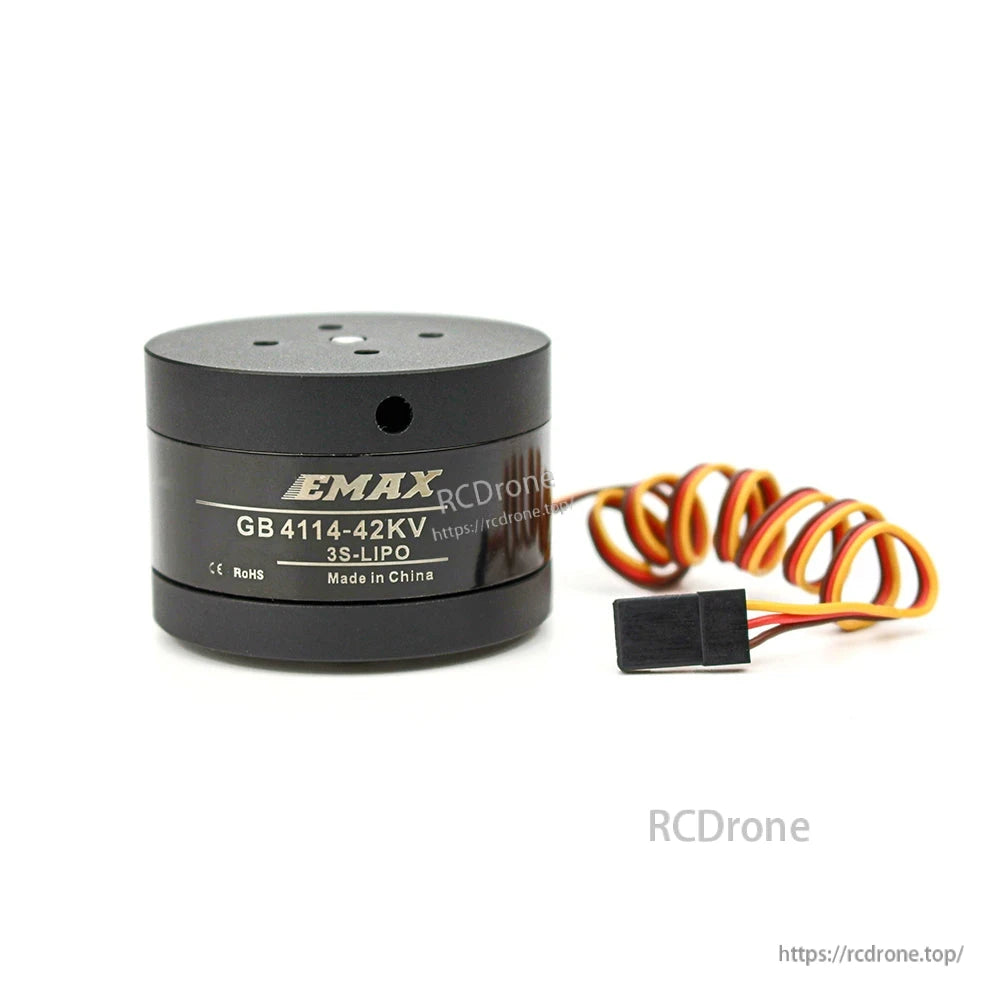

- 3 motor wires (brown/red/orange) with JR connector; lead length L=300 mm

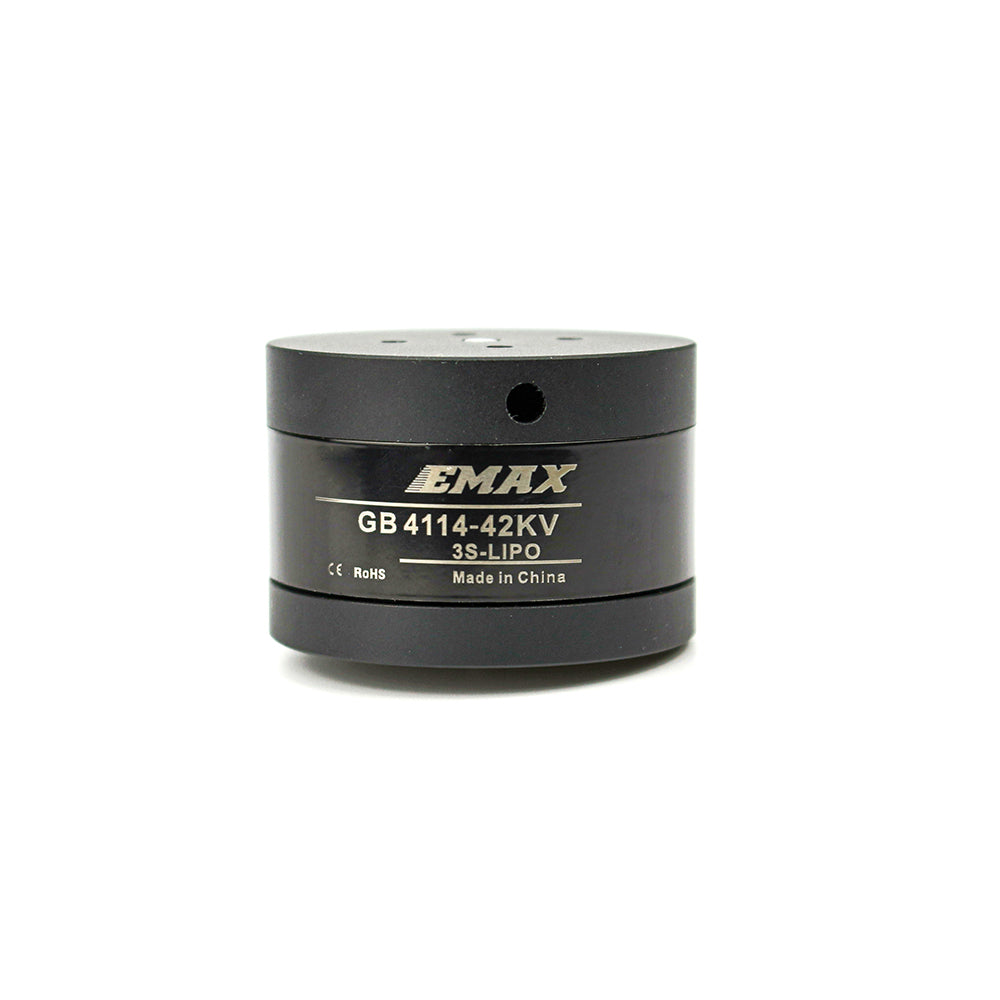

- Stated finish/color: upper cover and lower cover anodized black; bell electrophoresis black
Specifications
| Model | GB4114 (solid shaft) |
| Units | mm |
| Outer diameter | Ø46.0 |
| Body diameter (side view callout) | Ø46 |
| Mounting circle / reference diameter (callout) | Ø19.0 ±0.1 |
| Center bore (callout) | Ø11.0 |
| Mounting holes (callout) | Ø4.0; 4-M3 |
| Height (callout) | 31.5 |
| Overall height (callout) | 33.5 |
| Wire configuration | 3 wires (brown/red/orange), JR connector |
| Wire length | L=300 mm |
| Drawing title | GB4114 motor (solid shaft) assembly drawing |
| Date | 2022/03/31 |
| Part No. | 0101006024 |
| Sheet | 1/1 |
Applications
- Replacement or integration use where a GB4114 brushless motor with solid shaft output and the listed mounting dimensions is required
For compatibility checks (mounting, shaft/output fit, wiring/connector matching), contact support@rcdrone.top or visit https://rcdrone.top/.
Details
Use the dimensional drawing to confirm mounting pattern and clearances before integrating the motor into your frame or mount.
