GEPRC GEP-TAKER G4 35A AIO Flight Controller, STM32G473, ICM42688-P, 2-4S, Type-C, 5V 3A

GEPRC GEP-TAKER G4 35A AIO Flight Controller, STM32G473, ICM42688-P, 2-4S, Type-C, 5V 3A

GEPRC

$92.00 USD
$92.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The GEPRC GEP-TAKER G4 35A is an AIO flight controller designed around the STM32G473 (G473) main control for higher computing headroom. It features an upgraded Type-C USB interface, optimized power and motor pads for easier soldering, and supports 25.5–26.5 mm mounting patterns for broader frame compatibility.

Key Features

  • MCU: STM32G473CEU6 (G473), 170 MHz operating frequency
  • IMU: ICM 42688-P
  • Type-C USB interface
  • Integrated Betaflight OSD with AT7456Ev
  • BEC output: 5V@3A
  • ESC: 35A continuous, 45A burst (5")
  • Input voltage: 2~4S (LIPO Battery)
  • ESC protocols: Dshot600, Oneshot, Multishot
  • Onboard buzzer and LED support
  • Current meter: YES
  • Silkscreen pad labels include: UBAT, GND, CAM, UTX, TA6, RX4; SDA, SCL, TX5, RX5, 5V, GND

Specifications

Model Name TAKER G4 35A AIO
MCU STM32G473CEU6
IMU ICM 42688-P
Firmware target TAKERG4AIO
OSD Betaflight OSD w/ AT7456Ev
UART R1 T1 / R2 T2 / R4 T4 / R5 T5
Buzzer YES
LED YES
USB Type-c USB
BEC output 5V@3A
ESC MCU BB21F16G
Continuous Current 35A
Burst Current 45A (5")
Input Voltage 2~4S (LIPO Battery)
Supports Dshot600, Oneshot, Multishot
Current meter YES
Target J -H -15
Size 33.3 x 34.4 mm board
Install hole 25.5-26.5 mm, Φ3.05 mm
Weight 7.7 g

For setup and compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

What's Included

  • 1 x GEP-TAKER G4 35A AIO
  • 1 x Cable set
  • 1 x Capacitor
  • 1 x Rubber grommet set
  • 1 x XT30 power lead

Details

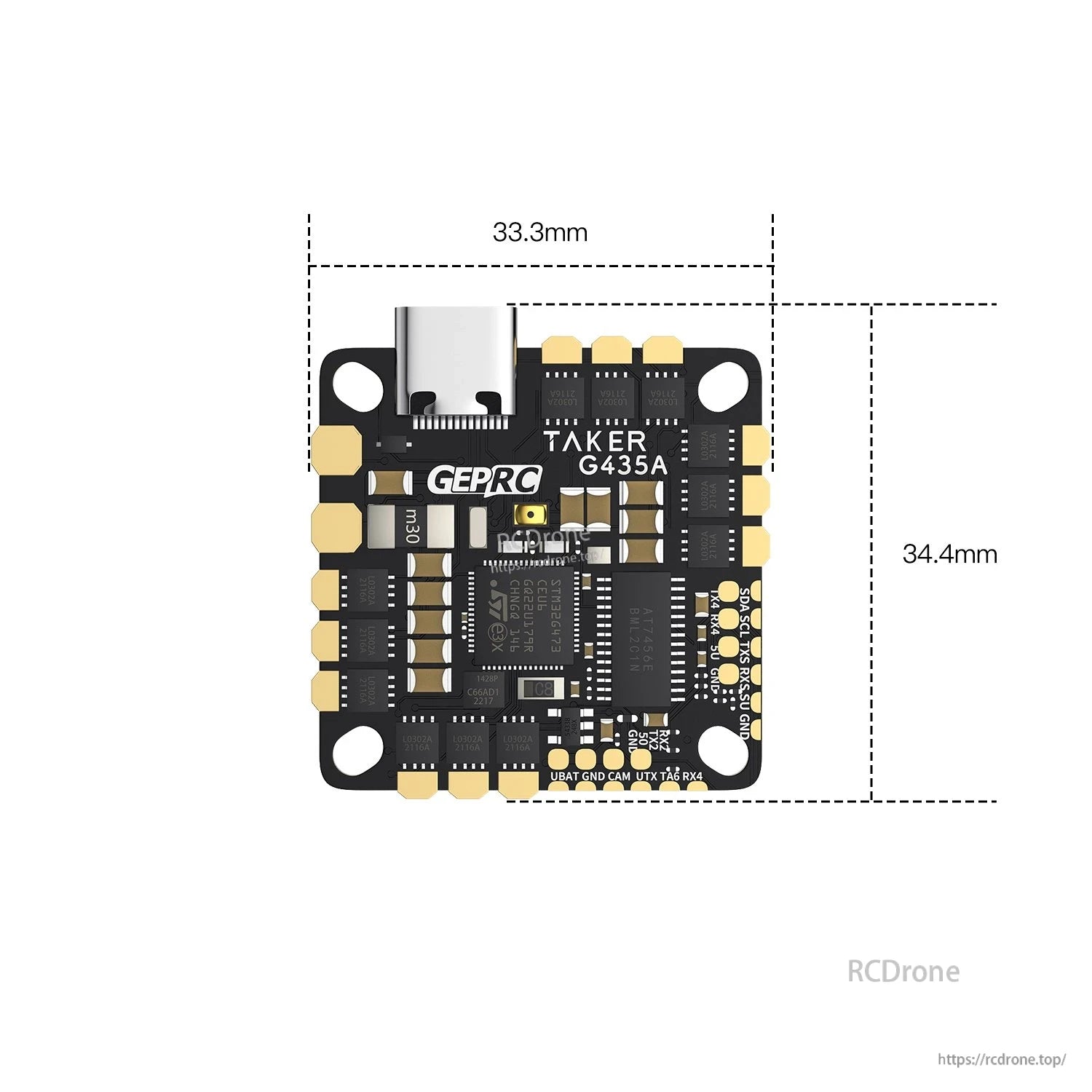

GEPRC GEP-TAKER G4 35A AIO Flight Controller, GEPRC TAKER G435A AIO flight controller board with USB-C port, solder pads, and 33.3 x 34.4 mm dimensions

The GEPRC TAKER G435A AIO board uses a compact layout with a USB-C port and clearly labeled pads for UBAT, CAM/VTX, and UART connections.

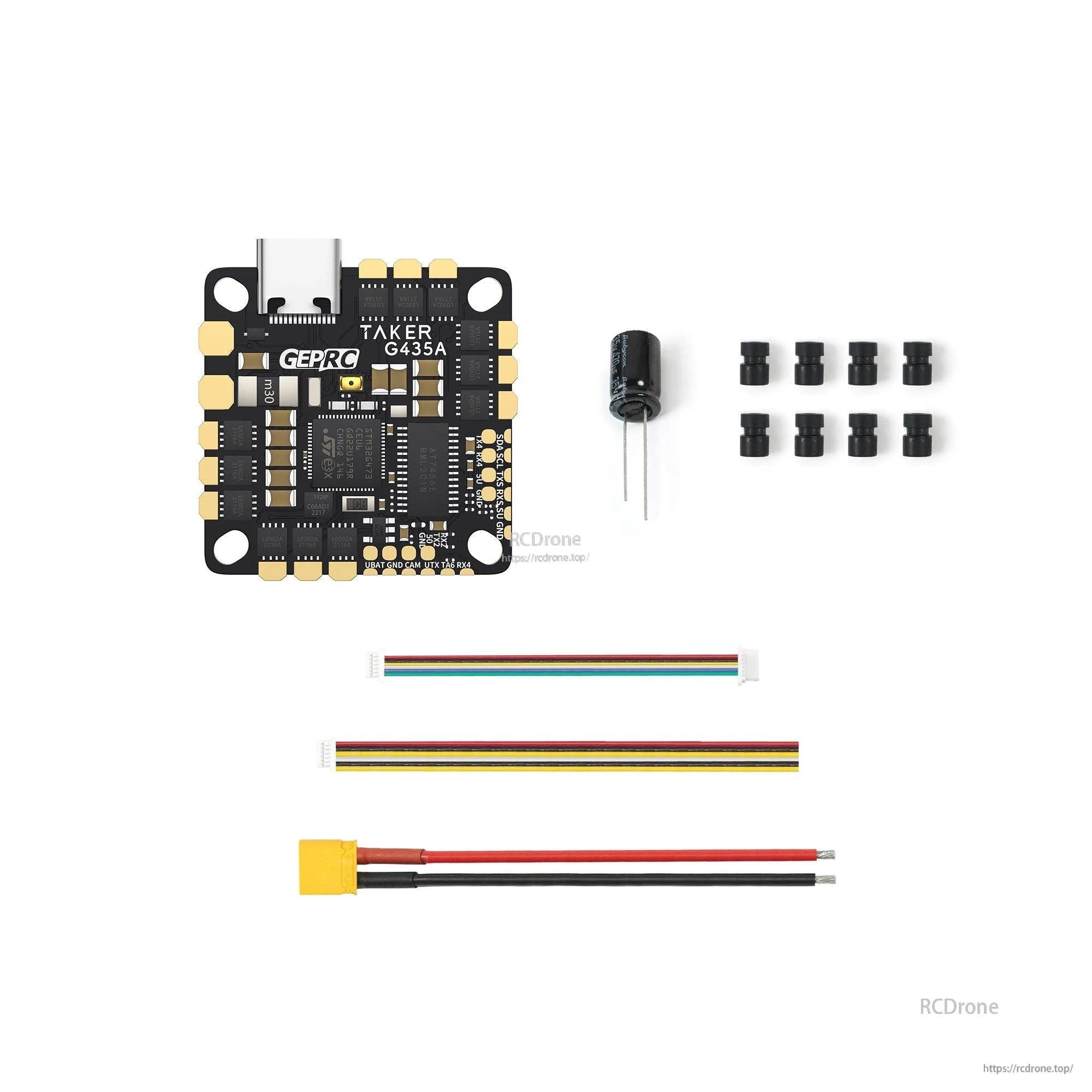

GEPRC GEP-TAKER G4 35A AIO Flight Controller, GEPRC TAKER G4 35A AIO flight controller board with USB-C port, capacitor, soft mounts, and wiring harnesses

The GEPRC TAKER G4 35A AIO board includes a USB-C port, solder pads, and a basic wiring set with capacitor and XT30 power lead for straightforward installs.

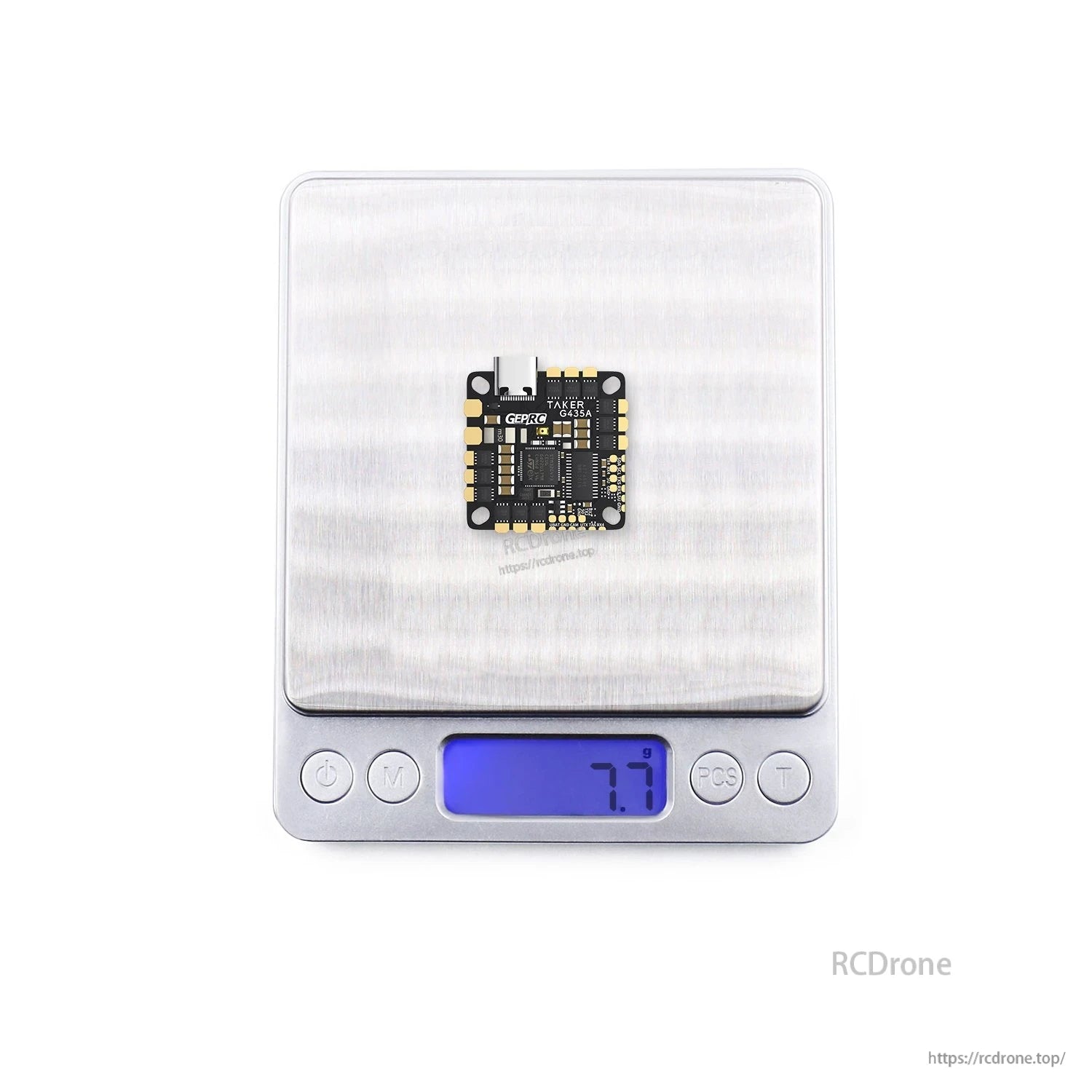

GEPRC GEP-TAKER G4 35A AIO Flight Controller, GEPRC TAKER G4 35A AIO flight controller board with USB-C port, shown on scale at 7.7 g

The GEPRC TAKER G4 35A AIO flight controller has a USB-C port and weighs about 7.7 g on the scale.
