Summary

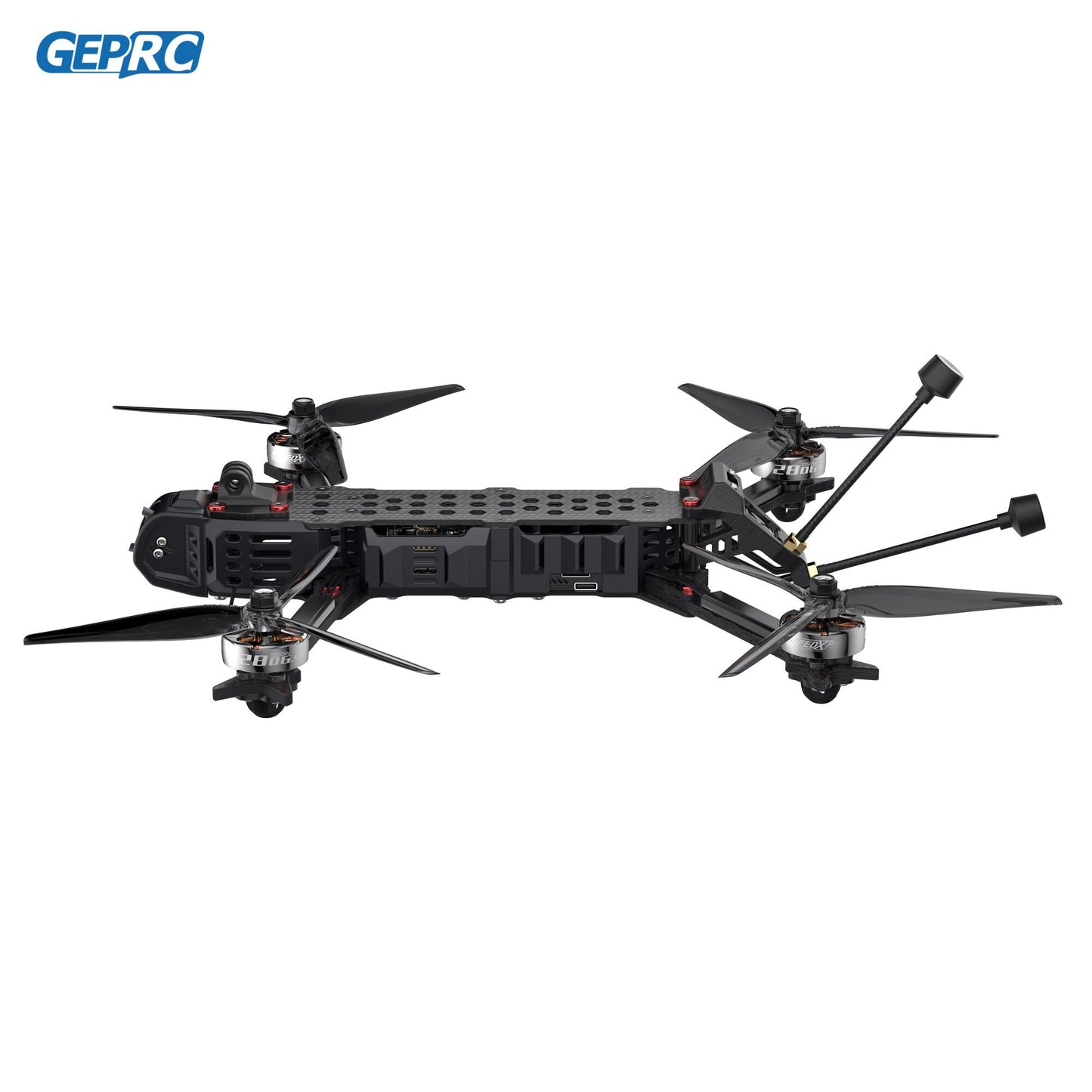

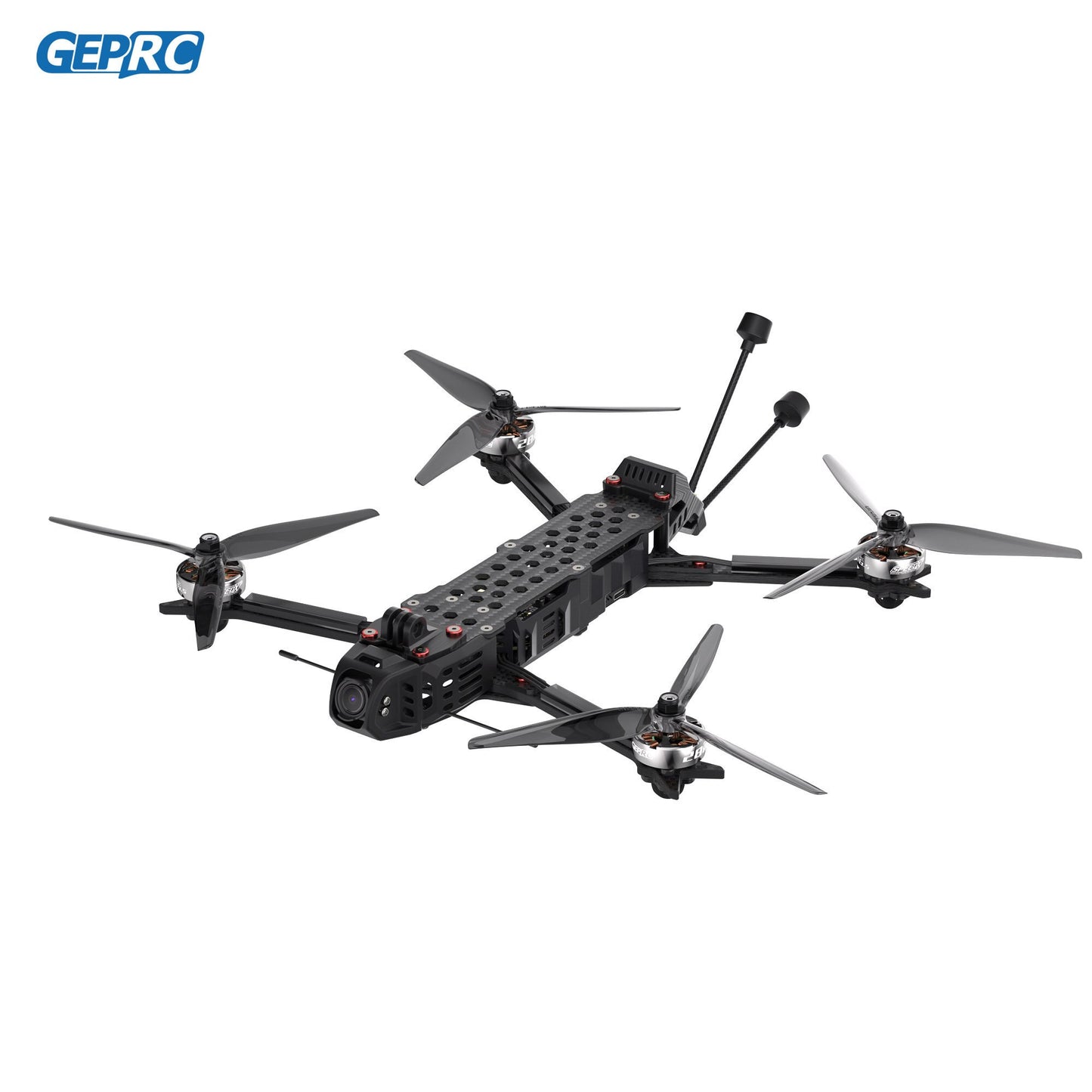

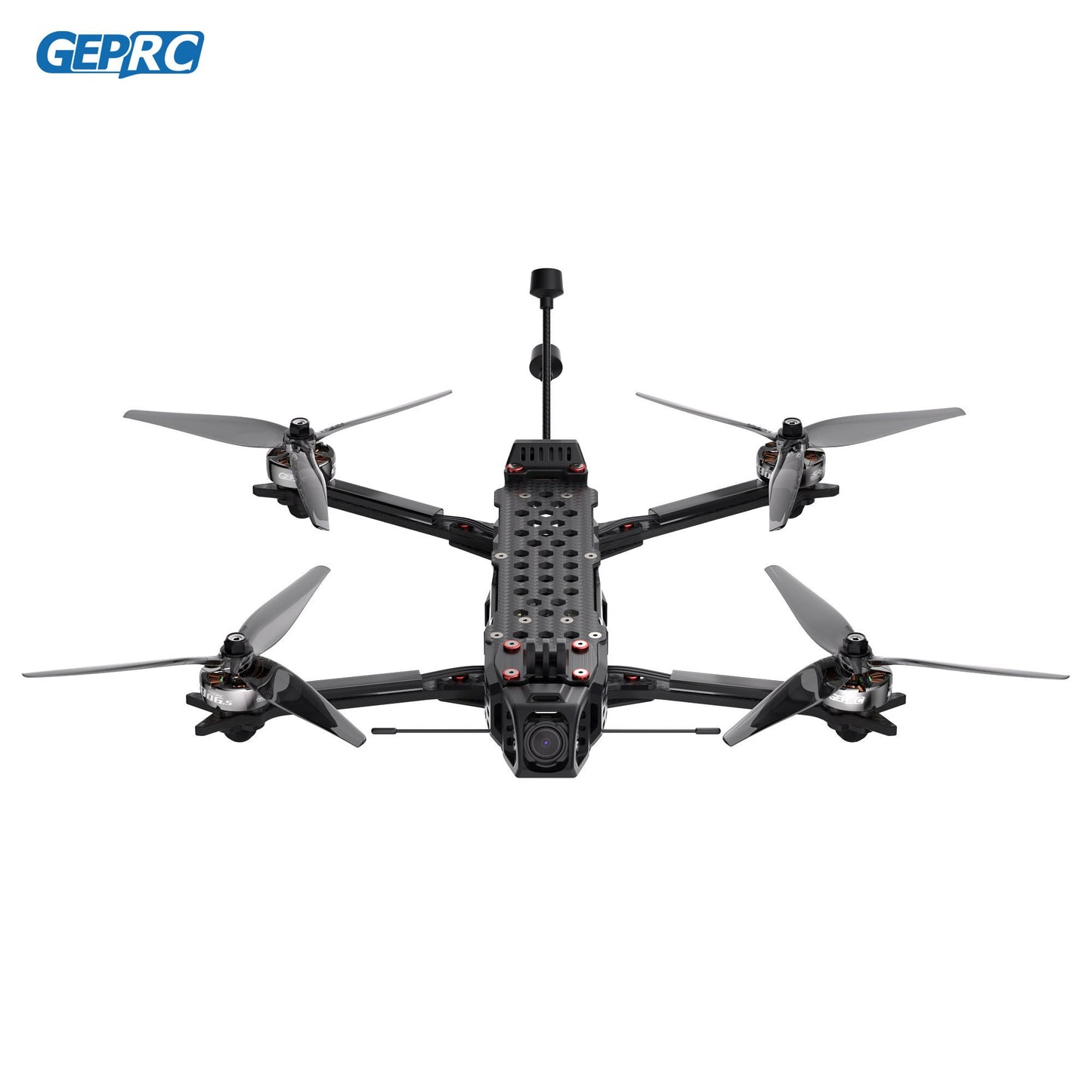

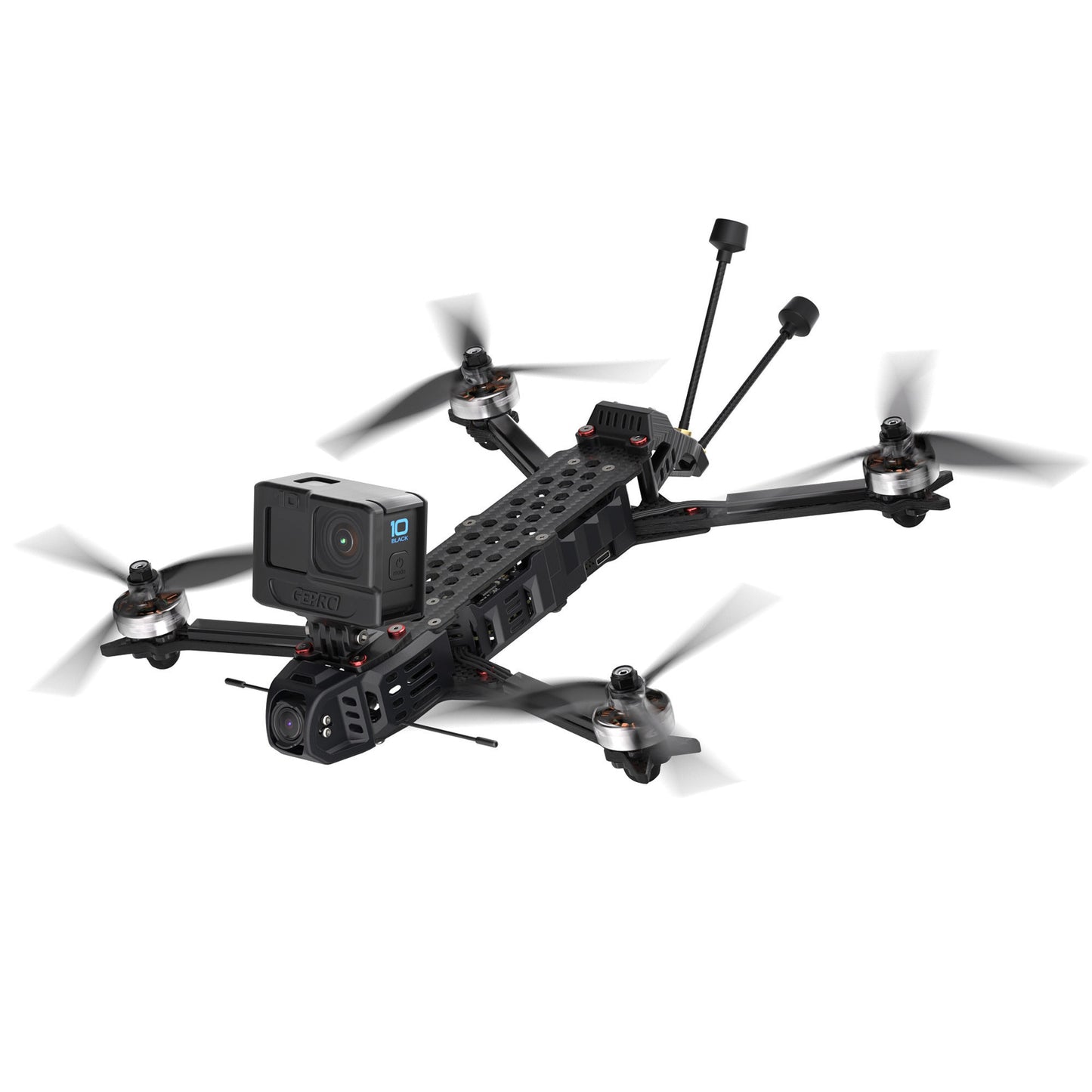

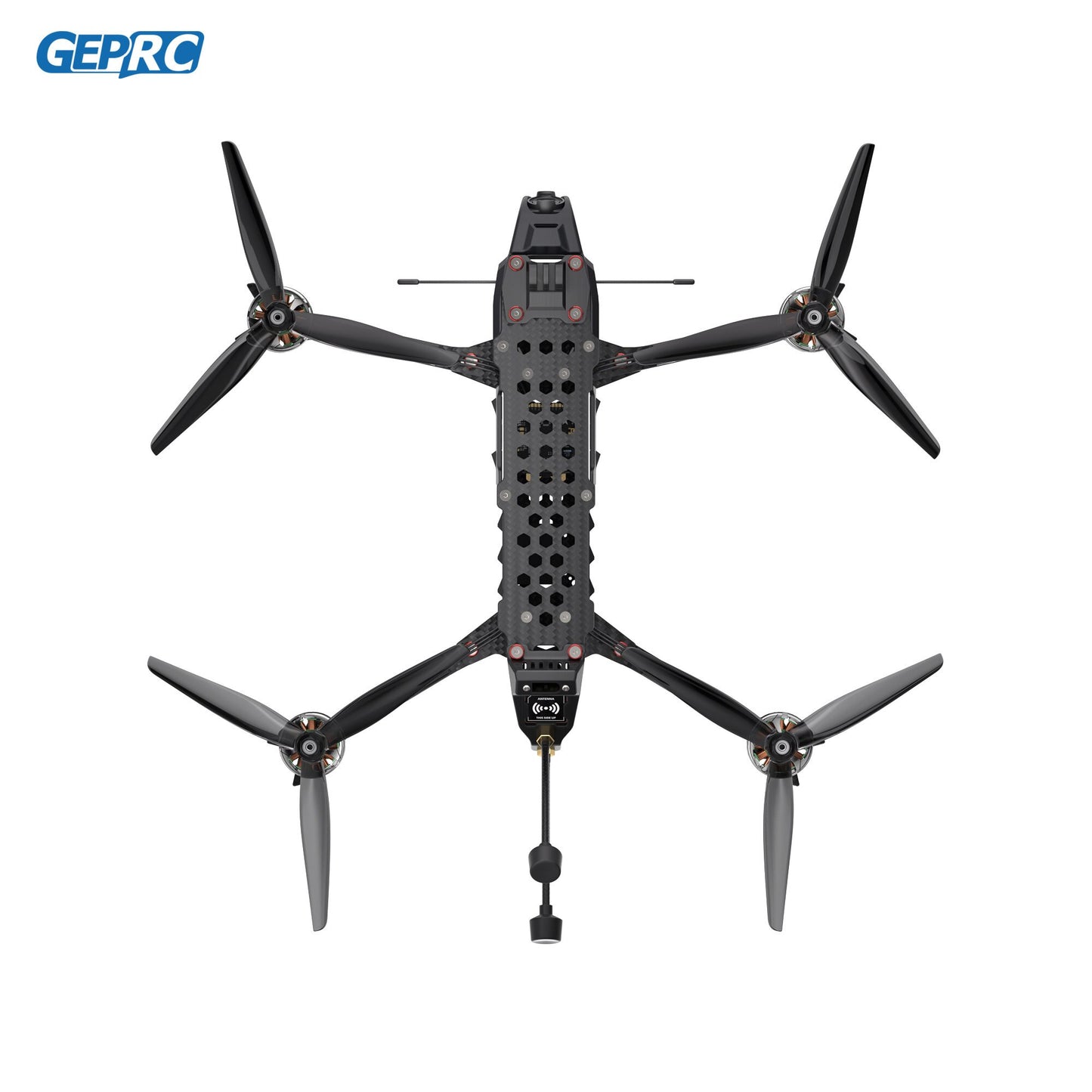

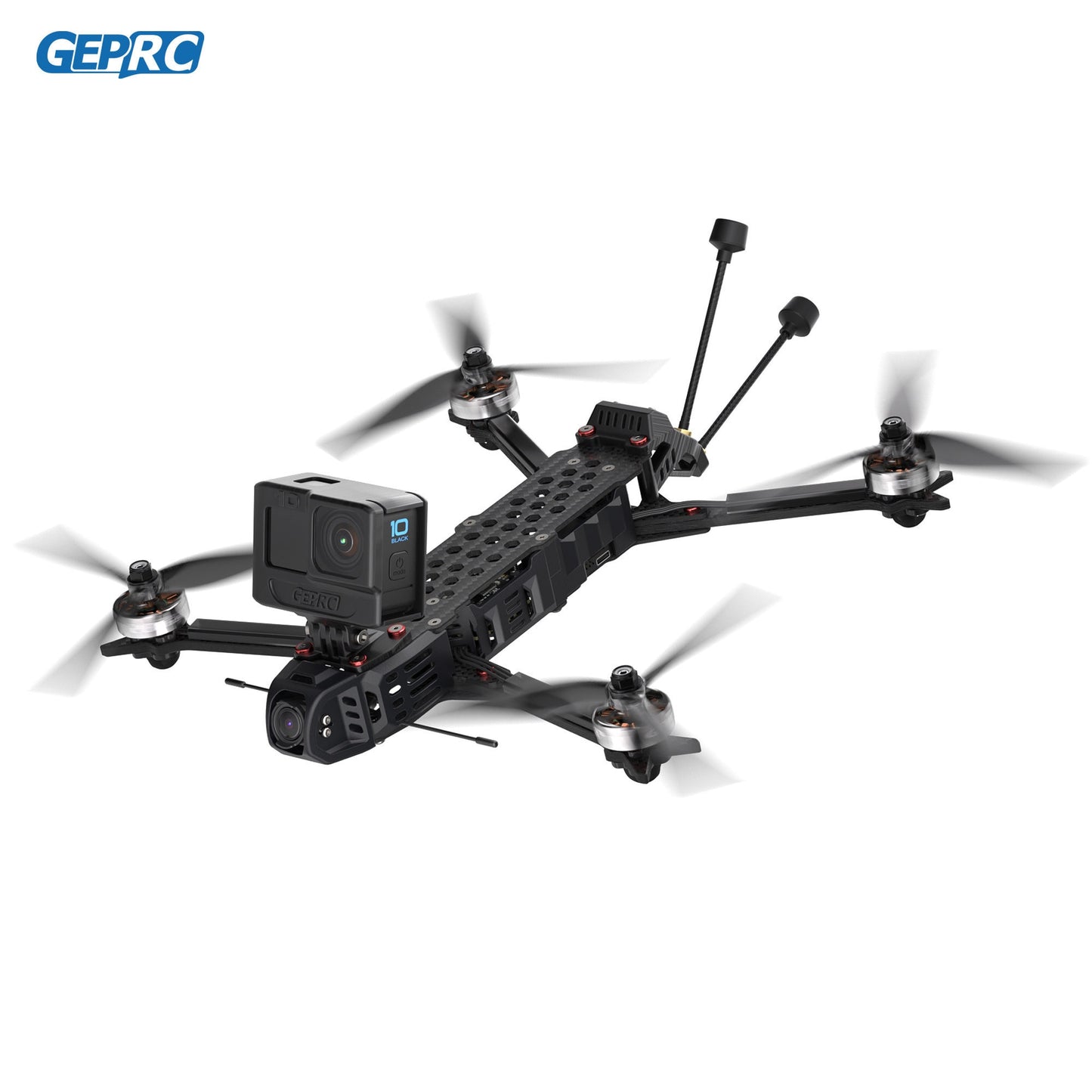

Throughout the whole journey, the GEPRC team keeps breaking through the boundary, innovating again in the field of long range FPV, and redefining the standard of long range, the high-performance long range FPV Crocodile75 V3 is officially released.

The appearance of the Crocodile75 V3 adopts a novel design, the overall structure is strengthened to effectively reduce the vibration of the fuselage and make the flight experience smoother and more stable.
The Crocodile75 V3 is equipped with an O3 Air Unit with additional special cooling components for an effective cooling environment.
The battery plug is integrated with the fuselage for convenient application. The power is upgraded with TAKER 32-bit_128K 60A ESC and 2806.5 1350KV motor, sufficient power. In terms of flight energy consumption, save power and efficiency.

The overall performance of Crocodile75 V3 has been carefully and strictly tuned by the GEPRC team to bring the most passionate flying experience for pilots.

Feature

1. Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
2. Equipped with SPEEDX2 2806.5 1350KV motor and HQ7.5×3.7×3 with sufficient power and high efficiency.
3. Upgrade the ESC to TAKER 32-bit_128K 60A.
4. Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution
5. The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
6. Equipped with O3 Air Unit and added special heatsink, excellent heat dissipation, to avoid O3 Air Unit overheating and stop recording.
7. The Crocodile75 V3 has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
8. Perfect match for 7-inch or 7.5-inch propellers

Specifications

• Model: Crocodile75 V3 HD Wasp

• Frame: GEP-LC75V3

• Wheelbase: 342mm

• Top plate: 2.5mm

• Bottom plate: 3.0mm

• Arm plate: 6.0mm

• Splint plate: 2.5mm

• FC: SPAN F722-BT-HD V2

• ESC: TAKER 32Bit_128K 60A

• MCU:STM32F722RET6

• Gyro: ICM 42688-P

• OSD: Betaflight OSD w/AT7456E chip

• VTX: Link

• Camera: Runcam Wasp

• Antenna: Momoda 5.8G LHCP SMA

• Motor: SPEEDX2 2806.5 1350KV

• Propeller: HQProp7.5×3.7×3

• Weight: 615g

• Receiver: PNP(built-in Link receiver）/ TBS NanoRX / GEPRC ELRS 2.4G / GEPRC ELRS 915

• Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah

• Flight time: 12-30 min

Includes

1 x Crocodile75 V3 HD Wasp
4 x HQProp7.5×3.7×3
2 x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x Keychain
1 x GP Camera Base

GEPRG Crocodile75 V3 Experience Unparalleled Freedom of Flight Ultra-wide Angle Without Blocking Add Protective Side Plates Integrated Battery 4K promax 120fps 03 Air Unit 4K Ultra Stabilization Fuselage Lengthening View

Featuring a unique design, this product's strengthened fuselage reduces the impact of vibrations on gyroscope data accuracy.

Comprehensive Upgrade: Equipped with the SPEEDX2 2806.5 1350KV motor and the SPAN GSOA BLHeli_32 ESC, this product boasts sufficient power and high efficiency.

Streamlined Design: The integrated battery plug and fuselage design simplifies power-on operations, offering both simplicity and aesthetics.

Enhanced Protection: Additional measures have been taken to safeguard against electrical system instability caused by sand and other contaminants, including the addition of aft airbags to the fuselage.

Recommended Configuration: For optimal flight performance, we recommend flying the Crocodile75 V3 Extended Frame with either a 6S LiPo battery in the 3300mAh to 4500mAh range or a 6S Lion battery at 6000mAh.
