Summary

Taking your drone photography to the next level, the new series Cinebot30, take you to the real world, shooting extreme footage.

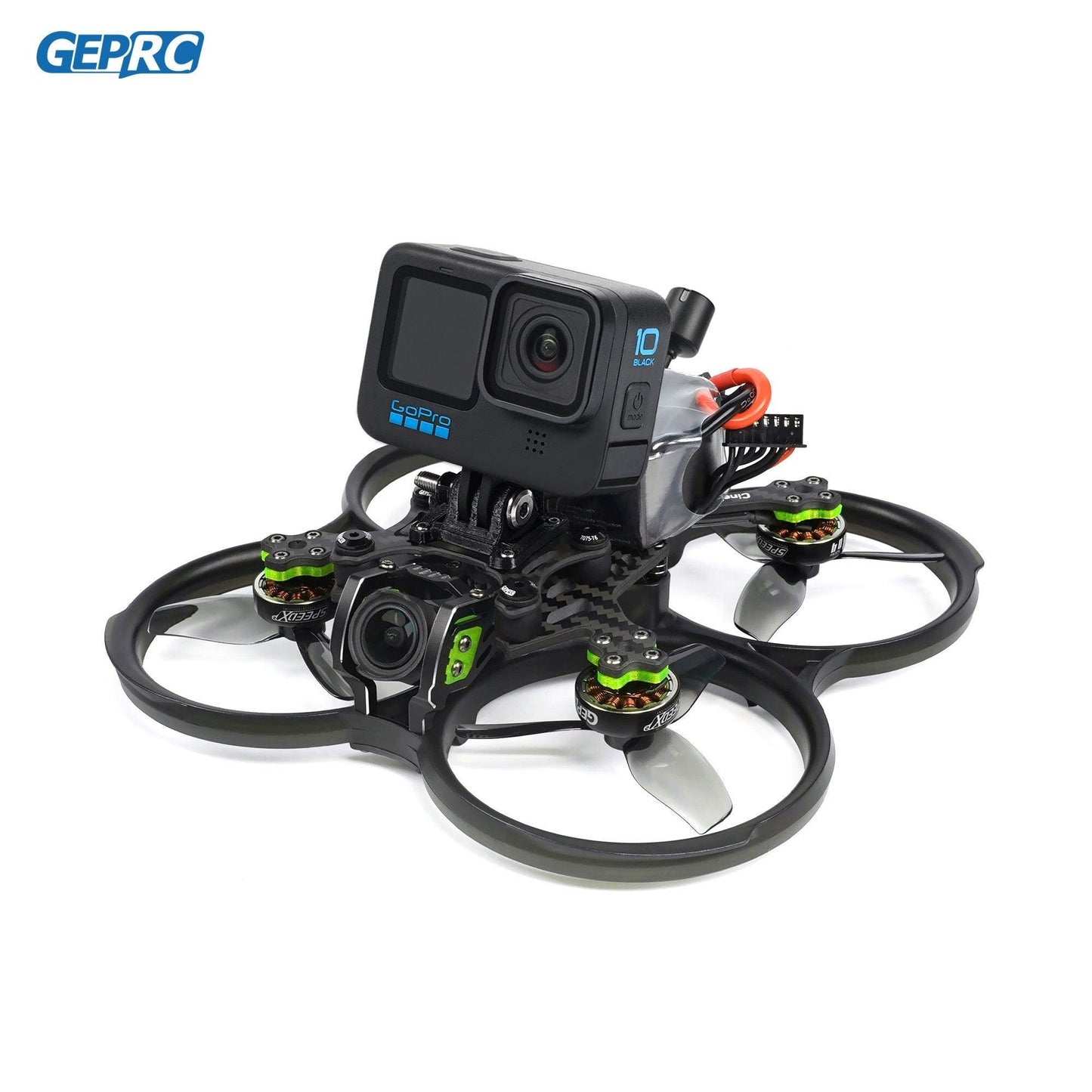

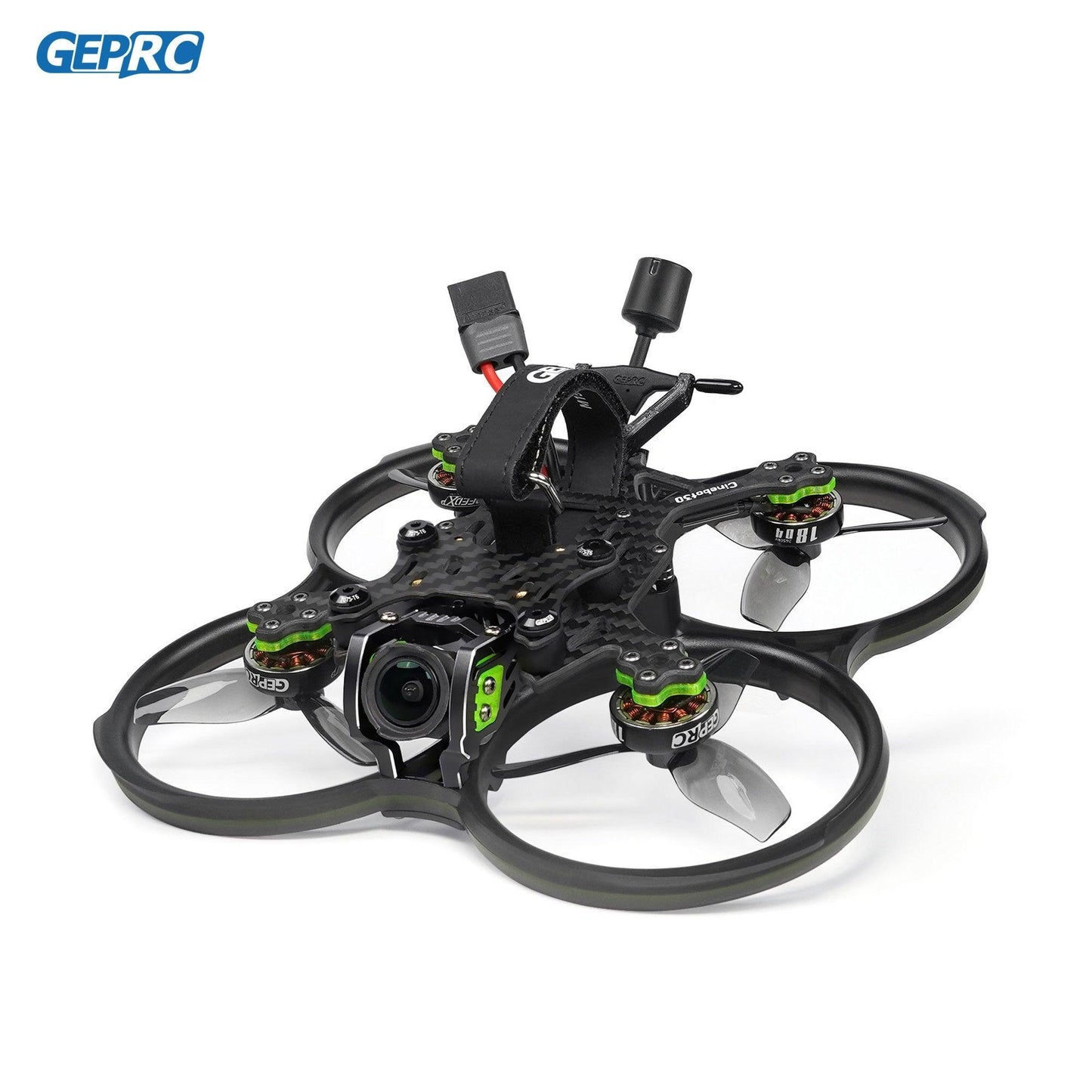

Cinebot30 is a new generation of Cinematic FPV drone developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, the combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with GEPRC Naked GoPro Hero 8 and GoPro Black Bones, Insta 360 GO2 and other cameras. The image is stable and clear, and it's easy to film.

Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!

Cinebot30 will be equipped with a powerful 1804 motor with optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations. Finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.

Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!

Features

1. Design that combines engineering and aesthetics.

2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.

3. Selected high-toughness and impact-resistant PC material for injection molding.

4. Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column.

5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.

6. The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.

7. Powerful 1804 motor, surging torque to deal with ultra-low altitude flight at will.

8. With the new GEP-F722-45A AIO V2, stable performance, more secure flight

9. Five kinds of FPV system with the program, choose to belong to your first-person view

10. Tuned by GEPRC professionals, delicate and silky flying feel

Specifications

• Model: Cinebot30 HD O3 Quadcopter

• Brand: GEPRC

• Frame: GEP-CT30

• Wheelbase:127mm

• Isolation Plate:2mm

• Main plate:3mm

• Bottom plate:1.5mm

• FC: GEP-F722-45A AIO V2

• MCU: STM32F722RET6

• IMU: ICM-42688-P

• VTX: O3 Air Unit

• Camera: O3

• Propeller: HQ prop T76mm

• Antenna: O3 Antenna

• Charge connector: XT60H-M

• Motor: SPEEDX2 1804-2450KV(6S Version)/ SPEEDX2 1804-3450KV(4S Version)

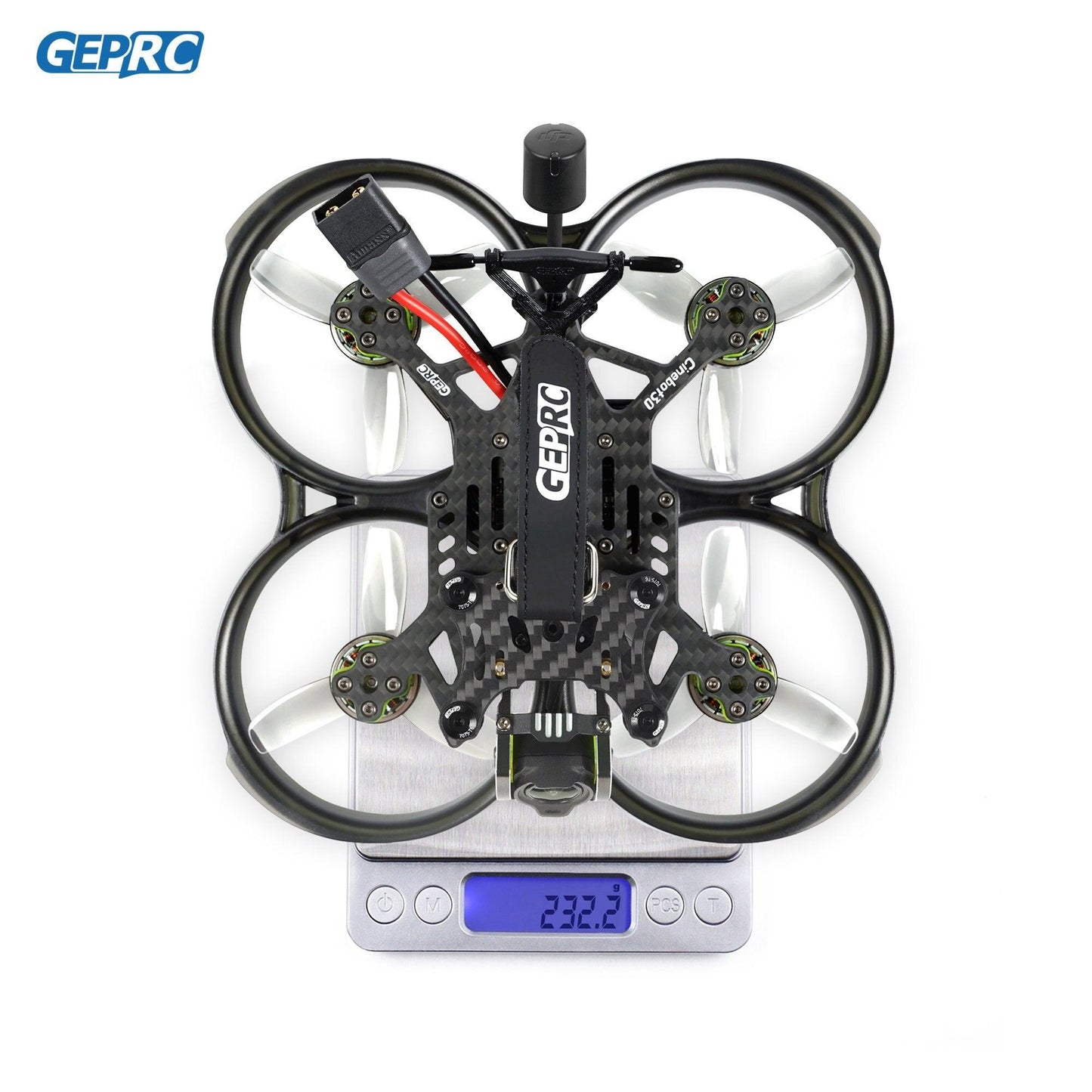

• Weight: Nebula Pro version 222.5g / Avatar version 221g / Analog version 209.2g / Link Wasp version 222.5g / O3 version 232.2g (excluding battery, the above are TBS Nano RX version)

• Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G

• Recommended Battery: LiPo 4S 1100mAh-1300mAh (4S Version) / LiPo 6S 850mAh-1100mAh(6S Version)

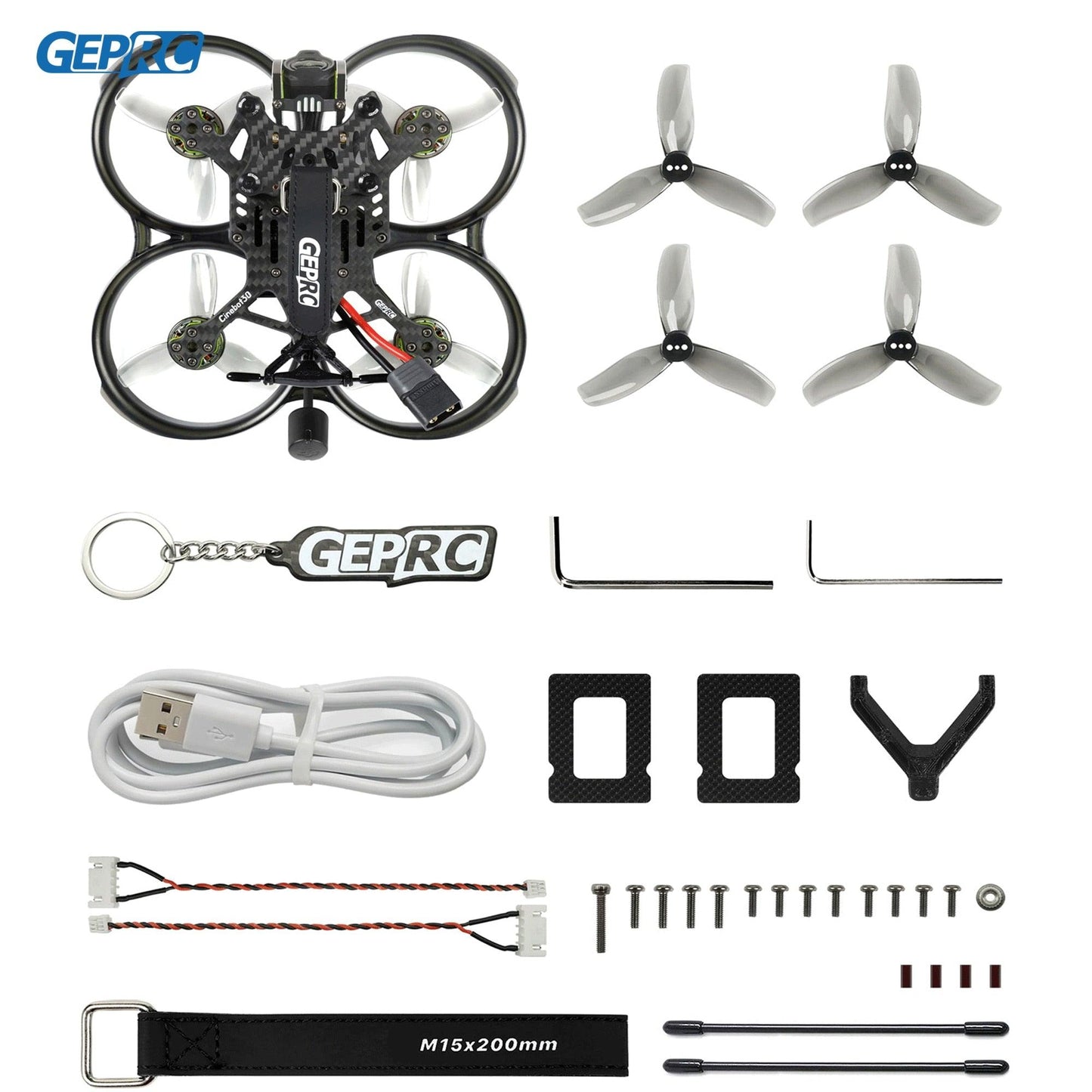

Includes

1  x  Cinebot30 Quadcopter

2  x  HQProp T76MM(pair)

1  x  Battery strap M15*200mm

1  x  Battery strap M15*220mm

2  x  Battery Silicone Pads

1  x  Set of screws

1  x  Set of screwdrivers

1  x  GoPro camera mount holder

1  x  Set of screws

1  x  Set of screwdrivers

1  x  Antenna fixed tube

GEPRC Cinebot30o3 4K Stabilization, Create As You Like 4K 60fps 03 Air Unit Highest support Gimbal vibration Quick-disassembly Aircraft-grade High strength damping module design aluminum propeller guard C3 309

Featuring a High-Strength Propeller Guard: A sturdy, one-piece design provides exceptional toughness and resistance to impacts, accompanied by a ring-shaped light effect that can be customised with a switchable strip.

The DJI O3 Air Unit delivers crystal-clear images and a stable signal, capable of recording stunning 4K footage at 60fps, with up to 52Mbps bitrate.

The gimbal features a newly designed vibration damping structure, effectively eliminating high-frequency vibrations and jello effects. Additionally, the lens is securely fixed using TPU soft printing parts, ensuring that FPV lens shake is no longer an issue.

The Cinebot30 features a camera mount and an aluminum column on its fuselage, both crafted from high-strength aviation-grade 7075-T6 material.

The Cinebot30 features a modular design with a quick-disassembly mechanism, making maintenance easier than ever. With just 6 screws removed, you can quickly disassemble the drone for convenient repairs or upgrades.

The Cinebot30 features an innovative design that significantly reduces flight noise. This is achieved through the use of improved propeller guards and an optimized arm contact fixing method, allowing for a quieter flying experience.

The Cinebot30 features a multi-compatible gimbal mount that can accommodate various cameras, including the Naked GoPro Hero 8/10, Action 2, GoPro Black Bones, Peanut camera, Insta360 GO2, and other compatible models.

The SPEEDX2 1804 motor features an excellent magnetic circuit design, which provides a surge in torque, making it easy to fly. With its impressive 2450kV rating, this motor is capable of delivering high-performance flight characteristics.

The GEPRC Cinebot30 has the following specifications: Model: Cinebot31, VTX O3 System, Recommended Battery: 4S 1300mAh or 6S 1100mAh, Wheelbase: 127mm, Weight: 232.2g.

--------------

GEPRC Cinebot30 Review

 GEPRC Cinebot30 FPV Drone HD O3 System 6S 2450KV VTX O3 Air Unit 4K 60fps Video 155 Wide-angle RC FPV Quadcopter Freestyle Drone Review

The GEPRC Cinebot30 HD O3 Quadcopter is an impressive FPV drone designed for freestyle flying and capturing high-quality aerial footage. With its advanced components and sleek design, this quadcopter offers a thrilling flying experience and exceptional video capabilities. Let's take a closer look at its components, advantages, how to choose this type of product, how to assemble and operate it, as well as some frequently asked questions.

Components:
The Cinebot30 features a sturdy frame known as GEP-CT30, which provides excellent durability and protection for the internal components. The isolation plate is 2mm thick, while the main plate is 3mm thick, ensuring stability during flight. The FC (Flight Controller) is the GEP-F722-45A AIO V2, powered by an STM32F722RET6 MCU and equipped with an ICM-42688-P IMU for precise flight control. The VTX (Video Transmitter) is the O3 Air Unit, capable of transmitting high-definition video footage. The camera used is the O3, offering 4K resolution at 60fps and a wide-angle lens for capturing immersive shots. The motor options include the SPEEDX2 1804-2450KV for the 6S version and SPEEDX2 1804-3450KV for the 4S version. The quadcopter comes with various accessories, such as propellers, battery straps, silicone pads, screws, screwdrivers, a GoPro camera mount holder, and an antenna fixed tube.

Advantages:
1. High-Quality Video: The Cinebot30 is equipped with the O3 camera, which can record 4K video at 60fps, ensuring clear and detailed footage for capturing stunning aerial shots.
2. Wide-Angle Lens: The 155-degree wide-angle lens of the O3 camera allows for a broader perspective, providing a more immersive viewing experience.
3. Durable Frame: The GEP-CT30 frame is designed to withstand crashes and impacts, ensuring the longevity of the drone.
4. Powerful Motors: The SPEEDX2 motors deliver excellent thrust and responsiveness, allowing for agile and dynamic flight maneuvers.
5. Versatility: The quadcopter offers multiple motor and receiver options, making it compatible with different preferences and radio systems.
6. Easy Assembly: The package includes all the necessary accessories and tools for assembly, simplifying the setup process for users.

How to Choose:
When selecting the GEPRC Cinebot30, consider the following factors:
1. Flight Experience: Assess your skill level and flying style to determine whether the 4S or 6S version suits your needs. The 6S version offers more power and agility but may be challenging for beginners.
2. Camera Requirements: If you prioritize high-quality video recording, the O3 camera's 4K capabilities and 60fps frame rate make it an ideal choice.
3. Receiver Compatibility: Choose the receiver option that is compatible with your radio system, ensuring seamless communication between the quadcopter and your controller.
4. Battery Preferences: Consider the recommended battery options and select one that suits your flight duration requirements.

Assembly:
The GEPRC Cinebot30 comes with a set of screws, screwdrivers, and detailed instructions to assist with the assembly process. Follow the step-by-step guide provided by the manufacturer to ensure proper installation of each component onto the frame. Pay close attention to securing the motors, flight controller, camera, and VTX to ensure stability and reliability

.

Operation:
To operate the Cinebot30, follow these general steps:
1. Install and charge the recommended battery according to the manufacturer's guidelines.
2. Connect the battery to the drone's power connector (XT60H-M) securely.
3. Bind your controller to the receiver installed in the quadcopter (Frsky R-XSR, TBS Nano RX, or ELRS 2.4G) to establish a reliable control link.
4. Power on your controller and ensure that the drone's flight controller and receiver are properly connected.
5. Perform a pre-flight check, including verifying the motor responsiveness, checking the camera feed, and ensuring all controls are functioning correctly.
6. Find a suitable location for takeoff, ensuring there are no obstacles or people nearby.
7. Gradually increase throttle to lift off the ground and maintain a steady altitude.
8. Practice various flight maneuvers and explore the drone's capabilities while monitoring the video feed for capturing desired shots.
9. After completing your flight, safely land the drone and power it off.

FAQ:
1. What is the weight of the Cinebot30 HD O3 Quadcopter?
- The weight varies depending on the version: Nebula Pro version 222.5g, Avatar version 221g, Analog version 209.2g, Link Wasp version 222.5g, and O3 version 232.2g (excluding battery).

2. What batteries are recommended for the Cinebot30?
- For the 4S version, LiPo batteries with a capacity of 1100mAh to 1300mAh are recommended. For the 6S version, use LiPo batteries with a capacity of 850mAh to 1100mAh.

3. Can I mount a GoPro camera on the Cinebot30?
- Yes, the package includes a GoPro camera mount holder for attaching a GoPro camera, allowing you to capture footage from both the onboard camera and the additional camera.

4. Is the receiver included with the Cinebot30?
- The receiver options include PNP (no receiver included), Frsky R-XSR, TBS Nano RX, and ELRS 2.4G. Choose the version that suits your needs or purchase the PNP version separately and install your preferred receiver.

In conclusion, the GEPRC Cinebot30 FPV Drone HD O3 System offers an impressive combination of high-quality video capabilities, durable construction, and versatile components. Whether you're an experienced pilot or a newcomer to FPV drones, the Cinebot30 provides an exciting and immersive flying experience. With its advanced features and user-friendly assembly, it is an excellent choice for capturing breathtaking aerial footage and enjoying thrilling freestyle flights.
