GEPRC Cinebot35 WTFPV Ducted FPV Quadcopter with GPS

Overview

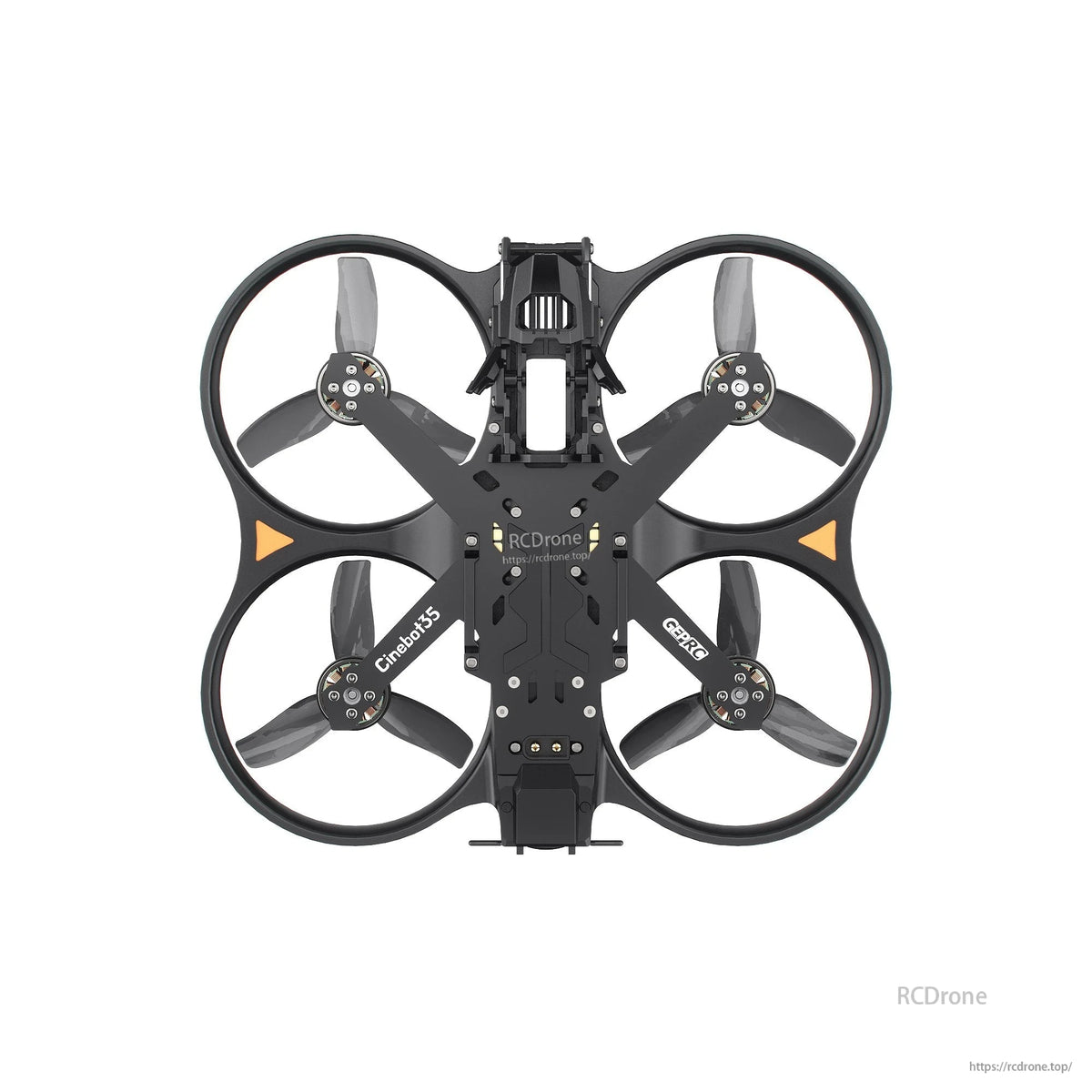

The GEPRC Cinebot35 WTFPV Quadcopter is a ducted FPV quadcopter configured without a VTX, camera, or antenna. It uses a GEP-CT35 frame, TAKER H743 flight controller, H60 Mini 32-bit 60A ESC, and SPEEDX2 2105.5 2450KV motors. The six-point floating camera/VTX mounting system is designed to isolate frame vibration, while the protected electronics bay and integrated function board support a clean installation.

The WTFPV version supports PNP or ELRS 2.4G receiver configurations and includes GPS. It is intended for pilots building a compatible FPV video system and camera setup separately.

Key Features

• Six-point independent floating damping system for the camera/VTX unit.
• TAKER H743 flight controller and H60 Mini 32-bit 60A ESC stack.
• Dedicated function board with anti-spark protection, buzzer, LED BEC, and USB tuning port.
• High-coverage electronics bay and full protective ducted frame design.
• COB LED strip for visual effects and illumination.
• Two factory-tuned PID profiles for cinematic shooting and freestyle flying.
• Dedicated action camera mount with two mounting configurations.
• Large solder-pad layout for ESC connection and assembly.

Specifications

Flight-time testing was performed during slow cruising flight; actual flight time depends on battery selection and flying style. For product assistance, contact rcdrone.top.

What's Included

• 1 x Cinebot35 Quadcopter
• 4 x HQProp D-T90MM propeller pairs
• 1 x 15 x 150 mm battery strap
• 1 x L-shaped 1.5 mm hex wrench
• 1 x spare screw pack
• 1 x anti-slip battery pad
• 1 x binding plug
• 4 x rear landing pads
• 2 x front bottom landing pads
• 1 x front top cover
• 2 x O4 antenna mounts
• 2 x acrylic plates
• 3 x damping balls

Spare Screw Kit

• 2 x rivet nuts
• 4 x M2 x 4 button-head hex screws
• 3 x M2 x 10 button-head hex screws
• 4 x M2 x 7 button-head hex screws
• 3 x M2 x 6 button-head hex screws
• 2 x M2 x 10 socket-head screws

Additional Accessories for Selected Versions

• 1 x receiver connector cable for WTFPV PNP
• 6 x M2 x 4 button-head hex screws for WTFPV
• 5 x M2 x 4 button-head hex screws for WTFPV

Details

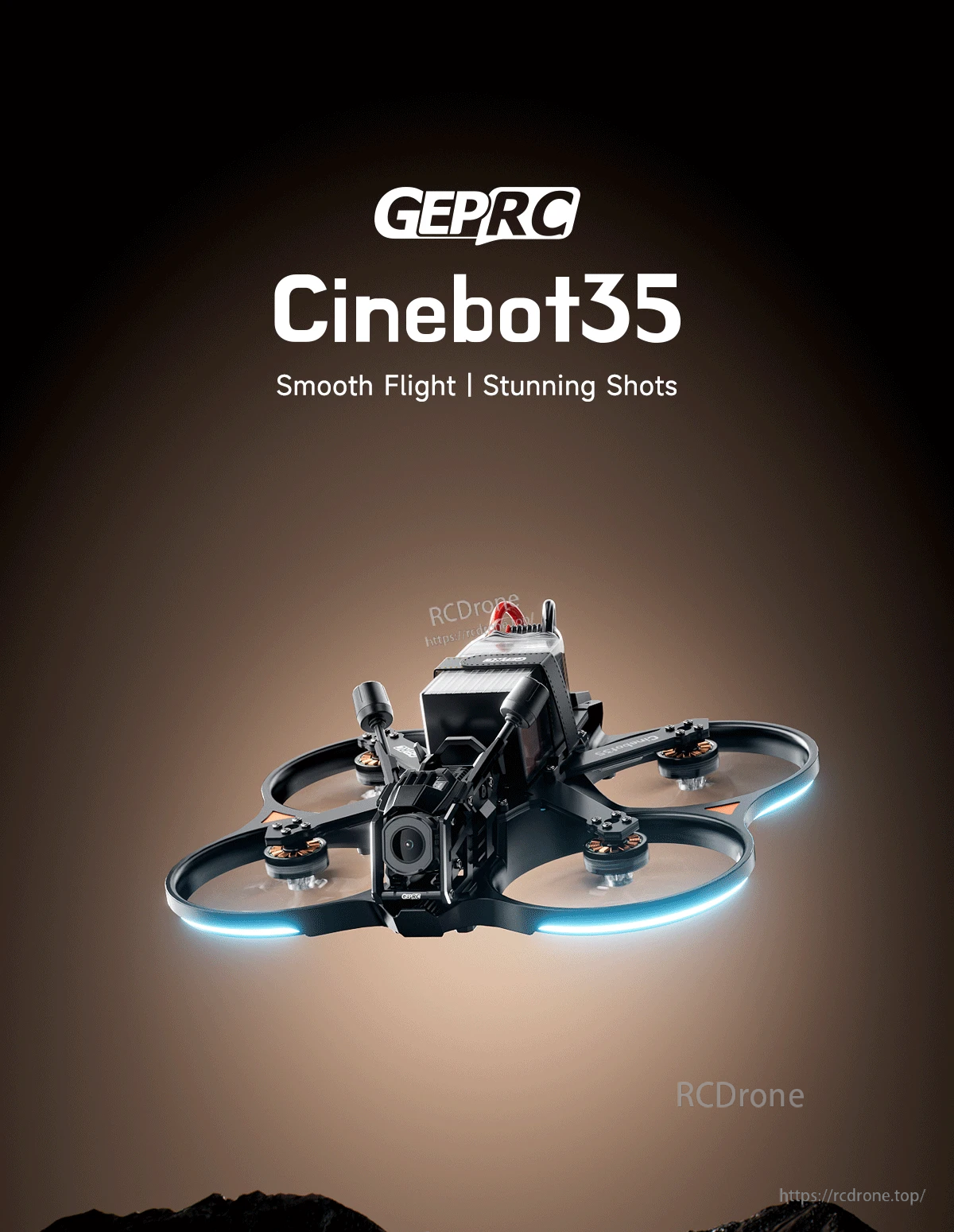

The Cinebot35 platform combines a floating camera/VTX mount, action-camera mounting options, and a compact H743 flight stack.

The six-point floating mount is designed to isolate camera and VTX hardware from frame vibration.

A TAKER H743 flight controller and H60 Mini 32-bit 60A ESC provide the core electronics stack.

Large labeled solder pads help keep ESC wiring and system assembly organized.

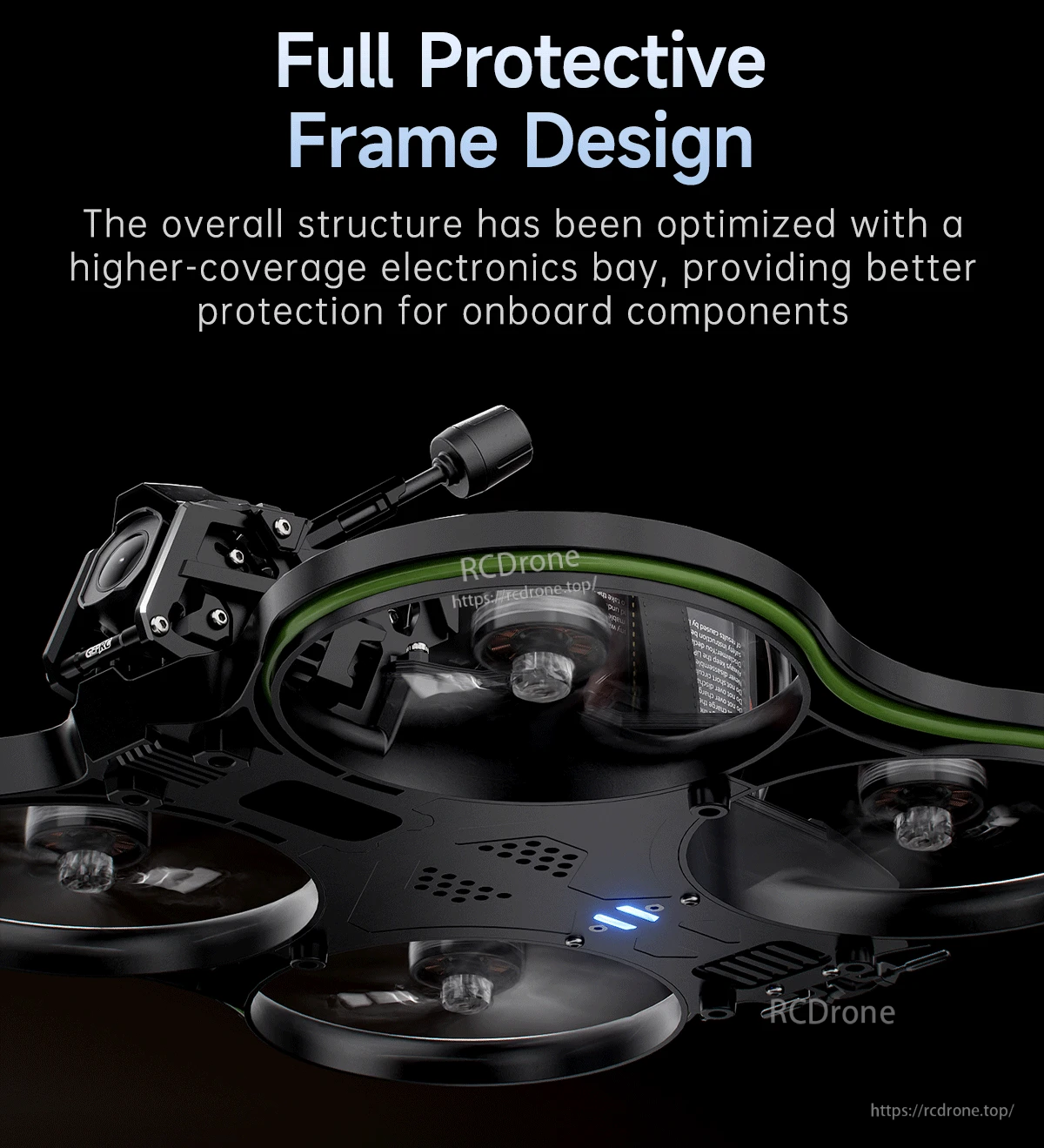

The protective ducted frame surrounds the propellers while the high-coverage body protects onboard electronics.

An integrated function board adds anti-spark protection, buzzer support, LED BEC, and a USB tuning port.

COB LED strips provide illumination for visual effects and light-painting use.

Two factory-tuned PID profiles support separate cinematic and freestyle flying setups.

The underside layout provides access to the frame structure, motor wiring, and battery-mounting area.

The package includes the quadcopter, HQProp propeller pairs, battery strap, tools, mounting hardware, and selected accessories.

A spare hardware kit is included for installation and routine maintenance.
