GEPRC Cinelog20 Analog FPV Drone SPECIFICATIONS
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 2K QHD
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 1000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Original Box,Operating Instructions,Camera
Origin: Mainland China
Operator Skill Level: Beginner,Intermediate,Expert
Motor: Brushless Motor
Model Number: GEPRC Cinelog20 Analog FPV Drone
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 3-5 minutes
Features: App-Controlled,FPV Capable,Other
Dimensions: 2 inch
Controller Mode: MODE1,MODE2
Controller Battery: Not include
Control Channels: 8 Channels
Charging Time: 20 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: GEPRC
Aerial Photography: Yes
Summary
For the shooting needs of complex indoor environments, GEPRC has recently released the 2 inch Cinewhoop Cinelog20. Available in Link Wasp, O3 AIR Unit, Walksnail, and Analog four mainstream video transmission system on the market.
The CineLog20 continues the CineLog series with a lightweight pusher design, and the redesigned camera gimbal vibration reduction solution provides an excellent mounting platform for O3 AIR Unit shooting, which can achieve excellent anti-shake effect. The O3 AIR Unit version can shoot 4K 60fps video without mounting any camera. It is lighter in weight and has a longer battery life.
It adopts GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO. Equipped with Emax 4-blade propellers, reasonable and efficient power system makes the CineLog20 very quiet and has a long battery life, making your flight and shooting more assured. Using the one-piece injection molding camera mount, you can quickly mount GEPRC naked 8/9/10/11 cameras, Action2, insta360 Go2, Peanut and other light and small action cameras.
Feature
-
Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce jello of FPV Goggles image, with good anti-shake effect.
-
Provide mainstream Link Wasp, O3 AIR Unit, and Walksnail HD video transmission versions, Bind-N-Fly to save the trouble of building and tuning.
-
2 inch pusher design, small size and lightweight, more suitable for complex and narrow environments flight shooting.
-
SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers make the flight shooting unhurried.
-
Continuing the vibration dampening structure of the CineLog series, which can effectively eliminate the jello of the image caused by the body when flying with a Naked mounted.
-
The GEPRC Team's splendid tuning and the overall flight feel are delicate and flexible.
Specifications
-
Model: Cinelog20 Analog
-
Frame: GEP-CL20
-
Wheelbase: 100mm
-
Gimbal plate: 2.0mm
-
Top plate: 2.5mm
-
Bottom plate: 1.5mm
-
FC system: GEP-F411-35A AIO
-
MCU: STM32F411CEU6
-
Gyro: ICM 42688-P
-
OSD: Betaflight OSD w/AT7456E chip
-
ESC: 8Bit 35A
-
VTX: GEPRC 5.8G@600mw
-
Camera: Caddx Ratel2
-
Antenna: GEPRC Peano 5.8G RHCP MMCX
-
Motor: GR1303.5 5500KV
-
Propeller: EMAX Avan Micro 2×2.4×4
-

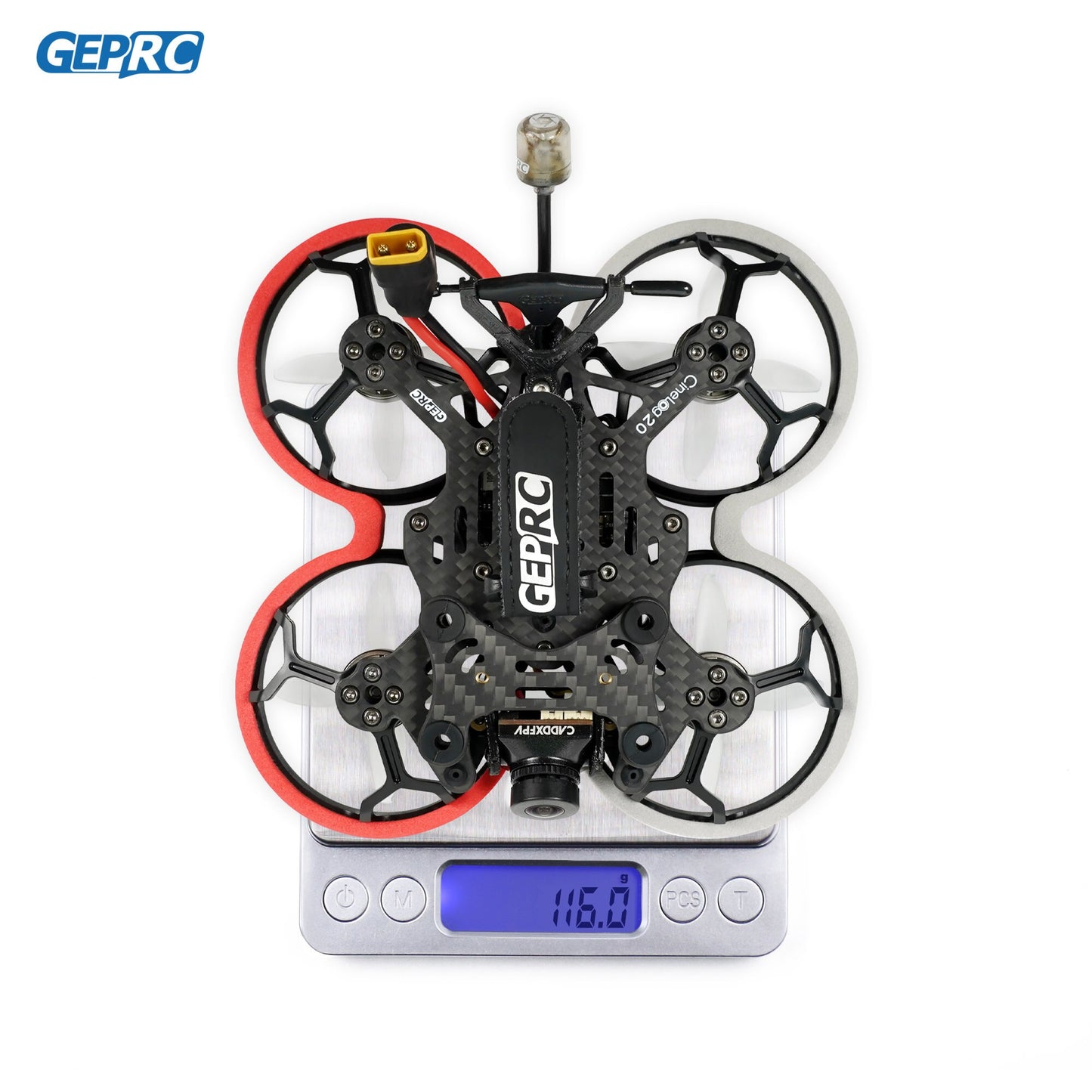

CineLog20 Analog TBSNanoRX weight: 116g
-
Receiver: PNP(Without receiver), ELRS2.4G, TBS Nano RX / RXSR
-
Recommended battery: LiHv 4S 450mAh-660mAh
-
Flight time:4-6min
Includes
1 x Cinelog20 Analog
2 x 2 inch propellers (pairs)
1 x Naked Base
2 x M15*150mm battery strap
2 x Battery Silicone Pads
2 x EVA landing Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x Antenna fixed tube
1 x 4S Naked power cable (with balanced terminal head)
2 x EVA damping rings of guards
1 x TBS Antenna mount (Vertical Type)
1 x TBS Antenna mount (Horizontal Type)
1 x TBS Antenna printed parts
Screw package includes:
3 x M2*12mm cup head screws
2 x M2*5mm round head screws
1 x M2*8mm round head screw with pad
3 x M2*7mm round head screws
2 x M2*8mm round head screws
2 x M2 iron nuts
1 x self-clinching nut
GEPRC Cinelog20 Smaller and lighter, compact and powerful mainly for indoor shooting GHRG 660 acnibog F411 Independently designed 1303.5 Motor 03 AIR Unit F411-35AAIO Pusher Design camera for vibration reduction RaC
The Cinelog20 air unit supports up to 4K resolution at 120 frames per second, eliminating the need for additional camera mounts.
The AIR Unit features a Wasp Avatar HD video transmission system with digital two-way transmission, providing a stable and robust signal with excellent anti-interference capabilities for a clear and high-quality video image.
The SPEEDX2 series features an 1303.5 motor with an exquisite integrated rotor design, delivering powerful and smooth performance.
The high-toughness material injection-molded propeller guard provides safer flight by effectively preventing propeller collisions.
The pusher design offers better flight efficiency compared to traditional motors, resulting in improved battery life.

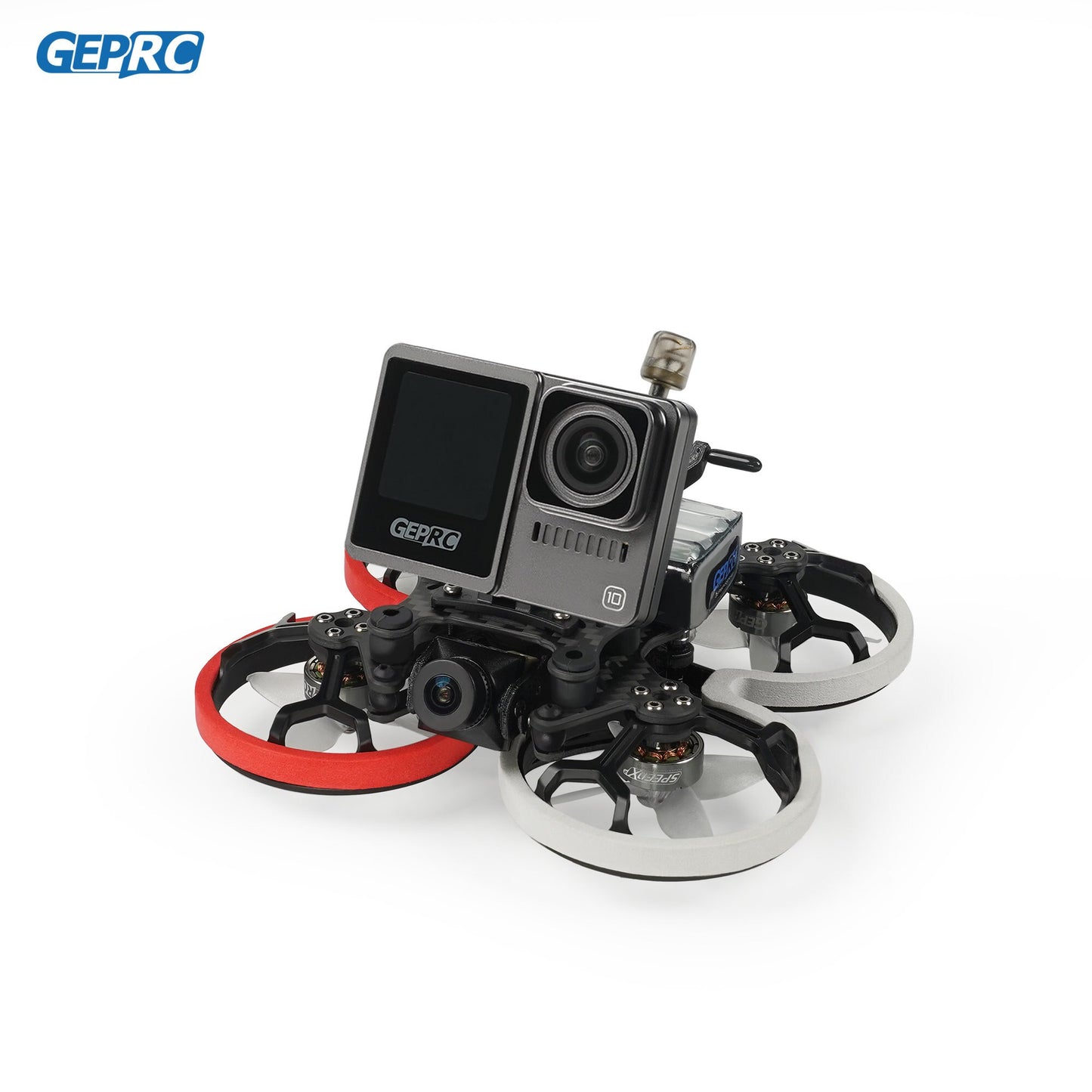

GEPRC team recommendation: The Cinelog20 drone, paired with the Naked Camera 8, offers an exceptional flying experience. Additionally, it features great mount compatibility with popular cameras like the INSTA36O and GO2 naked camera 8.
The GEP-F411-35A AIO VTX features a mid-mounted design, with countersunk propellers optimized for noise reduction and improved overall detail of the entire drone.
Choose from four different options: our four VTX systems offer a range of possibilities for your flying experience. Additionally, this drone features three camera systems: the RunCam, Walksnail, and Caddx Wasp micro, as well as the Ratel 2 Cinewhoop system.
Cinelog20 HD offers three camera options: Wasp, Walksnail, and Analog Version Comparison. This drone features a GEP-411-35A AIO VTX 03 AIR Unit Link AVATAR GEPRC 5.8G@600mw Camera system with Runcam Walksneil micro and Caddx Ratel2 cameras for high-quality video capture.
