GEPRC Cinelog25 V2 HD O3 FPV SPECIFICATIONS
Brand Name: GEPRC
Remote Distance: 2500 meters
Remote Control: Yes
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Anti-wind Ability: Lv 2
Video Capture Resolution: 1080p FHD
Video Capture Resolution: 2K QHD
Video Capture Resolution: 4K UHD
Controller Battery: Not include
Takeoff Weight: 100g
Aerial Photography: Yes
Control Channels: 8 Channels
Material: Metal
Material: Plastic
Material: Carbon Fiber
Flight Time: <5
Origin: Mainland China
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 14+y
Transit Time (Days): 2KM
Drone Weight: 174g
Dimensions: 2.5 inch
Motor: Brushless Motor
Plugs Type: XT30
Type: HELICOPTER
State of Assembly: Ready-to-Go
Barcode: No
Features: App-Controlled
Features: FPV Capable
Features: Integrated Camera
Features: Other
Indoor/Outdoor Use: Indoor-Outdoor
Charging Voltage: 14.8V
Charging Time: 30 minutes
Camera Mount Type: Fixed Camera Mount
Camera Mount Type: Other
Warning: Minors please use under the supervision of an adult
Certification: CE
CE: Certificate
Model Number: Cinelog25 V2 HD O3
Power Source: Electric
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: Expert
Summary
From progress to evolution, a comprehensive reconstruction of the previous generation of design. Finally we come to the Cinelog25 V2 version.
This upgrade of Cinelog25 V2 has launched three video transmission versions, the most important of which is the O3 Air Unit video transmission version. Based on the O3 Air Unit's built-in anti-shake requirements for fuselage shock, the Cinelog25 V2 can achieve excellent anti-shake effects by matching the camera damping ball.
It is redesigned to be fixed with aluminum parts and cable ties, which is convenient for battery replacement. The flight system uses the new TAKER G4 35A AIO with 1404 4500KV motors and HQ DT63mmX4 propellers for excellent flight performance.Install the propeller guard which can effectively prevent people from being injured due to flight mistakes.Equipped with GPS M10 chip, quickly search for satellites.
Cinelog25 V2 is a 2.5-inch high-definition FPV that integrates indoor and outdoor flying. Developed by the GEPRC team,the flight feels delicate and the experience is good.
Feature
-

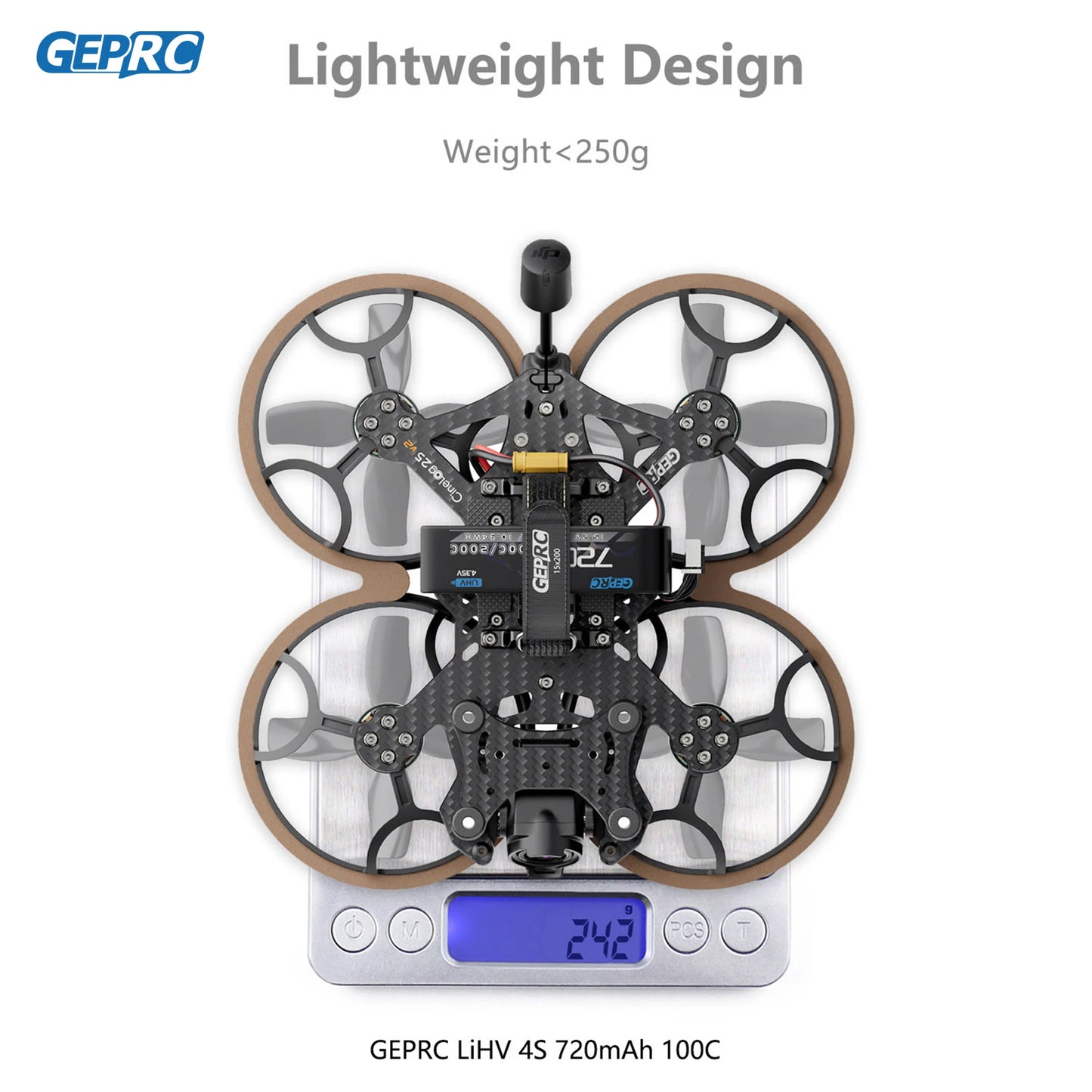

Add O3 Air Unit image transmission version,ultralight weight within 250g.Fit with FAA flight standards.
-
The O3 cemera design is independently attached to the shock-absorbing gimbal to solve the camera IMU resonance problems and achieve the best video anti-shake effect.
-
Designed aluminum parts with cable ties to facilitate the change of batteries.
-
Use the new TAKER G4 35A AIO, has better computing power.ESC over-current protection makes it stable and reliable.
-
Design propeller guard, which can effectively prevent people from flight mistakes.
-
The fuselage is small and compact, suitable for indoor and outdoorMounting Naked GoPro8 to shoot beautiful videos.
Specifications
-
Model:Cinelog25 V2 HD O3 Quadcopter
-
Frame: GEP-CL25 V2
-
Wheelbase: 114mm
-
Gimbal plate: 2.0mm
-
Top plate: 2.5mm
-
Bottom plate: 2.0mm
-
FC system: TAKER G4 35A AIO
-
MCU:SMT32G473CEU6
-
Gyro: ICM 42688-P
-
OSD: Betaflight OSD w/AT7456E
-
ESC: 8Bit 35A
-
VTX: O3 Air Unit
-
Camera: O3 Camera
-
Antenna: O3 Original Antenna
-
Motor: SPEEDX 1404 4500KV
-
Propeller: HQProp DT63mm*4
-
Cinelog35 V2 HD O3 PNP weight:174g±5g
-
Receiver: PNP(built-in O3 Air Unit receiver) / GEPRC ELRS24 / TBS Nano RX
-
Recommended battery:LiPo 4S 660mah-850mah
-
Flight time: 4′00″ -6′ 00″

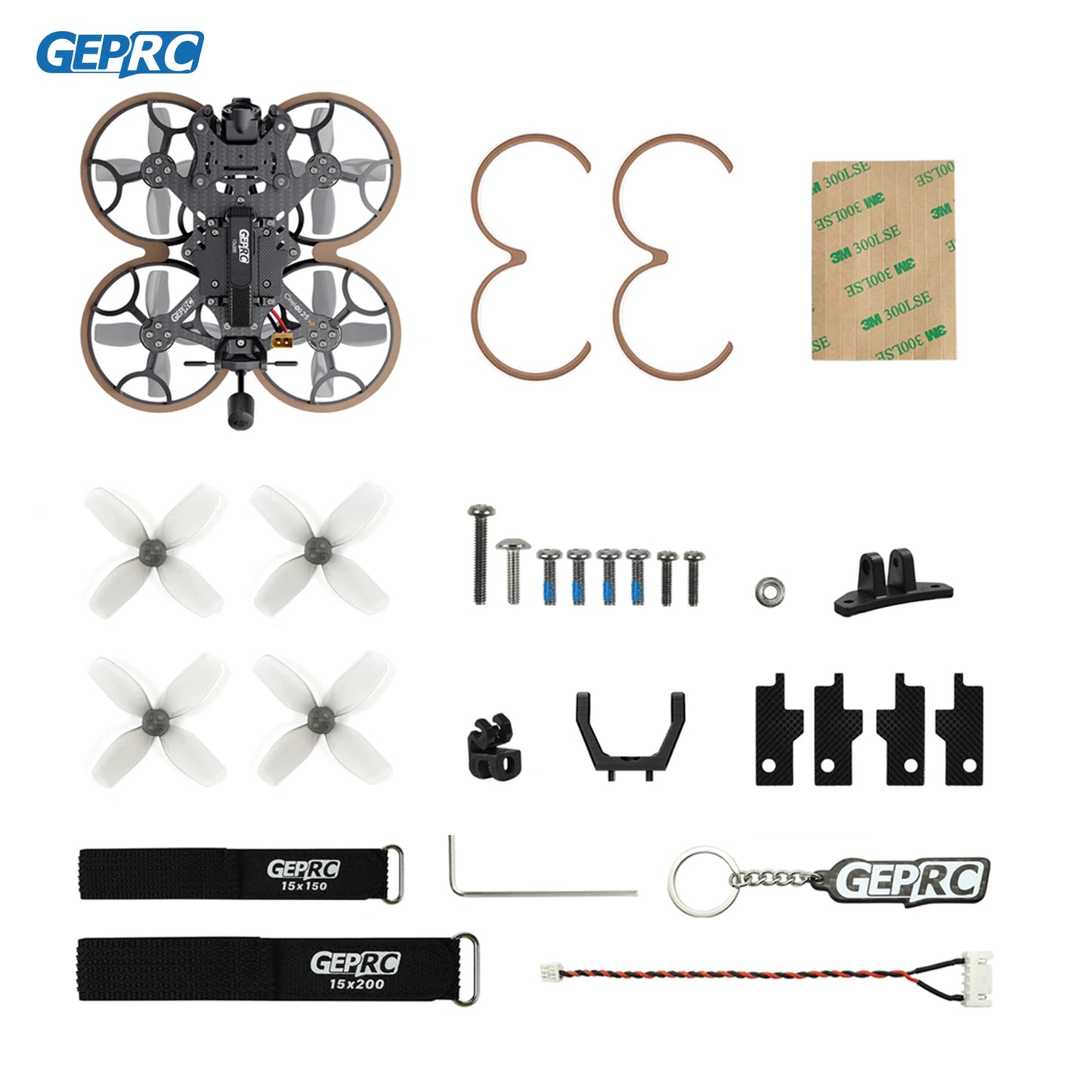

Includes
1 x Cinelog25 V2 HD O3 Quadcopter
2 x HQProp DT63mm*4(2pairs)
1 x Battery strap M15*200mm
1 x Battery strap M15*150mm
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver 1.5MM
1 x Keychain
1 x Naked Camera GP8 base
1 x T-type Antenna mount
GEPRC Cirielog25 vz 03 Air Urit Free t0 fly arid sfiootirg ariywfiere 1109 13 64 Weight-249g FPV Camera 03 Air Unit New TAKER G4 AIO Optimize Battery Naked GoPro8 Damping Ball Fixation Camera 8 1 03433 249
The design incorporates an independent camera damping ball, which ensures a more stable anti-shake effect and provides a crisp, high-quality video feed on the FPV screen.
TAKER G4 features a 17OMHz operating frequency, providing higher computing power and redundancy. This allows for smooth operation of the WP XAJS flight controller, which enables 4K video recording at 60fps in high-definition (HD) stabilized mode.
The Link Wasp offers an affordable HD solution, featuring a high-definition (HD) version that enables cost-effective video capture. Additionally, it supports a reliable and robust analog image transmission at 5.8GHz with a maximum power output of 1W.
The Cinelog25 V2 HD O3 allows for immediate film production using the air unit, or you can equip it with a naked GoPro8 Black camera (J0007) and take advantage of its advanced features, such as FPV editing capabilities.
Introducing our new design - TPU mats, replacing traditional EVA mats. These compact and durable mats provide a sleek and rugged solution for your flying adventures.
Featuring customized 7075 aluminum columns made from aviation-grade aluminum alloy, this kit boasts increased strength and durability, making it resistant to damage and wear.
The GEPRC Cinelog25 V2 HD O3 FPV kit features a 5.8G 1W camera, paired with a RunCam Wasp Caddx Ratel2 antenna and an original Ankenna design. The system is built around the PNP-compatible DJI receiver, along with the PEANO 5G receiver and LHCP UFL gpcp for reliable signal transmission.
