GEPRC Cinelog30 V3 FPV Drone With O4 Air Unit PRO /WTFPV F722 45A AIO SPEEDX2 1404 3850KV Freestyle Drone

Overview

The GepRC Cinelog30 V3 features the DJI O4 Air Unit PRO VTX, delivering superior image quality with precise color accuracy and fine detail with its advanced processing chip.

The frame is reinforced with aluminum for added strength, while the electronic compartment is designed with a wrap-around structure to protect internal components better. Dust-proof plugs safeguard the data ports, and the canopy shields the camera from impacts. The rear PDB promotes clean wiring and an efficient layout.

Powered by the TAKER F722 45A 32-bit AIO, 1404 3850KV motors, HQprop DT76mm x3 props, and a LiHV 4S 720mAh battery, the Cinelog30 V3 achieves up to 8:10 of flight time. With O4’s advanced imaging capabilities, it delivers smooth, high-quality cinematic footage.

Note: Contents vary by selected WTFPV or O4 Pro specifications.

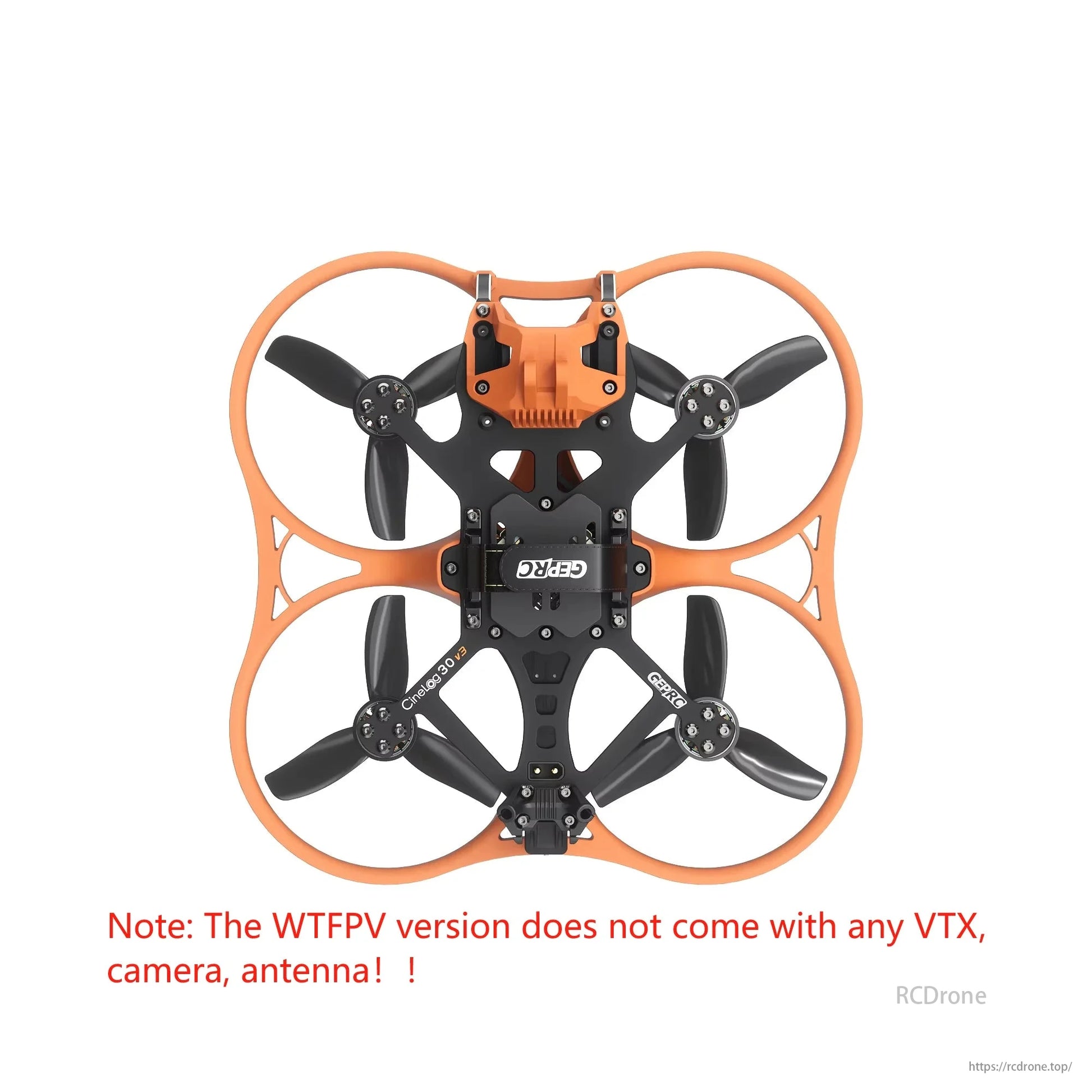

Note: The WTFPV version does not come with any VTX, camera, antenna

Feature

1. Equipped with the latest O4 Air Unit PRO, offering sharp detail, high resolution, and excellent low-light performance.

2. Refined frame with a wrap-around design for enhanced protection of electronic components.

3.  Aluminum-reinforced front and protective frame for added strength.

4. Sleek front cover to shield the O4 Air Unit PRO lens from impact.

5. Dust-proof plugs for data ports to prevent debris during takeoff and landing.

6.  Custom PDB with receiver, buzzer, LED BEC, TVS, and anti-spark features.

7. Cinelog series underslung gimbal mount for stable, smooth footage with the O4 Air Unit PRO.

8. Precision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control.

Specfication

Cinelog30 V3 O4 Pro

• Model: Cinelog30 V3 O4 Pro Quadcopter

• Frame Model: GEP-CL30 V3

• Carbon Fiber Plate Thickness: 2.5mm

• Wheelbase: 128mm

• Flight System: TAKER F722 45A 32Bit AIO

• MCU: STM32F722RET6

• Gyro: ICM 42688-P

• FC Firmware: GEPRC_F722_AIO

• Flash: 16MB

• ESC: 32Bit 45A

• Motor: SPEEDX2 1404 3850KV

• Prop: HQprop DT76mmx3 V2

• Battery Connector: XT30

• VTX: O4 AIR Unit Pro

• Camera: O4

• Antenna: O4 original

• Receiver: PNP(digital built-in VTS receiver) / ELRS2.4G / TBS NanoRX

• TBS NanoRX Version Weight: 187±2g

• Recommended Battery: LiHV 4S 660mAh-720mAh

• Flight Time: 8'10"（Tested at slow cruising speeds; actual times may vary with flying method.)

Cinelog30 V3 WTFPV

• Model: Cinelog30 V3 WTFPV Quadcopter

• Frame Model: GEP-CL30 V3

• Carbon Fiber Plate Thickness: 2.5mm

• Wheelbase: 128mm

• Flight System: TAKER F722 45A 32Bit AIO

• MCU: STM32F722RET6

• Gyro: ICM 42688-P

• FC Firmware: GEPRC_F722_AIO

• Flash: 16MB

• ESC: 32Bit 45A

• Motor: SPEEDX2 1404 3850KV

• Prop: HQprop DT76mmx3 V2

• Battery Connector: XT30

• VTX: None

• Camera: None

• Antenna: None

• Receiver: PNP(digital built-in VTX receiver) / ELRS2.4G / TBS NanoRX

• TBS NanoRX Version Weight: 148±2g

• Recommended Battery: LiHV 4S 660mAh-720mAh

• Flight Time: 8'10"（Tested at slow cruising speeds; actual times may vary with flying method.)

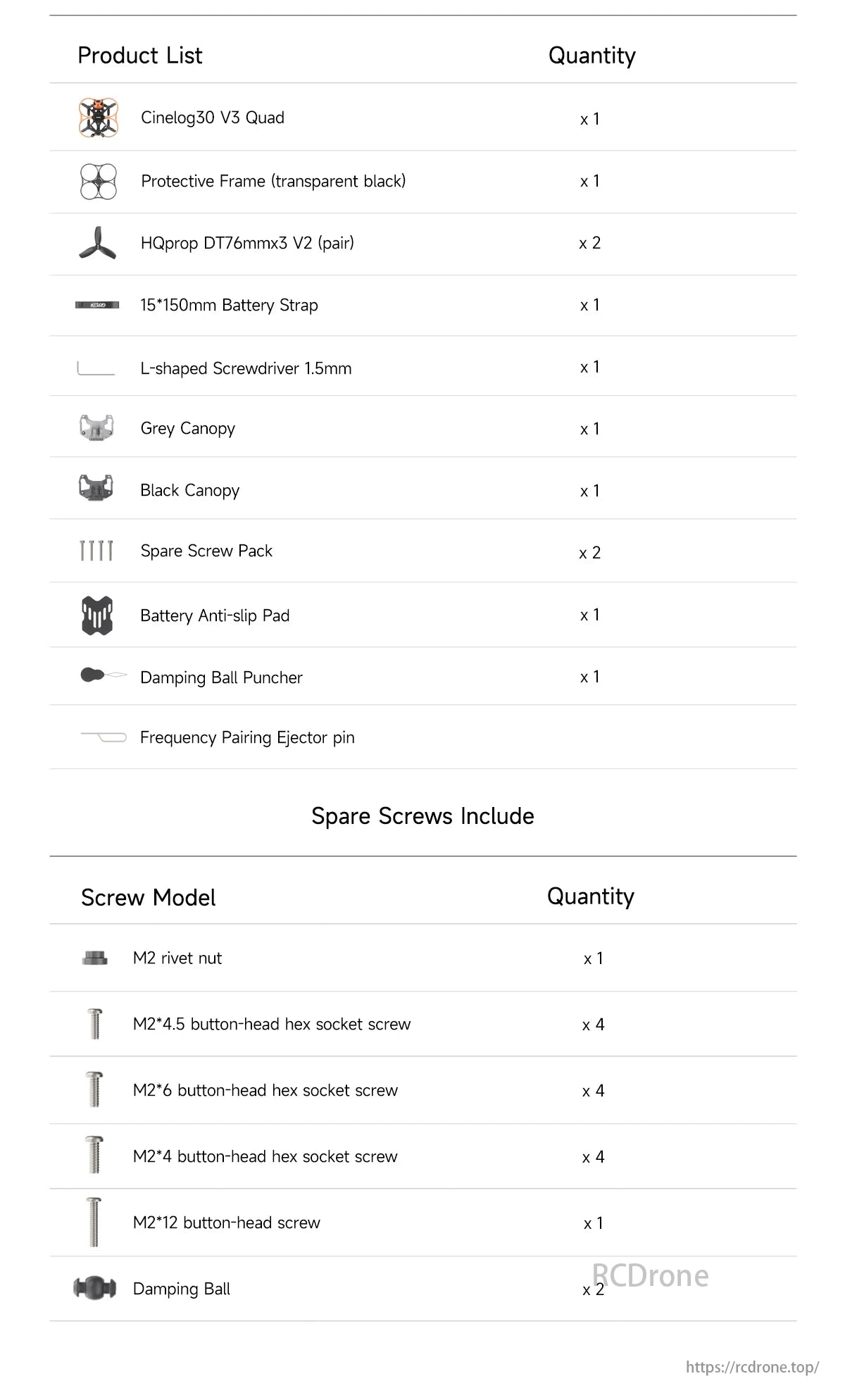

Includes

1 x Cinelog30 V3
1 x Protective Frame (transparent black)
2 x HQprop DT76mmx3 V2 (pair)
1 x 15*150mm Battery Strap
1 x L-shaped Screwdriver 1.5mm
1 x Grey Canopy
1 x Black Canopy
1 x Spare Screw Pack
1 x Battery Anti-slip Pad
1 x Damping Ball Puncher
1 x Frequency Pairing Ejector pin

Spare Screws Include:
1 x M2 rivet nut
4 x M2*4.5 button-head hex socket screw
4 x M2*6 button-head hex socket screw
4 x M2*4 button-head hex socket screw
1 x M2*12 button-head screw
2 x Damping Ball

Details

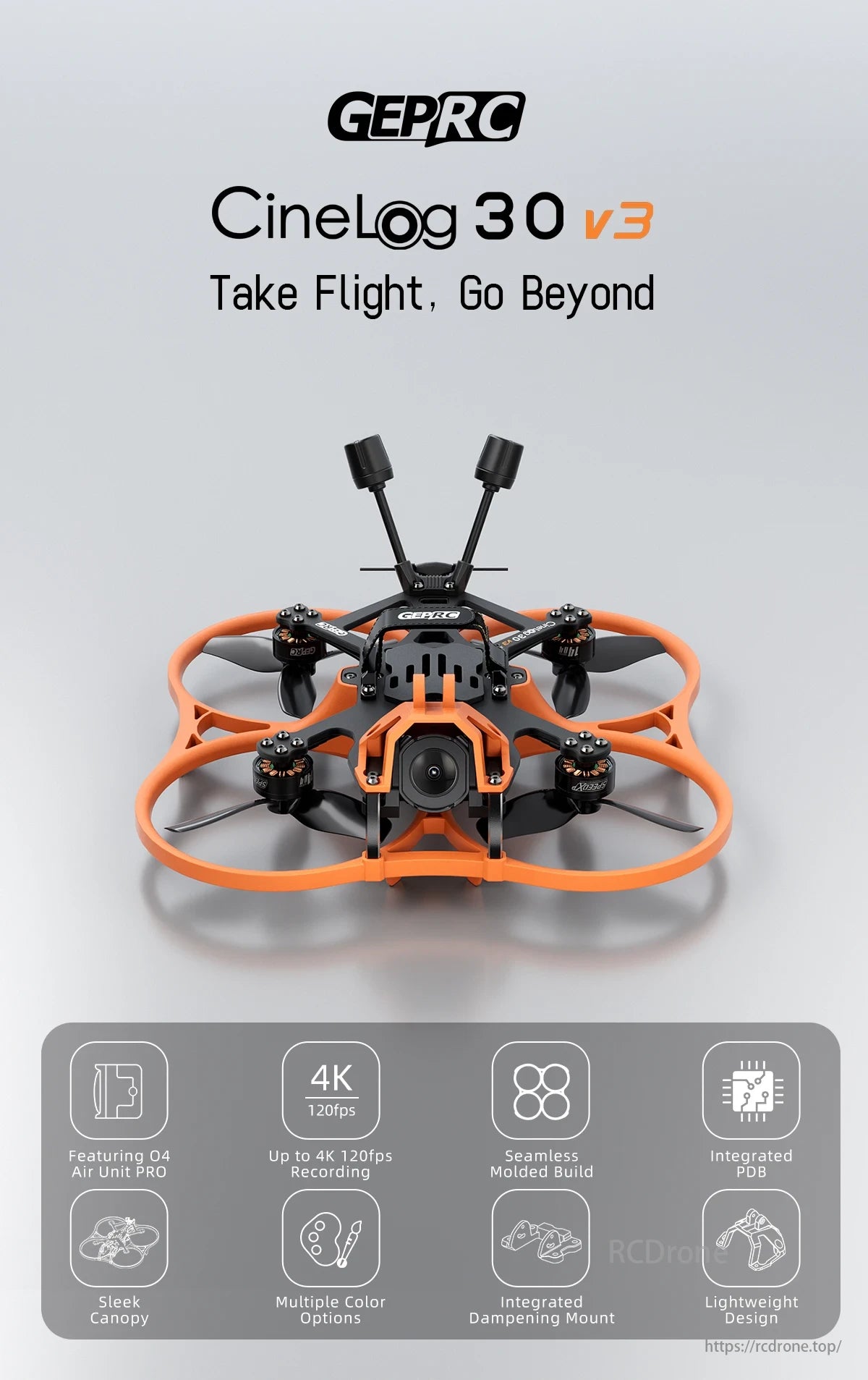

CineLog 30 v3 drone offers 4K recording, seamless build, integrated PDB, damping mount, lightweight design, and multiple color options. Take flight, go beyond.

GEPRC CineLog 30 v3. Take Flight, Go Beyond. Features include 4K 120fps recording, seamless molded build, integrated PDB, sleek canopy, multiple color options, and lightweight design.

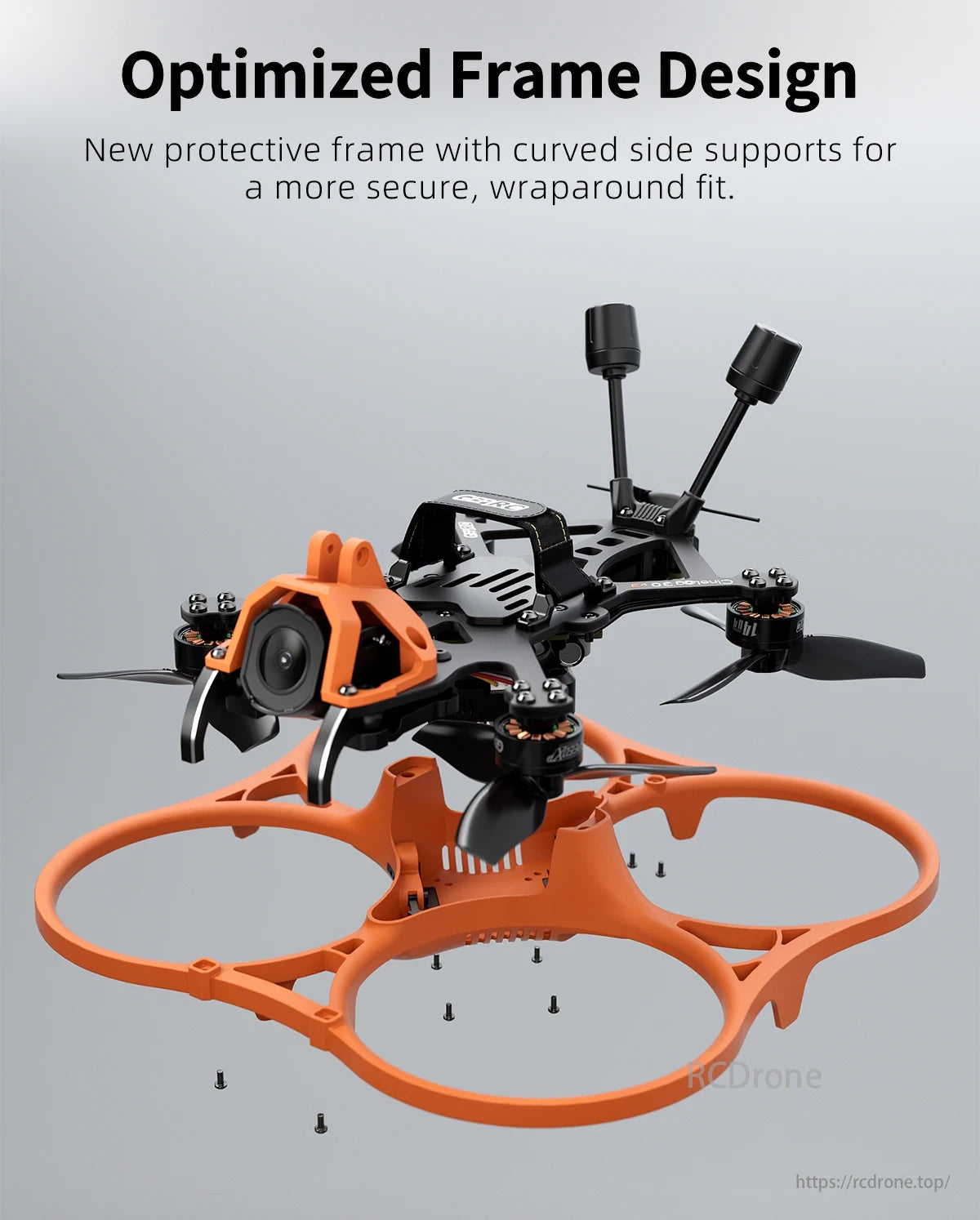

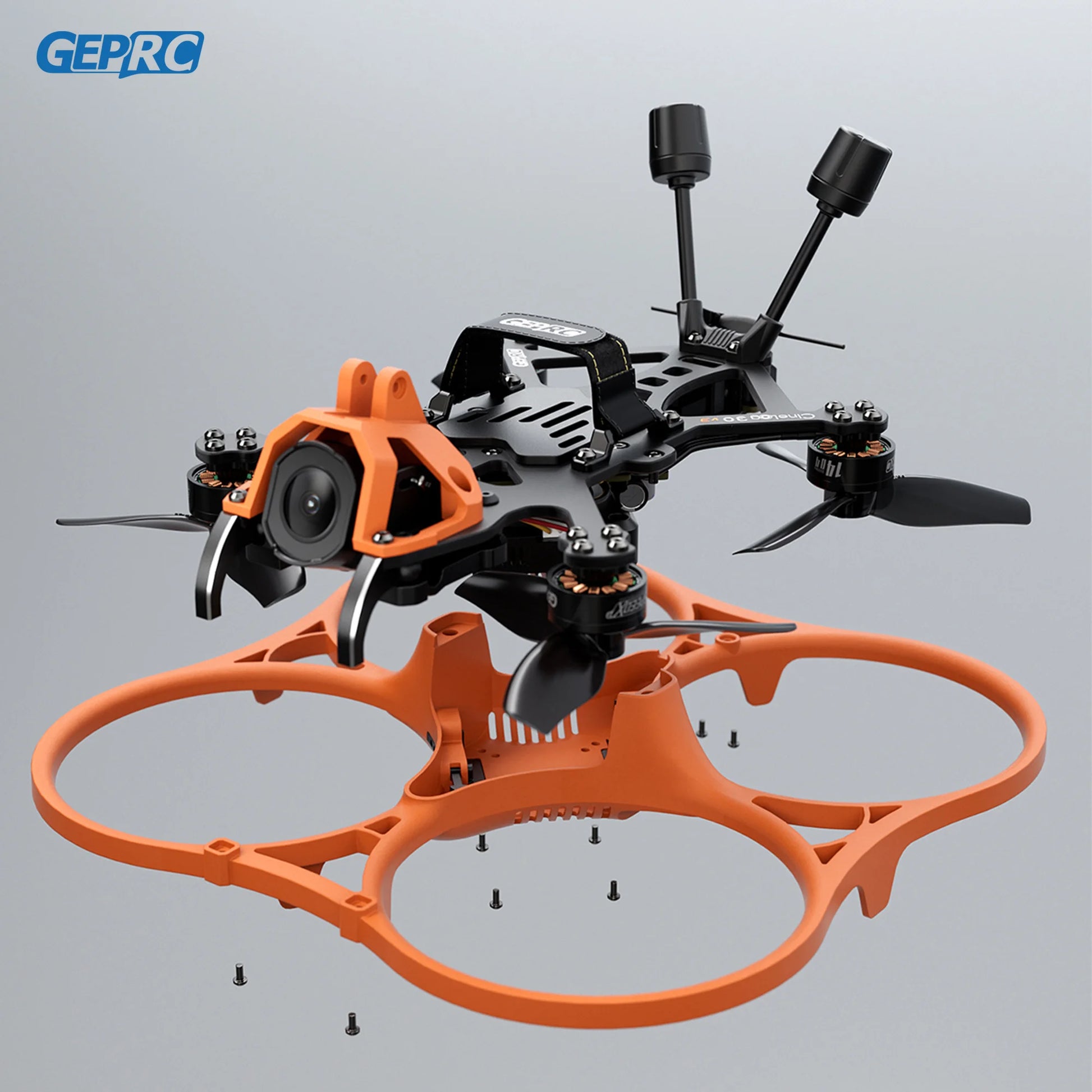

Optimized Frame Design. New protective frame with curved side supports for a more secure, wraparound fit.

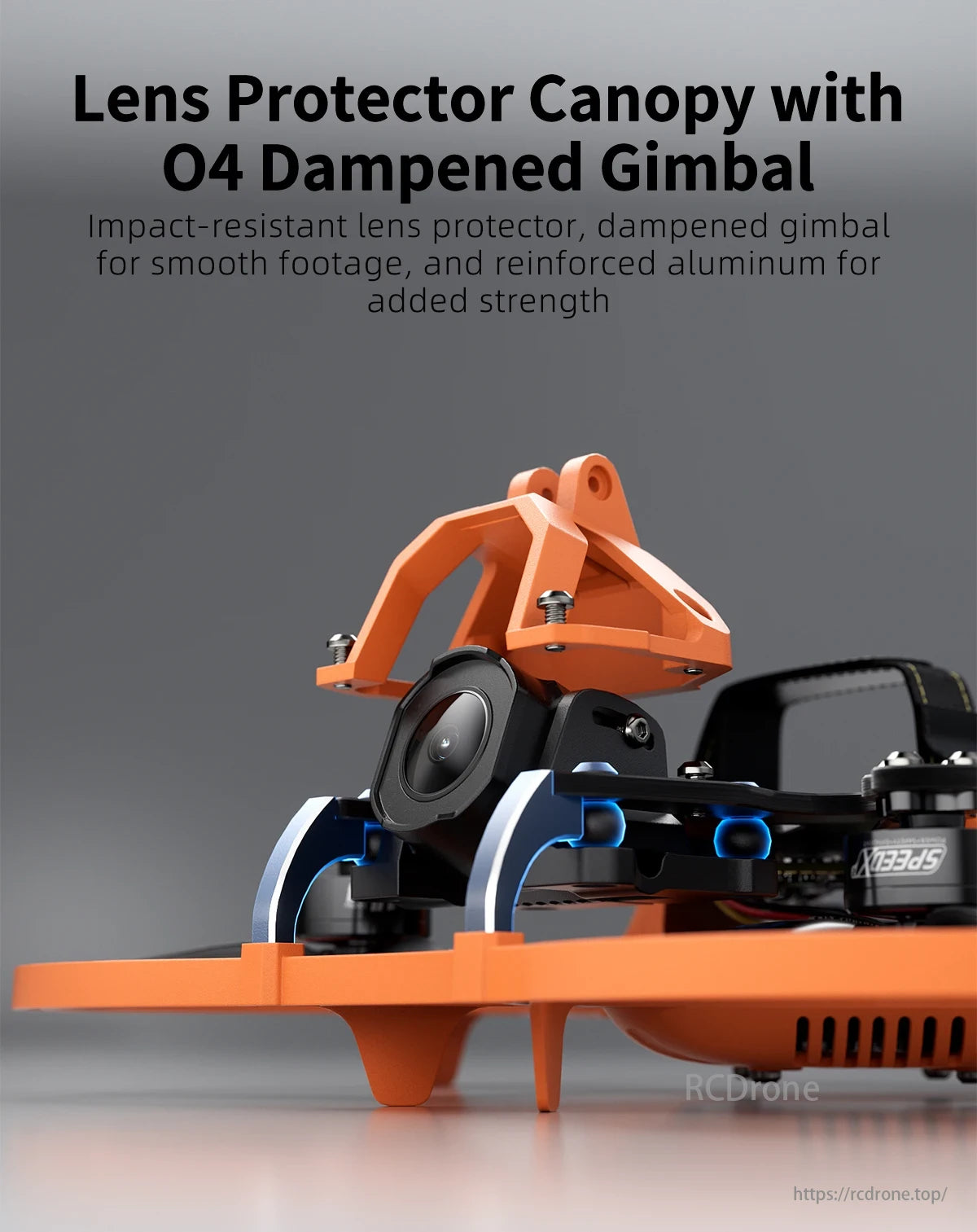

Lens Protector Canopy with 04 Dampened Gimbal ensures smooth footage and added strength.

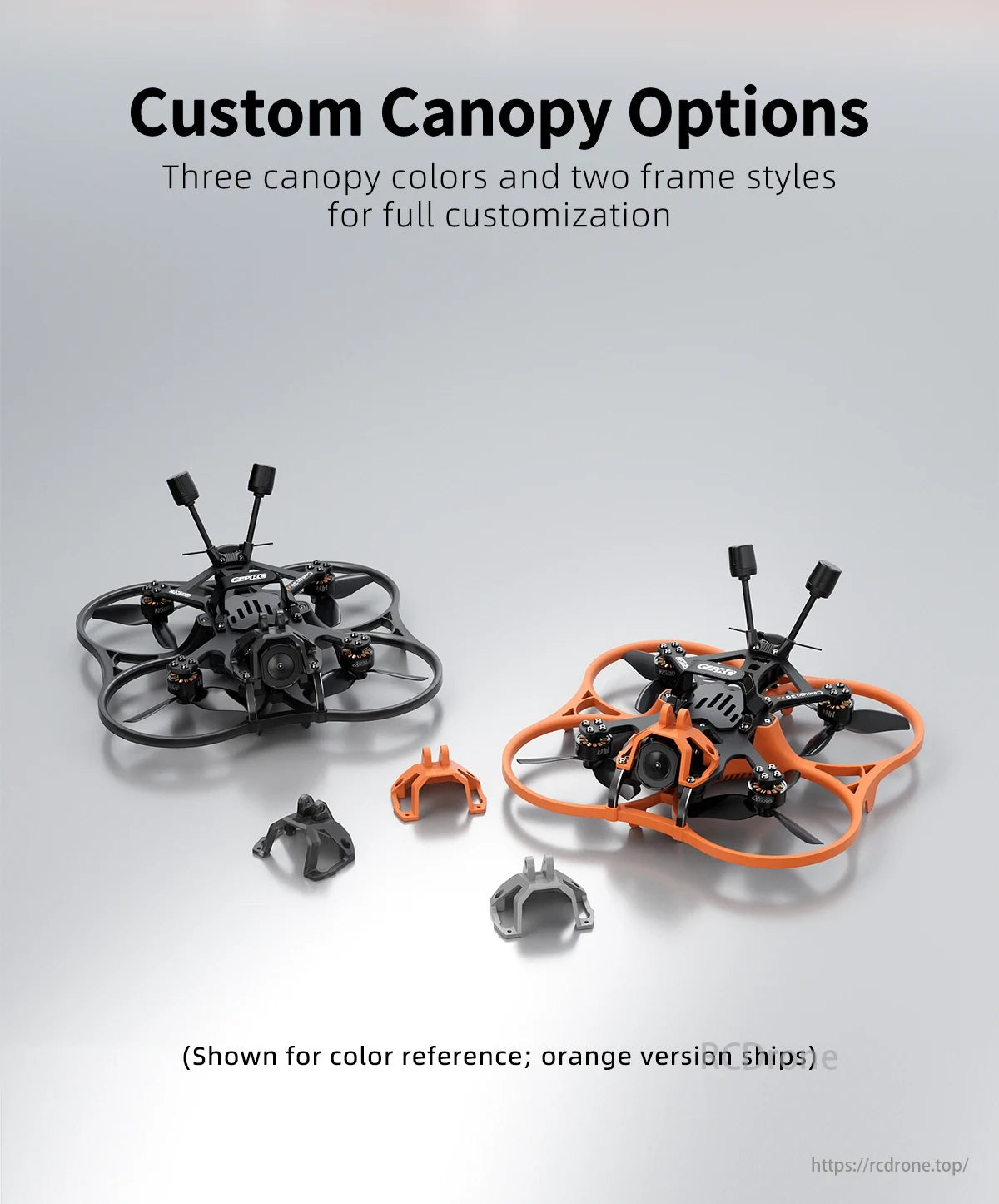

Custom Canopy Options: Three canopy colors and two frame styles for full customization. Shown for color reference; orange version ships.

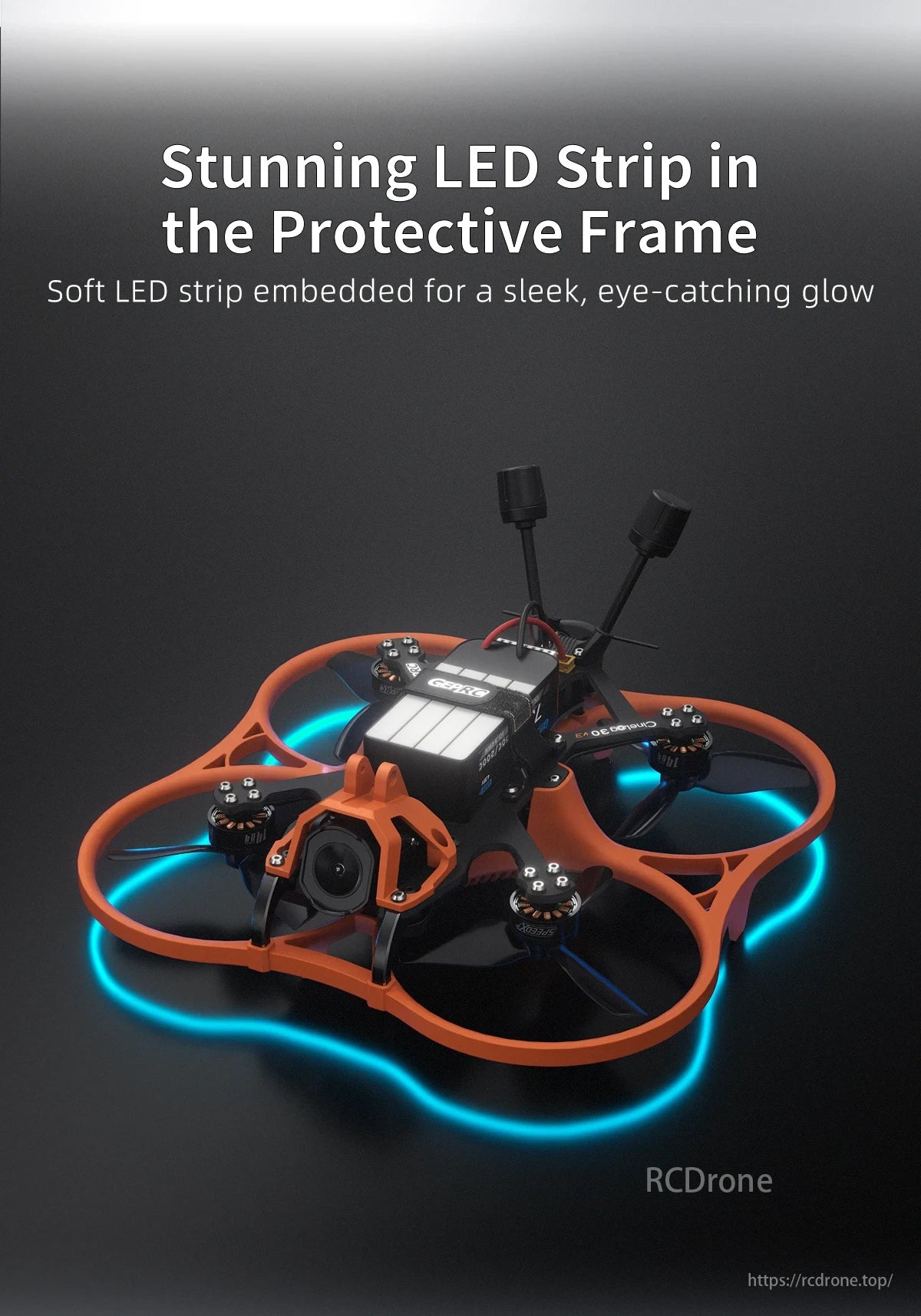

Stunning LED strip in protective frame. Soft LED embedded for sleek, eye-catching glow.

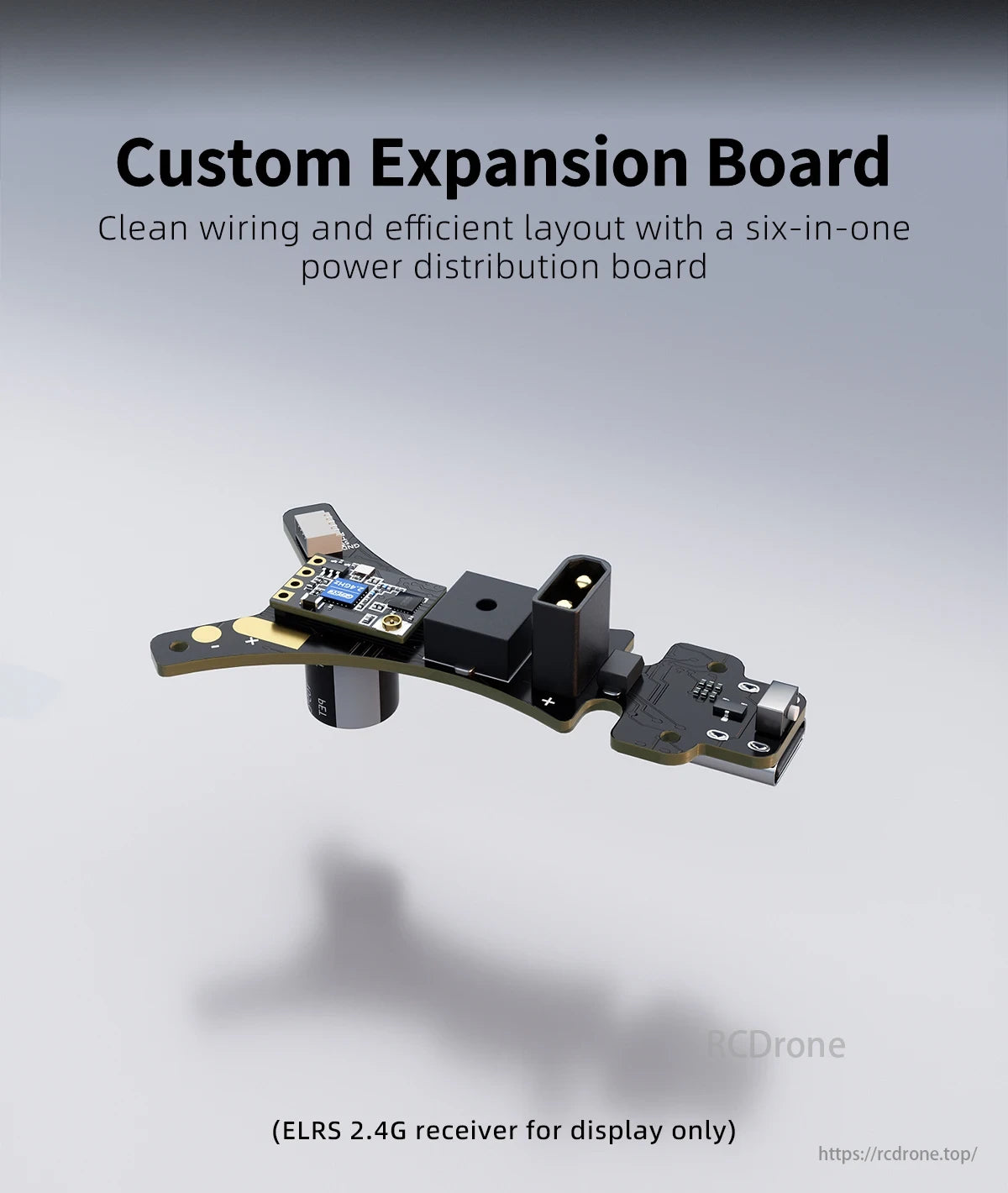

Custom Expansion Board: Clean wiring, efficient layout, six-in-one power.

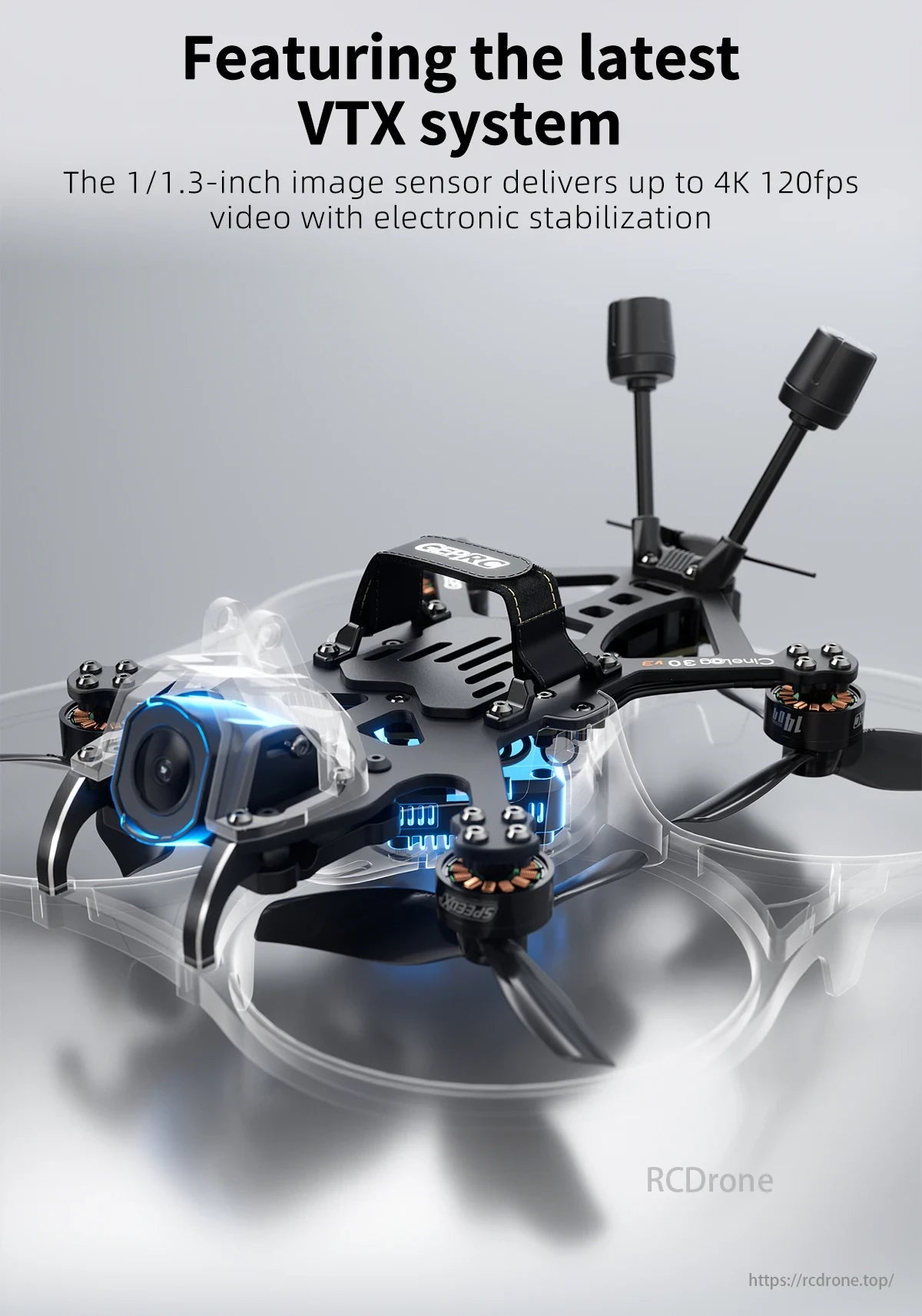

Featuring the latest VTX system. 1/1.3-inch image sensor delivers up to 4K 120fps video with electronic stabilization.

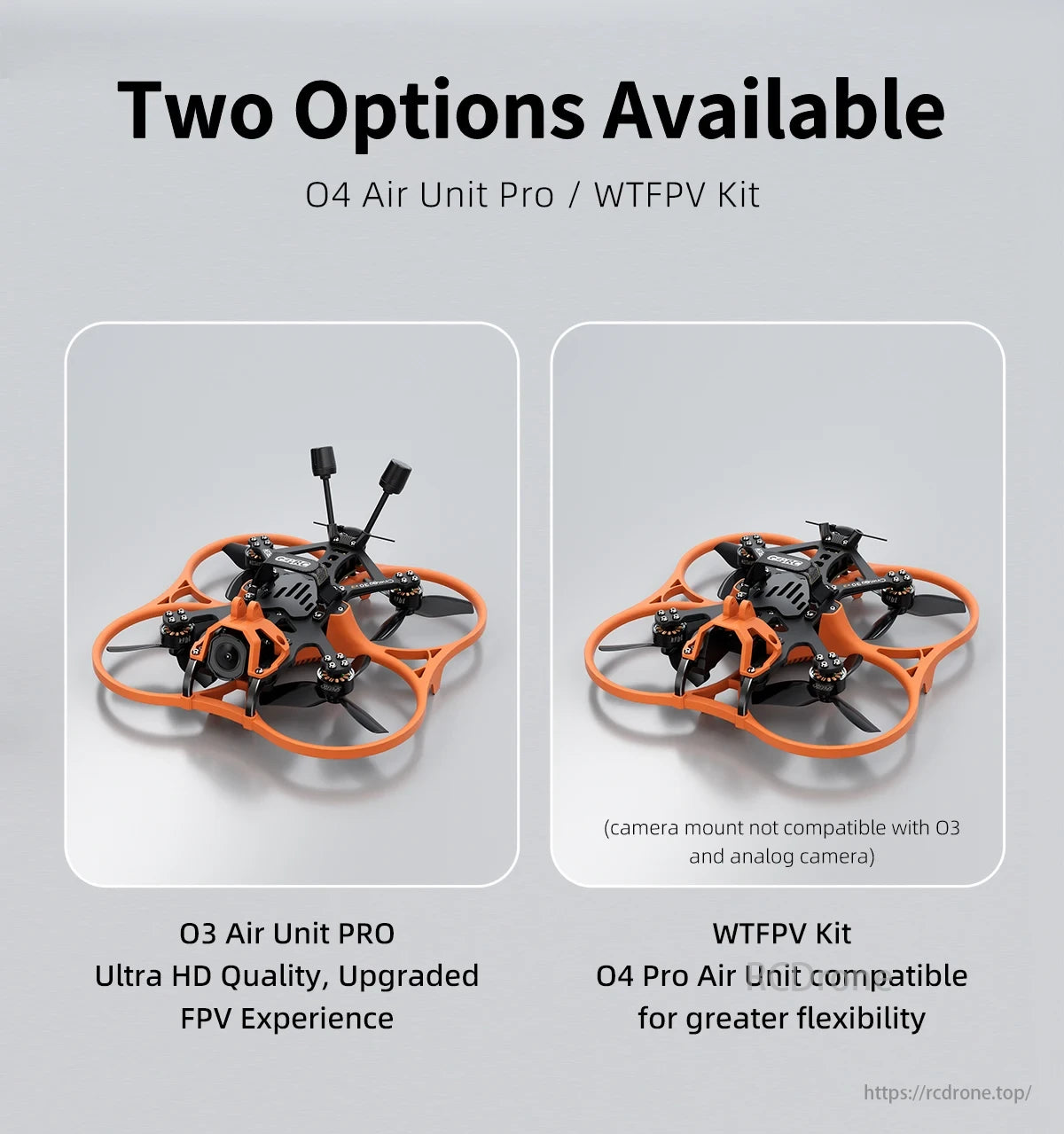

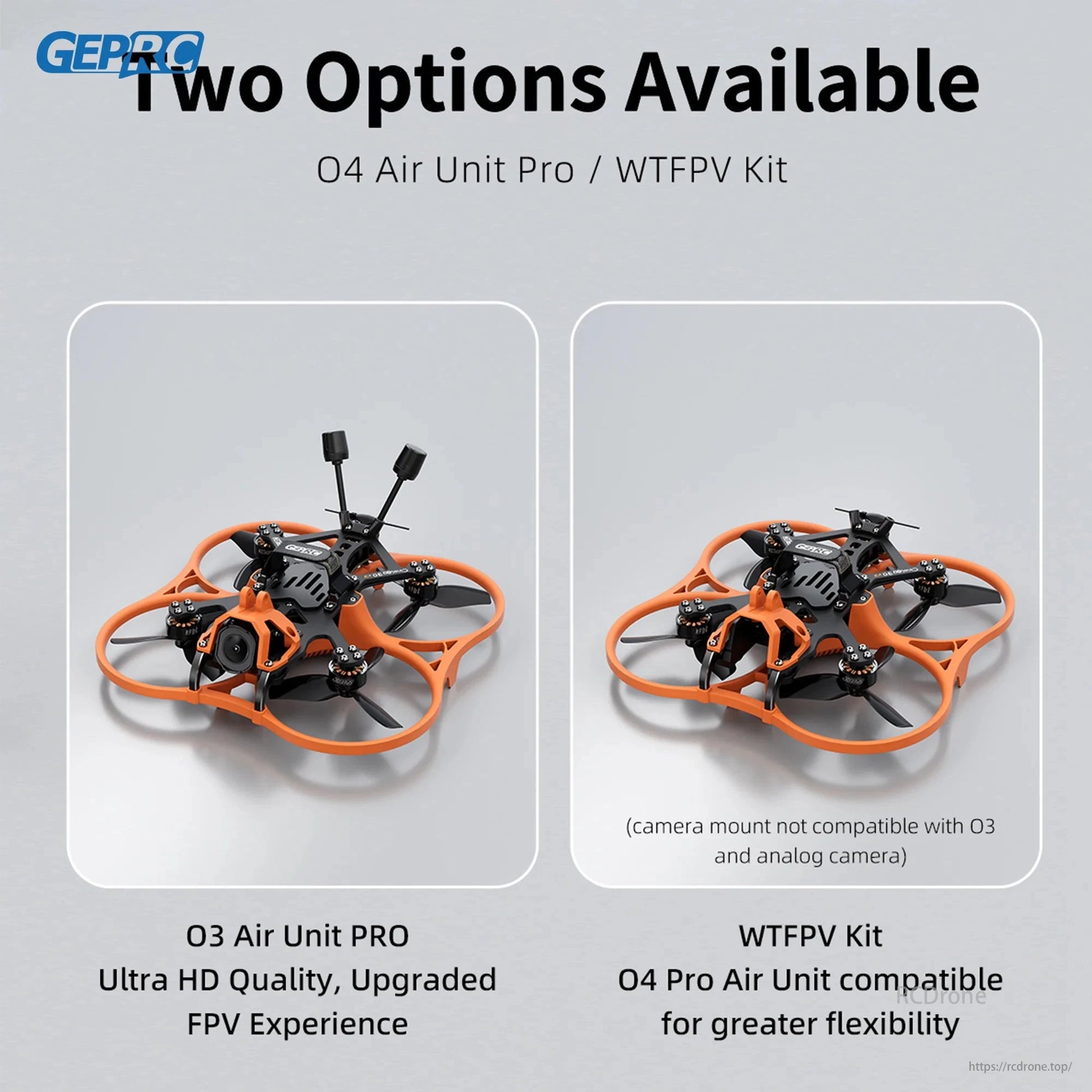

Two options: O3 Air Unit Pro offers Ultra HD, upgraded FPV; WTFPV Kit provides O4 Pro compatibility for greater flexibility.

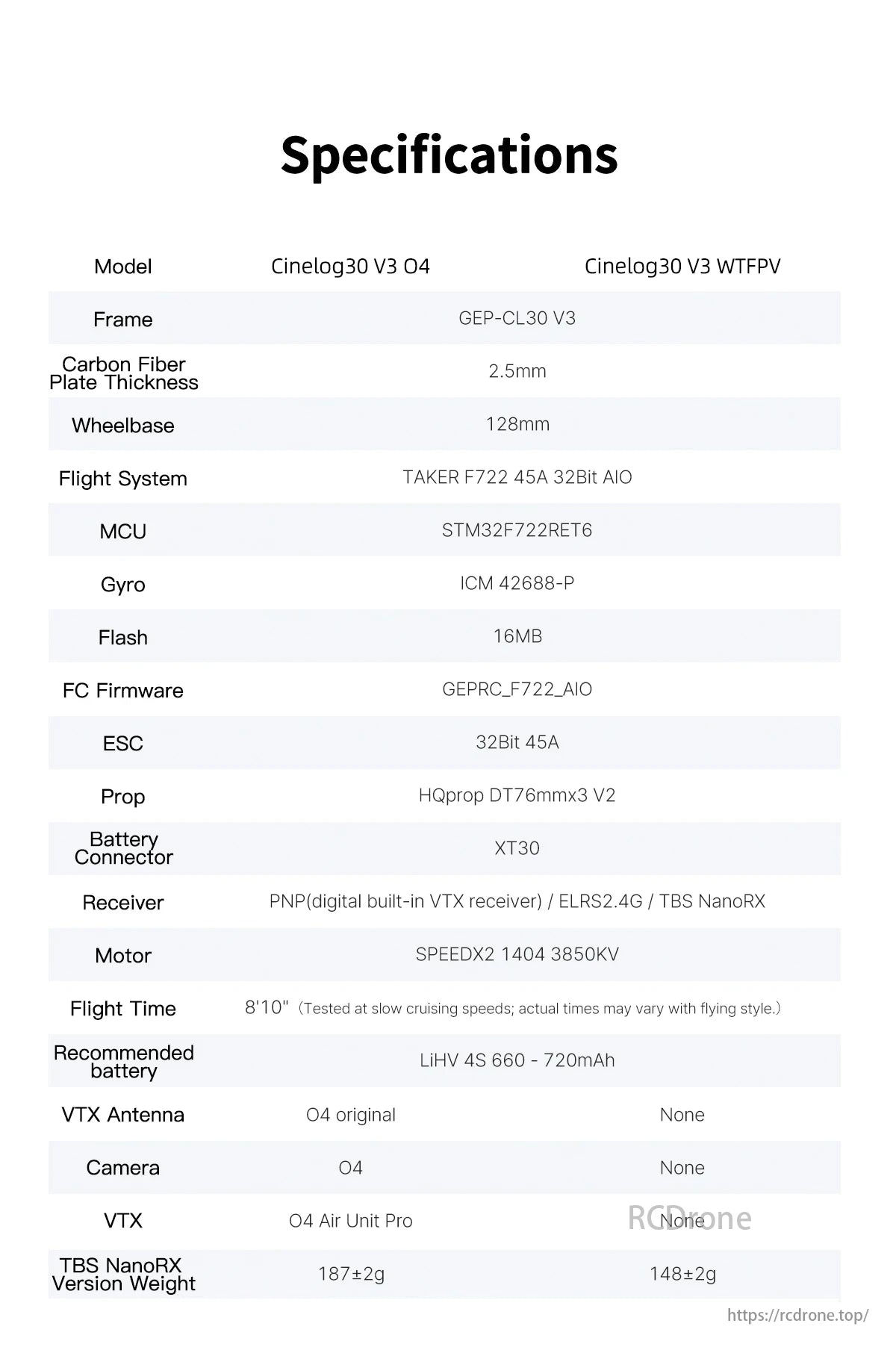

Specifications for Cinelog30 V3 models include a 2.5mm carbon fiber plate, 128mm wheelbase, TAKER F722 flight system, STM32F722RET6 MCU, and ICM 42688-P gyro. Features vary between O4 and WTFPV versions, with the O4 including an original VTX antenna, camera, and Air Unit Pro VTX. Flight time is 8-10 minutes.

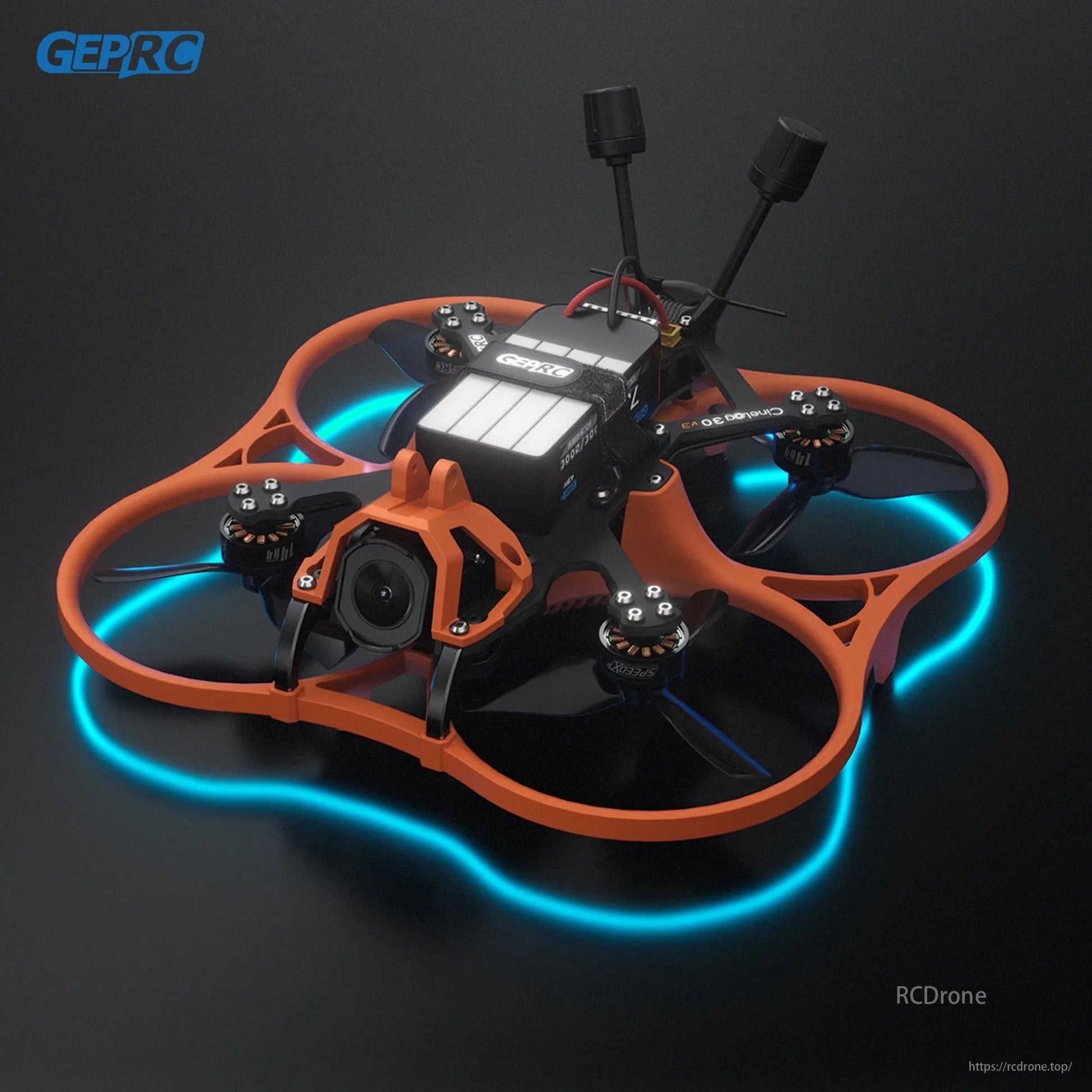

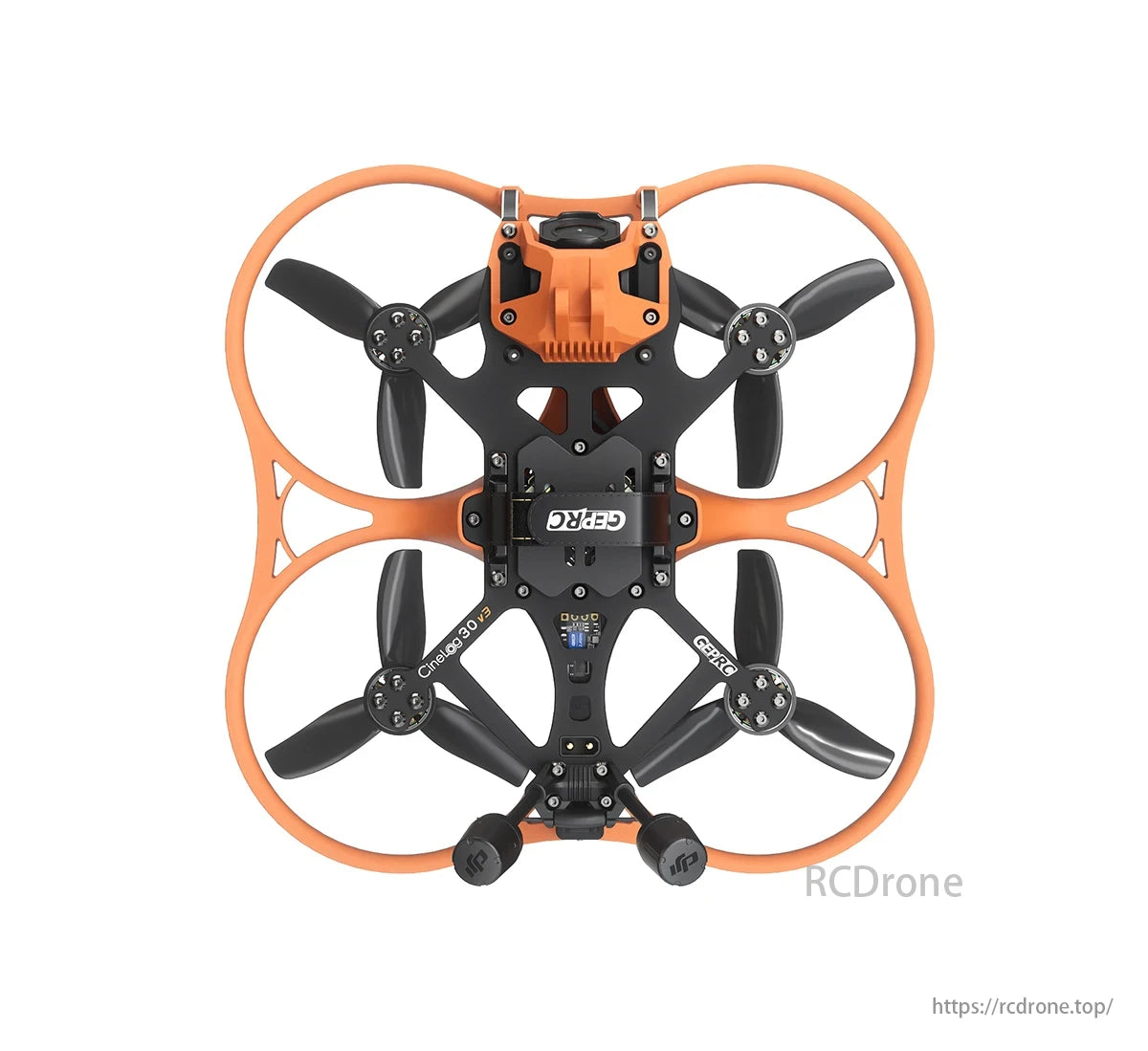

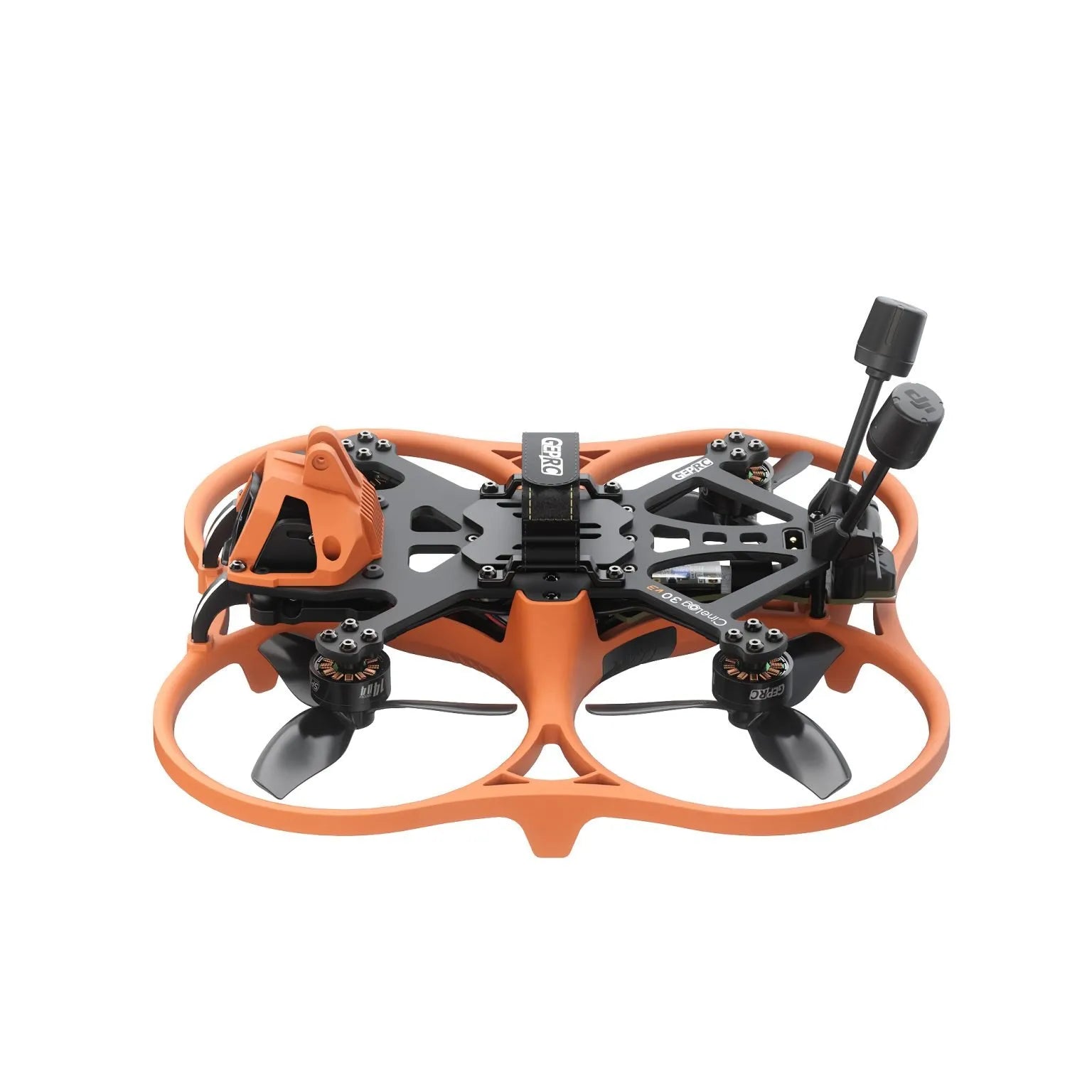

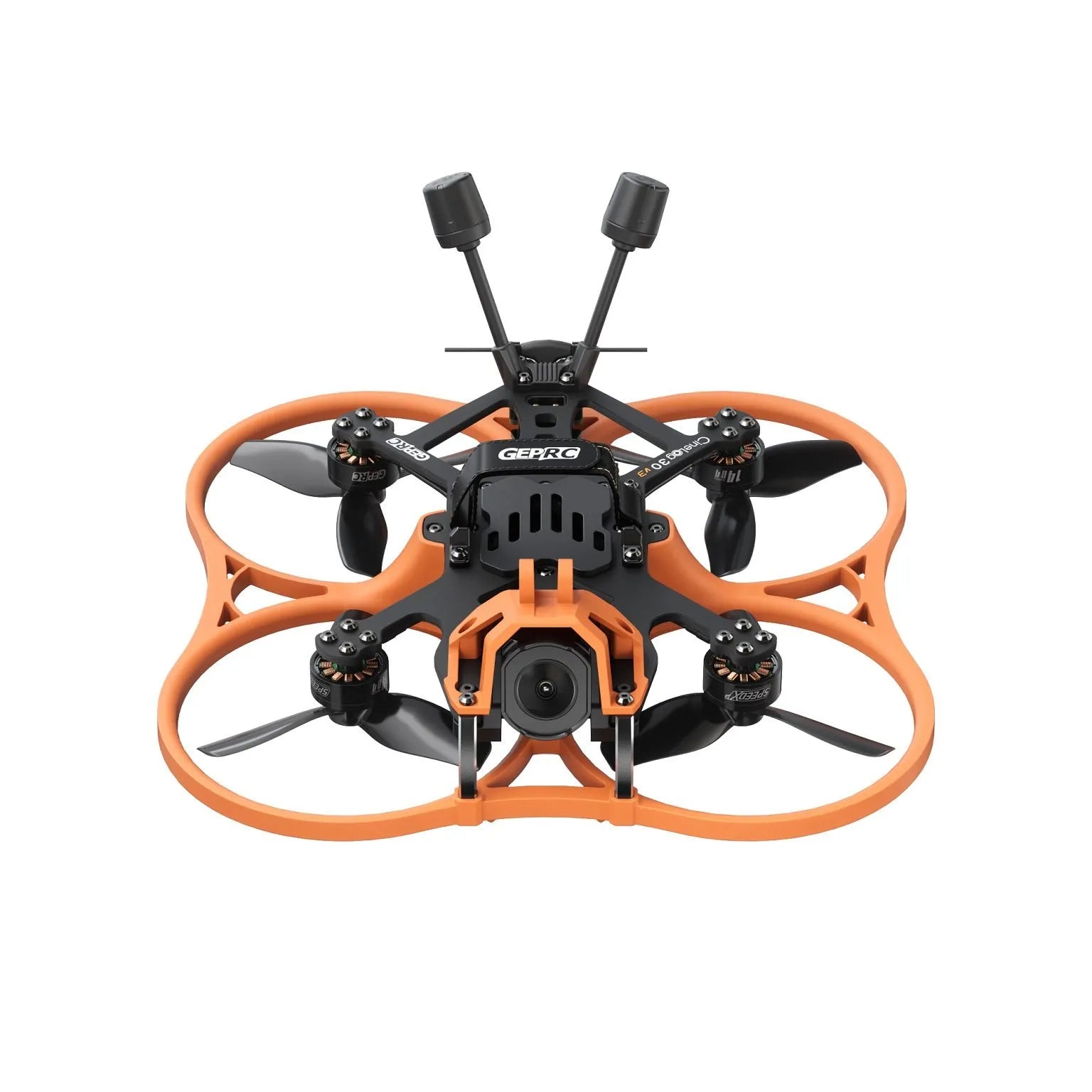

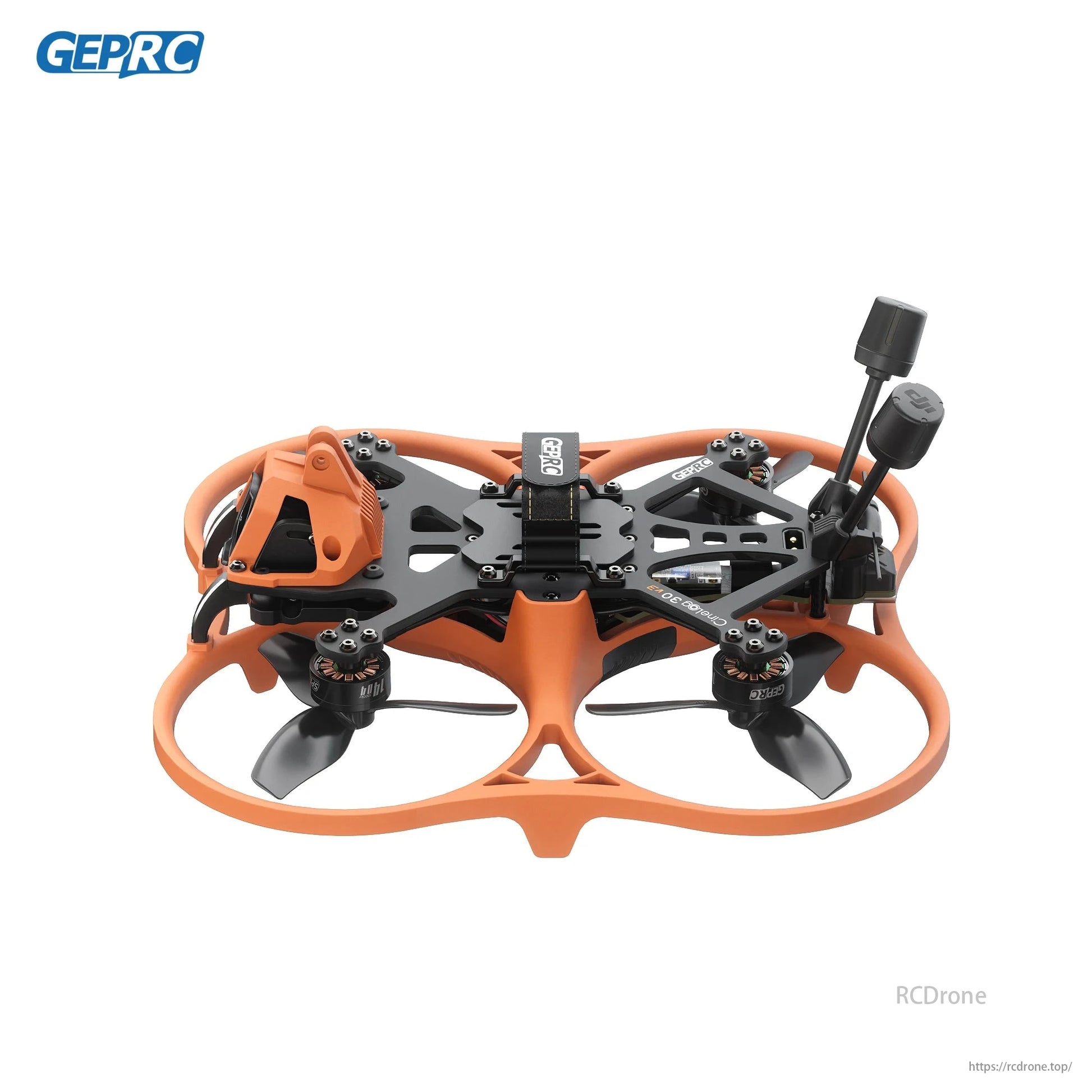

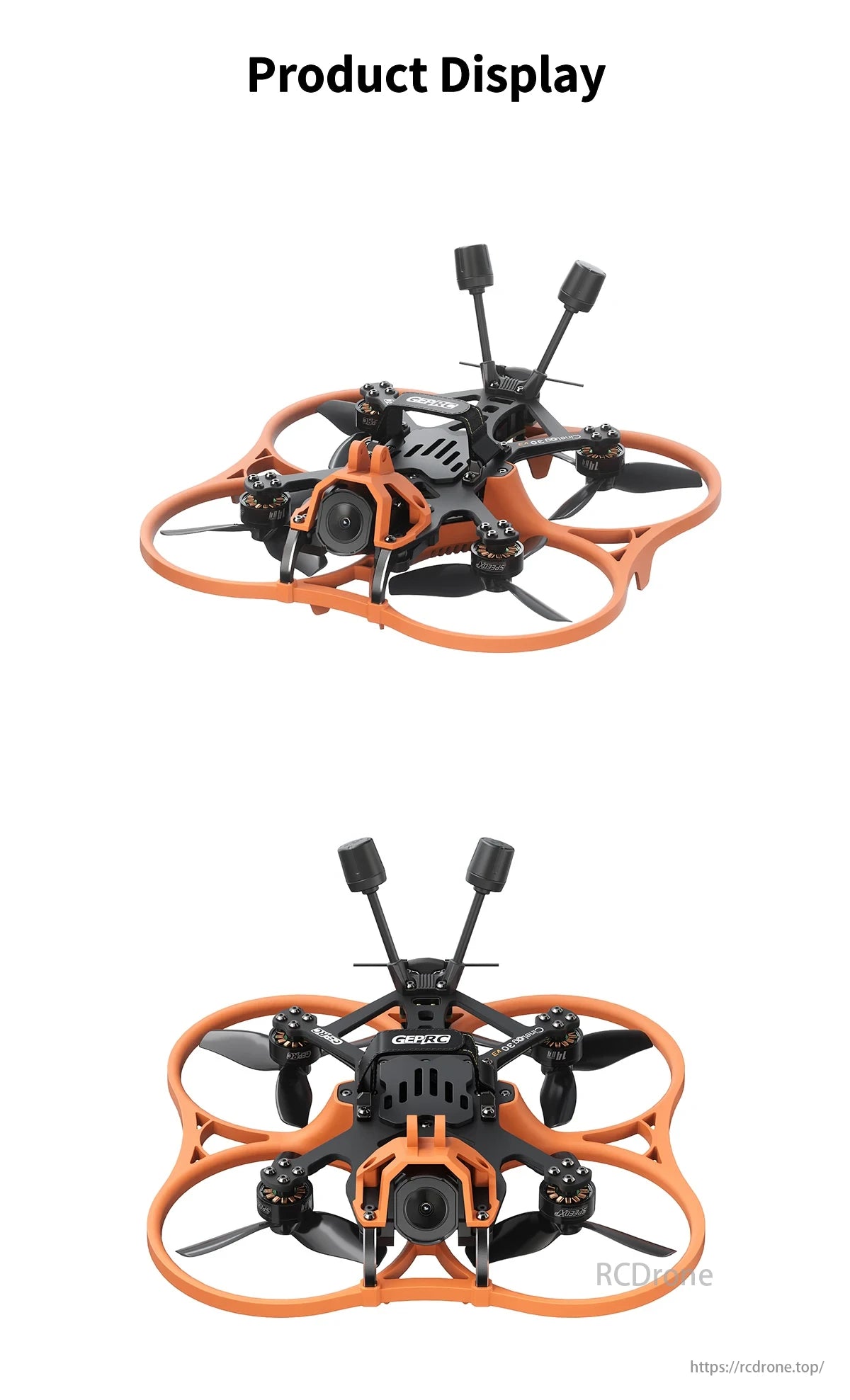

Product Display features a black and orange drone with four rotors, protective frame, and two antennas for enhanced flight capabilities.

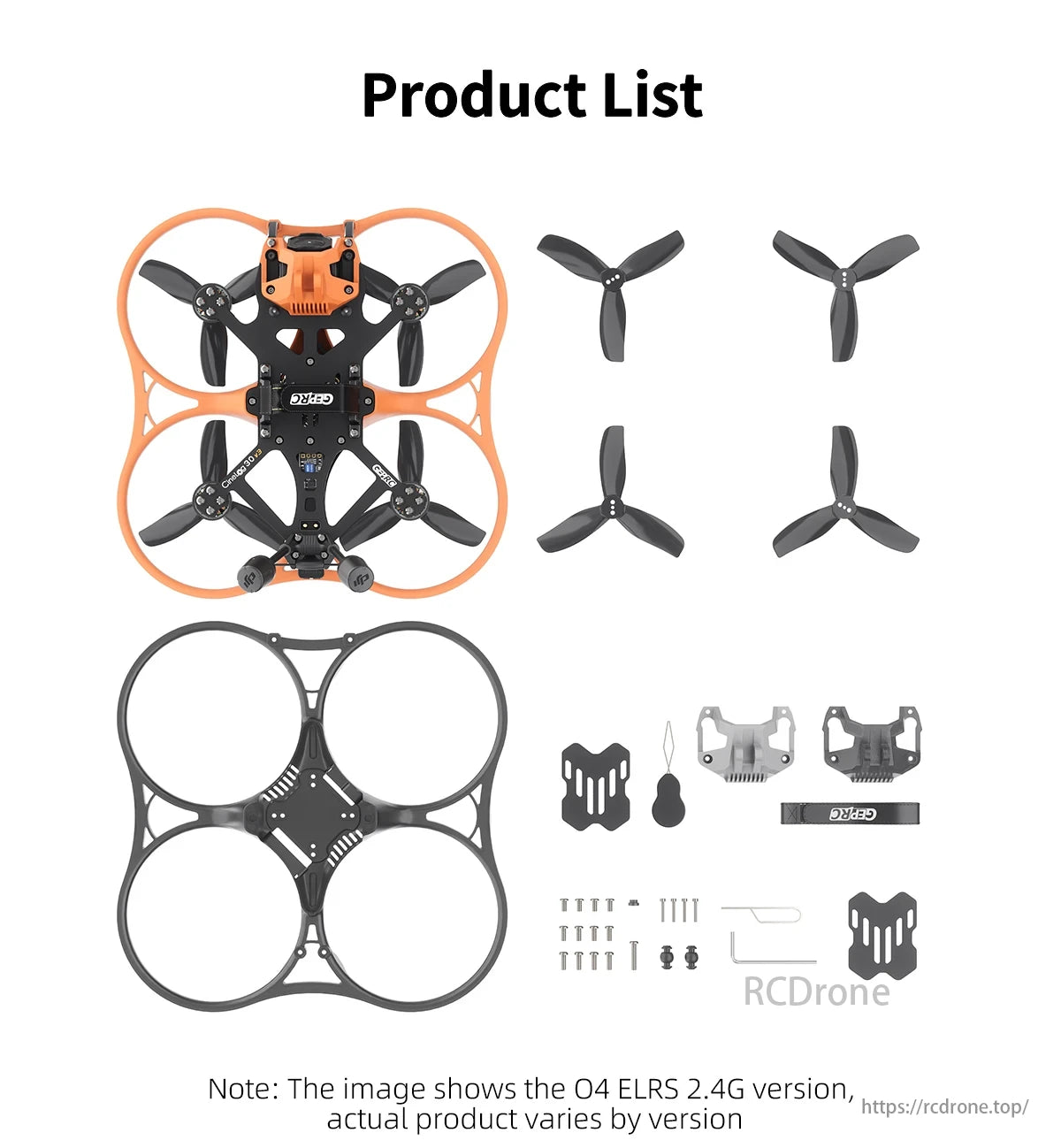

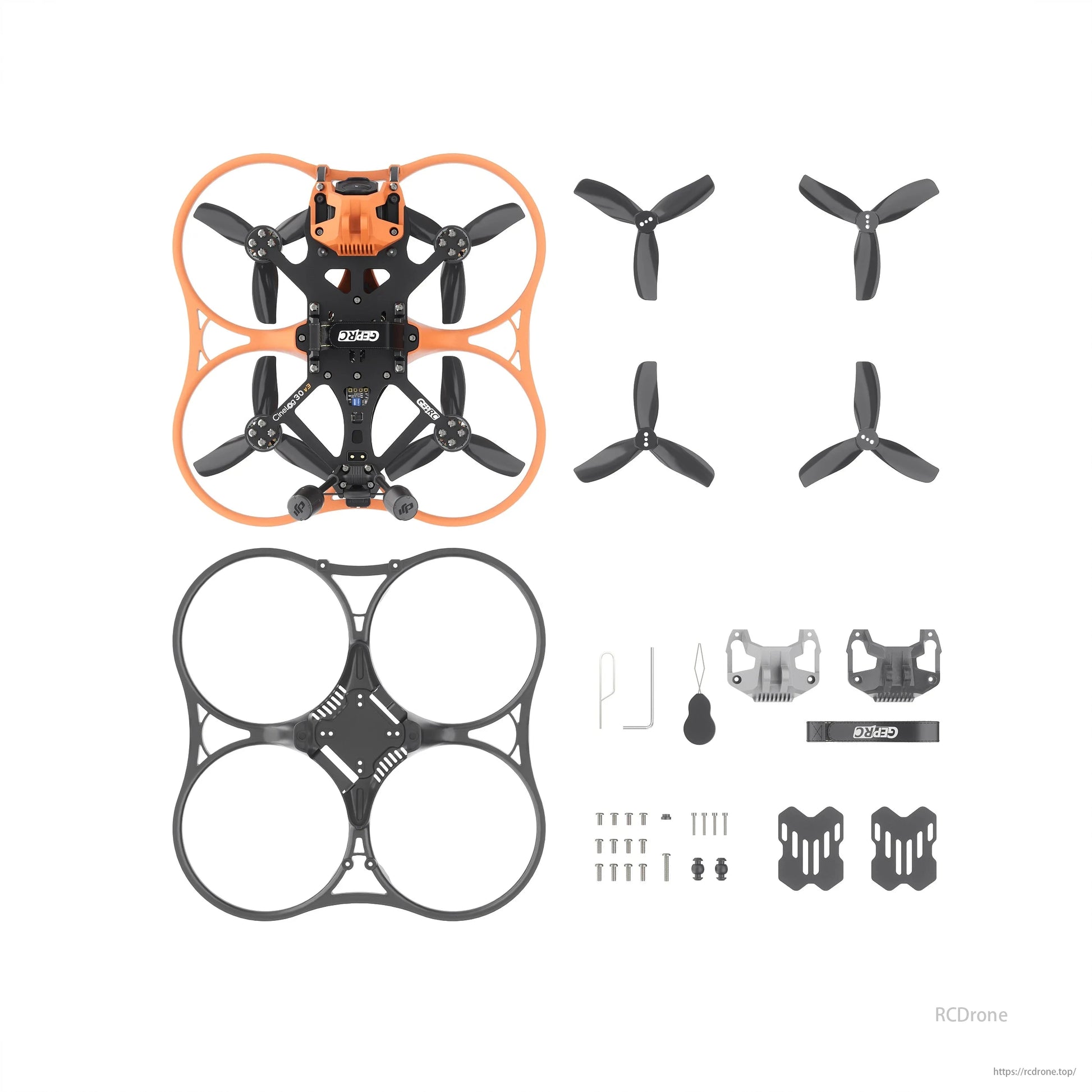

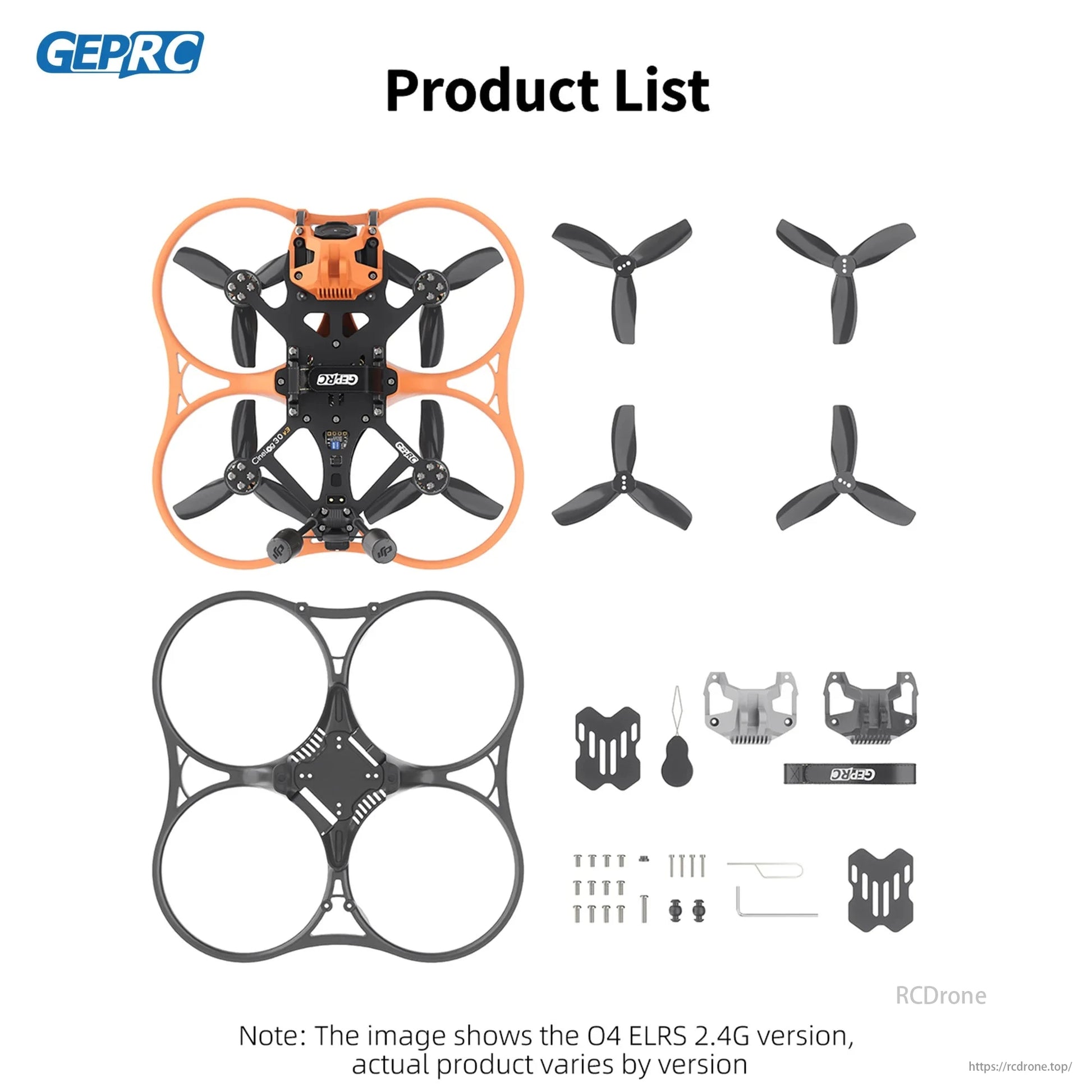

Product list includes drone, propellers, landing gear, screws, and accessories. Actual product varies by version.
