GEPRC CineLog35 V2 HD SPECIFICATIONS
Warranty: 3 month
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 2K QHD,Other
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box,Camera,Operating Instructions
Origin: Mainland China
Operator Skill Level: Beginner,Intermediate,Expert
Model Number: Cinelog35 V2 HD Avatar
Material: Carbon Fiber,Plastic,Metal
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5- 8 minutes
Features: App-Controlled,FPV Capable,Other
Dimensions: 3inch
Controller Mode: MODE1,MODE2
Controller Battery: Not Include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount,Other
Brand Name: GEPRC
Aerial Photography: No
Summary
Gathering the experience and evolution of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.
CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.
The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading.
Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.

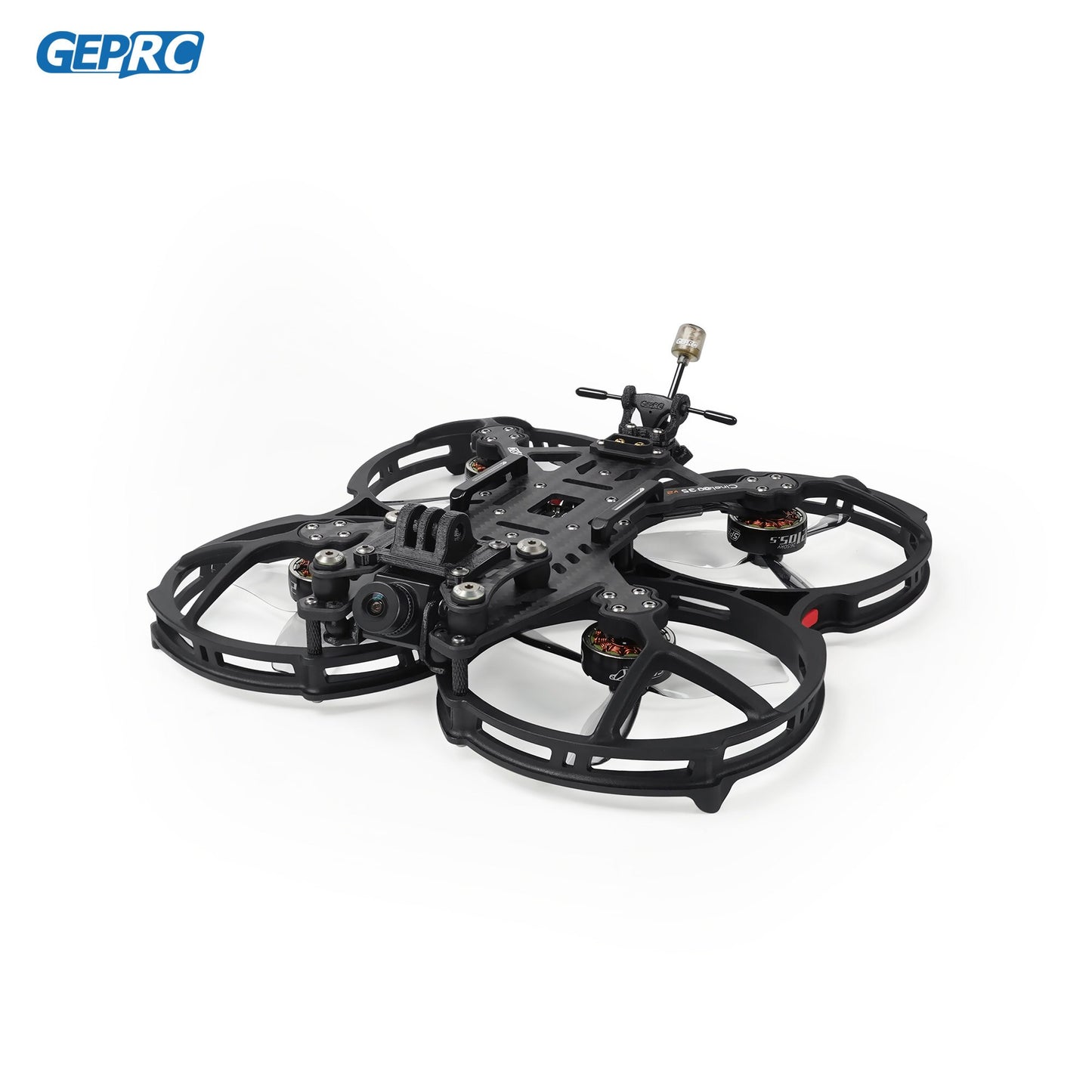

This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user's requirements for flying and filming various scenes indoors and outdoors. The user's satisfied voice is the motivation for us to move forward.
Changelog
May 8, 2023: CineLog35 V2 motor changed from SPEEDX2 2105.5-2150KV(6S) to SPEEDX2 2105.5-2650KV(6S).
CLI Dump for CineLog35 V2: https://geprc.com/downloads/cinelog35-v2/
Feature
-
New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
-
Adopts the GEP F722-45A AIO V2 high performance flight controller.
-
Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading
-
For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
-
SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.
-
Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
-
Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
-
Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.
Specifications
-
Model:Cinelog35 V2 HD Avatar
-
Frame: GEP-CL35 v2
-

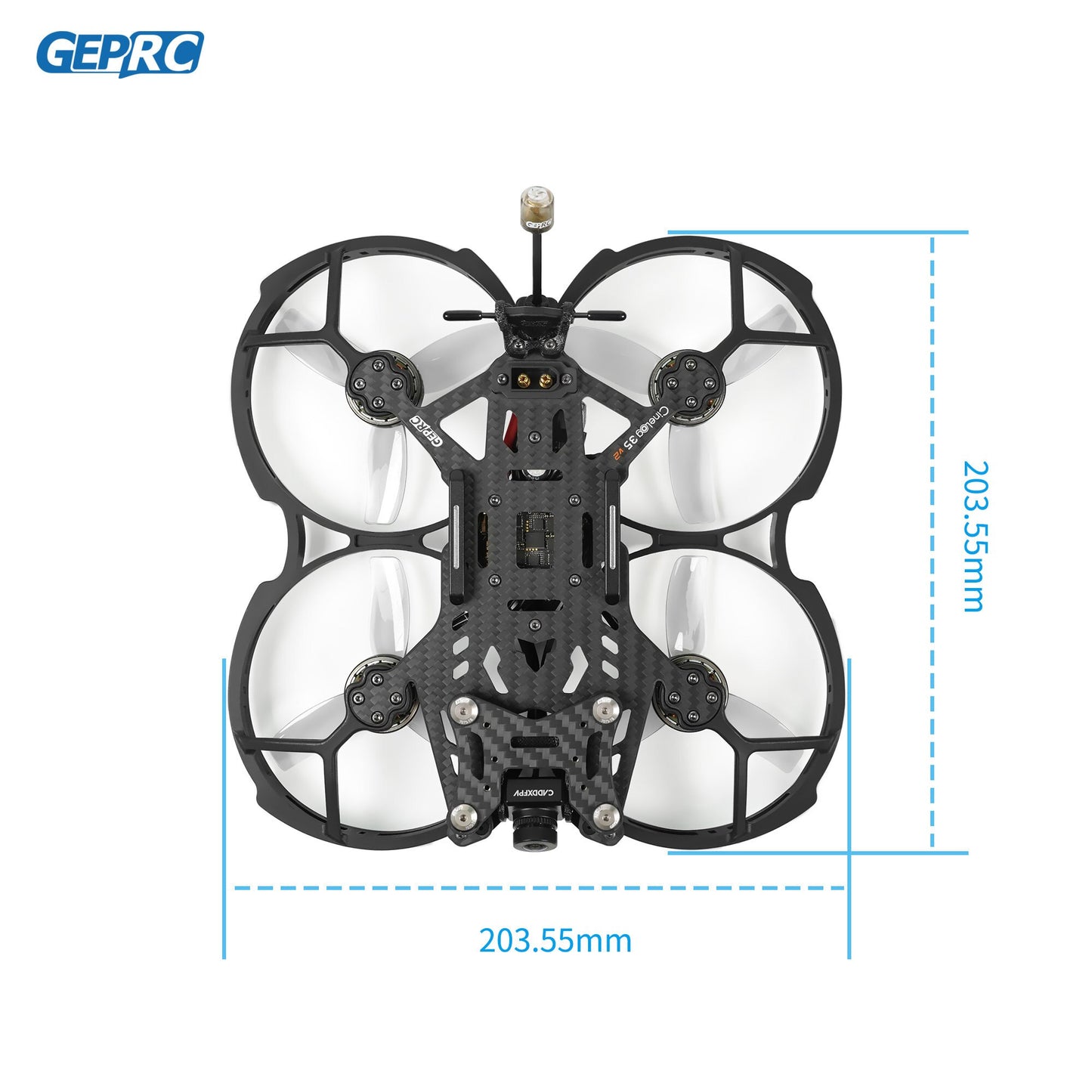

Wheelbase: 142mm
-
Gimbal plate: 2.0mm
-
Top plate: 3.5mm
-
Bottom plate: 1.5mm
-
FC system:GEP-F722-45A AIO V2
-
MCU: STM32F722RET6
-
Gyro: ICM 42688-P
-
OSD: Betaflight OSD w/AT7456E chip
-
ESC: 8Bit 45A
-
VTX: Avatar V2 module(Integrated 32G RAM)
-
Camera: Avatar HD Camera v2(Comes with Gyro and Supports Gyroflow)
-
Antenna: GEPRC Peano 5.8G LHCP UFL
-
Motor: SPEEDX2 2105.5-2650KV(6S)
-
Propeller: HQProp D-T90MM
-
Cinelog35 V2 HD Avatar TBSNanoRX weight: 267.7g
-
Receiver: PNP, GEPRC ELRS24, TBS Nano RX
-
Recommended battery:LiPo 1050mah-1300mah
-
Flight time: 5′00″ -8′ 30″
Includes
1 x Cinelog35 V2 HD Avatar
2 x HQProp D-T90MM(2 pairs)
2x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x plastic tweezers
1 x Antenna fixed tube (pair)
1 x Keychain
1 x Naked fixed Base
1 x Naked fixed Base
1 x Antenna fixed Base
Screw package includes:
2x cup head screws M2*18
2x round head screws with pad M2*5.5
1x round head screws M2*12
2x Rivet nut M2
4x round head screws M2*8
4x round head screws M2*7
4x round head screws M2*6
2x round head screws M2.5*6
2x hexagonal screw M1.6*8
1x Flange nuts M5
2x Press Rivet Nuts_Brass color M2*1.9-OD4.9
2x Iron nut M2
2x Iron nut M2
2x Camera lens PTZ shock absorbing rubber
GEPRC Cinelog 35 V2 03 Air Unit Bright Vision; Steady Forward hoq Compatible with FPV camera independent Optimized 2105.5 2650KV 03 Air unit damping gimbal memory card and USB ports connector method motor 49 battery battery fixing mechanism motor
The camera features a bottom-mounted shock absorption gimbal that effectively eliminates resonance issues with the camera's IMU, resulting in a remarkably stable and shake-free visual experience with crisp and stunning image quality.
The propeller guard and fuselage have been optimized to enhance the overall structural integrity of the drone, increasing its resilience to impacts and collisions.
The drone features an upgraded air unit with improved memory card and USB port functionality, allowing for seamless data reading and plug-and-play usability.
The drone features a reliable and stable fusion battery connector using the XT30-M plug, allowing for easy one-handed power-on operation that eliminates the hassle of tedious connections.
For optimal flight performance, adjust the center of gravity by moving the battery forward when using the drone without a camera or with a naked camera setup. Conversely, when mounting a full-size camera, rotate the battery backward to ensure stable and balanced flight.
Adjust the gimbal pitch and roll to achieve optimal camera positioning for clear and stable video capture.

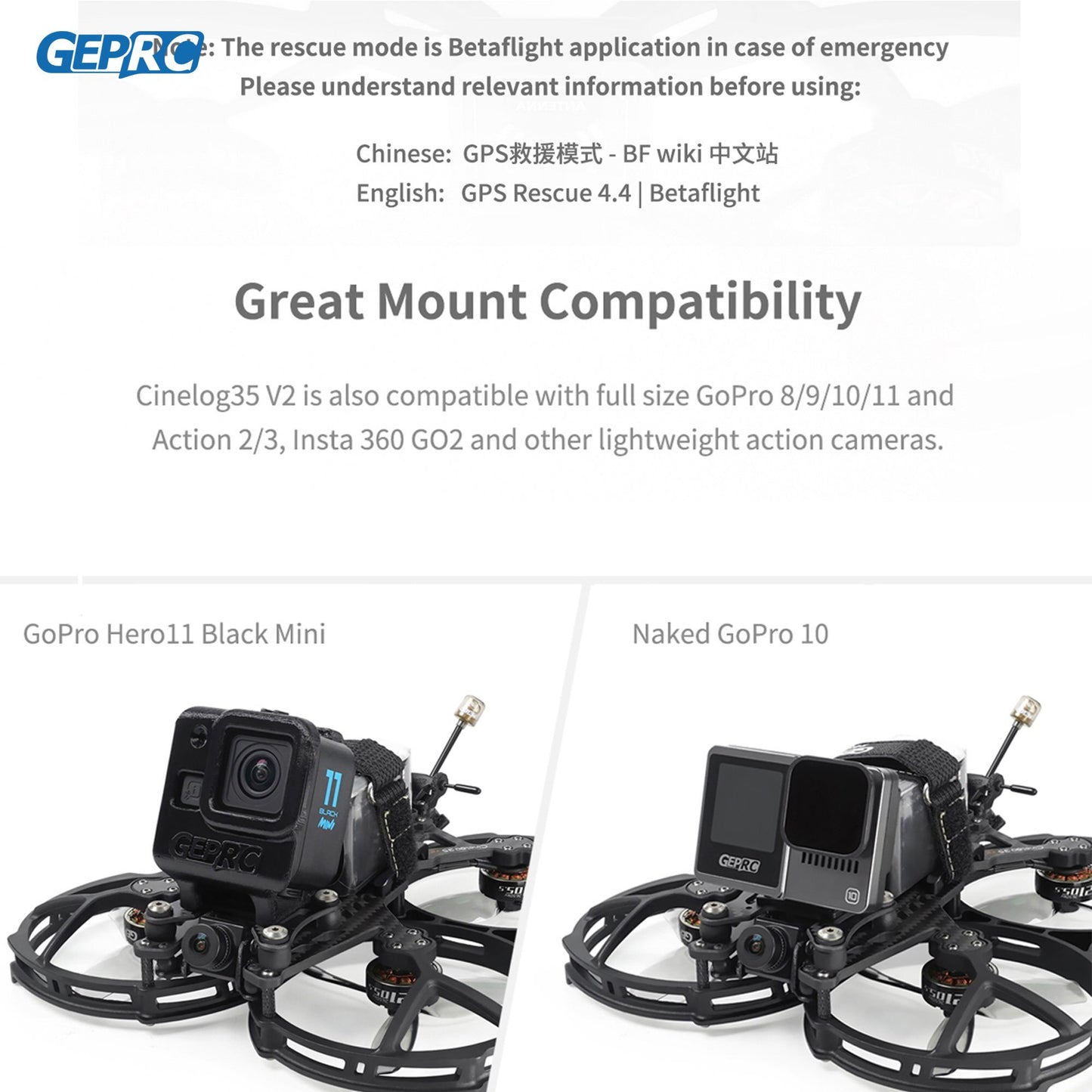

Equipped with GPS technology, this drone features an emergency rescue mode. In the event that your remote control signal is lost or disrupted, the drone will automatically switch to rescue mode, allowing for safe and controlled recovery.
Key Features: * AIO VTX 03 Air Unit * Link Avatar V2 with 32GB storage * RAD 1W Camera * Runcam Wasp Cinelog35 V2 HD camera
