SPECIFICATIONS
Warranty: 3 months
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 2K QHD
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 1500 meters
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Camera
Package Includes: Operating Instructions
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Intermediate
Operator Skill Level: Beginner
Operator Skill Level: Expert
Motor: Brushless Motor
Model Number: GEPRC Crocodile Baby 4 HD Micro Long Range
Material: Metal
Material: Plastic
Material: Carbon Fiber
Indoor/Outdoor Use: Outdoor
Flight Time: 20-28 minutes
Features: FPV Capable
Features: Other
Features: App-Controlled
Dimensions: 4 inch
Controller Mode: MODE1
Controller Mode: MODE2
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 40 minutes
Camera Mount Type: Other
Camera Mount Type: Fixed Camera Mount
Brand Name: GEPRC
Aerial Photography: Yes
Summary:
The most distinguished 4 inch Micro Long Range quadcopter,With superb light-weight design frame and more than 28 Minutes flight time,GEPRC Crocodile Baby 4inch is launching right now,It was just a complete out-of-body experience. There are three versions:DJI HD VTX,Analog VTX 5.8G 600MW and 4K HD recording camera version.Pilots can choose whichever based on their likings.

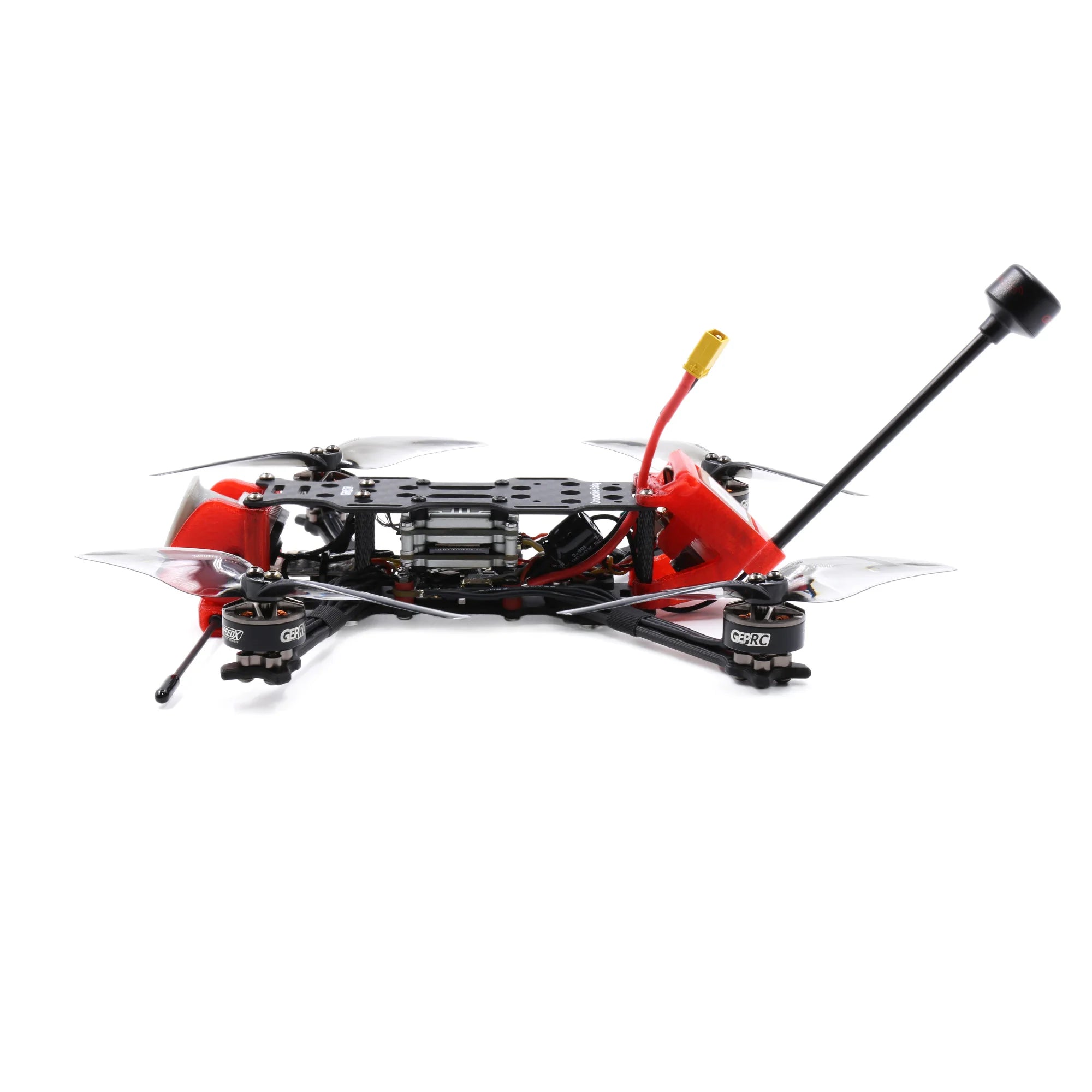

Crocodile Baby 4 inch is the lightest 4-inch Micro Long Range FPV at present.The minimum takeoff weight is within 250g,which conforms to FAA rules.If you are looking for a FPV that can fly around 30 minutes,Crocodile Baby 4 inch is powerful and flexible flight.it will satisfy all your needs.

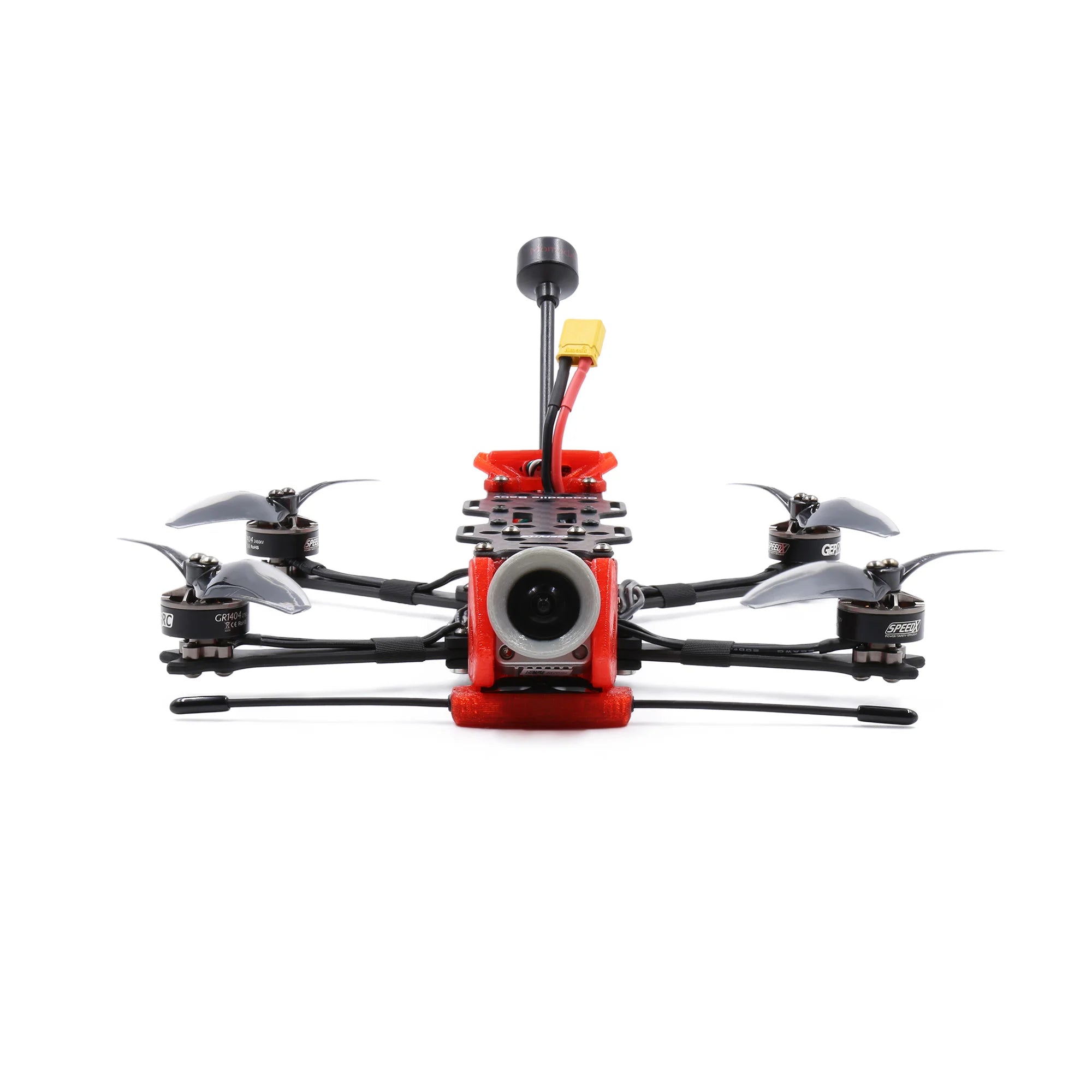

Crocodile Baby 4 inch is the preferred choice for Micro Long Range flight.The High efficiency power system,New Produced GEPRC 1404 2750kv motor and Gemfan 4024 propeller,Using the latest GEP-20A-F4 AIO flight control system, and combine with DJI HD picture transmission system,It is very stable flight and providing a feeling of “easy control” that inspires confidence, especially among novice.In the hands of a skilled pilots, the Crocodile Baby can bring extreme awesome experience as well.Extensive testing ensures that frame and system hold up in any environment,It can work well and get better flight efficiency.If equipped with GEPRC Lion VTC6 3000mAh battery,flight time is more than 28 minutes.

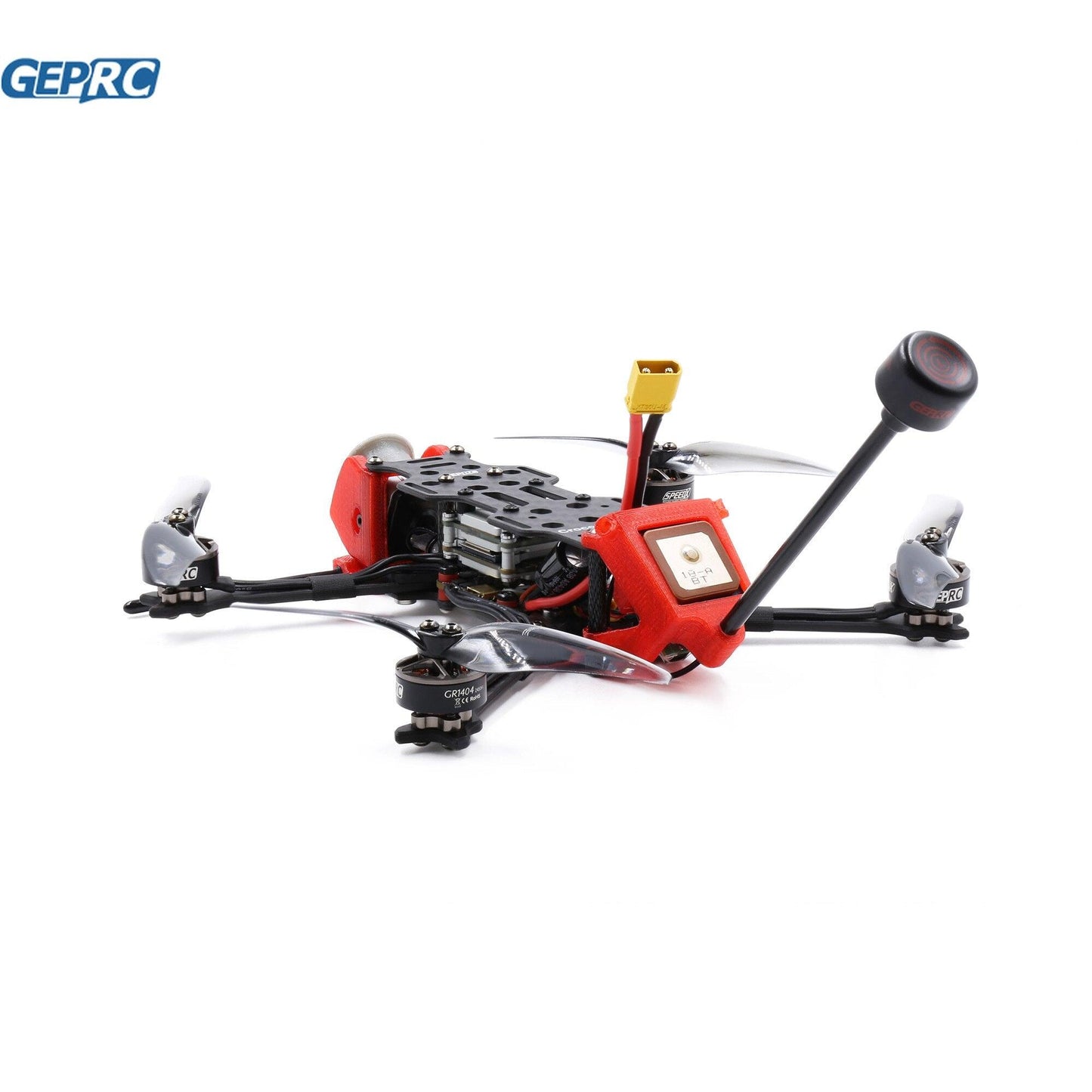

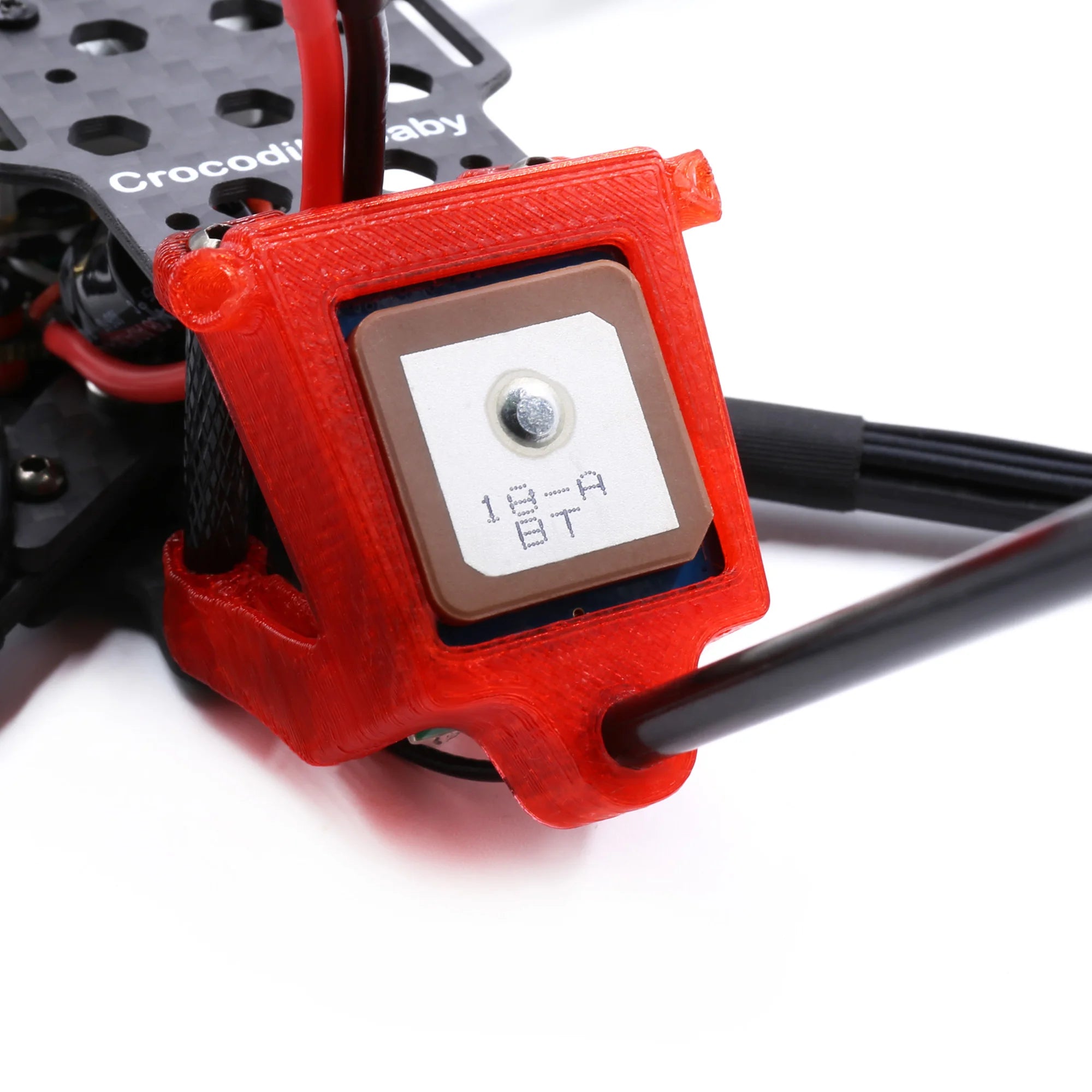

Crocodile Baby 4 inch independently designed GPS module, added GPS function.When signal losing or VTX out of control,It can be start the rescue mode of betaflight (in emergency,The FPV fly back to the approximate position of the base,If the signal is get again,Be sure to operate the FPV to landing manually.) ,The Rescue mode won’t landing automatically.Crocodile baby integrates GEPRC Finder. If the FPV lost and disconnects the battery power,the beeper of GEPRC Finder will making the sound constantly.
Crocodile Baby 4 inch is assembled and debugged by GEPRC TEAM,Improved performance and the flight performance of the whole FPV always superior in Micro Long Range FPV flight.
Specifications:
Brand:GEPRC
Model:Crocodile Baby 4″ HD
Frame:GEP-CB4
Wheelbase:174mm
The thickness of the top plate:1.5mm
The thickness of the bottom plate:2.0mm
The thickness of the arms plate:2.5mm
XT30 Connector
Flight Controller System:GEP-F7-35A(New AIO)
MCU:STM32F722RET6
IMU:MPU6000(SPI)
Type-C USB interface
OSD:BetaFlight OSD w/ AT7456E chip
Integrated LC Filter
Power input:4S LiPo
VTX:Caddx Vista Nuebula Nano
Props:Gemfan 4024
Antenna:GEPRC Momoda 5.8g LHCP

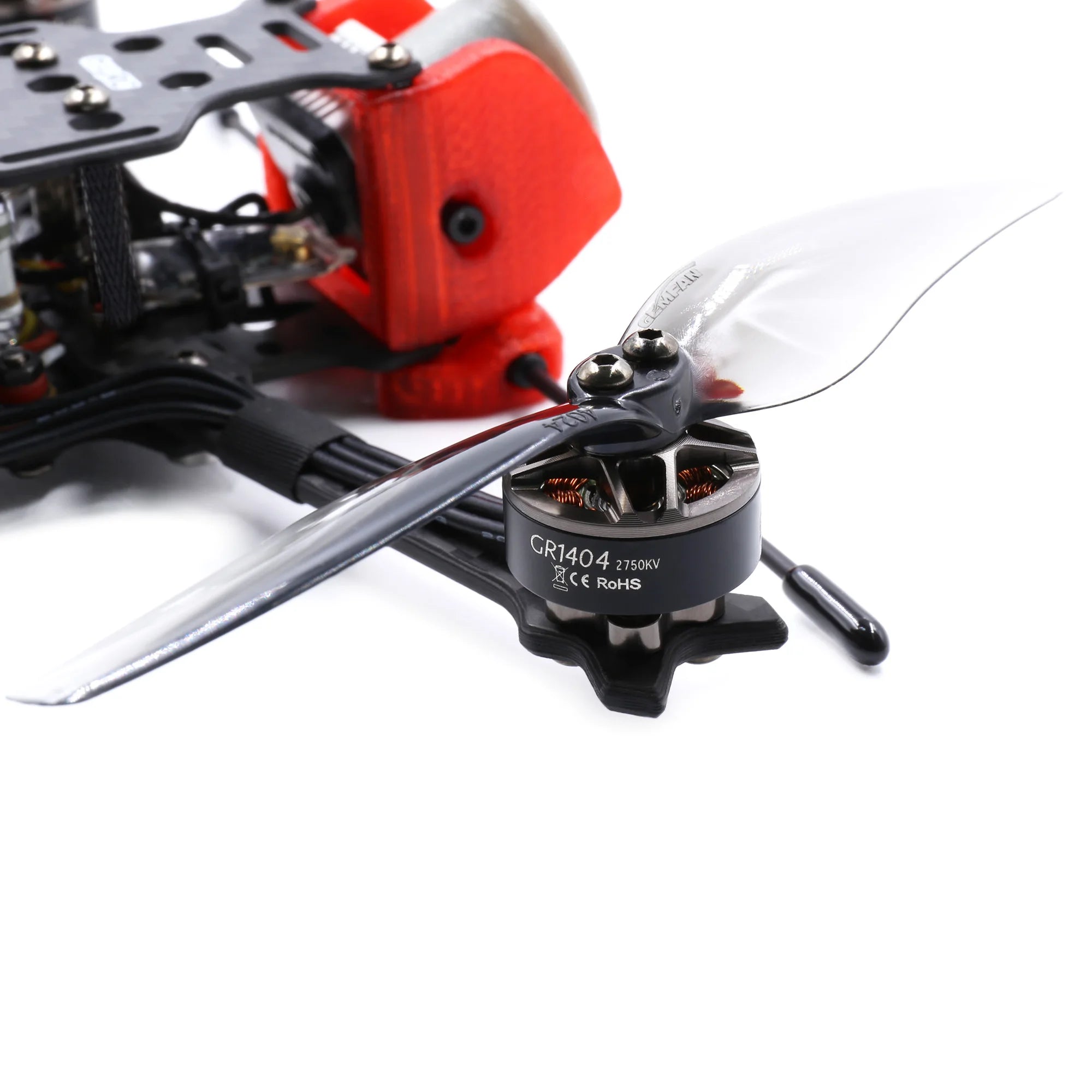

Motors:GR1404 2750KV
GPS:BN-228

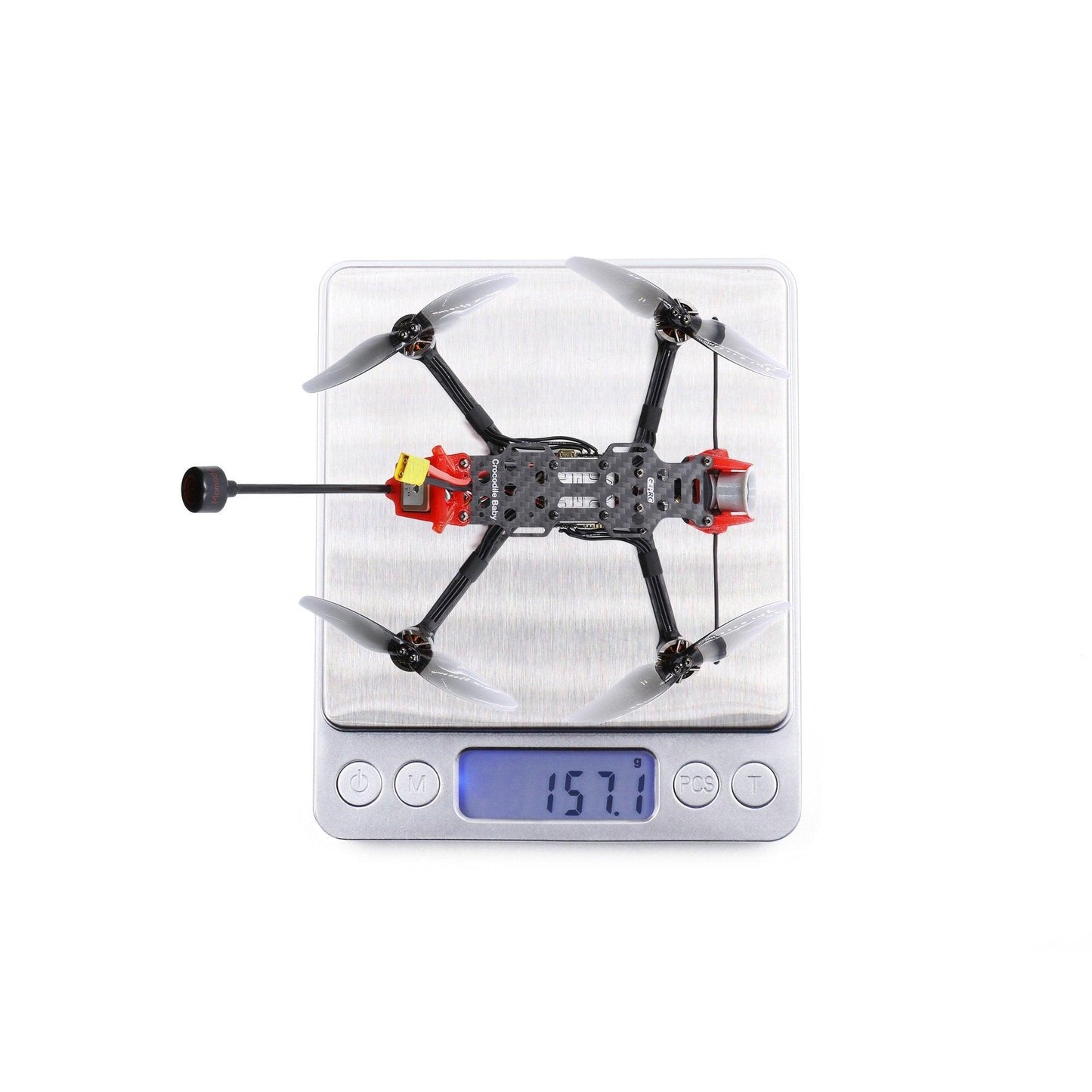

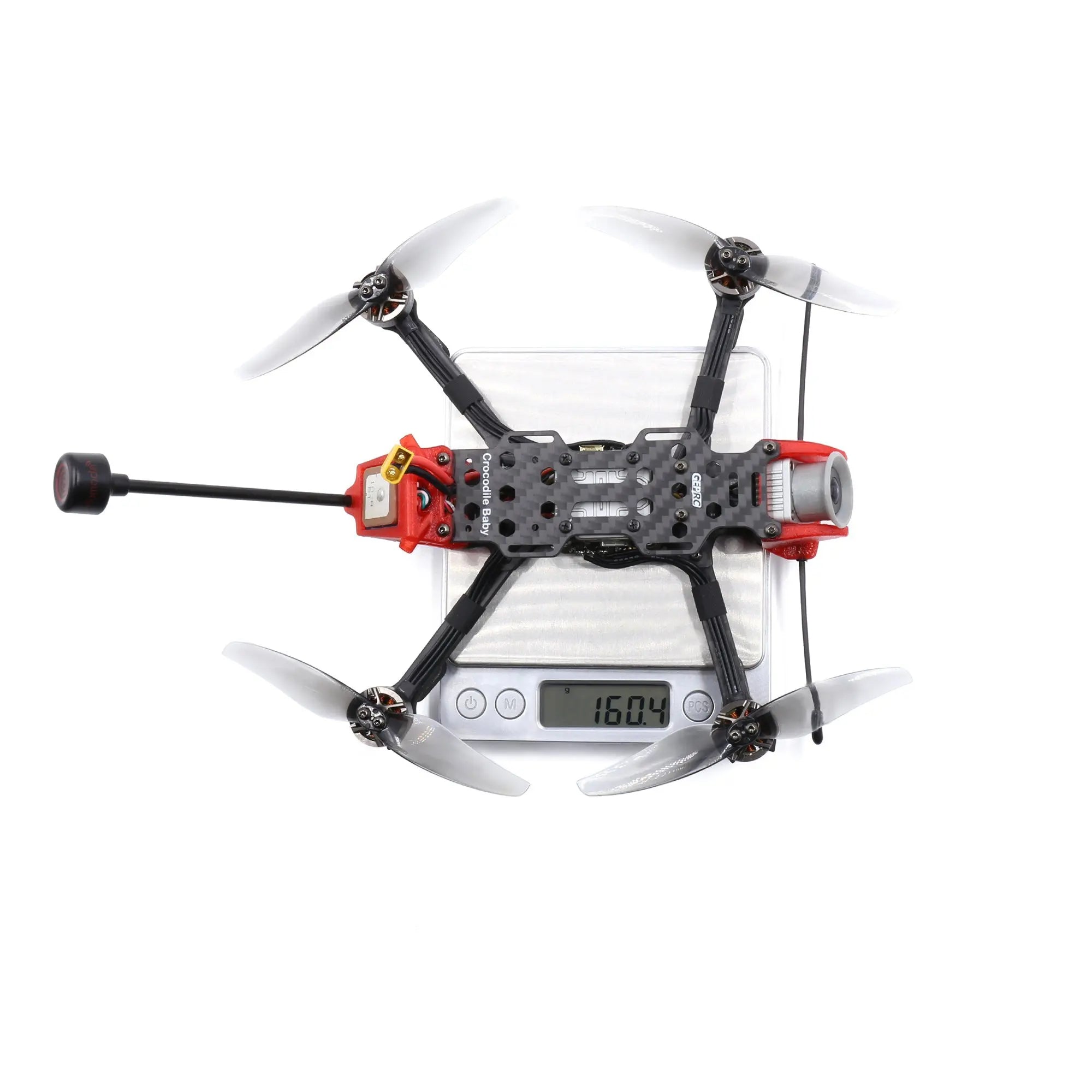

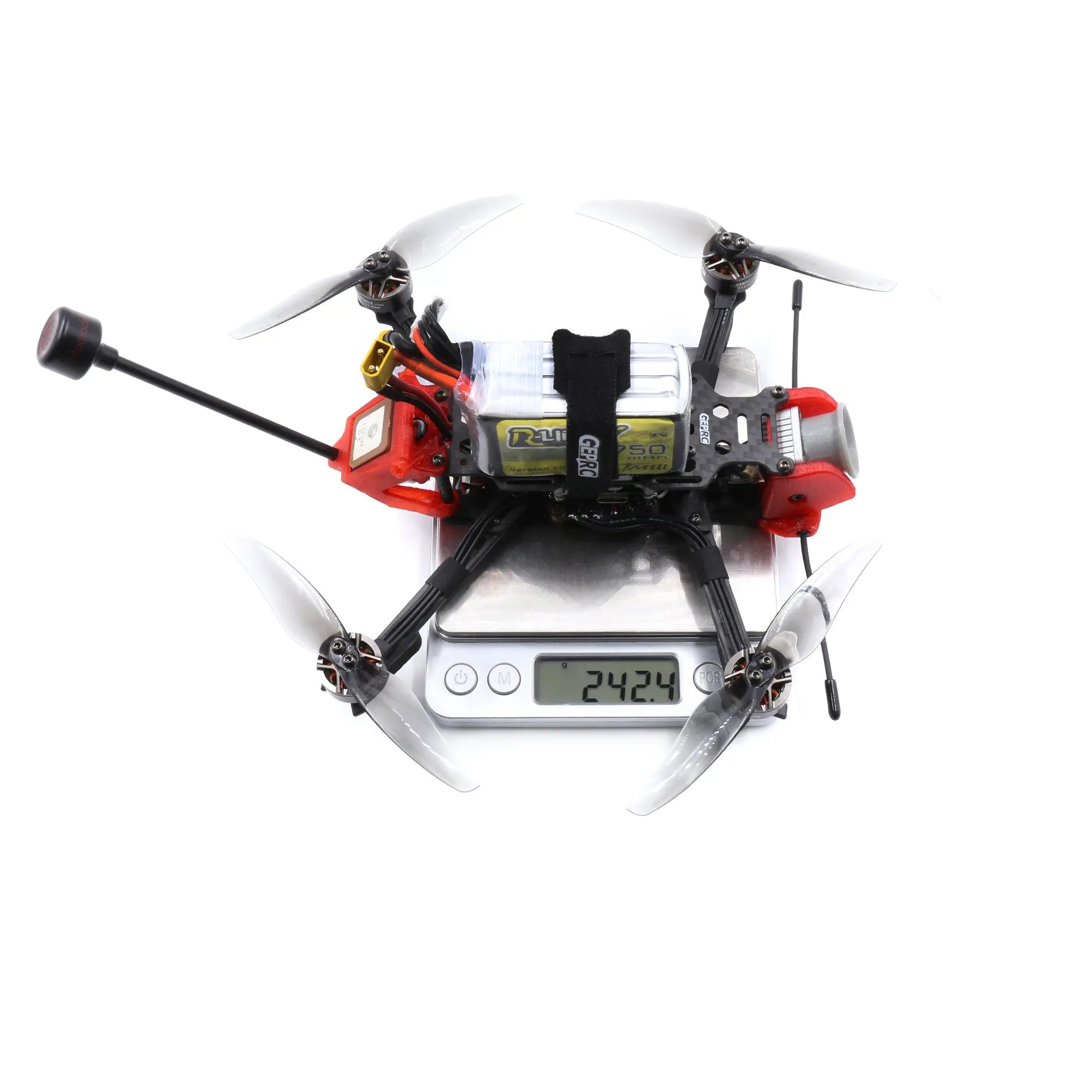

Crocodile Baby 4″ HD Weight:242g (Include 4S 750mAh battery)
Receiver:PNP(with DJI Receiver) / Frsky XM+/ Frsky R9mm /TBS Nano RX
Motors & Batteries Recommended:
Motors:GR1404 2750KV
Battery:4S 650mAh – 1300mAh Lipo or 4S Lion 3000mAh
Under 250g weight:

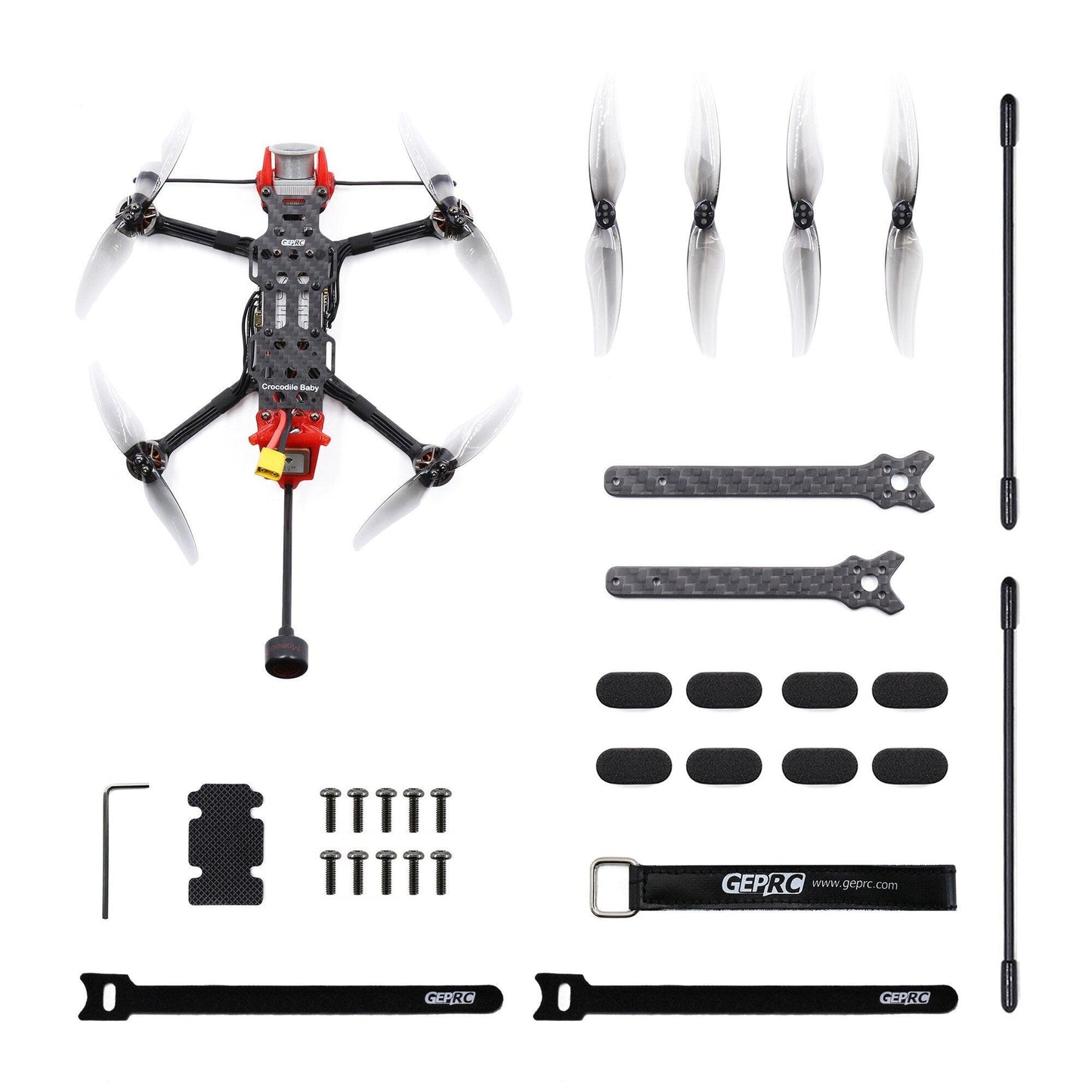

Include:
1x Crocodile Baby 4″ HD DJI Quads
4x Gemfan 4024 Props(pairs)
2x The silicone pad
3x L-shaped screwdriver
1x Antenna protection tube
1x Spare front arms
1x Spare rear arms
2x 12*180mm battery strap
1x 15*200mm battery strap

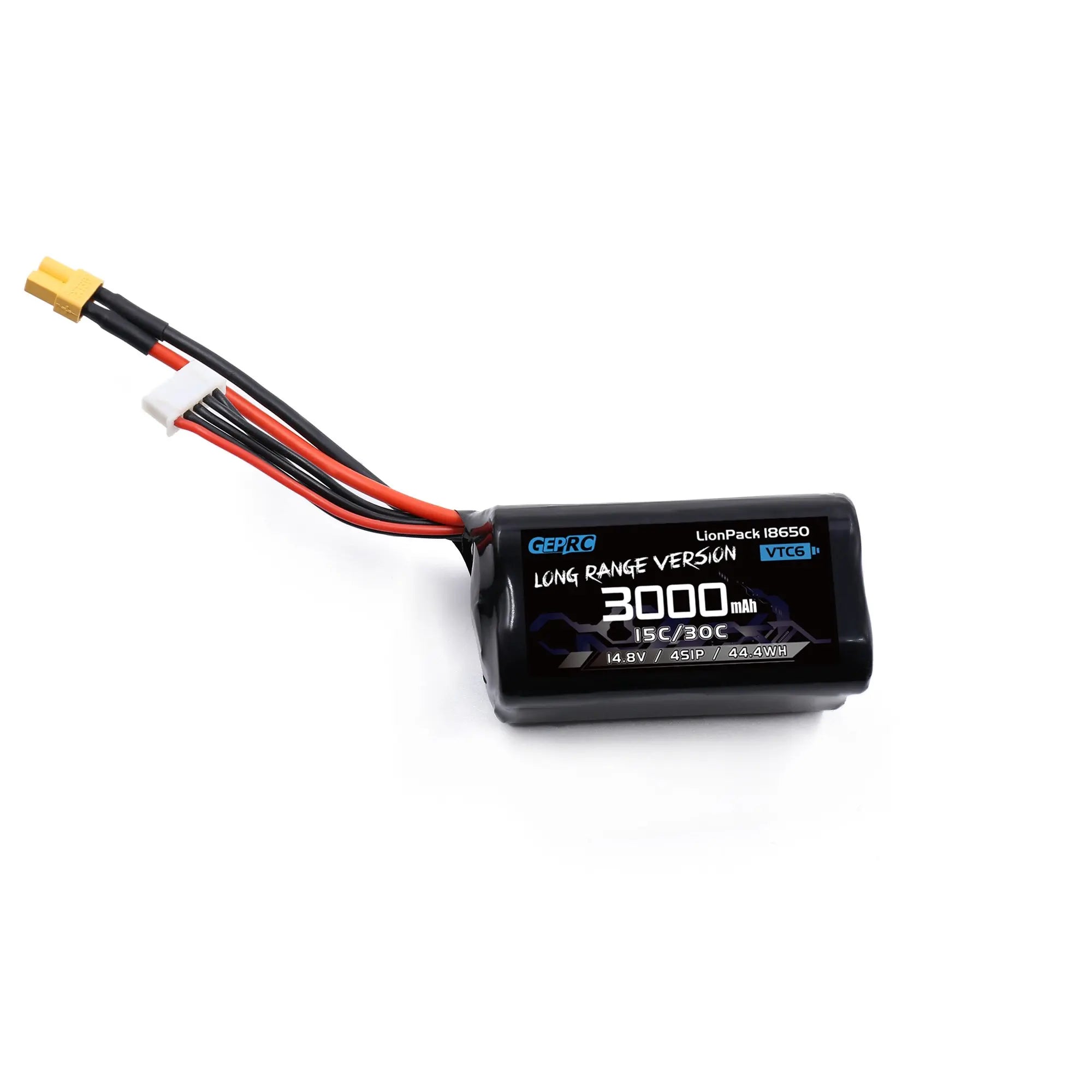

If equipped with GEPRC Lion VTC6 3000mAh Battery,flight time is more than 28 minutes.
