GEPRC Crocodile75 V3 Analog SPECIFICATIONS

Warranty: 2 month

Warning: Minors please use under the supervision of an adult

Video Capture Resolution: 2K QHD,Other

Type: HELICOPTER

State of Assembly: Ready-to-Go

Remote Distance: 2000 meters

Remote Control: Yes

Recommend Age: 12+y,14+y

Power Source: Electric

Plugs Type: XT60

Package Includes: Original Box,Operating Instructions,Camera

Origin: Mainland China

Operator Skill Level: Beginner,Intermediate,Expert

Motor: Brushless Motor

Model Number: GEPRC Crocodile75 V3 Analog Long Range FPV

Material: Metal,Plastic,Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: 12-30 minutes

Features: App-Controlled,FPV Capable,Other

Dimensions: 7.5 inch

Controller Mode: MODE1,MODE2

Controller Battery: Not Include

Control Channels: 8 Channels

Charging Voltage: 14.8V

Charging Time: 30 minutes

Certification: CE

Camera Mount Type: Fixed Camera Mount,Other

CE: Certificate

Brand Name: GEPRC

Barcode: Yes

Aerial Photography: Yes

Summary

Throughout the whole journey, the GEPRC team keeps breaking through the boundary, innovating again in the field of long range FPV, and redefining the standard of long range, the high-performance long range FPV Crocodile75 V3 is officially released.

The appearance of the Crocodile75 V3 adopts a novel design, the overall structure is strengthened to effectively reduce the vibration of the fuselage and make the flight experience smoother and more stable.
The Crocodile75 V3 is equipped with an O3 Air Unit with additional special cooling components for an effective cooling environment.
The battery plug is integrated with the fuselage for convenient application. The power is upgraded with TAKER 32-bit_128K 60A ESC and 2806.5 1350KV motor, sufficient power. In terms of flight energy consumption, save power and efficiency.

The overall performance of Crocodile75 V3 has been carefully and strictly tuned by the GEPRC team to bring the most passionate flying experience for pilots.

Feature

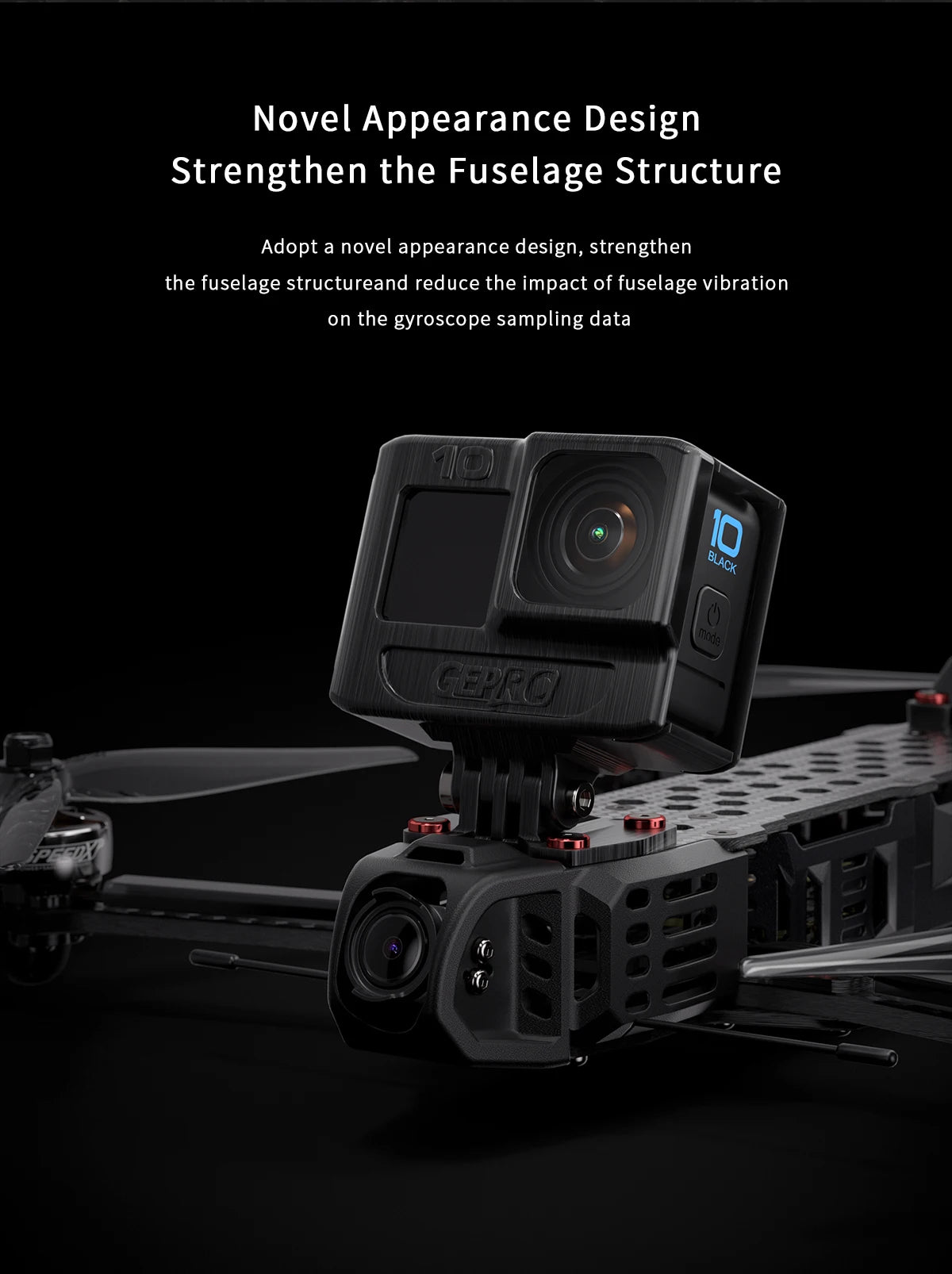

1. Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
2. Equipped with SPEEDX2 2806.5 1350KV motor and HQ7.5×3.7×3 with sufficient power and high efficiency.
3. Upgrade the ESC to TAKER 32-bit_128K 60A.
4. Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution
5. The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
6. Equipped with O3 Air Unit and added special heatsink, excellent heat dissipation, to avoid O3 Air Unit overheating and stop recording.
7. The Crocodile75 V3 has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
8. Perfect match for 7-inch or 7.5-inch propellers

Specifications

• Model: Crocodile75 V3 Analog

• Frame: GEP-LC75V3

• Wheelbase: 342mm

• Top plate: 2.5mm

• Bottom plate: 3.0mm

• Arm plate: 6.0mm

• Splint plate: 2.5mm

• FC: SPAN F722-BT-HD V2

• ESC: TAKER 32Bit_128K 60A

• MCU:STM32F722RET6

• Gyro: ICM 42688-P

• OSD: Betaflight OSD w/AT7456E chip

• VTX: GEPRC RAD 5.8G 1.6W

• Camera: Caddx Ratel2

• Antenna: Momoda 5.8G RHCP SMA

• Motor: SPEEDX2 2806.5 1350KV

• Propeller: HQProp7.5×3.7×3

• Weight: 597.5g

• Receiver: PNP / TBS NanoRX / GEPRC ELRS24 / GEPRC ELRS 915

• Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah

• Flight time: 12-30 min

Includes

1 x Crocodile75 V3 Analog
4 x HQProp7.5×3.7×3
2 x M20*250mm battery strap
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
1 x Keychain
1 x GP Camera Base

GEPRG Crocodile75 V3 Experience Unparalleled Freedom of Flight Ultra-wide Angle Without Blocking Add Protective Side Plates Integrated Battery 4K promax 120fps 03 Air Unit 4K Ultra Stabilization Fuselage Lengthening View

Featuring a unique aerodynamic design, the fuselage structure has been reinforced to minimize the effect of vibrations on GPS sensor accuracy.

Powered by a SPEEDX2 2806.5 1350KV motor, paired with a SPAN GSOA BLHeli_32 ESC, this drone boasts sufficient power and high efficiency for stable and efficient flight.

Featuring an integrated battery plug design that simplifies power-on operations, this drone offers ease of use and a sleek aesthetic, complete with a stylish antenna.

The electronic control system features additional protection against unstable conditions caused by sand and other contaminants, while aft airbags have been installed for enhanced crash protection.

We recommend flying the Crocodile75 V3 using an extended frame, paired with either a 6S 3300mAh-4500mAh LiPo battery or a 6S 6000mAh Lion battery.
