GEPRC DarkStar25 O4 Wide Cinewhoop Quadcopter with DJI O4 Wide Air Unit

Overview

The GEPRC DarkStar25 O4 Wide is a compact cinewhoop quadcopter equipped with the DJI O4 Wide Air Unit camera and VTX modules. Its GEP-DS25 frame uses a five-point suspension damping system to reduce vibration transfer, while the TAKER F722 35A AIO flight system, SPEEDX2 1404 4600KV motors, and HQProp DT63MMX3 V2 propellers provide the configured power system. A dedicated rear mount supports the optional GEP-M10 Nano GPS module.

The frame features a bottom-mounted XT30U-M battery connector, front USB port for configuration and firmware updates, secured damping-ball retention screws, and a fast-release structure that separates the upper and lower frame with five screws. For product assistance, contact rcdrone.top.

Key Features

• DJI O4 Wide Air Unit camera and VTX module
• Five-point suspension damping system
• TAKER F722 35A 32-bit AIO flight controller and ESC
• Secured damping-ball retention screws
• Dedicated rear GPS mount for the optional GEP-M10 Nano GPS
• Fast-release frame design with five-screw upper and lower frame separation
• Bottom-mounted XT30U-M battery connector
• Front USB port for configuration and firmware updates
• COB LED strip

Specifications

Flight-time figures are tested under smooth cruising conditions. Actual duration varies with firmware version, pilot skill, and environmental conditions.

What's Included

• 1 x DarkStar25 drone
• 1 x Top cover
• 1 x Canopy
• 1 x Battery pad
• 2 x pairs HQProp DT63MMX3 V2 propellers
• 1 x 15 x 150mm battery strap
• 1 x 1.5mm L-shaped screwdriver
• 2 x Battery anti-slip pads
• 1 x Damping ball punch tool
• 1 x Binding pin
• 1 x Type-C cable
• 5 x Camera-mount damping balls
• 4 x M2 x 4.5 button-head screws
• 4 x M2 x 7 button-head screws
• 4 x M2 x 6 countersunk screws
• 4 x M2 x 6 button-head screws

Details

The DarkStar25 O4 Wide combines a compact ducted cinewhoop layout with the DJI O4 Wide Air Unit.

A five-point damping layout, bottom XT30U-M connector, and rear GPS provision support practical everyday use.

Refined bodywork integrates the camera housing, antenna mount, and prop guards into a compact airframe.

Five suspension points help isolate vibration transfer to support steadier footage.

Retention screws secure the damping balls to help keep the upper frame firmly located.

The dedicated rear mount is designed for the optional GEP-M10 Nano GPS module.

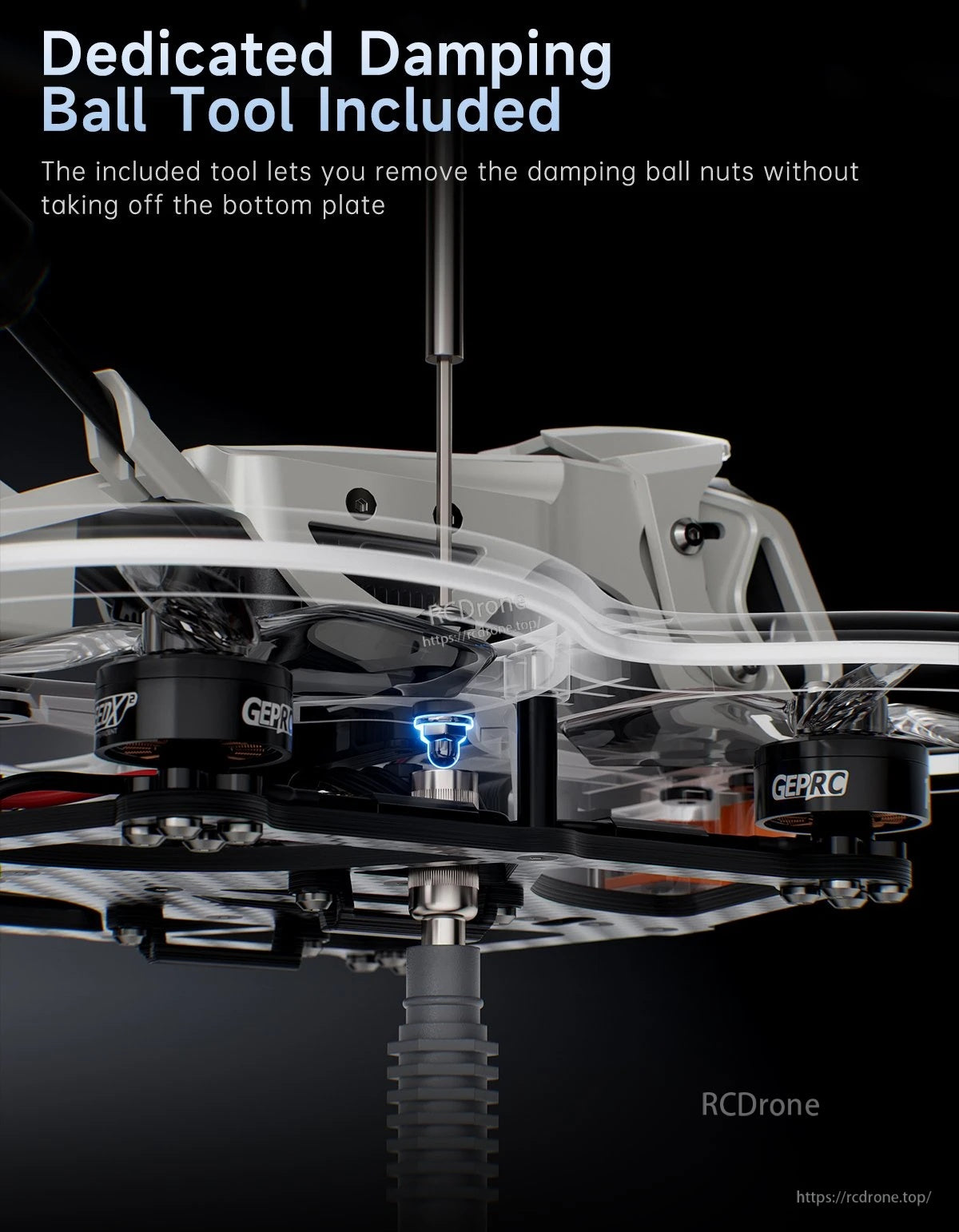

An included damping-ball tool allows access to the ball nuts without removing the bottom plate.

Five screws separate the upper and lower frame sections for faster maintenance and repairs.

The DarkStar25 platform is offered in DJI O4 Air Unit Pro, DJI O4 Wide Air Unit, and WTFPV versions.

The TAKER F722 35A AIO combines an STM32F722 flight controller with a 32-bit 35A ESC.

Clearly marked solder pads help streamline wiring, assembly, and servicing.

A front USB port aids configuration and firmware updates, while the bottom-mounted XT30U-M connector keeps battery access simple.

The ducted design surrounds the four HQProp DT63MMX3 V2 propellers in a compact 115mm-wheelbase frame.

Included accessories cover propellers, battery straps, damping tools, hardware, and selected replacement components; contents vary by version.

The included spare hardware set provides button-head and countersunk screws in multiple lengths, along with five damping balls for maintenance.
