GEPRC ELRS NanoSE Receiver, the subsequent launch of flight control will solve this problem

Summary

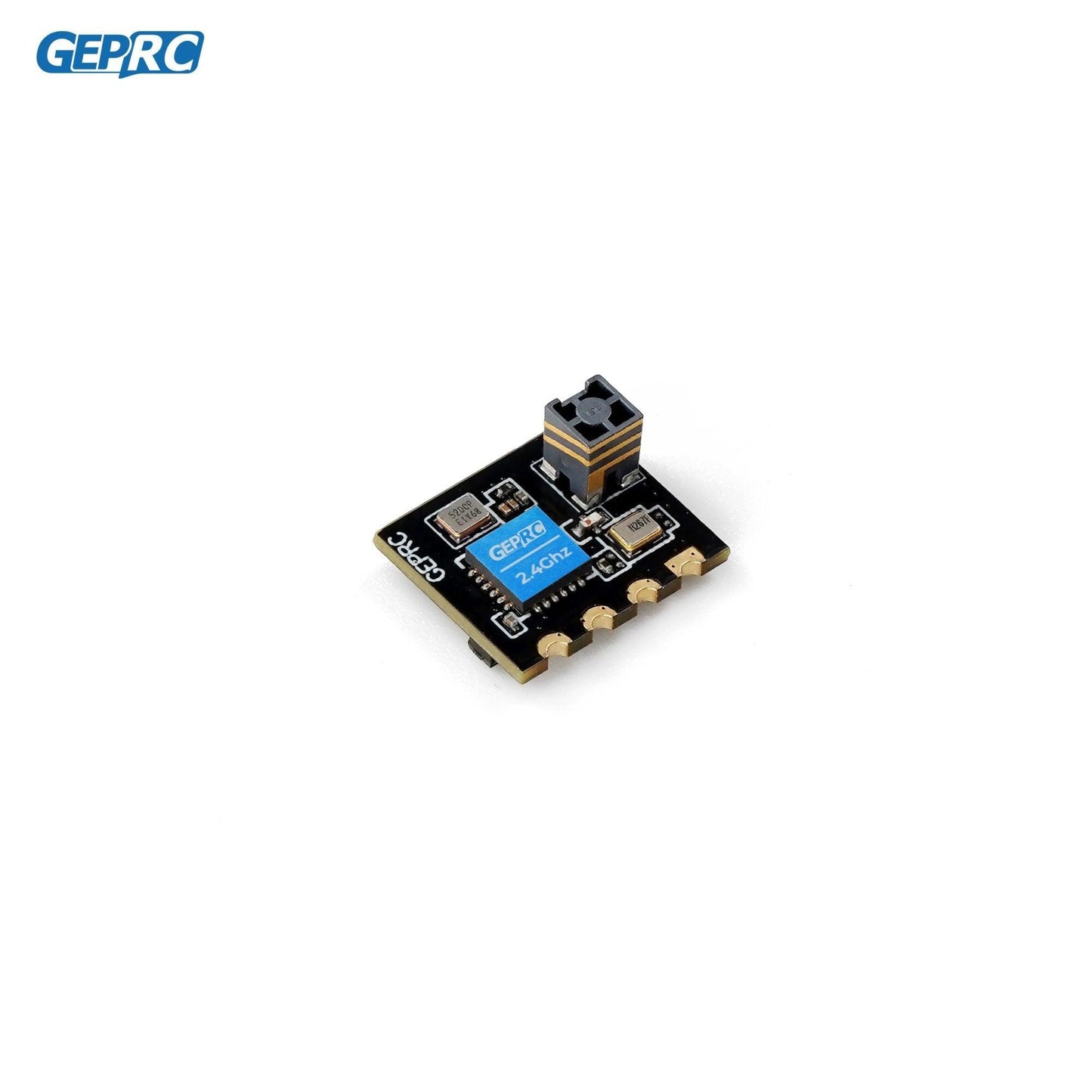

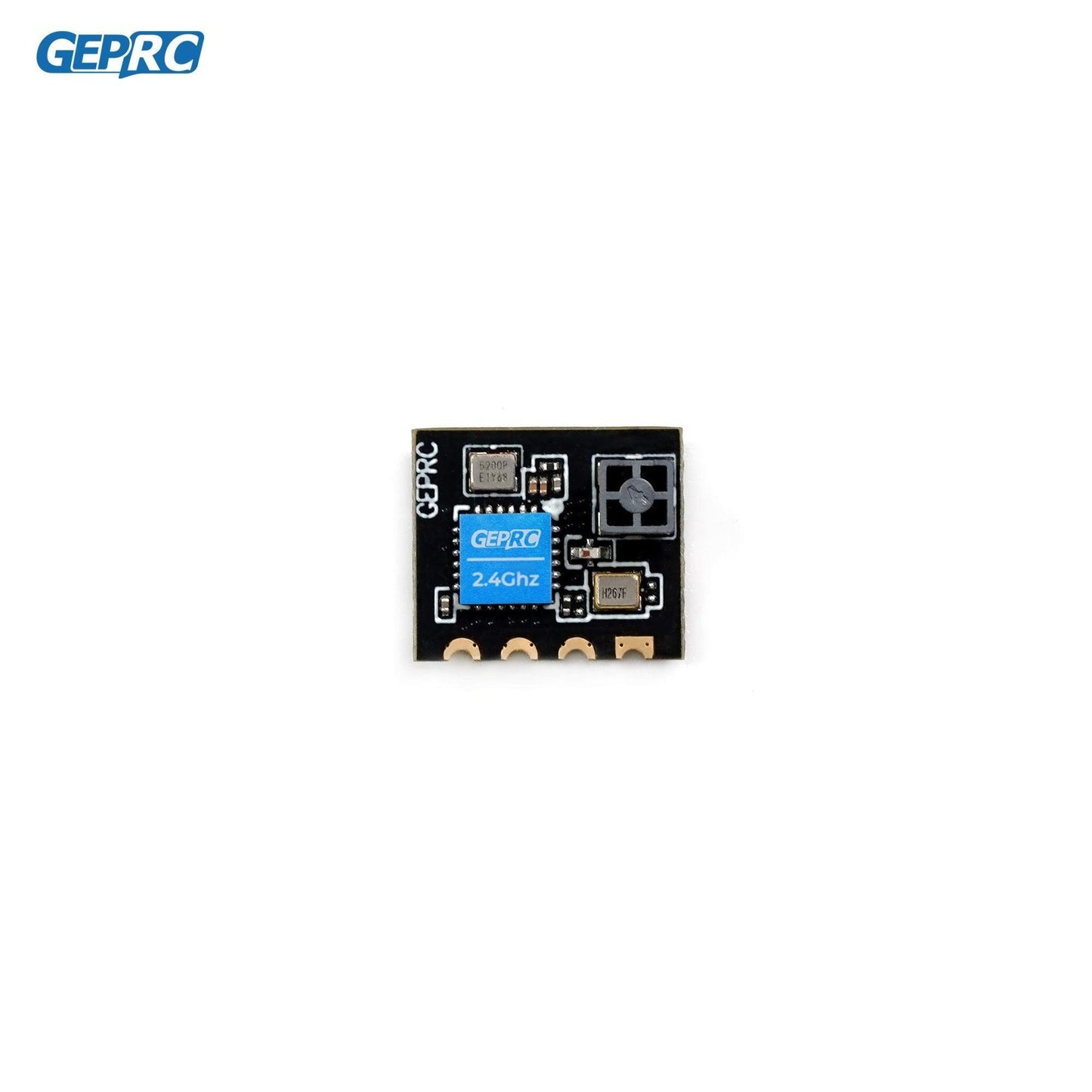

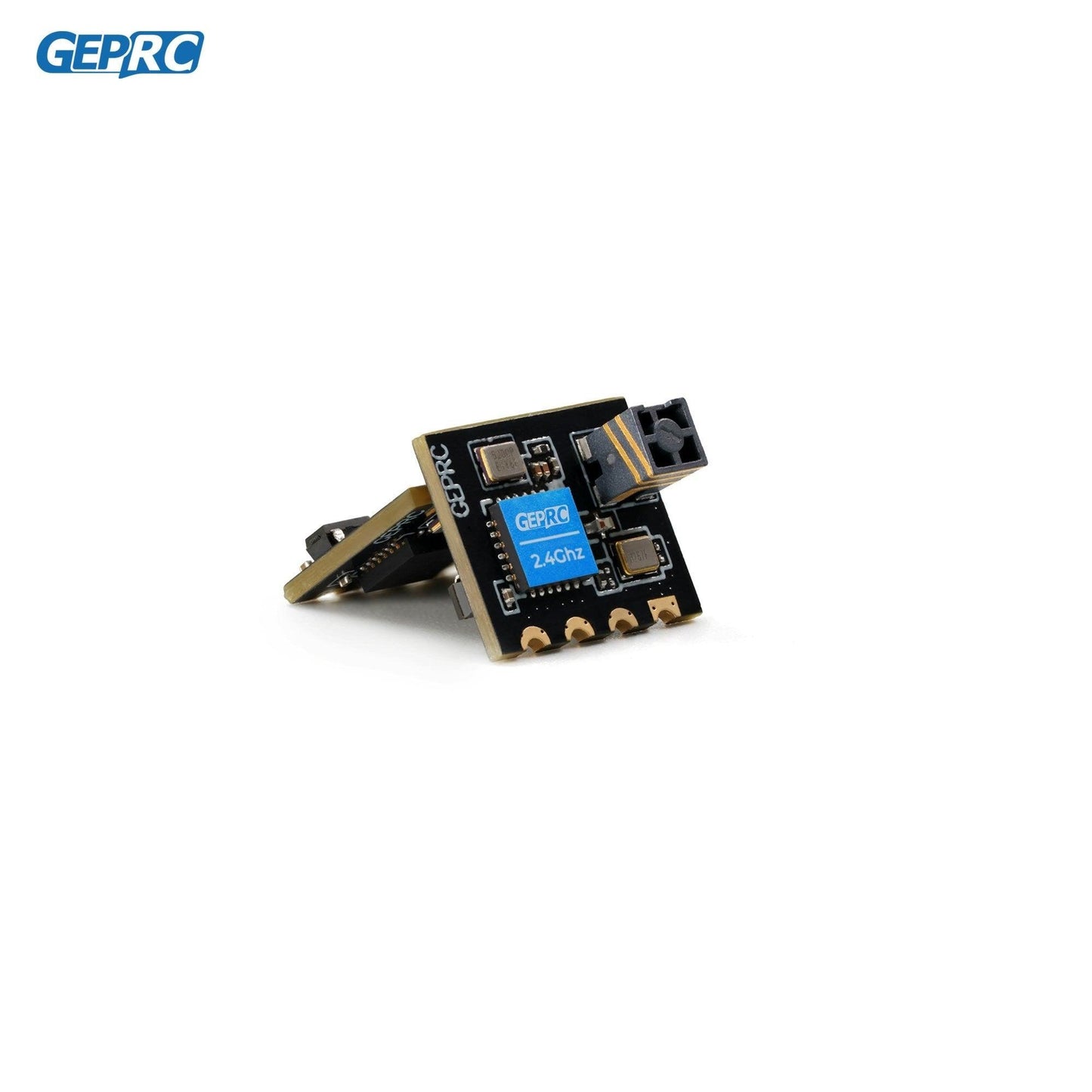

GEPRC ELRS NanoSE receiver is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and Maximum refresh rate of 500Hz.

GEPRC ELRS NanoSE receiver operates at a frequency of 2.4 GHz. Compared with Nano receiver, NanoSE receiver uses an Integrated SMD ceramic antenna, which further reduces its size while ensuring signal reception, making it more suitable for use on drones with limited space and light weight.

Note:ELRS products now shipping have been pre-flashed with 2.x firmware. 2.x is not compatible with version 1.x, so you need to upgrade the transmitter to 2.x for proper frequency matching.


Specifications

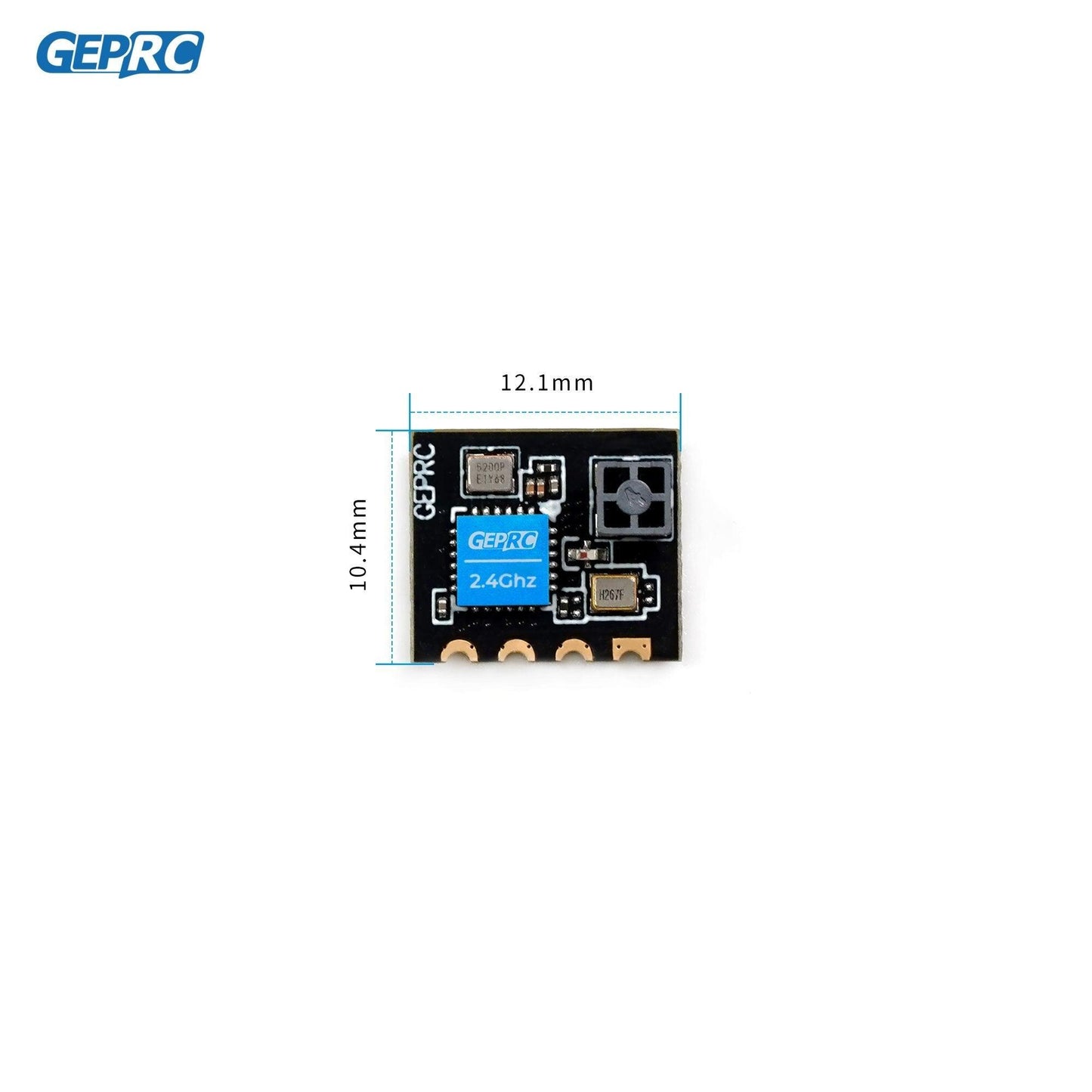

Size:12.1mm*10.4mm

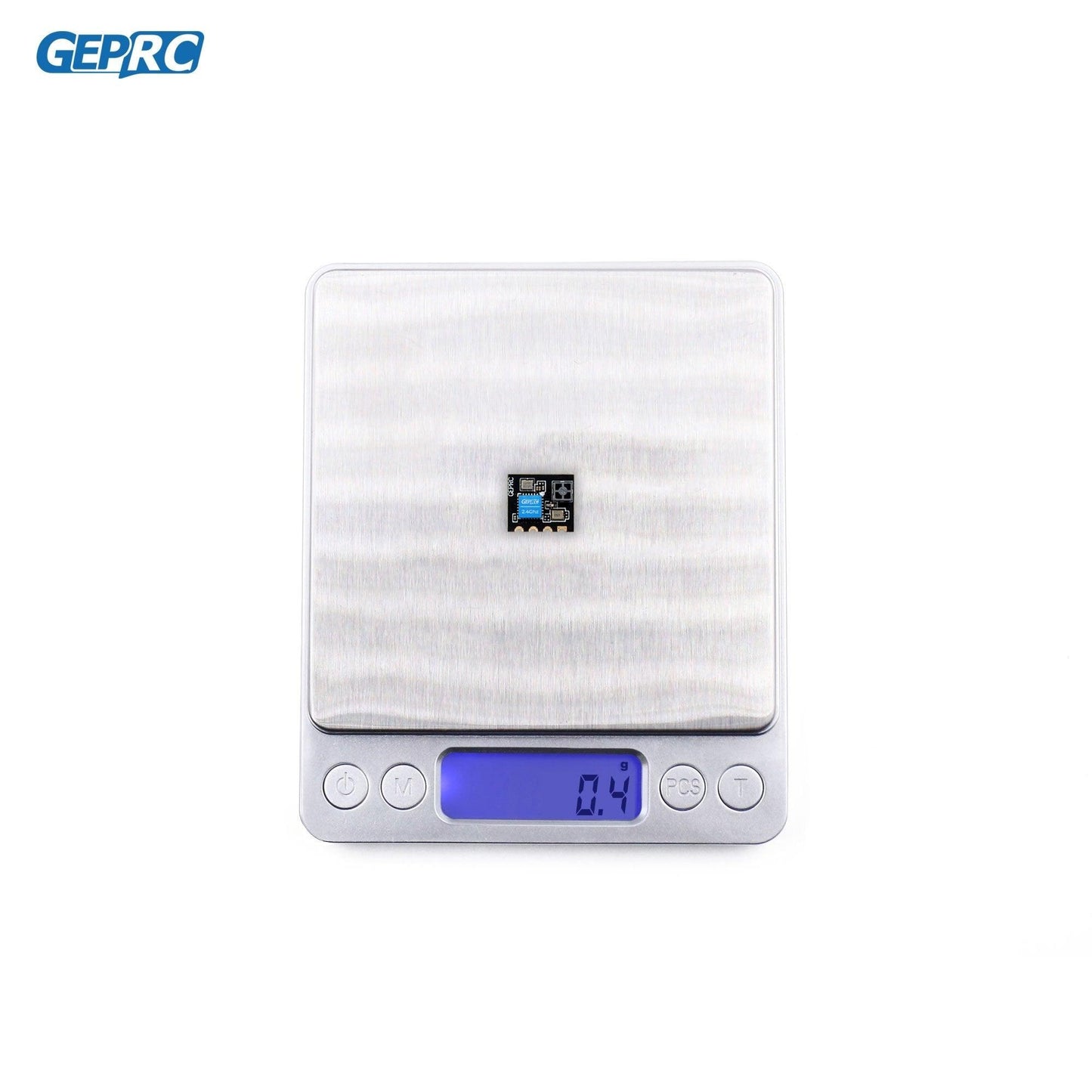

Weight:0.4g
Chips:ESP8285,SX1281
Frequency band:2.4GHz ISM
Refresh rate:25Hz-500Hz
Input voltage:5V
Antenna:Integrated SMD Ceramic Antenna


Features:

Small size
0.4g weight
WIFI Upgrade firmware
ELRS open source project, remote control
Integrated SMD Ceramic Antenna
Maximum refresh rate of 500Hz
The operation is simple


ELRS NanoSE Receiver Diagram

GEPRC ELRS NanoSE Receiver, GEPRC ELRS NanoSE receiver operates at a frequency of 2.4 GHz

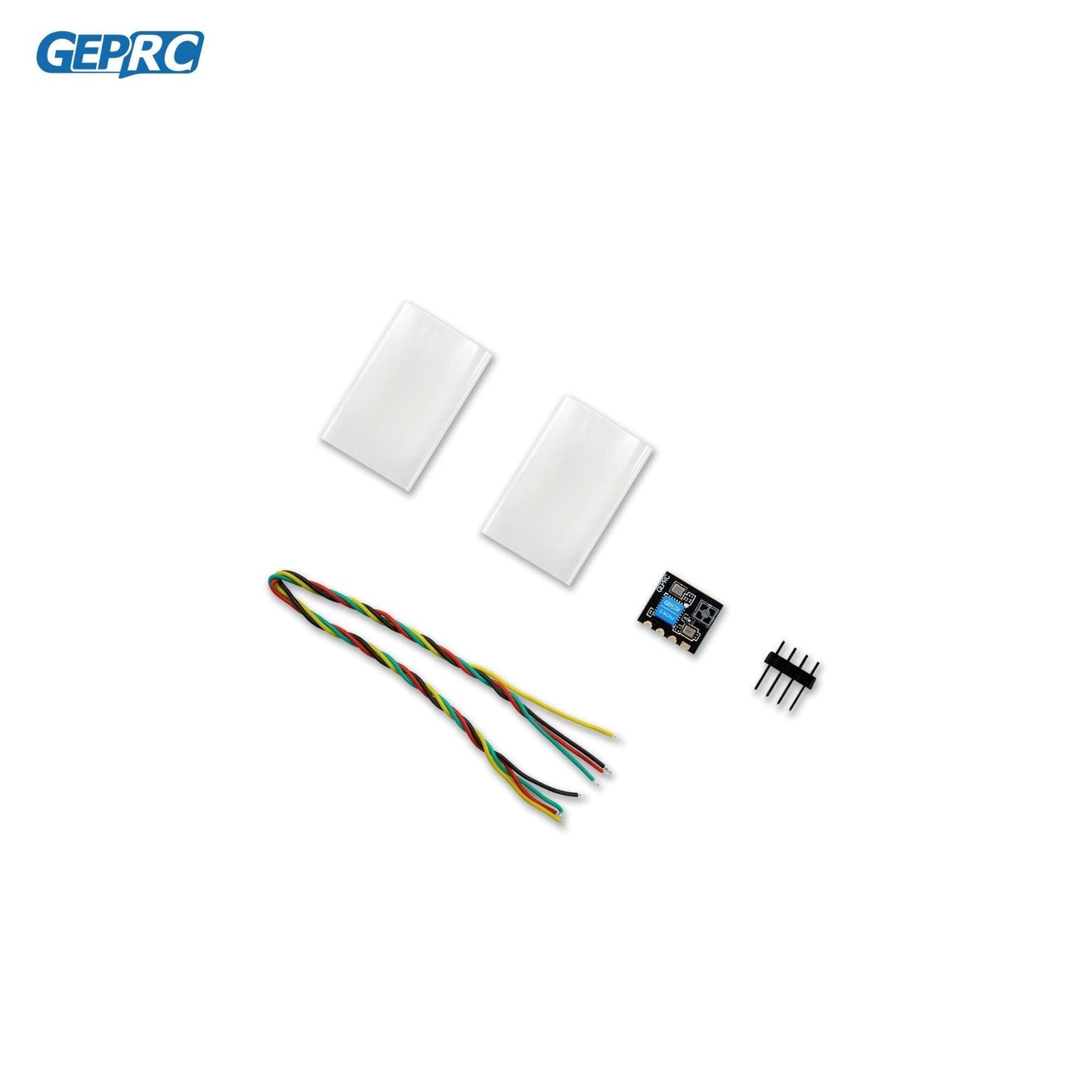

Package Included:

1 x NanoSE receiver
2 x Heat shrink tube
4 x Silicone cable(black, red, yellow, green)
1 x Pin (4pin)
1 x Instruction manual
1 x Sticker



LED Status indication

GEPRC ELRS NanoSE Receiver, LED Status Meaning Solide on Connection established Flash slowly No Tx signal Flash qucik

LED Status Indicator Meaning: Solid ON - Indicates connection established, Flashing Slowly - No TX signal detected, Flashing Quickly - In WiFi mode, Flashing Double Quickly - Binding in progress.

Instructions

ELRS NanoSE receiver and FC connection diagram:

GEPRC ELRS NanoSE Receiver, Note:ELRS products now shipping have been pre-flashed with 2.x firmware

Open Betaflight Configurator, go to "Ports"tab and enable the corresponding UART as a Serial Rx (e.g. UART2 as shown below). Save and restart.

GEPRC ELRS NanoSE Receiver, Identifier Configuration/MSP Serial RX USB VCP 115200 UART

On the"Configuration"tab, click on"Serial-based receiver"on the"Receiver"panel, and select "CRSF"

GEPRC ELRS NanoSE Receiver, configure a serial port (via Ports tab) and choose a Ser Receiver Provide

Configure a serial port via the 'Ports' tab, and select a receiver provider when using the RX_Serial feature.

Binding

1. The receiver is powered on and off for three consecutive times (within an interval of 1 second);

2. Receiver's LED doing double flashing, indicating that the receiver has entered the binding mode;

3. Make the RF Tx module or radio transmitter enter binding status. Once the LED status changes to solid light, the binding is successful.


FAQ

Q:Why GEPRC ELRS rx is always on and can not work when powered it up?

A:Recently, many users have reported that some F4 flight control Uart 2 ports are wired according to the crsf receiver in the manual, and the ELRS receiver is always on and can not work.

After data inquiry and test, it is determined that for the receiver with ESP chip, if the TX interface is placed at low Vil Mode,

This is not a bug in the firmware.

This problem is well known that some FCs cause the receiver TX line to go low at power on which forces the ESP into bootloader mode, hence the solid LED.

This is not a failure of the flight control or the receiver, but the ELRS project was not popular during the development of this part of the flight control models, and this problem was not optimized. The chips of ELRS and black sheep receiver are different, so the same crsf connection black sheep receiver can be used normally. The subsequent launch of flight control will solve this problem.

There are a couple of potential fixes/workarounds.

In addition, if there is a need for this part of flight control to use ELRS receiver, try the following methods:

1. Power on repeatedly for several times (low efficiency)

2. Remove some components on the flight control (high risk)

3. Add a pull-up resistor to port 2 (reply from the developer)
You can try is to add a small value (300ohm-1kohm) pull up resistor (to 3.3V) to the receiver TX line.

4. Change the version of flight control firmware (this problem occurs in some firmware of version 4.2)

5. ELRS receiver is connected to port 1, which can be used normally (Troubleshooting perfectly)

More details please check the link below:

https://github.com/ExpressLRS/ExpressLRS/issues/655
