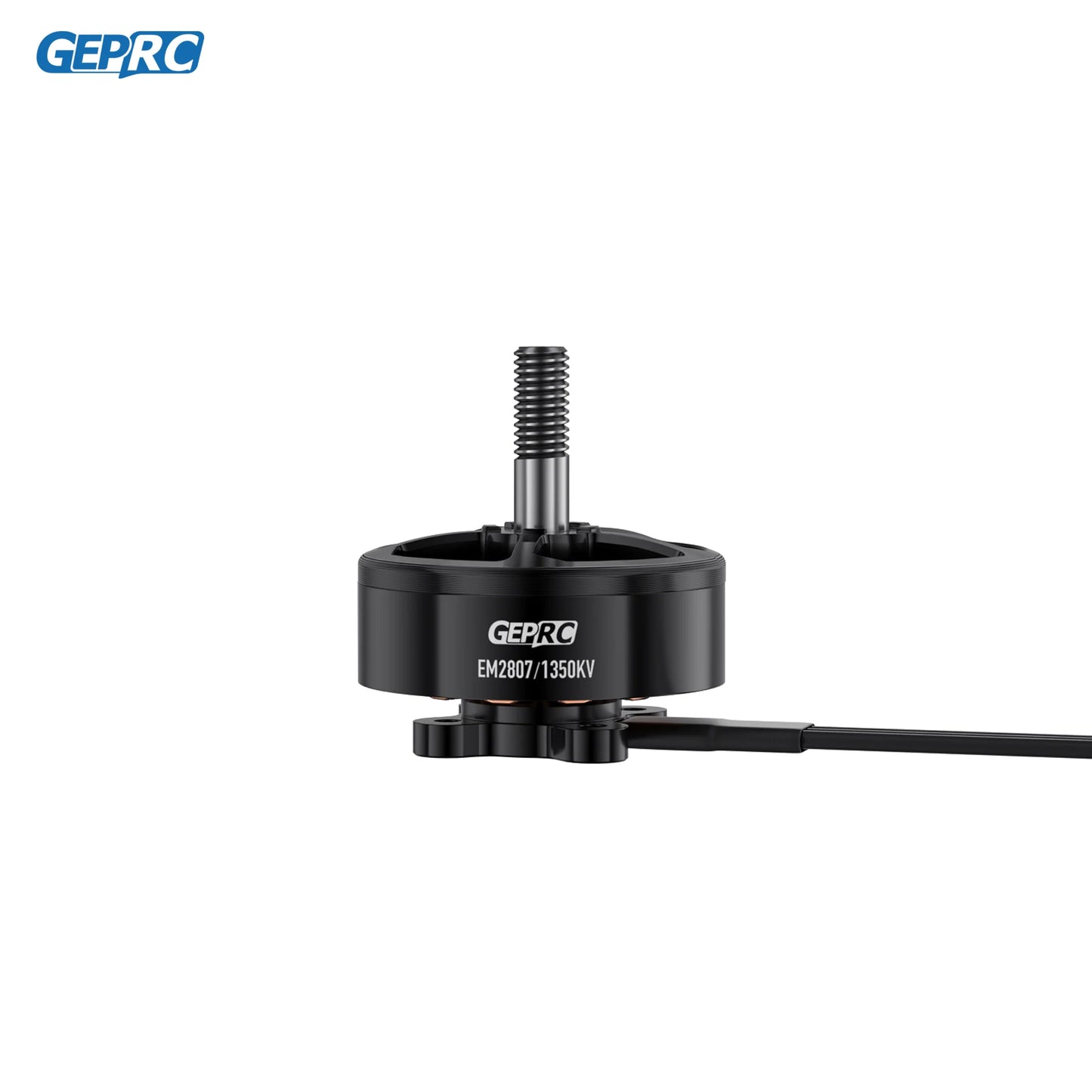

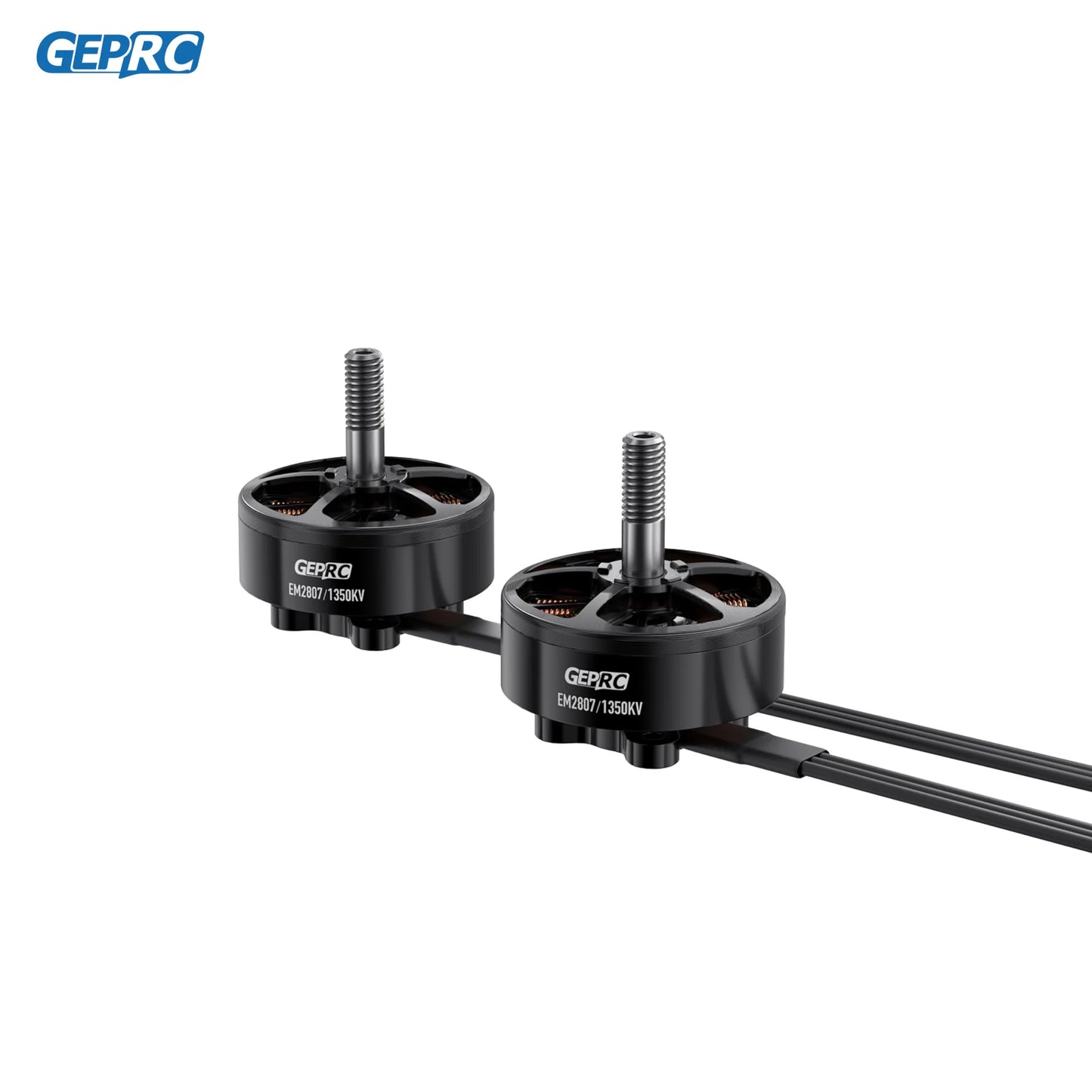

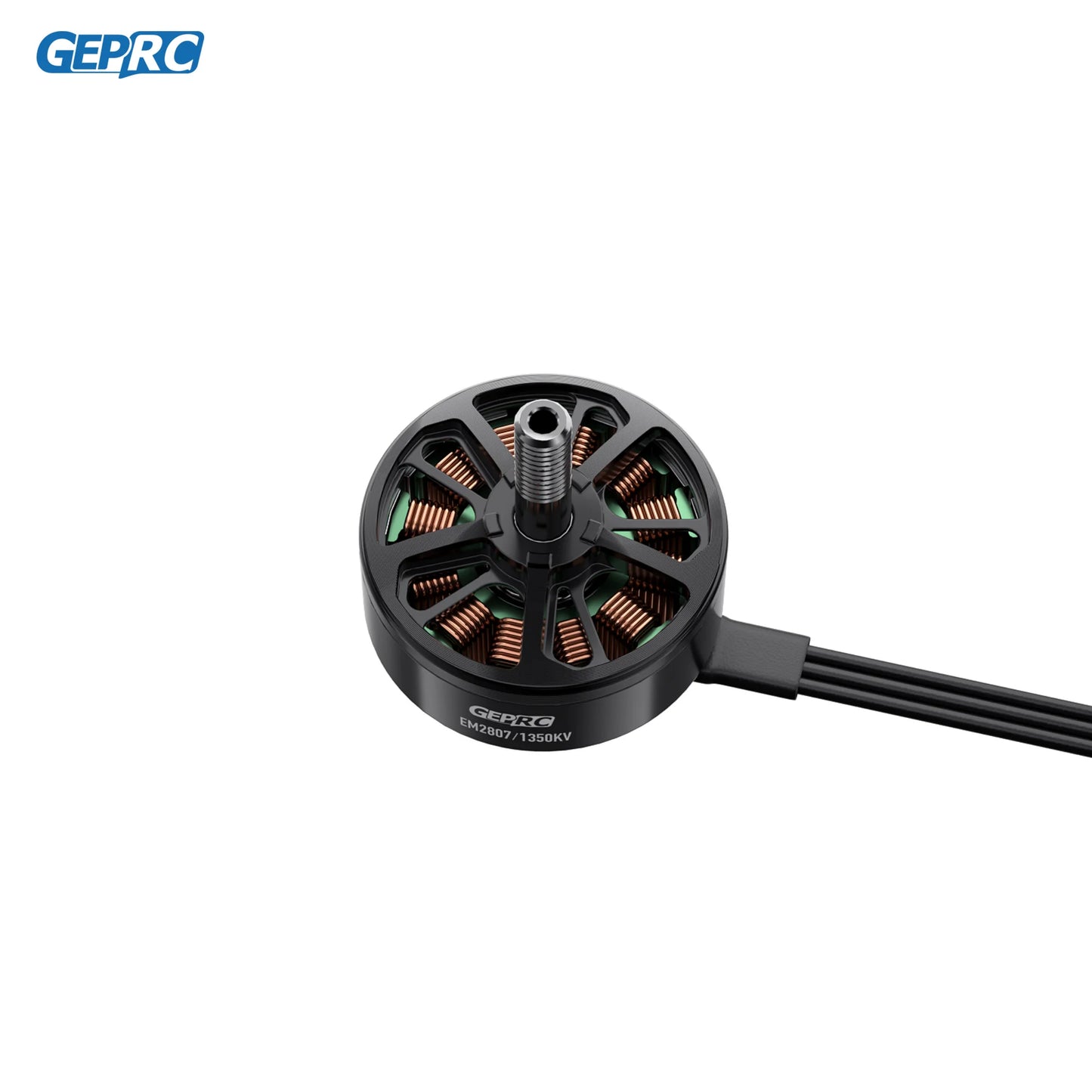

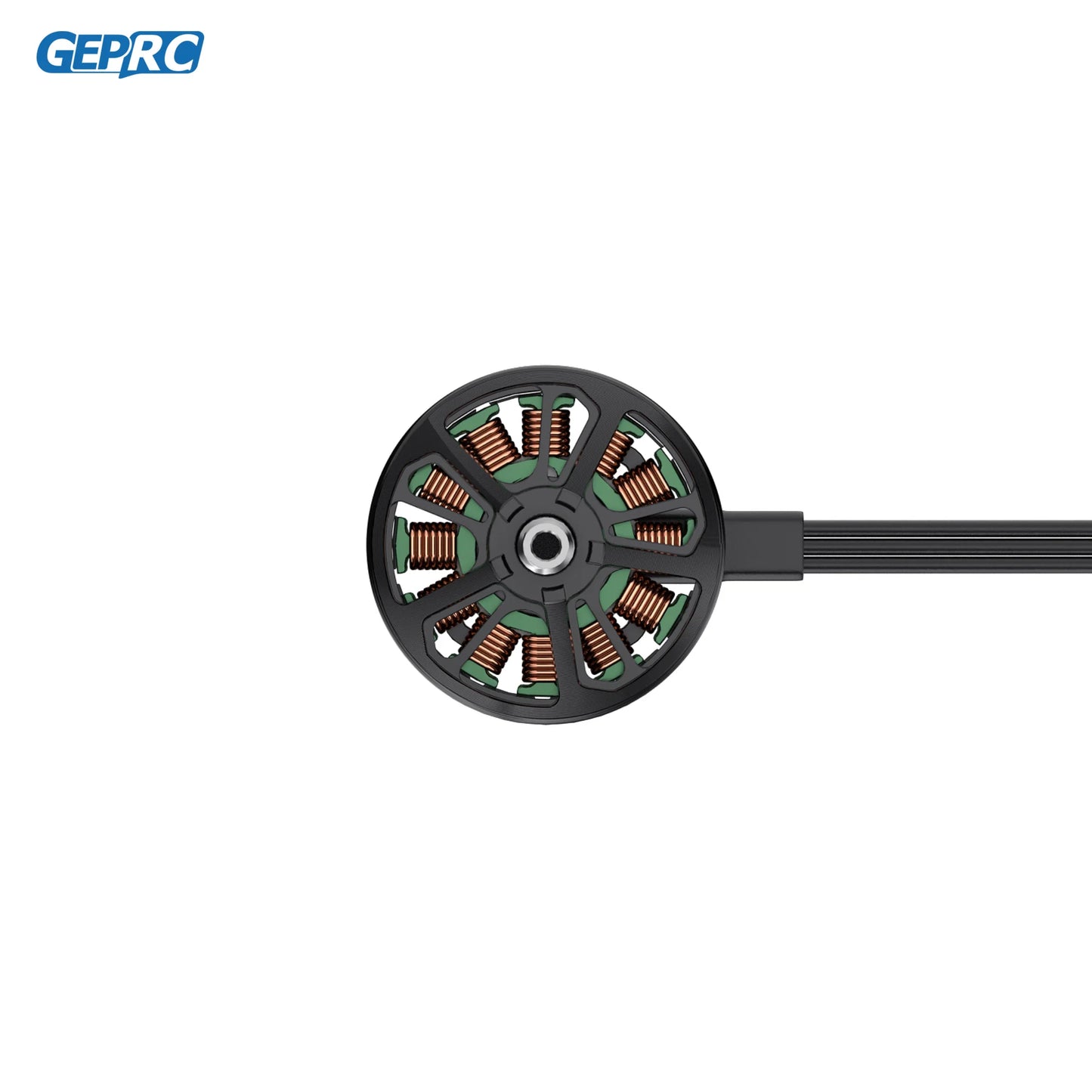

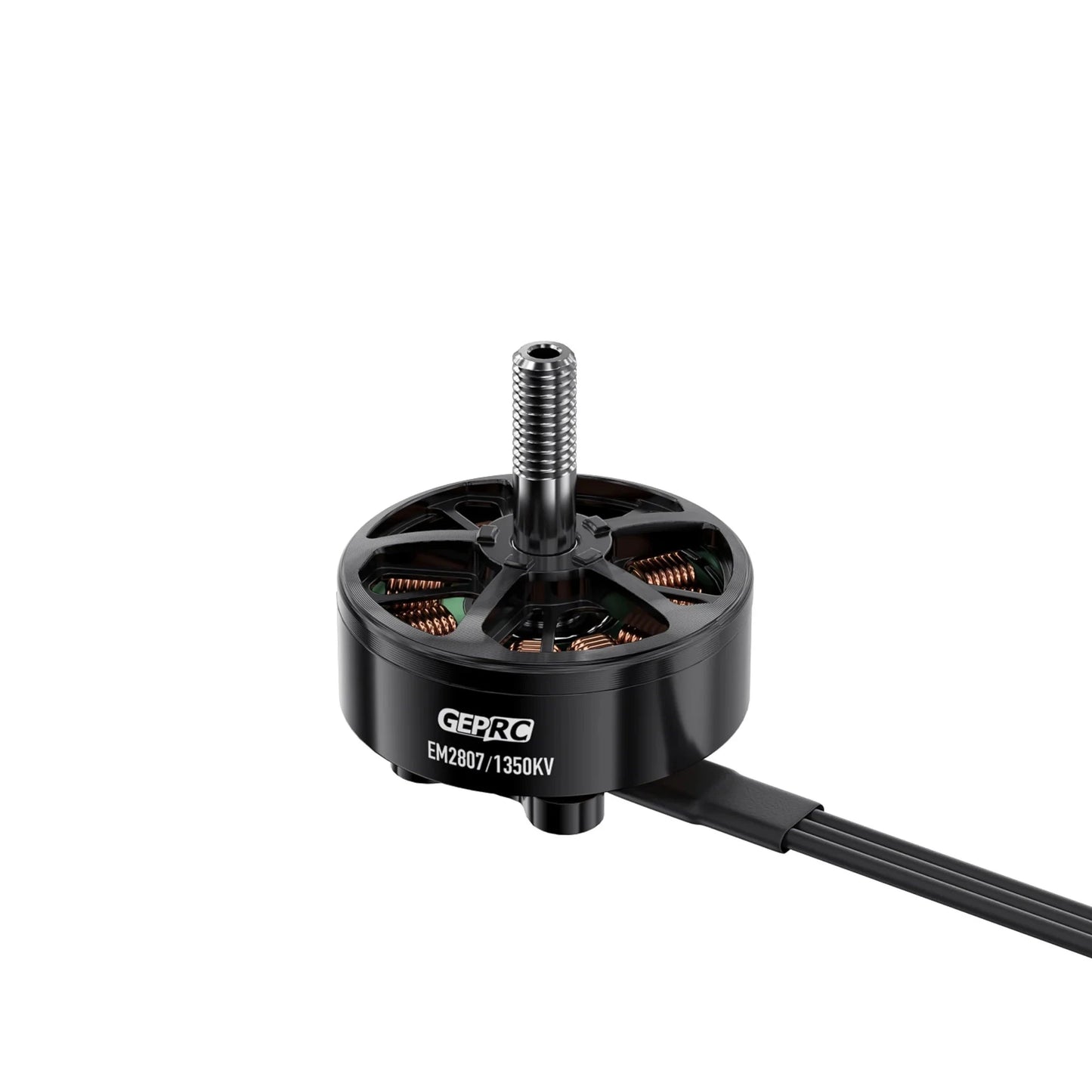

GEPRC EM2807 1350KV Motor SPECIFICATIONS
Brand Name: GEPRC
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Motor
Tool Supplies: Assembly Category
Quantity: 1 pcs
Model Number: EM2807 1350KV
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Feature
- New EM series motors,mainly designed for large-size FPV.
- High-strength M5 steel shaft
- High torque magnetic circuit design
- 19mmx19mm base
Specifications
- Model: EM2807 1350KV Motor
- Max Watt: 1080W
- Peak current: 47A
- Interphase resistance: 45mΩ
- Propeller: 6-8inch Propeller
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 12N14P
- Dimension: φ33mmx20.1mm
- Shaft Diameter: φ5mm
- Shaft Protruding Length: 16mm
- Mounting holes: 19mmx19mm
- Lead: 260mm/18AWG
- ESC: 50A-60A
- Input Volts: 25.2V(6S LiPo)
- Winding: Single strand copper winding
- Weight: 57g(included wire)
- Applicable models: suitable for 6-8 inch long-distance traversing aircraft
Specifications GEPRC EM2807 KV 1350KV Max Watt 1080w Peak current 47A Interphase resistance 45mn Propeller 6-8inch Propeller Magnet N52H Bearing type NSK/NMB Configuration 12N14P Dimension 033mmx2o.Imm Shaft Diameter p5mmShaft Protruding Length 16mm Mounting holes 19mmx19mm Lead 260mm/18AWG ESC 50A-60A Input Volts 25.2v (6
