GEPRC EM2810 Motor Brushless Motor - Black with 7/8 Inch ESC 50A-60A RC FPV Racing Drone Multicopter Accessories

GEPRC EM2810 Motor Brushless Motor - Black with 7/8 Inch ESC 50A-60A RC FPV Racing Drone Multicopter Accessories

GEPRC

$24.83 USD
$32.29 USD $24.83 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

103 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC EM2810 Motor Brushless Motor SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Motor

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: EM2810

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Feature

  1. New EM series motors,mainly design for large-size FPV
  2. High-strength M5 steel shaft
  3.  High torque magnetic circuit design
  4. 19mmx19mm base

Specifications

  • Model: EM2810 1280KV Motor
  • Max Watt: 1160W
  • Peak current: 54A
  • Interphase resistance: 46mΩ
  • Propeller: 7-8inch Propeller
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 12N14P

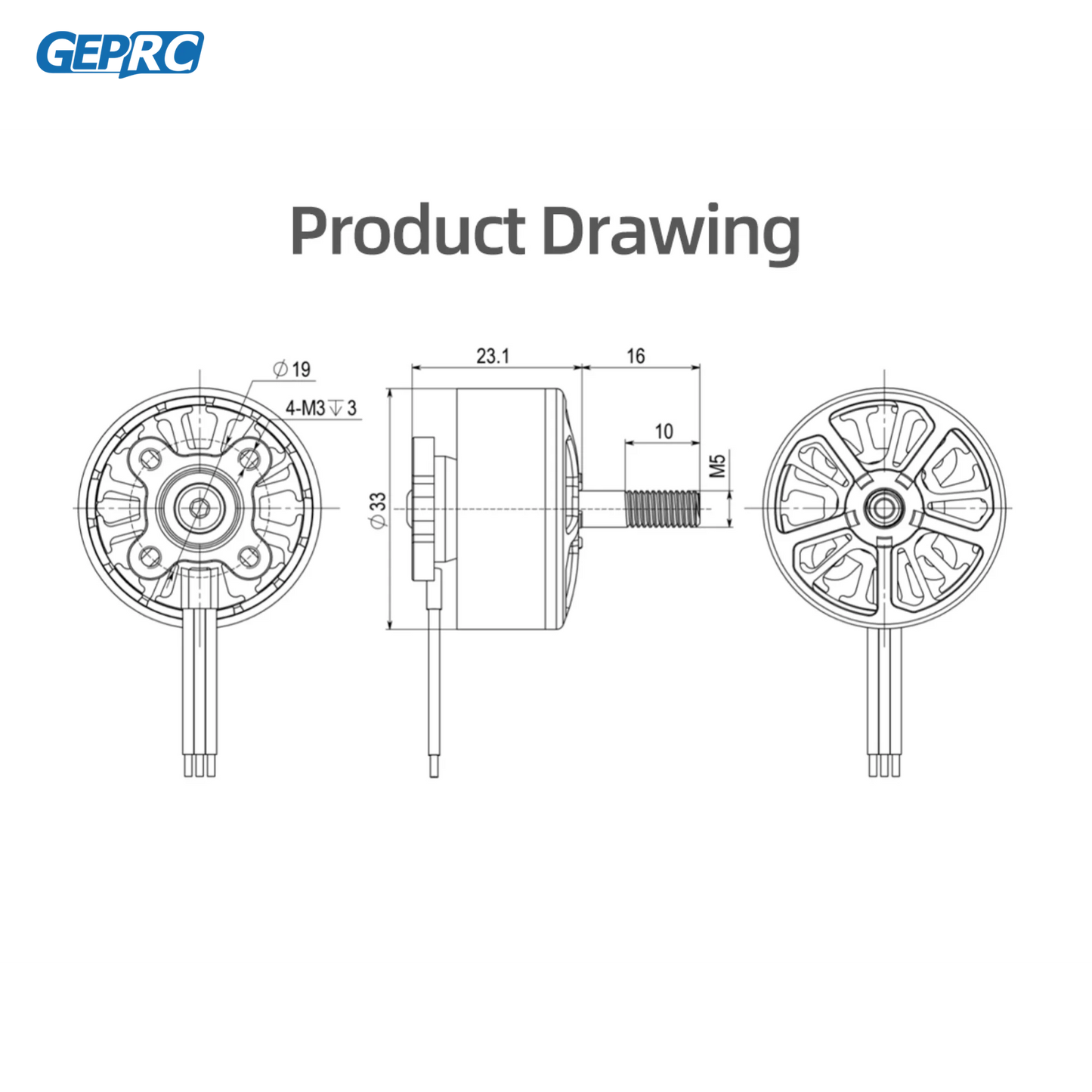

  • Dimension: φ33mmx23.1mm
  • Shaft Diameter: φ5mm
  • Shaft Protruding Length: 16mm
  • Mounting holes: 19mmx19mm
  • Lead: 260mm/18AWG
  • ESC: 50A-60A
  • Input Volts: 25.2V（6S LiPo)
  • Winding: Single strand copper winding
  • Weight: 69.5g(included wire)
  • Applicable models: suitable for 7-8 inch long-distance traversing aircraft / 7 inch X8 models

Specifications

  • Model: EM2810 1350KV Motor
  • Max Watt: 1240W
  • Peak current: 61A
  • Interphase resistance: 43mΩ
  • Propeller: 7-8inch Propeller
  • Magnet: N52H
  • Bearing type: NSK/NMB
  • Configuration: 12N14P
  • Dimension: φ33mmx20.1mm
  • Shaft Diameter: φ5mm
  • Shaft Protruding Length: 16mm
  • Mounting holes: 19mmx19mm
  • Lead: 260mm/18AWG
  • ESC: 50A-60A
  • Input Volts: 25.2V（6S LiPo)
  • Winding: Single strand copper winding
  • Weight: 69.5g(included wire)
  • Applicable models: suitable for 7-8 inch long-distance traversing aircraft

GEPRC EM2810 Motor, Specifications GEPRC EM2810 KV 1280KV 1350KV

Specifications GEPRC EM2810 KV 1280KV 1350KV Max Watt 1160W 1240W Peak current 54A 61A Interphase resistance 46mf 43mn Propeller 7-8inch Propeller Magnet N52H Bearing type NSK/NMB Configuration 12NI4P Dimension 033mmx23.Imm Shaft Diameter p5mm shaft protruding Length 16mm Mounting holes 19mmx19mm Lead 260mm/18AWG ESC

GEPRC EM2810 Motor, GEPRC EM2810 Brushless Motor SPECIFICATIONS Brand Name GEPRC EM2810 Motor, GEPRC EM2810 Brushless Motor SPECIFICATIONS Brand Name
