GEPRC GEP-CT30 O3 FPV Frame Kit Parts 3inch Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone Cinebot30

GEPRC GEP-CT30 O3 FPV Frame Kit Parts 3inch Propeller Accessory Base Quadcopter Frame FPV Freestyle RC Racing Drone Cinebot30

RCDrone

Regular price $105.00 USD
Regular price $157.50 USD Sale price $105.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

123 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Frame

Recommend Age: 12+y,14+y

RC Parts & Accs: Frame

Quantity: 1 pcs

Plastic Type: PC

Origin: Mainland China

Model Number: GEPRC GEP-CT30 Frame Parts

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: GEPRC

Summary

The GEP-CT30 O3 version of the frame developed by the CEPRC team specifically for the O3 Air Unit is now officially released.

The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras, TPU soft fixing method designed for O3 camera, to prevent the camera IMU resonance vibration. GEP-CT30 O3frame supports the installation of mainstream AIO flight controllers with 25.5mm*25.5mm mounting holes, and is compatible with various VTX mounting holes on the market such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with 3-inch propeller. Ultra-light fuselage weight for more confident flying.

Tuned by GEPRC professionals with high-qualityproduction process, explore endless possibilities for your flight shooting. In the face of the headwind, we only go up to the wind, never go with the wind. Salute to the filmmakers!

Specification

  • Brand: GEPRC

  • Model: GEP-CT30 O3

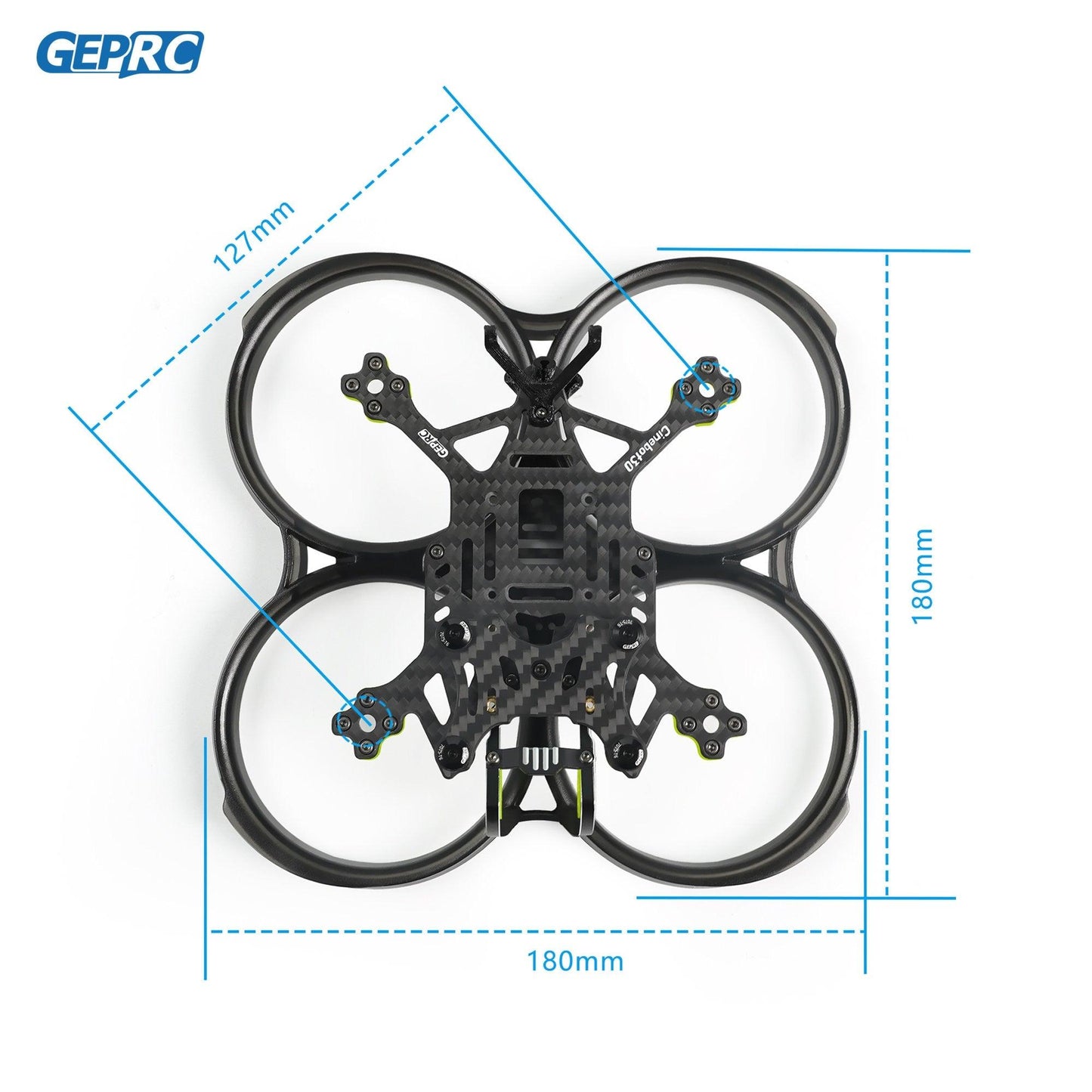

  • Motor to Motor: 127mm

  • Isolation Plate: 2.0mm

  • Main Plate: 3.0mm

  • Bottom Plate: 1.5mm

  • FC Mounting Hole: 25.5mm x 25.5mm

  • VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5

  • Motor Mounting Hole: 12mm x 12mm

  • FPV Camera Spacing : 20mm

  • Suitable propeller size: 3 inch propeller

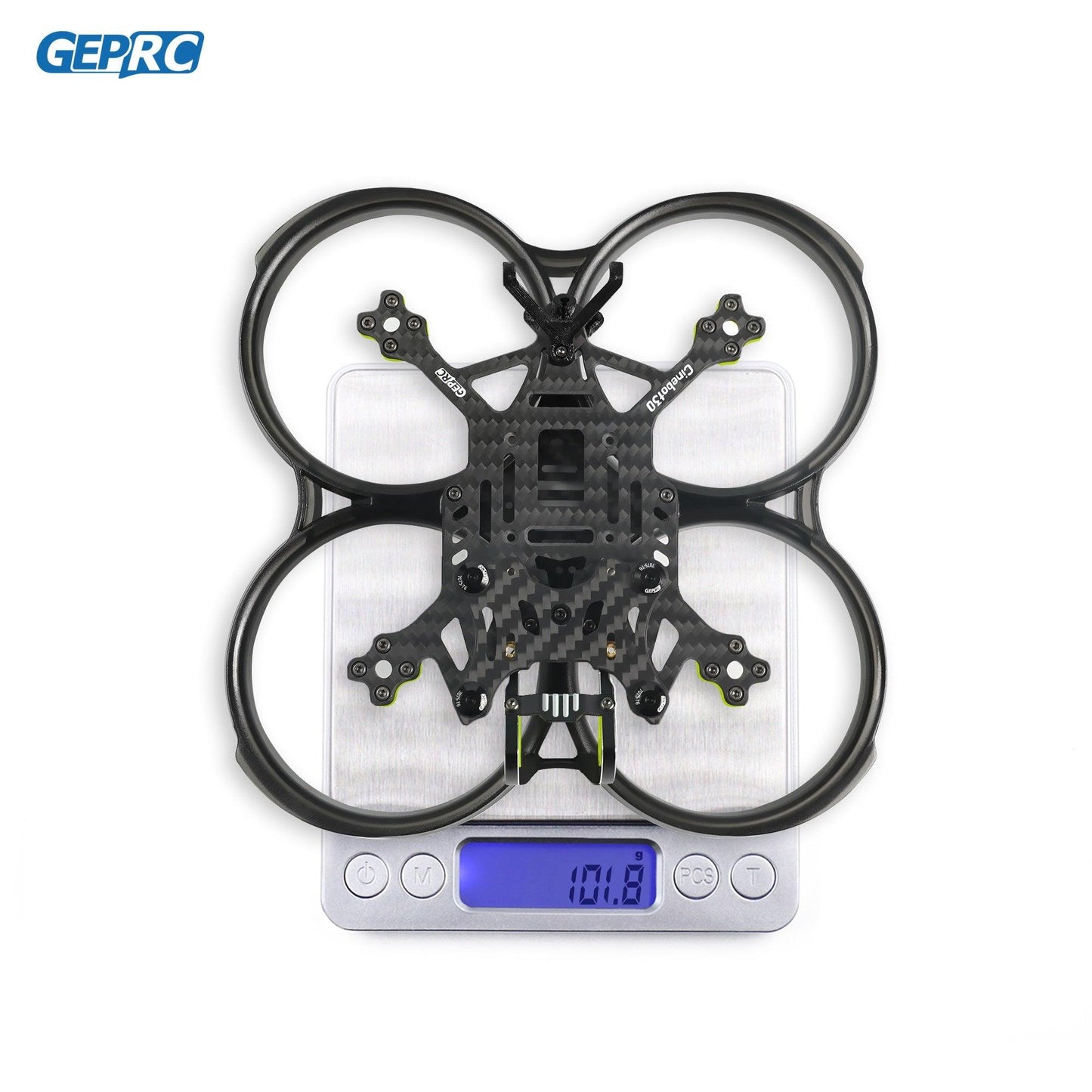

  • Weight: 101.8g (without Led light strip) / 107.3g (with COB light strip)

Features

1. Design that combines engineering and aesthetics.

2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.

3. Selected high-toughness and impact-resistant PC +PET material for injection molding.

4. Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.

5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.

6. The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.

7. Compatible with a variety of fpv system with the program, choose to belong to your first-person view.

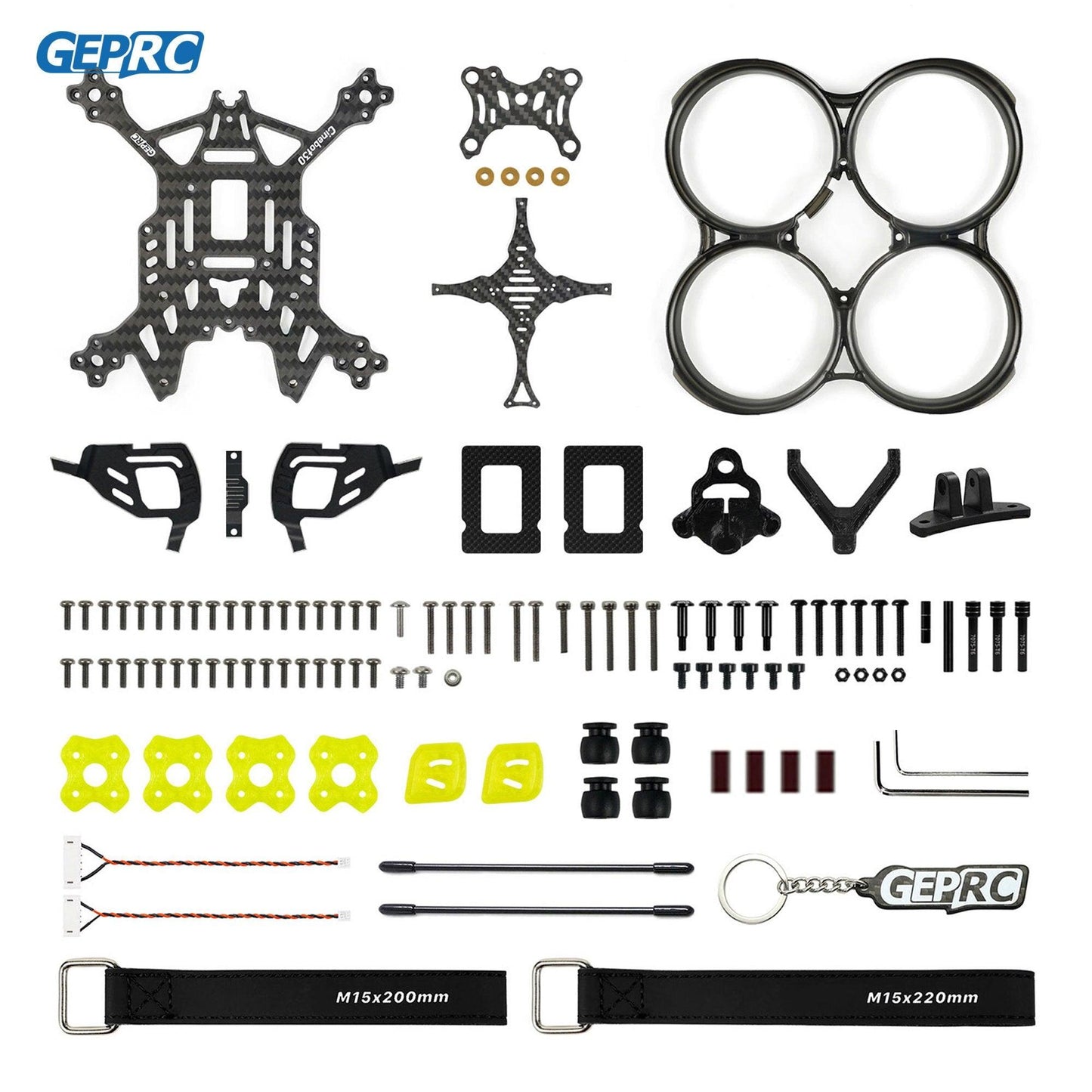

Includes

1 x Main Plate 3.0mm

1 x Bottom Plate 1.5mm

1 x Isolation Plate 2.0mm

1 x Set of Screws

1 x Bec Module (optional)

1 x Cob Light Strip (optional)

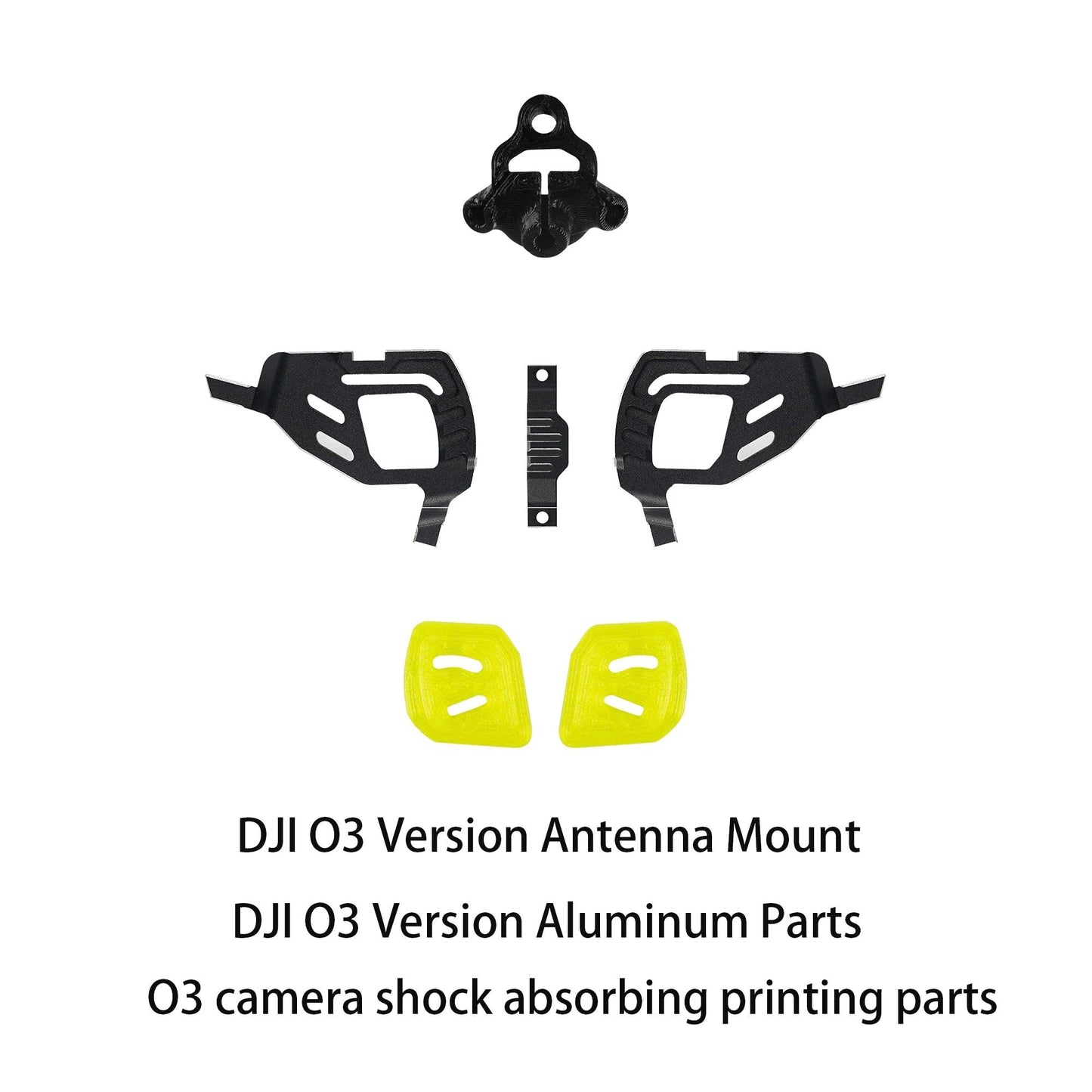

1 x Set of 3D Printed Parts

1 x 3 inch One-piece Injection-molded Propeller Guard

1 x Naked GoPro Base Mount

2 x Battery Non-slip Mat

2x Receiver Antenna Tube 100mm

1 x Battery Straps M15*200

1 x Battery Straps M15*220

1 x Naked GoPro Power Cable 4S Balance Head

1 x Naked GoPro Power Cable 6S Balance Head

1 x L-shaped Screwdriver 1.5mm

1 x L-shaped Screwdriver 2.0mm

1 x Carbon Fiber Keychain

2 x GEPRC Stickers

1 x Service Card

1 x Packaging Box
GEPRC Cinebot30o3 3-inch FPV frame with propeller guard,

GEPRC Cinebot30o3 3-inch FPV frame with propeller guard, compact design 7i High strength Gimbal vibration Quick-disassembly Adapt to 03 Air Unit

True X Arm Design Stable and flexible flight attitude specially designed for cinematic flying 0

Unique 'X' arm design provides a stable and flexible flight attitude, specifically engineered for smooth cinematic flying experiences.

Full 3K Carbon Fiber Board Cutting carbon fiber with the grain and chamfer cutting, lighter

The CT30 features a high-quality 3K carbon fiber board with precise cutting techniques that ensure optimal grain alignment and chamfered edges. This results in a lightweight yet incredibly strong construction. The board also accommodates mainstream AIO flight controllers, with mounting holes measuring 25.5mm x 25.5mm, as well as providing support for various VTX mounting options.

High-Strength Propeller Guard Selected high-toughness and impact-resistant

The CT30 features a durable propeller guard made from high-toughness and impact-resistant PC + PET material, suitable for injection molding. This design also includes an embedded ring cob light strip, which is optional.

Easily carry a variety of action cameras 8 4r Cx 9 Newly designed

Ergonomically designed, the CT30 features a new-generation TPU camera mount that accommodates a wide range of action cameras (8-4R/CX-9). This innovative design eliminates the common issue of camera IMU resonance and 'jello' effect, ensuring smooth and stable footage capture.

FPV camera mount and fuselage aluminum column using aviation 7075-T material .

The CT30 features a robust FPV camera mount that incorporates an aluminum column constructed from high-strength, lightweight aviation-grade 7075-T6 material. This design is compatible with multiple versions of TaG and GEPRC cameras.

Quick-Disassembly Design Easy-to-disassemble quick Cine

The CT30 features a clever Quick-Disassembly Design that makes maintenance a breeze. With just 6 screws removed, you can quickly disassemble and reassemble your drone for easy upgrading or repair.

in the face of the headwind, we only go up to the wind, never go withGEPRC GEP-CT30 O3 FPV Frame Kit Parts 3inchGEPRC GEP-CT30 OQ GEPRO M1Sxzoomm M1sx220mm

Q GEPRO M1Sxzoomm M1sx220mm OctoqauIj 8 Quaae 0 Qi0 ddaV_ T TTTT TTtTTTTTTTT ff TtTTTT T .Ttt 'IIII' TtttitttittT 'T'T . T ttTTtt TtTtTTTTT oo00 888
